ZSW-30-106Mobile Phone

MANUAL DE USUARIO DE LA SERIE B Android™ 10 (Go edition) Bmobile BL60 1 Google, Android, Google Play, Gmail, YouTube y otras marcas son marcas comerciales de Google LLC. Índice 1.Introducción ................................................................................... 3 Seguridad Precauciones generales Precauciones en el uso del cargador Limpieza y mantenimiento Precauciones comunes 2. Familiarizándose con el teléfono ................................................ 7 3. Inicializando el teléfono ............................................................... 9 Como retirar la cubierta posterior Como insertar la tarjeta SIM Encendido/Apagado 2 Como instalar una tarjeta de memoria Carga de la batería 4. Funciones básicas del teléfono......... ..................................... 12 Como cambiar el estilo del menú principal Notificaciones Cámara Red GPRS/WCDMA - WIFI Almacenamiento masivo YouTube Music Bluetooth Radio FM Calculadora 5. Especificaciones técnicas ......................................................... 21 6. Aviso importante sobre el FCC ................................................. 23 7. Garantía limitada Bmobile ......................................................... 26 3 1. Introducción Seguridad Con el fin de garantizar que el teléfono es usado de manera segura y correcta, lea las siguientes precauciones antes de utilizarlo. 1.1 Precauciones generales • El teléfono es adecuado solo para la batería y el cargador aprobados por el fabricante, usar otros accesorios puede provocar que la batería presente mal funcionamiento como fugas, sobrecalentamiento, explosiones o incendiarse. • No golpee, haga vibrar o tire el teléfono para evitar daños en la unidad. • El líquido de la batería puede ocasionar quemaduras en la ropa y piel en caso de que se presenten fugas. Si esto sucede, por favor, lavar con abundante agua limpia inmediatamente y vaya al hospital más cercano. • Por favor, mantenga la batería lejos del fuego para evitar incendios o explosión ya que puede provocar fugas o emitir un olor extraño. • No coloque o exponga el teléfono a la humedad o puede provocar sobrecalentamiento, humo y corrosión. • No utilice ni coloque la batería bajo la luz solar directa o en lugares calientes, puede causar fugas o sobrecalentamiento, lo que reduce el rendimiento y acorta la vida útil de la misma. • No cargue la batería durante más de 24 horas seguidas. 4 • Use con cuidado el auricular, el uso del mismo con excesivo volumen puede causar pérdida auditiva. 1.2 Precauciones en el uso del cargador • No provoque ningún tipo de cortocircuito en el cargador, o puede causar una descarga eléctrica, humos y daños al cargador. • No utilice el cargador si el cable de alimentación está roto o dañado, o puede provocar incendios y descargas eléctricas. • Elimine el polvo acumulado en la clavija de alimentación. • No ponga contenedores de agua al lado de la fuente de alimentación para evitar el sobrecalentamiento, incendios, descargas eléctricas y mal funcionamiento. • No desmonte ni fuerce el cargador o puede provocar lesiones personales, descarga eléctrica, fuego y daños en el cargador. • No utilice el cargador en lugares de alta humedad, como cuartos de baño, o puede causar una descarga eléctrica, fuego y daños en el cargador. • No toque el cargador, el cable o el tomacorriente de alimentación con las manos mojadas ya que esto puede causar una descarga eléctrica. • No coloque objetos pesados sobre el cable de alimentación o puede dañar el cable y provocar un mal funcionamiento. • Por favor desconecte el cargador del tomacorriente antes de su limpieza y mantenimiento. • Por favor, mantenga el cargador desconectado del tomacorriente y no tire del cable de 5 alimentación ya que puede dañar el cable de alimentación y provocar una descarga eléctrica. 1.3 Limpieza y mantenimiento • Dado que el teléfono, la batería y el cargador no son resistentes al agua, no los utilice en lugares de alta humedad y evite que se mojen debido a la lluvia. • Por favor, limpiar la batería y el cargador con un paño suave y seco. • Nunca utilice alcohol, solventes y/o soluciones corrosivas, como el benceno, para limpiar el teléfono. • Los tomacorrientes sucios pueden causar un mal contacto y una baja en la fuente de alimentación, o incluso puede hacer que la carga de la batería no se realice correctamente. Así que, por favor, límpielos periódicamente. 1.4 Precauciones Comunes Teléfono móvil: • Utilice el teléfono en un ambiente con temperatura entre 20 °C a 40 °C y la humedad menor a 75 %. • Utilice el teléfono lejos de los teléfonos fijos, televisores, radios y equipos de automatización de oficina, para no afectar el normal funcionamiento de estos equipos y del teléfono móvil. 6 Cargador: No cargue el teléfono en las siguientes condiciones: - Lugares con luz solar directa. - Lugares con temperatura ambiente inferior a 0 °C o superior a 40 °C, lugares húmedos o polvorientos con fuertes vibraciones (Esto pueden provocar un mal funcionamiento) - Lugares cerca de electrodomésticos (Esto puede afectar las imágenes y el sonido) como aparato de TV, radio, etc. - El adaptador debe estar conectado cerca del equipo y debe ser de fácil acceso. 7 2. Familiarizándose con el teléfono Usted puede comenzar a utilizar su teléfono móvil después de familiarizarse con las partes del mismo. 1. Conector de auricular (Jack 3.5mm) 2. Conector USB 3. Cámara Frontal 4. Auricular 5. Pantalla LCD 6. Botones Recientes /Inicio/ Atrás 7. Micrófono 8. Botón Encendido / Apagado 9. Botones de Volumen 10. Flash LED 11. Dual Cámara Trasera 12. Lector de huella 13. Altavoz 8 Los iconos en la pantalla principal o en el menú principal van a depender de la cantidad de aplicaciones instaladas en el terminal. Nota: El sistema operativo en este dispositivo está diseñado para funcionar con baja memoria RAM por lo que no es recomendable descargar aplicaciones muy grandes y/o descargar muchas aplicaciones y usarlas al mismo tiempo ya que puede ocasionar un c…

Text truncated - open the document above for the full version.

b mobile HK Limited Agent Authorization Company: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong Product Name: Mobile Phone Model Number(s): BL60, BL60 Pro, BL61 Product Description: Mobile Phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021.01.07 Name: KA SHING LAM Title: DIRECTOR Company: b mobile HK Limited

b mobile HK Limited Family models difference declaration Mobile Phone Model: BL60, BL60 Pro, BL61 Trade mark: Bmobile Difference declaration: All the model are the same circuit and RF module, except the Model names. Regards, Signature Name: KA SHING LAM Date: 2021-01-07

b mobile HK Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 01/07/2021 Subject; Request for Confidentiality FCC ID: ZSW-30-106 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM List Part Placement Tune-up procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: KA SHING LAM Title: DIRECTOR

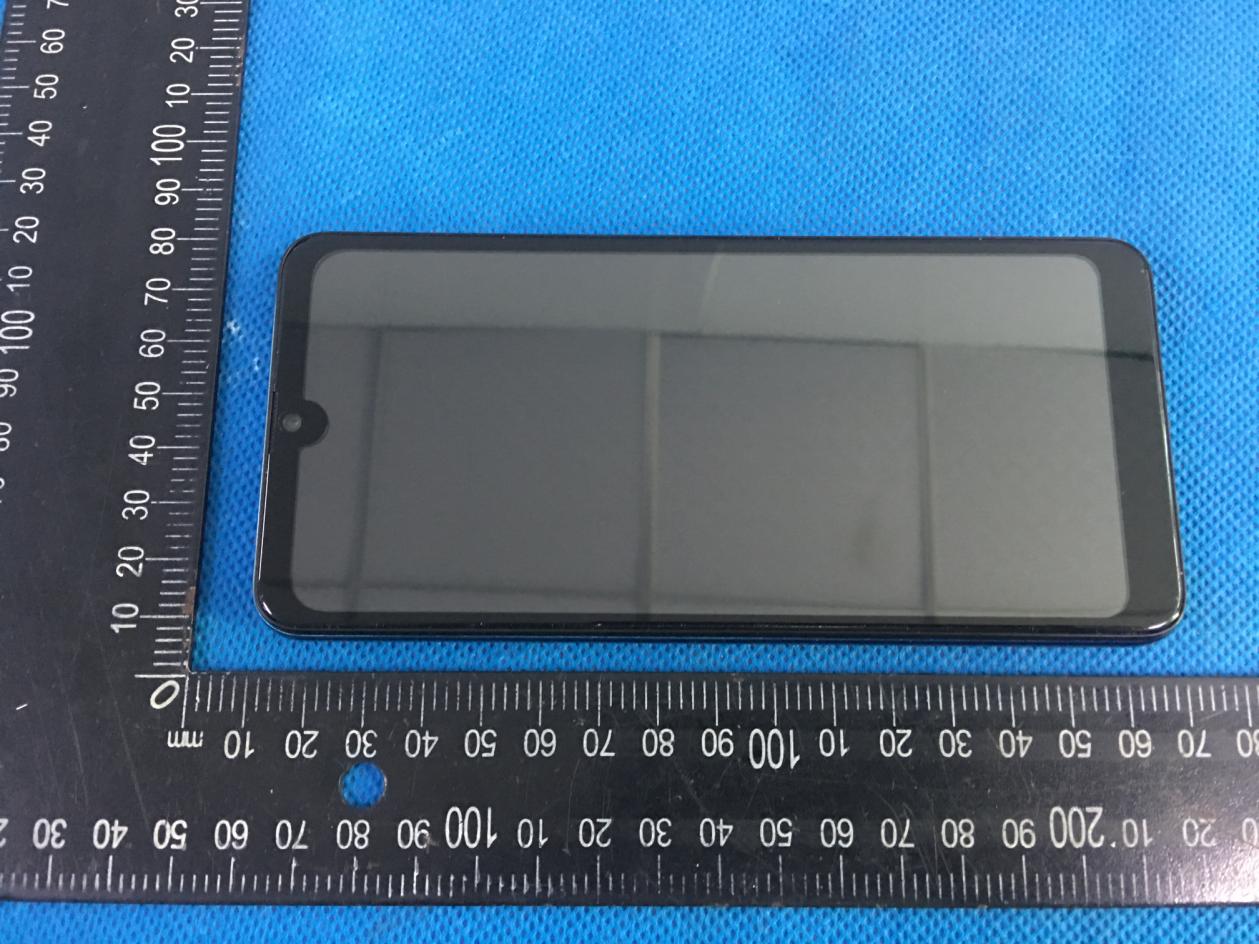

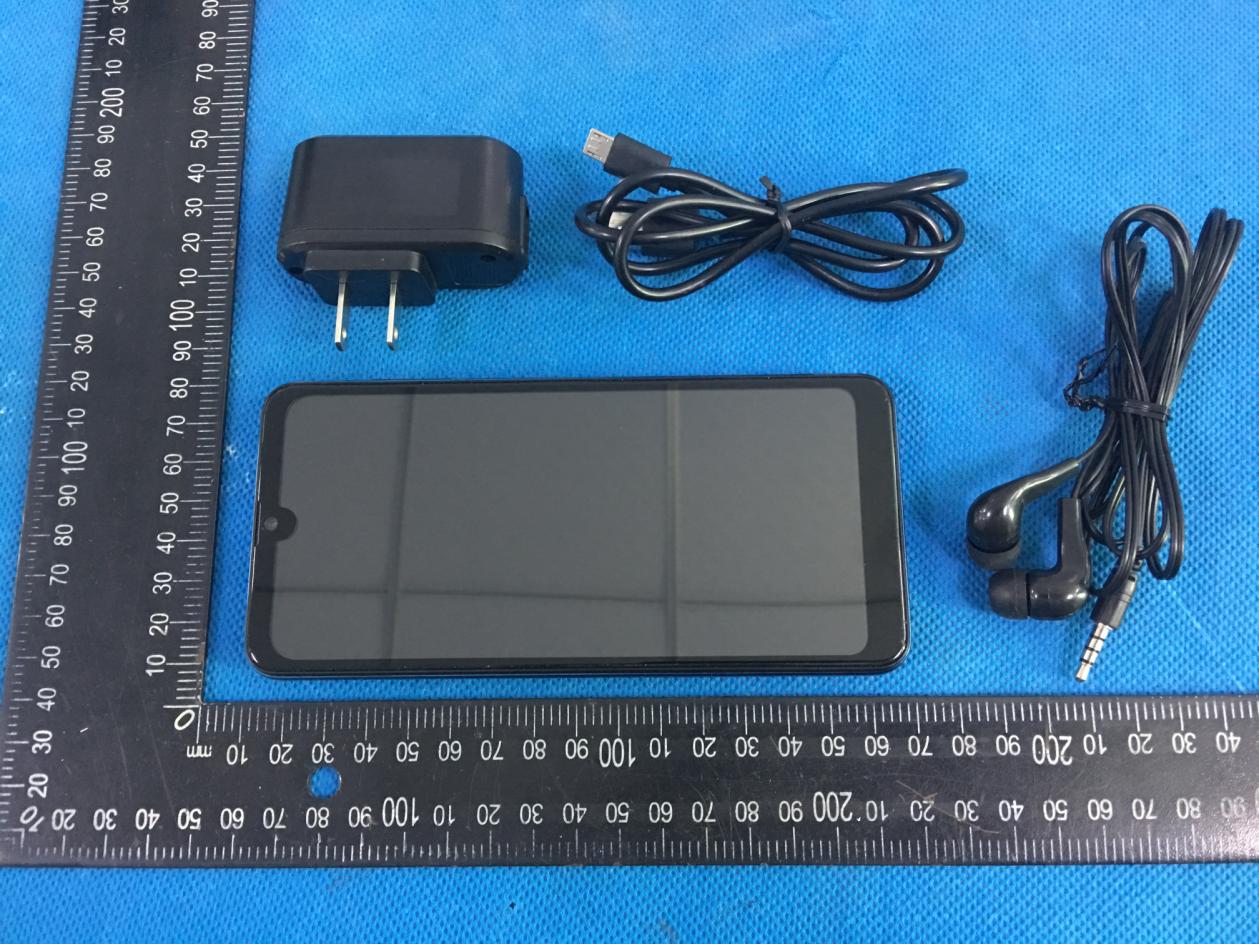

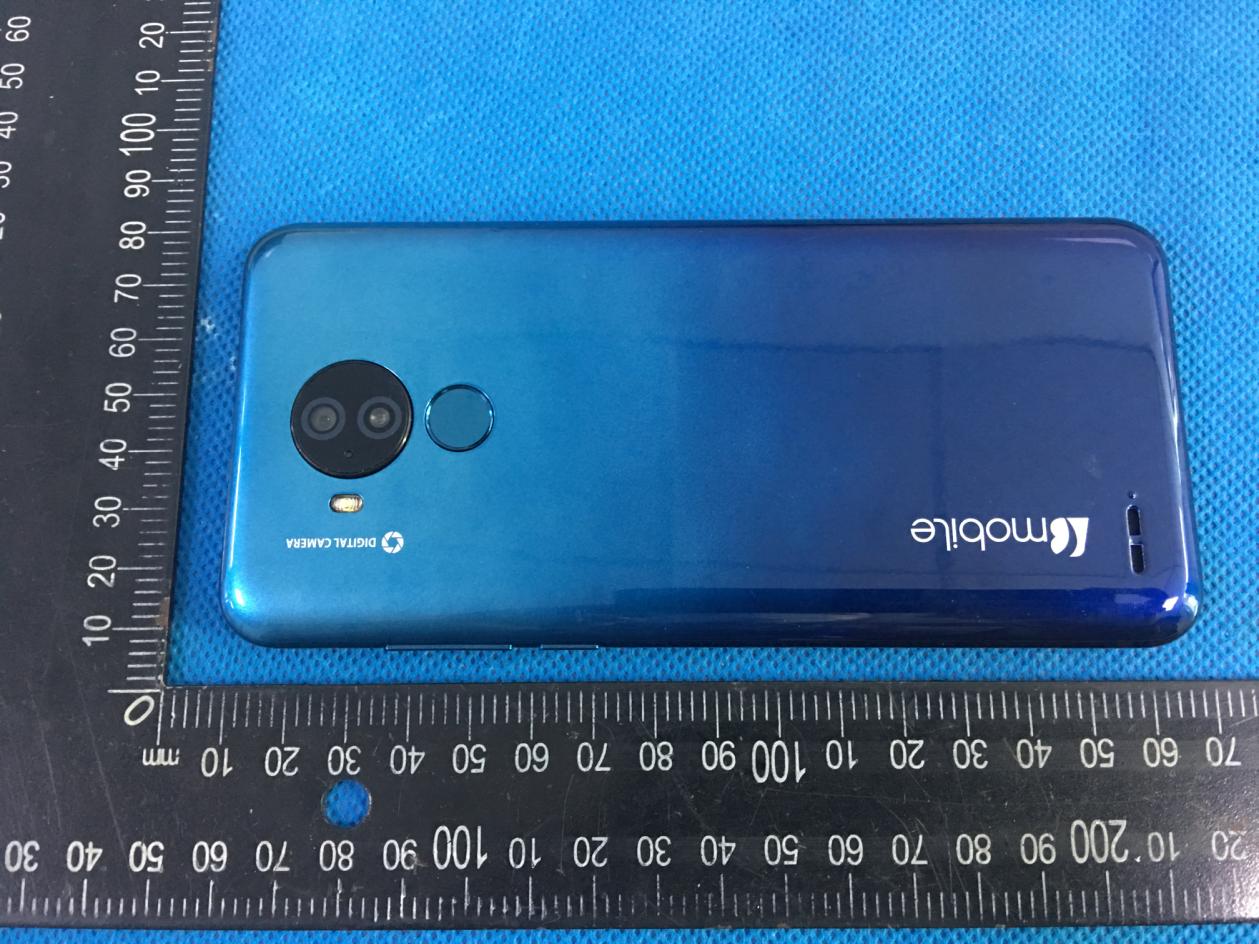

FCC ID: ZSW-30-106 Model Name: BL60 External Photographs Photo1 Photo2 FCC ID: ZSW-30-106 Model Name: BL60 Photo3 Photo4 FCC ID: ZSW-30-106 Model Name: BL60 Photo5 Photo6 FCC ID: ZSW-30-106 Model Name: BL60 Photo7 Photo8 FCC ID: ZSW-30-106 Model Name: BL60 Photo9 Photo10

Label Sample and Label Location

FCC ID: ZSW-30-106 Model Name: BL60 Internal Photographs Photo1 Photo2 FCC ID: ZSW-30-106 Model Name: BL60 Photo3 Photo4 FCC ID: ZSW-30-106 Model Name: BL60 Photo5 Photo6 FCC ID: ZSW-30-106 Model Name: BL60 Photo7 Photo8 FCC ID: ZSW-30-106 Model Name: BL60 Photo9 Photo10 FCC ID: ZSW-30-106 Model Name: BL60 Photo11 Photo12 FCC ID: ZSW-30-106 Model Name: BL60 Photo13 Photo14 FCC ID: ZSW-30-106 Model Name: BL60 Photo15 Photo16 LTE Div ANT Wi-Fi / BT / GPS ANT FCC ID: ZSW-30-106 Model Name: BL60 Photo17 GSM / WCDMA / LTE Main ANT
