ZSW-30-114Mobile phone

b mobile HK Limited

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 27, 2021
Application Purpose: Original Equipment
Date of Application: Jul 27, 2021
Equipment Note: Mobile phone
Frequency Range: 2510.00000000 - 2560.00000000
Company: b mobile HK Limited
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MANUAL DE USUARIO DE LA SERIE B Android™ 11 (Go edition) Bmobile Google, Android, Google Play, Gmail, YouTube y otras marcas son marcas comerciales de Google LLC. 1 Índice 1.Introducción ................................................................................... 2 2. Familiarizándose con el teléfono ................................................ 6 3. Inicializando el teléfono ............................................................... 8 4. Funciones básicas del teléfono......... ..................................... 11 5. Especificaciones técnicas ......................................................... 20 6. Aviso importante sobre el FCC ................................................. 22 7. Garantía limitada Bmobile ......................................................... 25 2 1. Introducción Seguridad Con el fin de garantizar que el teléfono es usado de manera segura y correcta, lea las siguientes precauciones antes de utilizarlo. 1.1 Precauciones generales • El teléfono es adecuado solo para la batería y el cargador aprobados por el fabricante, usar otros accesorios puede provocar que la batería presente mal funcionamiento como fugas, sobrecalentamiento, explosiones o incendiarse. • No golpee, haga vibrar o tire el teléfono para evitar daños en la unidad. • El líquido de la batería puede ocasionar quemaduras en la ropa y piel en caso de que se presenten fugas. Si esto sucede, por favor, lavar con abundante agua limpia inmediatamente y vaya al hospital más cercano. • Por favor, mantenga la batería lejos del fuego para evitar incendios o explosión ya que puede provocar fugas o emitir un olor extraño. • No coloque o exponga el teléfono a la humedad o puede provocar sobrecalentamiento, humo y corrosión. • No utilice ni coloque la batería bajo la luz solar directa o en lugares calientes, puede causar fugas o sobrecalentamiento, lo que reduce el rendimiento y acorta la vida útil de la misma. • No cargue la batería durante más de 24 horas seguidas. 3 • Use con cuidado el auricular, el uso del mismo con excesivo volumen puede causar pérdida auditiva. 1.2 Precauciones en el uso del cargador • No provoque ningún tipo de cortocircuito en el cargador, o puede causar una descarga eléctrica, humos y daños al cargador. • No utilice el cargador si el cable de alimentación está roto o dañado, o puede provocar incendios y descargas eléctricas. • Elimine el polvo acumulado en la clavija de alimentación. • No ponga contenedores de agua al lado de la fuente de alimentación para evitar el sobrecalentamiento, incendios, descargas eléctricas y mal funcionamiento. • No desmonte ni fuerce el cargador o puede provocar lesiones personales, descarga eléctrica, fuego y daños en el cargador. • No utilice el cargador en lugares de alta humedad, como cuartos de baño, o puede causar una descarga eléctrica, fuego y daños en el cargador. • No toque el cargador, el cable o el tomacorriente de alimentación con las manos mojadas ya que esto puede causar una descarga eléctrica. • No coloque objetos pesados sobre el cable de alimentación o puede dañar el cable y provocar un mal funcionamiento. • Por favor desconecte el cargador del tomacorriente antes de su limpieza y mantenimiento. • Por favor, mantenga el cargador desconectado del tomacorriente y no tire del cable de 4 alimentación ya que puede dañar el cable de alimentación y provocar una descarga eléctrica. 1.3 Limpieza y mantenimiento • Dado que el teléfono, la batería y el cargador no son resistentes al agua, no los utilice en lugares de alta humedad y evite que se mojen debido a la lluvia. • Por favor, limpiar la batería y el cargador con un paño suave y seco. • Nunca utilice alcohol, solventes y/o soluciones corrosivas, como el benceno, para limpiar el teléfono. • Los tomacorrientes sucios pueden causar un mal contacto y una baja en la fuente de alimentación, o incluso puede hacer que la carga de la batería no se realice correctamente. Así que, por favor, límpielos periódicamente. 1.4 Precauciones Comunes Teléfono móvil: • Utilice el teléfono en un ambiente con temperatura entre 20 °C a 40 °C y la humedad menor a 75 %. • Utilice el teléfono lejos de los teléfonos fijos, televisores, radios y equipos de automatización de oficina, para no afectar el normal funcionamiento de estos equipos y del teléfono móvil. 5 Cargador: No cargue el teléfono en las siguientes condiciones: - Lugares con luz solar directa. - Lugares con temperatura ambiente inferior a 0 °C o superior a 40 °C, lugares húmedos o polvorientos con fuertes vibraciones (Esto pueden provocar un mal funcionamiento) - Lugares cerca de electrodomésticos (Esto puede afectar las imágenes y el sonido) como aparato de TV, radio, etc. - El adaptador debe estar conectado cerca del equipo y debe ser de fácil acceso. 6 2. Familiarizándose con el teléfono Usted puede comenzar a utilizar su teléfono móvil después de familiarizarse con las partes del mismo. 1. Conector de auricular (Jack 3.5mm) 2. Conector USB 3. Cámara frontal 4. Auricular 5. Pantalla LCD 6. Botones en pantalla táctil 7. Micrófono 8. Botones de volumen 9. Botón encendido/ apagado 10. Cámara 11. Flash LED 12. Altavoz 7 Los iconos en la pantalla principal o en el menú principal van a depender de la cantidad de aplicaciones instaladas en el terminal. Nota: El sistema operativo en este dispositivo está diseñado para funcionar con baja memoria RAM por lo que no es recomendable descargar aplicaciones muy grandes y/o descargar muchas aplicaciones y usarlas al mismo tiempo ya que puede ocasionar un comportamiento inestable del mismo. 8 3. Inicializando el teléfono Como retirar la cubierta posterior: • Asegúrese de que el dispositivo esté apagado. • Sujete firmemente el aparato con la parte frontal hacia abajo. • Deslice el dedo en la ranura diseñada para remover la cubierta y retire suavemente la cubierta trasera. Como insertar la tarjeta SIM: Ubique la ranura para tarjeta SIM e inserte la SIM tal como se muestra en la figura. Adicional usted ten…

Text truncated - open the document above for the full version.

Cover Letter(s)

b mobile HK Limited Agent Authorization Company: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong,China Product Name: Mobile Phone Model Number(s): BL51,BL50 Product Description: Mobile Phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021.07.26 Name: Carlos Lopez Title: DIRECTOR Company: b mobile HK Limited

Cover Letter(s)

b mobile HK Limited Family models difference declaration Product Name: Mobile Phone Trade Name: Bmobile Model Name: BL51,BL50 Difference declaration: All the model are the same circuit and RF module, except the model names. Regards, Signature Name: Carlos Lopez Date: 2021-07-26

Cover Letter(s)

b mobile HK Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07/26/2021 Subject; Request for Confidentiality FCC ID:ZSW-30-114 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM List Tune-up procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Carlos Lopez Title: DIRECTOR

External Photos

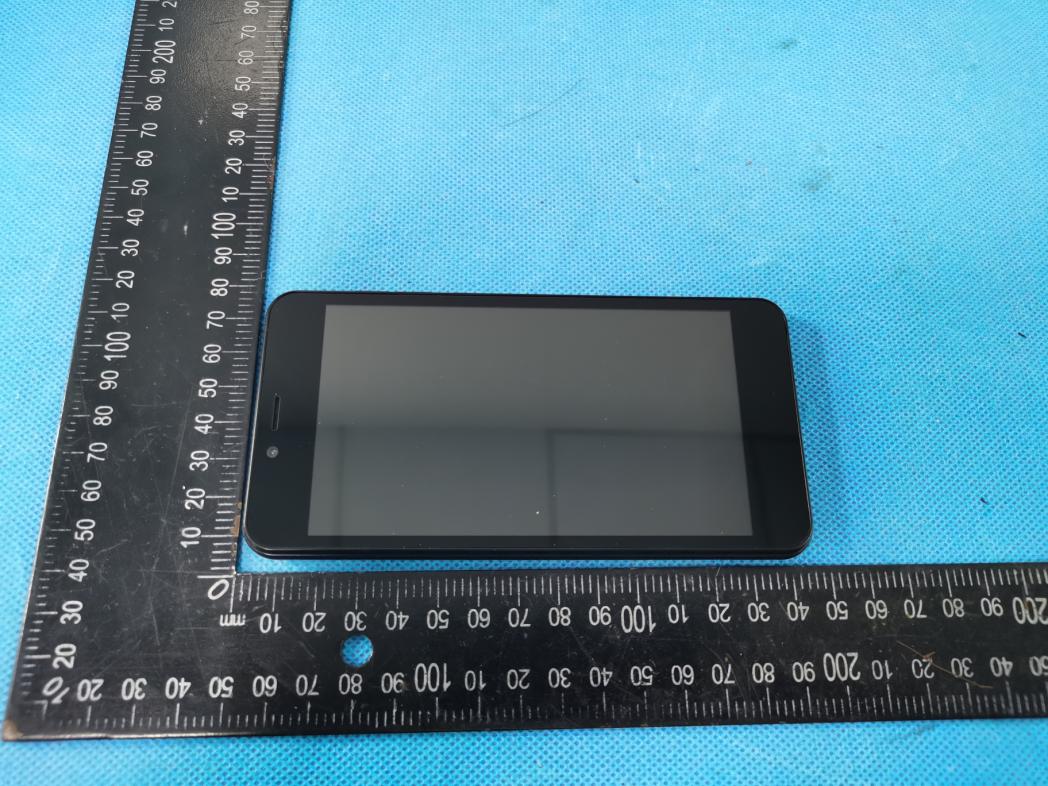

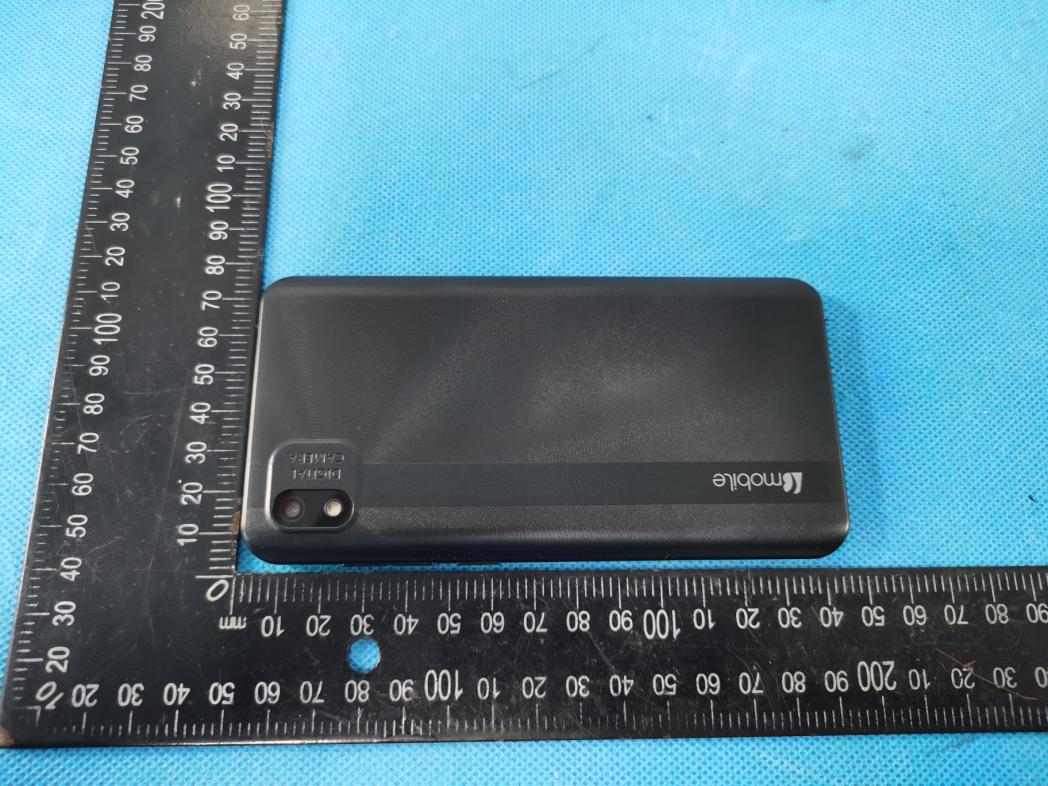

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

Internal Photos

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 GSM/WC DMA/LTE Main ANT LTE AUX ANT Photo 17 WIFI/BT ANT

RF Exposure Info

Page 1 of 171 Report No.: S21061700703001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Trademark： Bmobile Model Name： BL51 Family Model： BL50 Report No.： S21061700703001 FCC ID： ZSW-30-114 Prepared for b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel.: 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 171 Report No.: S21061700703001 TEST RESULT CERTIFICATION Applicant’s name .................. : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong,China Manufacturer's Name ........... : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong,China Product description Product name ......................... : Mobile Phone Trademark ............................ : Bmobile Model Name ......................... : BL51 Family Model .......................... : BL50 Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Jun. 29, 2021 ~ Jul. 09, 2021 Date of Issue .......................................... : Jul. 12, 2021 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 171 Report No.: S21061700703001 ※※ Revision History ※※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jul. 12, 2021 Jacob Chen Page 4 of 171 Report No.: S21061700703001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposu…

Text truncated - open the document above for the full version.

RF Exposure Info

Page 121 of 171 Report No.: S21061700703001 Page 122 of 171 Report No.: S21061700703001 Page 123 of 171 Report No.: S21061700703001 Page 124 of 171 Report No.: S21061700703001 Page 125 of 171 Report No.: S21061700703001 Page 126 of 171 Report No.: S21061700703001 Page 127 of 171 Report No.: S21061700703001 Page 128 of 171 Report No.: S21061700703001 Page 129 of 171 Report No.: S21061700703001 Page 130 of 171 Report No.: S21061700703001 Page 131 of 171 Report No.: S21061700703001 Page 132 of 171 Report No.: S21061700703001 Page 133 of 171 Report No.: S21061700703001 Page 134 of 171 Report No.: S21061700703001 Page 135 of 171 Report No.: S21061700703001 Page 136 of 171 Report No.: S21061700703001 Page 137 of 171 Report No.: S21061700703001 Page 138 of 171 Report No.: S21061700703001 Page 139 of 171 Report No.: S21061700703001 Page 140 of 171 Report No.: S21061700703001 Page 141 of 171 Report No.: S21061700703001 Page 142 of 171 Report No.: S21061700703001 Page 143 of 171 Report No.: S21061700703001 Page 144 of 171 Report No.: S21061700703001 Page 145 of 171 Report No.: S21061700703001 Page 146 of 171 Report No.: S21061700703001 Page 147 of 171 Report No.: S21061700703001 Page 148 of 171 Report No.: S21061700703001 Page 149 of 171 Report No.: S21061700703001 Page 150 of 171 Report No.: S21061700703001 Page 151 of 171 Report No.: S21061700703001 Page 152 of 171 Report No.: S21061700703001 Page 153 of 171 Report No.: S21061700703001 Page 154 of 171 Report No.: S21061700703001 Page 155 of 171 Report No.: S21061700703001 Page 156 of 171 Report No.: S21061700703001 Page 157 of 171 Report No.: S21061700703001 Page 158 of 171 Report No.: S21061700703001 Page 159 of 171 Report No.: S21061700703001 Page 160 of 171 Report No.: S21061700703001 Page 161 of 171 Report No.: S21061700703001 Page 162 of 171 Report No.: S21061700703001 Page 163 of 171 Report No.: S21061700703001 Page 164 of 171 Report No.: S21061700703001 Page 165 of 171 Report No.: S21061700703001 Page 166 of 171 Report No.: S21061700703001 Page 167 of 171 Report No.: S21061700703001 Page 168 of 171 Report No.: S21061700703001 Page 169 of 171 Report No.: S21061700703001 Page 170 of 171 Report No.: S21061700703001

Test Report

Report No.: S21061700702005 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict Band2 1.4 18607 1 #0 QPSK 23.07 PASS Band2 1.4 18607 1 #Mid QPSK 23.03 PASS Band2 1.4 18607 1 #Max QPSK 23.16 PASS Band2 1.4 18607 3 #0 QPSK 23.11 PASS Band2 1.4 18607 3 #Mid QPSK 23.00 PASS Band2 1.4 18607 3 #Max QPSK 23.11 PASS Band2 1.4 18607 6 #0 QPSK 21.92 PASS Band2 1.4 18607 1 #0 QAM16 23.08 PASS Band2 1.4 18607 1 #Mid QAM16 22.99 PASS Band2 1.4 18607 1 #Max QAM16 23.03 PASS Band2 1.4 18607 3 #0 QAM16 22.17 PASS Band2 1.4 18607 3 #Mid QAM16 22.16 PASS Band2 1.4 18607 3 #Max QAM16 22.19 PASS Band2 1.4 18607 6 #0 QAM16 21.11 PASS Band2 1.4 18900 1 #0 QPSK 22.99 PASS Band2 1.4 18900 1 #Mid QPSK 22.95 PASS Band2 1.4 18900 1 #Max QPSK 23.03 PASS Band2 1.4 18900 3 #0 QPSK 22.87 PASS Band2 1.4 18900 3 #Mid QPSK 22.93 PASS Band2 1.4 18900 3 #Max QPSK 22.85 PASS Band2 1.4 18900 6 #0 QPSK 21.91 PASS Band2 1.4 18900 1 #0 QAM16 21.99 PASS Band2 1.4 18900 1 #Mid QAM16 21.93 PASS Band2 1.4 18900 1 #Max QAM16 21.99 PASS Band2 1.4 18900 3 #0 QAM16 21.91 PASS Band2 1.4 18900 3 #Mid QAM16 21.95 PASS Band2 1.4 18900 3 #Max QAM16 21.95 PASS Band2 1.4 18900 6 #0 QAM16 20.93 PASS Band2 1.4 19193 1 #0 QPSK 23.12 PASS Band2 1.4 19193 1 #Mid QPSK 23.14 PASS Band2 1.4 19193 1 #Max QPSK 23.07 PASS Band2 1.4 19193 3 #0 QPSK 23.03 PASS Band2 1.4 19193 3 #Mid QPSK 22.98 PASS Band2 1.4 19193 3 #Max QPSK 23.00 PASS Band2 1.4 19193 6 #0 QPSK 21.95 PASS Band2 1.4 19193 1 #0 QAM16 22.26 PASS Band2 1.4 19193 1 #Mid QAM16 22.32 PASS Band2 1.4 19193 1 #Max QAM16 22.27 PASS Band2 1.4 19193 3 #0 QAM16 21.89 PASS Band2 1.4 19193 3 #Mid QAM16 21.84 PASS Band2 1.4 19193 3 #Max QAM16 21.92 PASS Report No.: S21061700702005 Band2 1.4 19193 6 #0 QAM16 21.07 PASS Band2 3 18615 1 #0 QPSK 22.98 PASS Band2 3 18615 1 #Mid QPSK 22.97 PASS Band2 3 18615 1 #Max QPSK 22.84 PASS Band2 3 18615 8 #0 QPSK 21.93 PASS Band2 3 18615 8 #Mid QPSK 22.00 PASS Band2 3 18615 8 #Max QPSK 21.70 PASS Band2 3 18615 15 #0 QPSK 21.95 PASS Band2 3 18615 1 #0 QAM16 23.11 PASS Band2 3 18615 1 #Mid QAM16 23.11 PASS Band2 3 18615 1 #Max QAM16 23.04 PASS Band2 3 18615 8 #0 QAM16 21.01 PASS Band2 3 18615 8 #Mid QAM16 20.95 PASS Band2 3 18615 8 #Max QAM16 20.85 PASS Band2 3 18615 15 #0 QAM16 21.17 PASS Band2 3 18900 1 #0 QPSK 23.03 PASS Band2 3 18900 1 #Mid QPSK 23.06 PASS Band2 3 18900 1 #Max QPSK 23.03 PASS Band2 3 18900 8 #0 QPSK 21.89 PASS Band2 3 18900 8 #Mid QPSK 21.92 PASS Band2 3 18900 8 #Max QPSK 21.85 PASS Band2 3 18900 15 #0 QPSK 21.87 PASS Band2 3 18900 1 #0 QAM16 21.98 PASS Band2 3 18900 1 #Mid QAM16 21.97 PASS Band2 3 18900 1 #Max QAM16 21.94 PASS Band2 3 18900 8 #0 QAM16 21.03 PASS Band2 3 18900 8 #Mid QAM16 20.94 PASS Band2 3 18900 8 #Max QAM16 21.01 PASS Band2 3 18900 15 #0 QAM16 20.98 PASS Band2 3 19185 1 #0 QPSK 23.16 PASS Band2 3 19185 1 #Mid QPSK 23.22 PASS Band2 3 19185 1 #Max QPSK 23.24 PASS Band2 3 19185 8 #0 QPSK 21.92 PASS Band2 3 19185 8 #Mid QPSK 21.96 PASS Band2 3 19185 8 #Max QPSK 21.94 PASS Band2 3 19185 15 #0 QPSK 21.94 PASS Band2 3 19185 1 #0 QAM16 21.98 PASS Band2 3 19185 1 #Mid QAM16 21.97 PASS Band2 3 19185 1 #Max QAM16 22.01 PASS Band2 3 19185 8 #0 QAM16 20.94 PASS Band2 3 19185 8 #Mid QAM16 21.04 PASS Band2 3 19185 8 #Max QAM16 20.83 PASS Band2 3 19185 15 #0 QAM16 21.08 PASS Band2 5 18625 1 #0 QPSK 22.97 PASS Report No.: S21061700702005 Band2 5 18625 1 #Mid QPSK 22.74 PASS Band2 5 18625 1 #Max QPSK 22.84 PASS Band2 5 18625 12 #0 QPSK 21.88 PASS Band2 5 18625 12 #Mid QPSK 21.95 PASS Band2 5 18625 12 #Max QPSK 21.84 PASS Band2 5 18625 25 #0 QPSK 21.80 PASS Band2 5 18625 1 #0 QAM16 21.98 PASS Band2 5 18625 1 #Mid QAM16 21.90 PASS Band2 5 18625 1 #Max QAM16 21.84 PASS Band2 5 18625 12 #0 QAM16 21.10 PASS Band2 5 18625 12 #Mid QAM16 20.95 PASS Band2 5 18625 12 #Max QAM16 20.90 PASS Band2 5 18625 25 #0 QAM16 20.88 PASS Band2 5 18900 1 #0 QPSK 22.88 PASS Band2 5 18900 1 #Mid QPSK 22.93 PASS Band2 5 18900 1 #Max QPSK 22.92 PASS Band2 5 18900 12 #0 QPSK 21.94 PASS Band2 5 18900 12 #Mid QPSK 21.95 PASS Band2 5 18900 12 #Max QPSK 21.93 PASS Band2 5 18900 25 #0 QPSK 21.97 PASS Band2 5 18900 1 #0 QAM16 22.05 PASS Band2 5 18900 1 #Mid QAM16 22.05 PASS Band2 5 18900 1 #Max QAM16 22.04 PASS Band2 5 18900 12 #0 QAM16 20.86 PASS Band2 5 18900 12 #Mid QAM16 20.85 PASS Band2 5 18900 12 #Max QAM16 20.88 PASS Band2 5 18900 25 #0 QAM16 21.12 PASS Band2 5 19175 1 #0 QPSK 22.99 PASS Band2 5 19175 1 #Mid QPSK 23.01 PASS Band2 5 19175 1 #Max QPSK 23.03 PASS Band2 5 19175 12 #0 QPSK 21.90 PASS Band2 5 19175 12 #Mid QPSK 21.79 PASS Band2 5 19175 12 #Max QPSK 21.91 PASS Band2 5 19175 25 #0 QPSK 21.90 PASS Band2 5 19175 1 #0 QAM16 21.52 PASS Band2 5 19175 1 #Mid QAM16 21.60 PASS Band2 5 19175 1 #Max QAM16 21.66 PASS Band2 5 19175 12 #0 QAM16 20.73 PASS Band2 5 19175 12 #Mid QAM16 20.80 PASS Band2 5 19175 12 #Max QAM16 20.93 PASS Band2 5 19175 25 #0 QAM16 20.98 PASS Band2 10 18650 1 #0 QPSK 22.98 PASS Band2 10 18650 1 #Mid QPSK 22.82 PASS Band2 10 18650 1 #Max QPSK 22.87 PASS Report No.: S21061700702005 Band2 10 18650 25 #0 QPSK 21.95 PASS Band2 10 18650 25 #Mid QPSK 21.82 PASS Band2 10 18650 25 #Max QPSK 21.86 PASS Band2 10 18650 50 #0 QPSK 21.83 PASS Band2 10 18650 1 #0 QAM16 23.17 PASS Band2 10 18650 1 #Mid QAM16 23.05 PASS Band2 10 18650 1 #Max QAM16 23.07 PASS Band2 10 18650 25 #0 QAM16 20.86 PASS Band2 10 18650 25 #Mid QAM16 20.86 PASS Band2 10 18650 25 #Max QAM16 20.82 PASS Band2 10 18650 50 #0 QAM16 20.95 PASS Band2 10 18900 1 #0 QPSK 22.84 PASS Band2 10 18900 1 #Mid QPSK 22.91 PASS Band2 10 18900 1 #Max QPSK 22.95 PASS Band2 10 18900 25 #0 QPSK 21.95 PASS Band2 10 18900 25 #Mid QPSK 21.92 PASS Band2 10 18900 25 #Max QPSK 21.96 PASS Band2 10 18900 50 #0 QPSK 21.88 PASS Band2 10 18900 1 #0 QAM16 21.96 PASS Band2 10 18900 1 #Mid QAM16 21.97 PASS Band2 10 18900 1 #Max QAM16 21.94 PASS Band2 10 18900 25 #0 QAM16 21.07 PASS Band2 10 18900 25 #Mid QAM16 21.00 PASS Band2 10 18900 25 #Max QAM16 21.09 PASS Band2 10 18900 50…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Test Report

Report No.: S21061700702005 Band2 QAM16 BW=20MHz Channel=18700 RB Size=1 Position=#Max Band2 QPSK BW=20MHz Channel=19100 RB Size=1 Position=#Max Report No.: S21061700702005 Band2 QPSK BW=20MHz Channel=19100 RB Size=1 Position=#0 Band2 QPSK BW=20MHz Channel=19100 RB Size=100 Position=#0 Report No.: S21061700702005 Band2 QAM16 BW=20MHz Channel=19100 RB Size=1 Position=#Max Band2 QAM16 BW=20MHz Channel=19100 RB Size=1 Position=#0 Report No.: S21061700702005 Band2 QAM16 BW=20MHz Channel=19100 RB Size=100 Position=#0 Band4 QPSK BW=1.4MHz Channel=19957 RB Size=1 Position=#0 Report No.: S21061700702005 Band4 QPSK BW=1.4MHz Channel=…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Carlos Lopez

[email protected]852-2728 7886Fax: 852-2728 0468

Technical Contact

b mobile HK Limited

[email protected]

China

Test Firm

Shenzhen NTEK Testing Technology Co., Ltd.Alex Li

[email protected]+86-755-6115-9384

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
15	27	2.51 GHz - 2.56 GHz	98.86 mW	18M0W7D	0.010651 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for frequencies below 1GHz and EIRP for frequencies above 1GHz. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions is 0.78W/kg, 0.94W/kg, 0.94W/kg and 1.07W/kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.
