MANUAL DE USUARIO DE LA SERIE B Android™ 12 (Go edition) Bmobile Google, Android, Google Play, Gmail, YouTube y otras marcas son marcas comerciales de Google LLC. 1 Índice 1.Introducción ................................................................................... 2 2. Familiarizándose con el teléfono ................................................ 6 3. Inicializando el teléfono ............................................................... 8 4. Funciones básicas del teléfono......... ..................................... 10 5. Especificaciones técnicas ......................................................... 19 6. Aviso importante sobre el FCC ................................................. 21 7. Garantía limitada Bmobile ......................................................... 24 2 1. Introducción Seguridad Con el fin de garantizar que el teléfono es usado de manera segura y correcta, lea las siguientes precauciones antes de utilizarlo. 1.1 Precauciones generales • El teléfono es adecuado solo para la batería y el cargador aprobados por el fabricante, usar otros accesorios puede provocar que la batería presente mal funcionamiento como fugas, sobrecalentamiento, explosiones o incendiarse. • No golpee, haga vibrar o tire el teléfono para evitar daños en la unidad. • El líquido de la batería puede ocasionar quemaduras en la ropa y piel en caso de que se presenten fugas. Si esto sucede, por favor, lavar con abundante agua limpia inmediatamente y vaya al hospital más cercano. • Por favor, mantenga la batería lejos del fuego para evitar incendios o explosión ya que puede provocar fugas o emitir un olor extraño. • No coloque o exponga el teléfono a la humedad o puede provocar sobrecalentamiento, humo y corrosión. • No utilice ni coloque la batería bajo la luz solar directa o en lugares calientes, puede causar fugas o sobrecalentamiento, lo que reduce el rendimiento y acorta la vida útil de la misma. • No cargue la batería durante más de 24 horas seguidas. 3 • Use con cuidado el auricular, el uso del mismo con excesivo volumen puede causar pérdida auditiva. 1.2 Precauciones en el uso del cargador • No provoque ningún tipo de cortocircuito en el cargador, o puede causar una descarga eléctrica, humos y daños al cargador. • No utilice el cargador si el cable de alimentación está roto o dañado, o puede provocar incendios y descargas eléctricas. • Elimine el polvo acumulado en la clavija de alimentación. • No ponga contenedores de agua al lado de la fuente de alimentación para evitar el sobrecalentamiento, incendios, descargas eléctricas y mal funcionamiento. • No desmonte ni fuerce el cargador o puede provocar lesiones personales, descarga eléctrica, fuego y daños en el cargador. • No utilice el cargador en lugares de alta humedad, como cuartos de baño, o puede causar una descarga eléctrica, fuego y daños en el cargador. • No toque el cargador, el cable o el tomacorriente de alimentación con las manos mojadas ya que esto puede causar una descarga eléctrica. • No coloque objetos pesados sobre el cable de alimentación o puede dañar el cable y provocar un mal funcionamiento. • Por favor desconecte el cargador del tomacorriente antes de su limpieza y mantenimiento. • Por favor, mantenga el cargador desconectado del tomacorriente y no tire del cable de 4 alimentación ya que puede dañar el cable de alimentación y provocar una descarga eléctrica. 1.3 Limpieza y mantenimiento • Dado que el teléfono, la batería y el cargador no son resistentes al agua, no los utilice en lugares de alta humedad y evite que se mojen debido a la lluvia. • Por favor, limpiar la batería y el cargador con un paño suave y seco. • Nunca utilice alcohol, solventes y/o soluciones corrosivas, como el benceno, para limpiar el teléfono. • Los tomacorrientes sucios pueden causar un mal contacto y una baja en la fuente de alimentación, o incluso puede hacer que la carga de la batería no se realice correctamente. Así que, por favor, límpielos periódicamente. 1.4 Precauciones Comunes Teléfono móvil: • Utilice el teléfono en un ambiente con temperatura entre 20 °C a 40 °C y la humedad menor a 75 %. • Utilice el teléfono lejos de los teléfonos fijos, televisores, radios y equipos de automatización de oficina, para no afectar el normal funcionamiento de estos equipos y del teléfono móvil. 5 Cargador: No cargue el teléfono en las siguientes condiciones: - Lugares con luz solar directa. - Lugares con temperatura ambiente inferior a 0 °C o superior a 40 °C, lugares húmedos o polvorientos con fuertes vibraciones (Esto pueden provocar un mal funcionamiento) - Lugares cerca de electrodomésticos (Esto puede afectar las imágenes y el sonido) como aparato de TV, radio, etc. - El adaptador debe estar conectado cerca del equipo y debe ser de fácil acceso. 6 2. Familiarizándose con el teléfono Usted puede comenzar a utilizar su teléfono móvil después de familiarizarse con las partes del mismo. 1. Conector de auricular (Jack 3.5mm) 2. Conector USB 3. Auricular 4. Cámara frontal 5. Bandeja de SIM 6. Pantalla LCD 7. Altavoz 8. Botones de volumen + 9. Botones de volumen - 10. Botón encendido/ apagado 11. Cámara 12. Flash LED 7 Los iconos en la pantalla principal o en el menú principal van a depender de la cantidad de aplicaciones instaladas en el terminal. Nota: El sistema operativo en este dispositivo está diseñado para funcionar con baja memoria RAM por lo que no es recomendable descargar aplicaciones muy grandes y/o descargar muchas aplicaciones y usarlas al mismo tiempo ya que puede ocasionar un comportamiento inestable del mismo. 8 3. Inicializando el teléfono Como insertar la tarjeta SIM: Ubique la ranura para tarjeta SIM e inserte la SIM tal como se muestra en la figura. Adicional usted tendrá una ayuda visual, como referencia, de donde se inserta la tarjeta SIM. (Siempre apague el dispositivo antes de insertar la SIM) • Deslice la tarjeta SIM en la ranura hasta que esta llegue al tope de la misma. Encendido / Apagado Para apagar el teléfo…

Text truncated - open the document above for the full version.

b mobile HK Limited Agent Authorization Letter (2022-06-09) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Carlos Lopez / Manager Date/City: 2022-06-09 / HONG KONG Phone: 852-2728 7886 Fax: 852-2728 0468 E-mail: [email protected]

b mobile HK Limited Long Term Confidentiality Request Letter (2022-06-09) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model No.: B63 PRO FCC ID: ZSW-30-116 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Part List / BOM List / PCB Layout  Operational Description  Tune-up Procedure Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Carlos Lopez / Manager Date/City: 2022-06-09 / HONG KONG Phone: 852-2728 7886 Fax: 852-2728 0468 E-mail: [email protected]

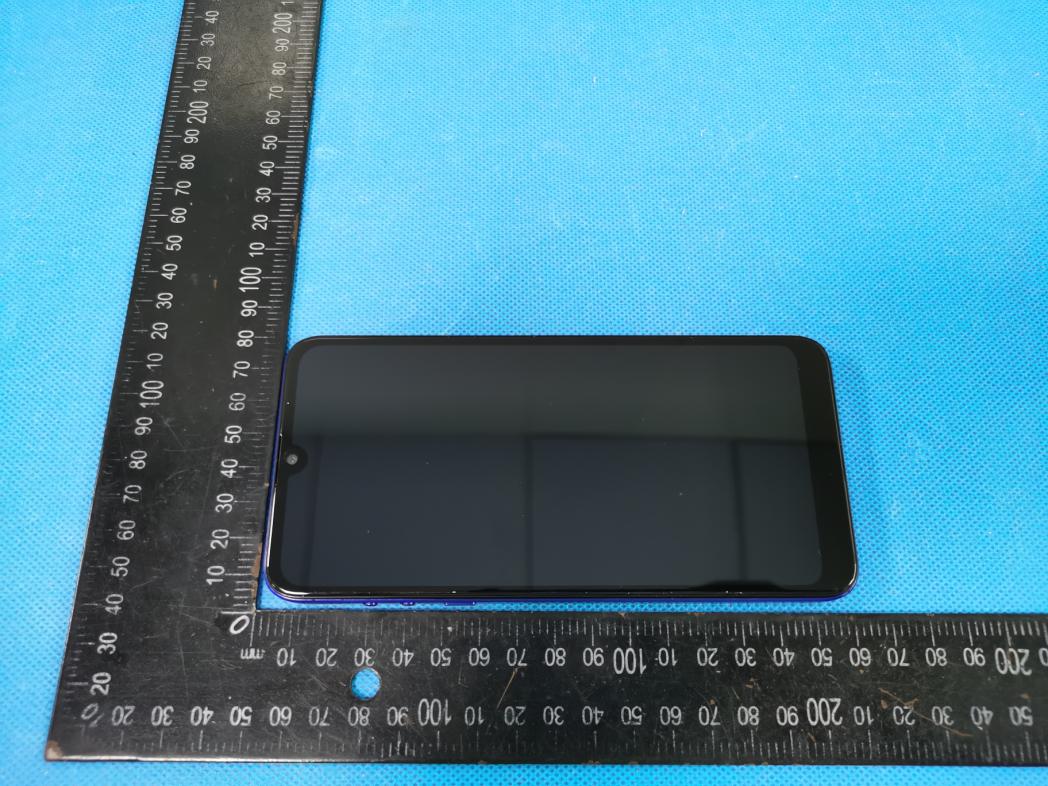

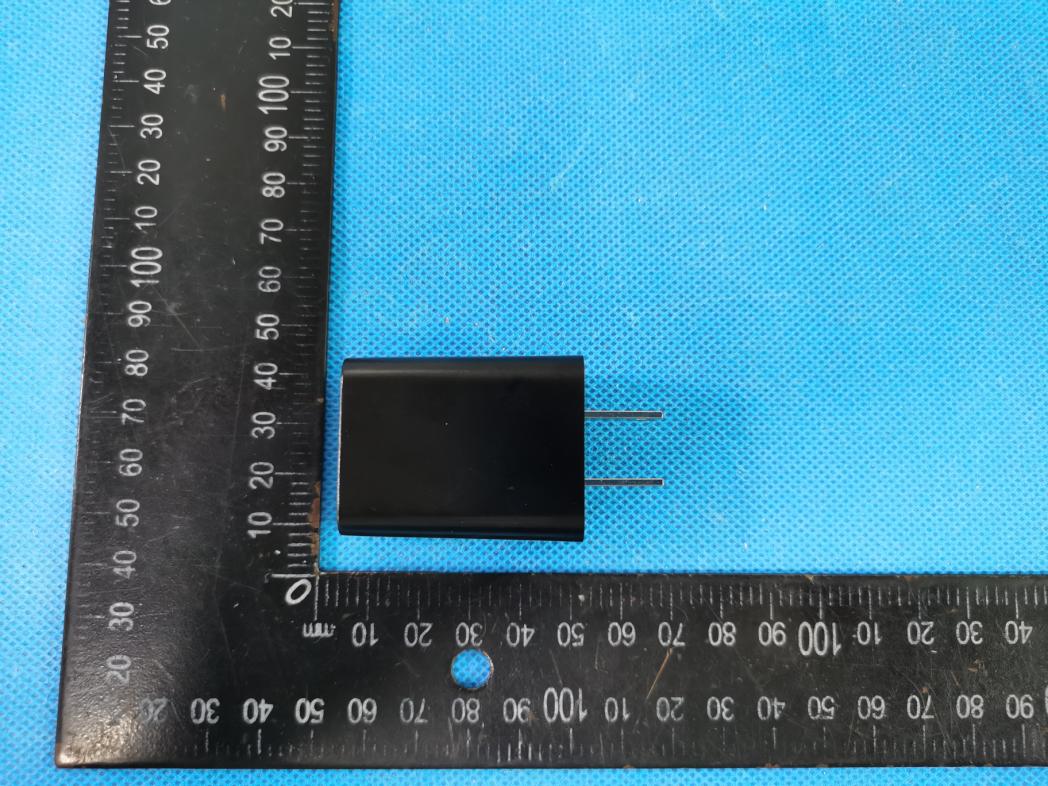

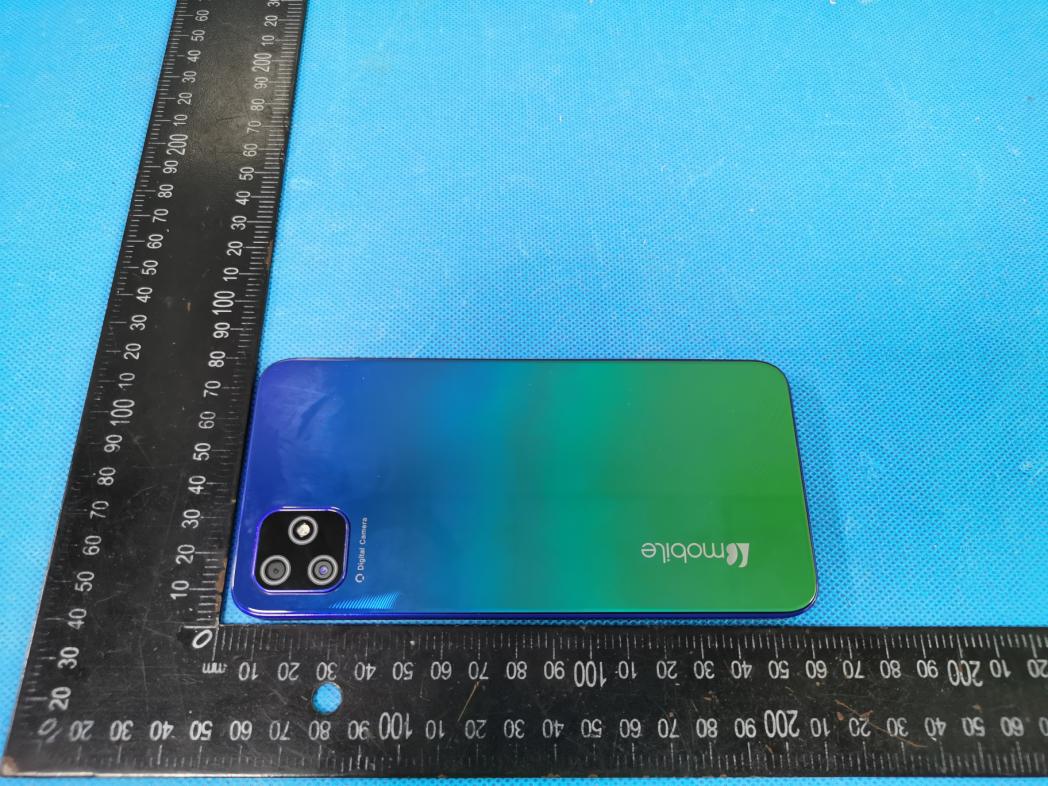

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 GSM/WCDMA ANT Photo 13 WIFI/BT ANT

Page 1 of 130 Report No.: S22040601403001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Trademark： Bmobile Model Name： B63 PRO Family Model： N/A Report No.： S22040601403001 FCC ID： ZSW-30-116 Prepared for b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel.: 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 130 Report No.: S22040601403001 TEST RESULT CERTIFICATION Applicant’s name .................. : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong, China Manufacturer's Name ........... : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong, China Product description Product name ......................... : Mobile Phone Trademark ............................ : Bmobile Model Name ......................... : B63 PRO Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992;IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Apr. 13, 2022 ~ Apr. 19, 2022 Date of Issue ........................................... : May 16, 2022 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 130 Report No.: S22040601403001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release May 16, 2022 Jacob Chen Page 4 of 130 Report No.: S22040601403001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6.…

Text truncated - open the document above for the full version.

Page 91 of 130 Report No.: S22040601403001 Page 92 of 130 Report No.: S22040601403001 Page 93 of 130 Report No.: S22040601403001 Page 94 of 130 Report No.: S22040601403001 Page 95 of 130 Report No.: S22040601403001 Page 96 of 130 Report No.: S22040601403001 Page 97 of 130 Report No.: S22040601403001 Page 98 of 130 Report No.: S22040601403001 Page 99 of 130 Report No.: S22040601403001 Page 100 of 130 Report No.: S22040601403001 Page 101 of 130 Report No.: S22040601403001 Page 102 of 130 Report No.: S22040601403001 Page 103 of 130 Report No.: S22040601403001 Page 104 of 130 Report No.: S22040601403001 Page 105 of 130 Report No.: S22040601403001 Page 106 of 130 Report No.: S22040601403001 Page 107 of 130 Report No.: S22040601403001 Page 108 of 130 Report No.: S22040601403001 Page 109 of 130 Report No.: S22040601403001 Page 110 of 130 Report No.: S22040601403001 Page 111 of 130 Report No.: S22040601403001 Page 112 of 130 Report No.: S22040601403001 Page 113 of 130 Report No.: S22040601403001 Page 114 of 130 Report No.: S22040601403001 Page 115 of 130 Report No.: S22040601403001 Page 116 of 130 Report No.: S22040601403001 Page 117 of 130 Report No.: S22040601403001 Page 118 of 130 Report No.: S22040601403001 Page 119 of 130 Report No.: S22040601403001 Page 120 of 130 Report No.: S22040601403001 Page 121 of 130 Report No.: S22040601403001 Page 122 of 130 Report No.: S22040601403001 Page 123 of 130 Report No.: S22040601403001 Page 124 of 130 Report No.: S22040601403001 Page 125 of 130 Report No.: S22040601403001 Page 126 of 130 Report No.: S22040601403001 Page 127 of 130 Report No.: S22040601403001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior c alibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 128 of 130 Report No.: S22040601403001 <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 129 of 130 Report No.: S22040601403001 <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 130 of 130 Report No.: S22040601403001 <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _____________________________________ END_______________________________________

Report No.: S22040601401004 Page 1 of 27 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 28.91 PASS GPRS1900 1 Slot 661 1880 29.03 PASS GPRS1900 1 Slot 810 1909.8 29.05 PASS GPRS1900 2 Slot 512 1850.2 28.11 PASS GPRS1900 2 Slot 661 1880 28.31 PASS GPRS1900 2 Slot 810 1909.8 28.54 PASS GPRS1900 3 Slot 512 1850.2 26.08 PASS GPRS1900 3 Slot 661 1880 26.46 PASS GPRS1900 3 Slot 810 1909.8 27.04 PASS GPRS1900 4 Slot 512 1850.2 24.82 PASS GPRS1900 4 Slot 661 1880 25.20 PASS GPRS1900 4 Slot 810 1909.8 25.87 PASS GPRS850 1 Slot 128 824.2 32.69 PASS GPRS850 1 Slot 189 836.4 32.81 PASS GPRS850 1 Slot 251 848.8 32.85 PASS GPRS850 2 Slot 128 824.2 31.88 PASS GPRS850 2 Slot 189 836.4 32.08 PASS GPRS850 2 Slot 251 848.8 32.26 PASS GPRS850 3 Slot 128 824.2 29.79 PASS GPRS850 3 Slot 189 836.4 29.92 PASS GPRS850 3 Slot 251 848.8 30.37 PASS GPRS850 4 Slot 128 824.2 28.24 PASS GPRS850 4 Slot 189 836.4 28.38 PASS GPRS850 4 Slot 251 848.8 28.83 PASS 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.721569827 13.00 PASS GPRS1900 661 1880 2.700967742 13.00 PASS GPRS1900 810 1909.8 2.69695597 13.00 PASS GPRS850 128 824.2 2.693398744 13.00 PASS GPRS850 189 836.4 2.669907826 13.00 PASS GPRS850 251 848.8 2.682076412 13.00 PASS GPRS1900 Channel=512 Report No.: S22040601401004 Page 2 of 27 GPRS1900 Channel=810 GPRS1900 Channel=661 Report No.: S22040601401004 Page 3 of 27 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S22040601401004 Page 4 of 27 GPRS850 Channel=189 10 Occupied bandwidth Report No.: S22040601401004 Page 5 of 27 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 253.146 318.919 PASS GPRS1900 661 1880 248.595 317.065 PASS GPRS1900 810 1909.8 248.177 315.235 PASS GPRS850 128 824.2 250.845 315.672 PASS GPRS850 189 836.4 242.056 320.186 PASS GPRS850 251 848.8 247.052 318.733 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: S22040601401004 Page 6 of 27 GPRS1900 Channel=661 GPRS850 Channel=189 Report No.: S22040601401004 Page 7 of 27 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S22040601401004 Page 8 of 27 11 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1849.98 -29.61 -13 PASS GPRS1900 810 1909.8 1910.01 -29.57 -13 PASS GPRS850 128 824.2 823.98 -26.71 -13 PASS GPRS850 251 848.8 849.01 -26.37 -13 PASS GPRS1900 Channel=512 Report No.: S22040601401004 Page 9 of 27 GPRS1900 Channel=810 GPRS850 Channel=251 Report No.: S22040601401004 Page 10 of 27 GPRS850 Channel=128 12 Out-of-band emissions Report No.: S22040601401004 Page 11 of 27 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 25963.32 -18.92 -13 PASS GPRS1900 661 1880 25948.10 -18.68 -13 PASS GPRS1900 810 1909.8 26016.92 -18.97 -13 PASS GPRS850 128 824.2 25791.93 -20.13 -13 PASS GPRS850 189 836.4 25482.23 -20.10 -13 PASS GPRS850 251 848.8 25885.90 -20.29 -13 PASS GPRS1900 Channel=512 GPRS1900 Channel=661 Report No.: S22040601401004 Page 12 of 27 GPRS1900 Channel=810 GPRS850 Channel=189 Report No.: S22040601401004 Page 13 of 27 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S22040601401004 Page 14 of 27 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GSM1900 512 1850.2 28.97 PASS GSM1900 661 1880 29.09 PASS GSM1900 810 1909.8 29.00 PASS GSM850 128 824.2 32.82 PASS GSM850 189 836.4 32.90 PASS GSM850 251 848.8 33.00 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GSM1900 512 1850.2 2.66 13 PASS GSM1900 661 1880 2.65 13 PASS GSM1900 810 1909.8 2.64 13 PASS GSM850 128 824.2 2.64 13 PASS GSM850 189 836.4 2.63 13 PASS GSM850 251 848.8 2.63 13 PASS GSM1900 Channel=512 Report No.: S22040601401004 Page 15 of 27 GSM1900 Channel=661 GSM1900 Channel=810 Report No.: S22040601401004 Page 16 of 27 GSM850 Channel=128 GSM850 Channel=251 Report No.: S22040601401004 Page 17 of 27 GSM850 Channel=189 04 Occupied bandwidth Report No.: S22040601401004 Page 18 of 27 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GSM1900 512 1850.2 233.468 311.399 PASS GSM1900 661 1880 244.114 314.684 PASS GSM1900 810 1909.8 251.551 317.502 PASS GSM850 128 824.2 246.424 317.520 PASS GSM850 189 836.4 245.518 315.452 PASS GSM850 251 848.8 248.750 312.612 PASS GSM1900 Channel=512 GSM1900 Channel=661 Report No.: S22040601401004 Page 19 of 27 GSM1900 Channel=810 GSM850 Channel=128 Report No.: S22040601401004 Page 20 of 27 GSM850 Channel=251 GSM850 Channel=189 Report No.: S22040601401004 Page 21 of 27 05 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GSM1900 512 1850.2 1850.00 -29.90 -13 PASS GSM1900 810 1909.8 1910.02 -27.41 -13 PASS GSM850 128 824.2 823.98 -26.33 -13 PASS GSM850 251 848.8 849.01 -25.22 -13 PASS GSM1900 Channel=512 Report No.: S22040601401004 Page 22 of 27 GSM1900 Channel=810 GSM850 Channel=128 Report No.: S22040601401004 Page 23 of 27 GSM850 Channel=251 06 Out-of-band emissions Report No.: S22040601401004 Page 24 of 27 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GSM1900 512 1850.2 25936.19 -18.50 -13 PASS GSM1900 661 1880 25532.52 -18.75 -13 PASS GSM1900 810 1909.8 25169.88 -18.10 -13 PASS GSM850 128 824.2 25917.00 -19.76 -13 PASS GSM850 189 836.4 26089.72 -19.92 -13 PASS GSM850 251 848.8 26081.11 -19.58 -13 PASS GSM1900 Channel=512 GSM1900 Channel=661 Report No.: S22040601401004 Page 25 of 27 GSM1900 Channel=810 GSM850 Channel=128 Report No.: S22040601401004 Page 26 of 27 GSM850 Channel=189 GSM850 Channel=251 Report No.: S22040601401004 Page 27 of 27

Report No.: S22040601401004 Page 1 of 21 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 21.80 PASS WCDMA Band2 9400 1880 22.47 PASS WCDMA Band2 9538 1907.6 22.32 PASS WCDMA Band4 1312 1712.4 21.32 PASS WCDMA Band4 1413 1732.6 21.83 PASS WCDMA Band4 1513 1752.6 21.27 PASS WCDMA Band5 4132 826.4 22.22 PASS WCDMA Band5 4182 836.4 22.23 PASS WCDMA Band5 4233 846.6 22.21 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict WCDMA Band2 9262 1852.4 1.85 13 PASS WCDMA Band2 9400 1880 2.21 13 PASS WCDMA Band2 9538 1907.6 2.20 13 PASS WCDMA Band4 1312 1712.4 1.85 13 PASS WCDMA Band4 1413 1732.6 2.38 13 PASS WCDMA Band4 1513 1752.6 2.34 13 PASS WCDMA Band5 4132 826.4 2.86 13 PASS WCDMA Band5 4182 836.4 2.96 13 PASS WCDMA Band5 4233 846.6 2.76 13 PASS WCDMA Band2 Channel=9262 Report No.: S22040601401004 Page 2 of 21 WCDMA Band2 Channel=9400 WCDMA Band2 Channel=9538 Report No.: S22040601401004 Page 3 of 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1513 Report No.: S22040601401004 Page 4 of 21 WCDMA Band4 Channel=1413 WCDMA Band5 Channel=4182 Report No.: S22040601401004 Page 5 of 21 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S22040601401004 Page 6 of 21 04 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict WCDMA Band2 9262 1852.4 4183.791 4729.327 PASS WCDMA Band2 9400 1880 4158.260 4766.606 PASS WCDMA Band2 9538 1907.6 4158.517 4747.195 PASS WCDMA Band4 1312 1712.4 4204.548 4799.121 PASS WCDMA Band4 1413 1732.6 4170.502 4708.457 PASS WCDMA Band4 1513 1752.6 4178.649 4741.423 PASS WCDMA Band5 4132 826.4 4169.110 4690.706 PASS WCDMA Band5 4182 836.4 4167.990 4674.880 PASS WCDMA Band5 4233 846.6 4141.111 4680.499 PASS WCDMA Band2 Channel=9262 Report No.: S22040601401004 Page 7 of 21 WCDMA Band2 Channel=9400 WCDMA Band2 Channel=9538 Report No.: S22040601401004 Page 8 of 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1513 Report No.: S22040601401004 Page 9 of 21 WCDMA Band4 Channel=1413 WCDMA Band5 Channel=4182 Report No.: S22040601401004 Page 10 of 21 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S22040601401004 Page 11 of 21 05 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 1850.00 -14.49 -13 PASS WCDMA Band2 9538 1907.6 1910.00 -19.64 -13 PASS WCDMA Band4 1312 1712.4 1709.99 -17.44 -13 PASS WCDMA Band4 1513 1752.6 1755.01 -21.65 -13 PASS WCDMA Band5 4132 826.4 824.00 -24.41 -13 PASS WCDMA Band5 4233 846.6 849.00 -24.63 -13 PASS WCDMA Band2 Channel=9538 Report No.: S22040601401004 Page 12 of 21 WCDMA Band2 Channel=9262 WCDMA Band4 Channel=1513 Report No.: S22040601401004 Page 13 of 21 WCDMA Band4 Channel=1312 WCDMA Band5 Channel=4132 Report No.: S22040601401004 Page 14 of 21 WCDMA Band5 Channel=4233 06 Out-of-band emissions Report No.: S22040601401004 Page 15 of 21 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 17780.33 -23.52 -13 PASS WCDMA Band2 9400 1880 19888.17 -23.35 -13 PASS WCDMA Band2 9538 1907.6 19886.17 -23.30 -13 PASS WCDMA Band4 1312 1712.4 17979.54 -23.22 -13 PASS WCDMA Band4 1413 1732.6 17890.67 -24.37 -13 PASS WCDMA Band4 1513 1752.6 17923.12 -23.66 -13 PASS WCDMA Band5 4132 826.4 3015.52 -29.62 -13 PASS WCDMA Band5 4182 836.4 3148.62 -30.53 -13 PASS WCDMA Band5 4233 846.6 3152.60 -29.21 -13 PASS WCDMA Band2 Channel=9400 WCDMA Band2 Channel=9262 Report No.: S22040601401004 Page 16 of 21 WCDMA Band2 Channel=9538 WCDMA Band4 Channel=1413 Report No.: S22040601401004 Page 17 of 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1513 Report No.: S22040601401004 Page 18 of 21 WCDMA Band5 Channel=4182 WCDMA Band5 Channel=4132 Report No.: S22040601401004 Page 19 of 21 WCDMA Band5 Channel=4233 07 Conducted output power Report No.: S22040601401004 Page 20 of 21 Band Channel Frequency (MHz) Power (dBm) Verdict HSDPA Band2 Subtest1 9262 1852.4 20.83 PASS HSDPA Band2 Subtest2 9262 1852.4 20.22 PASS HSDPA Band2 Subtest3 9262 1852.4 19.58 PASS HSDPA Band2 Subtest4 9262 1852.4 19.20 PASS HSDPA Band2 Subtest1 9400 1880 21.51 PASS HSDPA Band2 Subtest2 9400 1880 21.13 PASS HSDPA Band2 Subtest3 9400 1880 19.91 PASS HSDPA Band2 Subtest4 9400 1880 19.78 PASS HSDPA Band2 Subtest1 9538 1907.6 21.38 PASS HSDPA Band2 Subtest2 9538 1907.6 21.09 PASS HSDPA Band2 Subtest3 9538 1907.6 19.84 PASS HSDPA Band2 Subtest4 9538 1907.6 19.99 PASS HSDPA Band4 Subtest1 1312 1712.4 20.43 PASS HSDPA Band4 Subtest2 1312 1712.4 19.91 PASS HSDPA Band4 Subtest3 1312 1712.4 19.04 PASS HSDPA Band4 Subtest4 1312 1712.4 18.88 PASS HSDPA Band4 Subtest1 1413 1732.6 20.77 PASS HSDPA Band4 Subtest2 1413 1732.6 20.47 PASS HSDPA Band4 Subtest3 1413 1732.6 19.02 PASS HSDPA Band4 Subtest4 1413 1732.6 19.10 PASS HSDPA Band4 Subtest1 1513 1752.6 20.33 PASS HSDPA Band4 Subtest2 1513 1752.6 19.93 PASS HSDPA Band4 Subtest3 1513 1752.6 18.79 PASS HSDPA Band4 Subtest4 1513 1752.6 18.79 PASS HSDPA Band5 Subtest1 4132 826.4 21.27 PASS HSDPA Band5 Subtest2 4132 826.4 20.78 PASS HSDPA Band5 Subtest3 4132 826.4 19.75 PASS HSDPA Band5 Subtest4 4132 826.4 19.81 PASS HSDPA Band5 Subtest1 4182 836.4 21.18 PASS HSDPA Band5 Subtest2 4182 836.4 20.72 PASS HSDPA Band5 Subtest3 4182 836.4 19.61 PASS HSDPA Band5 Subtest4 4182 836.4 19.18 PASS HSDPA Band5 Subtest1 4233 846.6 21.15 PASS HSDPA Band5 Subtest2 4233 846.6 20.46 PASS HSDPA Band5 Subtest3 4233 846.6 20.00 PASS HSDPA Band5 Subtest4 4233 846.6 19.28 PASS 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSUPA Band2 Subtest1 9262 1852.4 19.19 PASS HSUPA Band2 Subtest2 9262 1852.4 20.76 PASS HSUPA Band2 Subtest3 9262 1852.4 19.47 PASS HSUPA Band2 Subtest4 9262 1852.4 20.76 PASS Report No.: S22040601401004 Page 21 of 21 HSUPA Band2 Subtest5 9262 1852.4 19.29 PASS HSUPA Band2 Subtest1 9400 1880 21.37 PASS HSUPA Band2 Subtest2 9400 1880 21.37 PASS HSUPA Band2 Subtest3 9400 1880 20.29 PASS HSUPA Band2 S…
