ZSW-30-118Mobile Phone

MANUAL DE USUARIO DE LA SERIE B Android™ 11 (Go edition) Bmobile Google, Android, Google Play, Gmail, YouTube y otras marcas son marcas comerciales de Google LLC. 1 Índice 1.Introducción ................................................................................... 2 2. Familiarizándose con el teléfono ................................................ 6 3. Inicializando el teléfono ............................................................... 8 4. Funciones básicas del teléfono......... ..................................... 11 5. Especificaciones técnicas ......................................................... 20 6. Aviso importante sobre el FCC ................................................. 22 7. Garantía limitada Bmobile ......................................................... 25 2 1. Introducción Seguridad Con el fin de garantizar que el teléfono es usado de manera segura y correcta, lea las siguientes precauciones antes de utilizarlo. 1.1 Precauciones generales • El teléfono es adecuado solo para la batería y el cargador aprobados por el fabricante, usar otros accesorios puede provocar que la batería presente mal funcionamiento como fugas, sobrecalentamiento, explosiones o incendiarse. • No golpee, haga vibrar o tire el teléfono para evitar daños en la unidad. • El líquido de la batería puede ocasionar quemaduras en la ropa y piel en caso de que se presenten fugas. Si esto sucede, por favor, lavar con abundante agua limpia inmediatamente y vaya al hospital más cercano. • Por favor, mantenga la batería lejos del fuego para evitar incendios o explosión ya que puede provocar fugas o emitir un olor extraño. • No coloque o exponga el teléfono a la humedad o puede provocar sobrecalentamiento, humo y corrosión. • No utilice ni coloque la batería bajo la luz solar directa o en lugares calientes, puede causar fugas o sobrecalentamiento, lo que reduce el rendimiento y acorta la vida útil de la misma. • No cargue la batería durante más de 24 horas seguidas. 3 • Use con cuidado el auricular, el uso del mismo con excesivo volumen puede causar pérdida auditiva. 1.2 Precauciones en el uso del cargador • No provoque ningún tipo de cortocircuito en el cargador, o puede causar una descarga eléctrica, humos y daños al cargador. • No utilice el cargador si el cable de alimentación está roto o dañado, o puede provocar incendios y descargas eléctricas. • Elimine el polvo acumulado en la clavija de alimentación. • No ponga contenedores de agua al lado de la fuente de alimentación para evitar el sobrecalentamiento, incendios, descargas eléctricas y mal funcionamiento. • No desmonte ni fuerce el cargador o puede provocar lesiones personales, descarga eléctrica, fuego y daños en el cargador. • No utilice el cargador en lugares de alta humedad, como cuartos de baño, o puede causar una descarga eléctrica, fuego y daños en el cargador. • No toque el cargador, el cable o el tomacorriente de alimentación con las manos mojadas ya que esto puede causar una descarga eléctrica. • No coloque objetos pesados sobre el cable de alimentación o puede dañar el cable y provocar un mal funcionamiento. • Por favor desconecte el cargador del tomacorriente antes de su limpieza y mantenimiento. • Por favor, mantenga el cargador desconectado del tomacorriente y no tire del cable de 4 alimentación ya que puede dañar el cable de alimentación y provocar una descarga eléctrica. 1.3 Limpieza y mantenimiento • Dado que el teléfono, la batería y el cargador no son resistentes al agua, no los utilice en lugares de alta humedad y evite que se mojen debido a la lluvia. • Por favor, limpiar la batería y el cargador con un paño suave y seco. • Nunca utilice alcohol, solventes y/o soluciones corrosivas, como el benceno, para limpiar el teléfono. • Los tomacorrientes sucios pueden causar un mal contacto y una baja en la fuente de alimentación, o incluso puede hacer que la carga de la batería no se realice correctamente. Así que, por favor, límpielos periódicamente. 1.4 Precauciones Comunes Teléfono móvil: • Utilice el teléfono en un ambiente con temperatura entre 20 °C a 40 °C y la humedad menor a 75 %. • Utilice el teléfono lejos de los teléfonos fijos, televisores, radios y equipos de automatización de oficina, para no afectar el normal funcionamiento de estos equipos y del teléfono móvil. 5 Cargador: No cargue el teléfono en las siguientes condiciones: - Lugares con luz solar directa. - Lugares con temperatura ambiente inferior a 0 °C o superior a 40 °C, lugares húmedos o polvorientos con fuertes vibraciones (Esto pueden provocar un mal funcionamiento) - Lugares cerca de electrodomésticos (Esto puede afectar las imágenes y el sonido) como aparato de TV, radio, etc. - El adaptador debe estar conectado cerca del equipo y debe ser de fácil acceso. 6 2. Familiarizándose con el teléfono Usted puede comenzar a utilizar su teléfono móvil después de familiarizarse con las partes del mismo. 1. Conector de auricular (Jack 3.5mm) 2. Auricular 3. Cámara frontal 4. Pantalla LCD 5. Botones Recientes/ Inicio/ Atrás 6. Micrófono 7. Conector USB 8. Altavoz 9. Botón encendido/ apagado 10. Botones de volumen 11. Cámara 12. Flash LED 7 Los iconos en la pantalla principal o en el menú principal van a depender de la cantidad de aplicaciones instaladas en el terminal. Nota: El sistema operativo en este dispositivo está diseñado para funcionar con baja memoria RAM por lo que no es recomendable descargar aplicaciones muy grandes y/o descargar muchas aplicaciones y usarlas al mismo tiempo ya que puede ocasionar un comportamiento inestable del mismo. 8 3. Inicializando el teléfono Como retirar la cubierta posterior: • Asegúrese de que el dispositivo esté apagado. • Sujete firmemente el aparato con la parte frontal hacia abajo. • Deslice el dedo en la ranura diseñada para remover la cubierta y retire suavemente la cubierta trasera. Como insertar la tarjeta SIM: Ubique la ranura para tarjeta SIM e inserte la SIM tal como se muestra en la figura. Adicional ust…

Text truncated - open the document above for the full version.

b mobile HK Limited Agent Authorization Company: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong,China Product Name: Mobile Phone Model Number(s): B70 PRO Product Description: Mobile Phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.04.02 Name: Carlos Lopez Title: Manager Company: b mobile HK Limited

b mobile HK Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04/02/2022 Subject; Request for Confidentiality FCC ID:ZSW-30-118 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM List Tune-up procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Carlos Lopez Title: Manager

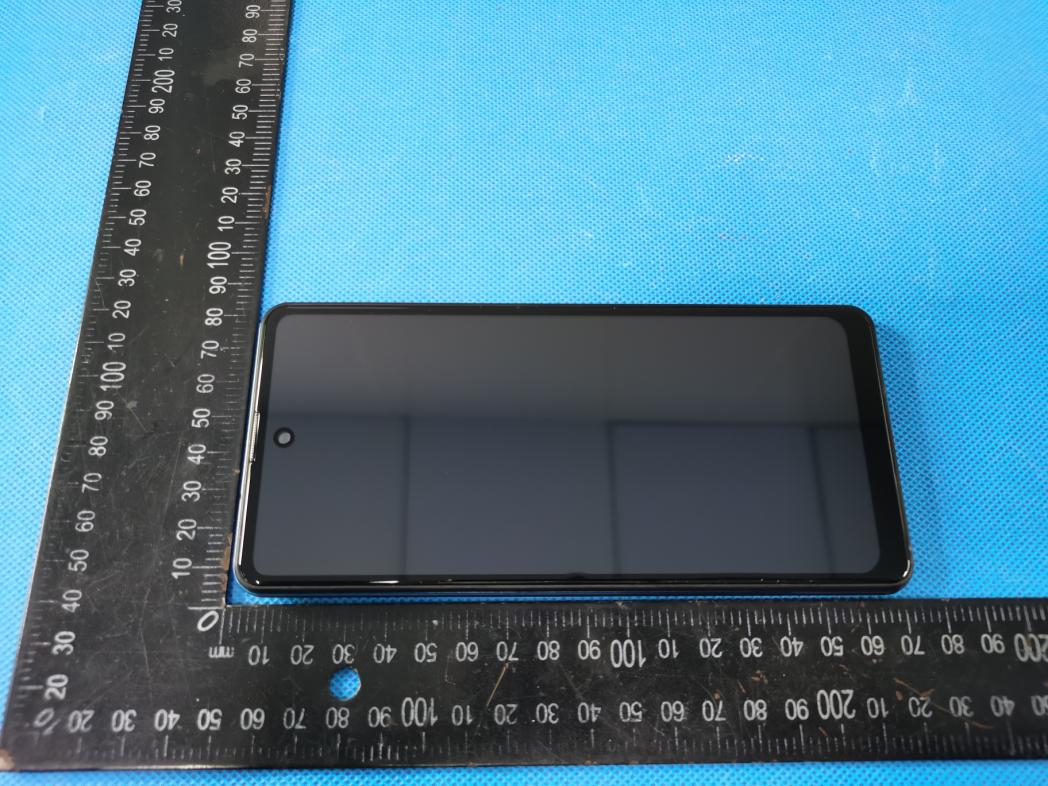

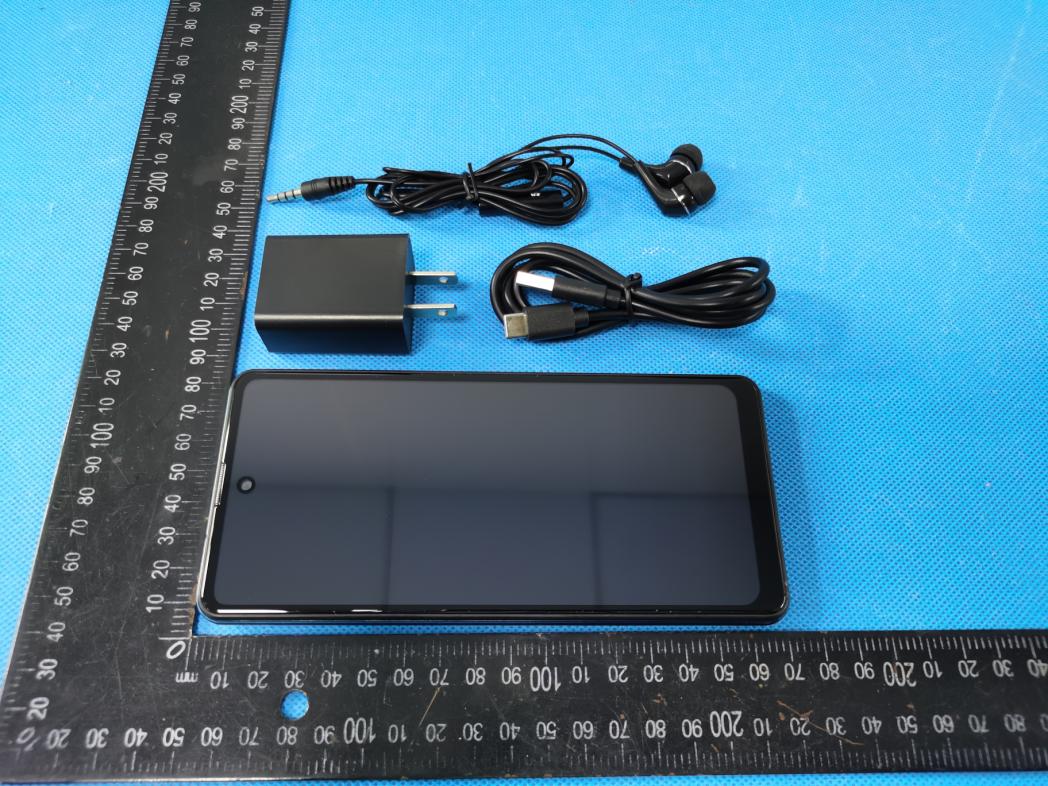

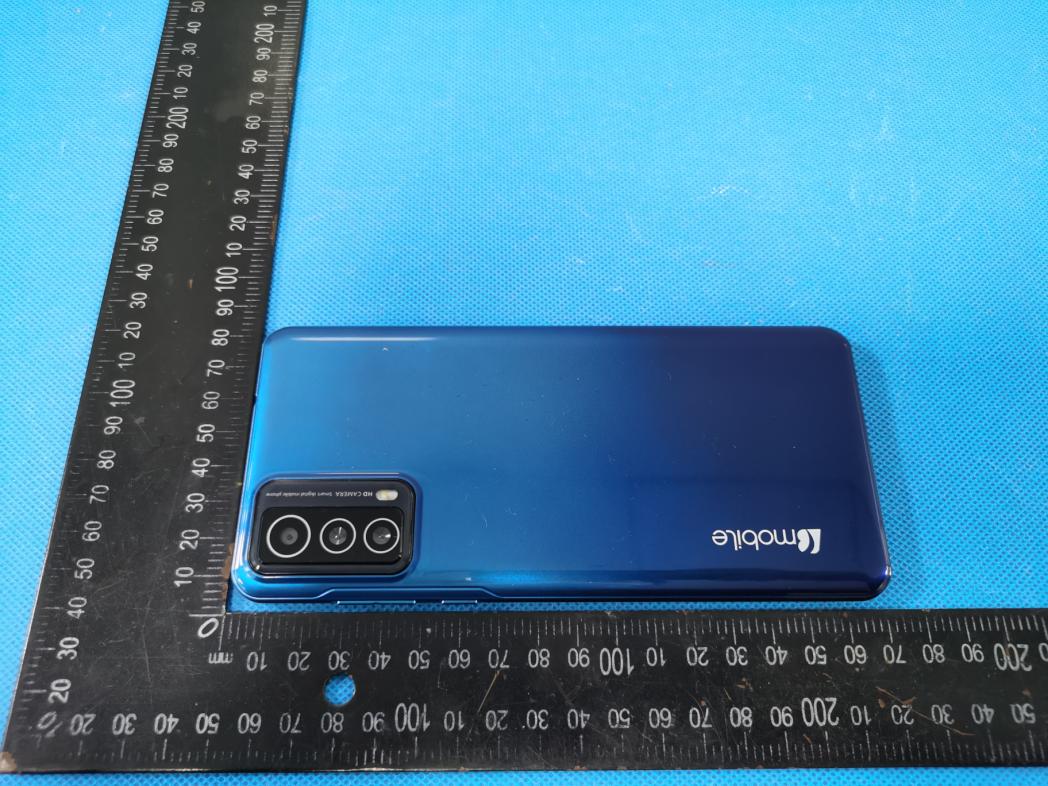

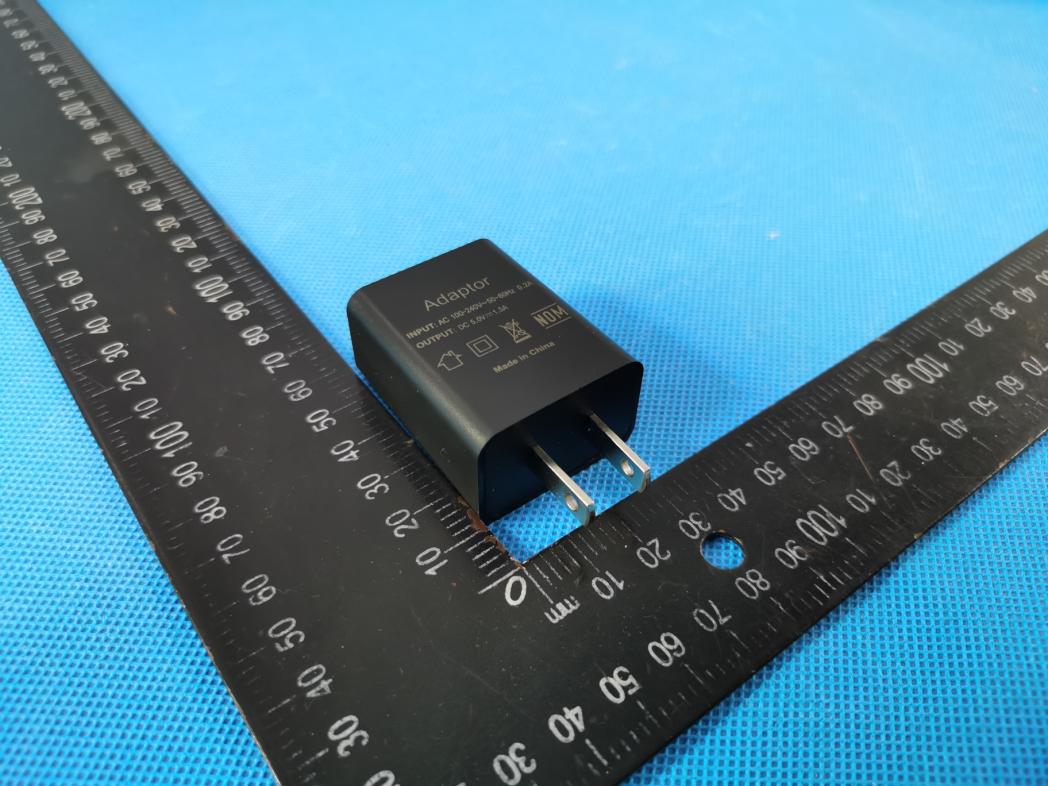

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 BT/WIFI ANT GSM/WCDMA ANT

Page 101 of 125 Report No.: S22021404003001 Page 102 of 125 Report No.: S22021404003001 Page 103 of 125 Report No.: S22021404003001 Page 104 of 125 Report No.: S22021404003001 Page 105 of 125 Report No.: S22021404003001 Page 106 of 125 Report No.: S22021404003001 Page 107 of 125 Report No.: S22021404003001 Page 108 of 125 Report No.: S22021404003001 Page 109 of 125 Report No.: S22021404003001 Page 110 of 125 Report No.: S22021404003001 Page 111 of 125 Report No.: S22021404003001 Page 112 of 125 Report No.: S22021404003001 Page 113 of 125 Report No.: S22021404003001 Page 114 of 125 Report No.: S22021404003001 Page 115 of 125 Report No.: S22021404003001 Page 116 of 125 Report No.: S22021404003001 Page 117 of 125 Report No.: S22021404003001 Page 118 of 125 Report No.: S22021404003001 Page 119 of 125 Report No.: S22021404003001 Page 120 of 125 Report No.: S22021404003001 Page 121 of 125 Report No.: S22021404003001 Page 122 of 125 Report No.: S22021404003001 Page 123 of 125 Report No.: S22021404003001 Page 124 of 125 Report No.: S22021404003001 Page 125 of 125 Report No.: S22021404003001 _____________________________________ END_______________________________________

Page 1 of 125 Report No.: S22021404003001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Trademark： Bmobile Model Name： B70 PRO Family Model： N/A Report No.： S22021404003001 FCC ID： ZSW-30-118 Prepared for b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel.: 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 125 Report No.: S22021404003001 TEST RESULT CERTIFICATION Applicant’s name ................. : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Manufacturer's Name ........... : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Product description Product name ......................... : Mobile Phone Trademark ............................ : Bmobile Model Name ......................... : B70 PRO Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992;IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Feb. 17, 2022 ~ Feb. 26, 2022 Date of Issue .......................................... : Mar. 02, 2022 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 125 Report No.: S22021404003001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Mar. 02, 2022 Jacob Chen Page 4 of 125 Report No.: S22021404003001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6…

Text truncated - open the document above for the full version.

Report No.: S22021404001004 Page 1 of 27 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 29.31 PASS GPRS1900 1 Slot 661 1880 29.51 PASS GPRS1900 1 Slot 810 1909.8 29.37 PASS GPRS1900 2 Slot 512 1850.2 26.97 PASS GPRS1900 2 Slot 661 1880 27.23 PASS GPRS1900 2 Slot 810 1909.8 27.43 PASS GPRS1900 3 Slot 512 1850.2 25.60 PASS GPRS1900 3 Slot 661 1880 25.90 PASS GPRS1900 3 Slot 810 1909.8 26.10 PASS GPRS1900 4 Slot 512 1850.2 23.84 PASS GPRS1900 4 Slot 661 1880 24.16 PASS GPRS1900 4 Slot 810 1909.8 24.33 PASS GPRS850 1 Slot 128 824.2 32.51 PASS GPRS850 1 Slot 189 836.4 32.46 PASS GPRS850 1 Slot 251 848.8 32.40 PASS GPRS850 2 Slot 128 824.2 30.52 PASS GPRS850 2 Slot 189 836.4 30.63 PASS GPRS850 2 Slot 251 848.8 30.52 PASS GPRS850 3 Slot 128 824.2 29.23 PASS GPRS850 3 Slot 189 836.4 29.39 PASS GPRS850 3 Slot 251 848.8 29.27 PASS GPRS850 4 Slot 128 824.2 27.54 PASS GPRS850 4 Slot 189 836.4 27.69 PASS GPRS850 4 Slot 251 848.8 27.56 PASS 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.81 13.00 PASS GPRS1900 661 1880 2.79 13.00 PASS GPRS1900 810 1909.8 2.79 13.00 PASS GPRS850 128 824.2 2.64 13.00 PASS GPRS850 189 836.4 2.63 13.00 PASS GPRS850 251 848.8 2.65 13.00 PASS GPRS1900 Channel=512 Report No.: S22021404001004 Page 2 of 27 GPRS1900 Channel=661 GPRS1900 Channel=810 Report No.: S22021404001004 Page 3 of 27 GPRS850 Channel=189 GPRS850 Channel=128 Report No.: S22021404001004 Page 4 of 27 GPRS850 Channel=251 10 Occupied bandwidth Report No.: S22021404001004 Page 5 of 27 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 245.373 312.590 PASS GPRS1900 661 1880 244.971 317.201 PASS GPRS1900 810 1909.8 247.968 311.393 PASS GPRS850 128 824.2 241.335 312.442 PASS GPRS850 189 836.4 246.518 305.198 PASS GPRS850 251 848.8 249.486 315.392 PASS GPRS1900 Channel=512 GPRS1900 Channel=661 Report No.: S22021404001004 Page 6 of 27 GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: S22021404001004 Page 7 of 27 GPRS850 Channel=189 GPRS850 Channel=251 Report No.: S22021404001004 Page 8 of 27 11 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1849.98 -29.71 -13 PASS GPRS1900 810 1909.8 1910.01 -29.60 -13 PASS GPRS850 128 824.2 824.00 -25.73 -13 PASS GPRS850 251 848.8 849.02 -25.91 -13 PASS GPRS1900 Channel=512 Report No.: S22021404001004 Page 9 of 27 GPRS1900 Channel=810 GPRS850 Channel=128 Report No.: S22021404001004 Page 10 of 27 GPRS850 Channel=251 12 Out-of-band emissions Report No.: S22021404001004 Page 11 of 27 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 25922.29 -18.58 -13 PASS GPRS1900 661 1880 25931.56 -17.62 -13 PASS GPRS1900 810 1909.8 26028.83 -18.27 -13 PASS GPRS850 128 824.2 26300.81 -20.79 -13 PASS GPRS850 189 836.4 26025.53 -19.24 -13 PASS GPRS850 251 848.8 25985.16 -20.71 -13 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: S22021404001004 Page 12 of 27 GPRS1900 Channel=661 GPRS850 Channel=189 Report No.: S22021404001004 Page 13 of 27 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S22021404001004 Page 14 of 27 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GSM1900 512 1850.2 29.45 PASS GSM1900 661 1880 29.63 PASS GSM1900 810 1909.8 29.51 PASS GSM850 128 824.2 32.54 PASS GSM850 189 836.4 32.49 PASS GSM850 251 848.8 32.43 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GSM1900 512 1850.2 2.74 13 PASS GSM1900 661 1880 2.74 13 PASS GSM1900 810 1909.8 2.72 13 PASS GSM850 128 824.2 2.64 13 PASS GSM850 189 836.4 2.64 13 PASS GSM850 251 848.8 2.65 13 PASS GSM1900 Channel=512 Report No.: S22021404001004 Page 15 of 27 GSM1900 Channel=810 GSM1900 Channel=661 Report No.: S22021404001004 Page 16 of 27 GSM850 Channel=128 GSM850 Channel=251 Report No.: S22021404001004 Page 17 of 27 GSM850 Channel=189 04 Occupied bandwidth Report No.: S22021404001004 Page 18 of 27 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GSM1900 512 1850.2 245.565 318.602 PASS GSM1900 661 1880 251.012 320.622 PASS GSM1900 810 1909.8 248.319 318.622 PASS GSM850 128 824.2 243.939 309.473 PASS GSM850 189 836.4 245.069 320.069 PASS GSM850 251 848.8 248.274 317.116 PASS GSM1900 Channel=661 GSM1900 Channel=512 Report No.: S22021404001004 Page 19 of 27 GSM1900 Channel=810 GSM850 Channel=128 Report No.: S22021404001004 Page 20 of 27 GSM850 Channel=251 GSM850 Channel=189 Report No.: S22021404001004 Page 21 of 27 05 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GSM1900 512 1850.2 1849.99 -29.71 -13 PASS GSM1900 810 1909.8 1910.02 -28.34 -13 PASS GSM850 128 824.2 823.98 -27.77 -13 PASS GSM850 251 848.8 849.02 -27.25 -13 PASS GSM1900 Channel=512 Report No.: S22021404001004 Page 22 of 27 GSM1900 Channel=810 GSM850 Channel=251 Report No.: S22021404001004 Page 23 of 27 GSM850 Channel=128 06 Out-of-band emissions Report No.: S22021404001004 Page 24 of 27 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GSM1900 512 1850.2 25998.39 -18.94 -13 PASS GSM1900 661 1880 25690.68 -19.06 -13 PASS GSM1900 810 1909.8 25882.59 -18.87 -13 PASS GSM850 128 824.2 26018.25 -20.34 -13 PASS GSM850 189 836.4 26003.69 -19.57 -13 PASS GSM850 251 848.8 25914.35 -20.40 -13 PASS GSM1900 Channel=512 GSM1900 Channel=661 Report No.: S22021404001004 Page 25 of 27 GSM1900 Channel=810 GSM850 Channel=128 Report No.: S22021404001004 Page 26 of 27 GSM850 Channel=189 GSM850 Channel=251 Report No.: S22021404001004 Page 27 of 27

Report No.: S22021404001004 Page 1 of 21 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 23.26 PASS WCDMA Band2 9400 1880 22.87 PASS WCDMA Band2 9538 1907.6 22.90 PASS WCDMA Band4 1312 1712.4 23.05 PASS WCDMA Band4 1413 1732.6 23.09 PASS WCDMA Band4 1513 1752.6 23.08 PASS WCDMA Band5 4132 826.4 22.80 PASS WCDMA Band5 4182 836.4 22.64 PASS WCDMA Band5 4233 846.6 22.63 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict WCDMA Band2 9262 1852.4 3.04 13 PASS WCDMA Band2 9400 1880 3.07 13 PASS WCDMA Band2 9538 1907.6 3.16 13 PASS WCDMA Band4 1312 1712.4 3.12 13 PASS WCDMA Band4 1413 1732.6 3.07 13 PASS WCDMA Band4 1513 1752.6 3.04 13 PASS WCDMA Band5 4132 826.4 3.01 13 PASS WCDMA Band5 4182 836.4 2.98 13 PASS WCDMA Band5 4233 846.6 3.02 13 PASS WCDMA Band2 Channel=9262 Report No.: S22021404001004 Page 2 of 21 WCDMA Band2 Channel=9538 WCDMA Band2 Channel=9400 Report No.: S22021404001004 Page 3 of 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1513 Report No.: S22021404001004 Page 4 of 21 WCDMA Band4 Channel=1413 WCDMA Band5 Channel=4182 Report No.: S22021404001004 Page 5 of 21 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S22021404001004 Page 6 of 21 04 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict WCDMA Band2 9262 1852.4 4145.962 4632.021 PASS WCDMA Band2 9400 1880 4147.019 4665.138 PASS WCDMA Band2 9538 1907.6 4129.443 4660.893 PASS WCDMA Band4 1312 1712.4 4146.917 4651.087 PASS WCDMA Band4 1413 1732.6 4149.680 4666.991 PASS WCDMA Band4 1513 1752.6 4129.579 4669.478 PASS WCDMA Band5 4132 826.4 4153.084 4673.704 PASS WCDMA Band5 4182 836.4 4133.689 4684.411 PASS WCDMA Band5 4233 846.6 4154.383 4642.610 PASS WCDMA Band2 Channel=9262 Report No.: S22021404001004 Page 7 of 21 WCDMA Band2 Channel=9538 WCDMA Band2 Channel=9400 Report No.: S22021404001004 Page 8 of 21 WCDMA Band4 Channel=1413 WCDMA Band4 Channel=1312 Report No.: S22021404001004 Page 9 of 21 WCDMA Band4 Channel=1513 WCDMA Band5 Channel=4182 Report No.: S22021404001004 Page 10 of 21 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4233 Report No.: S22021404001004 Page 11 of 21 05 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 1850.00 -22.59 -13 PASS WCDMA Band2 9538 1907.6 1910.00 -22.24 -13 PASS WCDMA Band4 1312 1712.4 1710.00 -23.07 -13 PASS WCDMA Band4 1513 1752.6 1755.00 -24.52 -13 PASS WCDMA Band5 4132 826.4 824.00 -26.58 -13 PASS WCDMA Band5 4233 846.6 849.00 -26.73 -13 PASS WCDMA Band2 Channel=9538 Report No.: S22021404001004 Page 12 of 21 WCDMA Band2 Channel=9262 WCDMA Band4 Channel=1312 Report No.: S22021404001004 Page 13 of 21 WCDMA Band4 Channel=1513 WCDMA Band5 Channel=4132 Report No.: S22021404001004 Page 14 of 21 WCDMA Band5 Channel=4233 06 Out-of-band emissions Report No.: S22021404001004 Page 15 of 21 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 19444.33 -24.12 -13 PASS WCDMA Band2 9400 1880 19949.08 -22.35 -13 PASS WCDMA Band2 9538 1907.6 19919.12 -23.46 -13 PASS WCDMA Band4 1312 1712.4 18339.00 -23.48 -13 PASS WCDMA Band4 1413 1732.6 19937.09 -23.74 -13 PASS WCDMA Band4 1513 1752.6 19997.00 -23.87 -13 PASS WCDMA Band5 4132 826.4 7624.90 -29.61 -13 PASS WCDMA Band5 4182 836.4 3002.31 -30.24 -13 PASS WCDMA Band5 4233 846.6 3009.29 -30.07 -13 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: S22021404001004 Page 16 of 21 WCDMA Band2 Channel=9400 WCDMA Band4 Channel=1312 Report No.: S22021404001004 Page 17 of 21 WCDMA Band4 Channel=1513 WCDMA Band4 Channel=1413 Report No.: S22021404001004 Page 18 of 21 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4182 Report No.: S22021404001004 Page 19 of 21 WCDMA Band5 Channel=4233 07 Conducted output power Report No.: S22021404001004 Page 20 of 21 Band Channel Frequency (MHz) Power (dBm) Verdict HSDPA Band2 Subtest1 9262 1852.4 22.19 PASS HSDPA Band2 Subtest2 9262 1852.4 21.85 PASS HSDPA Band2 Subtest3 9262 1852.4 21.52 PASS HSDPA Band2 Subtest4 9262 1852.4 21.32 PASS HSDPA Band2 Subtest1 9400 1880 21.60 PASS HSDPA Band2 Subtest2 9400 1880 21.34 PASS HSDPA Band2 Subtest3 9400 1880 21.07 PASS HSDPA Band2 Subtest4 9400 1880 20.69 PASS HSDPA Band2 Subtest1 9538 1907.6 21.67 PASS HSDPA Band2 Subtest2 9538 1907.6 21.34 PASS HSDPA Band2 Subtest3 9538 1907.6 21.18 PASS HSDPA Band2 Subtest4 9538 1907.6 21.09 PASS HSDPA Band4 Subtest1 1312 1712.4 21.74 PASS HSDPA Band4 Subtest2 1312 1712.4 21.39 PASS HSDPA Band4 Subtest3 1312 1712.4 21.18 PASS HSDPA Band4 Subtest4 1312 1712.4 21.04 PASS HSDPA Band4 Subtest1 1413 1732.6 21.77 PASS HSDPA Band4 Subtest2 1413 1732.6 21.44 PASS HSDPA Band4 Subtest3 1413 1732.6 21.20 PASS HSDPA Band4 Subtest4 1413 1732.6 21.10 PASS HSDPA Band4 Subtest1 1513 1752.6 21.82 PASS HSDPA Band4 Subtest2 1513 1752.6 21.62 PASS HSDPA Band4 Subtest3 1513 1752.6 21.44 PASS HSDPA Band4 Subtest4 1513 1752.6 21.22 PASS HSDPA Band5 Subtest1 4132 826.4 21.72 PASS HSDPA Band5 Subtest2 4132 826.4 21.50 PASS HSDPA Band5 Subtest3 4132 826.4 21.14 PASS HSDPA Band5 Subtest4 4132 826.4 21.06 PASS HSDPA Band5 Subtest1 4182 836.4 21.51 PASS HSDPA Band5 Subtest2 4182 836.4 21.23 PASS HSDPA Band5 Subtest3 4182 836.4 21.05 PASS HSDPA Band5 Subtest4 4182 836.4 20.59 PASS HSDPA Band5 Subtest1 4233 846.6 21.65 PASS HSDPA Band5 Subtest2 4233 846.6 21.47 PASS HSDPA Band5 Subtest3 4233 846.6 21.14 PASS HSDPA Band5 Subtest4 4233 846.6 21.09 PASS 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSUPA Band2 Subtest1 9262 1852.4 21.96 PASS HSUPA Band2 Subtest2 9262 1852.4 22.04 PASS HSUPA Band2 Subtest3 9262 1852.4 21.64 PASS HSUPA Band2 Subtest4 9262 1852.4 21.75 PASS Report No.: S22021404001004 Page 21 of 21 HSUPA Band2 Subtest5 9262 1852.4 21.58 PASS HSUPA Band2 Subtest1 9400 1880 21.40 PASS HSUPA Band2 Subtest2 9400 1880 21.72 PASS HSUPA Band2 Subtest3 9400 1880 21.04 PASS HSUPA Band2 S…

Text truncated - open the document above for the full version.

Report No.: S22021404001004 Version.1.2 Page 1 of 40 FCC RADIO TEST REPORT FCC ID: ZSW-30-118 Product: Mobile Phone Trade Mark: Bmobile Model No.: B70 PRO Family Model: N/A Report No.: S22021404001004 Issue Date: Mar 01. 2022 Prepared for b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website:http://www.ntek.org.cn Report No.: S22021404001004 Version.1.2 Page 2 of 40 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIP…
