ZSW-30-121Mobile Phone

MANUAL DE USUARIO DE LA SERIE B Android™ 11 (Go edition) Bmobile Google, Android, Google Play, Gmail, YouTube y otras marcas son marcas comerciales de Google LLC. 1 Índice 1.Introducción ................................................................................... 2 2. Familiarizándose con el teléfono ................................................ 6 3. Inicializando el teléfono ............................................................... 8 4. Funciones básicas del teléfono......... ..................................... 10 5. Especificaciones técnicas ......................................................... 19 6. Aviso importante sobre el FCC ................................................. 21 7. Garantía limitada Bmobile ......................................................... 24 2 1. Introducción Seguridad Con el fin de garantizar que el teléfono es usado de manera segura y correcta, lea las siguientes precauciones antes de utilizarlo. 1.1 Precauciones generales • El teléfono es adecuado solo para la batería y el cargador aprobados por el fabricante, usar otros accesorios puede provocar que la batería presente mal funcionamiento como fugas, sobrecalentamiento, explosiones o incendiarse. • No golpee, haga vibrar o tire el teléfono para evitar daños en la unidad. • El líquido de la batería puede ocasionar quemaduras en la ropa y piel en caso de que se presenten fugas. Si esto sucede, por favor, lavar con abundante agua limpia inmediatamente y vaya al hospital más cercano. • Por favor, mantenga la batería lejos del fuego para evitar incendios o explosión ya que puede provocar fugas o emitir un olor extraño. • No coloque o exponga el teléfono a la humedad o puede provocar sobrecalentamiento, humo y corrosión. • No utilice ni coloque la batería bajo la luz solar directa o en lugares calientes, puede causar fugas o sobrecalentamiento, lo que reduce el rendimiento y acorta la vida útil de la misma. • No cargue la batería durante más de 24 horas seguidas. 3 • Use con cuidado el auricular, el uso del mismo con excesivo volumen puede causar pérdida auditiva. 1.2 Precauciones en el uso del cargador • No provoque ningún tipo de cortocircuito en el cargador, o puede causar una descarga eléctrica, humos y daños al cargador. • No utilice el cargador si el cable de alimentación está roto o dañado, o puede provocar incendios y descargas eléctricas. • Elimine el polvo acumulado en la clavija de alimentación. • No ponga contenedores de agua al lado de la fuente de alimentación para evitar el sobrecalentamiento, incendios, descargas eléctricas y mal funcionamiento. • No desmonte ni fuerce el cargador o puede provocar lesiones personales, descarga eléctrica, fuego y daños en el cargador. • No utilice el cargador en lugares de alta humedad, como cuartos de baño, o puede causar una descarga eléctrica, fuego y daños en el cargador. • No toque el cargador, el cable o el tomacorriente de alimentación con las manos mojadas ya que esto puede causar una descarga eléctrica. • No coloque objetos pesados sobre el cable de alimentación o puede dañar el cable y provocar un mal funcionamiento. • Por favor desconecte el cargador del tomacorriente antes de su limpieza y mantenimiento. • Por favor, mantenga el cargador desconectado del tomacorriente y no tire del cable de 4 alimentación ya que puede dañar el cable de alimentación y provocar una descarga eléctrica. 1.3 Limpieza y mantenimiento • Dado que el teléfono, la batería y el cargador no son resistentes al agua, no los utilice en lugares de alta humedad y evite que se mojen debido a la lluvia. • Por favor, limpiar la batería y el cargador con un paño suave y seco. • Nunca utilice alcohol, solventes y/o soluciones corrosivas, como el benceno, para limpiar el teléfono. • Los tomacorrientes sucios pueden causar un mal contacto y una baja en la fuente de alimentación, o incluso puede hacer que la carga de la batería no se realice correctamente. Así que, por favor, límpielos periódicamente. 1.4 Precauciones Comunes Teléfono móvil: • Utilice el teléfono en un ambiente con temperatura entre 20 °C a 40 °C y la humedad menor a 75 %. • Utilice el teléfono lejos de los teléfonos fijos, televisores, radios y equipos de automatización de oficina, para no afectar el normal funcionamiento de estos equipos y del teléfono móvil. 5 Cargador: No cargue el teléfono en las siguientes condiciones: - Lugares con luz solar directa. - Lugares con temperatura ambiente inferior a 0 °C o superior a 40 °C, lugares húmedos o polvorientos con fuertes vibraciones (Esto pueden provocar un mal funcionamiento) - Lugares cerca de electrodomésticos (Esto puede afectar las imágenes y el sonido) como aparato de TV, radio, etc. - El adaptador debe estar conectado cerca del equipo y debe ser de fácil acceso. 6 2. Familiarizándose con el teléfono Usted puede comenzar a utilizar su teléfono móvil después de familiarizarse con las partes del mismo. 1. Conector de auricular (Jack 3.5mm) 2. Conector USB 3. Auricular 4. Cámara Frontal 5. Botón de acceso rápido a Buscador 6. Pantalla LCD 7. Botones Recientes/Inicio/Atrás 8. Micrófono 9. Botón encendido / apagado 10. Botones de volumen 11. Cámara Trasera 12. Flash LED 13. Sensor de huella 14. Altavoz 7 Los iconos en la pantalla principal o en el menú principal van a depender de la cantidad de aplicaciones instaladas en el terminal. Nota: El sistema operativo en este dispositivo está diseñado para funcionar con baja memoria RAM por lo que no es recomendable descargar aplicaciones muy grandes y/o descargar muchas aplicaciones y usarlas al mismo tiempo ya que puede ocasionar un comportamiento inestable del mismo. 8 3. Inicializando el teléfono Como insertar la tarjeta SIM: Ubique la ranura para tarjeta SIM e inserte la SIM tal como se muestra en la figura. Adicional usted tendrá una ayuda visual, como referencia, de donde se inserta la tarjeta SIM. (Siempre apague el dispositivo antes de insertar la SIM) • Deslice la tarjeta SIM en la ranura hasta que est…

Text truncated - open the document above for the full version.

b mobile HK Limited Agent Authorization Letter (2022-06-21) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Carlos Lopez / Manager Date/City: 2022-06-21/ HONG KONG Phone: 852-2728 7886 Fax: 852-2728 0468 E-mail: [email protected]

b mobile HK Limited Long Term Confidentiality Request Letter (2022-06-21) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model No.: BL65 FCC ID: ZSW-30-121 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Schematic Diagram Block Diagram Part List / BOM List / PCB Layout Operational Description Tune-up Procedure Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Carlos Lopez / Manager Date/City: Phone: Fax: E-mail: 2022-06-21 / HONG KONG 852-2728 7886 852-2728 0468 [email protected]

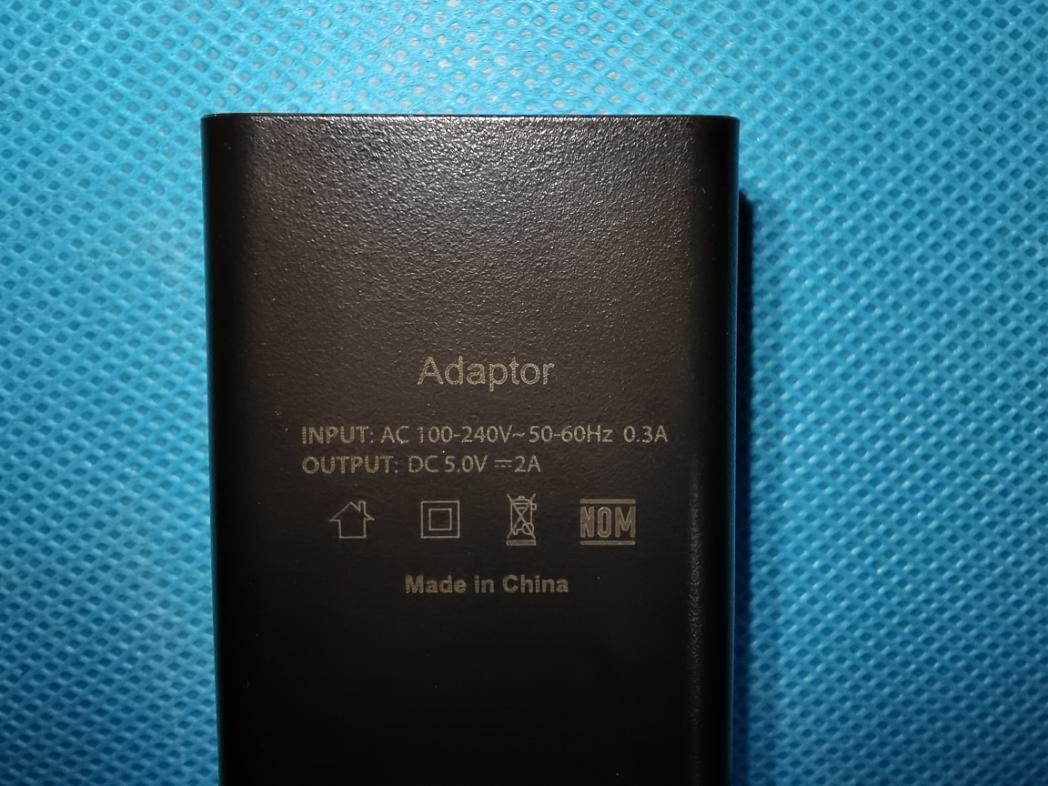

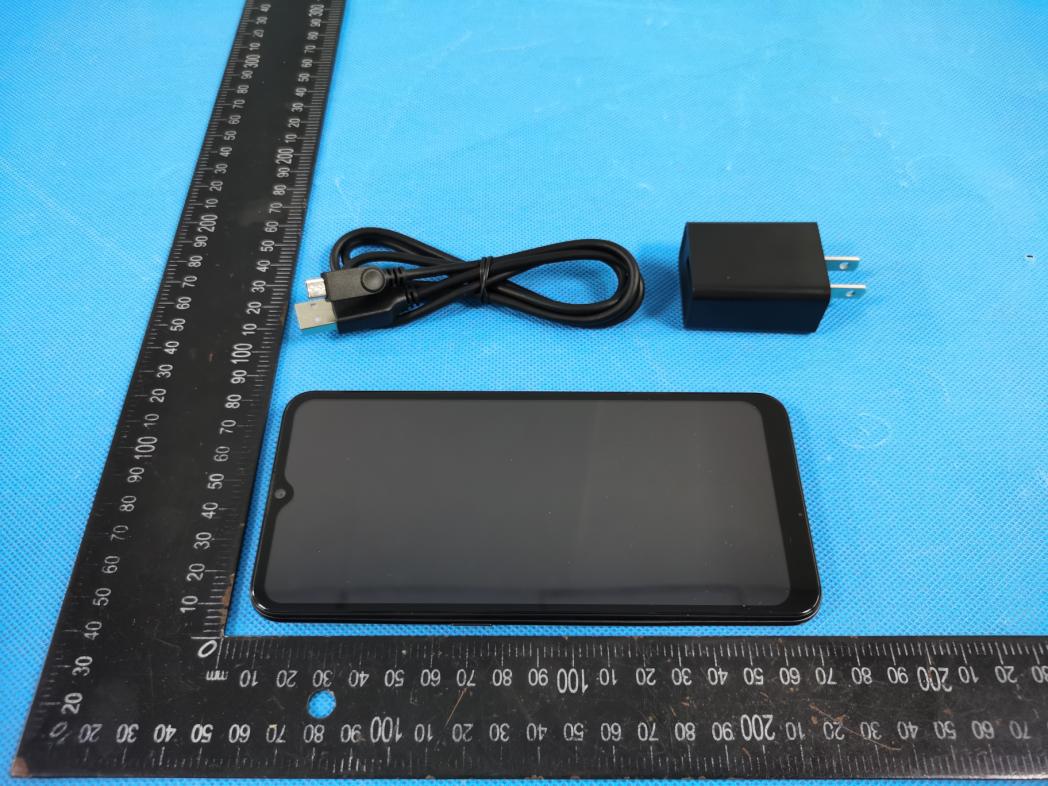

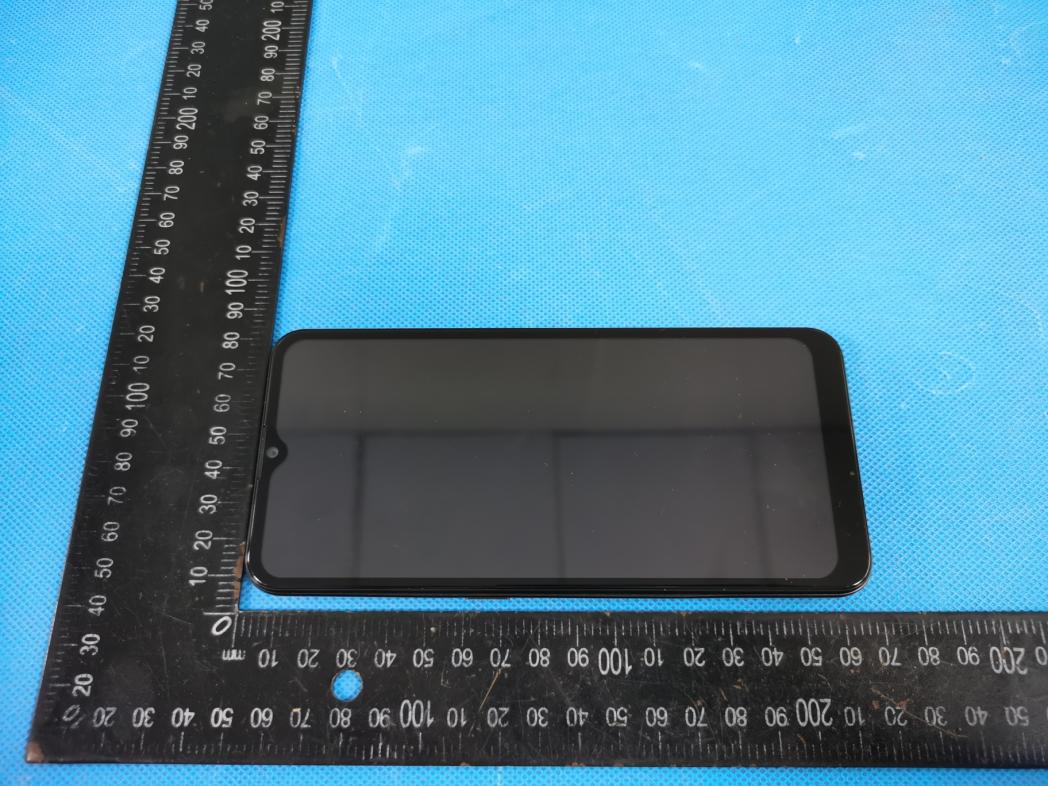

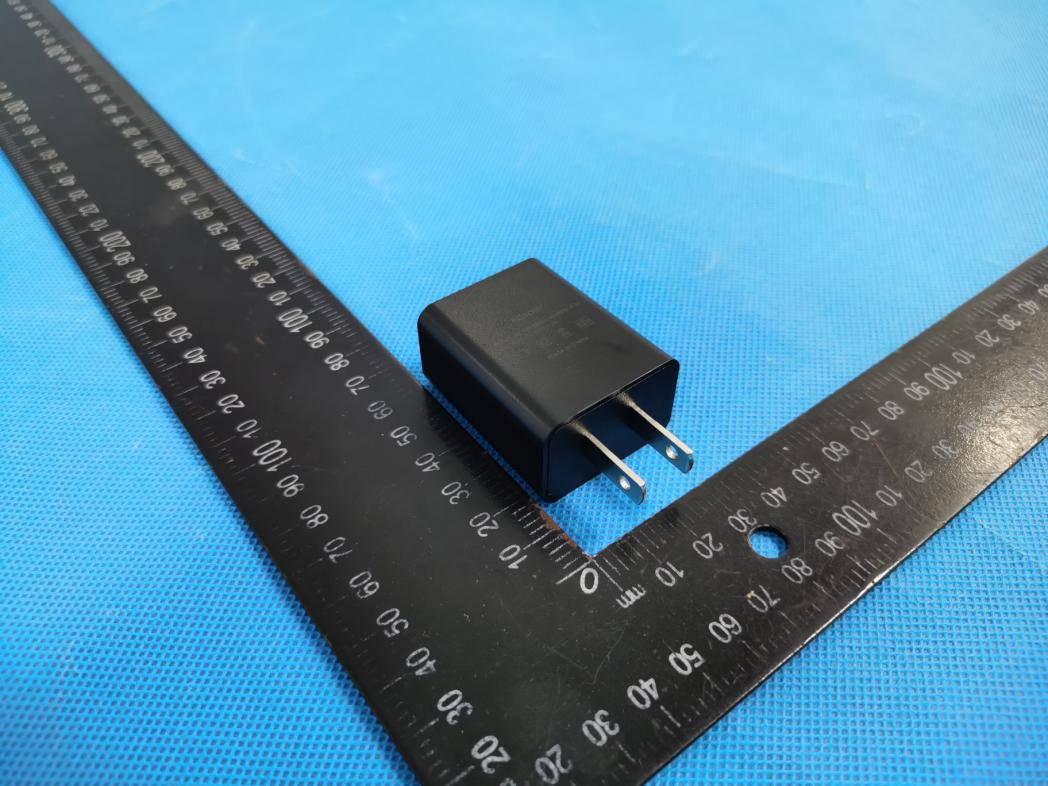

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 BT/WIFI ANT Photo 17 Photo 18 GSM/WCDMA/LTE Main ANT LTE AUX ANT

Page 1 of 206 Report No.: S22032105003001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Trademark： Bmobile Model Name： BL65 Family Model： N/A Report No.： S22032105003001 FCC ID： ZSW-30-121 Prepared for b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel.: 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 206 Report No.: S22032105003001 TEST RESULT CERTIFICATION Applicant’s name .................. : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Manufacturer's Name ........... : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Product description Product name ......................... : Mobile Phone Trademark ............................ : Bmobile Model Name ......................... : BL65 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992;IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests ............. : Mar. 16, 2022 ~Jun. 24, 2022 Date of Issue ........................................... : Jun. 24, 2022 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jacob Chen) Approved By (Lab Manager) : (Alex Li) Page 3 of 206 Report No.: S22032105003001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Jun. 24, 2022 Jacob Chen Page 4 of 206 Report No.: S22032105003001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF…

Text truncated - open the document above for the full version.

Page 141 of 206 Report No.: S22032105003001 Page 142 of 206 Report No.: S22032105003001 Page 143 of 206 Report No.: S22032105003001 Page 144 of 206 Report No.: S22032105003001 Page 145 of 206 Report No.: S22032105003001 Page 146 of 206 Report No.: S22032105003001 Page 147 of 206 Report No.: S22032105003001 Page 148 of 206 Report No.: S22032105003001 Page 149 of 206 Report No.: S22032105003001 Page 150 of 206 Report No.: S22032105003001 Page 151 of 206 Report No.: S22032105003001 Page 152 of 206 Report No.: S22032105003001 Page 153 of 206 Report No.: S22032105003001 Page 154 of 206 Report No.: S22032105003001 Page 155 of 206 Report No.: S22032105003001 Page 156 of 206 Report No.: S22032105003001 Page 157 of 206 Report No.: S22032105003001 Page 158 of 206 Report No.: S22032105003001 Page 159 of 206 Report No.: S22032105003001 Page 160 of 206 Report No.: S22032105003001 Page 161 of 206 Report No.: S22032105003001 Page 162 of 206 Report No.: S22032105003001 Page 163 of 206 Report No.: S22032105003001 Page 164 of 206 Report No.: S22032105003001 Page 165 of 206 Report No.: S22032105003001 Page 166 of 206 Report No.: S22032105003001 Page 167 of 206 Report No.: S22032105003001 Page 168 of 206 Report No.: S22032105003001 Page 169 of 206 Report No.: S22032105003001 Page 170 of 206 Report No.: S22032105003001 Page 171 of 206 Report No.: S22032105003001 Page 172 of 206 Report No.: S22032105003001 Page 173 of 206 Report No.: S22032105003001 Page 174 of 206 Report No.: S22032105003001 Page 175 of 206 Report No.: S22032105003001 Page 176 of 206 Report No.: S22032105003001 Page 177 of 206 Report No.: S22032105003001 Page 178 of 206 Report No.: S22032105003001 Page 179 of 206 Report No.: S22032105003001 Page 180 of 206 Report No.: S22032105003001 Page 181 of 206 Report No.: S22032105003001 Page 182 of 206 Report No.: S22032105003001 Page 183 of 206 Report No.: S22032105003001 Page 184 of 206 Report No.: S22032105003001 Page 185 of 206 Report No.: S22032105003001 Page 186 of 206 Report No.: S22032105003001 Page 187 of 206 Report No.: S22032105003001 Page 188 of 206 Report No.: S22032105003001 Page 189 of 206 Report No.: S22032105003001 Page 190 of 206 Report No.: S22032105003001

Report No.: S22032105001004 Page 1 of 40 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict EGPRS1900 1 Slot 512 1850.2 24.99 PASS EGPRS1900 1 Slot 661 1880 25.81 PASS EGPRS1900 1 Slot 810 1909.8 25.06 PASS EGPRS1900 2 Slot 512 1850.2 25.58 PASS EGPRS1900 2 Slot 661 1880 25.45 PASS EGPRS1900 2 Slot 810 1909.8 25.11 PASS EGPRS1900 3 Slot 512 1850.2 24.22 PASS EGPRS1900 3 Slot 661 1880 24.28 PASS EGPRS1900 3 Slot 810 1909.8 23.53 PASS EGPRS1900 4 Slot 512 1850.2 20.90 PASS EGPRS1900 4 Slot 661 1880 21.61 PASS EGPRS1900 4 Slot 810 1909.8 20.72 PASS EGPRS850 1 Slot 128 824.2 25.16 PASS EGPRS850 1 Slot 189 836.4 26.54 PASS EGPRS850 1 Slot 251 848.8 26.11 PASS EGPRS850 2 Slot 128 824.2 25.82 PASS EGPRS850 2 Slot 189 836.4 26.30 PASS EGPRS850 2 Slot 251 848.8 25.90 PASS EGPRS850 3 Slot 128 824.2 24.82 PASS EGPRS850 3 Slot 189 836.4 25.53 PASS EGPRS850 3 Slot 251 848.8 24.74 PASS EGPRS850 4 Slot 128 824.2 20.66 PASS EGPRS850 4 Slot 189 836.4 22.06 PASS EGPRS850 4 Slot 251 848.8 21.09 PASS 15 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict EGPRS1900 512 1850.2 7.054590444 13.00 PASS EGPRS1900 661 1880 7.056644845 13.00 PASS EGPRS1900 810 1909.8 7.266493289 13.00 PASS EGPRS850 128 824.2 9.804573171 13.00 PASS EGPRS850 189 836.4 8.979826659 13.00 PASS EGPRS850 251 848.8 9.727038043 13.00 PASS EGPRS1900 Channel=512 Report No.: S22032105001004 Page 2 of 40 EGPRS1900 Channel=810 EGPRS1900 Channel=661 Report No.: S22032105001004 Page 3 of 40 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: S22032105001004 Page 4 of 40 EGPRS850 Channel=189 16 Occupied bandwidth Report No.: S22032105001004 Page 5 of 40 Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict EGPRS1900 512 1850.2 238.537 307.229 PASS EGPRS1900 661 1880 238.816 285.356 PASS EGPRS1900 810 1909.8 243.720 291.413 PASS EGPRS850 128 824.2 247.079 310.679 PASS EGPRS850 189 836.4 266.840 341.440 PASS EGPRS850 251 848.8 260.265 317.945 PASS EGPRS1900 Channel=661 EGPRS1900 Channel=512 Report No.: S22032105001004 Page 6 of 40 EGPRS1900 Channel=810 EGPRS850 Channel=189 Report No.: S22032105001004 Page 7 of 40 EGPRS850 Channel=128 EGPRS850 Channel=251 Report No.: S22032105001004 Page 8 of 40 17 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 1849.97 -37.35 -13 PASS EGPRS1900 810 1909.8 1910.02 -37.38 -13 PASS EGPRS850 128 824.2 824.00 -34.58 -13 PASS EGPRS850 251 848.8 849.00 -33.42 -13 PASS EGPRS1900 Channel=512 Report No.: S22032105001004 Page 9 of 40 EGPRS1900 Channel=810 EGPRS850 Channel=128 Report No.: S22032105001004 Page 10 of 40 EGPRS850 Channel=251 18 Out-of-band emissions Report No.: S22032105001004 Page 11 of 40 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict EGPRS1900 512 1850.2 25944.13 -18.89 -13 PASS EGPRS1900 661 1880 26067.22 -17.86 -13 PASS EGPRS1900 810 1909.8 25962.66 -18.46 -13 PASS EGPRS850 128 824.2 25979.20 -20.81 -13 PASS EGPRS850 189 836.4 26010.97 -21.15 -13 PASS EGPRS850 251 848.8 25545.76 -19.44 -13 PASS EGPRS1900 Channel=512 EGPRS1900 Channel=810 Report No.: S22032105001004 Page 12 of 40 EGPRS1900 Channel=661 EGPRS850 Channel=128 Report No.: S22032105001004 Page 13 of 40 EGPRS850 Channel=189 EGPRS850 Channel=251 Report No.: S22032105001004 Page 14 of 40 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict GPRS1900 1 Slot 512 1850.2 29.89 PASS GPRS1900 1 Slot 661 1880 29.87 PASS GPRS1900 1 Slot 810 1909.8 29.86 PASS GPRS1900 2 Slot 512 1850.2 27.87 PASS GPRS1900 2 Slot 661 1880 27.69 PASS GPRS1900 2 Slot 810 1909.8 27.52 PASS GPRS1900 3 Slot 512 1850.2 26.30 PASS GPRS1900 3 Slot 661 1880 26.10 PASS GPRS1900 3 Slot 810 1909.8 25.88 PASS GPRS1900 4 Slot 512 1850.2 24.35 PASS GPRS1900 4 Slot 661 1880 24.13 PASS GPRS1900 4 Slot 810 1909.8 23.88 PASS GPRS850 1 Slot 128 824.2 33.24 PASS GPRS850 1 Slot 189 836.4 33.19 PASS GPRS850 1 Slot 251 848.8 33.11 PASS GPRS850 2 Slot 128 824.2 31.24 PASS GPRS850 2 Slot 189 836.4 31.18 PASS GPRS850 2 Slot 251 848.8 31.08 PASS GPRS850 3 Slot 128 824.2 29.30 PASS GPRS850 3 Slot 189 836.4 29.27 PASS GPRS850 3 Slot 251 848.8 29.13 PASS Report No.: S22032105001004 Page 15 of 40 GPRS850 4 Slot 128 824.2 26.96 PASS GPRS850 4 Slot 189 836.4 26.93 PASS GPRS850 4 Slot 251 848.8 26.84 PASS 09 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict GPRS1900 512 1850.2 2.688072709 13.00 PASS GPRS1900 661 1880 2.679174288 13.00 PASS GPRS1900 810 1909.8 2.686128508 13.00 PASS GPRS850 128 824.2 2.65919049 13.00 PASS GPRS850 189 836.4 2.668630251 13.00 PASS GPRS850 251 848.8 2.667497188 13.00 PASS GPRS1900 Channel=512 GPRS1900 Channel=810 Report No.: S22032105001004 Page 16 of 40 GPRS1900 Channel=661 GPRS850 Channel=128 Report No.: S22032105001004 Page 17 of 40 GPRS850 Channel=189 GPRS850 Channel=251 Report No.: S22032105001004 Page 18 of 40 10 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict GPRS1900 512 1850.2 246.641 311.373 PASS GPRS1900 661 1880 247.052 318.786 PASS GPRS1900 810 1909.8 242.781 315.189 PASS GPRS850 128 824.2 242.446 311.051 PASS GPRS850 189 836.4 246.800 313.640 PASS GPRS850 251 848.8 250.563 314.461 PASS GPRS1900 Channel=512 Report No.: S22032105001004 Page 19 of 40 GPRS1900 Channel=810 GPRS1900 Channel=661 Report No.: S22032105001004 Page 20 of 40 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S22032105001004 Page 21 of 40 GPRS850 Channel=189 11 Band edge Report No.: S22032105001004 Page 22 of 40 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict GPRS1900 512 1850.2 1849.99 -29.28 -13 PASS GPRS1900 810 1909.8 1910.02 -28.15 -13 PASS GPRS850 128 824.2 823.98 -25.95 -13 PASS GPRS850 251 848.8 849.02 -26.70 -13 PASS GPRS1900 Channel=810 GPRS1900 Channel=512 Report No.: S22032105001004 Page 23 of 40 GPRS850 Channel=128 GPRS850 Channel=251 Report No.: S22032105001004 Page 24 of 40 12 Out-of-ba…

Text truncated - open the document above for the full version.

Report No.: S22032105001004 Page 1 of 21 01 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict WCDMA Band2 9262 1852.4 22.75 PASS WCDMA Band2 9400 1880 22.77 PASS WCDMA Band2 9538 1907.6 22.85 PASS WCDMA Band4 1312 1712.4 22.64 PASS WCDMA Band4 1413 1732.6 22.49 PASS WCDMA Band4 1513 1752.6 22.71 PASS WCDMA Band5 4132 826.4 22.67 PASS WCDMA Band5 4182 836.4 22.58 PASS WCDMA Band5 4233 846.6 22.48 PASS 03 Peak-to-Average Ratio Band Channel Frequency (MHz) Result (dB) high Limit (dB) Verdict WCDMA Band2 9262 1852.4 2.91 13 PASS WCDMA Band2 9400 1880 2.94 13 PASS WCDMA Band2 9538 1907.6 2.89 13 PASS WCDMA Band4 1312 1712.4 2.84 13 PASS WCDMA Band4 1413 1732.6 2.97 13 PASS WCDMA Band4 1513 1752.6 2.85 13 PASS WCDMA Band5 4132 826.4 3.03 13 PASS WCDMA Band5 4182 836.4 3.00 13 PASS WCDMA Band5 4233 846.6 3.05 13 PASS WCDMA Band2 Channel=9262 Report No.: S22032105001004 Page 2 of 21 WCDMA Band2 Channel=9538 WCDMA Band2 Channel=9400 Report No.: S22032105001004 Page 3 of 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1513 Report No.: S22032105001004 Page 4 of 21 WCDMA Band4 Channel=1413 WCDMA Band5 Channel=4132 Report No.: S22032105001004 Page 5 of 21 WCDMA Band5 Channel=4233 WCDMA Band5 Channel=4182 Report No.: S22032105001004 Page 6 of 21 04 Occupied bandwidth Band Channel Frequency (MHz) 99% OBW (kHz) -26dB EBW (kHz) Verdict WCDMA Band2 9262 1852.4 4146.989 4666.459 PASS WCDMA Band2 9400 1880 4164.596 4677.551 PASS WCDMA Band2 9538 1907.6 4143.619 4688.342 PASS WCDMA Band4 1312 1712.4 4160.107 4678.543 PASS WCDMA Band4 1413 1732.6 4167.512 4673.875 PASS WCDMA Band4 1513 1752.6 4157.682 4665.470 PASS WCDMA Band5 4132 826.4 4132.966 4676.664 PASS WCDMA Band5 4182 836.4 4143.936 4652.439 PASS WCDMA Band5 4233 846.6 4146.645 4671.491 PASS WCDMA Band2 Channel=9400 Report No.: S22032105001004 Page 7 of 21 WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9538 Report No.: S22032105001004 Page 8 of 21 WCDMA Band4 Channel=1312 WCDMA Band4 Channel=1413 Report No.: S22032105001004 Page 9 of 21 WCDMA Band4 Channel=1513 WCDMA Band5 Channel=4132 Report No.: S22032105001004 Page 10 of 21 WCDMA Band5 Channel=4233 WCDMA Band5 Channel=4182 Report No.: S22032105001004 Page 11 of 21 05 Band edge Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 1850.00 -26.42 -13 PASS WCDMA Band2 9538 1907.6 1910.00 -24.99 -13 PASS WCDMA Band4 1312 1712.4 1710.00 -25.59 -13 PASS WCDMA Band4 1513 1752.6 1755.00 -26.08 -13 PASS WCDMA Band5 4132 826.4 824.00 -26.02 -13 PASS WCDMA Band5 4233 846.6 849.00 -26.51 -13 PASS WCDMA Band2 Channel=9538 Report No.: S22032105001004 Page 12 of 21 WCDMA Band2 Channel=9262 WCDMA Band4 Channel=1513 Report No.: S22032105001004 Page 13 of 21 WCDMA Band4 Channel=1312 WCDMA Band5 Channel=4233 Report No.: S22032105001004 Page 14 of 21 WCDMA Band5 Channel=4132 06 Out-of-band emissions Report No.: S22032105001004 Page 15 of 21 Band Channel Frequency (MHz) Spur Freq (MHz) Spur Level (dBm) Limit (dBm) Verdict WCDMA Band2 9262 1852.4 19920.62 -23.94 -13 PASS WCDMA Band2 9400 1880 18403.90 -23.98 -13 PASS WCDMA Band2 9538 1907.6 19843.73 -23.49 -13 PASS WCDMA Band4 1312 1712.4 18494.26 -24.27 -13 PASS WCDMA Band4 1413 1732.6 19862.71 -23.94 -13 PASS WCDMA Band4 1513 1752.6 18997.01 -24.09 -13 PASS WCDMA Band5 4132 826.4 3263.77 -30.00 -13 PASS WCDMA Band5 4182 836.4 2642.14 -30.42 -13 PASS WCDMA Band5 4233 846.6 3144.38 -29.62 -13 PASS WCDMA Band2 Channel=9262 WCDMA Band2 Channel=9400 Report No.: S22032105001004 Page 16 of 21 WCDMA Band2 Channel=9538 WCDMA Band4 Channel=1312 Report No.: S22032105001004 Page 17 of 21 WCDMA Band4 Channel=1413 WCDMA Band4 Channel=1513 Report No.: S22032105001004 Page 18 of 21 WCDMA Band5 Channel=4132 WCDMA Band5 Channel=4182 Report No.: S22032105001004 Page 19 of 21 WCDMA Band5 Channel=4233 Report No.: S22032105001004 Page 20 of 21 07 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSDPA Band2 Subtest1 9262 1852.4 22.41 PASS HSDPA Band2 Subtest2 9262 1852.4 22.00 PASS HSDPA Band2 Subtest3 9262 1852.4 21.67 PASS HSDPA Band2 Subtest4 9262 1852.4 21.66 PASS HSDPA Band2 Subtest1 9400 1880 21.98 PASS HSDPA Band2 Subtest2 9400 1880 21.75 PASS HSDPA Band2 Subtest3 9400 1880 21.58 PASS HSDPA Band2 Subtest4 9400 1880 21.47 PASS HSDPA Band2 Subtest1 9538 1907.6 21.99 PASS HSDPA Band2 Subtest2 9538 1907.6 21.70 PASS HSDPA Band2 Subtest3 9538 1907.6 21.49 PASS HSDPA Band2 Subtest4 9538 1907.6 21.10 PASS HSDPA Band4 Subtest1 1312 1712.4 22.74 PASS HSDPA Band4 Subtest2 1312 1712.4 22.39 PASS HSDPA Band4 Subtest3 1312 1712.4 22.19 PASS HSDPA Band4 Subtest4 1312 1712.4 21.92 PASS HSDPA Band4 Subtest1 1413 1732.6 22.04 PASS HSDPA Band4 Subtest2 1413 1732.6 21.73 PASS HSDPA Band4 Subtest3 1413 1732.6 21.40 PASS HSDPA Band4 Subtest4 1413 1732.6 21.33 PASS HSDPA Band4 Subtest1 1513 1752.6 22.20 PASS HSDPA Band4 Subtest2 1513 1752.6 21.82 PASS HSDPA Band4 Subtest3 1513 1752.6 21.63 PASS HSDPA Band4 Subtest4 1513 1752.6 21.49 PASS HSDPA Band5 Subtest1 4132 826.4 22.09 PASS HSDPA Band5 Subtest2 4132 826.4 21.69 PASS HSDPA Band5 Subtest3 4132 826.4 21.35 PASS HSDPA Band5 Subtest4 4132 826.4 21.21 PASS HSDPA Band5 Subtest1 4182 836.4 22.02 PASS HSDPA Band5 Subtest2 4182 836.4 21.77 PASS HSDPA Band5 Subtest3 4182 836.4 21.48 PASS HSDPA Band5 Subtest4 4182 836.4 21.33 PASS HSDPA Band5 Subtest1 4233 846.6 21.86 PASS HSDPA Band5 Subtest2 4233 846.6 21.64 PASS HSDPA Band5 Subtest3 4233 846.6 21.33 PASS HSDPA Band5 Subtest4 4233 846.6 21.43 PASS 13 Conducted output power Band Channel Frequency (MHz) Power (dBm) Verdict HSUPA Band2 Subtest1 9262 1852.4 22.24 PASS HSUPA Band2 Subtest2 9262 1852.4 22.28 PASS HSUPA Band2 Subtest3 9262 1852.4 21.81 PASS Report No.: S22032105001004 Page 21 of 21 HSUPA Band2 Subtest4 9262 1852.4 22.17 PASS HSUPA Band2 Subtest5 9262 1852.4 21.97 PASS HSUPA Band2 Subtest1 9400 1880 21.85 PASS HSUPA Band2 Subtest2 9400 1880 21.93 PASS HSUPA Band2 Subtest3 9400 1880 21.68 PASS HSUPA Band2 S…

Text truncated - open the document above for the full version.

Report No.: S22032105001005 Page 1 of 331 1 Conducted output power Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Verdict Band12 1.4 23017 1 #0 QPSK 22.94 PASS Band12 1.4 23017 1 #Mid QPSK 22.95 PASS Band12 1.4 23017 1 #Max QPSK 22.92 PASS Band12 1.4 23017 3 #0 QPSK 22.91 PASS Band12 1.4 23017 3 #Mid QPSK 22.97 PASS Band12 1.4 23017 3 #Max QPSK 22.91 PASS Band12 1.4 23017 6 #0 QPSK 21.96 PASS Band12 1.4 23017 1 #0 QAM16 23.04 PASS Band12 1.4 23017 1 #Mid QAM16 22.98 PASS Band12 1.4 23017 1 #Max QAM16 22.82 PASS Band12 1.4 23017 3 #0 QAM16 22.16 PASS Band12 1.4 23017 3 #Mid QAM16 22.17 PASS Band12 1.4 23017 3 #Max QAM16 22.07 PASS Band12 1.4 23017 6 #0 QAM16 20.98 PASS Band12 1.4 23095 1 #0 QPSK 22.74 PASS Band12 1.4 23095 1 #Mid QPSK 22.76 PASS Band12 1.4 23095 1 #Max QPSK 22.76 PASS Band12 1.4 23095 3 #0 QPSK 22.79 PASS Band12 1.4 23095 3 #Mid QPSK 22.65 PASS Band12 1.4 23095 3 #Max QPSK 22.70 PASS Band12 1.4 23095 6 #0 QPSK 21.79 PASS Band12 1.4 23095 1 #0 QAM16 22.47 PASS Band12 1.4 23095 1 #Mid QAM16 22.35 PASS Band12 1.4 23095 1 #Max QAM16 22…

Text truncated - open the document above for the full version.
