ZSW-30-132Mobile Phone

MANUAL DE USUARIO DE LA SERIE B Powered by Android™ 13 (Go edition) Nombre del equipo: Teléfono celular Marca: Bmobile Modelo: BL55 Google, Android, Google Play, YouTube, Gmail, Google Drive, Chrome y otras marcas son marcas de Google LLC. 1 Índice 1.Introducción ................................................................................... 2 2. Familiarizándose con el teléfono ................................................ 6 3. Inicializando el teléfono ............................................................... 8 4. Funciones básicas del teléfono......... ..................................... 11 5. Especificaciones técnicas ......................................................... 20 6. Aviso importante sobre el FCC ................................................. 22 7. Garantía limitada Bmobile ......................................................... 25 2 1. Introducción Seguridad Con el fin de garantizar que el teléfono es usado de manera segura y correcta, lea las siguientes precauciones antes de utilizarlo. 1.1 Precauciones generales • El teléfono es adecuado solo para la batería y el cargador aprobados por el fabricante, usar otros accesorios puede provocar que la batería presente mal funcionamiento como fugas, sobrecalentamiento, explosiones o incendiarse. • No golpee, haga vibrar o tire el teléfono para evitar daños en la unidad. • El líquido de la batería puede ocasionar quemaduras en la ropa y piel en caso de que se presenten fugas. Si esto sucede, por favor, lavar con abundante agua limpia inmediatamente y vaya al hospital más cercano. • Por favor, mantenga la batería lejos del fuego para evitar incendios o explosión ya que puede provocar fugas o emitir un olor extraño. • No coloque o exponga el teléfono a la humedad o puede provocar sobrecalentamiento, humo y corrosión. • No utilice ni coloque la batería bajo la luz solar directa o en lugares calientes, puede causar fugas o sobrecalentamiento, lo que reduce el rendimiento y acorta la vida útil de la misma. • No cargue la batería durante más de 24 horas seguidas. 3 • Use con cuidado el auricular, el uso del mismo con excesivo volumen puede causar pérdida auditiva. 1.2 Precauciones en el uso del cargador • No provoque ningún tipo de cortocircuito en el cargador, o puede causar una descarga eléctrica, humos y daños al cargador. • No utilice el cargador si el cable de alimentación está roto o dañado, o puede provocar incendios y descargas eléctricas. • Elimine el polvo acumulado en la clavija de alimentación. • No ponga contenedores de agua al lado de la fuente de alimentación para evitar el sobrecalentamiento, incendios, descargas eléctricas y mal funcionamiento. • No desmonte ni fuerce el cargador o puede provocar lesiones personales, descarga eléctrica, fuego y daños en el cargador. • No utilice el cargador en lugares de alta humedad, como cuartos de baño, o puede causar una descarga eléctrica, fuego y daños en el cargador. • No toque el cargador, el cable o el tomacorriente de alimentación con las manos mojadas ya que esto puede causar una descarga eléctrica. • No coloque objetos pesados sobre el cable de alimentación o puede dañar el cable y provocar un mal funcionamiento. • Por favor desconecte el cargador del tomacorriente antes de su limpieza y mantenimiento. • Por favor, mantenga el cargador desconectado del tomacorriente y no tire del cable de 4 alimentación ya que puede dañar el cable de alimentación y provocar una descarga eléctrica. 1.3 Limpieza y mantenimiento • Dado que el teléfono, la batería y el cargador no son resistentes al agua, no los utilice en lugares de alta humedad y evite que se mojen debido a la lluvia. • Por favor, limpiar la batería y el cargador con un paño suave y seco. • Nunca utilice alcohol, solventes y/o soluciones corrosivas, como el benceno, para limpiar el teléfono. • Los tomacorrientes sucios pueden causar un mal contacto y una baja en la fuente de alimentación, o incluso puede hacer que la carga de la batería no se realice correctamente. Así que, por favor, límpielos periódicamente. 1.4 Precauciones Comunes Teléfono móvil: • Utilice el teléfono en un ambiente con temperatura entre 20 °C a 40 °C y la humedad menor a 75 %. • Utilice el teléfono lejos de los teléfonos fijos, televisores, radios y equipos de automatización de oficina, para no afectar el normal funcionamiento de estos equipos y del teléfono móvil. 5 Cargador: No cargue el teléfono en las siguientes condiciones: - Lugares con luz solar directa. - Lugares con temperatura ambiente inferior a 0 °C o superior a 40 °C, lugares húmedos o polvorientos con fuertes vibraciones (Esto pueden provocar un mal funcionamiento) - Lugares cerca de electrodomésticos (Esto puede afectar las imágenes y el sonido) como aparato de TV, radio, etc. - El adaptador debe estar conectado cerca del equipo y debe ser de fácil acceso. 6 2. Familiarizándose con el teléfono Usted puede comenzar a utilizar su teléfono móvil después de familiarizarse con las partes del mismo. 1. Conector de auricular (Jack 3.5mm) 2. Conector USB 3. Cámara Frontal 4. Auricular 5. Pantalla LCD 6. Botones Reciente/ Inicio/ Atrás 7 Micrófono. 8. Altavoz 9. Botones de volumen 10. Botón encendido/ apagado 11. Cámara Trasera 12. Flash LED 7 Los iconos en la pantalla principal o en el menú principal van a depender de la cantidad de aplicaciones instaladas en el terminal. Nota: El sistema operativo en este dispositivo está diseñado para funcionar con baja memoria RAM por lo que no es recomendable descargar aplicaciones muy grandes y/o descargar muchas aplicaciones y usarlas al mismo tiempo ya que puede ocasionar un comportamiento inestable del mismo. 8 3. Inicializando el teléfono Como retirar la cubierta posterior: • Asegúrese de que el dispositivo esté apagado. • Sujete firmemente el aparato con la parte frontal hacia abajo. • Deslice el dedo en la ranura diseñada para remover la cubierta y retire suavemente la cubierta trasera. Como insertar la tarjeta SIM: Ubique la ranu…

Text truncated - open the document above for the full version.

b mobile HK Limited 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Product Name: Mobile Phone FCC ID: ZSW-30-132 Model(s): BL55 2.911(d)(5)(i) EquipmentType We, [b mobile HK Limited] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Carlos Lopez Date: 10/18/2023 Title and Company name: Manager / b mobile HK Limited NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

b mobile HK Limited 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Product Name: Mobile Phone FCC ID: ZSW-30-132 Model(s): BL55 2.911(d)(5)(ii) Applicant filing We, [b mobile HK Limited] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Carlos Lopez Date: 10/18/2023 Title and Company name: Manager / b mobile HK Limited NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 10-18-2023 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID:ZSW-30-132 b mobile HK Limited (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Signature: Contact Person: Carlos Lopez Tel:852-2728 7886 Email: [email protected]

b mobile HK Limited Long Term Confidentiality Request Letter (2023-10-18) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model No.: BL55 FCC ID: ZSW-30-132 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Operational Description  Part List / BOM List / PCB Layout  Tune-up Procedure Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Carlos Lopez / Manager Date/City: 2023-10-18 / HONG KONG Phone: 852-2728 7886 Fax: 852-2728 0468 E-mail: [email protected]

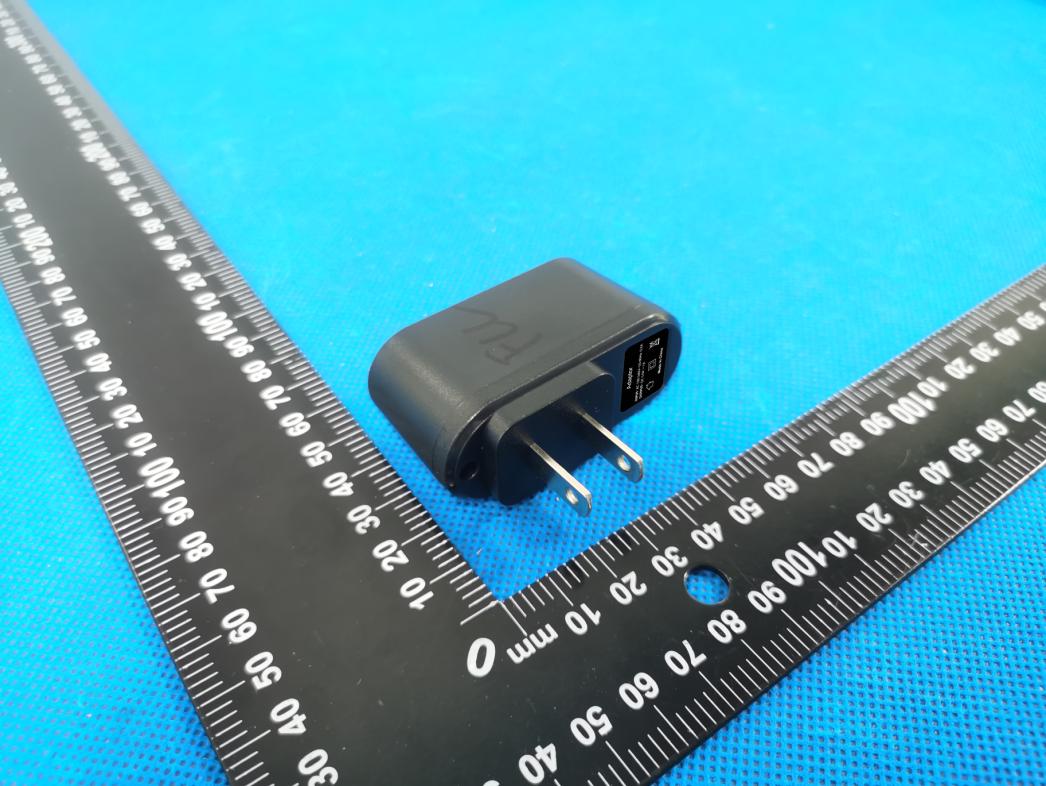

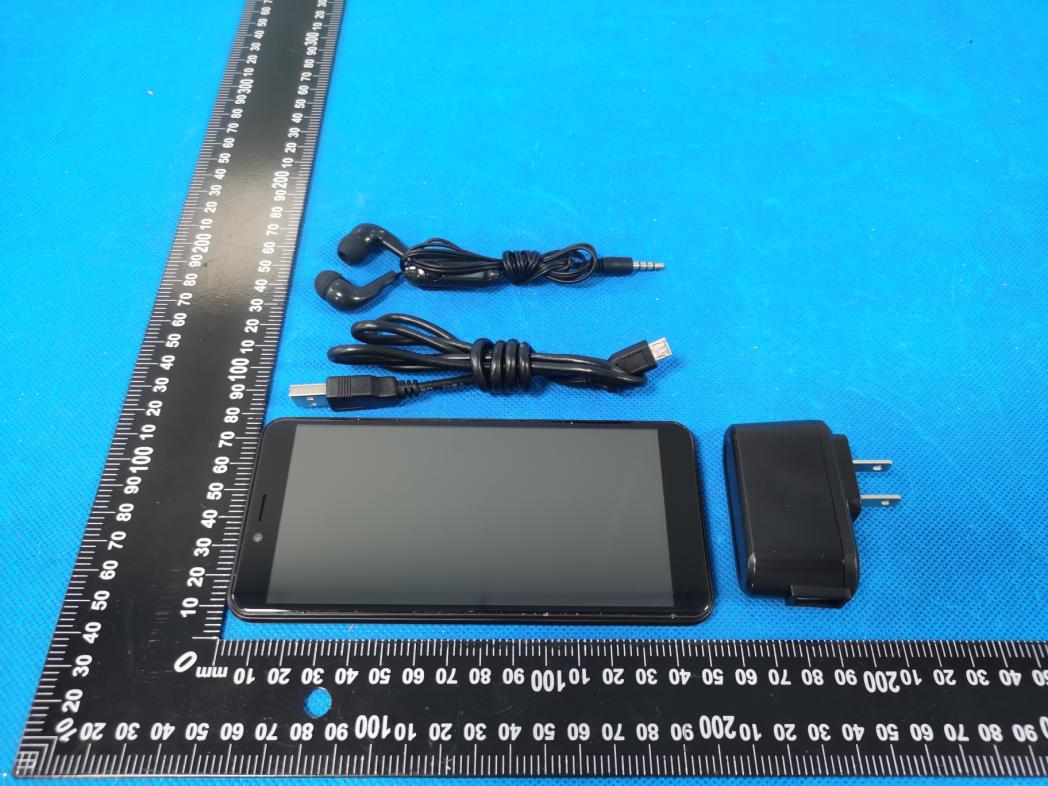

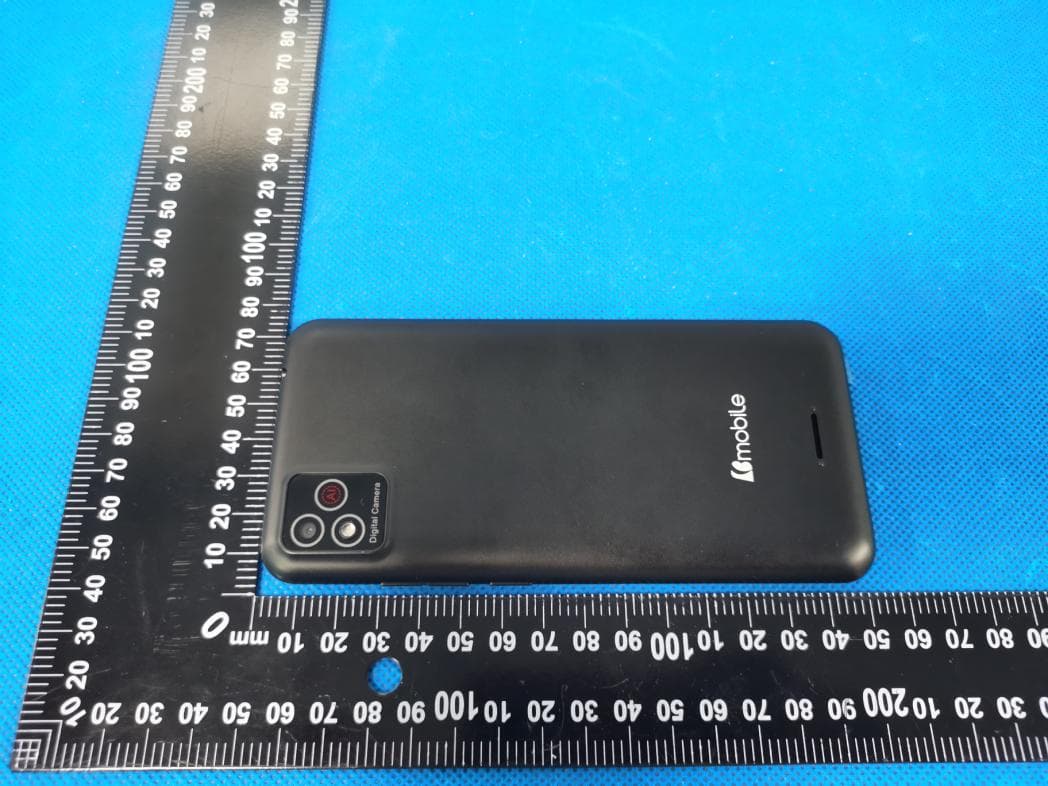

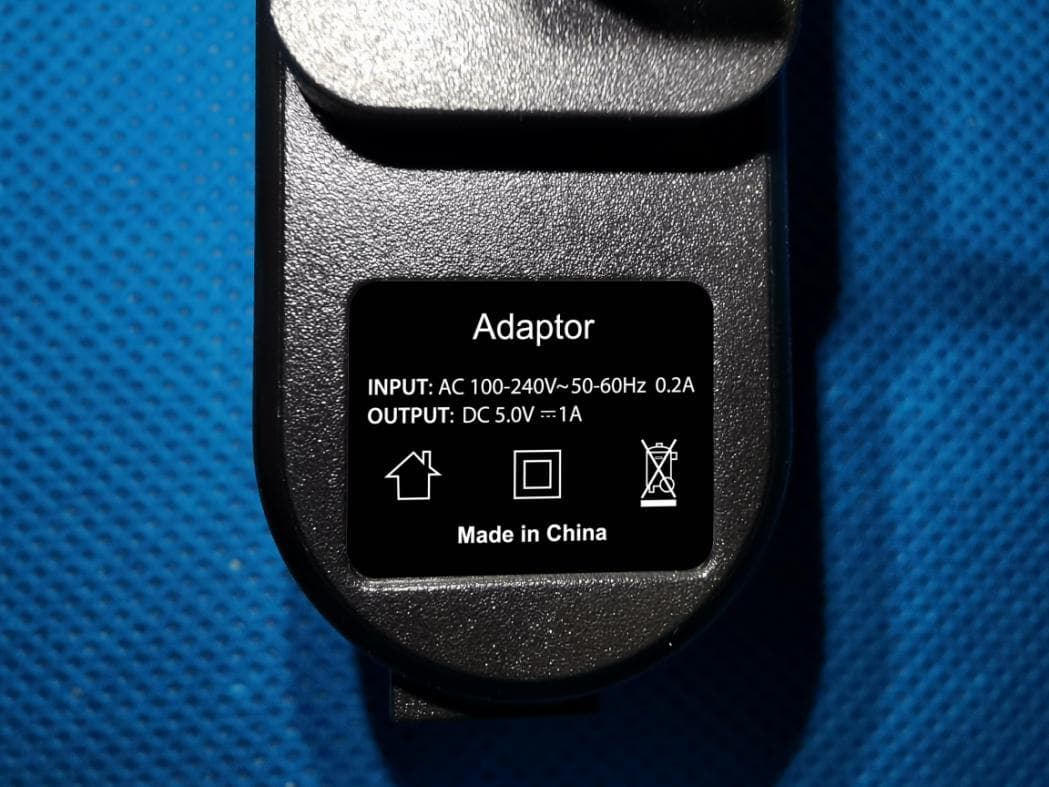

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 v Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 GSM/WCDMA/LTE Main ANT Photo 17 Photo 18 BT/WIFI ANT LTE AUX ANT

Page 1 of 221 Report No.: S23091806403001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Brand Name： Bmobile Model Name： BL55 Family Model： N/A Report No.： S23091806403001 FCC ID： ZSW-30-132 Prepared for b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 221 Report No.: S23091806403001 TEST RESULT CERTIFICATION Applicant’s name ................. : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Manufacturer's Name .......... : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Product description Product name ........................ : Mobile Phone Brand Name ......................... : Bmobile Model and/or type reference .............................. : BL55 Family Model ......................... : N/A Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................. S230918064001 Date of Test Date (s) of performance of tests .............. : Sep. 19, 2023 ~ Oct. 09, 2023 Date of Issue ........................................... : Oct. 13, 2023 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jack Li) Approved By (Lab Manager) : (Alex Li) Page 3 of 221 Report No.: S23091806403001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Oct. 13, 2023 Jack Li Page 4 of 221 Report No.: S23091806403001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 19 3.1. Power Reference ................................................................................... 19 3.2. Area scan & Zoom scan .......................................................................... 19 3.3. Description of interpolation/extrapolation scheme .............................. 21 3.4. Volumetric Scan ..................................................................................... 21 3.5. Power Drift ............................................................................................ 21 4. System Verification Procedure .......................................................................... 22 4.1. Tissue Verification ................................................................................. 22 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 23 4.2. System Verification Procedure .............................................................. 24 4.2.1. System Verification Results .............................................................. 25 5. SAR Measurement variability and uncertainty .................................................. 26 5.1. SAR measurement variability ................................................................. 26 5.2. SAR measurement uncertain…

Text truncated - open the document above for the full version.

Page 114 of 221 Report No.: S23091806403001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2989 0.2324 0.1702 0.1216 0.0908 0.0658 0.0476 3D screen shot Hot spot position Page 115 of 221 Report No.: S23091806403001 MEASUREMENT 14 Date of measurement: 9/10/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 2 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 1.91 B. SAR Measurement Results Frequency (MHz) 1880.000000 Relative permittivity (real part) 39.215698 Relative permittivity (imaginary part) 13.793800 Conductivity (S/m) 1.440686 Variation (%) 2.710000 SURFACE SAR VOLUME SAR Maximum location: X=6.00, Y=-38.00 SAR Peak: 0.31 W/kg SAR 10g (W/Kg) 0.111854 SAR 1g (W/Kg) 0.197260 Page 116 of 221 Report No.: S23091806403001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2992 0.2025 0.1220 0.0734 0.0490 0.0307 0.0243 3D screen shot Hot spot position Page 117 of 221 Report No.: S23091806403001 MEASUREMENT 15 Date of measurement: 19/9/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE band 4 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 1.73 B. SAR Measurement Results Frequency (MHz) 1732.500000 Relative permittivity (real part) 40.000416 Relative permittivity (imaginary part) 13.675150 Conductivity (S/m) 1.316233 Variation (%) -0.110000 SURFACE SAR VOLUME SAR Maximum location: X=-53.00, Y=-65.00 SAR Peak: 0.16 W/kg SAR 10g (W/Kg) 0.077718 SAR 1g (W/Kg) 0.116042 Page 118 of 221 Report No.: S23091806403001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.1476 0.1231 0.0950 0.0693 0.0526 0.0389 0.0295 3D screen shot Hot spot position Page 119 of 221 Report No.: S23091806403001 MEASUREMENT 16 Date of measurement: 19/9/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 4 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 1.73 B. SAR Measurement Results Frequency (MHz) 1732.500000 Relative permittivity (real part) 40.000416 Relative permittivity (imaginary part) 13.675150 Conductivity (S/m) 1.316233 Variation (%) 1.180000 SURFACE SAR VOLUME SAR Maximum location: X=6.00, Y=-27.00 SAR Peak: 0.21 W/kg SAR 10g (W/Kg) 0.080823 SAR 1g (W/Kg) 0.134467 Page 120 of 221 Report No.: S23091806403001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.1946 0.1383 0.0871 0.0571 0.0362 0.0267 0.0205 3D screen shot Hot spot position Page 121 of 221 Report No.: S23091806403001 MEASUREMENT 17 Date of measurement: 27/9/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE band 5 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 1.50 B. SAR Measurement Results Frequency (MHz) 836.500000 Relative permittivity (real part) 41.681908 Relative permittivity (imaginary part) 19.547754 Conductivity (S/m) 0.908428 Variation (%) -0.940000 SURFACE SAR VOLUME SAR Maximum location: X=-48.00, Y=-23.00 SAR Peak: 0.25 W/kg SAR 10g (W/Kg) 0.165306 SAR 1g (W/Kg) 0.213749 Page 122 of 221 Report No.: S23091806403001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2489 0.2181 0.1847 0.1568 0.1283 0.1049 0.0828 3D screen shot Hot spot position Page 123 of 221 Report No.: S23091806403001 MEASUREMENT 18 Date of measurement: 27/9/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 5 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 1.50 B. SAR Measurement Results Frequency (MHz) 836.500000 Relative permittivity (real part) 41.681908 Relative permittivity (imaginary part) 19.547754 Conductivity (S/m) 0.908428 Variation (%) -0.360000 SURFACE SAR VOLUME SAR Maximum location: X=-15.00, Y=5.00 SAR Peak: 0.29 W/kg SAR 10g (W/Kg) 0.177064 SAR 1g (W/Kg) 0.234849 Page 124 of 221 Report No.: S23091806403001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2941 0.2398 0.1877 0.1512 0.1202 0.0967 0.0779 3D screen shot Hot spot position Page 125 of 221 Report No.: S23091806403001 MEASUREMENT 19 Date of measurement: 8/10/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band LTE band 12 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 1.49 B. SAR Measurement Results Frequency (MHz) 707.500000 Relative permittivity (real part) 42.779896 Relative permittivity (imaginary part) 22.598427 Conductivity (S/m) 0.888244 Variation (%) 0.360000 SURFACE SAR VOLUME SAR Maximum location: X=-50.00, Y=-34.00 SAR Peak: 0.25 W/kg SAR 10g (W/Kg) 0.169686 SAR 1g (W/Kg) 0.213497 Page 126 of 221 Report No.: S23091806403001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2389 0.2196 0.1922 0.1627 0.1370 0.1139 0.0935 3D screen shot Hot spot position Page 127 of 221 Report No.: S23091806403001 MEASUREMENT 20 Date of measurement: 8/10/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band LTE band 12 Channels Middle Signal LTE (Crest factor: 1.0) ConvF 1.49 B. SAR Measurement Results Frequency (MHz) 707.500000 Relative permittivity (real part) 42.779896 Relative permittivity (imaginary part) 22.598427 Conductivity (S/m) 0.888244 Variation (%) 0.710000 SURFACE SAR VOLUME SAR Maximum location: X=-9.00, Y=-27.00 SAR Peak: 0.43 W/kg SAR 10g (W/Kg) 0.274064 SAR 1g (W/Kg) 0.351888 Page 128 of 221 Report No.: S23091806403001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.4227 0.3629 0.2950 0.2385 0.1897 0.1524 0.1225 3D screen shot Hot spot position Page 129 of 221 Report No.: S23091806403001 MEASUREMENT 21 Date of measurement: 8/10/2023 A. E…

Text truncated - open the document above for the full version.

Page 192 of 221 Report No.: S23091806403001 Page 193 of 221 Report No.: S23091806403001 Page 194 of 221 Report No.: S23091806403001 Page 195 of 221 Report No.: S23091806403001 Page 196 of 221 Report No.: S23091806403001 Page 197 of 221 Report No.: S23091806403001 Page 198 of 221 Report No.: S23091806403001 Page 199 of 221 Report No.: S23091806403001 Page 200 of 221 Report No.: S23091806403001 Page 201 of 221 Report No.: S23091806403001 Page 202 of 221 Report No.: S23091806403001 Page 203 of 221 Report No.: S23091806403001 Page 204 of 221 Report No.: S23091806403001 Page 205 of 221 Report No.: S23091806403001 Page 206 of 221 Report No.: S23091806403001 Page 207 of 221 Report No.: S23091806403001 Page 208 of 221 Report No.: S23091806403001 Page 209 of 221 Report No.: S23091806403001 Page 210 of 221 Report No.: S23091806403001 Page 211 of 221 Report No.: S23091806403001 Page 212 of 221 Report No.: S23091806403001 Page 213 of 221 Report No.: S23091806403001 Page 214 of 221 Report No.: S23091806403001 Page 215 of 221 Report No.: S23091806403001 Page 216 of 221 Report No.: S23091806403001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 -22.051 7.35 51.838 4.562 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 217 of 221 Report No.: S23091806403001 <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 -23.947 5.87 56.615 2.215 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 218 of 221 Report No.: S23091806403001 <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 -25.8 10.57 45.156 2.744 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 219 of 221 Report No.: S23091806403001 <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 -23.144 6.64 53.604 2.804 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 220 of 221 Report No.: S23091806403001 <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 -26.296 13.44 54.99 1.310 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 221 of 221 Report No.: S23091806403001 <Head 2600MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -21.15 - 52.70 - Mar. 01, 2021 -21.248 0.46 53.053 0.353 Feb. 28, 2022 -21.627 2.25 54.412 1.712 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________

Customers：MengBo Project name：5516A RF engineer：XuLong Telephone：15915343126 Report edition：20230914：追风马 项目名：X5P-侧USB 安威射频：许龙 手机：15915343126 报告版次：20220907马 项目名：X5P-侧USB 安威射频：许龙 手机：15915343126 报告版次：20220907 5516A project appearance 5516A project match Plate type The whole machine Antenna Overview The main antenna Frequency band Antenna status Antenn a form Design area Match the changes 2G G2/3/5/8/W2/4/5 Gold-plated FPC PIFA The bottom of the phone YES 3G 4G 2/4/5/12/17/66/71/TD D41 5GN/A Other antennas BT/WIFI2.4G Gold-plated FPC PIFA Top of the phone No GPS1575.42MHZNo DiversityN/A Gold-plated FPC PIFA Top of the phone No Prototype status 5516ADebugging machine Environmental treatment ●A Brief Introduction to debugging the project 5516A Switching frequency division 5516AS witching frequency division RF switching frequency division is as follows： Frequency bandSwitch channel MatchNotes GSM2/3/8/W2/4/FDD2/4/66/ TDD41 RF1（C886）0Ω GSM5/W5/FDD5(850MHZ）RF2（R853）4.7NH FDD12/17RF3（C187）22NH B71RF4（C188）27NH R8850Ω R883/R886NC ANWEI ANT TRP&TIS parameter Summary of 5516A BANDGSM900DCS1800 CHANNEL162124512698885 TRP(dBm)26.3526.2426.1224.5625.1325.26 TIS（dBm）-101.3-103.2 BANDGSM850PCS1900 CHANNEL128190251512661810 TRP(dBm) 25.6426.2726.31 25.2425.3225.14 TIS（dBm）-101.2-102.6 BANDWCDMA850WCDMA1700 CHANNEL 413241834233131214131513 TRP(dBm)16.5116.4916.3817.5417.4217.51 TIS（dBm） -101.6 -102.7 BANDWCDMA1900WCDMA900 CHANNEL 926294009538 293730133088 TRP(dBm)17.4117.5217.48 TIS（dBm） -102.6 ANWEI ANT TRP&TIS parameter Summary of 5516A BANDFDD-2FDD-4 CHANNEL 186501890019150200002017520350 TRP(dBm)17.2317.3417.4617.2317.3617.41 TIS（dBm） -90.38-90.51 BANDFDD-5FDD-12 CHANNEL 204502052520600230602309523130 TRP(dBm)16.5316.6816.7816.1216.2316.27 TIS（dBm） -90.12 -90.21 BANDFDD-17FDD-66 CHANNEL 237802379023800132022132322132622 T…

Text truncated - open the document above for the full version.
