SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008

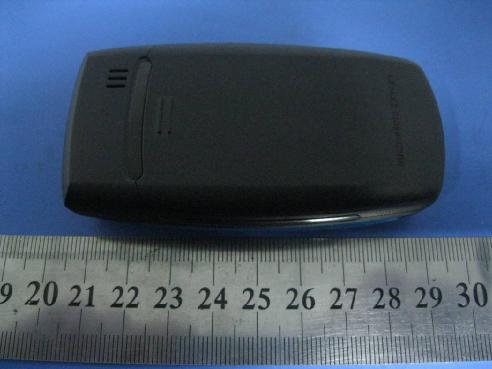

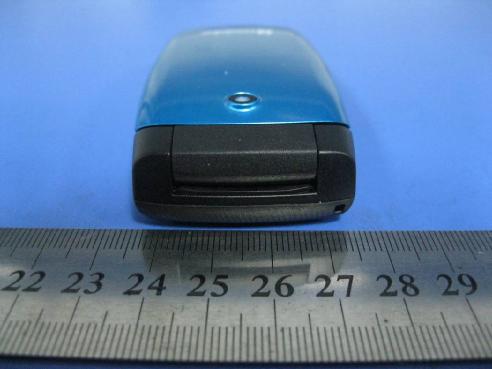

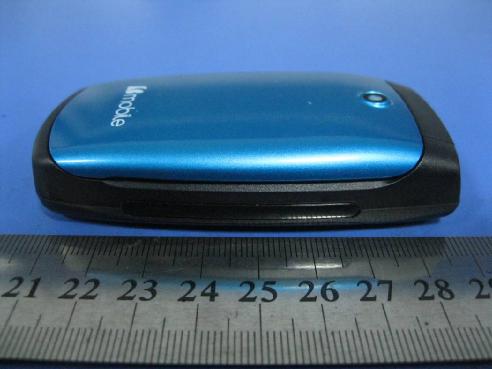

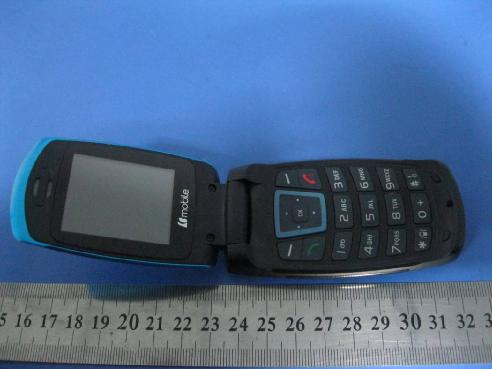

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Left Side View EUT –Right Side View EUT –Bottom View EUT –Top View EUT –Unfold View

` EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Main Board Top View 1 EUT –GSM Antenna View EUT – Main Board Top View 2 GSM Antenna Bluetooth Antenna EUT – Main Board Shielding off Top View EUT – Main Board Bottom View EUT – LCD Top View EUT –LCD Bottom View EUT – Battery View EUT – Adapter View EUT – Adapter Uncover View

b mobile HK Limited b mobile Model: C628+ 12 December, 2011 Report No.: 11050114-FCC-RF-BT (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Back Huang Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: RF Test Report for b mobile Model: C628+ To: FCC 15.247: 2011 Serial#: 11050114-FCC-RF-BT Issue Date: 12 December, 2011 Page: 2 of 53 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Title: RF Test Report for b mobile Model: C628+ To: FCC 15.247: 2011 Serial#: 11050114-FCC-RF-BT Issue Date: 12 December, 2011 Page: 3 of 53 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for b mobile Model: C628+ To: FCC 15.247: 2011 Serial#: 11050114-FCC-RF-BT Issue Date: 12 December, 2011 Page: 4 of 53 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ............................................................................................................. 5 2 TECHNICAL DETAILS .................................................................................................................................................. 6 3 MODIFICATION ............................................................................................................................................................ 7 4 TEST SUMMARY .......................................................................................................................................................... 8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ........................................................................................ 9 ANNEX A. TEST INSTRUMENT & METHOD......................................................................................................................... 40 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................................... 46 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................................... 47 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ....................................................................... 51 ANNEX E. SIEMIC ACCREDITATION CERTIFICATES .......................................................................................................... 52 Title: RF Test Report for b mobile Model: C628+ To: FCC 15.247: 2011 Serial#: 11050114-FCC-RF-BT Issue Date: 12 December, 2011 Page: 5 of 53 www.siemic.com.cn 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the b mobile HK Limited and model: C628+ against the current Stipulated Standards. The b mobile has demonstrated compliance with the FCC 15.247: 2011. EUT Information EUT Description : b mobile Model No : C628+ Serial No : Input Power : Model: mobile ADAPTOR Input: 100-240VAC 50/60Hz 0.15A Output: 5.0VDC-500mA Li-ion Battery: Model: RECHARGEABLE BATTERY BD-P4C 850mAh 3.7V 3.15Wh GB/T 18287-2000 Classification Per Stipulated Test Standard : FCC 15.247: 2011 Title: RF Test Report for b mobile Model: C628+ To: FCC 15.247: 2011 Serial#: 11050114-FCC-RF-BT Issue Date: 12 December, 2011 Page: 6 of 53 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of b mobile model C628+ with stipulated standard Applicant / Client b mobile HK Limited G/F., 144 UN CHAU STREET, SHAM SHUI PO, KOWLOON, HONG KONG,China Manufacturer Bird International Communication Co.Ltd #702,Block A,Tian An Hi-Tech Venture Park. Che GongMiao, Fu Tian Dist., Shen Zhen, China. Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 11050114-FCC-RF-BT Date EUT received 28 November, 2011 Standard applied FCC 15.247: 2011 Dates of test (from – to) 2 December, 2011 ~ 6 December, 2011 No of Units : #1 Equipment Category : Spread Spectrum System/Device Trade Name : B mobile Model : C628+ RF OPERATING FREQUENCY (IES) GSM850 TX : 824.2 ~ 848.8 MHz RX :869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz RX :1930.2 ~ 1989.8 MHz Bluetooth: 2402 ~ 2480 MHz NUMBER OF CHANNELS : 300 (PCS1900) and 125 (GSM850) Bluetooth: 79 CH MODULATION : GSM / GPRS: GMSK Bluetooth: GFSK FCC ID : ZSW-C628 Title: RF Test Report for b mobile Model: C628+ To: FCC 15.247: 2011 Serial#: 11050114-FCC-RF-BT Issue D…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Below 1GHz: Radiated Emissions - Front View Below 1GHz: Radiated Emissions - Rear View Above 1GHz: Radiated Emissions - Front View Above 1GHz: Radiated Emissions - Rear View
