ZSW-K103-S225b mobile

-0- Phone Specifications Dimensions (W×D×H): 46.5**110*15.4MM Lithium battery Rated capacity: 3.7V 800mAh Continuous standby duration: (Relates to network status) 250-300 hours Continuous conversation duration: (Relates to network status) 4-5 hours Please refer to their labels for other data related to the battery and the charger 1 Phone overview 2 Getting started 2.1 Installing the SIM Cards An SIM card carries useful information, including your mobile phone number, PIN (Personal Identification Number), PUK (PIN Unlocking Key), IMSI (International Mobile Subscriber Identity), network information, contacts data, and short messages data. 1) Hold the End key for a while to power off the mobile phone. 2) Pull the middle-bottom breach of the back cover outward and then lift the back cover away. 3) Lift the battery away. -1- 4) Insert the SIM card into the SIM card slot lightly with the corner cutting of the card aligning to the notch of the slot and the gold plate of the card facing download, till the SIM card cannot be further pushed in. 5) With the metallic contacts of the battery facing the metallic contacts in the battery slot, press the battery down until it locks into place，then fix its back cover. 2.2 Linking to the Network After the SIM card and the mobile phone are successfully unlocked, the mobile phone automatically searches for an available network. 3 Input method This mobile phone provides English input mode in both upper and lower case. 3.1 To Shift Entry Methods Press # key to switch between input methods. 3.2 English Input Each key is used to represent multiple characters. Quickly and continuously press a key till the character you want appears. Input the next character after -2- the cursor moves. 3.3 Inserting a Symbol Press the * key to enter the Symbol interface and select a symbol you want. 4 Using the Menus 4.1 Call logs Through this function, you can view a list of missed calls, dialed calls and received calls etc. 4.2 STK STK service is the tool kit of SIM card. This phone supports the service function .The specific items are depended by SIM card and network. Service menu will be auto added to the phone menu when supported by network and SIM card. 4.3 Fun & Games One game named F1 Race is embedded in the phone. For specific operation, please refer to ‘help’ option of the game. 4.4 Multimedia File manager The phone supports the memory card. You can use the file manager to manage various directories and files on the memory card. Audio player Use this function to play audio files. In music player interface, you can press up or down direction key to tune volume. Video player Use this function to play video files. In video player interface, you can press up or down direction key to tune volume. Sound recorder You can record AMR & WAV format audio files through this function. FM radio Before using this function, please insert earphone into its corresponding slot. In FM radio screen, you can press up or down direction key to tune volume, left or right direction key to tune channels manually. 4.5 Phonebook The mobile phone can store up to 100 telephone numbers. 4.6 Messages You are able to create, read, send and delete messages through this function. Note: If the short message memory is full, a blinking message icon appears -3- on the top of the screen. To normally receive short messages, you need to delete some of the existing short messages 4.7 Organizer  Stopwatch: Stopwatch is simple application for measuring time with possibility to register several results and suspend/resume measurement.  Torch: You can use this function to turn on/off the torch which situates at the top of the phone. Note: In idle screen, you can long press OK key to turn on/off the torch.  Calendar: Once you enter this menu, there is a monthly-view calendar for you to keep track of important appointments, etc.  To do list: This function enables you to create new memos.  Alarm: Through this function you can set Alarm status, time, alarm tone, etc.  World clock: Access this menu to view time of main cities in various time zones.  Calculator: The calculator can add, subtract, multiply and divide. 4.8 Profiles The mobile phone provides multiple user profiles, including General, Meeting, Outdoor, Indoor and Headset. 4.9 Settings Date and time You can set date and time, the format or turn on/off the time zone update through this function. Display Through this function，you can set wallpaper, LCD backlight, brightness, etc.. Phone settings  Language: Select the display language for the mobile phone.  Shortcuts: Dedicated key: Customize the shortcut functions of the Up, Down, Left, and Right direction keys. In the standby interface, you can press a direction key to directly enter the function menu corresponding to that direction key. My shortcuts: You can set some most used menus as shortcut functions through this item.  Greeting text: This feature enables you to set greeting test status and content.  Set home city: Select a city as home city.  Auto keypad lock: Once turned on, your mobile will be locked automatically if you performed no operations during a long period. -4-  Input method settings: Set input method through this function. Call settings  Caller ID: You can select the ID set by the network, hide the ID, or send the ID. By default, the ID set by the network is chosen.  Call waiting: Network dependent  Call divert: This network function enables you to forward incoming calls to another number you have previously specified.  Call barring: The call barring function enables you to bar calls as needed. When setting this function, you need to use a network barring code, which can be obtained from the network operator.  Line switching: Switch to Line 1 or Line 2. By default, Line 1 is used. Note: If you choose Line 2, dialing may fail. This depends on the implementation of the network operator.  Call time reminder: To set single or periodic tone in a call to make you know the time.  Auto…

Text truncated - open the document above for the full version.

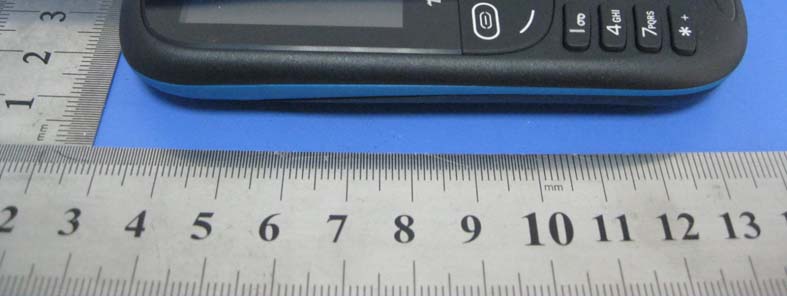

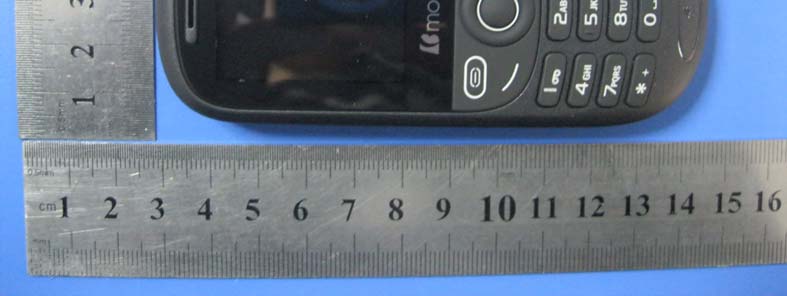

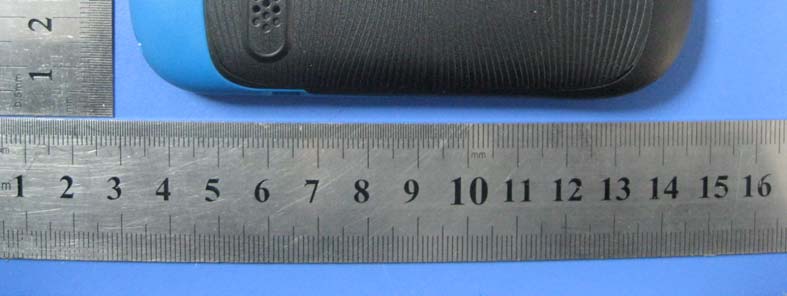

Annex B. EUT External Photo Whole Package - Top View EUT - Front View EUT - Rear View EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

Annex B. EUT Internal Photo Cover Off - Bottom View Cover Off - Top View Battery - Top View Battery - Bottom View LCD - Top View LCD - Bottom View Uncover - Top View Uncover - Bottom View Uncover without LCD - Top View Uncover Without Shielding - Top View GSM Antenna - Top View GSM An tenna

b mobile HK Limited b mobile Main Model: K103 Serial Model: N/A February 24, 2012 Report No.: 12050011-FCC-E1-V2 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Deon Dai Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for b mobile Main Model: K103 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12050011-FCC-E1-V2 Issue Date: February 24, 2012 Page: 2 of 26 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: EMC Test Report for b mobile Main Model: K103 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12050011-FCC-E1-V2 Issue Date: February 24, 2012 Page: 3 of 26 www.siemic.com.cn This page has been left blank intentionally. Title: EMC Test Report for b mobile Main Model: K103 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12050011-FCC-E1-V2 Issue Date: February 24, 2012 Page: 4 of 26 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS .........................................................................................................................................6 3 MODIFICATION.....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................15 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................20 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................21 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................25 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................26 Title: EMC Test Report for b mobile Main Model: K103 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12050011-FCC-E1-V2 Issue Date: February 24, 2012 Page: 5 of 26 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the b mobile HK Limited, b mobile and model: K103 against the current Stipulated Standards. The b mobile has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2011. EUT Information EUT Description : b mobile Main Model : K103 Serial Model : N/A Input Power : B mobile AC Adapter Input: AC 100-240V 200mA 50/60Hz Output: DC 5.0V 500mA Lithium-ion Battery: Model: B mobile 3.7 V Classification Per Stipulated Test Standard : Class B Emission Product Per FCC Part 15 Subpart B Class B: 2011 Title: EMC Test Report for b mobile Main Model: K103 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12050011-FCC-E1-V2 Issue Date: February 24, 2012 Page: 6 of 26 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of b mobile with stipulated standard Applicant / Client b mobile HK Limited G/F. 144 UN CHAU STREET,SHAM SHUI PO, KOWLOON HONG KONG,CHINA Manufacturer Shenzhen Fortune Ship Technology Co.,Ltd 401 Zone A~B, TCL Electronics, No.33 Nanhai Avenue, Nanshan District, Shenzhen City Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12050011-FCC-E1-V2 Date EUT received February 10, 2012 Standard applied FCC Part 15 Subpart B Class B: 2011 Dates of test February 17, 2012 No of Units #1 Equipment Category Class B Emission Product Trade Name B mobile RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX :869.2 ~ 893.8 MHz PCS1900 TX : 1850.2 ~ 1909.8 MHz; RX :1930.2 ~ 1989.8 MHz Number of Channels 300CH (PCS1900) and 125CH (GSM850) Modulation GSM: GMSK FCC ID ZSW-K103-S225 Title: EMC Test Repor…

Text truncated - open the document above for the full version.

Annex B. Test Setup Photo Conducted Emissions Test Setup - Front View Conducted Emissions Test Setup - Side View Radiated Emissions Test Setup Below 1GHz - Front View Radiated Emissions Test Setup Above 1GHz - Front View
