ZSW-QW125Qwerty Phone

QW125 U U s s e e r r M M a a n n u u a a l l GSM/WCDMA Digital mobile phone Statement: we retain the right to improve this product without prior notice and to give final interpretation of product performance. We commit ourselves to improve product quality and update version continuously. Therefore, it is subject to your mobile phone if product functions, specification or design/icon might be different from those stated in this Manual. Content 1 Safety Precautions ............................................................. 6 2 Phone Introduction ............................................................ 8 2.1 Technical reference ........................................................... 9 2.2 Components site map ...................................................... 10 2.2.1 Appearance ................................................................. 10 2.2.2 Keys and functions ....................................................... 10 2.2.3 Icons ........................................................................... 11 3 Get started ...................................................................... 12 3.1 Switching on/off phone ................................................... 12 3.2 Battery Installation ......................................................... 13 3.3 USIM Card Installation ................................................... 13 3.4 T-Flash Card Installation ................................................. 14 3.5 USB function ................................................................. 14 3.6 Battery Charging ............................................................ 14 3.7 Use earphone ................................................................. 15 3.8 Safety Password ............................................................. 15 3.8.1 PIN code ..................................................................... 15 3.8.2 PIN2 code ................................................................... 15 3.8.3 PUK code ................................................................... 16 3.8.4 Mobile phone password ................................................ 16 4 Quick Use Guide .............................................................. 17 4.1 Call functions ................................................................. 17 4.1.1 Make a call .................................................................. 17 4.1.2 Dial-up state ................................................................ 18 4.1.3 Call Status ................................................................... 18 4.1.4 Dialing a domestic number ........................................... 18 4.1.5 Dialing an extension number ......................................... 18 4.1.6 Making an international call .......................................... 19 4.1.7 Answering a call .......................................................... 19 4.1.8 Missed Call ................................................................. 19 4.1.9 During the call ............................................................. 19 4.1.10 Volume control .......................................................... 20 4.2 Input text ....................................................................... 20 4.2.1 Multitap ABC and abc .................................................. 20 4.2.2 Entering Numbers ........................................................ 21 4.2.3 Entering Symbols......................................................... 21 5 Functional Menus ............................................................ 21 5.1 STK .............................................................................. 21 5.2 Phonebook ..................................................................... 21 5.2.1 Add new contact .......................................................... 21 5.2.2 Phonebook search ........................................................ 22 5.2.3 Send message .............................................................. 22 5.2.4 Call ............................................................................ 22 5.2.5 Edit ............................................................................ 22 5.2.6 Delete ......................................................................... 22 5.2.7 Copy .......................................................................... 22 5.2.8 Move .......................................................................... 22 5.2.9 Send business card ....................................................... 22 5.2.10 Add to blacklist .......................................................... 23 5.2.11 Caller groups ............................................................. 23 5.2.12 Phonebook settings ..................................................... 23 5.3 Messaging ..................................................................... 24 5.3.1 Write message ............................................................. 24 5.3.2 Conversations .............................................................. 25 5.3.3 Drafts ......................................................................... 25 5.3.4 Archive ....................................................................... 26 5.3.5 Delete messages........................................................... 26 5.3.6 Email .......................................................................... 26 5.3.7 Broadcast messages ...................................................... 26 5.3.8 Templates .................................................................... 26 5.3.9 Message settings .......................................................... 26 5.4 Camera .......................................................................... 27 5.5 Call center ..................................................................... 28 5.6 Profiles .......................................................................... 28 5.7 Entertainment .......................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 b mobile HK Limited 2014.07.08 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ____ b mobile HK Limited _____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product description：Qwerty Phone Model name：QW125 FCC ID：ZSW-QW125 We affirm that between SIEMIC, Inc. and ___ b mobile HK Limited ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature ： Client’s name / title ：KA SHING LAM/Director Contact information / address ：b mobile HK Limited G/F. 144 UN CHAU STREET, SHAM SHUI PO, KOWLOON

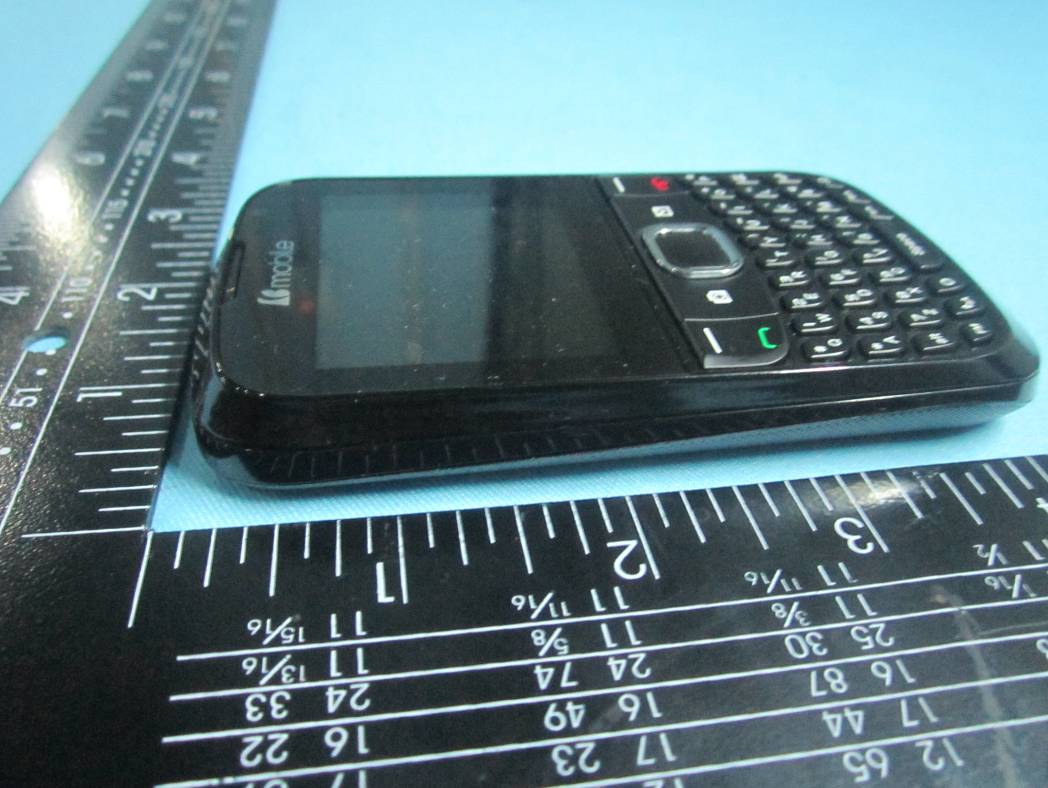

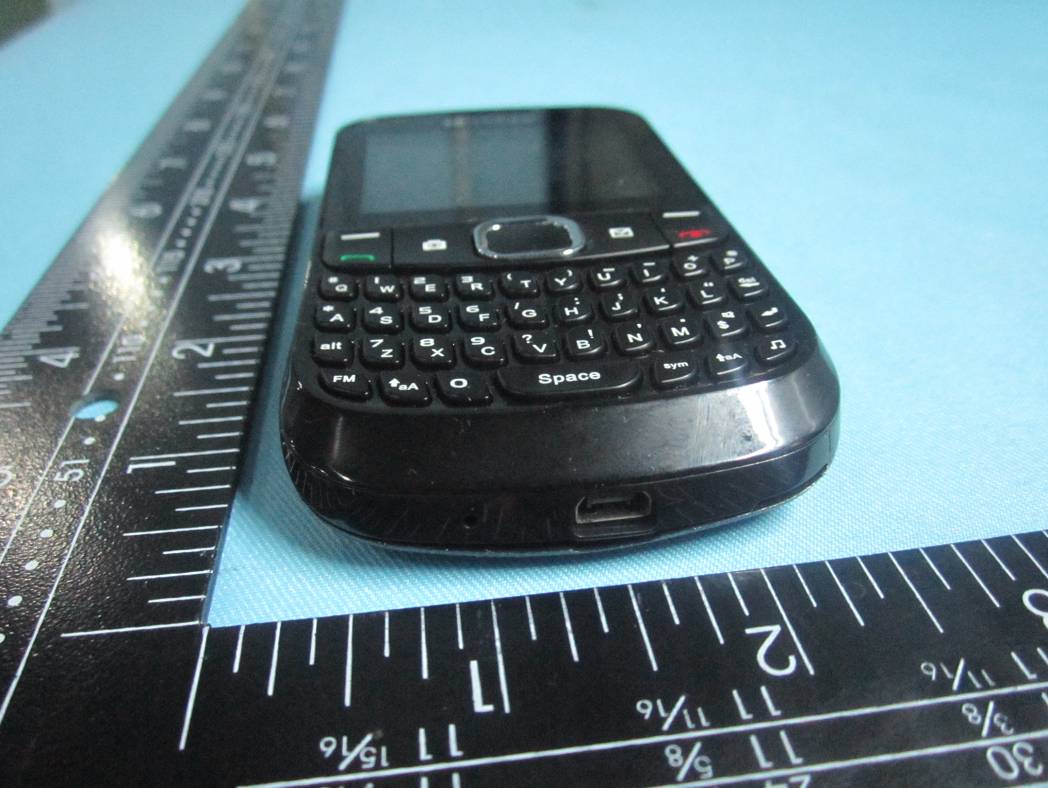

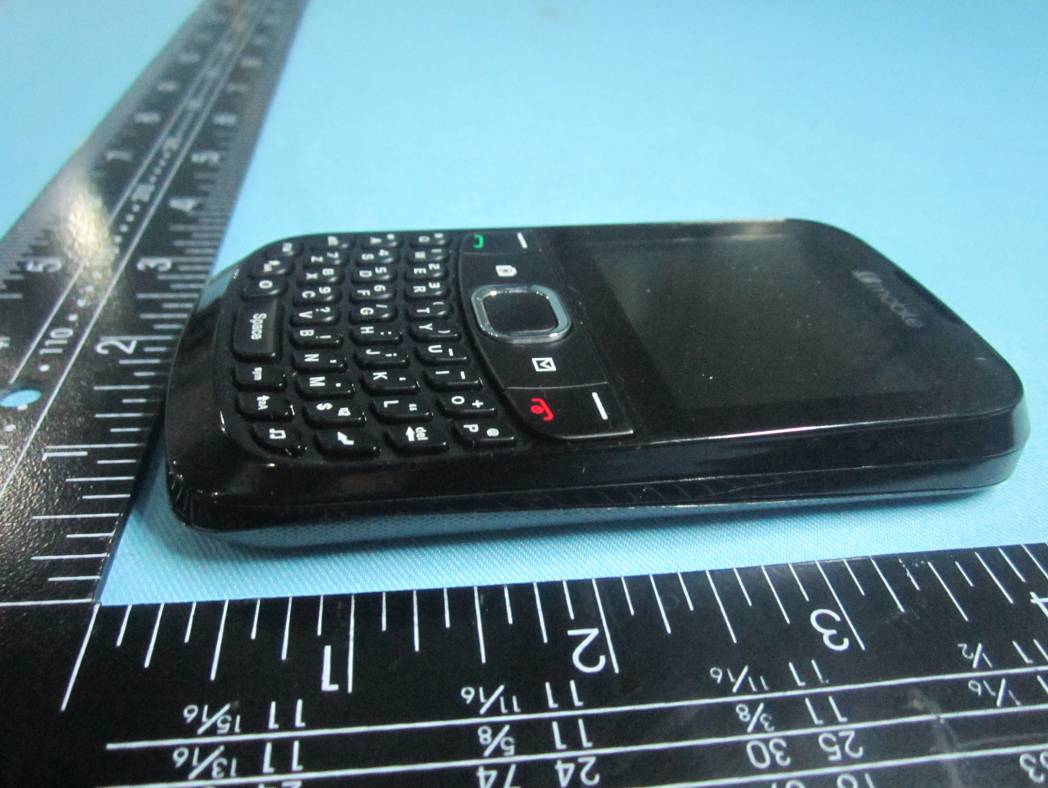

Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 19 of 37 www.siemic.com www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Annex B.i. Photograph 1: EUT External Photo Whole Package - Top View Adapter – Front View Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 20 of 37 www.siemic.com www.siemic.com.cn EUT - Front View EUT - Rear View Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 21 of 37 www.siemic.com www.siemic.com.cn EUT - Top View EUT - Bottom View Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 22 of 37 www.siemic.com www.siemic.com.cn EUT - Left View EUT - Right View

Label location

Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 23 of 37 www.siemic.com www.siemic.com.cn Annex B.ii. Photograph 2: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 24 of 37 www.siemic.com www.siemic.com.cn Battery - Top View Battery - Bottom View Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 25 of 37 www.siemic.com www.siemic.com.cn LCD – Front View LCD – Rear View Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 26 of 37 www.siemic.com www.siemic.com.cn Mainborad With Shielding - Front View Mainborad Without Shielding - Front View Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 27 of 37 www.siemic.com www.siemic.com.cn BT Antenna View WIFI Antenna View Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 28 of 37 www.siemic.com www.siemic.com.cn GSM/PCS/UMTS-FDD Antenna Adapter Cover Off – Front View Title: EMC Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2013 , ANSI C63.4:2009 Report No.: 14050038-FCC-E1 Issue Date: July 04, 2014 Page: 29 of 37 www.siemic.com www.siemic.com.cn Adapter Mainborad - Front View Adapter Mainborad - Rear View

b-Mobile HK Limited Qwerty Phone Model: QW125 Serial Model: NA June 26th, 2014 Report No.: 14050038-FCC-H (This report supersedes None) This Test Report is Issued Under the Authority of: Chris You Test Engineer Alex Liu Technical Manager Modifications made to the product : None This test report may be reproduced in full only. All Test Data Presented in this report is only applicable to presented Test sample. Title: SAR Test Report of Mobile Phone Model : QW125 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14050038-FCC-H Issue Date June 26th, 2014 Page 2 of 101 www.siemic.com Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China , Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen-China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: SAR Test Report of Mobile Phone Model : QW125 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14050038-FCC-H Issue Date June 26th, 2014 Page 3 of 101 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of Mobile Phone Model : QW125 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14050038-FCC-H Issue Date June 26th, 2014 Page 4 of 101 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION .............................................................................................................. 6 2 TECHNICAL DETAILS ................................................................................................................................................... 7 3 INTRODUCTION ........................................................................................................................................................... 8 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 9 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 20 6 SYSTEM AND LIQUID VALIDATION ............................................................................................................................ 21 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 29 8 TEST INSTRUMENT .................................................................................................................................................... 32 9 OUTPUT POWER VERIFICATION ................................................................................................................................ 33 10 SAR TEST RESULTS .................................................................................................................................................. 38 11 SAR MEASUREMENT REFERENCES .......................................................................................................................... 42 ANNEX A CALIBRATION REPORTS .................................................................................................................................. 67 ANNEX B SAR SYSTEM PHOTOGRAPHS .......................................................................................................................... 97 ANNEX C SETUP PHOTOGRAPHS .................................................................................................................................... 98 ANNEX D EUT PHOTOGRAPHS ...................................................................................................................................... 101 Title: SAR Test Report of Mobile Phone Model : QW125 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14050038-FCC-H Issue Date June 26th, 2014 Page 5 of 101 www.siemic.com This page has been left blank intentionally. Title: SAR Test Report of Mobile Phone Model : QW125 To C95.1, IEEE 1528, IEC62209-2 & RSS-102 Issue 4 and Safety Code 6 Serial# 14050038-FCC-H Issue Date June 26th, 2014 Page 6 of 101 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programmed was to demonstrate compliance of the b- Mobile HK Limited. Model: QW125 against the current Stipulated Standards. The Mobile Phone has demonstrated compliance with the C95.1, IEEE 1528, IEC62209-2, RSS-102 Issue 4 and Safety Code 6. The test has demonstrated that this unit complies with stipulated standards. EUT Information EUT Description Mobile phone Model No QW125 Input Power Li-ion Battery Model: QW125 Charging Voltage:3.7V , 1450mAh Charge Cut-off Voltage: 4.2 V Maximum Conducted Output Power to Antenna Cellular 850(Class 4) : 32.92dBm PCS1900 (Class 1) :29.61dBm WCDMA Band II(Class 3): 23.71dBm WCDMA Band V(Class 3): 23.71dBm Highest Reported SAR Level(s) 0.53W/Kg 1g Head Tissue 0.72 W/Kg 1g Body Tissue Classification Per Stipulated Test Standard Mobile Device , Class B, No DTM/Hotspot Mode Multi-SIM Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time. Co-located TX WWAN can …

Text truncated - open the document above for the full version.

b- Mobile HK Limited Qwerty Phone Main Model:QW125 Serial Model: N/A July 04, 2014 Report No.: 14050038-FCC-R1 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Wiky Jam Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14050038-FCC-R1 Issue Date: July 04, 2014 Page: 2 of 64 www.siemic.com www.siemic.com.cn Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . SIEMIC (Shenzhen - China) Laboratories Accreditations for Conformity Assessment Country/Region Scope USA EMC , RF/Wireless , Telecom Canada EMC, RF/Wireless , Telecom Taiwan EMC, RF, Telecom , Safety Hong Kong RF/Wireless ,Telecom Australia EMC, RF, Telecom , Safety Korea EMI, EMS, RF , Telecom, Safety Japan EMI, RF/Wireless, Telecom Singapore EMC , RF , Telecom Europe EMC, RF, Telecom , Safety Title: RF Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14050038-FCC-R1 Issue Date: July 04, 2014 Page: 3 of 64 www.siemic.com www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14050038-FCC-R1 Issue Date: July 04, 2014 Page: 4 of 64 www.siemic.com www.siemic.com.cn CONTENTS 1. EXECUTIVE SUMMARY & EUT INFORMATION ........................................................................................... 5 2. TECHNICAL DETAILS .......................................................................................................................................... 6 3 MODIFICATION ..................................................................................................................................................... 7 3. TEST SUMMARY .................................................................................................................................................... 8 4. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ................................................................... 9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................ 45 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 48 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 60 ANNEX D.USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST .............................................. 63 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................ 64 Title: RF Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14050038-FCC-R1 Issue Date: July 04, 2014 Page: 5 of 64 www.siemic.com www.siemic.com.cn 1. EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programmed was to demonstrate compliance of the b- Mobile HK Limited, Qwerty Phone and model: QW125 against the current Stipulated Standards. The Qwerty Phone has demonstrated compliance with the FCC Part 22(H) & FCC Part 24(E): 2013. EUT Information EUT Description : Qwerty Phone Main Model : QW125 Serial Model N/A Antenna Gain : UMTS-FDD Band V: 1.2 dBi GSM850: -2 dBi UMTS-FDD Band II: 1.2 dBi PCS1900: -1.2 dBi Bluetooth/WIFI: 0.3 dBi Input Power : Battery: Model: QW125 Spec: 3.7V 1450mAh Limited charger voltage: 4.2V Adapter: Input: AC 100-240V; 50/60Hz 0.15A Output: DC 5.0V; 500mA Maximum Conducted AV Power to Antenna : GSM850: 32.92 dBm PCS1900: 29.61 dBm UMTS-FDD BandV: 23.71 dBm UMTS-FDD BandII: 23.71 dBm Maximum Radiated ERP/EIRP : GSM850: 25.19 dBm / ERP PCS1900:21.49 dBm / EIRP UMTS-FDD BandV: 18.76dBm / ERP UMTS-FDD BandII: 19.12 dBm / EIRP Classification Per Stipulated Test Standard : FCC Part 22(H) & FCC Part 24(E): 2013 Title: RF Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14050038-FCC-R1 Issue Date: July 04, 2014 Page: 6 of 64 www.siemic.com www.siemic.com.cn 2. TECHNICAL DETAILS Purpose Compliance testing of Qwerty Phone with stipulated standard Applicant / Client b- Mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong Manufacturer Shenzhen Fortune Ship Technology Co.,Ltd 6th Floor, Kanghesheng Building, Shahe RD West 3009, Xili Town, Nanshan District, Shenzhen Laboratory performing the tests SIEMIC (Shenzhen - China) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen, Guangdong, China Tel: +86-0755-2601 4629 / 2601 4953 Fax: +86-0755-2601 4953-810 Email: [email protected] Test report reference number 14050038-FCC-R1 Date EUT received June 18, 2014 Standard applied FCC Part 22(H) & FCC Part 24(E): 2013 Dates of test July 01 to July 03, 2014 No of Units #1 Equipment Category PCE Trade Name IPRO RF Operating Frequency (ies) GSM850 TX : 824.2 ~ 848.8 MHz; RX : 869.2 ~ …

Text truncated - open the document above for the full version.

Title: RF Test Report for Qwerty Phone Main Model: QW125 Serial Model: N/A To: FCC Part 22(H) & FCC Part 24(E): 2013 Report No: 14050038-FCC-R1 Issue Date: July 04, 2014 Page: 59 of 64 www.siemic.com www.siemic.com.cn Annex B.iii. Photograph 3: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz - Front View Radiated Spurious Emissions Test Setup Above 1GHz –Front View
