ZSY-JXD76499509Radio Control Toy Transmitter (2.4GHz)

www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 7 of 14 1.6 User Manual www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 8 of 14 www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 9 of 14 www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 10 of 14 www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 11 of 14 www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 12 of 14 Model: 370900027 www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 13 of 14 www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 14 of 14

Page 1 / 1 JINXINGDA PLASTIC TOYS FACTORY CHENGHAI DISTRICT,SHANTOU CITY,GUANGDONG PROVINCE,CHINA To Whom It May Concern: Please be advised that Applicant Name: JINXINGDA PLASTIC TOYS FACTORY Address: CHENGHAI DISTRICT City: SHANTOU CITY Country: GUANGDONG PROVINCE,CHINA authorizes, Joey Leung, Project Engineer at TÜV Rheinland Hong Kong Ltd. to act on our behalf, until otherwise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Title: Manager

Page 1 / 2 JINXINGDA PLASTIC TOYS FACTORY CHENGHAI DISTRICT,SHANTOU CITY,GUANGDONG PROVINCE,CHINA Applicant Name: JINXINGDA PLASTIC TOYS FACTORY Address: CHENGHAI DISTRICT City: SHANTOU CITY Country: GUANGDONG PROVINCE,CHINA Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ZSY-JXD76499509 Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Title: Manager Page 2 / 2 Date: 2015.8.31

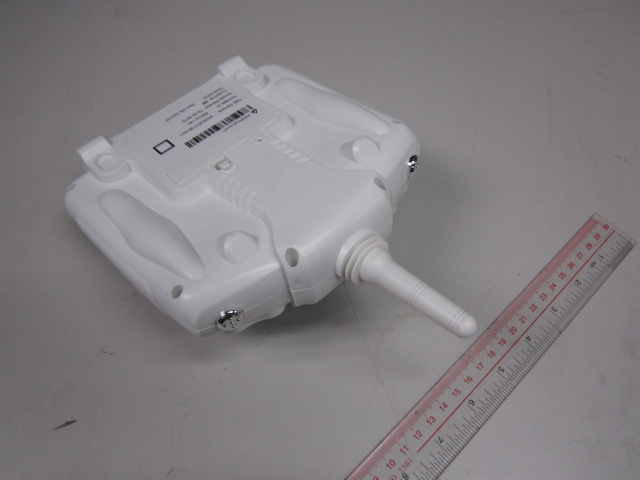

www.tuv.com Test Report No.: 14041388 001 Appendix 3 page 2 of 8 External View External View

www.tuv.com Test Report No.: 14041388 001 Appendix 4 page 2 of 14 1.1 FCCID Label Artwork FCC ID : ZSY-JXD76499509 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

www.tuv.com Test Report No.: 14041388 001 Appendix 3 page 3 of 8 Internal View Internal View www.tuv.com Test Report No.: 14041388 001 Appendix 3 page 4 of 8 Internal View Internal View www.tuv.com Test Report No.: 14041388 001 Appendix 3 page 5 of 8 Internal View Internal View www.tuv.com Test Report No.: 14041388 001 Appendix 3 page 6 of 8 Internal View www.tuv.com Test Report No.: 14041388 001 Appendix 3 page 7 of 8 Internal View Internal View www.tuv.com Test Report No.: 14041388 001 Appendix 3 page 8 of 8 Internal View Internal View

www.tuv.com Test Report No.: 14041388 001 Date: 23.09.2015 page 2 of 9 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 Remarks ....................................................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart C ................................................................................. 6 Subclause 15.203 – Antenna Requirement ............................................................................ Pass .......... 6 Subclause 15.207 – Disturbance Voltage on AC Mains .......................................................... N/A .......... 6 Subclause 15.215 (c) – 20 dB Bandwidth ............................................................................... Pass .......... 6 Subclause 15.249 (a) – Field Strength of Fundamental and Harmonics ............................. Pass .......... 7 Subclause 15.249 (d), 15.205 – Out Of Band Radiated Emission ........................................ Pass .......... 9 Appendix 1 – Test Results 3 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – Construction Photo 7 pages Appendix 4 – Product documentation 14 pages Appendix 5 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14041388 001 Date: 23.09.2015 page 3 of 9 Product information Manufacturers declarations Transmitter Operating frequency range 2402 - 2475 MHz Type of modulation GFSK Number of channels 71 Type of antenna Wire Antenna Antenna Gain 0dBi Power level fix Connection to public utility power line No Nominal voltage V nor : 6.0 V Product function and intended use The equipment under test (EUT) is a radio control toy transmitter operating at 2.4GHz. It is powered by battery only. FCCID: ZSY-JXD76499509 Models Product description 509, 391, 392, 393, 395, 396, 398, 399, 501, 502, 503, 505, 506, 507, 508, 510, 511, 512, 513, 515, 516, 517, 518, 509V, 509W, 509G R/C TOYS Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Declaration of Equivalence Special accessories and auxiliary equipment - Nil www.tuv.com Test Report No.: 14041388 001 Date: 23.09.2015 page 4 of 9 Independent Operation Modes The basic operation modes are transmitting control signal for the RC toy car. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. Remarks Due to the client declaration of equivalence, the model 509, 391, 392, 393, 395, 396, 398, 399, 501, 502, 503, 505, 506, 507, 508, 510, 511, 512, 513, 515, 516, 517, 518, 509V, 509W, 509G are identical except the packaging. The model 509 was randomly selected as a representative for testing. www.tuv.com Test Report No.: 14041388 001 Date: 23.09.2015 page 5 of 9 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type Cal.Date Cal.Due date 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) April 5 2015 April 4 2017 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) N/A N/A ESU EMI Test Receiver R&S ESU26 June 8 2015 June 7 2016 Loop Antenna Zhinan ZN30900A June 8 2015 June 7 2016 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 Mar. 08 2015 Mar. 08 2016 Double-ridged horn antenna SCHWARZBECK 9120D Mar. 08 2015 Mar. 08 2016 RF Amplifier HP 8347A Mar. 08 2015 Mar. 08 2016 RF Amplifier HP 8349B June 8 2015 June 7 2016 EMI Test Software AUDIX E3 June 8 2015 June 7 2016 Coaxial cable GTS N/A N/A N/A Coaxial Cable GTS N/A June 8 2015 June 7 2016 Thermo meter N/A N/A June 8 2015 June 7 2016 Spectrum Analyzer Rohde & Schwarz FSP30 Jan 12 2015 Jan. 12 2017 www.tuv.com Test Report No.: 14041388 001 Date: 23.09.2015 page 6 of 9 Results FCC Part 15 – Subpart C Subclause 15.203 – Antenna Requirement Pass FCC Requirement: No antenna other than that furnished by the responsible party shall be used with the device Results: Antenna type: Fixed Integral wire antenna Verdict: Pass Subclause 15.207 – Disturbance Voltage on AC Mains N/A There is no AC power input or output ports on the EUT. Subclause 15.215 (c) – 20 dB Bandwidth Pass Test Specification : ANSI C63.10-2013 Mode of operation : Tx mode Port of testing : Enclosure RBW/VBW : 100 kHz / 300 kHz Supply voltage : 6.0VDC, 4 x 1.5V AA size new battery Temperature : 23ºC Humidity : 50% Requirement: The intentional radiators must be designed to ensure that the 20dB bandwidth of the emission, is contained within the frequency band designated in the rule section under which the equipment is operated. Results: For test protocols refer to Appendix 1, page 2-3. Frequency (MH…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14041388 001 Appendix 1 page 1 of 3 Appendix 1 Test Results www.tuv.com Test Report No.: 14041388 001 Appendix 1 page 2 of 3 20dB Bandwidth Tx frequency: 2402MHz A Ref 10 dBmAtt 40 dB 1 PK MAXH Center 2.402 GHzSpan 10 MHz1 MHz/ * * RBW 100 kHz VBW 300 kHz SWT 2.5 ms -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -19.57 dBm 2.400280000 GHz 2 Marker 2 [T1 ] 0.38 dB m 2.402140000 GHz 1 Delta 1 [T1 ] 0.89 dB 3.960000000 MHz Date: 22.SEP.2015 15:25:32 Tx frequency: 2445MHz Ref 10 dBm 2.4438 GHz Att 40 dB 2.4438 GHz A 2.4438 GHz 1 PK 2.4438 GHz MAXH 2.4438 GHz 2.4438 GHz 2.4438 GHz 2.4438 GHz 2.4438 GHz 2.4438 GHz 2.4438 GHz 2.4438 GHz 2.4438 GHz 2.4438 GHz Center 2.445 GHz 2.4438 GHz Span 10 MHz 2.4438 GHz 1 MHz/ 2.4438 GHz * 2.4438 GHz * 2.4438 GHz RBW 100 kHz 2.4438 GHzVBW 300 kHz 2.4438 GHz SWT 2.5 ms 2.4438 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.4438 GHz 1 Marker 1 [T1 ] -22.27 dBm 2.443800000 GHz 2 Marker 2 [T1 ] -0.28 dB m 2.445100000 GHz 1 Delta 1 [T1 ] 1.48 dB 2.960000000 MHz MARKER 1 2.4438 GHz Date: 22.SEP.2015 17:53:54 www.tuv.com Test Report No.: 14041388 001 Appendix 1 page 3 of 3 Tx frequency: 2475MHz Ref 10 dBm 2.47384 GHz Att 40 dB 2.47384 GHz A 2.47384 GHz 1 PK 2.47384 GHz MAXH 2.47384 GHz Center 2.475 GHz 2.47384 GHz Span 10 MHz 2.47384 GHz 1 MHz/ 2.47384 GHz * 2.47384 GHz * 2.47384 GHz RBW 100 kHz 2.47384 GHzVBW 300 kHz 2.47384 GHz SWT 2.5 ms 2.47384 GHz 2.47384 GHz 2.47384 GHz 2.47384 GHz 2.47384 GHz 2.47384 GHz 2.47384 GHz 2.47384 GHz 2.47384 GHz 2.47384 GHz -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 2.47384 GHz 1 Marker 1 [T1 ] -22.69 dBm 2.473840000 GHz 2 Marker 2 [T1 ] -0.99 dB m 2.475120000 GHz 1 Delta 1 [T1 ] 0.98 dB 2.920000000 MHz MARKER 1 2.47384 GHz Date: 22.SEP.2015 17:52:33

www.tuv.com Test Report No.: 14041388 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information www.tuv.com Test Report No.: 14041388 001 Appendix 5 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power (mW) 2402 -4.3 0.375 2445 -3.5 0.448 2475 -5.2 0.301 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.375/5)* √2.40 2 = 0.12 <3.0 (0.448/5)*√2.445 = 0.14 <3.0 (0.301/5)*√2.475 = 0.09 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14041388 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14041388 001 Appendix 2 page 3 of 3 Setup for radiated emission
