ZTJ-HAS-400TPEAVEY ASSISTED LISTENING SYSTEM TRANSMITTER

NOTES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. 11

MIC EXT AUX IN DC IN Aduio Processor FREQUENCY SYNTHESIZER XTAL 6.4MHZ Dual Modulus Prescalers Buffer RF AMPLIFIER LOWPASS FILITER Power supply

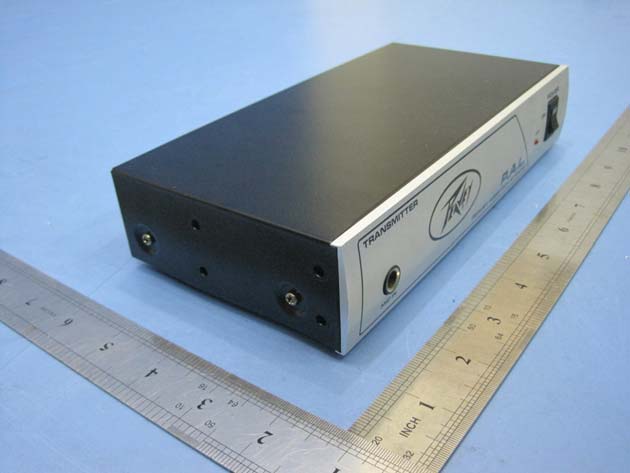

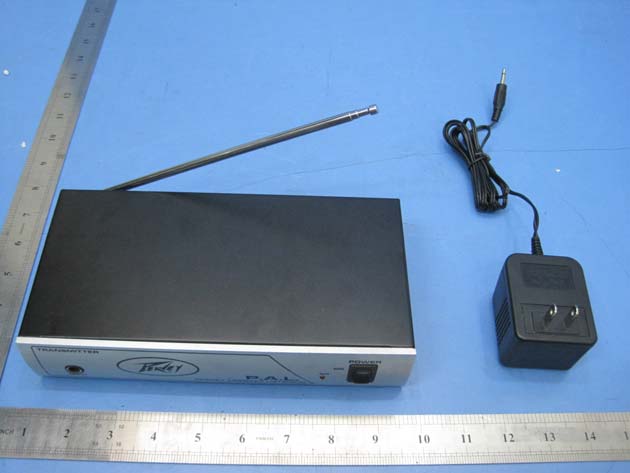

2.1 Product View 2.2 EUT – Front View 2.3 EUT – Back View

Page:25 of 25 Shenzhen Uniwisdom Technologies Co., Ltd. FCC ID:ZTJ- HAS-400T WALTEK SERVICES Reference No.: WT11073743-E-E-F 11 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID : ZTJ-HAS-400T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Model: HAS-400(Transmitter); PEAVEY ASSISTED LISTENING(Transmitter) FCC ID : ZTJ-HAS-400T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 PCB – Front View 2.3 PCB – Back View

The signal from MIC or AUX IN is processed by AF circuit, and go to the dual modulus prescalers. After processing, the signal is sent to Frequency Synthesizer (operation with 6.4MHz crystal) and synthesized to modulatedsignal. After buffer, amplifier and filter, the modulatedsignal is transmitted over space via antenna.

ABCD DCBA C23102P L88T5 C67 102P C34102PL98T5 版本页码日期 型号客户设计 REV:01 1/2 2010.7.15 HAS-400T-AFUWTECH A4 R43820R R212K2 R41 R42 R172K2 R18180K R20 1K R192K2 R16470R R23 1K R158K2 R40 100K R3668K R51 39K R26 22R R37 3K R27150K R34 560K R24220R R29 4K7 R38560R R2533K R30 47K R33 4K7 R284K7 R22 4M7 R3968K R31100K R3539K R48 22K C41104P C40 102P C36102P C65103P C33104P C48 C46104P C3933P C50 C28104P C24104P C44104P C2933P C38100P C27102P Q5MPSA18 Q6 MPSA18 C45470uF C47 C4947uF C37 1uF C421uF C30 47uF C351uF C3133uF C4310uF C2647uF C251uF CN3 AUX IN CN4MIC IN 12 JL2 MIC OUT 12 JL1 MIC OUT R23B10K 1234 CN14P 12 CN2DC IN D7 U4 LM317 D5 LED1POWER SW1POWER +9V 1 23 5 7 8 9 U1AKA2220 IN 4 OUT 6 ALC U1BKA2220 Q1 MPSA55 1234567 89 1011121314 U2LM324 D3 1N4148 D2RED +9V +9V R4910K AF OUT C32102P AF IND CH ABCDEFG H Freq MHz 72.172.372.572.772.975.5 75.7 75.9 S1ONONONONONOFF OFF OFF S2OFFOFFOFFOFFOFFOFF OFF OFF S3ONONONONONON ON ON S4OFFOFFOFFOFFOFFOFF OFF OFF S5ONOFFONOFFONOFF ON OFF S6ONONONONONON ON ON S7ONONOFFOFFONON OFF OFF S8ONONONONOFFON ON ON 1 2 3 4 8 7 6 5 9 8 7 6 5 4 3 2 27 14 13 12 11 10 1 28 15 16 17 18 19 20 21 22 23 24 25 26 1 2 +9V R11 100R 3 4 C20 C66 R12 C15 C63 C54 C5 R6 D C68 102P 102P 103P 100R 103P 103P 10uF 103P 470R D C11 C64 C3 C4 ANT1 ANT L2 4.7uH R14 470R C12 120P 103P 102P 33uF 103P L7 YDA405 R7 68K C22 6-30P L4 8T5 C16 220P C14 33P L1 8T5 C10 15P Q2 C21 . C19 15P Q4 MPSH10 C13 6-30P Q3 MPSH10 C9 47P MPSH10 C L6 3T5 C18 150P L3 YDA405 C17 33P R13 1K5 R10 10K C8 220P R9 470R C7 103P R8 15K C AF Freq range:72--76MHz CH A:72.1MHz CH B:72.3MHz CH C:72.5MHz CH D:72.7MHz CH E:72.9MHz CH F:75.5MHz U5 C52 103P C53 1uF C51 100P C55 102P C62 103P Q7 MPSA55 C56 10P C6 220P D1 1SV101 D8 1SV101 C57 102P R47 2K2 B CH G:75.7MHz CH H:75.9MHz MC12015P R46 R45 R44 2K2 R2 10K R5 47K C61 15P B 22K 18K SW1 DIP8 1 S1 16 2 S2 15 R1 100K D6 1N4148 R3 10K R4 10K C2 1uF C1 1uF 3 S3 14 4 S4 13 5 S5 12 6 S6 11 U6 MC145152 X1 6.4M 7 S7 10 A A 8 S8 9 R50 1K C59 30P C58 30P C60 5-20P 型号 客户 HAS-400T UWTECH 版本 页码 REV:01 2/2 A4 设计 日期 2010.7.15 1 2 3 4

Page: 1 of 25 FCC TEST REPORT WALTEK SERVICES Reference No.: WT11073743-E-E-F FCC ID : ZTJ- HAS-400T Applicant : Shenzhen Uniwisdom Technologies Co., Ltd. Address : Bldg.91-94 3rd Industrial Zone, Lisonglang, Gongming Town, Bao’an District, Shenzhen, P.R.China Equipment Under Test (EUT) : Product Name : Peavey Assisted Listening System Model No. : HAS-400(Transmitter); PEAVEY ASSISTED LISTENING(Transmitter) Standards : FCC Part 15.237:2009 Date of Test : July 27, 2011 ~ July 28, 2011 Date of Issue : July 29, 2011 Test Engineer : Hunk yan Reviewed By : Philo zhong Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-27553488 Fax:+86-755-27553868 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 25 Shenzhen Uniwisdom Technologies Co., Ltd. FCC ID:ZTJ- HAS-400T WALTEK SERVICES Reference No.: WT11073743-E-E-F 2 Test Summary FCC Part 15 Subpart C Requirements Test Items Test Requirement Test Method Result Conducted Emission (150KHz to 30MHz) FCC Part 15.207 ANSI C63.4: 2003 PASS Radiated Emission (30MHz to 1GHz) FCC Part 15.35 FCC Part 15.237(c) ANSI C63.4: 2003 PASS Emission Bandwidth FCC Part 15.237(b) ANSI C63.4: 2003 PASS Page:3 of 25 Shenzhen Uniwisdom Technologies Co., Ltd. FCC ID:ZTJ- HAS-400T WALTEK SERVICES Reference No.: WT11073743-E-E-F 3 Contents 1 COVER PAGE....................................................................................................................1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 4 4.3 DETAILS OF E.U.T................................................................................................................................................. 4 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 4 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 4 4.6 TEST FACILITY...................................................................................................................................................... 5 4.7 TEST LOCATION.................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST .................................................................................................................. 6 6 ANTENNA REQUIREMENT ............................................................................................................................... 8 7 CONDUCTED EMISSION .................................................................................................................................... 8 7.1 E.U.T. OPERATION................................................................................................................................................ 8 7.2 EUT SETUP........................................................................................................................................................... 9 7.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 7.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 8 RADIATION EMISSION DATA ........................................................................................................................ 13 8.1 TEST EQUIPMENT................................................................................................................................................ 13 8.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 8.3 EUT SETUP......................................................................................................................................................... 14 8.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 14 8.5 TEST PROCEDURE................................................................................................................................................ 15 8.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 15 8.7 RADIATED EMISSIONS LIMIT...............................................................................................................................16 8.8 TEST RESULTS..................................................................................................................................................... 16 8.9 PHOTOGRAPH – RADIATION EMISSION TEST SETUP............................................................................................ 19 9 EMISSION BANDWID…

Text truncated - open the document above for the full version.

2.1 Photograph – Conducted Emission Test Setup 2.2 Photograph – Radiation Emission Test Setup
