1 E103IP USER MANUAL VERSION: V1.0 FOR MODELS: E103IP, E203IP 2 CONTENTS 1. INTRODUCTION..........................................................................................5 1.1 OVERVIEW OF HARDWARE.....................................................................................................5 1.2 OVERVIEW OF SOFTWARE......................................................................................................5 2. E103IP PHONE KEYBOARD..................................................................7 2.1 KEYBOARDS FUNCTIONS........................................................................................................7 2.1.1 Function Table of Base Keyboard.........................................................................7 2.1.2 Function table of handset keyboard....................................................................7 2.2 KEYBOARD FUNCTION............................................................................................................7 2.2.2 Voice Control..............................................................................................................8 2.2.3 Hold Function.............................................................................................................8 2.2.4 Register handset.......................................................................................................8 2.2.5 Delete handset..........................................................................................................9 2.2.6 Call forward................................................................................................................9 2.2.7 Three way conference call.....................................................................................9 2.2.8 Line Switch...............................................................................................................10 2.2.9 Call park function...................................................................................................10 2.3 FUNCTIONS AND SETTING CATALOG....................................................................................10 2.3.1 Menu catalog............................................................................................................10 2.3.2 Network.....................................................................................................................10 2.3.3 Call Feature..............................................................................................................11 2.3.4 SIP..............................................................................................................................11 2.3.5 DSP.............................................................................................................................12 2.3.6 System.......................................................................................................................12 2.3.7 Other Setting...........................................................................................................12 2.3.8 Setting catalog........................................................................................................12 3. THROUGH WEB BROWSER TO SET PHONE..................................13 3.1 LOGON..................................................................................................................................13 3.2 CURRENT STATE...................................................................................................................13 3.3 NETWORK.............................................................................................................................14 3.3.1 Wan Config...............................................................................................................14 3.3.2 LAN Config................................................................................................................15 3.4 VOIP....................................................................................................................................16 3.4.1 SIP Config.................................................................................................................16 3.5 ADVANCE..............................................................................................................................19 3.5.1 DHCP Server............................................................................................................19 3.5.2 NAT.............................................................................................................................20 3.5.3 STUN..........................................................................................................................21 3.5.4 Net Service...............................................................................................................21 3.5.5 Firewall settings......................................................................................................22 3.5.6 VLAN Configuration................................................................................................23 3.5.7 Digital Map................................................................................................................24 3 3.5.8 Call Service Settings..............................................................................................25 3.5.9 Memory Key.............................................................................................................26 3.5.10 MMI Filter................................................................................................................26 3.5.11 DSP...........................................................................................................................27 3.5.12 VPN...........................................................................................................................27 3.6 DIAL-PEER DIAL RULE SETTING......................…

Text truncated - open the document above for the full version.

CETIS, INC. Address: 5025 GALLEY ROAD, COLORADO SPRINGS, CO 80915 USA Tel: 719 638 8821-888 Fax: (719)638-8815 FCC Confidential Authorization Date: 2012-03-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: ZTUCETIS501 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Detailed Circuit Schematics of EUT--- (Long term)  Block Diagram--- (Long term)  Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Bing N.Sun President& CEO

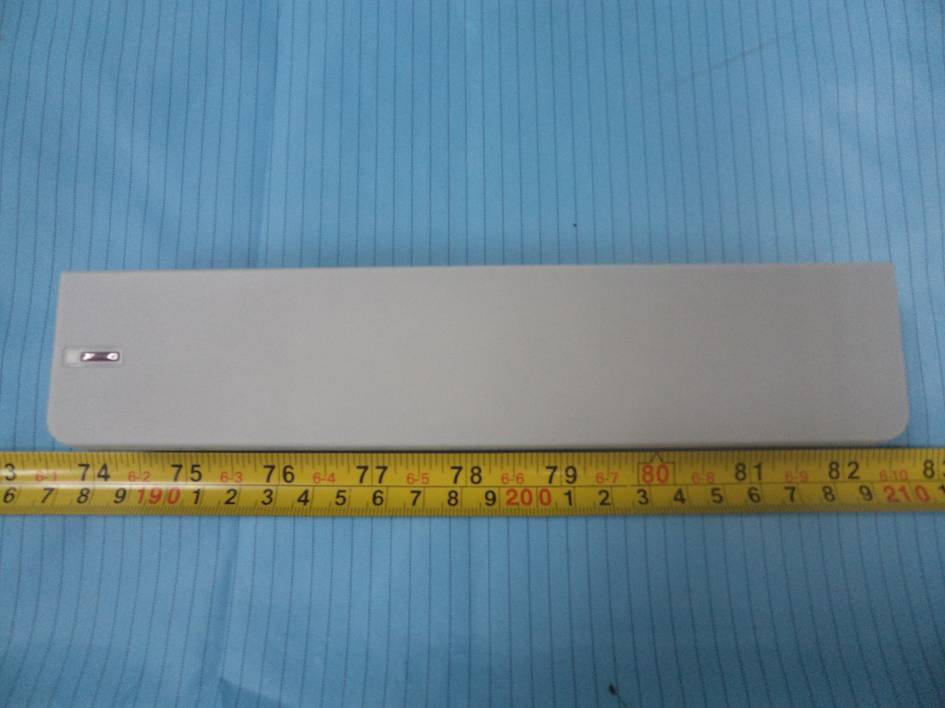

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT - Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – Battery View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120211001-00PP FCC Part 15D Page 8 of 45 FCC §15. 319 (i) & §2.1093 - RF EXPOSURE Applicable Standard According to FCC §15.319 (i) Unlicensed PCS devices are subject to the radiofrequency radiation exposure requirements specified in §1.1307(b), 2.1091and 2.1093 of this chapter, as appropriate. All equipment shall be considered to operate in a general population/uncontrolled environment. Applications for equipment authorization of devices operating under this section must contain a statement confirming compliance with these requirements for both fundamental emissions and unwanted emissions. Technical information showing the basis for this statement must be submitted to the Commission upon request. According to KDB 447498 D01 Mobile Portable RF Exposure v04 1) c): Unless excluded by specific FCC test procedures, portable devices with output power > 60/f (GHz) mW shall include SAR data for equipment approval. RF Exposure Evaluation Maximum peak output power at antenna input terminal: 1928.448 MHz: 13.05dBm = 20.18mW The Time-based average power at antenna input terminal = Peak output power *Duty cycle = 20.18*4.14% = 0.84mW The Time-based average power plus antenna gain: 1.33 mW 60/f (GHz) = 60/1.928 (GHz) = 31.12 mW The time-based average power is less than 60/f (GHz) So the SAR evaluation can be exempted.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen).This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 15D MEASUREMENT AND TEST REPORT For CETIS, INC. 5025 GALLEY ROAD, COLORADO SPRINGS, CO 80915, USA FCC ID: ZTUCETIS501 Report Type: Original Report Product Type: DECT Phone (Handset) Test Engineer: Henry Ding Report Number: RSZ120211001-00PP Report Date: 2012-04-13 Reviewed By: Alvin Huang EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120211001-00PP FCC Part 15D Page 2 of 45 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC §15. 319 (I) & §2.1093 - RF EXPOSURE ...........................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 RF EXPOSURE EVALUATION........................................................................................................................................8 FCC§15.317&§15.203 - ANTENNA REQUIREMENT .............................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................9 FCC§15.323 (A) - EMISSION BANDWIDTH ..........................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST DATA................................................................................................................................................................10 FCC§15.319 (C) - PEAK TRANSMIT POWER.......................................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA................................................................................................................................................................13 FCC§15.319 (D) - POWER SPECTRAL DENSITY ................................................................................................16 APPLICABLE STANDARD............................................................................................................................................16 TEST PROCEDURE..........................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1GHz: Radiated Emissions View Above 1GHz: Radiated Emissions View Frequency Stability
