ZUBRM18585RXRM Easirespond

FCC Caution: Any changes or modifications not expressly approved by the party responsible for the compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been teste d and fo und to comply with the limits for a Clas s B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gene rates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off a nd on, the user is encouraged to try to correct the Interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or and experienced radio/TV technician for assistance.

Shenzhen Zhuohao Intelligent Electronic Development Co., Ltd. Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 8/16/2011 FCC ID: ZUBRM18585RX Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Name Zhenhai Zhou Position Manager Company Adress 5 Floor Building B2 Shangrong Technology Zone, Baolong Road, Longgang District, Shenzhen, China Tel/Fax (86) 0755-28574903 / (86) 0755-85227826 E-Mail [email protected]

Shenzhen Zhuohao Intelligent Electronic Development Co., Ltd. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 8/11/2011 Authority to Act as an Agent We declare that the following representative (agent) Name Bovey Yang Position Manager Company Name NTEK Testing Technology Co., Ltd. Address 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District, Shenzhen, China Tel / Fax (86) 0755-61156588 / (86) 0755-61156599 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name RM Easirespond Model Name RM Easirespond Brand Name N/A We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Zhenhai Zhou Position Manager Company Name Shenzhen Zhuohao Intelligent Electronic Development Co., Ltd. Address 5 Floor Building B2 Shangrong Technology Zone, Baolong Road, Longgang District, Shenzhen, China Tel / Fax [email protected] E-Mail (86) 0755-28574903 / (86) 0755-85227826 In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Shenzhen Zhuohao Intelligent Electronic Development Co., Ltd. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 8/11/2011 Request for Confidentiality Company name: Shenzhen Zhuohao Intelligent Electronic Development Co., Ltd. FCC ID: ZUBRM18585RX FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description ☒ Schematics Schematics.pdf All circuitry of devices and component values ☒ Block Diagrams Block Diagram.pdf Details of device showing the frequency of all oscillators ☒ Operational Description Operation Principle.pdf Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Zhenhai Zhou Position Manager Company Name Shenzhen Zhuohao Intelligent Electronic Development Co., Ltd. Address 5 Floor Building B2 Shangrong Technology Zone, Baolong Road, Longgang District, Shenzhen, China Tel / Fax [email protected] E-Mail (86) 0755-28574903 / (86) 0755-85227826

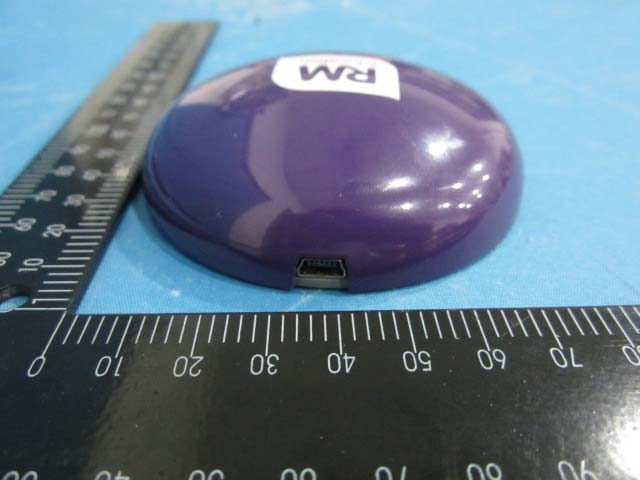

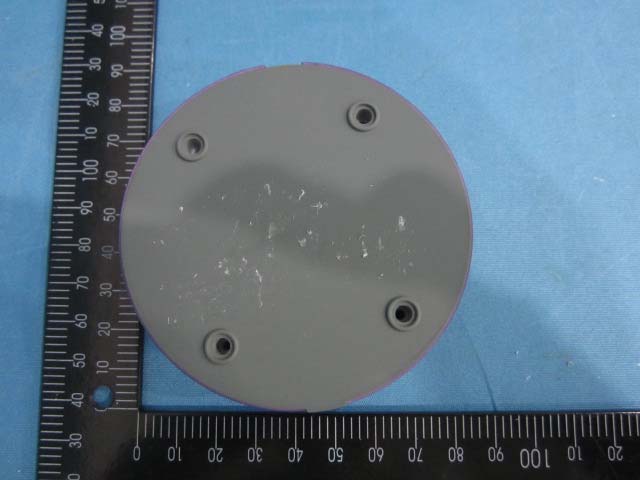

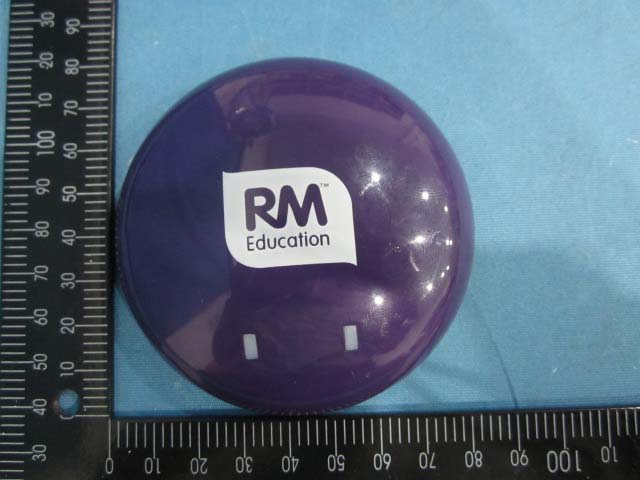

EUT PHOTO

L*H=50*11mm

Page 1 of 33 Report No.: NTEK-2011NT0728830E ` FCC RADIO TEST REPORT Report Reference No. ............... : NTEK-2011NT0728830E Compiled by (+ signature) ........... Jim He Approved by (+ signature) ........... Bovey Yang Applicant’s name........................... : RM Group US, LLCu Address ...................................... : 1431 Airport Drive Ball Ground, GA 30107 Manufacture's Name...................... : Shenzhen Zhuohao Intelligent Electronic Development Co.,Ltd Address ...................................... : 5 Floor Building B2 Shangrong Technology Zone Baolong Road Longgang District Shenzhen China Test specification: Standard ..................................... : FCC Part15.249 Test procedure............................... : ANSI C63.4-2003 Test item description Product name ........................ : RM Easirespond FCC ID ZUBRM18585RX Trademark ............................ : RM Model and/or type reference : RM Easirespond Rating(s) ................................ : DC 5V by USB Testing Laboratory information: Testing Laboratory Name ..... : NTEK Testing Technology Co., Ltd Address ................................ : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao ＇an District, Shenzhen P.R. China. This device described above has been tested by NTEK Testing Technology Co., Ltd, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK Testing Technology Co., Ltd, this document may be altered or revised by NTEK Testing Technology Co., Ltd, personal only, and shall be noted in the revision of the documen Testing....................................................: Date of receipt of test item ......................: 29 Jul. 2011 Date (s) of performance of tests .............: 29 Jul. 2011 ~09 Aug. 2011 Date of Issue...........................................: 10 Aug. 2011 Test Result...............................................: Pass Page 2 of 33 Report No.: NTEK-2011NT0728830E ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 3 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 3 . TEST RESULT 11 3.1 ANTENNA REQUIREMENT 11 3.1.1 STANDARD REQUIREMENT 11 3.1.2 EUT ANTENNA 11 3.2 CONDUCTED EMISSION MEASUREMENT 12 3.2.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.2.2 TEST PROCEDURE 13 3.2.3 DEVIATION FROM TEST STANDARD 13 3.2.4 TEST SETUP 13 3.2.5 TEST RESULT 13 3.3 RADIATED EMISSION MEASUREMENT 16 3.3.1 RADIATED EMISSION LIMITS 16 3.3.2 TEST PROCEDURE 17 3.3.3 DEVIATION FROM TEST STANDARD 17 3.3.4 TEST SETUP 18 3.3.5 TEST RESULTS (BLOW 30MHZ) 19 3.3.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 19 3.3.7 TEST RESULTS (ABOVE 1000 MHZ) 21 4 . BANDWIDTH TEST 27 4.1 TEST PROCEDURE 27 4.2 DEVIATION FROM STANDARD 27 4.3 TEST SETUP 27 4.4 TEST RESULTS 28 5 . EUT TEST PHOTO 32 6 . APPENDIX-Photographs of EUT Constructional Details Page 3 of 33 Report No.: NTEK-2011NT0728830E ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.249 Occupied Bandwidth Pass Page 4 of 33 Report No.: NTEK-2011NT0728830E ` 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 Radiated Emission Test ±3.17dB 3 RF power,conducted ±0.16dB 4 Spurious emissions,conducted ±0.21dB 5 All emissions,radiated(<1G) ±4.68dB 6 All emissions,radiated(>1G) ±4.89dB Page 5 of 33 Report No.: NTEK-2011NT0728830E ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment RM Easirespond Trade Name RM Model Name RM Easirespond OEM Brand/Model Name N/A Model Difference N/A Product Description The EUT is a RM Easirespond Operation Frequency: 2405~2479 MHz Modulation Type: GFSK Antenna Designation: Printed ANT Antenna Gain(Peak) 0 dBi Channel Number 75 Channel List Please refer to the Note 2. Power Source DC Voltage supplied from USB Power Rating DC 5.0V by USB Connecting I/O Port(s) Please refer to the User's Manual Products Covered N/A EUT Modification(s) N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 33 Report No.: NTEK-2011NT0728830E ` 2. Channel List Channel Frequency (MHz) 05 2405 06 2406 ...... ...... 42 2442 43 2443 ...... ...... 78 2478 79 2479 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A Printed AntennaNA 0.0 Antenna Page 7 of 33 Report No.: NTEK-2011NT0728830E ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 CH5 Mode 2 CH42 Mode 3 CH79 For Conducted Emission Final Test Mode Description Mode 1 TX For Radiated Emission Final Test Mode Description Mode 1 CH5 Mode 2 CH42 Mode 3 CH79 Note: (1) The measurements are performed at the highest, middle, lowest available channels. (2) The EUT use new battery. Page 8 of 33 Report No.: NTEK-2011NT0728830E ` 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED E-1 EUT E-2 PC C-1 Page 9 of 33 Report No.: NTEK-2011NT07288…

Text truncated - open the document above for the full version.

Page 32 of 33 Report No.: NTEK-2011NT0728830E ` 5. EUT TEST PHOTO Conducted Measurement Photos Page 33 of 33 Report No.: NTEK-2011NT0728830E ` Radiated Measurement Photos 6 . APPENDIX-Photographs of EUT Constructional Details
