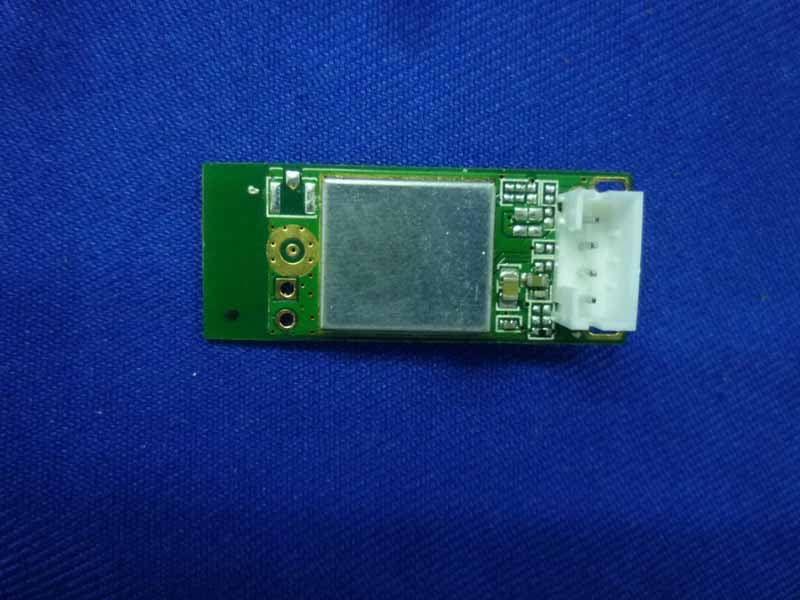

ZVA01WIFI Module

Specifications of 802.11 b/g/n Wireless USB Module Page 1 of 12 SPECIFICATIONS 802.11 b/g/n Wireless USB Module (USB Host Power Is 3.3V) Ver. 2.0 Date: 10/4/2012 Specifications of 802.11 b/g/n Wireless USB Module Page 2 of 12 Contents Device Overall Description ....................................................... 3 Features ..................................................................................... 3 Specification Compliance .......................................................... 3 Block Diagram .......................................................................... 4 Channel Assignment .................................................................. 4 Security ...................................................................................... 5 Certification ............................................................................... 5 Software & OS support .............................................................. 5 Operating Conditions ................................................................ 5 RF Characteristics .................................................................... 6 Mechanical Drawing ................................................................. 7 Antenna Connector .................................................................... 8 LED Indication .......................................................................... 8 Specifications of 802.11 b/g/n Wireless USB Module Page 3 of 12 Device Overall Description The WN713NM is designed to provide wireless LAN function on a small form factor with USB interface. The wireless LAN function is based on Ralink RT5370 MAC/BBP/RF controller and high gain power amplifier, fully comply with current draft IEEE 802.11n and IEEE 802.11 b/g standards. Features z Ralink RT5370 MAC/BBP/RF Controller z 1T1R Modes z 11b: 1,2,5.5,11Mbps z 11g: 6,9,12,18,24,36,48,54Mbps z 11n: Legacy and High Throughput Modes, Support 20/40MHz Bandwidth MCS0~7(150Mbps PHY Rate Rate) z Reverse Direction Data Flow and Frame Aggregation z WEP 64/128, WPA, WPA2, TKIP, AES z QoS-WMM, WMM-PS z WPS, PIN, PBC z Multiple BSSID Support z Low Power with Advanced Power Management Specification Compliance z 802.11n Draft3.0 z 802.11b/g z 802.11e z 802.11i z 802.11j z USB2.0 Specifications of 802.11 b/g/n Wireless USB Module Page 4 of 12 Block Diagram RT5370:Highly integrated MAC/BBP and 2.4GHz RF single chip Channel Assignment 2.4GHz Channel Support Channel Frequency FCC (US) IC(CA) ETSI (EU) Japan (JP) 1 2412MHz X X X X 2 2417MHz X X X X 3 2422MHz X X X X 4 2427MHz X X X X 5 2432MHz X X X X 6 2437MHz X X X X 7 2442MHz X X X X 8 2447MHz X X X X 9 2452MHz X X X X 10 2457MHz X X X X 11 2462MHz X X X X 12 2467MHz X X 13 2472MHz X X 14 2484MHz X KEY: US = United States, CA = Canada, EU = European Countries (except France and Spain) ,JP = Japan Many countries and region are currently revising the channel assignment. X = Supported Specifications of 802.11 b/g/n Wireless USB Module Page 5 of 12 Security z Complete Security Features - WEP 64/128, WPA, WPA2, 802.1x, and 802.11i z Cisco CCS Compliant Certification ٛ Cisco CCX Software & OS support Operating System Driver Windows 2000 Available Windows XP 32/64 Available Windows Vista 32/64 Available Windows 7 32/64 Available Linux Available MAC OS Available Operating Conditions Voltage Range 5 +/0.3V Operating Temperature Range -10°C - 65°C Storage Temperature Range -10°C - 85°C Relative Humidity during Operating Max. 95% (Non-Condensing) Relative Humidity during Storage Max. 95% (Non-Condensing) Specifications of 802.11 b/g/n Wireless USB Module Page 6 of 12 RF Characteristics RF Characteristics Minimum Typical Maximum Units PC Interface USB 2.0 Internal Antenna Impedance 50 ohms Operating Temperature Range 0 +65 °C Storage Temperature Range -20 +85 °C Supply Voltage 4.7 5.0 5.3 V RX Supply Current (11b 11MBps) 140 mA Power Consumption 462 mWatts RX Supply Current (11g 54Mbps) 150 mA Power Consumption 495 mWatts RX Supply Current (11n 150Mbps) 190 mA Power Consumption 627 mWatts TX Supply Current (11b 1MBps) 265 mA Power Consumption 875 mWatts TX Supply Current(11g 6Mbps) 255 mA Power Consumption 842 mWatts TX Supply Current (11n 15Mbps) 245 mA Power Consumption 809 mWatts Radio off Current 40 mA Power Consumption 132 mWatts RX Sensitivity(11b,11Mbps) -86 dBm RX Sensitivity(11g,54Mbps) -71 dBm RX Sensitivity (11n,150Mbps) -63 dBm TX Output Power(11b,11M) 17 dBm TX Output Power(11g,54Mbps) 15 dBm TX Output Power(11n,MCS0) 14 dBm TX Output Power(11n,MCS7) 14 dBm TX Spectral Mask (CCK) PASS TX Spectral Mask (OFDM) PASS TX Spectral Mask (11n,20M) PASS TX Spectral Mask (11n,40M) PASS Preamble Length Long/Short Specifications of 802.11 b/g/n Wireless USB Module Page 7 of 12 Mechanical Drawing Specifications of 802.11 b/g/n Wireless USB Module Page 8 of 12 Antenna Connector Connector Vendor Part# Antenna*1 Hirose On Board PCB Antenna Host Interface Pin Definition 1 FAA pin: WLAN RF Disable/Enable 2 Vcc 3 USB Data- 4 USB Data + 5 GND 6 WLAN LED LINK Note: Pin 6 is Low active for WLAN LED Link. Pin 1 is Low voltage to disable RF function LED Indication LED status WLAN card activity LED on Associated, and authenticated but not transmitting or receiving LED Slow Blink Scanning for AP LED Intermittent Blink Activity proportional to transmitting/receiving speed LED off Radio off 6 5 4 3 2 1 Specifications of 802.11 b/g/n Wireless USB Module Page 9 of 12 COMPLIANCES Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that …

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVA01 Page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12092 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVA01 Page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12092 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVA01 Page 14-5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12092 Figure 3 General Appearance of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVA01 Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12092 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result EUT: WIFI Module M/N: MT-WN713NM Test date: 2012-04-25 Pressure: 101.2 kpa Humidity: 53.8% Tested by: Leo-Li Test site: RF Site Temperature：24.9°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 1.5 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 21.65 146 .221.5 1.41 0.0411 CH6 2437 19.99 99 .77 1.5 1.41 0.0281 11b CH11 2462 18.91 77 .80 1.5 1.41 0.0219 CH1 2412 21.18 131.22 1.5 1.41 0.0369 CH6 2437 20.81 120.50 1.5 1.41 0.0339 11g CH11 2462 21.38 137.40 1.5 1.41 0.0386 CH1 2412 21.47 140.28 1.5 1.41 0.0394 CH6 2437 20.81 120.50 1.5 1.41 0.0339 11n HT20 CH11 2462 19.66 92.47 1.5 1.41 0.0260 CH1 2422 16.82 48.08 1.5 1.41 0.0135 CH4 2437 16.34 43.05 1.5 1.41 0.0121 11n HT40 CH7 2452 16.14 41.11 1.5 1.41 0.0116 Note：The estimate distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVA01 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12092 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TCL Technoly Electronics (Huizhou) Co., Ltd. WIFI Module Brand Name Model Number MTN MT-WN713NM FCC ID: ZVA01 Prepared for : TCL Technoly Electronics (Huizhou) Co., Ltd. Section 19, Zhongkai High-tech Development Zone,Huizhou City,Guangdong Province, China 516006 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12092 Date of Test ： Apr.25, 2012 Date of Report ： May.04, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVA01 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12092 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ...................................................... 1-1 1.1. Description of Standards and Results ...............................................................................1-1 2. GENERAL INFORMATION ...................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................2-1 2.2. Test information ................................................................................................................2-2 2.3. Tested Supporting System Details ....................................................................................2-3 2.4. Block diagram of connection between the EUT and simulators .......................................2-3 2.5. Test Facility.......................................................................................................................2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST.................................................... 3-1 3.1. Test Equipments................................................................................................................3-1 3.2. Block Diagram of Test Setup ............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits...................................................................3-1 3.4. Configuration of EUT on Test ..........................................................................................3-1 3.5. Operating Condition of EUT.............................................................................................3-2 3.6. Test Procedure...................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .................................................................3-2 4. RADIATED EMISSION TEST ................................................................................... 4-1 4.1. Test Equipment .................................................................................................................4-1 4.2. Block Diagram of Test Setup ............................................................................................4-1 4.3. Radiated Emission Limit...................................................................................................4-2 4.4. EUT Configuration on Test...............................................................................................4-3 4.5. Operating Condition of EUT.............................................................................................4-3 4.6. Test Procedure...................................................................................................................4-3 4.7. Radiated Emission Test Results ........................................................................................4-4 5. CONDUCTED SPURIOUS EMISSIONS .................................................................. 5-1 5.1. Test Equipment .................................................................................................................5-1 5.2. Limit..................................................................................................................................5-1 5.3. Test Procedure...................................................................................................................5-1 5.4. Test result ..........................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST ......................................................................... 6-1 6.1. Test Equipment .................................................................................................................6-1 6.2. Limit..................................................................................................................................6-1 6.3. Test Produce ......................................................................................................................6-1 6.4. Test Results .......................................................................................................................6-1 7. 6dB Bandwidth Test ..................................................................................................... 7-1 7.1. Test Equipment .................................................................................................................7-1 7.2. Limit..................................................................................................................................7-1 7.3. Test Procedure...................................................................................................................7-1 7.4. Test Results .......................................................................................................................7-1 8. OUTPUT POWER TEST.........…
