ZVA03WIFI Module

PRODUCTS USERMANUAL PAGE 1 OF 3 WF78RL1500C Version 1.0 WIFI Module IEEE 802.11b/g/n 1T/1R Model:WF78RL1500C WF78RL1500C is to specify the product requirements for 802.11b/g/n Module. This Card is based on MTK MT7601 chipset that complied with IEEE 802.11n,and it is also backward complied with IEEE 802.11b/g standard from 2.4GHz.It can be used to provide up to 54Mbps for IEEE 802.11g, 11Mbps for IEEE 802.11b and 150Mbps for IEEE 802.11n to connect your wireless LAN. ◆ Complies with IEEE 802.11g; 802.11b; 802.11n standard for 2.4GHz Wireless LAN. ◆ Supports Ad-Hoc/Infrastructure modes ◆ Works with all existing network infrastructure. ◆ Supports Wi-Fi Protected Setup (WPS) configuration function ◆ Capable of up to 128-Bit WEP Encryption. ◆ Freedom to roam while staying connected. ◆ 22-Mbps Packet Binary Convolution Coding (PBCC) (according to the IEEE Std 802.11b high-rate specification ). ◆ UP to 54 Mbps High-Speed Transfer Rate in 802.11g mode of operation. ◆ Integrated Antenna. ◆ Supports Windows 2000, XP32/64,Vista32/64,Linux ◆ Low power consumption. ◆ Easy to install and configure. Product Features Product Description PRODUCTS USERMANUAL PAGE 2 OF 3 WF78RL1500C Version 1.0 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other transmitter or antenna, IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labelling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labelled in a visible area with the following: “Contains FCC ID:ZVA03”. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. PRODUCTS USERMANUAL PAGE 3 OF 3 WF78RL1500C Version 1.0 For Canada Canada Statement This device com plies with Industry Canada licence-exe mpt RSS standard(s). Operation is subject to the following two conditio ns: (1) this device m ay not cause interference, and (2) this device m ust accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est confor me aux CNR d' Industrie Canada applicables aux appareils radio exem pts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l' appareil ne doit pas produire de brouillage, et (2 ) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution Exposure: This device meets the exemption from the routine evaluation limits in section 2.5 of RSS102 and users can obtain Canadian information on RF exposure and compliance. Le dispositif répond à l'exemption des limites d'évaluation de routine dans la section 2.5 de RSS102 et les utilisateurs peuvent obtenir des renseignements canadiens sur l'exposition aux RF et le respect. This equipment should be installed and operated with a m inimum distance of 20 centim eters between the radiator and your body. Cet équipement doit être installé et utilisé avec une distance minimale de 20 centimètres entre le radiateur et votre corps. The final end product must be labeled in a visible area with the following: The Industry Canada certification label of a module shall be clearly visible at all times when installed in the host device, otherwise the host device must be labelled to display the Indu…

Text truncated - open the document above for the full version.

TCL Technoly Electronics (Huizhou) Co., Ltd. Nov. 27, 2013 To whom it may concern: We the undersigned, hereby authorize Neutron Engineering Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Neutron Engineering Inc. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from TCL Technoly Electronics (Huizhou) Co., Ltd. Sincerely, Weirun Peng Approbation Engineer

TCL Technoly Electronics (Huizhou) Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. TCL Technoly Electronics (Huizhou) Co., Ltd. would like the following documents regarding this submission for FCC ID: ZVA03 to be kept confidential. 1. Schematics. 2. Block diagram, 3. Operation description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Weirun Peng /Approbation Engineer Date: 2013-11-27

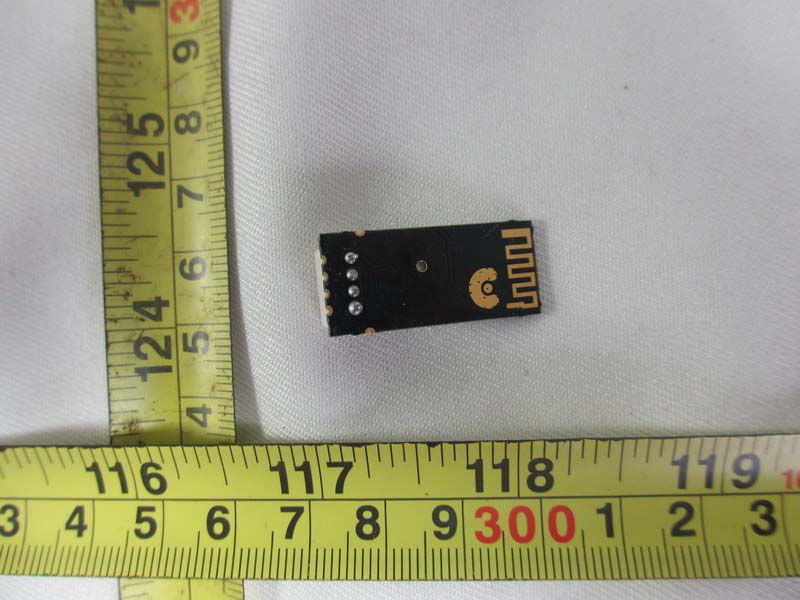

TCL Technoly Electronics (Huizhou) Co., Ltd. Modular Approval Request FCC (per DA 00-1407) FCC ID: ZVA03 Company name: TCL Technoly Electronics (Huizhou) Co., Ltd. Address: Section 37, Zhongkai High-tech de velopment Zone, Huizhou, China Request for Modular Approval Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. No, Please refer to external photos. 2. The modular transmitter must have buffered modulation/data input s (if such inputs are provided) to ensure that the module wi ll comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, the EUT has buffered data inputs, it is integrated in chip MT7601 3. The modular transmitter must have its own power supply regulation. Yes, the power interface provides DC 3.3V. 4. The modular transmitter must comply with the antenna requireme nts of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (a t all connections between the module and the antenna, including the cable).. Yes, the EUT meets the FCC Antenna requirement. Printed antenna used. 5. The modular transmitter must be tested in a stand-alone conf iguration, i.e., the module must not be inside another device du ring testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of th e device into which it is eventually installed. No, The EUT is tested in a Home Theatre and Blu-ray Disc/DVD Player 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is ins talled inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: W8UWF2” or “Contains FCC ID: ZVA03.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which expl ain this requirement. In the latter case , a copy of these instructions must be in cluded in the application for equipment authorization. Yes, please refer to the exhibition label sample for this module. 7. The modular transmitter must comply with any specific ru le or operating requirements app licable to the transmitter and the manufacturer must provide adequate instructions along with the m odule to explain any such requirements. A copy of these instructions must be included in the application for equipment aut horization. For example, there are very strict operational a nd timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transm ission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, the EUT is compliant with all applicable FCC Rules, please refer to the user manual 8. The modular transmitter must comply with any applicable RF exposure requirements. For ex ample, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Pa rt 15, including 15.319(i), 15.407(f), 15. 253(f) and 15.255(g), require that Unlicens ed PCS, UNII and millimeter wave dev ices perform routine environment al evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters appro ved under other Sections of Part 15, when necessary, may also Yes, due to the output power and EIRP value is much lower than FCC SAR exemption threshold, this module comply with any TCL Technoly Electronics (Huizhou) Co., Ltd. need to address certain RF Exposure concerns, typically by providing specific installa tion and operating instructions for users , installers and other interested parties to ensure compliance. applicable RF exposure requirement. Note: If compliance with one or more of the numbered requirement s, listed above, cannot be demo nstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of app licant (or authorized representative) : Weirun Peng Date: 2013-11-27 Signature:

Neutron Engineering Inc. Project No.: 1311C046 Page 2 of 4 Neutron Engineering Inc. Project No.: 1311C046 Page 3 of 4 Neutron Engineering Inc. Project No.: 1311C046 Page 4 of 4

Neutron Engineering Inc. Project No.: 1311C046 Page 2 of 4

Neutron Engineering Inc. Project No.: 1311C046 Page 2 of 4 Neutron Engineering Inc. Project No.: 1311C046 Page 3 of 4 Neutron Engineering Inc. Project No.: 1311C046 Page 4 of 4

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: ZVA03 Project No. : 1311C046 Equipment : WIFI Module Model : WF78RL1500C Applicant : TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD Address : Section 37, Zhongkai High-tech Development Zone, Huizhou City, Guang Dong Province, China, 516006. According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna ANT Brand name Model NameAntenna Type Connector Gain (dBi) 1 N/A N/A Printed N/A -1.65 Neutron Engineering Inc. TEST RESULTS EUT： WIFI Module Model Name ： WF78RL1500C Temperature： 24 °C Relative Humidity： 60 °C Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result -1.65 0.6839 21.05 127.3503 0.017336061 Complies -1.65 0.6839 20.90 123.0269 0.016747511 Complies -1.65 0.6839 20.70 117.4898 0.015993751 Complies EUT： WIFI Module Model Name ： WF78RL1500C Temperature： 24 °C Relative Humidity： 60 °C Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result -1.65 0.6839 24.32 270.3958 0.036808691 Complies -1.65 0.6839 24.40 275.4229 0.037493021 Complies -1.65 0.6839 24.28 267.9168 0.036471231 Complies EUT： WIFI Module Model Name ： WF78RL1500C Temperature： 24 °C Relative Humidity： 60 °C Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result -1.65 0.6839 23.49 223.3572 0.030405381 Complies -1.65 0.6839 23.41 219.2805 0.029850411 Complies -1.65 0.6839 23.32 214.7830 0.029238181 Complies Neutron Engineering Inc. EUT： WIFI Module Model Name ： WF78RL1500C Temperature： 24 °C Relative Humidity： 60 °C Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result -1.65 0.6839 23.46 221.8196 0.030196071 Complies -1.65 0.6839 23.38 217.7710 0.029644931 Complies -1.65 0.6839 23.30 213.7962 0.029103851 Complies Note: the calculation distance is 20cm.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 1 of 139 FCC&IC Radio Test Report FCC ID: ZVA03 IC: 9976A-03 This report concerns (check one): Original Grant Class II Change Issued Date : Nov. 25, 2013 Project No. : 1311C046 Equipment : WIFI Module Model Name : WF78RL1500C Applicant : TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD Address : Section 37, Zhongkai High-tech Development Zone, Huizhou City, Guang Dong Province, China, 516006. Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 14, 2013 Date of Test: Nov. 14, 2013~ Nov. 24, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 2 of 139 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 3 of 139 Table of Contents Page REPORT ISSUED HISTORY 5 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 22 4.2.1 RADIATED EMISSION LIMITS 22 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 23 4.2.3 TEST PROCEDURE 24 4.2.4 DEVIATION FROM TEST STANDARD 24 4.2.5 TEST SETUP 25 4.2.6 EUT OPERATING CONDITIONS 26 4.2.7 TEST RESULTS (BELOW 30MHZ) 27 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 29 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 42 5 . BANDWIDTH TEST 90 5.1 APPLIED PROCEDURES / LIMIT 90 5.1.1 MEASUREMENT INSTRUMENTS LIST 90 5.1.2 TEST PROCEDURE 90 5.1.3 DEVIATION FROM STANDARD 90 5.1.4 TEST SETUP 90 5.1.5 EUT OPERATION CONDITIONS 90 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 4 of 139 Table of Contents Page 5.1.6 TEST RESULTS 91 6 . MAXIMUM OUTPUT POWER TEST 99 6.1 APPLIED PROCEDURES / LIMIT 99 6.1.1 MEASUREMENT INSTRUMENTS LIST 99 6.1.2 TEST PROCEDURE 99 6.1.3 DEVIATION FROM STANDARD 99 6.1.4 TEST SETUP 99 6.1.5 EUT OPERATION CONDITIONS 99 6.1.6 TEST RESULTS 100 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 102 7.1 APPLIED PROCEDURES / LIMIT 102 7.1.1 MEASUREMENT INSTRUMENTS LIST 102 7.1.2 TEST PROCEDURE 102 7.1.3 DEVIATION FROM STANDARD 102 7.1.4 TEST SETUP 102 7.1.5 EUT OPERATION CONDITIONS 102 7.1.6 TEST RESULTS 103 8 . POWER SPECTRAL DENSITY TEST 123 8.1 APPLIED PROCEDURES / LIMIT 123 8.1.1 MEASUREMENT INSTRUMENTS LIST 123 8.1.2 TEST PROCEDURE 123 8.1.3 DEVIATION FROM STANDARD 123 8.1.4 TEST SETUP 123 8.1.5 EUT OPERATION CONDITIONS 123 8.1.6 TEST RESULTS 124 9 . EUT TEST PHOTO 132 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 5 of 139 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FICP-1-1311C046 Original Issue. Nov. 25, 2013 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 6 of 139 1. CERTIFICATION Equipment : WIFI Module Brand Name : TCL Model Name : WF78RL1500C Applicant : TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD Manufacturer : TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD Address : Section 37, Zhongkai High-tech Development Zone, Huizhou City, Guang Dong Province, China, 516006. Date of Test : Nov. 14, 2013~ Nov. 24, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 / ANSI C63.10-2009 Canada RSS-210:2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1311C046) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 7 of 139 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15 (15.247) , Subpart C RSS-210: 2010 Standard(s) Section Test Item Judgment …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 132 of 139 9. EUT TEST PHOTO Conducted Measurement Photos BDP2285/F7 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 133 of 139 Conducted Measurement Photos HTB3524/F7 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 134 of 139 Radiated Measurement Photos 9K~30MHz BDP2285/F7 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 135 of 139 Radiated Measurement Photos 30M~1000MHz BDP2285/F7 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 136 of 139 Radiated Measurement Photos Above 1000MHz BDP2285/F7 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 137 of 139 Radiated Measurement Photos 9K~30MHz HTB3524/F7 Neutron Engineering Inc. Report No.: NEI-FICP-1-1311C046 Page 138 of 139 Radiated Measurement Photos 30M~1000MHz HTB3524/F7
