ZVA05WIRELESS USB ADAPTER

http://www.mtncn.com Most professional OEM/ODM manufacturer SHEN ZHEN MTN Electronic Co., LTD MT-WN731NM Datasheet 150Mbps 802.11 b/g/n Wireless USB Adapter REV：V 4.2 Date: 2013/11/20 http://www.mtncn.com Most professional OEM/ODM manufacturer  SHEN ZHEN MTN Electronic Co., LTD 1、Product Description： MT-WN731NM is a 150M wireless module. It uses a highly integrated, feature-rich MT7601U CPU, support the 2.4G band, in full compliance with the IEEE802.11n protocol standard, is also fully compatible with 802.11g and 802.11b standards. The WN731NM provide a small size with a USB interface high standards and reliable Wi-Fi, there are MAC / BBP / RF controller and high-gain power amplifier provides excellent performance. The WN731NM play the greatest benefits for end users anytime, anywhere. 2、Product Features:  Support USB 2.0；  Support 20MHz/40MHz Bandwidth transmission;  Comply with IEEE 802.11n protocol, compatible with IEEE 802.11g/ IEEE 802.11g standards；  Automatic transmission rate detection network and transform;  Supports 64/128 bit WEP data encryption; support WPA/WPA2/TKIP/AES other encryption methods；  One Transmit and one Receive path (1T1R)  Built-in smart antenna  Support 2.4G band  Support Multiple BSSID  Support QoS-WMM, WMM-PS  Support WPS: PIN, PBC  Support Infrastructure mode、Ad-Hoc mode  Support Cisco CCX  Support Soft AP  Low Power with Advanced Power  Operating System Support: Windows XP 32/64, 2000, Vista32/64, Windows 7 32/64, Win8,Linux, Macintosh http://www.mtncn.com Most professional OEM/ODM manufacturer  SHEN ZHEN MTN Electronic Co., LTD 3、Performance parameters: Protocol standards IEEE 802.11n；IEEE 802.11g ；IEEE 802.11b Transmission rate 11b：1/2/5.5/11Mbps 11g：6/9/12/18/24/36/48/54Mbps 11n：up to 150Mbps Frequency range 2.412 ~ 2.462GHz Operating Channels 1 ~ 11（2.4G） Transmit power (Peak) 26+/-2dBm（） Spread-spectrum technology DSSS Modulation type CCK/ OFDM/ BPSK/ QPSK/ QAM Receiver Sensitivity 11n：-68dBm@130M；-68dBm@108M 11g：-69dBm@54M 11b：-85dBm@11M Encryption WPA/WPA2/WPA-WPA2/802.1x 64/128 bit WEP encryption WPS (PIN, PBC) Operating System Support Window 2000/XP/Vista/Win7/Win8/ Mac OS/Linux Interface USB 2.0 (3.3V; 4 pin 2.0 Pitch White outlet) Antenna Built-in smart antenna Dimensions（mm） 28 * 12.5 * 1.0 mm Use of the environment Operating Temperature：0°C~ 40°C Storage temperature：-20°C~ 75°C Operating Humidity：10% ~ 90% RH Non-condensing Storage Humidity：5% ~ 95% RH Non-condensing http://www.mtncn.com Most professional OEM/ODM manufacturer  SHEN ZHEN MTN Electronic Co., LTD 4、USB pin module interface definition: 1 GND 2 D+ 3 D- 4 VCC(3.3V) USB Max operating current：570mA; Operating Current：329mA 5、Block Diagram： http://www.mtncn.com Most professional OEM/ODM manufacturer  SHEN ZHEN MTN Electronic Co., LTD 6、Product dimension： How to fix the Wi-Fi module to BP340 unit 1. Fixed the module to the module bracket 2. Fixed the bracket to the front case and conneted with a 4-pins cable 3. Fixed the front case subassembly to the bottom case subassembly 4. connected the WIFI cable to the mainboard 4-pins connector. 5. Fixed the top cover case Assemble finished. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment This device complies with Part 15 of the FCC R ules. Operation is subject to the following two conditions: (1) this devi ce may not cause harmful interference, and (2) this de vice must accept any interference received, including interference that may cause undesired operation. IC Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two c onditions: (1) this device may not cause interference, and (2) this device must accept a ny interference, including interference that may cause undesired operation of the device. Le présent a ppareil est conforme aux C NR d'Industrie Ca nada ap plicables a ux a ppareils rad io exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l' appareil ne doit pas pro duire de brouillage, e t (2) l'utilisateur d e l' appareil d oit a ccepter t out brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The end host device should bear the label which indicate "Contains FCC ID:ZVA05" or "Contains IC:9976A-05".

TCL通力电子（惠州）有限公司 TCL TECHNOLY ELECTRONICS (HUI ZHOU) CO.,LTD Date: 2013-12-9 Federal Communications Commission Authorization and Evaluation Division FCC ID: ZVA05 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, (Original written signature of authorized signer) Name of authorized signer): Weirun Peng Title of authorized signer: Approbation Engineer Company Name: TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD Tel: 0752-2606710 E-mail: [email protected] Section 37 Zhongkai High-tech Development Zone, Huizhou City, Guangdong Province, 516006 P.R. China TEL: 86 752-2638000 FAX: 86 752-2606641 Website: www.tcl.com

TCL通力电子（惠州）有限公司 TCL TECHNOLY ELECTRONICS (HUI ZHOU) CO.,LTD AGENCY AUTHORIZATION LETTER FCC ID: ZVA05 Date: 2013/12/9 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (ShenZhen) Co.,Ltd to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, (Original written signature of authorized signer) Name of authorized signer): Weirun Peng Title of authorized signer: Approbation Engineer Company Name: TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD Tel: 0752-2606710 E-mail: [email protected] Section 37 Zhongkai High-tech Development Zone, Huizhou City, Guangdong Province, 516006 P.R. China TEL: 86 752-2638000 FAX: 86 752-2606641 Website: www.tcl.com

TCL通力电子（惠州）有限公司 TCL TECHNOLY ELECTRONICS (HUI ZHOU) CO.,LTD Modular Approval Request Letter Dear Application Examiner, TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD., It’s WIFI module , FCC ID: ZVA05, The requirements of section 15.212 have been met and shown on the following statements. 1, “The modular transmitter must have it’s own RF shielding.”The modular transmitter don’t have RF shielding. 2, “The modular transmitter must have buffered modulation data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9374. 3，“The modular transmitter must have it’s own power supply regulation.” The USB interface provides 5V DC,the on board regulator G5728 convert 5V DC to3.3V DC. 4，“The modular transmitter must comply with antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements, it’s an integral PCB antenna and have no antenna connector. The spurious emissions are shown in the test report. 5, “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a typical host device, please see section photographs of test configration in the test report. 6, “The modular transmitter must be labeled with it’s own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition User Manual, there are instructions give to the OEM on how to label the end product. 7, “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructions along with module to explain any such requirement.” The EUT is compliant with all applicable FCC rules, detail instructions for maintaining compliance are given in the users Manual. 8, “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF exposure is addressed in the test report. Best Regards. Name of authorized signer): Weirun Peng Title of authorized signer: Approbation Engineer Company Name: TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD Tel: 0752-2606710 E-mail: [email protected] Section 37 Zhongkai High-tech Development Zone, Huizhou City, Guangdong Province, 516006 P.R. China TEL: 86 752-2638000 FAX: 86 752-2606641 Website: www.tcl.com

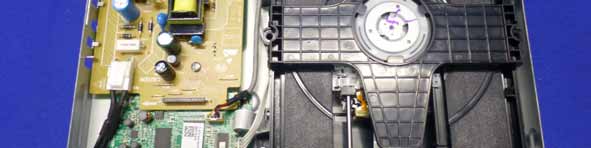

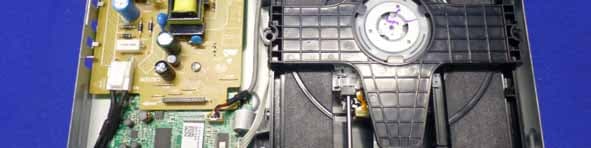

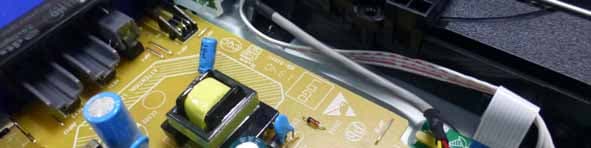

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

贴纸尺寸:19X10mm 铜版纸 条码类型: 条码高度：, C ode 128 4mm 字体： 字体大小：2Aria l pt S/N: M/N MT-WN7 31NM: FCC ID ZVA05: IC:9976A-0 5 MAC: UnRegistered FCC ID&IC ID LABEL

Rear panel USA Print color:Pantone 432C 257.20 31.50 Serial number Label 67-BP34R1-0E0B1 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http://patents.dts.com. BP340 BP340-NU 12 BLU-RAY DISC PLAYER Contains FCC ID : ZVA05 Contains IC: 9976A-05 Rear panel Canada Print color:Pantone 432C 257.20 31.50 Serial number Label 67-BP34R1-0E0B2 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http://patents.dts.com. BP340 BP340-NU 12 BLU-RAY DISC PLAYER Contains FCC ID : ZVA05 Contains IC: 9976A-05

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

No. Part Num. Part Type Description Quan t Reference Remark 1 13.P4N731NM43 4 PCB MT-WN731NM-V4.0 L4 FR4 28*12.5*1.0mm 1 2 08.A67601U0QD U IC IC WLAN NIC MT7601U QFN-40 MEDIATEK 1 U4 3 02.R10000J22C0 贴片电阻 RES 0 Ω ±5% 1/16W SMD 0402 2 R3,R20 4 02.R197R6F11C 0 贴片电阻 RES 97.6 Ω ±1% 1/20W SMD 0201 1 R19 5 02.R10202J11C0 贴片电阻 RES 2K Ω ±5% 1/20W SMD 0201 2 R17,R18 6 02.R10342F11C0 贴片电阻 RES 3.4K Ω ±1% 1/20W SMD 0201 1 R16 7 02.R10822F11C0 贴片电阻 RES 8.2K Ω ±1% 1/20W SMD 0201 1 R15 8 02.R10243F22C0 贴片电阻 RES 24K Ω ±1% 1/16W SMD 0402 1 R107 9 02.R10104F22C0 贴片电阻 RES 100K Ω ±1% 1/16W SMD 0402 1 R14 10 01.C1R509B72B 2 贴片高频电容 CAP MLCC 0.5pF NPO ±0.1pF 50V 0402(GRM1555C1HR50BA01D)(muRata) 1 C240 11 01.C11R09C71B 2 贴片高频电容 CAP MLCC 1.0pF NPO ±0.25pF 50V 0201(GRM0335C1H1E0CD01D)(muRata) 1 C215 12 01.C11R09C72B 2 贴片高频电容 CAP MLCC 1.0pF NPO ±0.25pF 50V 0402(GRM1555C1H1R0CA01D)(muRata) 2 C237,C238 13 01.C11R29C72B 2 贴片高频电容 CAP MLCC 1.2pF NPO ±0.25pF 50V 0402(GRM1555C1H1R2CA01D)(muRata) 2 C96,C105 14 01.C12209J71B2 贴片高频电容 CAP MLCC 22pF NPO ±5% 50V 0201(GRM0335C1H220JD01D)(muRata) 2 C95,C102 15 01.C12709J72B2 贴片陶瓷电容 CAP MLCC 27pF NPO ±5% 50V 0402(GRM1555C1H270JA01D)(muRata) 1 C12 16 01.C16801J71C0 贴片陶瓷电容 CAP MLCC 68pF NPO ±5% 50V 0201 1 C38 17 01.C13323K41C0 贴片陶瓷电容 CAP MLCC 3.3nF X7R ±10% 16V 0201 1 C52 18 01.C13923K41C0 贴片陶瓷电容 CAP MLCC 3.9nF X7R ±10% 16V 0201 1 C50 19 01.C11042K31C0 贴片陶瓷电容 CAP MLCC 0.1uF X5R ±10% 10V 0201 1 C98 20 01.C11042K42C0 贴片陶瓷电容 CAP MLCC 0.1uF X5R ±10% 16V 0402 8 C48,C49,C56,C57,C58,C93,C97,C103 21 01.C11052M21C 0 贴片陶瓷电容 CAP MLCC 1uF X5R ±20% 6.3V 0201 2 C99,C100 22 01.C11052K32C0 贴片陶瓷电容 CAP MLCC 1uF X5R ±10% 10V 0402 3 C61,C82,C104 23 01.C14752K33C0 贴片陶瓷电容 CAP MLCC 4.7uF X5R ±10% 10V 0603 3 C51,C84,C85 24 01.C11062M23C 0 贴片陶瓷电容 CAP MLCC 10uF X5R ±20% 6.3V 0603 1 C59 25 03.L81R84S02BJ 高频电感 CHI CHIP Hifreq Inductor 1.8nH ±0.3nH 400mA 0402 (CLH1005T-1N8S-S) Chilisin 1 L12 26 03.L82R24S02BJ 高频电感 CHI CHIP Hifreq Inductor 2.2nH ±0.3nH 400mA 0402 (CLH1005T-2N2S-S) Chilisin 1 L10 27 03.L82R74S02BJ 高频电感 CHI CHIP Hifreq Inductor 2.7nH ±0.3nH 400mA 0402 (CLH1005T-2N7S-S) Chilisin 2 L9,L11 28 03.L94R72M44B H 功率叠层电感 PI POWER IND CPI2012NHL4R7M 4.7uH ±20% 800mA 2012(0805) samwha 1 L20 29 06.X14000245C0 晶体 XTAL 40MHZ 10PPM 15pF 3.2*2.5mm SMD 1 U5 30 09.C4PH4P323C 0 排针座 Wafer PH 4P 2.0mm 1J1 PART LIST Mudule:MT-WN731NM

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 10-1 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 10.2. Estimation Result EUT: WIRELESS USB ADAPTER M/N: MT-WN731NM Test date:2013-12-02 Pressure: 101.2±1.0 kpa Humidity: 48.4±3.0% Tested by: Leo-Li Test site: RF site Temperature:20.7±0.6 °C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain:1.06dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE CH1 2412 25.37 344.35 1.06 1.28 0.0875 CH6 2437 26.31 427.56 1.06 1.28 0.1086 11b CH11 2462 26.03 400.87 1.06 1.28 0.1018 CH1 2412 27.21 526.02 1.06 1.28 0.1336 CH6 2437 27.85 609.54 1.06 1.28 0.1549 11g CH11 2462 27.48 559.76 1.06 1.28 0.1422 CH1 2412 25.74 374.97 1.06 1.28 0.0953 CH6 2437 27.69 587.49 1.06 1.28 0.1493 11n HT20 CH11 2462 27.32 539.51 1.06 1.28 0.1371 CH1 2422 26.01 399.02 1.06 1.28 0.1014 CH4 2437 27.52 564.94 1.06 1.28 0.1435 11n HT40 CH7 2452 27.27 533.33 1.06 1.28 0.1359

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD WIRELESS USB ADAPTER Brand NameModel No. TCL MT-WN731NM FCC ID: ZVA05 Prepared for : TCL TECHNOLY ELECTRONICS (HUIZHOU) CO., LTD Section 37, Zhongkai High-tech Development Zone, Huizhou City, Guang Dong Province, China, 516006 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F13343 Date of Test ： Nov.29~Dec.04, 2013 Date of Report ： Dec.11, 2013 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ...................................................................................1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ...............................................................................................2-1 2.2. Test Information ...................................................................................................................2-2 2.3. Tested Supporting System Details........................................................................................2-3 2.4. Block Diagram of Test Setup ...............................................................................................2-3 2.5. Test Facility ..........................................................................................................................2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2).....................................................2-4 3. POWER LINE CONDUCTED EMISSION TEST....................................................... 3-1 3.1. Test Equipments ...................................................................................................................3-1 3.2. Block Diagram of Test Setup ...............................................................................................3-1 3.3. Power Line Conducted Emission Test Limits ......................................................................3-1 3.4. Configuration of EUT on Test..............................................................................................3-1 3.5. Operating Condition of EUT ................................................................................................3-2 3.6. Test Procedure ......................................................................................................................3-2 3.7. Power Line Conducted Emission Test Results .....................................................................3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment.....................................................................................................................4-1 4.2. Block Diagram of Test Setup ...............................................................................................4-1 4.3. Radiated Emission Limit ......................................................................................................4-2 4.4. EUT Configuration on Test ..................................................................................................4-3 4.5. Operating Condition of EUT ................................................................................................4-3 4.6. Test Procedure ......................................................................................................................4-3 4.7. Radiated Emission Test Results ...........................................................................................4-1 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment.....................................................................................................................5-1 5.2. Limit .....................................................................................................................................5-1 5.3. Test Procedure ......................................................................................................................5-1 5.4. Test result .............................................................................................................................5-1 6. BAND EDGE COMPLIANCE TEST............................................................................ 6-1 6.1. Test Equipment.....................................................................................................................6-1 6.2. Limit .....................................................................................................................................6-1 6.3. Test Produce .........................................................................................................................6-1 6.4. Test Results ..........................................................................................................................6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment.....................................................................................................................7-1 7.2. Limit .....................................................................................................................................7-1 7.3. Test Procedure ......................................................................................................................7-1 7.4.…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-7 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-8 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-9 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-10 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-12 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-13 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-14 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-15 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-16 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-17 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-18 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-19 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-20 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-21 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-22 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-23 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-24 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-25 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-26 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-27 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-28 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-29 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-30 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-31 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-32 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 6-33 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 7-1 7. 6dB Bandwidth Test 7.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1 PXA Signal Analyzer Agilent N9030A MY51380221 Oct.31, 13 1 Year 2 Horn Antenna EMCO 3115 9510-4580 May.28, 13 1 Year 3 HF Cable Hubersuhner Sucoflex104- May.08, 13 1 Year 7.2. Limit For direct sequence systems, the minimum 6dB bandwidth shall be at least 500kHz 7.3. Test Procedure The transmitter output was connected to a spectrum analyzer, The bandwidth of the fundamental frequency was measured by spectrum analyzer with 300kHz RBW and 1MHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 7.4. Test Results EUT: WIRELESS USB ADAPTER M/N: MT-WN731NM Test date: 2013-12-02 Pressure: 101.1±1.0 kpa Humidity: 53.2±3.0% Tested by: Leo-Li Test site: RF Site Temperature: 23.1±0.6°C Cable loss: 1 dB Attenuator loss: 20 dB Test Mode CH 6dB bandwidth （MHz） Limit (KHz) CH1 10.21 >500 CH6 10.22 >500 11b CH11 10.20 >500 CH1 16.56 >500 CH6 16.53 >500 11g CH11 16.59 >500 CH1 17.61 >500 CH6 17.62 >500 11n HT20 CH11 17.61 >500 CH1 36.60 >500 CH4 36.57 >500 11n HT40 CH7 36.58 >500 Conclusion：PASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 7-2 Test Mode: IEEE 802.11b TX Test CH1: 2412MHz Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 7-3 Test CH11: 2462MHz Test Mode: IEEE 802.11g TX Test CH1: 2412MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 7-4 Test CH6: 2437MHz Test CH11: 2462MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 7-5 Test Mode: IEEE 802.11n HT20 TX Test CH1: 2412MHz Test CH6: 2437MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 7-6 Test CH11: 2462MHz Test Mode: IEEE 802.11n HT40 TX Test CH1: 2422MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 7-7 Test CH4: 2437MHz Test CH7: 2452MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 8-1 8. OUTPUT POWER TEST 8.1. Test Equipment Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. PXA Signal Analyzer Agilent N9030A MY51380221 Oct.31, 13 1 Year 2. Amp HP 8449B 300…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVA05 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F13343 13-3 (Above 1000MHz)
