ZVABD00004Blu-ray Disc Player

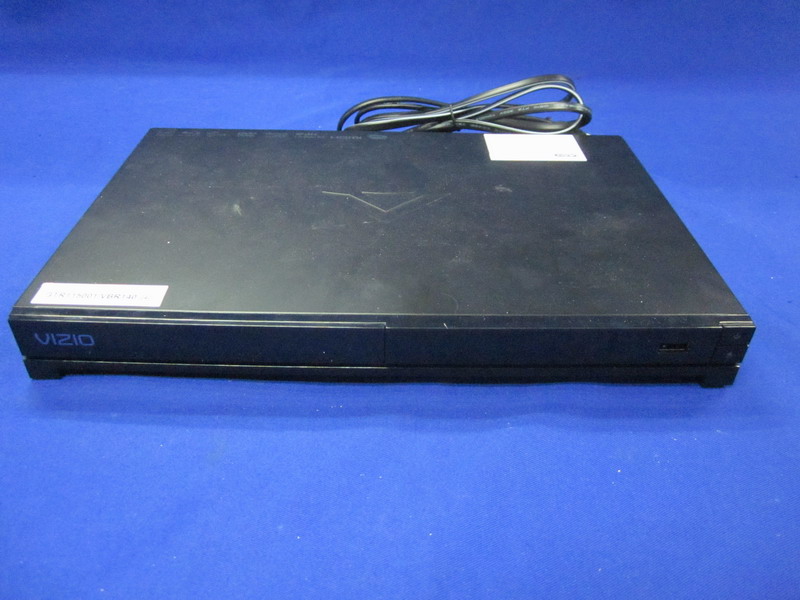

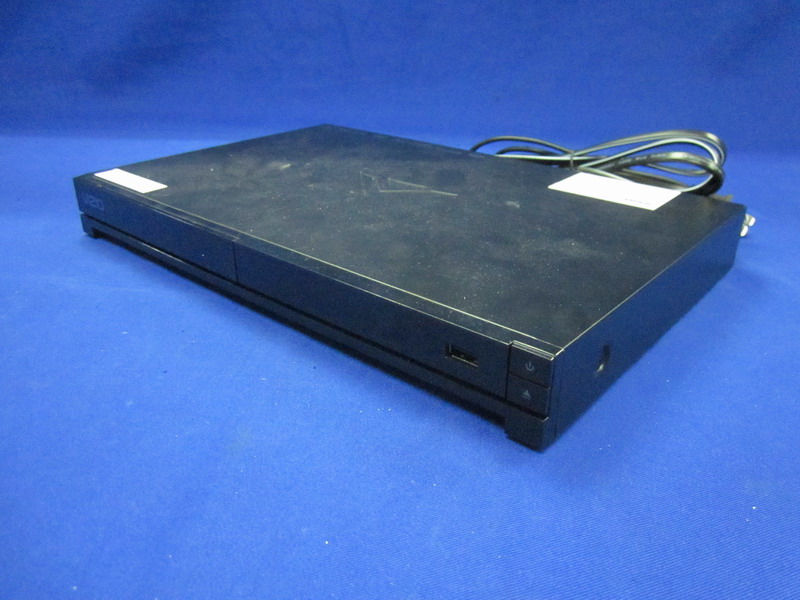

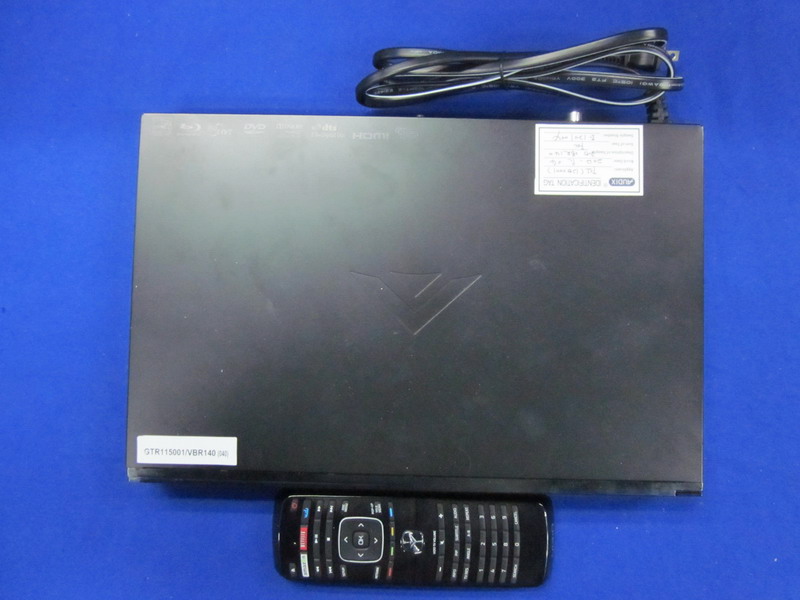

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

文档提供 丝印颜色 备注 : 第次修改，修改日期： 修改内容： A B A B C g VIZIO 2011-12-01 TCL制作 黑色丝印， 白色部分镂空 共页 背板 67-V140R1-0E0B1 VBR140 V1.0 2 孙安兰 Label: S/N: Manufactured: Silkscreen black C and white hollow out AUDIO OUT HDMI Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. FCC ID : This product complies with FDA Rule 21CFR Subchapter J in effect at date of manufacture. VIZIO Inc. 39 Tesla, Irvine, CA 92618 Model: VBR140 P/N:10300090036 AC:120V~60Hz, 0.15A Made in China 67-V140R1-0E0B1 L R USB: ZVABD00004 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. 1 2 m m 58 mm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 5 General Appearance of the EUT Figure 6 Inside Configuration of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 7 Inside Configuration of the EUT Figure 8 Inside Configuration of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 9 Component Side of the PCB Figure 10 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 11 Component Side of the PCB Figure 12 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-7 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 13 Component Side of the PCB Figure 14 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-8 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 15 Component Side of the PCB Figure 16 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-9 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 17 Component Side of the PCB Figure 18 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 14-10 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 Figure 19 Remote Controller

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 11-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.Estimation Result EUT: Blu-ray Disc Player M/N: VBR140 Test date: 2012-01-10 Pressure: 101 kpa Humidity: 43.3% Tested by: Leo-Li Test site: RF Site Temperature：24.2°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 1.5 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 21.65 146 .221.5 1.41 0.0411 CH6 2437 19.99 9 9.77 1.5 1.41 0.0281 CH11 2462 18.91 77 .80 1.5 1.41 0.0219 11g CH1 2412 21.18 131 .22 1.5 1.41 0.0369 CH6 2437 20.81 12 0.50 1.5 1.41 0.0339 CH11 2462 21.38 137 .40 1.5 1.41 0.0386 11n HT20 CH1 2412 21.47 140 .28 1.5 1.41 0.0394 CH6 2437 20.81 120 .50 1.5 1.41 0.0339 CH11 2462 19.66 92 .47 1.5 1.41 0.0260 11n HT40 CH1 2422 16.82 48.08 1.5 1.41 0.0135 CH4 2437 16.34 43.05 1.5 1.41 0.0121 CH7 2452 16.14 41.11 1.5 1.41 0.0116 Note：The estimate distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TCL Technoly Electronics (Huizhou) Co., Ltd. Blu-ray Disc Player Brand NameModel Number VIZIO VBR140, VBR140-CA, VBR140-MX VBR141, VBR141-CA, VBR141-MX VBR142, VBR142-CA, VBR142-MX VBR143, VBR143-CA, VBR143-MX FCC ID: ZVABD00004 Prepared for : TCL Technoly Electronics (Huizhou) Co., Ltd. Section 19, Zhongkai High-tech Development Zone,Huizhou City,Guangdong Province, China 516006 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12009 Date of Test ： Jan.10~12, 2012 Date of Report ： Jan.19, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ...................................................... 1-1 1.1. Description of Standards and Results ............................................................................... 1-1 2. GENERAL INFORMATION ...................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................ 2-1 2.2. Test information ................................................................................................................ 2-2 2.3. Tested Supporting System Details .................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators ....................................... 2-3 2.5. Test Facility ....................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) ................................................. 2-4 3. POWER LINE CONDUCTED EMISSION TEST .................................................... 3-1 3.1. Test Equipments ................................................................................................................ 3-1 3.2. Block Diagram of Test Setup ............................................................................................ 3-1 3.3. Power Line Conducted Emission Test Limits ................................................................... 3-1 3.4. Configuration of EUT on Test .......................................................................................... 3-1 3.5. Operating Condition of EUT ............................................................................................. 3-2 3.6. Test Procedure ................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ................................................................. 3-2 4. RADIATED EMISSION TEST ................................................................................... 4-1 4.1. Test Equipment ................................................................................................................. 4-1 4.2. Block Diagram of Test Setup ............................................................................................ 4-1 4.3. Radiated Emission Limit ................................................................................................... 4-2 4.4. EUT Configuration on Test ............................................................................................... 4-3 4.5. Operating Condition of EUT ............................................................................................. 4-3 4.6. Test Procedure ................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................ 4-4 5. CONDUCTED SPURIOUS EMISSIONS .................................................................. 5-1 5.1. Test Equipment ................................................................................................................. 5-1 5.2. Limit .................................................................................................................................. 5-1 5.3. Test Procedure ................................................................................................................... 5-1 5.4. Test result .......................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ......................................................................... 6-1 6.1. Test Equipment ................................................................................................................. 6-1 6.2. Limit .................................................................................................................................. 6-1 6.3. Test Produce ...................................................................................................................... 6-1 6.4. Test Results ....................................................................................................................... 6-1 7. 6dB Bandwidth Test ..................................................................................................... 7-1 7.1. Test Equipment ................................................................................................................. 7-1 7.2. Limit .................................................................................................................................. 7-1 7.3. Test Procedure ...............................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABD00004 Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12009 (Above 1000MHz)
