ZVABDHTS001BLU-RAY DISC RECEIVER

Blu-ray Disc surround system Système Home-Cinéma Blu-ray Disc sistema surround de Blu-ray Disc HTZ-BD52 HTZ-BD32 HTZ-BD92HW HTZ-BD82HF XV-BD422W XV-BD122W XV-BD922FSW XV-BD822FSW S-BD422W S-BD122 S-BD922HW S-BD822HF S-BD922SW Blu-ray Disc receiver Système Home-Cinéma Blu-ray Disc receptor de Blu-ray Disc Speaker System Enceintes acoustiques Sistemas de parlantes Subwoofer Enceinte d’extrêmes graves Altavoz de subgraves ENGLISH FRANÇAIS ESPAÑOL Register your product on http://www.pioneerelectronics.com (US) http://www.pioneerelectronics.ca (Canada) # Protect your new investment The details of your purchase will be on file for reference in the event of an insurance claim such as loss or theft. # Improve product development Your input helps us continue to design products that meet your needs. # Receive a free Pioneer newsletter Registered customers can opt in to receive a monthly newsletter. # Receive free tips, updates and service bulletins on your new product http://www.pioneerelectronics.com (US) http://www.pioneerelectronics.ca (Canada) Operating Environment Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c*_A1_En The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT D3-4-2-1-1_A1_En WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_A1_En WARNING Before plugging in for the first time, read the following section carefully. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4*_A1_En VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side). WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b*_A1_En CAUTION This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007. CLASS 1 LASER PRODUCT D58-5-2-2a_A1_En Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. When using this product, confirm the safety information shown on the bottom of the unit. D3-4-2-2-4_B1_En Safety Information Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 1) 2) 3) 4) 5) 6) 7) 8) 9) 10) Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. D3-7-13-69_En 11) 12) 13) 14) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If thi…

Text truncated - open the document above for the full version.

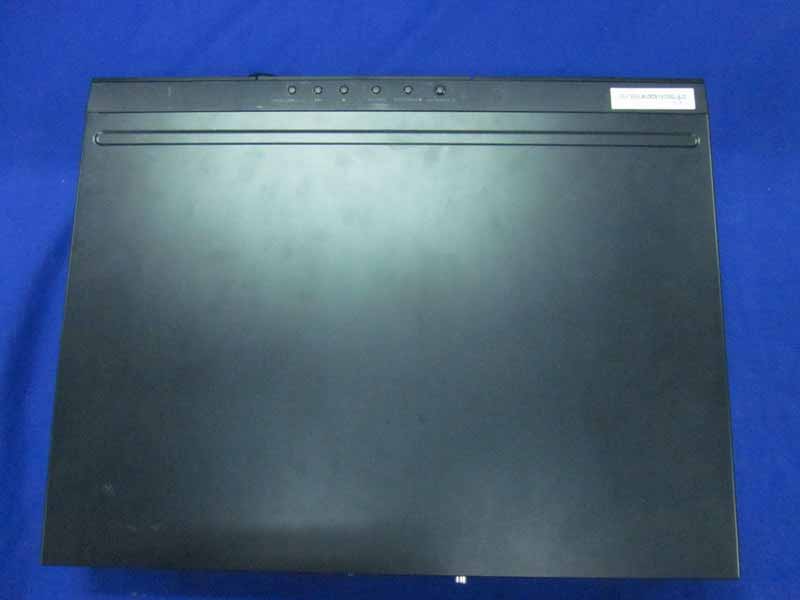

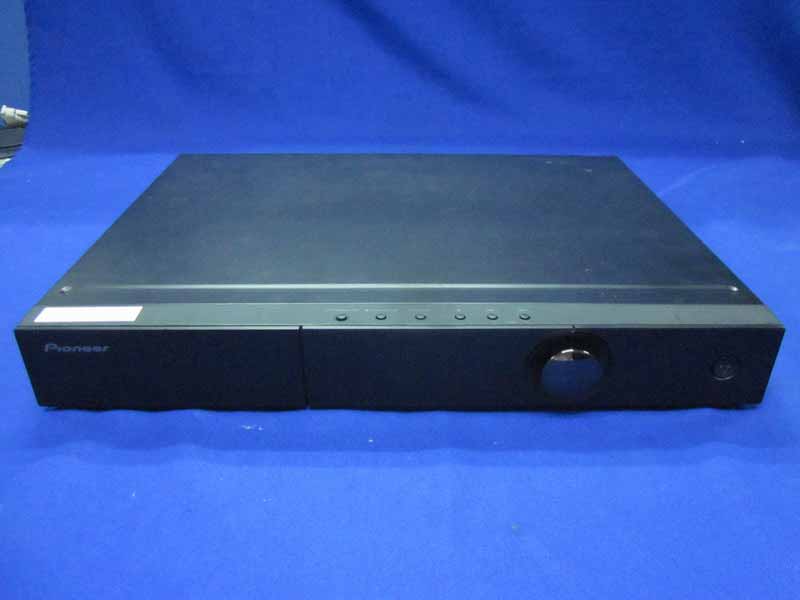

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABDHTS001 Page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12017 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABDHTS001 Page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12017 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

BD-HTS4 PANEL REAR PRINTING(5.1ch) XV-BD122W / UCXESM Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. BB-BHT48401A ATTENTION IMPEDANCE DE HAUT- PARLEURS CAUTION SPEAKER IMPEDANCE DivX®, DivX Certified®, DivX Plus® HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. Patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274. AUDIO/VIDEO APPARATUS 4NP2 E244239 MADE IN CHINA / FABRIQUE EN CHINE FCC ID : ZVABDHTS001 IC : 9976A-BDHTS001 Dock for iPod 12 V 0.5 A SPEAKERS ( 4 Ω )( 4 Ω )( 3 Ω )( 4 Ω )( 4 Ω )( 3 Ω ) LAN ( 10/100 ) HDMI IN 2HDMI IN 1 AC IN FM ADAPTER PORT ANTENNA VIDEO OUT RL 5 V 0.1 A AUX IN HDMI OUT OPTICAL IN 1 OPTICAL IN 2 LR SURROUNDCENTER R FRONT SUB WOOFER L BLU-RAY DISC RECEIVER MODEL : XV-BD122W RECEPTEUR BLU-RAY DISC MODELE : XV-BD122W 120 V 60 Hz 190 W NTSC 1-1, Shin-ogura, Saiwai- ku, Kawasaki-shi, Kanagawa 212-0031, JAPAN BD-HTS4 PANEL REAR PRINTING(5.1ch) CENTER XV-BD422W / UCXESM BB-BHT48401A ATTENTION IMPEDANCE DE HAUT- PARLEURS CAUTION SPEAKER IMPEDANCE DivX®, DivX Certified®, DivX Plus® HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. Patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274. AUDIO/VIDEO APPARATUS 4NP2 E244239 MADE IN CHINA / FABRIQUE EN CHINE FCC ID : ZVABDHTS001 IC : 9976A-BDHTS001 Dock for iPod 12 V 0.5 A SPEAKERS ( 4 Ω )( 4 Ω )( 3 Ω )( 4 Ω )( 4 Ω )( 3 Ω ) LAN ( 10/100 ) HDMI IN 2HDMI IN 1 AC IN FM ADAPTER PORT ANTENNA VIDEO OUT RL 5 V 0.1 A AUX IN HDMI OUT OPTICAL IN 1 OPTICAL IN 2 LR SURROUNDCENTER R FRONT SUB WOOFER L BLU-RAY DISC RECEIVER MODEL : XV-BD422W RECEPTEUR BLU-RAY DISC MODELE : XV-BD422W 120 V 60 Hz 190 W NTSC 1-1, Shin-ogura, Saiwai- ku, Kawasaki-shi, Kanagawa 212-0031, JAPAN Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. XV-BD822FSW / UCXESM BB-BHT52301A DivX®, DivX Certified®, DivX Plus® HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. Patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274. AUDIO/VIDEO APPARATUS 4NP2 E244239 MADE IN CHINA / FABRIQUE EN CHINE ATTENTION IMPEDANCE DE HAUT- PARLEURS CAUTION SPEAKER IMPEDANCE FCC ID : ZVABDHTS001 IC : 9976A-BDHTS001 SPEAKERS ( 4 Ω )( 4 Ω )( 3 Ω ) R FRONT SUB WOOFER L LAN ( 10/100 ) HDMI IN 2HDMI IN 1 AC IN FM ADAPTER PORT ANTENNA VIDEO OUT RL 5 V 0.1 A AUX IN HDMI OUT OPTICAL IN 1 OPTICAL IN 2 Dock for iPod 12 V 0.5 A BLU-RAY DISC RECEIVER MODEL : XV-BD822FSW RECEPTEUR BLU-RAY DISC MODELE : XV-BD822FSW 120 V 60 Hz 105 W NTSC 1-1, Shin-ogura, Saiwai- ku, Kawasaki-shi, Kanagawa 212-0031, JAPAN Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. BD-HTS4 PANEL REAR PRINTING(2.1ch) BD-HTS4 PANEL REAR PRINTING(2.1ch) XV-BD922FSW / UCXESM Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. This device complies with Part 15 of the FCC Rules. Operation is subject t…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-3 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 5 General Appearance of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-4 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-5 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 9 Component Side of the PCB Figure 10 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-6 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 11 Component Side of the PCB Figure 12 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-7 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 13 Component Side of the PCB Figure 14 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-8 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 15 Component Side of the3&% Figure 16 Component Side of the3&% R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-9 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 17 Component Side of the PCB Figure 18 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-10 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 19 Component Side of the PCB Figure 20 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-11 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 21 Component Side of the PCB Figure 22 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-12 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 23 Remote Controller Figure 24 Remote Controller R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-13 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 Figure 25 AV Cable Figure 26 AV Cable Figure 27 R AUDIX Technology (Shenzhen) Co., Ltd. IC: 9976A-BDHTS001 Page 15-14 Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 iPod cradle

R AUDIX Technology (Shenzhen) Co., Ltd. IC:9976A-BDHTS001 page Audix Technology (Shenzhen) Co., ltd. Report No. ACS-I12007 11-1 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 EUT: BD SURROUND SYSTEM M/N: XV-BD122W Test date: 2012-02-04 Pressure: 101.2 kpa Humidity: 43.8% Tested by: Leo-Li Test site: RF Site Temperature：23.3°C Cable loss: 1 dB Attenuator loss: 20 dB Antenna Gain: 1.5 dBi Test Mode CH Frequency （MHz） Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 2412 16.61 45.81 1.5 1.41 0.0129 CH6 2437 15.91 38.99 1.5 1.41 0.0110 CH11 2462 15.42 34.83 1.5 1.41 0.0098 11g CH1 2412 18.74 74.82 1.5 1.41 0.0210 CH6 2437 18.36 68.55 1.5 1.41 0.0193 CH11 2462 18.26 66.99 1.5 1.41 0.0188 11n HT20 CH1 2412 19.15 82.22 1.5 1.41 0.0231 CH6 2437 18.23 66.53 1.5 1.41 0.0187 CH11 2462 17.82 60.53 1.5 1.41 0.0170 11n HT40 CH1 2422 18.81 76.03 1.5 1.41 0.0214 CH4 2437 18.51 70.96 1.5 1.41 0.0200 CH7 2452 18.27 67.14 1.5 1.41 0.0189 Note：The estimate distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABDHTS001 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12017 ` FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TCL Technoly Electronics (Huizhou) Co., Ltd. BLU-RAY DISC RECEIVER Model Number: XV-BD122W, XV-BD422W XV-BD922FSW, XV-BD822FSW FCC ID: ZVABDHTS001 Prepared for : TCL Technoly Electronics (Huizhou) Co., Ltd. Section 19, Zhongkai High-tech Development Zone,Huizhou City,Guangdong Province, China 516006 Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ᧶ ACS-F12017 Date of Test ᧶ Feb.02~08, 2012 Date of Report ᧶ Feb.16, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABDHTS001 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12017 TABLE OF CONTENTS Description Page 1.SUMMARY OF STANDARDS AND RESULTS ...................................................... 1-1 1.1.Description of Standards and Results ............................................................................... 1-1 2.GENERAL INFORMATION ...................................................................................... 2-1 2.1.Description of Device (EUT) ............................................................................................ 2-1 2.2.Test information ................................................................................................................ 2-2 2.3.Tested Supporting System Details .................................................................................... 2-3 2.4.Block diagram of connection between the EUT and simulators ....................................... 2-3 2.5.Test Facility ....................................................................................................................... 2-4 2.6.Measurement Uncertainty (95% confidence levels, k=2) ................................................. 2-4 3.POWER LINE CONDUCTED EMISSION TEST .................................................... 3-1 3.1.Test Equipments ................................................................................................................ 3-1 3.2.Block Diagram of Test Setup ............................................................................................ 3-1 3.3.Power Line Conducted Emission Test Limits ................................................................... 3-1 3.4.Configuration of EUT on Test .......................................................................................... 3-1 3.5.Operating Condition of EUT ............................................................................................. 3-2 3.6.Test Procedure ................................................................................................................... 3-2 3.7.Power Line Conducted Emission Test Results ................................................................. 3-2 4.RADIATED EMISSION TEST ................................................................................... 4-1 4.1.Test Equipment ................................................................................................................. 4-1 4.2.Block Diagram of Test Setup ............................................................................................ 4-1 4.3.Radiated Emission Limit ................................................................................................... 4-2 4.4.EUT Configuration on Test ............................................................................................... 4-3 4.5.Operating Condition of EUT ............................................................................................. 4-3 4.6.Test Procedure ................................................................................................................... 4-3 4.7.Radiated Emission Test Results ........................................................................................ 4-4 5.CONDUCTED SPURIOUS EMISSIONS .................................................................. 5-1 5.1.Test Equipment ................................................................................................................. 5-1 5.2.Limit .................................................................................................................................. 5-1 5.3.Test Procedure ................................................................................................................... 5-1 5.4.Test result .......................................................................................................................... 5-1 6.BAND EDGE COMPLIANCE TEST ......................................................................... 6-1 6.1.Test Equipment ................................................................................................................. 6-1 6.2.Limit .................................................................................................................................. 6-1 6.3.Test Produce ...................................................................................................................... 6-1 6.4.Test Results ....................................................................................................................... 6-1 7.6dB Bandwidth Test ..................................................................................................... 7-1 7.1.Test Equipment ................................................................................................................. 7-1 7.2.Limit .................................................................................................................................. 7-1 7.3.Test Procedure ................................................................................................................... 7-1 7.4.Test Results ...........................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABDHTS001 Page 13-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12017 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABDHTS001 Page 13-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12017 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABDHTS001 Page 13-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12017 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: ZVABDHTS001 Page 13-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12017 (Above 1000MHz)
