ZVAMT-WN715N150M Wireless USB adapter

150M Wireless USB Adaptor User Manual MT-WN715N REV: V1.0 RECYCLABLE Certification FCC IC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Industry Canada Notice:This device complies with Industry Canadalicence-exempt RSS standard(s). Operation issubject to the following two conditions: (1)Thisdevice may not cause harmful interference, and(2) This device must accept any interferencereceived, including interference that may causeundesirable operation.This Class B digital apparatus complies withCanadian ICES-003.Le prsent appareil est conforme aux CNRd'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorise auxdeux conditions suivantes : (1) l'appareil ne doit pasproduire de brouillage, et (2) l'utilisateur del'appareil doit accepter tout brouillageradiolectrique subi, mme si le brouillage estsusceptible d'en compromettre le fonctionnement.Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. Package Contents The following items should be found in your package: ► 150M USB Wireless Adapter ► Quick Installation Guide ► CD-Rom Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from. Content 1. Introduction .......................................................................................... 1 1.1. Product Overview ................................................................................................................................... 1 1.2. Main Features ......................................................................................................................................... 1 1.3. Standards ................................................................................................................................................ 1 1.4. Working Environment ............................................................................................................................ 1 1.5. System Requirements ............................................................................................................................. 2 2. Hardware and Driver Installation ......................................................... 3 2.1. Insert the Adapter ................................................................................................................................... 3 2.2. Driver and Software Installation ............................................................................................................. 3 3. System configuration ............................................................................ 6 3.1. General ................................................................................................................................................... 6 3.2. Profile ..................................................................................................................................................... 6 3.3. Link Information .................................................................................................................................. 14 3.4. Advanced .............................................................................................................................................. 15 4. Troubleshooting .................................................................................. 17 150M Wireless USB Adaptor User Manual 1 1. Introduction 1.1. Product Overview This USB Wireless adapter is a powerful USB 2.0 Adapter that installs quickly and easily with PCs. The Adapter can be used in ad hoc mode to connect directly with other wireless adapters for peer-to-peer file sharing, or in infrastructure mode to connect with a wireless access point or router. The adapter connects with 802.11n networks at up to 150Mbps, and is backwards compatible with 54Mbps 802.11g or 11Mbps 802.11b devices. In every mode, your wireless connection can be protected so your data stays secure. 1.2. Main Features ► Supports 150Mbps transmission rates ► Complies with IEEE 802.11b, 802.11g and 802.11n standards for 2.4GHz Wireless LAN ► USB 2.0 ► Meets 64/128-bit WEP, WPA, and WPA2…

Text truncated - open the document above for the full version.

Date:2012-08-09 FCC ID: ZVAMT-WN715N Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name: Weirun Peng Title: Approbati on Engineer Tel: 86-752- 2606710 Company : TCL Technoly Electronics (Huizhou) Co., Ltd. Add: Section 19, Zhongkai High-tech development Zone, Huizhou,China TCL Technoly Electronics (Huizhou) Co., Ltd.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date:2012-08-20 FCC ID: ZVAMT-WN715N Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Signature Name: Weirun Peng Title: Approbation Engineer Tel: 86-752-2606710 Company : TCL Technoly Electronics (Huizhou) Co., Ltd. Add: Section 19, Zhongkai High-tech development Zone, Huizhou,China

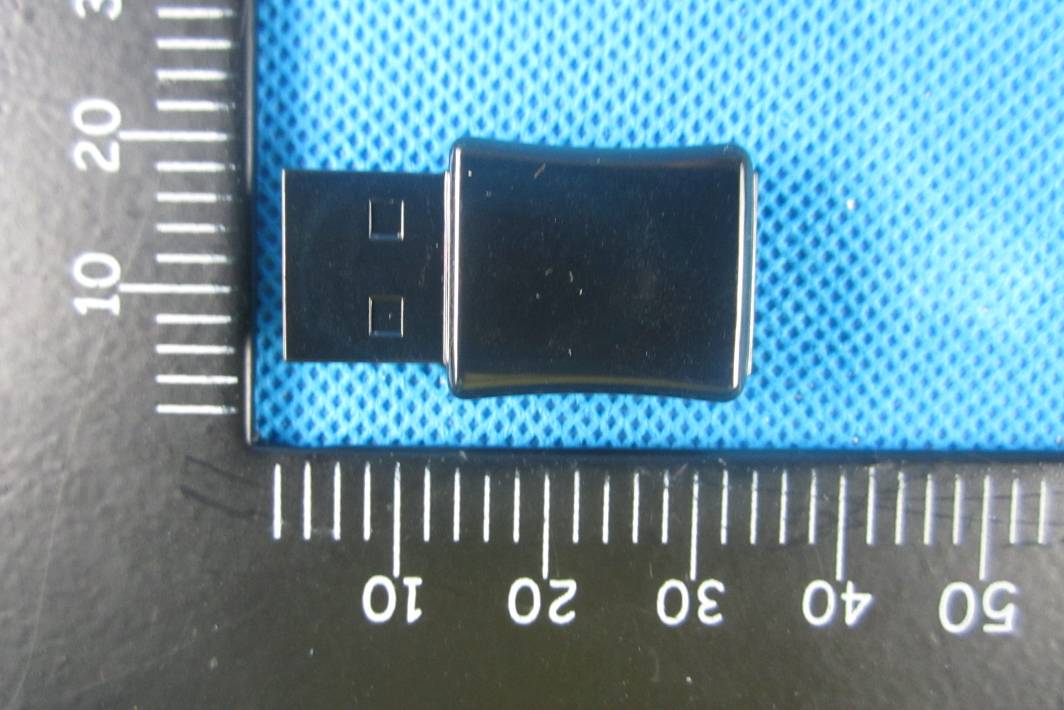

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2

2 2.0 cm x 1.2. cm (W x H)

Photo 3 Photo 4 Photo 5

FCC RADIO TEST REPORT FCC ID: ZVAMT-WN715N Product： 150M Wireless USB adapter Trade Name： N/A Model Name： MT-WN715N Serial Model： N/A Report No.： NTEK- 2012NT0723458F Prepared for TCL Technoly Electronics (Huizhou) Co., Ltd. Section 19, Zhongkai High-tech Development Zone,Huizhou City,Guangdong Province, China Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 87 Report No.: NTEK-2012NT0723458F TEST RESULT CERTIFICATION Applicant’s name ................. : TCL Technoly Electronics (Huizhou) Co., Ltd. Address ................................. : Section 19, Zhongkai High-tech Development Zone,Huizhou City,Guangdong Province, China Manufacture's Name ............ : TCL Technoly Electronics (Huizhou) Co., Ltd. Address ................................. : Section 19, Zhongkai High-tech Development Zone,Huizhou City,Guangdong Province, China Product description Product name ........................... : 150M Wireless USB adapter Model and/or type reference : MT-WN715N Serial Model： N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003, This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC&IC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 01 Aug. 2012 ~08 Aug. 2012 Date of Issue ........................................... : 09 Aug. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 87 Report No.: NTEK-2012NT0723458F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 64 4.1 APPLIED PROCEDURES / LIMIT 64 4.1.1 TEST PROCEDURE 64 4.1.2 DEVIATION FROM STANDARD 64 4.1.3 TEST SETUP 64 4.1.4 EUT OPERATION CONDITIONS 64 4.1.5 TEST RESULTS 65 5 . BANDWIDTH TEST 73 5.1 APPLIED PROCEDURES / LIMIT 73 5.1.1 TEST PROCEDURE 73 Page 4 of 87 Report No.: NTEK-2012NT0723458F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 73 5.1.3 TEST SETUP 73 5.1.4 EUT OPERATION CONDITIONS 73 5.1.5 TEST RESULTS 74 6 . PEAK OUTPUT POWER TEST 82 6.1 APPLIED PROCEDURES / LIMIT 82 6.1.1 TEST PROCEDURE 82 6.1.2 DEVIATION FROM STANDARD 82 6.1.3 TEST SETUP 82 6.1.4 EUT OPERATION CONDITIONS 82 6.1.5 TEST RESULTS 83 7 . ANTENNA REQUIREMENT 84 7.1 STANDARD REQUIREMENT 84 7.2 EUT ANTENNA 84 8 . EUT TEST PHOTO 85 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 87 Report No.: NTEK-2012NT0723458F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 87 Report No.: NTEK-2012NT0723458F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 87 Report No.: NTEK-2012NT0723458F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 150M wireless USB adapter Trade Name N/A Model Name MT-WN715N Serial Model N/A Model Difference N/A Product Description The EUT is a 150M wireless USB adapte r Operation Frequency: 802.11b/g/n(20):2412~2462 MHz 802.11n(40):2422-2452MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: DSSS(CCK,DQPSK,DBPSK) +OFDM(QPSK, BPSK, 16-QAM, 64-QAM) Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n:150/144.44/130/117/115.56/104 /86.67/78/52/6.5 Mbps Number Of Channel 11 CH, Please see Note 2. Antenna Designation: Please see Note 3. Output Power(Conducte d): 802.11b: 11.76 dBm (Max.) 802.11g: 9.62 dBm (Max.) 802.11n(20M) : 9.59 dBm (Max.) 802.11n(40M) : 9.87 dBm (Max.) Antenna Gain (dBi) …

Text truncated - open the document above for the full version.

Page 85 of 87 Report No.: NTEK-2012NT0723458F 8. EUT TEST PHOTO Radiated Measurement Photos Page 86 of 87 Report No.: NTEK-2012NT0723458F Page 87 of 87 Report No.: NTEK-2012NT0723458F Conducted Measurement Photos
