ZVAPS000015Bluetooth Module

TBM-CBC5 DATA SHEET Monday, 29 September 2014 Version 1.1 Datasheet by Peter.huang TONLY 1 Correct 8DQPSK to 8DPSK2014291 21 10 Revision History Date Version Description Author 2013--V1.0 n First Release -09- V1. n 2 TBM–CBC5 Bluetooth Audio Module DESCRIPTION: TBM–CBC5 is first generation of TCL Bluetooth modules.It provides highest level of integration with integrated 2.4GHz radio, DSP, battery charger, stereo codec mono and , stereo audio applications.TBM–CBC5 is also ready to support the lates Bluetooth 3.0 standard The embedded DSP core allows enhancement of the product with features such as advanced audio decoding (MP3, AAC, AAC+), echo cancellation, noise reduction, and data manipulation. TCL’s TONLY flexible firmware enables device manufacturers to easily add wireless, secure, and standard - based Bluetooth connectivity into new or existing applications with very limited development and manufacturing effort. APPLICATIONS: • High quality wireless stereo headsets • Wireless mono headsets • Wireless speakers • USB multimedia dongles • MP3 players • VoIP handsets • Hands-free car kits FEATURES : • TBM–CBC5 Bluetooth module Solution For mono and Stereo Audio Solutions • Integrated DSP, Stereo Codec, and Battery Charger • Bluetooth 3.0 + EDR Compliant • Class 2 - Range up to 30 Meters • Temperature range from -30C to +85C • Low Power Consumption • TCL TONLY Firmware for Controlling Connections and Configuring Settings • Supported Bluetooth Profiles: A2DP, AVRCP, HFP, HFP-AG, SPP, OPP, FTP, HSP, DUN, PBAP and HID ect... Size: 13.5*21 mm 40-BTP518HFD4G 3 2 Block Diagram and Descriptions RAM Baseband DSP MCU KalimbaDSP 2.4 GHz Radio I/O BC05-MM XTAL Flash UART/USB PIO Audio In/Out PCM/I 2 S/SPDIF SPI Reset circuitry Figure 1: Block diagram of TBM–CBC5 BC05-MM The BlueCore05-MM is a single-chip radio and baseband IC for Bluetooth 2.4GHz systems. It provides a fully compliant Bluetooth system to v3.0+EDR of the specification for data and voice. BlueCore05-MM contains the Kalimba DSP co-processor with double the MIPS of BlueCore03-MM, supporting enhanced audio applications. BlueCore05-MM integrates a 16-bit stereo codec and it has a fully differential audio interface with a low noise microphone bias. Crystal The crystal oscillates at 26MHz. Flash Flash memory is used for storing the Bluetooth protocol stack and Virtual Machine applications. It can also be used as an optional external RAM for memory-intensive applications. Balanced Filter Combined balun and filter changes the balanced input/output signal of the module to unbalanced signal of the antenna. The filter is a band pass filter (ISM band). Antenna TBM–CBC5 uses ceramic chip anten na with high dielectric constant, which makes the antenna very insensitive to surrounding environment and thus gives high design freedom around the antenna. USB The USB interface is a full speed Universal Serial Bus (USB) interface for communicating with other compatible digital devices.TBM–CBC5 acts as a USB peripheral, responding to requests from a Master host controller such as a Personal Computer (PC). 4 Synchronous Serial Interface This interface is a synchronous serial port interface (SPI) for interfacing with other digital devices. The SPI port can be used for system debugging. It can also be used for programming the Flash memory. UART This interface is a standard Universal Asynchronous Receiver Transmitter (UART) interface for communicating with other serial devices. PCM / I 2 S / SPDIF Interface This interface is a bi-directional serial programmable audio interface supporting PCM, I2S and SPDIF formats. Audio Interface The audio interface of TBM–CBC5 has fully differential inputs and outputs and a microphone bi as output. A high-quality stereo audio Bluetooth application can be implemented with minimum amount of external components. Programmable I/O BTP518B has a total of 10 digital programmable I/O terminals. These are controlled by the firmware running on the device. Reset TBM–CBC5 has a reset circuitry that is used to reset the module in the startup to ensure proper operation of the flash memory. Alternatively, the reset can be externally driven by using a TBM–CBC5 reset pin. 802.11 Coexistence Interface Dedicated hardware is provided to implement a variety of coexistence schemes. Channel skipping AFH (Adaptive Frequency Hopping), priority signaling, channel signaling, and host passing of channel instructions are all supported. The features are configured in firmware. Since the details of some methods are proprietary (e.g. Intel WCS) 5 3 Electrical Characteristics Absolute maximum ratings Min Max Unit Storage temperature -40 85 °C Operating temperature -30 85 °C VDD_IO -0.4 3.6 V VDD_BAT -0.4 4.4 V VDD_CHG -0.4 6.5 V Terminal voltages -0.4 Vdd + 0,4 V The module should not continuously run under these conditions. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability and cause permanent damage to the device. Table 1: Absolute maximum ratings Recommended operating conditions Min Max Unit Operating temperature -40 85 °C VDD_IO 1.7 3.6 V VDD_BAT 2.5 4.4 V VDD_CHG 0 6.5 V Terminal voltages 0 VDD V Table 2: Recommended operating conditions 6 Terminal characteristics Min Typ Max Unit I/O voltage levels V IL input logic level low -0.4 - 0.25xVDD V V IH input logic level high 0.625xVDD - Vdd + 0.3 V V OL output logic level low 0 - 0.125 V V OH output logic level high 0.75xVDD - VDD V Reset terminal V TH,res threshold voltage 0.64 0.85 1.5 V R IRES input resistance 220 kΩ C IRES input capacitance 220 nF Input and tri-state current with Strong pull-up -100 -40 -10 μΑ Strong pull-down 10 40 100 μΑ Weak pull-up -5 -1 -0.2 μΑ Weak pull-down 0.2 1 5 μΑ I/O pad leakage current -1 0 1 μΑ LED driver pad Off current - 1 2 μΑ On resistance (V PAD < 0.5 V) - 20 33 Ω On resistance, pad enabled by battery charger (V PAD < 0.5 V) - 20 50 Ω Table 3: Terminal characteristics 7 Battery charger Battery charger Min Typ Max Unit VD…

Text truncated - open the document above for the full version.

表格编号：TCLAV-A4-2004003 版本： V1.4 表格修订日期：2014-04-08 序号： 拟制日期： 2014-9-16 TCL通力电子(惠州) 有限公司 惠州TCL音视频电子有限公司 深圳市通力科技开发有限公司 AGENCY AUTHORIZATION LETTER FCC ID:ZVAPS000015 Date: 2014.9.16 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (ShenZhen) Co.,Ltd to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, (Original written signature of authorized signer) Name of authorized signer): Weirun, Peng Title of authorized signer: Approbation Engineer Company Name: TCL Technoly Electronics (Huizhou) Co., Ltd Tel: 0752-3606710 Fax: 0752-3270728 Web site: www.tcl.com E-mail: [email protected]

表格编号：TCLAV-A4-2004003 版本： V1.4 表格修订日期：2014-04-08 序号： 拟制日期： 2011-6-1 TCL通力电子(惠州) 有限公司 惠州TCL音视频电子有限公司 深圳市通力科技开发有限公司 Date: 2014.9.16 Federal Communications Commission Authorization and Evaluation Division FCC ID: ZVAPS000015 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, (Original written signature of authorized signer) Name of authorized signer): Weirun, Peng Title of authorized signer : Approbation Engineer Company Name: TCL Technoly Electronics (Huizhou) Co., Ltd Tel: 0752-3606710 Fax: 0752-3270728 Web site: www.tcl.com E-mail: [email protected]

Modular Approval Request Letter Dear Application Examiner, TCL Technoly Electronics(Huizhou) Co.,Ltd, It’s Bluetooth module , FCC ID: ZVA06, would like to have your authorization as a modular approval specific to the mobile device such as SRS-X33. The requirements of section 15.212 have been met and shown on the following statements. 1, “The modular transmitter must have it’s own RF shielding.”The radio portion of this module have not been shielded, please see exhibition internal photo. 2, “The modular transmitter must have buffered modulation data inputs.” The EUT has buffered data inputs, it is integrated in chip EN29LV800CT or IS2063 3，“The modular transmitter must have it’s own power supply regulation.” The U3(LDO_G9091-330T11U) in main board provides 3.3V DC to BM63 model, the Model BM63 will convert 3.3V DC to 1.8V DC by its chip IC IS2063 4，“The modular transmitter must comply with antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements, it’s an integral PCB antenna and have no antenna connector. The spurious emissions are shown in the test report. 5, “The modular transmitter must be tested in a stand-alone configuration.” The EUT was a limited module which is outside of the specific host SRS‐X33 for testing , please see section photographs of test configration in the test report. 6, “The modular transmitter must be labeled with it’s own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition User Manual, there are instructions give to the OEM on how to label the end product. 7, “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instructions along with module to explain any such requirement.” The EUT is compliant with all applicable FCC rules, detail instructions for maintaining compliance are given in the users Manual. 8, “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF exposure is addressed in the test report. Best Regards. Weirun, Peng Approbation Enginer TCL Technoly Electronics (Huizhou) Co.,Ltd Tel: 0752-3270717 Web site: www.tonlvele.com E-mail:[email protected]

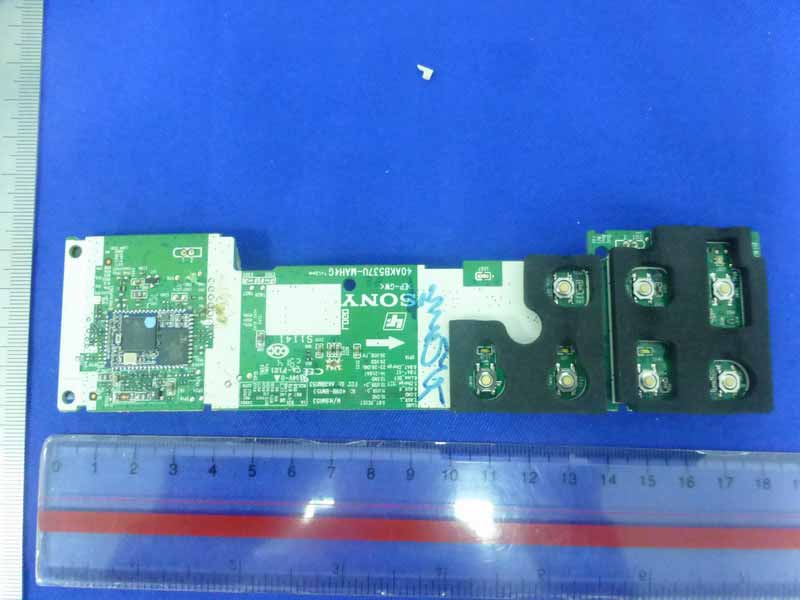

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVAPS000015 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14282 14-1 14. PHOTOGRAPH OF EUT Figure 1 Inside of the EUT Figure 2 Inside of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVAPS000015 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14282 14-1 14. PHOTOGRAPH OF EUT Figure 1 Inside of the EUT Figure 2 Inside of the EUT

Product Name： Bluetooth Module Model Number: TBM-CBC5 FCCID: ZVAPS000015 RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : FCC KDB Publication 447498 D01 V05 Since maximum peak output power of the transmitter is<10mW, i.e.0.000003426<10mW, hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01:General RF Exposure Guidance V05.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVAPS000015 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14282 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TCL Technoly Electronics (Huizhou) Co., Ltd. Bluetooth Module Brand NameModel No. Sony TBM-CBC5 FCC ID: ZVAPS000015 Prepared for : TCL Technoly Electronics (Huizhou) Co., Ltd. Secion 37, Zhongkai High-tech Development Zone, Huizhou City, Guangdong Province, P.R. China. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ACS-F14282 Date of Test Sep.09~13, 2014 Date of Report Oct.10, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVAPS000015 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14282 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Tested Supporting System Details ....................................................................................... 2-2 2.3. Block Diagram of connection between EUT and simulators ............................................... 2-2 2.4. Test information ................................................................................................................... 2-3 2.5. Test Facility.......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION MEASUREMENT ................................. 3-1 3.1. Test Equipment .................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-1 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Test Procedure...................................................................................................................... 3-2 3.7. Conducted Emission at Mains Terminals Test Results ........................................................ 3-2 4. RADIATED EMISSION MEASUREMENT ................................................................ 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit Standard: FCC 15.209 ................................................................. 4-3 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Procedure...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. CARRIER FREQUENCY SEPARATION TEST ........................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Results. ......................................................................................................................... 6-1 7. 20 DB BANDWIDTH TEST ........................................................................................... 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit..................................................................................................................................... 7-1 7.3. Test Results .......................................................................................................................... 7-1 8. NUMBER OF HOPPING FREQUENCY TEST .......................................................... 8-1 8.1. Test Equipment ...................................................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVAPS000015 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14282 13-1 13. HOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVAPS000015 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14282 13-2 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:ZVAPS000015 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14282 13-3 Above 1000MHz
