ZVAPS000018WIRELESS SNOWGLOBE SPEAKER

2.1+EDR 1.96 2.1+EDR 1.96

TCL通力电子（惠州）有限公司 TCL TECHNOLY ELECTRONICS (HUI ZHOU) CO.,LTD Date: 2015/8/11 Federal Communications Commission Authorization and Evaluation Division FCC ID: ZVAPS000018 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name：Weirun Peng Company name: TCL TECHNOLY ELECTRONICS(HUIZHOU) CO., LTD Tel.：86-752-2606710 Fax：86-752-2625162 Title : Approbation Engineer Section 37,Zhongkai High-tech development Zone,Huizhou City,Guangdong Province,China 516006.

TCL通力电子（惠州）有限公司 TCL TECHNOLY ELECTRONICS (HUI ZHOU) CO.,LTD AGENCY AUTHORIZATION LETTER FCC ID: ZVAPS000018 Date: 2015/8/11 To whom it may concern: We, the undersigned, hereby authorize Bureau Veritas Shenzhen Co. Ltd Dongguan Branch., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by BVDG within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name：Weirun Peng Company name: TCL TECHNOLY ELECTRONICS(HUIZHOU) CO., LTD Tel.：86-752-2606710 Fax：86-752-2625162 Title : Approbation Engineer Section 37,Zhongkai High-tech development Zone,Huizhou City,Guangdong Province,China 516006.

Label location

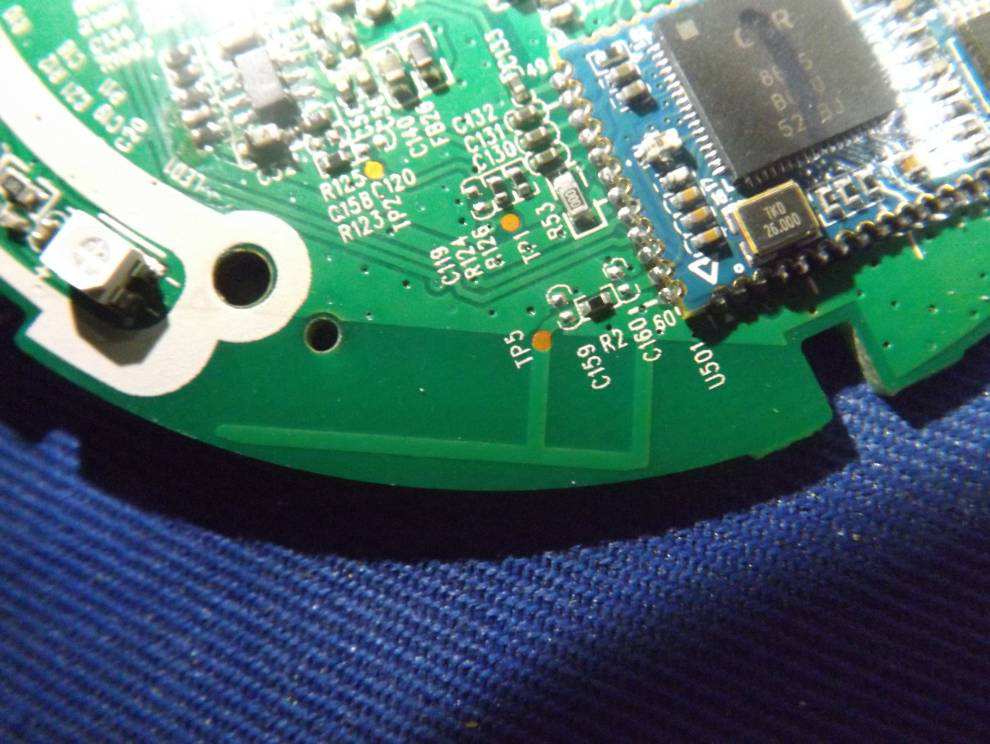

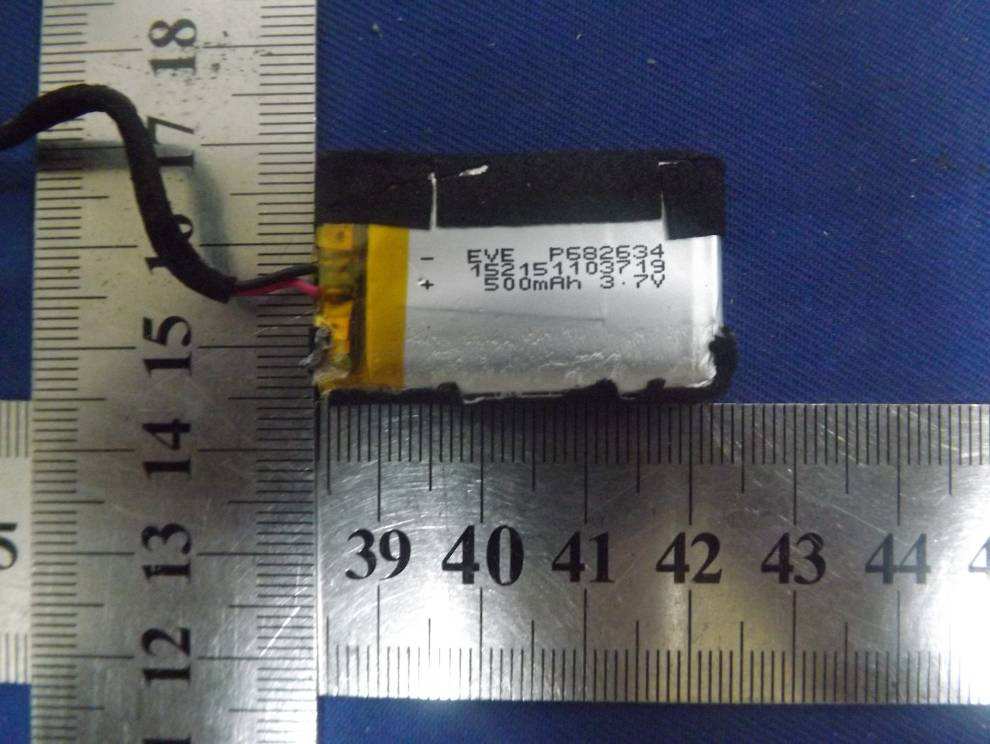

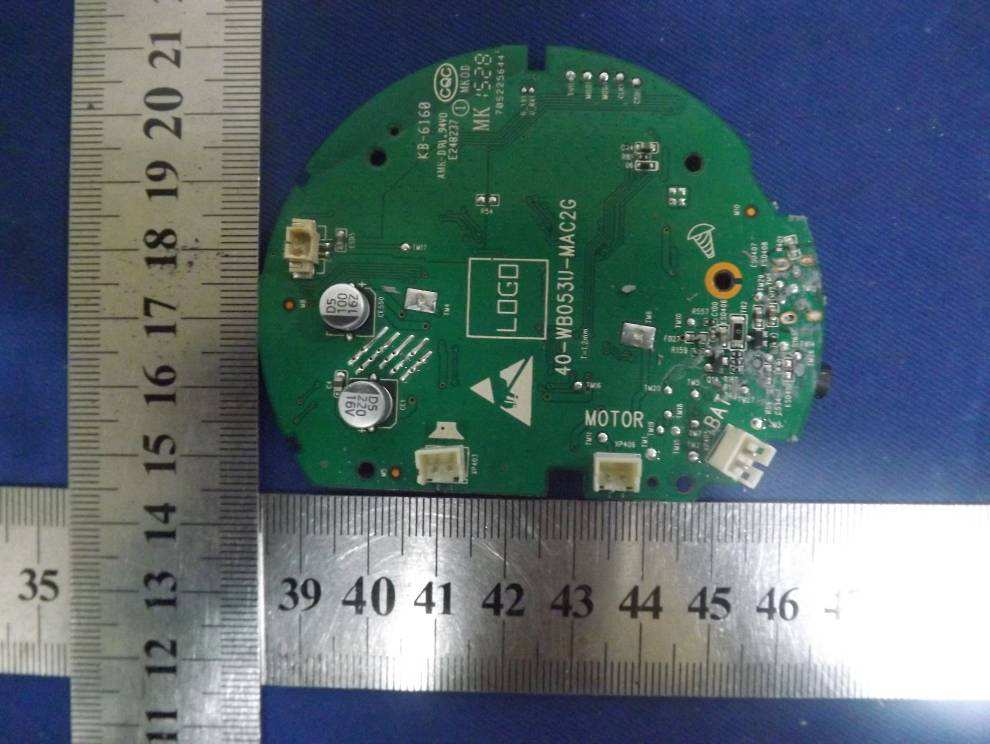

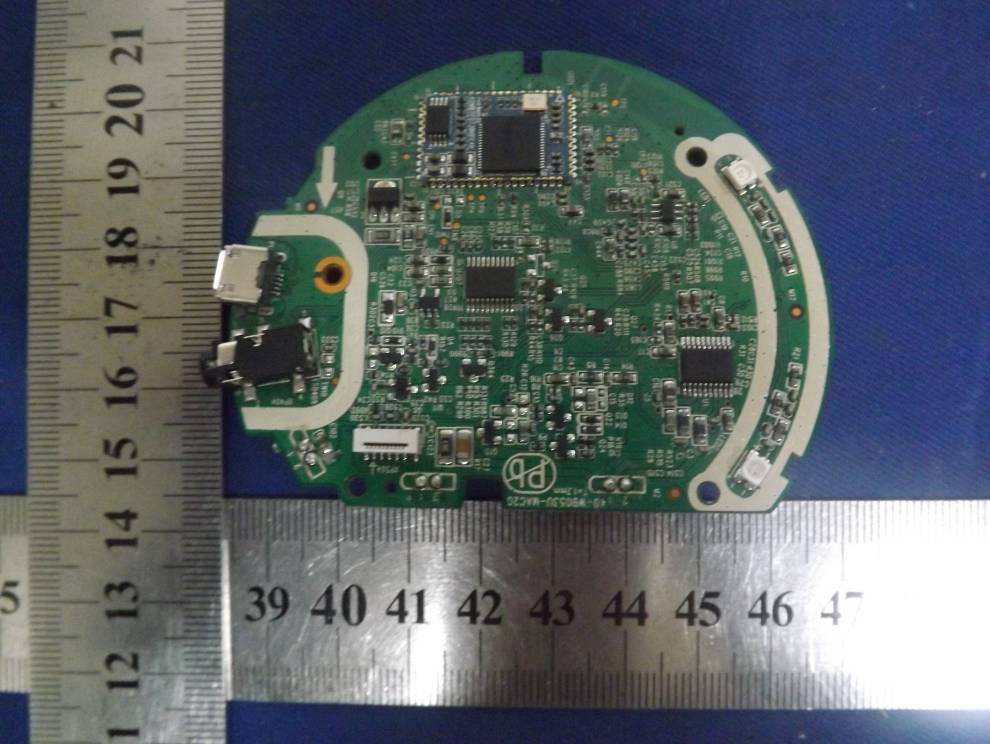

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 150724N086 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 150724N086 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 150724N086 ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 6 Report Version 1 Test Report No.: FS150724N086 RF EXPOSURE REPORT Applicant TCL TECHNOLY ELECTRONICS(HUIZHOU) CO., LTD Address Section 37,Zhongkai High-tech development Zone,Huizhou City,Guangdong Province,China 516006. Manufacturer or Supplier amadana corp. Address JINNAN BUILDING 5F 1-3-4 JINNAN SHIBUYA-KU TOKYO 150-0041 JAPAN. Product WIRELESS SNOWGLOBE SPEAKER Brand Name imp. Model IMP-201 Additional Model & Model Difference N/A Date of tests Jul. 24, 2015 ~ Aug. 24, 2015 FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Blue Zheng Project Engineer / EMC Department Approved by Chris Chen Assistant Manager / EMC Department Date: Aug. 24, 2015 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 6 Report Version 1 Test Report No.: FS150724N086 Table of Contents RELEASE CONTROL RECORD ................................................................................ 3 1. CERTIFICATION .............................................................................................. 4 2. RF EXPOSURE LIMIT ..................................................................................... 5 3. MPE CALCULATION FORMULA ..................................................................... 5 4. CLASSIFICATION ........................................................................................... 5 5. ANTENNA GAIN .............................................................................................. 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................... 6 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 6 Report Version 1 Test Report No.: FS150724N086 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED FS150724N086 Original release Aug. 24, 2015 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 4 of 6 Report Version 1 Test Report No.: FS150724N086 1. CERTIFICATION FCC ID: ZVAPS000018 PRODUCT: WIRELESS SNOWGLOBE SPEAKER BRAND NAME: imp. MODEL NO.: IMP-201 ADDITIONAL NO.: N/A TEST SAMPLE: Engineering Sample APPLICANT: TCL TECHNOLY ELECTRONICS(HUIZHOU) CO., LTD STANDARDS: FCC Part 2 (Section 2.1091) KDB 447498 D03 IEEE C95.1 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 5 of 6 Report Version 1 Test Report No.: FS150724N086 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 6 of 6 Report Version 1 Test Report No.: FS150724N086 5. ANTENNA GAIN The antennas provided to the EUT, please refer to the following table: Transmitter Circuit Peak Gain (dBi) Total Gain (dBi) Antenna Type Chain 0 1.96 1.96 PIFA Antenna 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 7.295 1.96 20 0.002845 1.00 Conclusion Therefo…
