ZVAPS000020Levitation Bluetooth Speaker

Hello Crazybaby Inc., 175 South Main, Suite 500, Salt Lake City, UT 84111 USA© 2015 crazybaby Inc. All rights reserved. Craz ybaby, the Crazybaby logo, and Mars by crazybaby are trademarks of Crazybaby Inc., registered in the U.S. and other countries. 072 0501-ABluetooth is the trademark of the. Bluetooth (SIG) Inc. and is used under license. Quick Start Guide Mars Craft LED IndicatorMars Craft Power ButtonMars Base Power Indicator Mars BaseMars Craft Mars Base Power ButtonDC/IN: 12V/2.0AUSB TYPE-A: 5V/1.0A(Charge Smart Device Only)Battery Level Indicator Levitation Indicator Download Crazybaby App for more crazybaby.com/support/appDowload.html How to Charge Charge before you use Mars for the first time. Charge Craft Mars Craft Bottom View Mars Base Top View Put Mars Craft on the Base with mid-point in the Craft bottom matching the pivot on the Base.*Craft will automatically land on the Base when craft-battery is lower than 20%. Charge Smart DeviceUSB Type-A/ MAX 1.2 ACharge BaseDC/IN*In landing position, Base will charging the Craft when -base-battery is over 20% or -adaptor is plugged in. How to Connect Single Mars 1.Power on Mars Craft. 3.LED indicator flashes indicates bluetooth searching is on. 2.Press and hold the button for about 2s. Release when you see a light-bar lit up. 4.Open crazybaby App and follow the instructions to connect your smart device via bluetooth.5.LED indicator will spin when the connection is done.6.Enjoy your music or prepare levitation set up. How to Connect Stereo Pair Pairing Crafts Connect Craft A with your smart device 1. Power on Mars Craft A;Then Power on Mars Craft B. Craft A Craft A Craft B 3.LED indicator will spin from both crafts when the connection is done. 4.Press and hold the button of Craft A for about 2s. Release when you see a light-bar lit up. 5.Open Crazybaby App and follow the instructions to connect your smart device via bluetooth.crazybaby.com/support/appDowload.html`6.Audio cue will notice you with successful connection.7. Choose from Double-up/Stereo Audio Mode in Crazybaby APP. 2. Press and hold the button of Craft A. Release when you see 3 light-bar lit up; Press and hold the button of Craft B. Release when you see 4 light-bar lit up. Then wait for Craft Pairing. Craft A Craft BCraft B Craft A How to Levitate 2.Power on Mars Base.1.Put Mars Craft on the Base with mid-point in the Craft bottom matching the pivot on the Base. 3.Craft start levitating with the levitation indicator flashes slowly on the top of the base.4.Levitation process completed with levitation indicator maintains a solid white light. Before levitation set up, please make sure your smart device has already connected with Mars Craft via Bluetooth. Slow Flashing : Levitation system is opening. Solid White :Levitation process has completed. Quick Flashing : Levitation system is closing. Light Off : Levitation system is closed. *Do not try to put Craft on the Base while the levitation indicator is flashing. Only do it when the light is off. Levitation Indicator Status Levitation Indicator How to Levitate 1.When levitation fails, do not try to put Craft on the Base again immediately. 2.Put aside Mars craft. Levitation system would be closing with the levitation indicator is quickly flashing. 3.Wait until the levitation indicator is off which suggests the system is completely closed. 4.Now you can put Craft on the Base again. Levitation Instruction Danger Do not put any metal between Craft and Base. It will influence the levitation performance and may cause accident. Set up your Mars by crazybaby levitation speaker system on a stable work surface. MarsCraft will not levitate if the tilt angle is greater than 3°. 3° Put magnetized things (Electronics, Credit card and other iron include objects) 50mm away from the speaker to protect from magnetize effect. 50mm Probably the best portable bluetooth speaker on earth... Stick on any magnetic metal surface. Ride on your bicycle. IPX7 WaterproofIf you happen to drop it into 1-meter 3.28 feet) deep water and pick it up, it can still work. NOTE: Bluetooth music is not available underwater. 1m (3.28feet) Mars Craft DiameterHeightWeight1.75’’ Full-range Speaker 122mm38.5mm362g 4.7inch1.5inch0.79lb Mars Base DiameterHeightWeight3.75’’ Subwoofer 153mm234mm3275g 6.0inch9.2inch7.2lb Acoustic 360° Sound ProjectionHi-Fi Sound powered by aptX®High Sensitivity Microphone powered by ACCFrequency Response 50HZ~20KHZ Battery Mars Craft Li-Battery 470mAH*3/3.7V Mars Craft Solely 8hours Mars Craft working on Base 6hours Mars Base Li-Battery 4000mAH/7.4V Mars Base 8hours USB TYPE-A (Charge Smart Device Only) 5V/1.0A Mars Craft Wireless Charging Mars Base DC/In 12V/2.0A Connectivity Bluetooth 4.0 Low Energy Levitation System Auto-Lift SystemLevitation HeightGravitron® Levitation System 20mm 0.8inch Crazybaby Inc., 175 South Main, Suite 500, Salt Lake City, UT 84111 USA © 2015 crazybaby Inc. All rights reserved. Crazybaby, the Crazybaby logo, and Mars by crazybaby are trademarks of Crazybaby Inc., registered in the U.S. and other countries. 072 0501-A Safety & Support Instruction 安全使用信息指南 Safety and Support Important Safety Information Read these instructions . Keep these instructions . Heed all warnings . Follow all instructions . Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacture’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 1. 2. 3. 4. 5. 6. 7. 8. 【 Warning 】 Failure to follow these safety instructions could result in fire, electric shock, or other injuries, or damage to your Mars by crazybaby or other property. Read all safety information below before using your Mars by crazybaby. WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 TCL Technoly Electronics (Huizhou) Co.,Ltd Section 37, Zhongkai High-tech Development Zone, Huizhou City, China, 516006 2015.09.09 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ___ TCL Technoly Electronics (Huizhou) Co.,Ltd ___hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description：Levitation Bluetooth Speaker Model name: L141 FCC ID: ZVAPS000020 Sincerely, Client’s signature : Client’s name / title : Weirun.Peng/ Approbation Engineer Contact information / address: Section 37, Zhongkai High-tech Development Zone, Huizhou City, China, 516006

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 TCL Technoly Electronics (Huizhou) Co.,Ltd Section 37, Zhongkai High-tech Development Zone, Huizhou City, China, 516006 2015/09/09 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZVAPS000020 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Weirun.Peng/ Approbation Engineer Contact information / address: Section 37, Zhongkai High-tech Development Zone, Huizhou City, China, 516006

TCL Technoly Electronics (Huizhou) Co.,Ltd Section 37, Zhongkai High-tech Development Zone, Huizhou City, China, 516006 2015/09/09 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: ZVAPS000020 To Whom It May Concern: This letter is to ascertain that TCL Technoly Electronics (Huizhou) Co.,Ltd Product Levitation Bluetooth Speaker ZVAPS000020, has been the units used for conducting FCC compliance testing, and it meets KDB 680106 Clause 5(2) all 6 conditions as stated below hence PBA is not required. 1 Power transfer frequency is less that 1 MHz 2 Output power from each primary coil is less than 5 watts 3 The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils 4 Client device is inserted in or placed directly in contact with the transmitter 5 The maximum coupling surface area of the transmit (charging) device is between 60 cm2 and 400 cm 2. 6 Aggregate leakage fields at 10 cm surrounding the device from all simultaneous transmitting coils are demonstrated to be less than 30% of the MPE limit. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : Weirun.Peng/ Approbation Engineer Contact information / address: Section 37, Zhongkai High-tech Development Zone, Huizhou City, China, 516006

Coil description Diameter: 153mm Product Size Height: 234mm Product Weight: 3.275 kg Packing Size: 216*226*433mm Specification Packing Weight:6.3kg Charging Time:2.5±0.5Hrs Input power:4.8W Coils Size: ø 67.2 mm(The maximum coupling surface area is 65cm 2 ) Primary coils:8tures*1 Secondary coils: 10tures*1 Wireless distance: 4-8mm Conversion: >54% Reaction Temperature: -20 ~ 40°C Technical Parameters Working Life: >4000hrs The inductive area is below :

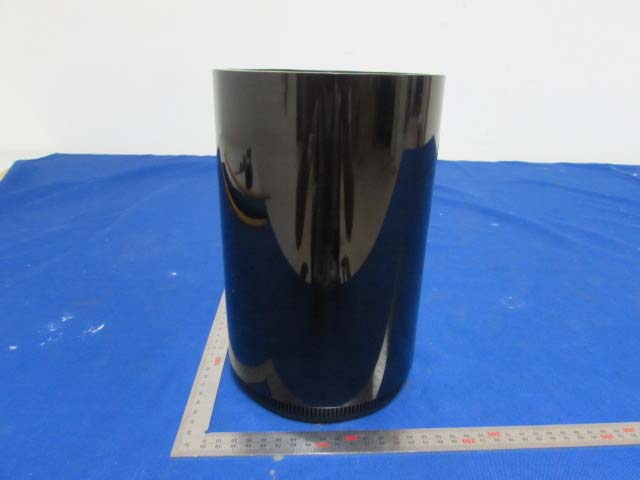

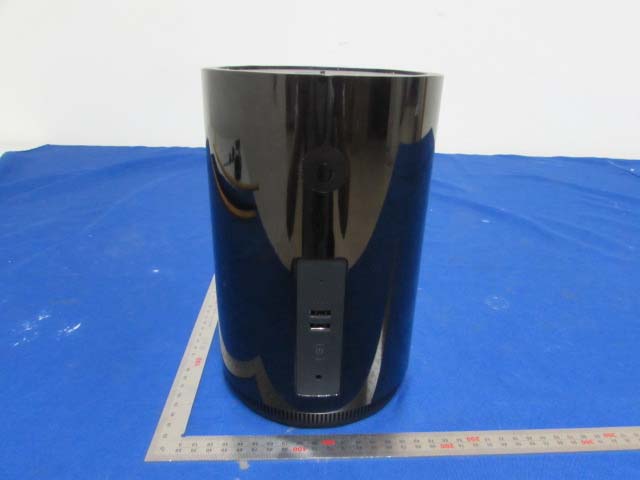

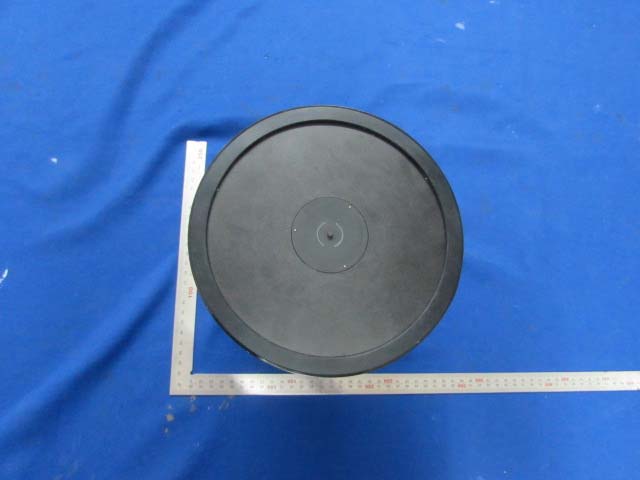

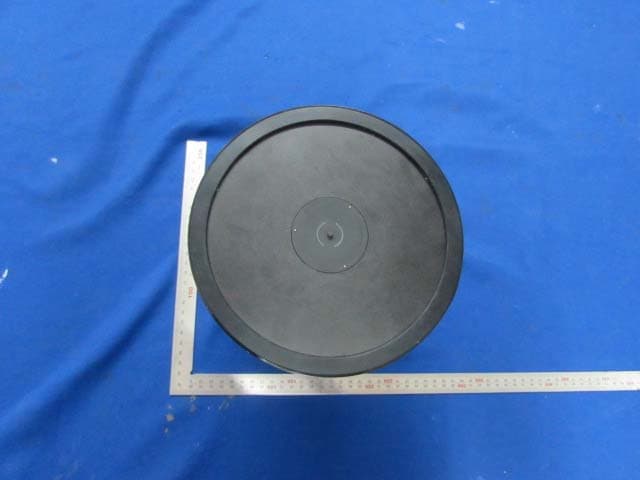

External Photos M/N: L141 External Photos M/N: L141

Internal Photos M/N: L141 Internal Photos M/N: L141 Internal Photos M/N: L141 Internal Photos M/N: L141 5.8G Antenna Internal Photos M/N: L141 Internal Photos M/N: L141 Internal Photos M/N: L141 Internal Photos M/N: L141 Internal Photos M/N: L141 Internal Photos M/N: L141 Wireless Charging Coil

FCC ID: ZVAPS000020 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TCL Technoly Electronics (Huizhou) Co.,Ltd Levitation Bluetooth Speaker （Mars Craft） Model Number: L141 FCC ID: ZVAPS000020 Prepared for : TCL Technoly Electronics (Huizhou) Co.,Ltd Section 37, Zhongkai High-tech Development Zone, Huizhou City, Guang Dong Province, China, 516006 Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1509030 Date of Test : August 15~September 09,2015 Date of Report : September 11,2015 FCC ID: ZVAPS000020 Environmental evaluation and exposure limit according to FCC CFR 47 Part 1.1307(b), 1.1310 1. Limits for Maximum Permissible Exposure (MPE) 2. Test equipment 3. Test setup a. The test was performed on 360 degree turn table in anechoic chamber. b. The probe was placed at distance 10 cm which is between the edge of the charger and the geometric centre of the probe. c. The highest emission level was recorded and compared with limit as soon as measurement of each point; A, B, C, D, E, F, G, H were completed. d. The EUT was measured according to the KDB 680106 D01v02. Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal. Magnetic field probe Narda 2304/03 M-0018 June,29,15 1 Year FCC ID: ZVAPS000020 4. Test Mode Mode Description Low Load Mid Load Charging mode with Craft High Load Remark: Low Load. = <1% battery status Mid Load. = 50% battery status High.Load = >95% battery status 5. E-Field Test Result Test Mode Low Load Mid Load High Load Frequency range (kHz) 112~205 kHz Position A(V/m) 0.814 0.736 0.712 Position B(V/m) 0.772 0.721 0.635 Position C(V/m) 0.765 0.701 0.610 Position D(V/m) 0.779 0.746 0.689 Position E(V/m) 0.756 0.689 0.621 Position F(V/m) 0.721 0.722 0.606 Position G(V/m) 0.802 0.699 0.687 Position H(V/m) 0.775 0.711 0.643 Limits (V/m) 614 6. H-Field Test Result Test Mode Low Load Mid Load High Load Frequency range (kHz) 112~205 kHz Position A(A/m) 0.107 0.097 0.091 Position B(A/m) 0.103 0.089 0.088 Position C(A/m) 0.102 0.087 0.092 Position D(A/m) 0.103 0.095 0.092 Position E(A/m) 0.101 0.088 0.089 Position F(A/m) 0.098 0.087 0.090 Position G(A/m) 0.106 0.094 0.092 Position H(A/m) 0.103 0.090 0.086 Limits (A/m) 1.63 FCC ID: ZVAPS000020 7. Test Setup Photo Note: The Craft must be placed in the horizontal of the equipment at the top.(Parallel to the coil) 8. The inductive area is below(Coupling area：ø 67.2 mm，The located at top of the equipment): ====END====

FCC ID: ZVAPS000020 EST Technology Co.,Ltd Report No.ESTE-R1509029 Page 1 of 35 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of TCL Technoly Electronics (Huizhou) Co.,Ltd Levitation Bluetooth Speaker （Mars Base） Model Number: L141 FCC ID: ZVAPS000020 Prepared for : TCL Technoly Electronics (Huizhou) Co.,Ltd Section 37, Zhongkai High-tech Development Zone, Huizhou City, Guang Dong Province, China, 516006 Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1509029 Date of Test : August 15~September 09,2015 Date of Report: September 11,2015 FCC ID: ZVAPS000020 EST Technology Co.,Ltd Report No.ESTE-R1509029 Page 2 of 35 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION.........................................................................................................................3 1. GENERAL INFORMATION.................................................................................................................4 1.1. Description of Device (EUT) ........................................................................................................... 4 2. SUMMARY OF TEST.........................................................................................................................5 2.1. Summary of test result...................................................................................................................... 5 2.2. Test Facilities ................................................................................................................................... 6 2.3. Measurement uncertainty ................................................................................................................. 7 2.4. Assistant equipment used for test ..................................................................................................... 7 2.5. Block Diagram ................................................................................................................................. 7 2.6. Test mode ......................................................................................................................................... 7 2.7. Test Equipment................................................................................................................................. 8 3. POWER LINE CONDUCTED EMISSION TEST.....................................................................................9 3.1. Limit ................................................................................................................................................. 9 3.2. Test Procedure .................................................................................................................................. 9 3.3. Test Result ........................................................................................................................................ 9 3.4. Test Data ........................................................................................................................................ 10 4. RADIATED EMISSIONS....................................................................................................................14 4.1. Limit ............................................................................................................................................... 14 4.2. Block Diagram of Test setup .......................................................................................................... 15 4.3. Test Procedure ................................................................................................................................ 16 4.4. Test Result ...................................................................................................................................... 16 4.5. Test Data ........................................................................................................................................ 17 5. TEST SETUP PHOTO........................................................................................................................21 6. PHOTOS OF EUT ...........................................................................................................................23 FCC ID: ZVAPS000020 EST Technology Co.,Ltd Report No.ESTE-R1509029 Page 3 of 35 Test Report Verification Applicant: Address: TCL Technoly Electronics (Huizhou) Co.,Ltd Section 37, Zhongkai High-tech Development Zone, Huizhou City, Guang Dong Province, China, 516006 Manufacturer Address: Crazybaby Inc. 175 South Main Suite,500 Salt Lake City,UT 84111,United States. E.U.T: Levitation Bluetooth Speaker Model Number: L141 Power Supply: DC 7.4V From Internal Battery DC 12V From Adapter Input AC 100-240V~50/60Hz Test Voltage: AC 120V/240V Trade Name: Mars by crazybaby Serial No.: ------ Date of Receipt: August 11, 2015 Date of Test: August 15~September 09,2015 Test Specification: FCC Rules and Regulations Part 15 Subpart C:2014 ANSI C63.10:2013 Test Result: The device described above is tested by EST Technology Co., Ltd.. The measurement results were contained in this test report and EST Technology Co., Ltd. was assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliance with the FCC Rules and Regulations Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of EST Technology Co., Ltd. Date: September 11,2015 Prepared by: Tested by: Approved by: Ada / Assistant Tony.Tang/ Engineer IcemanHu / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products ,It is not permitted to be duplicated in extracts without written approval of EST Techn…

Text truncated - open the document above for the full version.

1. WIRELESS CHARGING EMF TEST SETUP PHOTO 2. 5G TEST SETUP PHOTO Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz) 3. WIRELESS CHARGING TEST SETUP PHOTO Conducted Test Radiated Test (9 kHz-30 MHz) Radiated Test (30-1000 MHz)
