ZVD-S0000AZ0C3Eco-Sign ZigBee Gateway

i ECO-Sign User Manual Rev. 1.0 July, 2011 Pervasive Displays Inc. Te l：+886-6-2795399 | Fax：+886-6-2795300 ii Contents I. Introduction ............................................................................................ 1 1. What is the ECO-Sign Solution? ......................................................... 1 2. ZigBee Wireless Technology ............................................................... 2 3. ZigBee Topologies ............................................................................ 3 4. Node Types ..................................................................................... 4 5. ECO-Sign Model & Composed of Elements ........................................... 5 II. Pre-Installation ....................................................................................... 7 III. Quick Start with ECO-Sign ........................................................................ 8 I V. Quick Start with Template Design ............................................................ 10 V. Software Installation .............................................................................. 11 1. Supported Operating Systems.......................................................... 11 2. Instructions ................................................................................... 11 VI. Hardware Installation ............................................................................. 12 1. Overview ....................................................................................... 12 2. Mounting ECO-Sign ........................................................................ 13 3. LED Indicator (on Device) ............................................................... 18 4. Connecting Coordinator / Router ...................................................... 18 5. Recharging Device .......................................................................... 19 VII. Coordinator Network Configuration .......................................................... 20 1. Communication Port ....................................................................... 20 2. Configure Coordinator ..................................................................... 21 3. Web Configuration .......................................................................... 23 VIII. Working with Device and Coordinator ....................................................... 26 1. Starting ESS (ECO-Sign System) ...................................................... 26 2. Coordinator ................................................................................... 27 3. Target ........................................................................................... 29 4. EPD Device .................................................................................... 31 5. Template ....................................................................................... 35 6. Schedule ....................................................................................... 40 7. Configuration ................................................................................. 41 iii 8. How does Eco-Sign work? ............................................................... 43 9. Information ................................................................................... 44 IX. How to update firmware? ....................................................................... 46 1. Naming rule .................................................................................. 46 2. Update tool ................................................................................... 46 User Manual of ECO-Sign v1.0 -1- Confidential I. Introduction 1. What is the ECO-Sign Solution? The ECO-Sign solution is a green, eco-friendly and low power signage solution which includes e-Paper devices with ZigBee wireless gateways and software. The ECO-Sign has ultra-low power consumption and provides wireless updates of the display. With no wires and rechargeable batteries the ECO-Sign is easy to install and is a perfect solution for office or factory automation, electronic shelf labels, e -Signage/e-POP, logistic or container applications. The included software has a powerful template designer and the built in scheduler provides an easy remote management tool. The solution is characterized by the following features: (1) Slim & Light: Fewer parts, simple electronics, no thermal concerns and less mechanical challenges. (2) Active Matrix TFT: Built in active-matrix electrophoretic display. (3) Paper Like: It is reflective, has a very wide viewing angle and excellent contrast. (4) Rechargeable Battery: 1 year operating time on a single charge. (5) Wireless: Without any power cord and network cables, the content can be updated wirelessly and controlled remotely. (6) Ultra Low Power Consumption: It is very energy efficient and allows you to define when the device sleeps or wakes up. (7) Color: It also provides area color for color requirements. (8) Secure: No OS, so impervious to hacker & virus. 128 bits AES (16 Bytes) security. (9) Lower Content Cost: Simple and straightforward. No need for computing power or memory overhead. (10) Low Maintenance: Light and Thin, easy to install and repair, less installation overhead. User Manual of ECO-Sign v1.0 -2- Confidential 2. ZigBee Wireless Technology ZigBee is a specification for a suite of high level communication protocols using small, low-power digital radios based on the IEEE 802.15.4 standard for Wireless Personal Area Networks (WPANs). The technology defined by the ZigBee specification is intended to be simpler and less expensive than other WPANs, such as Bluetooth. ZigBee is targeted at radio-frequency (RF) applications that require a low data rate, long battery life, and secure networking and is designed for wireless controls and sensors. ZigBee has two modes of operation: Active, also called WakeUp, and Sleep mode. In the active mode the device is communicating with oth…

Text truncated - open the document above for the full version.

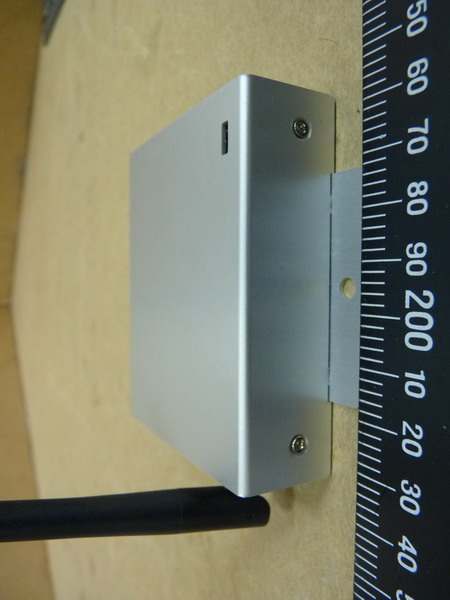

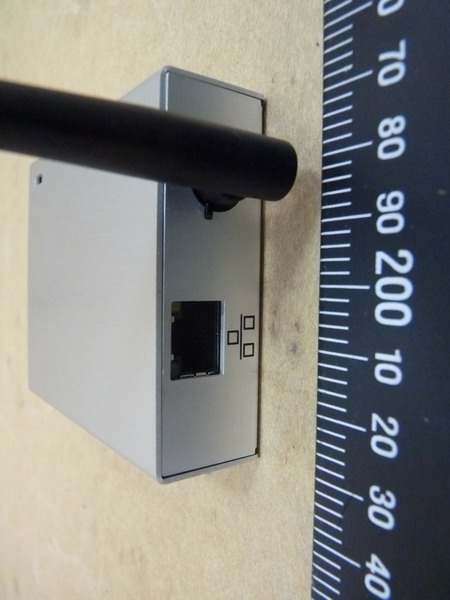

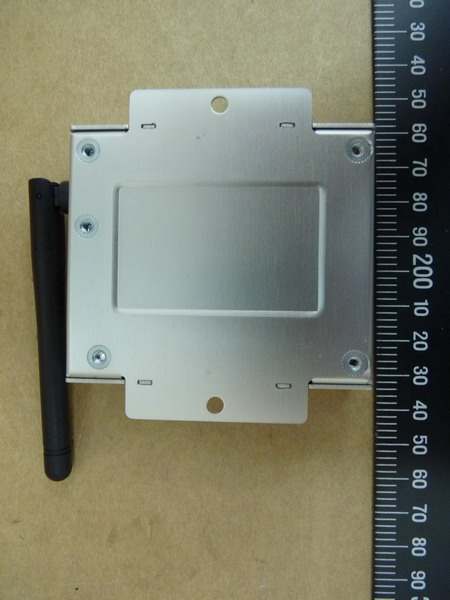

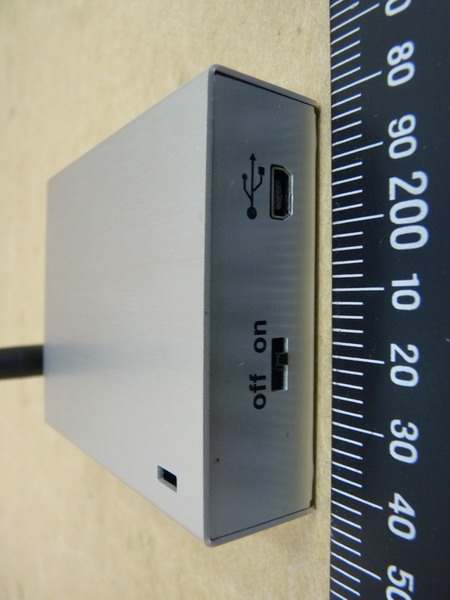

Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 18 External Photos Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 18

S0000AZ0C3

Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 18 Internal Photos Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 13 of 18 Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 14 of 18

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 15.15 (dBm) Maximum peak output power at antenna input terminal: 32.73 (mW) Antenna gain(maximal): 2.49 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2405 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.011525 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the user’s body.

Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 15 of 18 Set Up Photo of Radiated Emission EMI Mode Below 1GHz Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 16 of 18 Above 1GHz Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 17 of 18 RF Mode Registration number: W6M21107-11639-FCC FCC ID: ZVD-S0000AZ0C3 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 18 of 18 Set Up Photo of Conducted Emission
