ZWMCARPOTE00R00TABLET PC

C C a a r r p p o o - - T T E E 0 0 0 0 R R 0 0 0 0 U U s s e e r r G G u u i i d d e e V V e e r r s s i i o o n n : : 1 1 . . 0 0 0 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. User moisture sheet or cloth for cleaning. 4. Make sure the equipments are connected to the power source with the correct voltage, frequency, and ampere. 5. All cautions and warnings on the equipment should be noted. 6. Never pour any liquid into opening: this could cause fire or electrical shock. 7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel. 8. If one of the following situations arises, get the equipment checked by a service personnel: a. Liquid has penetrated into the equipment. b. The equipment has been exposed to moisture. c. The equipment has not worked well or you cannot get it work according to user manual. d. The equipment has dropped and damaged. If the equipment has obvious sign of breakage. 0 9. Caution on use of battery: User the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according the manufacturer’s instruction or your local authority. 10. The computers use nonvolatile memory that requires a battery to retain system information when power is removed. The 3V lithium battery is on the system board. The battery life depends on the amount of time the computer is powered on. If the computer does not display the correct time and date, replace the battery. IMPORTANTLoss of BIOS settings occurs when the battery is removed. BIOS settings must be reconfigured whenever the battery is replaced. WARNINGA risk of fire and chemical burn exists if the battery is not handled properly. Do not disassemble, crush, puncture, or short external contacts, or expose the battery to temperatures higher than 60 °C (140 °F). Do not dispose of a used battery in water or fire. CAUTIONDanger of explosion if battery is incorrectly replaced. 0 Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. 0 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter has been demonstrated co-location compliance requirements with Wi-Fi, Bluetooth SiP (System in Package) module. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device was tested for typical hand held operations with the device contacted directly to the human body to the back side of the tablet pc. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting. E E u u r r o o p p e e – – E E U U D D e e c c l l a a r r a a t t i i o o n n o o f f C C o o n n f f o o r r m m i i t t y y This device complies with the essential requirements of the R&TTE Directive 1999/5/EC and EMC directive 2004/108/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC and EMC directive 2004/108/EC: 0 < EN 55022: 2006 +A1: 2007 < EN 61000-3-2 : 2006 < EN 61000-3-3 : 1995 + A1 : 2001 + A2 : 2005 < EN 55024: 1998 + A1: 2001 + A2: 2003 (IEC 61000-4-2: 2008; IEC 61000-4-3: 2006 + A1:2007; IEC 61000-4-4: 2004; IEC 61000-4-5: 2005; IEC 61000-4-6: 2003 + A1: 2004 +A2: 2006; IEC 61000-4-8: 1993 +A1: 2000; IEC 61000-4-11: 2004) < EN 60950-1: 2001 Safety of information technology equipment < EN 300 328 V1.7.1: 2006 < EN 301 489-17 V2.1.1: 2009 and EN 301 489-1 V1.8.1: 2008 < EN 62311: 2008 This device is a 2.4GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries under the following conditions and/or with the following restrictions: < In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or 0 network services. < This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0 Introduction ........…

Text truncated - open the document above for the full version.

Ubiqconn Technology, Inc. 4Fl, No. 300, Yang Guang St., NeiHu, Taipei, Taiwan, 114 Date:August 17, 2011 Bluetooth Declaration Per FCC 15.247 Requirements 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviors: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviors for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = 0.3797s (in a 30s period) This is according the Bluetooth Core Specification V 1.0B (+ critical errata) for all Bluetooth devices. There for all Bluetooth devices comply with the FCC dwell time requirement in data mode. This was checked during the Bluetooth Qualification tests. The Dwell time in hybrid mode is measured and stated in the test report. 8 Channel Separation in hybrid mode The nominal channel spacing of the Bluetooth system is 1Mhz independent of the operating mode. The maximum “initial carrier frequency tolerance” which is allowed for Blu…

Text truncated - open the document above for the full version.

Ubiqconn Technology, Inc. 4Fl, No. 300, Yang Guang St., NeiHu, Taipei, Taiwan, 114 Date:August 17, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID : ZWMCARPOTE00R00 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Signature________________ Name/Title: Richard Shen/Project Manager Co TEL: +886-2-87516008 Ext. 8876 FAX: +886-2- 87518826 Email: [email protected]

Ubiqconn Technology, Inc. 4Fl, No. 300, Yang Guang St., NeiHu, Taipei, Taiwan, 114 Date:September 13, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: ZWMCARPOTE00R00 , would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Signature________________ Name/Title: Richard Shen/Project Manager Co TEL: +886-2-87516008 Ext. 8876 FAX: +886-2- 87518826 Email: [email protected]

Ubiqconn Technology, Inc. 4Fl, No. 300, Yang Guang St., NeiHu, Taipei, Taiwan, 114 Date:August 17, 2011 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Rex Lai Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Ubiqconn / CARPO-TE00R00 FCC ID: ZWMCARPOTE00R00 Product Name: TABLET PC Signature________________ Name/Title: Richard Shen/Project Manager Co TEL: +886-2-87516008 Ext. 8876 FAX: +886-2- 87518826 Email: [email protected]

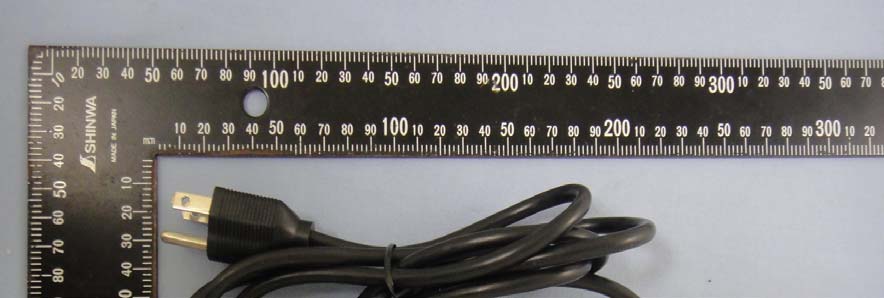

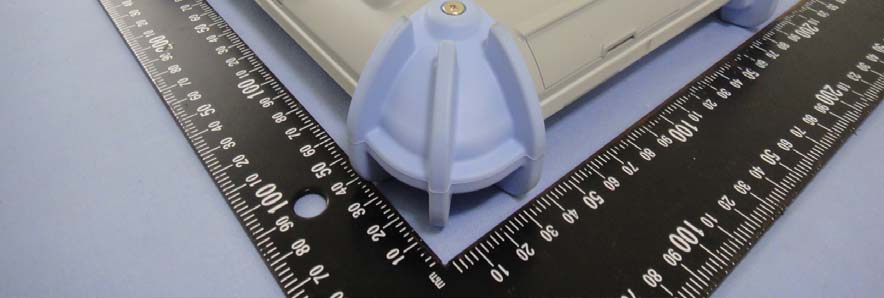

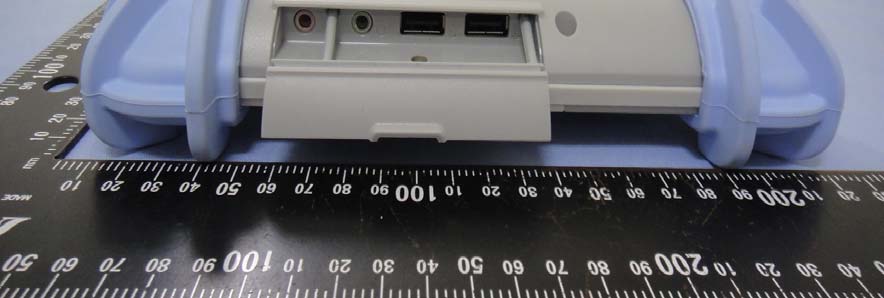

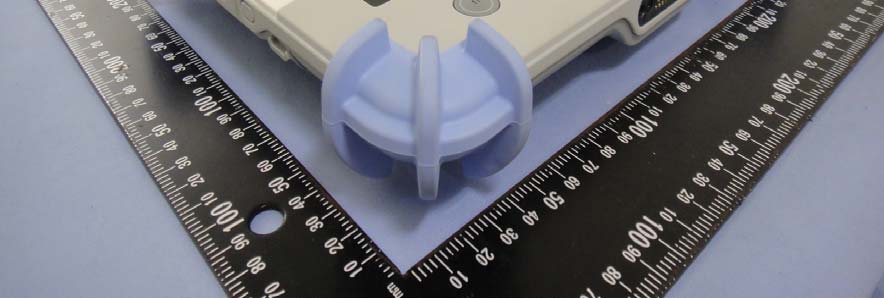

Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 1 / 24 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 2 / 24 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 3 / 24 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 4 / 24 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 5

Portable Computing Group First International Computer, Inc. PART NO. MODEL NO. DRAWING NO. UNIT : 3RD.ANGLE'S 100.1-150.0 150.1- 50.1-100.0 20.1-50.0 0-20.0 ±2.5 ±3.0 ±1.5 ±1.0 ±2.0 31°-60° 61°-90° 0-30° SIZE DRAWN CHECKED DESIGNED APPROVED ±2° ±3° ±1° NAME DRAWING OF SHEET SCALE REV. mm PAPER 800.1- 500.1-800.0 ±4.0 ±5.0 200.1-500.0 50.1-200.0 ±3.0 ±2.0 0-50.0 ±1.0 PALLET & BAG 600.1-1000.0 1000.1- 150.1-600.0 50.1-150.0 0-50.0 ±4.0 ±5.0 ±2.0 ±1.5 ±3.0 CUSHION ANGLE Tony 2011/08/22 Sherven 2011/08/22 Sherven 2011/08/22 Sherven 2011/08/22 CARPO-TE00 25-47175-01 LABEL RATING FOR CARPO-TE00R00 LR 25-47175-01 A X X 1 1 A B C D F E A B C DE F 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 DC SYM. DATE DESCRIPTION OF REVISIONS DRAWN APPD A 2011/08/22 RELEASE DRAWING Sherven Tony EB 1:1 1:1 5 . C3 79.5mm+-0.2 31.5mm+-0.2 19V 2.1A (RATING):  !"#$%&' *First International Computer, Inc. 300 FCC ID:ZWMCARPOTE00R00 ! Ubiqconn Technology Inc ,. Made in China I.T.E. E241677 19V 3.42A 19V 3.42A INPUT : PRODUCT NAME TABLET PC : MODEL NO .: CARPO-TE00R00 NOTE :1. COLOR : SILVER( BACKGROUND : BLACK ( MATERIAL PC 0.125+GLUE 0.05mm) THICKNESS : 0 0. 5mm GLUE M UL THE MATERIAL MUST BE FIT FOR ROHS. ) ) 2. :   ( 3. .175 0 4. :3 467 5. ： 6.  7. PC ( Include adhesive , ) ± FCC ID:ZWMCARPOTE00R00 ! Ubiqconn Technology Inc ,. Made in China I.T.E. E241677 19V 3.42A 19V 3.42A INPUT : PRODUCT NAME TABLET PC : MODEL NO .: CARPO-TE00R00

Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 6 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 7 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 8 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 9 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 10 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 11 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 12 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 13 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 14 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 15 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 16 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 17 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 18 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 19 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 20 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 21 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 22 Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 23 Antenna Compliance Certification Services Inc. Report No.: T110811210 Date of Issue: September 8, 2011 A1 - 24

Compliance Certification Services Inc. FCC ID: ZWMCARPOTE00R00 Report No.: T110811210-RP2 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 71 FCC 47 CFR PART 15 SUBPART C TEST REPORT For TABLET PC Model: CARPO-TE00R00 Trade Name: Ubiqconn Issued to Ubiqconn Technology, Inc. 4Fl, No. 300, Yang Guang St., NeiHu, Taipei, Taiwan, 114 Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: September 5, 2011 Compliance Certification Services Inc. FCC ID: ZWMCARPOTE00R00 Report No.: T110811210-RP2 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 5, 2011 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: ZWMCARPOTE00R00 Report No.: T110811210-RP2 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................4 2. EUT DESCRIPTION ........................................................................................................................5 3. TEST METHODOLOGY .................................................................................................................6 3.1 EUT CONFIGURATION.....................................................................................................................6 3.2 EUT EXERCISE.................................................................................................................................6 3.3 GENERAL TEST PROCEDURES..........................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................7 3.5 DESCRIPTION OF TEST MODES........................................................................................................8 4. INSTRUMENT CALIBRATION.....................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................9 4.3 MEASUREMENT UNCERTAINTY ..........................................................................................10 5. FACILITIES AND ACCREDITATIONS .....................................................................................11 5.1 FACILITIES ....................................................................................................................................11 5.2 EQUIPMENT...................................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................13 6.1 SETUP CONFIGURATION OF EUT....................................................................................................13 6.2 SUPPORT EQUIPMENT ............................................................................................................13 7. FCC PART 15.247 REQUIREMENTS..........................................................................................14 7.1 20 DB BANDWIDTH..................................................................................................................14 7.2 PEAK POWER.................................................................................................................................21 7.3 BAND EDGES MEASUREMENT .............................................................................................23 7.4 FREQUENCY SEPARATION ....................................................................................................32 7.5 NUMBER OF HOPPING FREQUENCY....................................................................................37 7.6 TIME OF OCCUPANCY (DWELL TIME) ................................................................................42 7.7 SPURIOUS EMISSIONS .............................................................................................................51 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................62 APPENDIX I RADIO FREQUENCY EXPOSURE ............................................................................67 APPENDIX II PHOTOGRAPHS OF TEST SETUP ..........................................................................69 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: ZWMCARPOTE00R00 Report No.: T110811210-RP2 Page 4 1. TEST RESULT CERTIFICATION Applicant: Ubiqconn Technology, Inc. 4Fl, No. 300, Yang Guang St., NeiHu, Taipei, Taiwan, 114 Equipment Under Test: TABLET PC Tr a d e N a m e : Ubiqconn Model: CARPO-TE00R00 Date of Test: August 11 ~ 16, 2011 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Gina…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: ZWMCARPOTE00R00 Report No.: T110811210-RP2 Page 69 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. FCC ID: ZWMCARPOTE00R00 Report No.: T110811210-RP2 Page 70 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. FCC ID: ZWMCARPOTE00R00 Report No.: T110811210-RP2 Page 71 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
