ZWMGN01Snap-on module

2-IN -1 Snap On module U U G G 2 22 2- -- -IN ININ IN- -- -1SNAP ON MODULE 1SNAP ON MODULE1SNAP ON MODULE 1SNAP ON MODULE User Guid User GuidUser Guid User Guid e ee e 2 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 2 22 2- -- -IN ININ IN- -- -1SNAP ON MODULE 1SNAP ON MODULE1SNAP ON MODULE 1SNAP ON MODULE User Guid User GuidUser Guid User Guid e ee e 3 E E u u r r o o p p e e – – E E U U D D e e c c l l a a r r a a t t i i o o n n o o f f C C o o n n f f o o r r m m i i t t y y This device complies with the essential requirements of the R&TTE Directive 1999/5/EC and EMC directive 2004/108/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC and EMC directive 2004/108/EC: < EN 55022: 2010 + AC: 2011 < EN 61000-3-2 : 2006 + A2 2009 < EN 61000-3-3 : 2008 < EN 55024: 2010 (IEC 61000-4-2: 2008; IEC 61000-4-3: 2010; IEC 61000-4-4: 2012; IEC 61000-4-5: 2005; IEC 61000-4-6: 2008; IEC 61000-4-8: 2009; IEC 61000-4-11: 2004) < EN 60950-1: 2005 + A1 Safety of information technology equipment < EN 300 328 V1.7.1: 2006 < EN 302 291 -1/ -2 < EN 62311: 2008 2 22 2- -- -IN ININ IN- -- -1SNAP ON MODULE 1SNAP ON MODULE1SNAP ON MODULE 1SNAP ON MODULE User Guid User GuidUser Guid User Guid e ee e 4 Specification The 2-IN-1SNAP ON MODULE is a flexible, With following specifications that can be applied in diverse operational environments and implemented in multi-faceted applications.
Barcode Scanner : < Decoded Mode :  1D Symbologies : EAN/UPC, RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved, Matrix, Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes.  2D Symbologies: Data Matrix, PDF417, Micro PDF 417, Maxicode, QR, Aztec, EAN.UCC composite.
GPS : < Channel :  50 channel all-in-view tracking  GPS,GLONASS support  1 x Signal Color LED (Blue)
CAC :
Supports ISO/IEC 7816 standard
Supports PC Smart Card industry standard: PC/SC 1.0 & 2.0
Works with 5V, 3V and 1.8V Smart cards 2 22 2- -- -IN ININ IN- -- -1SNAP ON MODULE 1SNAP ON MODULE1SNAP ON MODULE 1SNAP ON MODULE User Guid User GuidUser Guid User Guid e ee e 5
GPS : '- ISO/IEC 14443A, 14443B, 15693 - Mifare 1K/4K, Ultralight - NFC-IP1 Protocol 2 22 2- -- -IN ININ IN- -- -1SNAP ON MODULE 1SNAP ON MODULE1SNAP ON MODULE 1SNAP ON MODULE User Guid User GuidUser Guid User Guid e ee e 6 U U s s i i n n g g a a B B a a r r c c o o d d e e S S c c a a n n n n e e r r / / G G P P S S M M o o d d u u l l e e The System provides barcode scanner/GPS functions for your optional selection, before installing either of these two modules on the top side of the system, please remove the screws previously (illustrated in the following graphics as indicated step 1). To install the Barcode Scanner/GPS Module: 1. Make sure the system is turned off. Unscrew four screws from the accessory door on top of the system. 2. Mount and secure the Barcode daughter board into the mainboard with screws. 2 22 2- -- -IN ININ IN- -- -1SNAP ON MODULE 1SNAP ON MODULE1SNAP ON MODULE 1SNAP ON MODULE User Guid User GuidUser Guid User Guid e ee e 7 3. Insert FFC cable of barcode scanner into connector slot or attached the GPS cable to the connectors on the daughter board. 4. Screw to secure the Barcode Scanner/GPS onto the tablet. GPS: 1). Set baud rate to 9600bps 2). Connect to GPS module via appropriate serial port# → For GP01 (on main tablet unit): please check under device manager under COM&LPT ports, choose the Enhanced 2 22 2- -- -IN ININ IN- -- -1SNAP ON MODULE 1SNAP ON MODULE1SNAP ON MODULE 1SNAP ON MODULE User Guid User GuidUser Guid User Guid e ee e 8 COM port# corresponding to 1 st set of "Silicon Labs Dual CP210x USB to UART Bridge: “Enhanced” COM Port (COMx) U U s s i i n n g g a a N N F F C C / / G G P P S S M M o o d d u u l l e e The System provides NFC/GPS functions for your optional selection, before installing either of these two modules on the top side of the system, please remove the screws previously (illustrated in the following graphics as indicated step 1). To install the NFC/GPS Module: 2 22 2- -- -IN ININ IN- -- -1SNAP ON MODULE 1SNAP ON MODULE1SNAP ON MODULE 1SNAP ON MODULE User Guid User GuidUser Guid User Guid e ee e 9 5. Make sure the system is turned off. Unscrew four screws from the accessory door on top of the system. 6. Mount and secure the Daughter board into the mainboard with screws. 7. Insert FFC cable of barcode scanner into connector slot or attached the NFC/GPS cable to the connectors on the daughter board. 8. Screw to secure the NFC/GPS onto the tablet. 9. The RFID read range of this module will vary from approximately 40 ~50mm depending on the following factors; …

Text truncated - open the document above for the full version.

Ubiqconn Technology,Inc. No. 300 Yang Guang St., NeiHu, Taipei, Taiwan 114 TEL No: +886-2-87516008 FAX No: +886-2- 87518826 Attestation for FCC Declaration of Conformity FCC ID: ZWMGN01 Data: Jan. 08, 2014 Please be notified that we, the undersigned, Ubiqconn Technology,Inc. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 13C0152R-ITUSP01V00. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Ubiqconn Technology,Inc. Richard Shen / Project Manager Tel: +886-2-87516008 Fax: +886-2- 87518826 Email: [email protected]

Ubiqconn Technology,Inc. FCC ID.: ZWMGN01 No. 300 Yang Guang St., NeiHu, Taipei, Taiwan 114Tel : +886-2-87516008 Federal Communications Commission Jan. 08, 2014 Authorization and Evaluation Division ATTESTATION FCC ID: ZWMGN01 Product: Snap-on module Model: SN201-GN01 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ----------------------------------------------------------------------------- Richard Shen / Project Manager Ubiqconn Technology,Inc.

Ubiqconn Technology,Inc. FCC ID.: ZWMGN01 No. 300 Yang Guang St., NeiHu, Taipei, Taiwan 114 Tel : +886-2-87516008 Ubiqconn Technology,Inc. No. 300 Yang Guang St., NeiHu, Taipei, Taiwan 114 Tel : +886-2-87516008 Fax: +886-2-87518826 Federal Communications Commission Jan. 08, 2014 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (SN201-GN01) Schem Block Diagram: (SN201-GN01) BlkDia Operational Description: (SN201-GN01) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------------------------------- Richard Shen / Project Manager Ubiqconn Technology,Inc.

Ubiqconn Technology,Inc. Declaration of Authorization We Name: Ubiqconn Technology,Inc. Address: No. 300 Yang Guang St., NeiHu, Taipei, Taiwan 114 City: Taipei  . Country: Taiwan  . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Snap-on module FCC ID: ZWMGN01 Trademark: Ubiqconn, UTI on our behalf. Date:  2014/01/08  .. City:  Taipei  .. Name:  Richard Shen  .. (2) Function: Project Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Report No.: 13C0152R-RFUSP17V00 Page : 1 of 11 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 13C0152R-RFUSP17V00 Page : 2 of 11 (3) EUT Photo (4) EUT Photo Report No.: 13C0152R-RFUSP17V00 Page : 3 of 11 (5) EUT Photo (6) EUT Photo

Ubiqconn Technology,Inc. FCC ID.: ZWMGN01 No. 300 Yang Guang St., NeiHu, Taipei, Taiwan 114Tel : +886-2-87516008 FCC ID Label

Ubiqconn Technology,Inc. FCC ID.: ZWMGN01 No. 300 Yang Guang St., NeiHu, Taipei, Taiwan 114Tel : +886-2-87516008 The FCC ID will be placed on the equipment as shown in the photograph below.

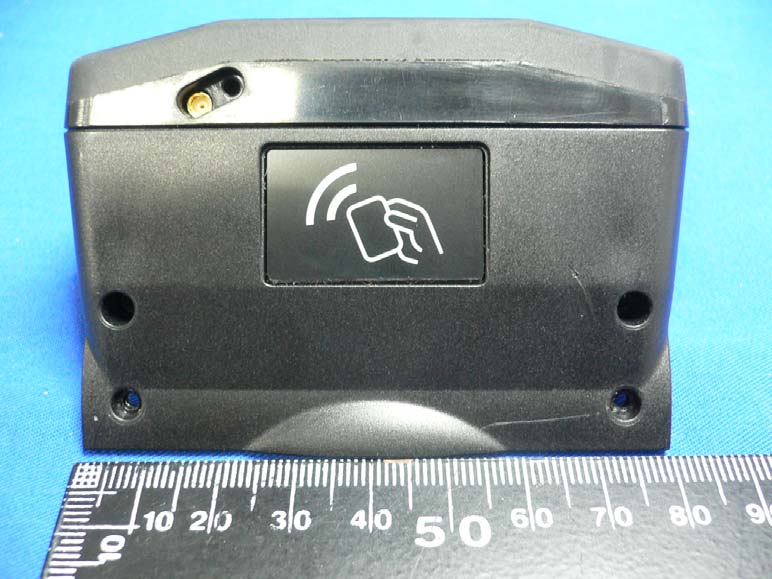

Report No.: 13C0152R-RFUSP17V00 Page : 4 of 11 (7) EUT Photo (8) EUT Photo Report No.: 13C0152R-RFUSP17V00 Page : 5 of 11 (9) EUT Photo (NFC) (10) EUT Photo (NFC Antenna) Report No.: 13C0152R-RFUSP17V00 Page : 6 of 11 (11) EUT Photo (12) EUT Photo Report No.: 13C0152R-RFUSP17V00 Page : 7 of 11 (13) EUT Photo (14) EUT Photo Report No.: 13C0152R-RFUSP17V00 Page : 8 of 11 (15) EUT Photo (GPS) (16) EUT Photo Report No.: 13C0152R-RFUSP17V00 Page : 9 of 11 (17) EUT Photo (18) EUT Photo Report No.: 13C0152R-RFUSP17V00 Page : 10 of 11 (19) EUT Photo (20) EUT Photo Report No.: 13C0152R-RFUSP17V00 Page : 11 of 11 (21) EUT Photo (22) EUT Photo
