ZWP2011A0Remote Key Finder The Sharper Image

Transmitter Block Diagram MCU (U1) 315MHz Oscillator and amplifier (X1) Antenna matching circuit (L1,L2,C4-12,C14) Switch 1 (SW 1) Switch (SW 2) 315MHz

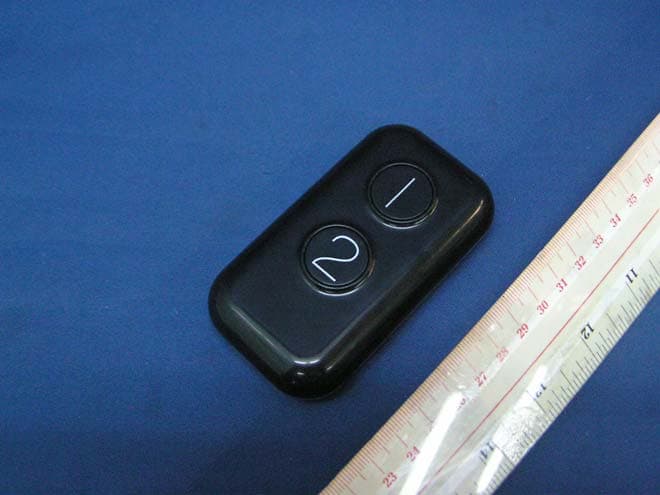

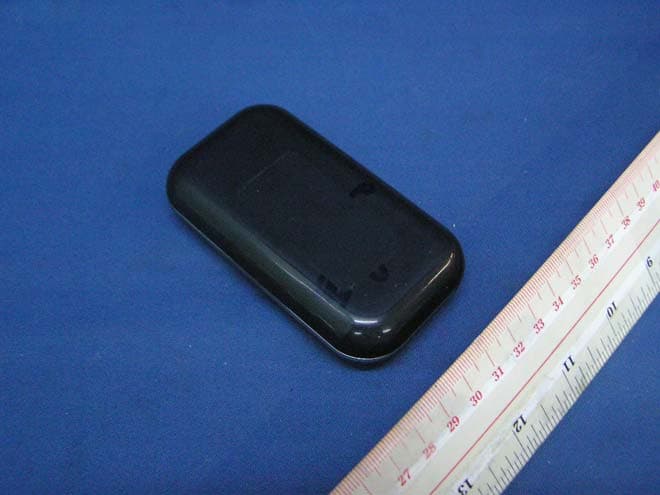

INTERTEK TESTING SERVICE Report No.: HK11080765-1 FCC ID: ZWP2011A0 Equipment Photographs Model: 2011A (External) INTERTEK TESTING SERVICE Report No.: HK11080765-1 FCC ID: ZWP2011A0 Equipment Photographs Model: 2011A (External)

INTERTEK TESTING SERVICE Report No.: HK11080765-1 FCC ID: ZWP2011A0 Equipment Photographs Model: 2011A (Internal) INTERTEK TESTING SERVICE Report No.: HK11080765-1 FCC ID: ZWP2011A0 Equipment Photographs Model: 2011A (Internal)

FCC ID: ZWP2011A0 Technical Description: The brief circuit description is listed as follows: - U1 and associated circuit act as MCU. - X1, Q1 and associated circuit act as 315MHz Oscillator and Modulator. - L1, L2, C4-C12, C14 and associated circuit act as Antenna Matching Circuit. - SW1, SW2 and associated circuit act as Control Button. Antenna Used: Internal, Integral antenna is used.

1 1 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED: QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY: TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: A B D DATE: 1 2 3 4 5 6 D C A B C LTR Longde S&T Technology (Zhong Shan) CO., Ltd. LD007-KF09-TX A 1.0 L.CH.D 2011-06-21 ANT FM8P553 1 VDD 2 GP5 3 GP4 4 GP3 8 GND 7 GP0 6 GP1 5 GP2 U1 1 2 SW1 1 2 SW2 C13 102 R1 10K R2 10K Q1 2SC4226 L1 220NH C1 102 C2 120P C3 8P X1 315M C4 5P C5 30P C6 1.5P C7 22P C8 47P C9 20P L2 220NH C10 100P C11 200P C12 103 C14 47P +3V +3V

INTERTEK TESTING SERVICES Report No.:HK11080765-1 Sample No.:1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 231(a) Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11080765-1 Zhongshan Longde S&T Technology Co., Ltd. Application For Certification (Original Grant) (FCC ID: ZWP2011A0) Transmitter Prepared and Checked by: Approved by: Signed On File Kung Wing Cheong, Steven Engineer Chan Chi Hung, Terry Assistant Supervisor Date: October 03, 2011 INTERTEK TESTING SERVICES Report No.: HK11080765-1 FCC ID: ZWP2011A0 i GENERAL INFORMATION Zhongshan Longde S&T Technology Co., Ltd. BRAND NAME: N/A, MODEL: 2011A FCC ID: ZWP2011A0 Grantee: Zhongshan Longde S&T Technology Co., Ltd. Grantee Address: No.33, Middle Industry Avenue, XiaoLan Town, ZhongShan City, Guangdong, China Contact Person: Fiona Li Tel: 86-760-23820470 Fax: 86-760-23825029 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: 2011A Type of EUT: Transmitter Description of EUT: Remote Key Finder The Sharper Image Serial Number: N/A FCC ID: ZWP2011A0 Date of Sample Submitted: August 15, 2011 Date of Test: August 20, 2011 Report No.: HK11080765-1 Report Date: October 03, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11080765-1 FCC ID: ZWP2011A0 ii SUMMARY OF TEST RESULT Zhongshan Longde S&T Technology Co., Ltd. BRAND NAME: N/A, MODEL: 2011A FCC ID: ZWP2011A0 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 Pass Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11080765-1 FCC ID: ZWP2011A0 iii Table of Contents 1.0 General Description....................................................................................................................................1 1.1 Product Description.......................................................................................................................................1 1.2 Related Submittal(s) Grants.........................................................................................................................1 1.3 Test Methodology..........................................................................................................................................1 1.4 Test Facility....................................................................................................................................................1 2.0 System Test Configuration........................................................................................................................2 2.2 EUT Exercising Software..............................................................................................................................2 2.3 Special Accessories......................................................................................................................................2 2.4 Equipment Modification.................................................................................................................................2 2.5 Support Equipment …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.:HK11080765-1 Sample No.:1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Ref -20 dBmAtt 10 dB * A PS AC 3DB RBW 1 MHz VBW 3 MHz TRG Center 315 MHz1 s/ SWT 10 s SGL *1 PK CLRWR -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -29.12 dB m 140.000000 ms TRG -40 dBm HK11080886-1 Date: 23.AUG.2011 10:04:49 Ref -20 dBmAtt 10 dB * A PS AC 3DB RBW 1 MHz VBW 3 MHz Center 315 MHz100 ms/ SWT 1 s TRG SGL *1 PK CLRWR -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -28.59 dB m 148.000000 ms TRG -40 dBm HK11080886-1 Date: 23.AUG.2011 10:04:09 Timing Plot – Pursuant to FCC Part 15 Section 15. 231(a) Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK11080765-1 FCC ID: ZWP2011A0 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 2011A 2011A HK11080765 INTERTEK TESTING SERVICE Report No: HK11080765-1 FCC ID: ZWP2011A0 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model: 2011A HK11080765 2011A
