ZWP2011A1Remote Key Finder TSI

Transmitter Block Diagram MCU (U1) 315MHz Oscillator and amplifier (X1) Antenna matching circuit (L1,L2,C4-12,C14) Switch 1 (SW 1) Switch (SW 2) 315MHz

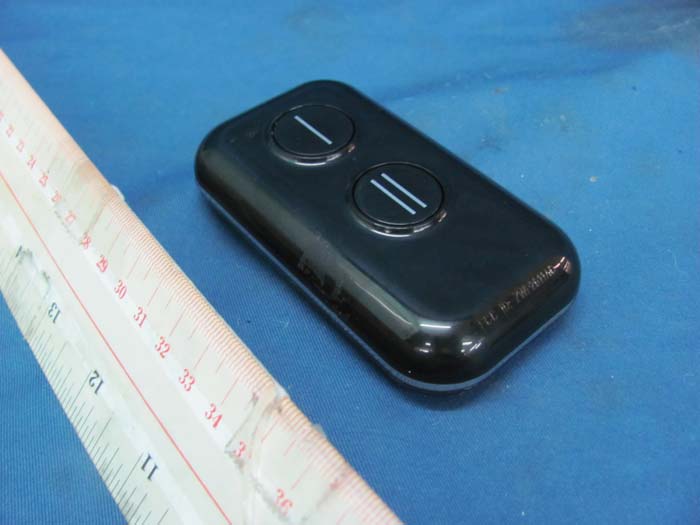

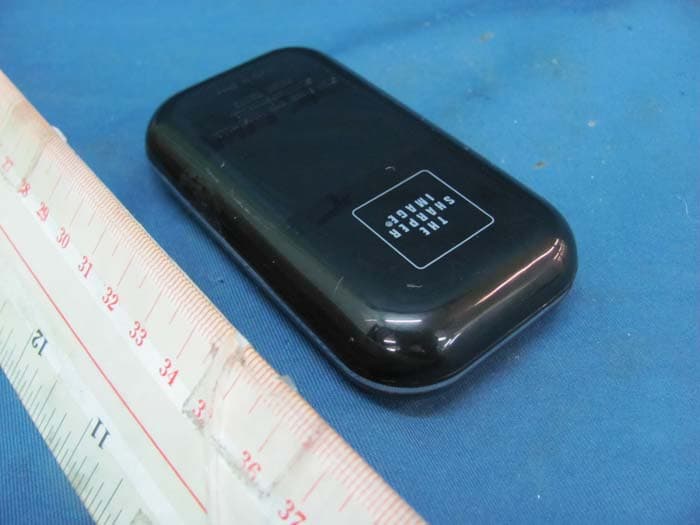

INTERTEK TESTING SERVICE Report No.: HK12050691-1 FCC ID: ZWP2011A1 Equipment Photographs Model : 2011A (External)

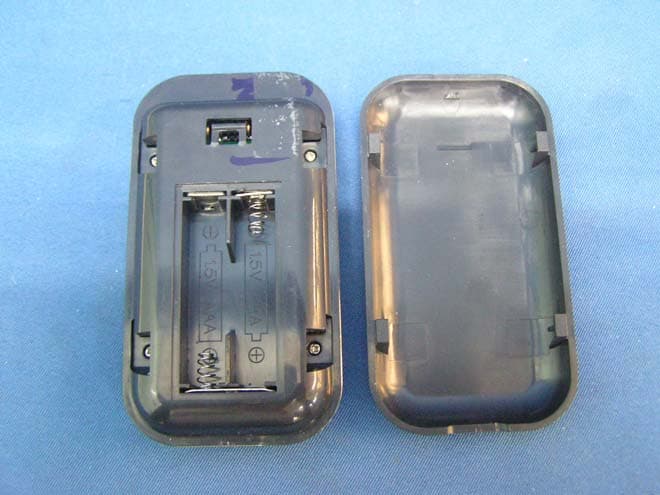

INTERTEK TESTING SERVICE Report No.: HK12050691-1 FCC ID: ZWP2011A1 Equipment Photographs Model: 2011A (Internal) INTERTEK TESTING SERVICE Report No.: HK12050691-1 FCC ID: ZWP2011A1 Equipment Photographs Model: 2011A (Internal) INTERTEK TESTING SERVICE Report No.: HK12050691-1 FCC ID: ZWP2011A1 Equipment Photographs Model: 2011A (Internal)

FCC ID: ZWP2011A1 Technical Description: The brief circuit description is listed as follows: - U1 and associated circuit act as MCU. - X1, Q1 and associated circuit act as 315MHz Oscillator and Modulator. - L1, L2, C4-C12, C14 and associated circuit act as Antenna Matching Circuit. - SW1, SW2 and associated circuit act as Control Button. Antenna Used: Internal, Integral antenna is used.

1 1 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED: QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY: TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: A B D DATE: 1 2 3 4 5 6 D C A B C LTR Longde S&T Technology (Zhong Shan) CO., Ltd. LD007-KF09-TX A 1.0 L.CH.D 2011-06-21 ANT 315MHz FM8P553 1 VDD 2 GP5 3 GP4 4 GP3 8 GND 7 GP0 6 GP1 5 GP2 U1 1 2 SW1 1 2 SW2 C13 102 R1 10K R2 10K Q1 2SC4226 L1 220NH C1 102 C2 120P C3 8P X1 315MHz C4 5P C5 30P C6 1.5P C7 22P C8 47P C9 20P L2 220NH C10 100P C11 200P C12 103 C14 47P +3V +3V
