ZXNLEETACE9150Bluetooth Portable speakers

Operating Instruction M odel: E-9150/ PWPBT60 Bluetooth Portable speakers Rev 0.0 2 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS............................................................................... 2 B EFORE USE ................................................................................................................... 4 COPYRIGHT.................................................................................................................... 4 BLUETOOTH CONNECTIVITY........................................................................................... 4 TURN ON THE APPARATUS ........................................................................................... 4 TURN OFFTHE APPARATUS........................................................................................... 4 GETTING CONNECTED .................................................................................................. 4 ENJOY MUSIC FROM AN EXTERNAL DEVICE.................................................................. 5 USB CHARGING ............................................................................................................ 5 SPECIFICATIONS ............................................................................................................. 6 IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Also, do not remove the cover or back. No user serviceable parts inside. Refer servicing to qualified service personnel. This symbol is intended to alert user to the presence of non-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons. This symbol is intended to alert user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 1. Read through the manual before operating. 2. Heed the instructions. 3. Follow all instructions in the manual. 4. Keep the manual for future reference. 5. Do not use the apparatus in places that are extremely hot, cold, dusty or humid. 6. Do not keep the apparatus in a high humidity area such as a bathroom, kitchen sink or pool. Keep the apparatus away from heaters, stoves, etc. Never leave the apparatus in an area exposed to direct sunlight where there could be a considerable rise in temperature. 7. The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids such as vases, should be placed on the apparatus. 8. Do not block any ventilation openings. The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloths, 3 curtains and the like. 9. Install the apparatus in accordance with the manufacturer’s instructions. 10. Clean the cabinet with a soft cloth slightly moistened with a mild detergent solution. Do not use strong solvents which may cause unpredictable damage to the apparatus. 11. Do not use attachments/accessories not recommended by the product manufacturer as they may be hazardous. 12. Power-supply cords should be routed so that they are not likely to be trapped in any way. Also protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the pointers where they exist from the apparatus. 13. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operation instructions. 14. The mains plug is used as disconnect device. The mains plug of apparatus should not be obstructed OR should be easily accessed during intended use. To be completely disconnect the power input, the mains plug of apparatus should be disconnected from the mains. 15. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 16. If the apparatus is not used for a period of time, unplug the power cord. 17. If the remote control unit is not used for a period of time, remove batteries from the remote control unit and store them in a cool dry area. 18. If it is lightening, unplug the power cord to prevent the unit from unnecessary damages. 19. This product should be moved with care to avoid damage or injury. 20. Never try to disassemble batteries. Neither put batteries under the direct sunlight nor throw them into fire or heater. As all of these may cause unnecessary damages to you. 21. Refer all servicing to qualified service personnel. Servicing required when the apparatus does not operate normally or has been damaged in any way such as the power cord or plug is damaged, liquids spilled into the apparatus, any hard object fallen on the apparatus, the apparatus has been dropped, the apparatus has been exposed to rain or moisture. 22. The marking information is located at the back of the apparatus. 23. Minimum distance 5 cm around the apparatus for sufficient ventilations 24. Do not place any flame sources such lighted candles on top of the apparatus. 25. Attentions should be drawn to the environmental aspects of batteries disposal. 26. Use the apparatus in moderate climates. Caution: 1. Use of controls and adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. 4 2. If this product develops trouble, contact qualified service centers, and do not use the p roduct in defective states. BEFORE USE 1. Choose unit install…

Text truncated - open the document above for the full version.

MODEL : E-9150 FCC ID : ZXNLEETACE9150 SIZE:18x12mm 18mm m m 2 1 IC: 9857A-LTE9150 MODEL : E-9150 FCC ID : ZXNLEETACE9150 IC: 9857A-LTE9150 MODEL:PWPBT60 MODEL:PWPBT60 SIZE:18x12mm 18mm m m 2 1 FCC ID : ZXNLEETACE9150 IC: 9857A-LTE9150 FCC ID : ZXNLEETACE9150 IC: 9857A-LTE9150

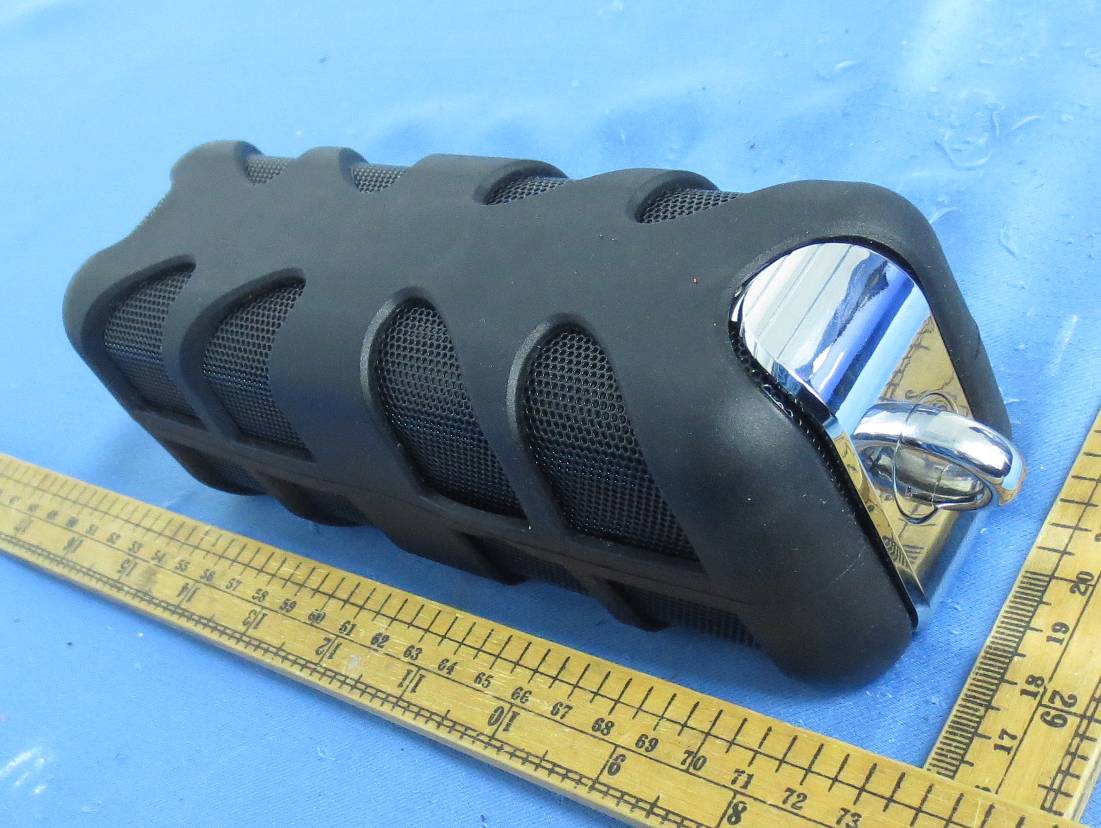

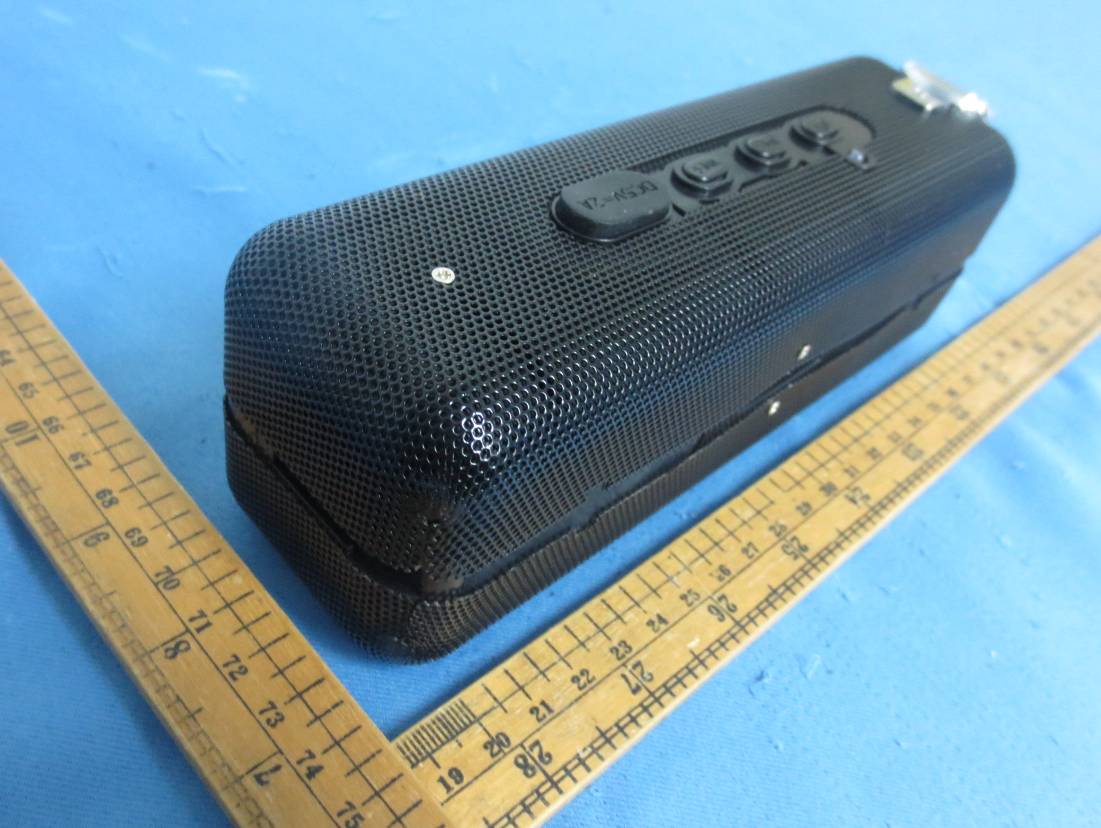

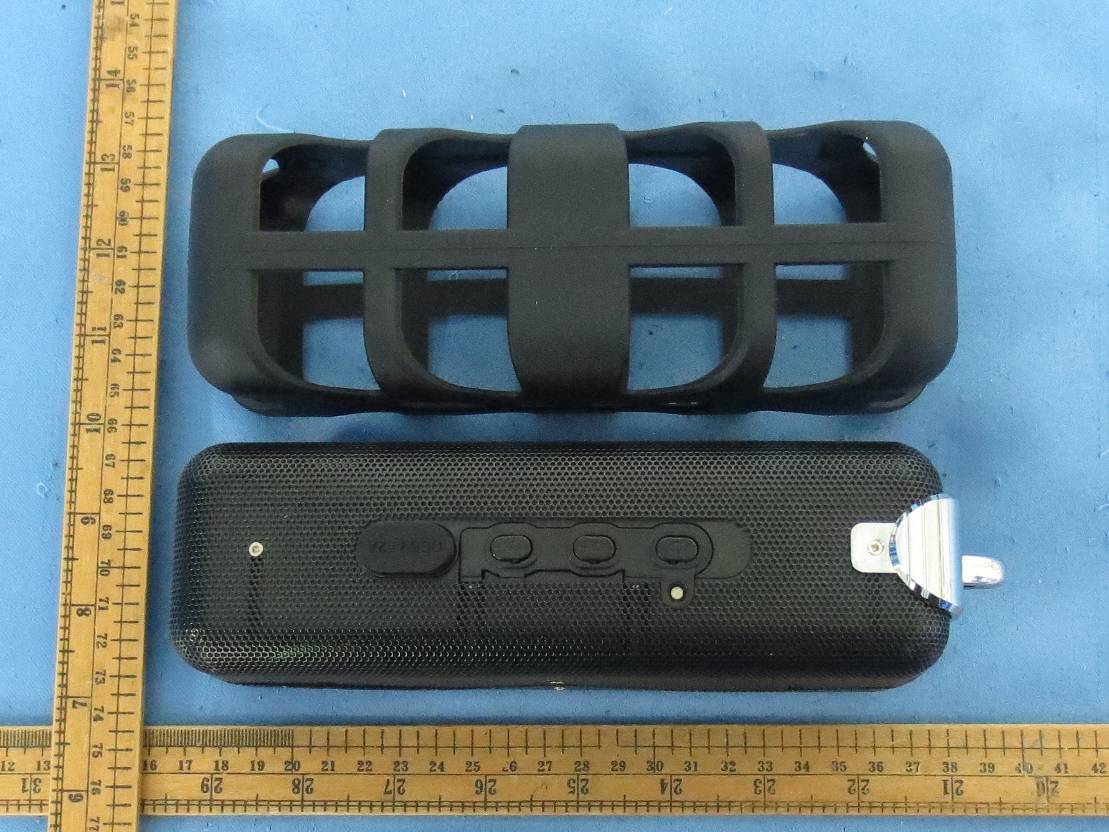

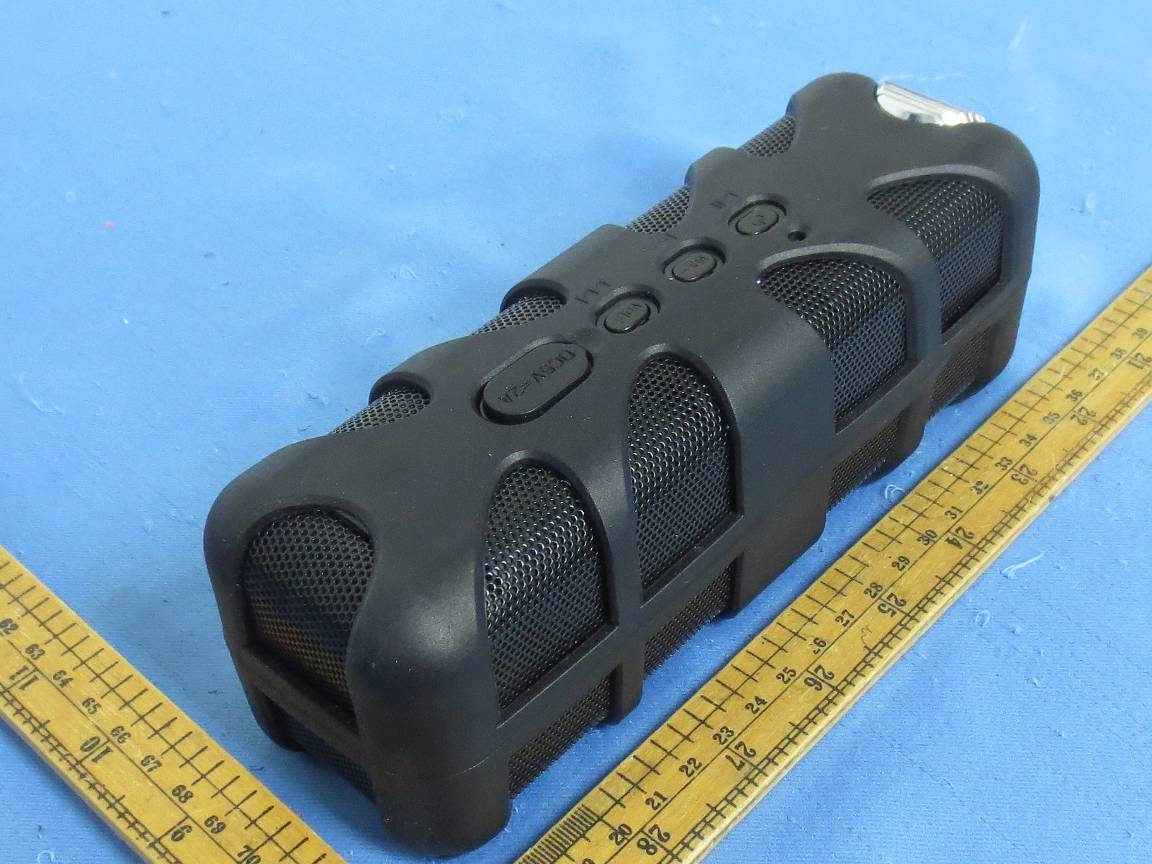

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a Portable Bluetooth speaker. The EUT was powered by DC 3.7V Internal Lithium battery and charging by USB Port. For more detail information pls. refer to the user manual. Modulation Type: GFSK, ∏/4DQPSK, 8DPSK Bluetooth Version: 2.1 with EDR function Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 0dBm ( Tolerance: +/- 3dB) The nominal conducted output power specified: 0dBm ( Tolerance: +/- 3dB) According to the KDB 447498: The worst-case radiated emission for the EUT is 95.5dBμV/m at 3m in the frequency 2.402GHz = [(FS*D) ^2 / 30] mW = 0.27dBm which is within the production variation. The maximun conducted output power specified is 3dBm = 2.0mW The source- based time-averaging conducted output power = 2.0 * Duty cycle mW= 1.7 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 2.1), transmitter ON time is dependent of packet type (DH1, DH3 and DH5). For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hopset consists of 5 TX slot and 1 RX slot. Duty cycle = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02 FCC ID: ZXNLEETACE9150

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Zhongshan Leetac Electronics Co., Ltd. Application For Certification FCC ID: ZXNLEETACE9150 Bluetooth Portable speakers Model: E-9150 Additional Model: PWPBT60, E-915X, E-930X, E-950X, E-914X, E-913X, E-940X, E-980X (X will be replaced by digit “0-9”, or letter “A-Z”) 2.4GHz Transceiver Report No.: 121220004SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file William Chen Engineer Andy Yan Engineer Date: 22 February 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXNLEETACE9150 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXNLEETACE9150 ii MEASUREMENT/TECHNICAL REPORT Zhongshan Leetac Electronics Co., Ltd. - MODEL: E-9150 FCC ID: ZXNLEETACE9150 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12 Edition] provision. Report prepared by: Billy Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0645 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ZXNLEETACE9150 iii Table of Contents 1.0 General Description ............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology ............................................................................................... 2 1.4 Test Facility ........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 4 2.1 Justification ........................................................................................................ 4 2.2 EUT Exercising Software .................................................................................... 4 2.3 Special Accessories ........................................................................................... 4 2.4 Equipment Modification ...................................................................................... 4 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 5 3.0 Emission Results ................................................................................................ 7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation ................................................................................ 8 3.1.2 Radiated Emission Configuration Photograph .................................................. 9 3.1.3 Radiated Emissions ......................................................................................... 9 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 11 3.2 Conducted Emission at Mains Terminal................................................... 15 3.2.1 Conducted Emissions Configuration Photograph......................................15 3.2.2 Conducted Emissions........................................................................15 4.0 Equipment Photographs ....................................................................…

Text truncated - open the document above for the full version.
