ZXNLEETACEZ450FM Transmitter

Instruction Manual Model: E-Z450 Cigarette Adapter FM Transmitter Rev 0.0 2 Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol is intended to alert user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons. RISKS OF ELECTRIC SHOCK DO NOT OPEN THE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Danger: This is not a toy. Keep the unit & accessories out of reach from children or pets. There may be a risk of swallow. Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Caution: Keep the unit away from any interference appliance, such as metals and magnets. Locations: To reduce the risk of electric shock, fire or injury: 1. Do not use the unit in places that are extremely hot, cold, dusty or humid. 2. Do not place the unit under the direct sunlight nor near any heat sources such as open flame sources and items that produce heat. 3. Do not place any objects that are filled with liquids, such as vases on top of the unit. 4. Keep the unit away from places where the item may be exposed to dripping or splashing. Important Safety Instructions • Read through the manual before operating. • Heed the instructions. • Follow all instructions in the manual. • Keep the manual for future reference. • Do not block any ventilation openings. Do not impede the ventilation openings with newspapers, tablecloths or curtains. Leave at least 5cm around the unit for sufficient ventilations. • Install the unit in accordance with the manufacturer’s instructions. • Clean the cabinet with a soft cloth slightly moistened with a mild detergent solution. Do not use strong solvents, which may cause unpredictable damage to the unit. • Before using the product with the approved power adapter provided, ensure the electric power supply is compatible with the voltage rating of the provided power adapter. • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the pointers where they exist from the unit. • The electric plug is used as the disconnect device. The disconnect device shall remain readily accessible. • Remove the power adaptor from the electric outlet if the product is not in use for a long time. • Refer all servicing to qualified service personnel. Servicing required when the unit does not operate normally or has been damaged in any way such as the power adaptor is damaged, liquids spilled into the unit, any hard object fallen on the unit, the unit has been dropped, the unit has been exposed to rain or moisture. • Attentions should be drawn to the environmental aspects of batteries disposal. • Use the unit in moderate climates. 3 Unit At A Glance 1. Cigarette power plug: Fit in the car cigarette socket to power on the FM transmitter. 2. FM frequency selector: 4 FM frequency selectable: 88.1MHz, 88.7MHz, 106.7MHz and 107.5MHz. 3. Audio-In plug: Insert into the earphone socket on your audio device. 4. Audio-In cable 5. USB charging socket Transmitting Signals Signals from your audio device will be transmitted through the cigarette adapter to your receiver. To power the cigarette adapter: Insert the Cigarette power plug to your in-car cigarette socket. Connecting your audio device: Insert the Audio-In plug into the earphone or Line Out socket on your audio device. Selecting the channel: There are 4 channels available: FM 88.1MHz, 88.7MHz, 106.7MHz and 107.5MHz. Set the FM frequency selector to the proper channel position required. Charging your device: Your device can be charging via the USB socket on the Cigarette Adapter. The charging voltage is 5V, 1A. Use the option USB charging cable to connect between the USB charging socket on the Cigarette Adapter and your device. NOTE: • The operation distance between the signal transmitter (Cigarette Adapter) and the receiver is 5m. Move closer to the signal transmitter when you feel the sound not clear. • If you hear no sound check if the volume on the receiver is turned down, or set the receiver to search the correct channel. Specifications Power Supply: 12Vdc Power Consumption: 1W 15W when it is charging FM Frequency Channels: 88.1MHz, 88.7MHz, 106.7MHz and 107.5MHz S/N Ratio: 45dB Operation Range: 5m in open area 4 Troubleshooting Problem Possible Cause Solution No batteries or batteries have spent. Fit new batteries into the headphones. The headphones may be set off. Turn the headphones on with the Power switch. Volume control may be turned down (to minimum). Adjust the volume control. Headphones are not working and/or no sound. You may be out of the operating range of the transmitter. Move closer to the transmitter to keep the distance within ??. The connection of the transmitter and the audio device may be loose. Check the connection of the transmitter and the audio device. No reception. The channel using on the transmitter and the receiver is not matching. Press the Scan button on the headphones to search the correct channel. Some interfered appliance is being used nearby. Turn off the interfered appliance. Sound is not very clear. Poor reception. Change to another channel. 5 Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment . NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction…

Text truncated - open the document above for the full version.

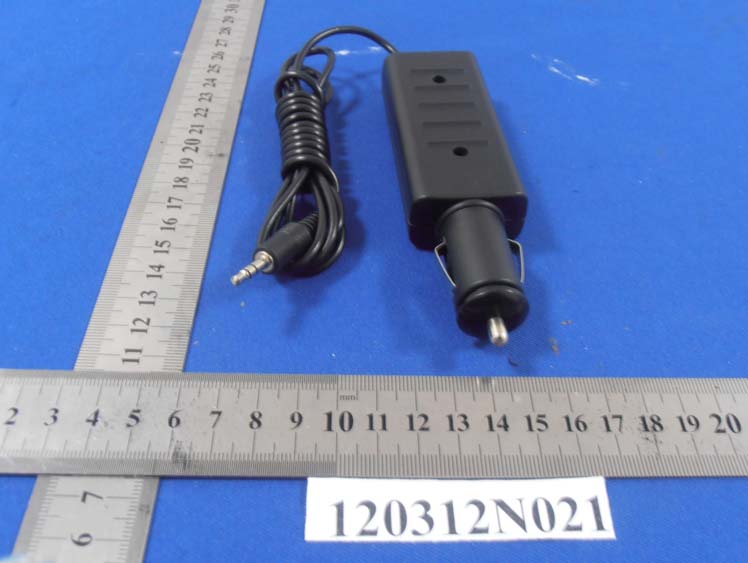

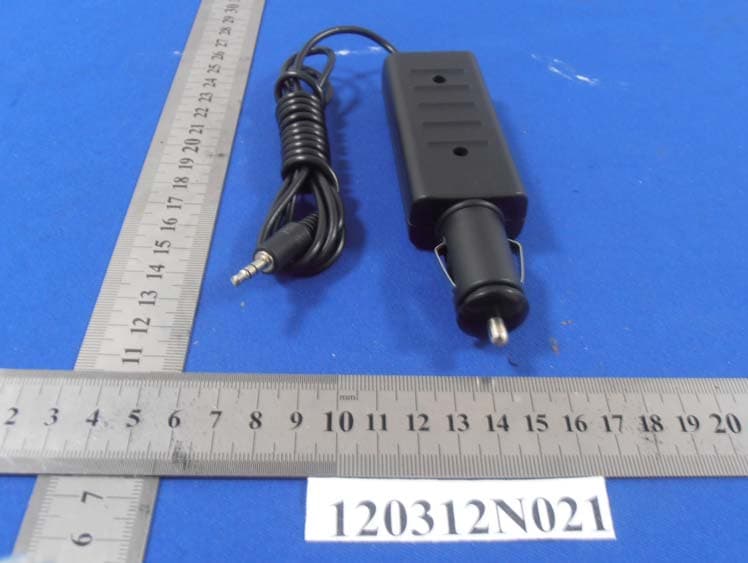

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: FC120312N021 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: FC120312N021

Model: E-Z450 Wireless Tablet In-Car Entertainment System IN PUT : 12 Vdc Frequency: 88.1 MHz, 88.7 MHz, 106.7 MHz, 107.5 MHz OUTPUT: 5.2 Vdc, 2000 mA Zhongshan Leetac Electronics Co., Ltd. Made in China FCC ID: ZXNLEETACEZ450 This device complies with Part15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includinginterference that may cause undesired operation. IC: 9857A-LTEZ450 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 75x18mm ,. Leetac Model: E-Z450 Wireless Tablet In-Car Entertainment System IN PUT : 12 Vdc Frequency: 88.1 MHz, 88.7 MHz, 106.7 MHz, 107.5 MHz OUTPUT: 5.2 Vdc, 2000 mA Zhongshan Leetac Electronics Co., Ltd. Made in China FCC ID: ZXNLEETACEZ450 This device complies with Part15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includinginterference that may cause undesired operation. IC: 9857A-LTEZ450 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Leetac

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 2 Report Version 1 Reference No.: FC120312N021 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 2 Report Version 1 Reference No.: FC120312N021 ANT

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 on 20 Report Version 1 Test Report No.:FC120312N021 TEST REPORT To: Zhongshan Leetac Electronics Co., Ltd. Address: No.3 Industrial Estate, South District, Zhongshan City, Guangdong province, P.R. China. Manufacturer or Supplier Zhongshan Leetac Electronics Co., Ltd. Address No.3 Industrial Estate, South District, Zhongshan City, Guangdong province, P.R. China. Product: Wireless Tablet In-Car Entertainment System Brand Name: Leetac, Innovative Technology Model: E-Z450 Date of tests: March. 12, 2012~ April. 23, 2012 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C (Section 15.239) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Prepared by Glyn He Project Engineer / EMC Department Approved by Sam Tung Manager / EMC Department Date: April.23, 2012 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 on 20 Report Version 1 Test Report No.:FC120312N021 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 3 1 SUMMARY OF TEST RESULTS ..................................................................................................... 4 2 MEASUREMENT UNCERTAINTY................................................................................................... 4 3 GENERAL INFORMATION .............................................................................................................. 5 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 5 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 6 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 6 4. TEST TYPES AND RESULTS .........................................................................................................7 4.1 RADIATED EMISSION MEASUREMENT .................................................................................. 7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...................................................... 7 4.2.2 TEST INSTRUMENTS....................................................................................................... 8 4.2.3 TEST PROCEDURES ....................................................................................................... 9 4.2.4 DEVIATION FROM TEST STANDARD ........................................................................... 10 4.2.5 TEST SETUP................................................................................................................... 10 4.2.6 EUT OPERATING CONDITIONS .................................................................................... 10 4.2.7 TEST RESULTS ...............................................................................................................11 4.3 20dB BANDWIDTH MEASUREMENT...................................................................................... 13 4.3.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT.......................................................... 13 4.3.2 TEST INSTRUMENTS..................................................................................................... 13 4.3.3 TEST PROCEDURE........................................................................................................ 14 4.3.4 DEVIATION FROM TEST STANDARD ........................................................................... 14 4.3.5 TEST SETUP................................................................................................................... 15 4.3.6 EUT OPERATING CONDITIONS .................................................................................... 15 4.3.7 TEST RESULTS .............................................................................................................. 16 5 PHOTOGRAPHS OF THE TEST CONFIGURATION.................................................................... 19 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ......................................................…

Text truncated - open the document above for the full version.

1 Set-up for radiated emission test
