ZXPTGB102Wireless Storage Device

TOGOBOX User Manual Protable Wireless Storage TGB-102N Charging your Batteries Be sure to fully charge the battery pack before use TOGOBOX. Remember that the power adapter will charge the battery in TOGOBOX as long as it is plugged on AC adapter or computer. Be aware that it will take much longer time to complete the charge when TOGOBOX is turned on and in-use. Remember to fully charge the battery (3.5 hours or more) before first use and whenever it’s depleted to prolong battery life. The battery will reach its maximum performance and capacity after few fully charge cycles. 1 Contents Product overview ................................................................................................................................. 2 What you could do with this unit ................................................................................................ 2 Appearances and Controls ........................................................................................................... 2 Getting started ..................................................................................................................................... 2 Charge the Unit ............................................................................................................................ 2 Charging from a computer ................................................................................................... 2 Charging with a USB AC adaptor .......................................................................................... 3 Use TOGOBOX to charge or supply power to other devices. ...................................................... 3 Setup iOS devices ......................................................................................................................... 4 Install “TOGODrive” to an iOS device .................................................................................. 4 Connecting an iOS device via wireless LAN ......................................................................... 5 Setup TOGOBOX’s WiFi security by “TOGODrive” (iOS) ...................................................... 5 Setup Android devices ................................................................................................................. 9 Install “TOGODrive” to an Android device ......................................................................... 10 Connecting an iOS device via wireless LAN ....................................................................... 11 Setup TOGOBOX’s WiFi security by “TOGODrive” (Android) ............................................ 12 How to use TOGOBOX ....................................................................................................................... 13 How to use “TOGODrive” (iOS) .................................................................................................. 21 How to use “TOGODrive” (Android) .......................................................................................... 20 How to use PC and network neighborhood (samba) to access TOGOBOX ............................... 21 2 Product overview What you could do with this unit By wireless LAN function provided by TOGOBOX, you can access and manage data (photos, music, videos, document files, etc.) in a memory card inserted in this unit or in a device connected to TOGOBOX via USB on your smartphone, tablet or computer. TOGOBOX can work as battery charger and supply power to connected smart phone or tablet device. TOGOBOX can act like a wireless router, which can share wired network, 3G/LTE networks, and existing Wi-Fi internet to wireless LAN, allow users to go access internet from TOGOBOX. Connect USB cables from TOGOBOX to computer could turn it into SD card reader. Appearances and Modes Turn on TOGOBOX into Power Bank Mode: Press switch button for about 1 second, the LED will turn into green. Turn on TOGOBOX into WiFi Storage mode: In Power Bank Mode, press switch button again for about 1 second, the LED begins blinking in blue. App and PC can access to TOGOBOX when the LED become solid blue. Getting started Charge the Unit Charging from a computer 1. Turn on the computer. TOGOBOX can’t be charged when PC is turned off or in sleep mode. 3 2. Connect this unit to the computer with the USB cable (supplied). The battery indicator lamp lights orange (blink every 1 second), and charge begins. When this unit is fully charged, the battery indicator will turn into green. 3. When charging is complete, disconnect the USB cable from the unit and the computer. Approximate charging time: 8 hours (estimation is under AXIM’s test condition). Note:  TOGOBOX will be recognized as card reader when connected with PC while power off.  Be sure to insert the connector from correct direction. Pushing the connector forcibly into the port may damage the port and result malfunction.  Charge the battery in an ambient temperature of 0 °C - 30 °C (32 °F - 86 °F). For optimum performance of the rechargeable lithium-ion battery, it is recommended to charge between 10 °C – 30 °C (50 °F - 86 °F).  If an abnormality (e.g. increased unit temperature, insufficient power supply) occurs while charging, the battery indicator lamp may blink orange (blink every 0.5 second), and charging may stop.  If above issue happens when the device is on (with green or blue light on), please turn off TOGOBOX and try again. Charging with a USB AC adaptor 1. Connect the USB AC adaptor to the USB mini port located on the back side of this unit. 2. Connect the USB AC adaptor to the wall outlet (wall socket). The battery indicator lamp will turn into orange, the unit starts charging. When this unit is fully charged, the battery indicator lamp turns to green. 3. When charging is complete, disconnect the USB AC adaptor from the unit. Approximate charging time: 3 hours (estimate is under AXIM’s test environment) Note:  Be sure to insert the connector from correct direction. Pushing the conn…

Text truncated - open the document above for the full version.

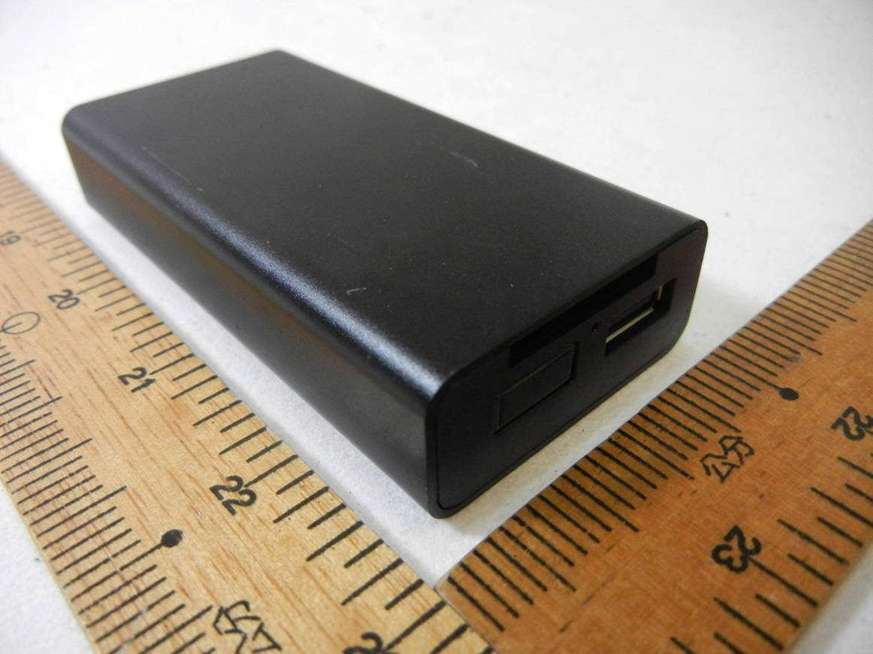

CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued Date:Jul. 05, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A1 of A8 FCC ID:ZXPTGB102 Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued Date:Jul. 05, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A2 of A8 FCC ID:ZXPTGB102

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued Date:Jul. 05, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A3 of A8 FCC ID:ZXPTGB102 CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued Date:Jul. 05, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A4 of A8 FCC ID:ZXPTGB102 Antenna 1 CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued Date:Jul. 05, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A5 of A8 FCC ID:ZXPTGB102 Antenna 2 Adapter 1 CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued Date:Jul. 05, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A6 of A8 FCC ID:ZXPTGB102 CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued Date:Jul. 05, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A7 of A8 FCC ID:ZXPTGB102 Adapter 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued Date:Jul. 05, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:A8 of A8 FCC ID:ZXPTGB102

CERPASS TECHNOLOGY CORP. Report No.: TEFB1306097 Cerpass Technology Corp. Issued date:Sep. 03, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:1 of 3 FCC ID:ZXPTGB102 Radio Frequency Exposure LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUTBluetooth Speaker Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.150GHz ~ 5.250GHz WLAN: 5.725GHz ~ 5.850GHz Bluetooth: 2.402GHz ~ 2.480 GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE802.11b:10.30dBm (0.0107W) IEEE802.11g:13.49dBm (0.0223W) IEEE802.11n HT20:12.80dBm (0.0191W) IEEE802.11n HT40:12.60dBm (0.0182W) Antenna gain (Max)2.2 dBi; 1.33dBi Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 13.49 dBm (0.0107W)at 2412MHz(with numeric 0 antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum powerdensity is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. *Note: Simultaneous transmission is not applicable for this EUT. CERPASS TECHNOLOGY CORP. Report No.: TEFB1306097 Cerpass Technology Corp. Issued date:Sep. 03, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:2 of 3 FCC ID:ZXPTGB102 TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S WhereE = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S     Equation 1 Whered = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFB1306097 Cerpass Technology Corp. Issued date:Sep. 03, 2013 Tel: 886-2-2655-8100 Fax: 886-2-2655-8200 Page No.:3 of 3 FCC ID:ZXPTGB102 Maximum Permissible Exposure Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) IEEE802.11b2412-246210.302.220 0.004 1 IEEE802.11g2412-246213.492.220 0.007 1 IEEE802.11n HT202412-246212.802.220 0.006 1 IEEE802.11n HT402422-245212.602.220 0.006 1 Modulation Mode Frequency band (MHz) Max. Conducted output power(dBm) Antenna gain (dBi) Distance (cm) Power density (mW/cm2) Limit (mW/cm2) IEEE802.11b2412-246210.301.3320 0.004 1 IEEE802.11g2412-246213.491.3320 0.007 1 IEEE802.11n HT202412-246212.801.3320 0.006 1 IEEE802.11n HT402422-245212.601.3320 0.006 1 NOTE: Total (Chain0+Chain1) , the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density

CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued date:Sep. 03, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:1 of 125 FCC ID:ZXPTGB102 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant:AXIM Communications Inc. Address: 2F., No.111, Sec. 1, Xinsheng S. Rd., Da-an Dist., Taipei City 106, Taiwan (R.O.C.) Equipment:Portable Wireless Storage Model No.:TGB-102N FCC ID:ZXPTGB102 Trade Name:AXIMCom The test result refers exclusively to the test presented test model / sample., Without written approval ofCerpass Technology Corp.,the test report shall not be reproduced except in full. The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued date:Sep. 03, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:2 of 125 FCC ID:ZXPTGB102 Contents 1.Report of Measurements and Examinations ....................................................................................6 1.1List of Measurements and Examinations ...................................................................................6 2.Test Configuration of Equipment under Test ...................................................................................7 2.1Feature of Equipment under Test...............................................................................................7 2.2Carrier Frequency of Channels ..................................................................................................7 2.3Test Mode and Test Software.....................................................................................................8 2.4Description of Test System.........................................................................................................8 2.5General Information of Test........................................................................................................9 2.6Measurement Uncertainty ..........................................................................................................9 3.Antenna Requirements.....................................................................................................................10 3.1Standard Applicable .................................................................................................................10 3.2Antenna Construction and Directional Gain.............................................................................10 4.Test of Conducted Emission............................................................................................................ 11 4.1Test Limit .................................................................................................................................. 11 4.2Test Procedures ....................................................................................................................... 11 4.3Typical Test Setup ....................................................................................................................12 4.4Measurement Equipment .........................................................................................................12 4.5Test Result and Data ................................................................................................................13 4.6Test Photographs .....................................................................................................................19 5.Test of Radiated Emission ...............................................................................................................20 5.1Test Limit ..................................................................................................................................20 5.2Test Procedures .......................................................................................................................20 5.3Typical Test Setup ....................................................................................................................21 5.4Measurement Equipment .........................................................................................................21 5.5Test Result and Data (9kHz ~ 30MHz).....................................................................................21 5.6Test Result and Data ................................................................................................................22 5.7Test Photographs (30MHz~1GHz) ...........................................................................................94 5.8Test Photographs (1GHz~25GHz) ...........................................................................................95 6.6dB Bandwidth Measurement Data .................................................................................................96 6.1Test Limit ..................................................................................................................................96 6.2Test Procedures .......................................................................................................................96 6.3Test Setup Layout ....................................................................................................................96 6.4Measurement Equipment .........................................................................................................96 6.5Test Result and Data ................................................................................................................96 7.Maximum Peak and Average Output Power .................................................................................103 7.1Test Limit ...............................................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued date:Sep. 03, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:19 of 125 FCC ID:ZXPTGB102 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued date:Sep. 03, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:94 of 125 FCC ID:ZXPTGB102 5.7 Test Photographs (30MHz~1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1306097 Cerpass Technology Corp.Issued date:Sep. 03, 2013 Tel:886-2-2655-8100 Fax:886-2-2655-8200Page No.:95 of 125 FCC ID:ZXPTGB102 5.8 Test Photographs (1GHz~25GHz) Front View Rear View
