ZXPX108NXBroadband Sharing Router

i X-108NX English Version 2.0.7 i CONTENT CHAPTER1 INTRODUCTION .............................................................................................................. 1 1.1 BENEFITS .................................................................................................................................. 1 1.2 PACKAGE CONTENT ............................................................................................................. 2 CHAPTER2 HARDWARE INSTALLATION ........................................................................................... 5 2.1 PANEL LAYOUT ....................................................................................................................... 5 2.1.1 Front LEDs ....................................................................................................................... 5 2.1.2 Side Panel ...................................................................................................................... 6 2.1.3 Rear Panel ..................................................................................................................... 6 2.2 PROCEDURE FOR HARDWARE INSTALLATION .................................................................... 7 2.2.1 Power On ....................................................................................................................... 7 2.2.2 Setup LAN Connection ................................................................................................ 7 2.2.3 Setup WAN Connection .............................................................................................. 7 CHAPTER3 NETWORK SETTINGS FOR YOUR PC ............................................................................. 8 3.1 FOR WINDOWS XP USERS ...................................................................................................... 8 3.2 FOR WINDOWS 2000 USERS ................................................................................................ 10 3.3 FOR WINDOWS 98/ME USERS ............................................................................................. 12 3.1 FOR WINDOWS7 USERS ....................................................................................................... 14 CHAPTER4 ACCESSING TO AXIMCom X-ROUTER ......................................................................16 4.1 START-UP AND LOG-IN ........................................................................................................ 16 CHAPTER5 BASIC SETTINGS ............................................................................................................17 5.1 WAN SETUP ........................................................................................................................... 17 5.1.1 DHCP (automatic IP address assignment) ............................................................. 19 5.1.2 Static (Fixed IP address assignment) ....................................................................... 20 5.1.3 PPPoE (connected by username/password) ........................................................ 21 5.1.4 Mobile WAN (connected by information related to what your ISP needs) ..... 22 5.1.5 Windows Mobile / Google Android Phones / iPhone .......................................... 24 5.1.6 HSPA+ Super Speed ................................................................................................... 25 5.2 WAN DETECT ........................................................................................................................ 27 5.3 LAN SETUP ............................................................................................................................. 28 5.4 ROUTING SETUP .................................................................................................................... 29 5.4.1 Routing Settings .......................................................................................................... 29 5.4.2 Add Routing Rule ....................................................................................................... 30 5.4.3 Example ....................................................................................................................... 31 5.5 DHCP SERVER SETUP ............................................................................................................ 32 5.6 DDNS SETUP .......................................................................................................................... 33 5.7 MAC ADDRESS CLONE SETUP ............................................................................................ 35 ii CHAPTER6 WIRELESS SETTINGS ......................................................................................................36 6.1 BASIC SETUP .......................................................................................................................... 36 6.1.1 Settings ......................................................................................................................... 36 6.1.2 SSID Settings................................................................................................................. 38 6.1.3 WEP ............................................................................................................................... 40 6.1.4 WPA Pre-shared Key / WPA2 Pre-shared Key ........................................................ 40 6.1.5 WPA / WPA2 ................................................................................................................ 42 6.2 ADVANCED SETUP ............................................................................................................... 43 6.3 WDS SETUP ............................................................................................................................ 45 6.4 UNIVERSAL REPEATER SETUP ............................................................................................... 46 CHAPTER7 SECURITY …

Text truncated - open the document above for the full version.

Axim Communications 1F., No.5, Aly. 12, Ln. 15, Sec. 6, Sinyi Rd., Sinyi Dist. Taipei City 110 Taiwan (R.O.C.) FCC Declaration of Conformity Number: CF302 Version: V04 Date: 22-09-2011 A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827. We, (responsible party must be a legal entity registered within the U.S., see FCC rule part 2.909 (2), must a U.S. address, such as importer or local manufacturer) Company Name: Axim Communications Address: 1F., No.5, Aly. 12, Ln. 15, Sec. 6, Sinyi Rd., Sinyi Dist. Postal/Zip: 110 City: Taipei City State/Province: -- Country: Taiwan (R.O.C.) Contact Person: Mr. Ms. Name: Louis Chen Function: Director Email: [email protected] Web: www.aximcom.com Phone: +886 286983936 Fax: +886 286983938 declare for the equipment identified by: Product Description Broadband Sharing Router Type or Model(s) X-108NX Tradename or Brand(s) AXIMCom that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Accredited Test Firm or Laboratory name: Accreditation Reference: Test Report Number: Date of issue: Cerpass Technology Corporation (Taipei, Taiwan) APEC TEL / designation No. TW1049 TEFD1110072 2011-11-10 Cerpass Technology Corporation (Taipei, Taiwan) APEC TEL / designation No. TW1049 TEFI1110072 2011-11-10 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19. City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Enschede, The Netherlands 2011-11-18 Mark Koop (authorized agent) Manager This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

Axim Communications 1F., No.5, Aly. 12, Ln. 15, Sec. 6, Sinyi Rd., Sinyi Dist. Taipei City 110 Taiwan (R.O.C.) Limited Channel Declaration Number: CF309 Version: V01 Date: 08-09-2011 (This form must be used and submitted for applications concerning equipment that may risk operating on non-U.S. frequencies that not allowed to use in the U.S., or equipment that may risk operating beyond the frequency channels for which it is certified.) To: Federal Communications Commission 7345 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner / Review Engineer Subject: Amount of Channels limited for devices marketed in the US Hereby, we: (the applicant company) Company Name: Axim Communications Address: 1F., No.5, Aly. 12, Ln. 15, Sec. 6, Sinyi Rd., Sinyi Dist. Postal/Zip: 110 City: Taipei City State/Province: -- Country: Taiwan (R.O.C.) declare that this device identified by: Grantee Code (CG) Product Code FCC ID: ZXP X108NX (below, please provide the channels and frequencies supported by this device) only supports IEEE802.11b/g/n(HT20) channel 1-11 (2412–2462 MHz) and IEEE802.11n(HT40) channel 3-9 (2422–2452 MHz) for marketing and use in the US. The end user will not be able to select any other channel or non US frequency that could violate the restricted bands in the US. (Attestation) (the applicant company or its authorized representative) City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Enschede, The Netherlands 2011-11-18 Mark Koop (authorized agent) Manager

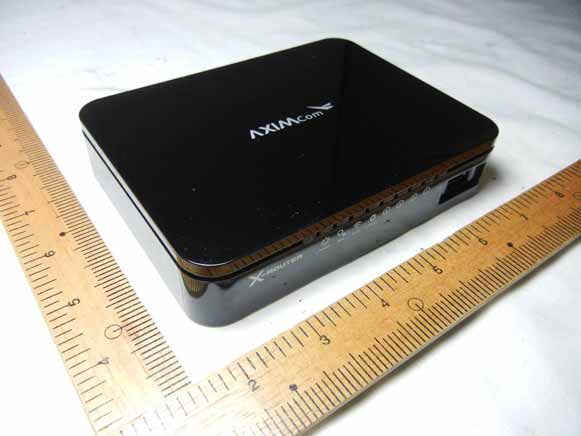

CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A7 FCC ID : ZXPX108NX Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A7 FCC ID : ZXPX108NX

Label & Location Item ContentDimensionsMaterial of Printed PaperPounds of Printed PaperCorrugated paperDie cutGlazeFoldingGlueBook BindingPrinting Mode Original Color of Housing Spray Paint on HousingDie cut P/N Specifications Category Retail Box User Guide Guarantee Quick Guide Label Name Plate Print on Housing CD Print CD Wrapper Anti-Static electricity Bag Bubble Bag Inner Box Foam-rubber Cushion ! Approval Item Approval Item 13 Common difference between/ Unit/cm Rate/ Date/ 2011 / 01 / 20 Part No/Name of Art Work/Designer/Examing/ Nicole 63y46!nnCmbdl +-1mm 100% 7434-1731-10 Device Label(RoHS)_AXIMCOM રހል211QНጤ 1 -3-4-9-21 Code 128 (5mm height) YY=yearWW=WeekN=SN(9) Code 39 (5mm height) WLAN MAC: 001333NNNNNN S/N: YYWWNNNNNN YYWWNNNNNN 001333NNNNNN FCC ID: ZXPX108NX

CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A7 FCC ID : ZXPX108NX CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A7 FCC ID : ZXPX108NX CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A7 FCC ID : ZXPX108NX CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A7 FCC ID : ZXPX108NX CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A7 FCC ID : ZXPX108NX

Test Result of RF Exposure Evaluation . Product: Broadband Sharing Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD Antenna Gain Frequency Range: 2.4 GHz Antenna R: Antenna type: Dipole Antenna Antenna Gain: 3.00 dBi Antenna L: Antenna type: Dipole Antenna Antenna Gain: 3.00 dBi EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Nov. 04, 2011 Temperature: 25 Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Power Density (S) (mW/Cm2) ANT R ANT L ANT R ANT L 802.11b (11Mbps) 01 2412 17.47 17.28 0.022 0.021 06 2437 17.29 17.29 0.021 0.021 11 2462 17.51 17.06 0.022 0.020 802.11g (6Mbps) 01 2412 14.13 14.35 0.010 0.011 06 2437 14.04 14.64 0.010 0.012 11 2462 14.28 14.06 0.011 0.010 Modulation Standard Channel Frequency (MHz) Peak Power Output (dBm) Power Density (S) (mW/Cm2) ANT R+L ANT R+L 802.11n HT20 (13Mbps) 01 2412 16.19 0.017 06 2437 16.52 0.018 11 2462 16.27 0.018 802.11n HT20 (27Mbps) 01 2412 16.19 0.017 06 2437 16.52 0.017 11 2462 16.27 0.018 The MPE is calculated as 0.022 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 119 FCC ID : ZXPX108NX FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C Applicant : AXIM Comunications Address : 1F., No.5, Aly. 12, Ln. 15, Sec. 6, Sinyi Rd., Sinyi Dist., Taipei City 110, Taiwan (R.O.C.) Equipment : Broadband Sharing Router Model No. : X-108NX FCC ID : ZXPX108NX Trade Name : AXIMCom ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 119 FCC ID : ZXPX108NX Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 8 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 19 5. Test of Radiated Emission ............................................................................................................... 20 5.1 Test Limit .................................................................................................................................. 20 5.2 Test Procedures ....................................................................................................................... 20 5.3 Typical Test Setup .................................................................................................................... 21 5.4 Measurement equipment ......................................................................................................... 21 5.5 Test Result and Data ................................................................................................................ 22 5.6 Test Photographs ..................................................................................................................... 58 6. 6dB Bandwidth Measurement Data ................................................................................................. 59 6.1 Test Limit .................................................................................................................................. 59 6.2 Test Procedures ....................................................................................................................... 59 6.3 Test Setup Layout .................................................................................................................... 59 6.4 Measurement equipment ......................................................................................................... 59 6.5 Test Result and Data ................................................................................................................ 59 7. Maximum Peak Output Power ......................................................................................................... 72 7.1 Test Limit .................................................................................................................................. 72 7.2 Test Procedures ...................................................................................................…

Text truncated - open the document above for the full version.

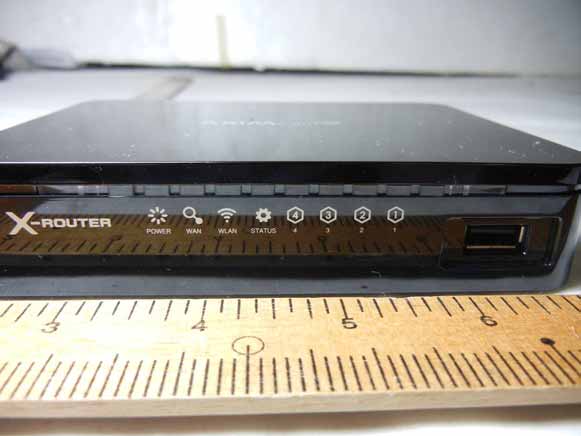

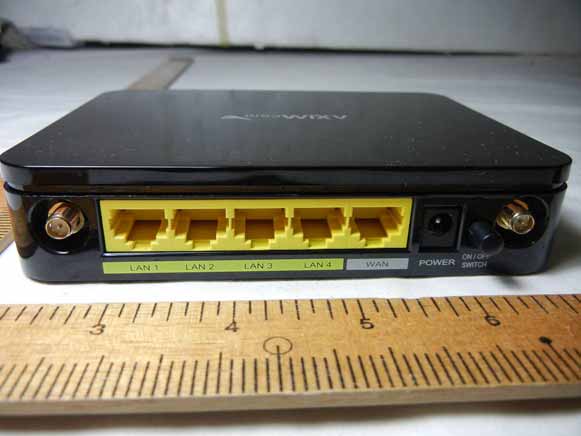

CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 19 of 119 FCC ID : ZXPX108NX 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1110072 Cerpass Technology Corp. Issued Date : Nov. 10, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 58 of 119 FCC ID : ZXPX108NX 5.6 Test Photographs Front View Rear View
