ZXWWF360POS PDA

WF360 POS PDA Quick Start Guide Copyright
Copyright 2011-2013 Widefly Limited. All rights reserved.
Product specifications and features are for reference only and are subject to change without prior notice. Declaration
This document is published by Widefly Limited without any warranty.
Improvements and changes to this document necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Widefly Limited any time and without notice. Such changes will, however, be incorporated into new editions of this Guide. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1． This device may not cause harmful interference, and 2． This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for the compliance could void the users’ authority to operate the equipment. WF360 POS PDA Quick Start Guide Important safety information Please read this carefully before using WF360 POS PDA.
Always treat the product with care and keep it in a clean and dust-free place.
Do not expose the unit to moisture or humidity.
Do not expose the unit to extreme high or low temperatures.
Do not attempt to disassemble the unit
Use only the power adaptors, charging cradle and batteries approved by Widefly Limited. The use of any other type may invalidate any approval and warranty.
The socket outlet for the power adaptor shall be installed near the equipment and shall be easily accessible.
No reverse polarity charging with other power adaptors/chargers, they may have inverse polarity.
Never use the power adaptor/chargers if the plug is damaged.
Never touch the charger/power adaptor if your hands/feet are wet.
Do not expose the charger/power adaptor to water, it may cause electrical fires.
Do not repair the charger/power adaptor by yourself for your safety.
To reduce the risk of fire and burns, do not disassemble, crush or puncture the battery.
Dispose of used batteries according to the instructions.
Do not dispose of the battery in fire or water.
Do not let the metal contacts on the battery touch WF360 POS PDA Quick Start Guide other metal object. It could lead to short-circuit and damage the battery.
Only approved batteries, chargers/power adaptors that are designed for the model can be used with the unit.
Risk of explosion if battery is replaced by an incorrect type.
Do not exchange with wrong model battery. It may cause explosion. Please dispose battery following instruction. To prevent possible hearing damage, do not listen at high volume levels for long periods. WF360 POS PDA Quick Start Guide Table of Contents 1. Overview................................................... 1 1.1. WF360 Overview ................................. 1 1.2. Inserting and Removing Battery .......... 5 1.3. Charging Battery ................................. 6 1.4. LED Light Status .................................. 7 1.5. System Info ......................................... 8 2. Getting Started ......................................... 9 2.1. Turn ON/OFF ....................................... 9 2.2. System Sleep Mode & Wakeup ............10 2.3. Wi-Fi Basic Settings ............................11 2.4. Clean Reset ........................................13 3. Power Settings .........................................14 3.1. Screen Saving .....................................14 3.2. Configure Sleep Mode .........................15 WF360 POS PDA Quick Start Guide P.1 1. Overview 1.1. WF360 Overview Main / Wi-Fi LED Ambient Light Sensor Protective Flip Cover Touch Panel & LCD Front Without Flip Cover WF360 POS PDA Quick Start Guide P.2 Note: the USB host was loaded with 5V (DC), maximum 500mA during normal condition. USB Host for External Detachable Devices Hand Strap Hole Speaker Battery Cover Hand Strap Hole Battery Cover Latch Stylus for Reset Button Strap Hole Rear WF360 POS PDA Quick Start Guide P.3 Note: the USB port is for charging only USB Host for External Detachable Devices Power Key Shortcut Key (Left) Shortcut Key (Right) MicroSD Card Slot Stylus for Reset Button Strap Hole Strap Hole USB (for Charging) Headset Jack Reset Key Microphone Bottom Top Left Right WF360 POS PDA Quick Start Guide P.4 WF360 POS PDA Quick Start Guide P.5 1.2. Inserting and Removing Battery Inserting Battery
Align the battery metal contacts with the contacts inside the battery compartment.
Press the battery downwards until it fits the battery compartment. Push the battery until it is locked automatically Removing Battery
Turn off the PDA by press-and-holding the power key and select “Power off”. (Please refer to 2.1 Turn ON/OFF)
Open the battery cover. Push the battery lock to the left and hold it.
Gently lift the battery by pulling the strap attached to the battery top position. Battery Lock WF360 POS PDA Quick Start Guide P.6 1.3. Charging Battery The battery can be charged by the following:
Plug in the USB power adaptor to PDA’s bottom USB socket. Note: the USB terminal was loaded with 5V (DC), 500mA during normal condition. USB Socket WF360 POS PDA Quick Start Guide P.7 1.4. LED Light Status The LEDs has different status: Main LED
Amber – battery is being charged
Green – battery full
Red – battery low Wi-Fi LED
Blue flash quickly – Wi-Fi scanning
Blue flash slowly – Wi-Fi connected
Blue solid – Wi-Fi in sleep mode
Off –Wi-Fi off WF360 POS PDA Quick Start Guide P.8 1.5. System Info From Settings > About, it displays unit’s S/N and ROM Version/Date. Note: S/N and ROM version info could also be seen when PDA is booting up. WF360 POS PDA Quick Start Guide P.9 2. Getting Started 2.1. Turn ON/OFF Turn ON
Press and hold the power key for 2 seconds and main LED is green.
The unit displays a blue screen with displays S/N and ROM info.
I…

Text truncated - open the document above for the full version.

Widefly Ltd. We, Widefly Ltd. declare that: for this EUT (FCC lD: ZX\ A//F360), the USB port is just used for Charging only, it cannot exchange data with the computer. - Must be signed by applicant contact given for applicant on the FCC site, or by rhe authorized agent ifan appropriate authorized agent letter has been provided. I-etters shoulcl be placed on appropriate lenerhead.

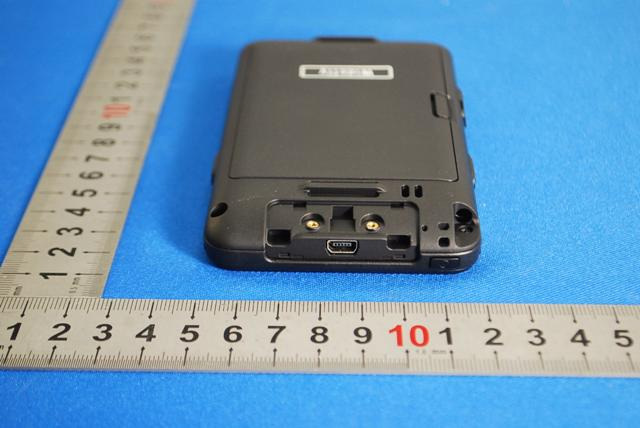

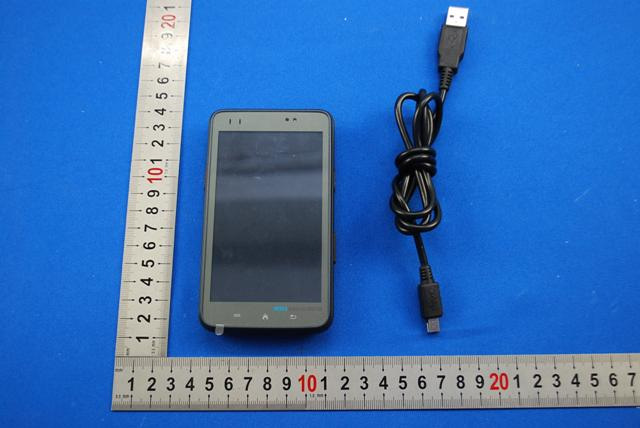

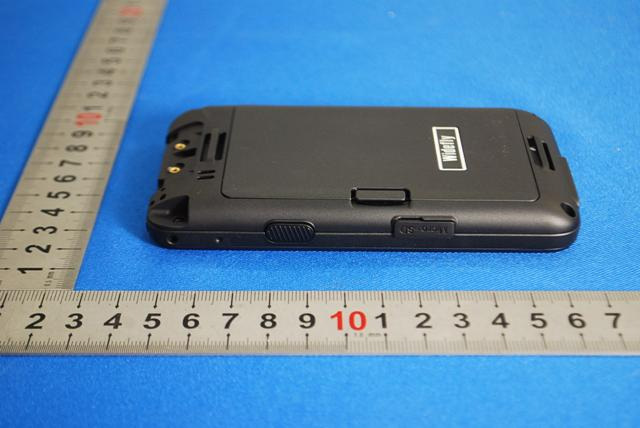

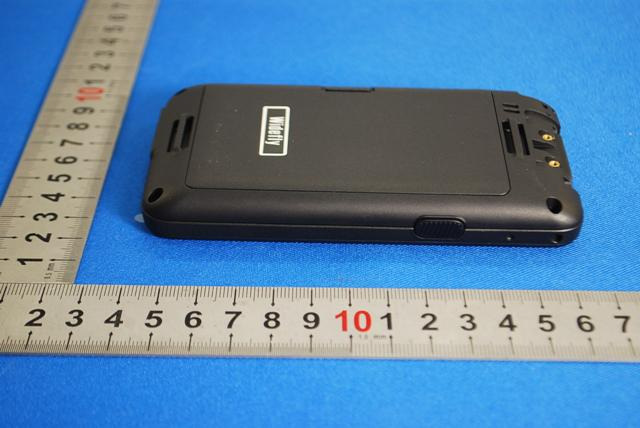

1 Photographs - EUT Constructional Details Test model No.:WF360 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.”

Widefly Ltd http://www.widefly.com Re: FCC label location of WF360 POS PDA Users of WF360 POS PDA could be able to locate the FCC label in two locations. First, FCC label is placed in the battery compartment of the unit. Since we ship the product with battery unplugged in the standard package, users will be able to see the FCC label every time battery cover is open and battery is inserted to the unit. Second, WF360 Quick Start Guide comes with standard package. Users will be able to locate the FCC info in the Guide. As for time of purchase when users send us orders (purchase oder), Widefly will send back quotation / proforma invoice which FCC info is included in the official documents. _______________________ Director, R&D Widefly Ltd

1 Photographs - EUT Constructional Details Test model No.:WF360 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of t…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131000561602 Appendix A Detailed System Validation Results System Performance Check 2450MHz Body Date/Time: 2013-10-28 9:58:28 Test Laboratory: SGS-SAR Lab System Performance Check 2450MHz Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 733 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2450 MHz; σ = 1.95 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(4.2, 4.2, 4.2); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.1 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.1 V/m; Power Drift = -0.171 dB Peak SAR (extrapolated) = 29.8 W/kg SAR(1 g) = 13.2 mW/g; SAR(10 g) = 5.86 mW/g Maximum value of SAR (measured) = 14.8 mW/g 0 dB = 14.8mW/g

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131000561602 Appendix B Detailed Test Results WIFI 802.11b 11CH Back Side 0mm WIFI 802.11b 11CH Left Side 0mm WIFI 802.11b 11CH Right Side 0mm WIFI 802.11b 11CH Top Side 0mm Date/Time: 2013-10-28 11:28:40 Test Laboratory: SGS-SAR Lab WF360 WiFi 802.11b 11CH Back Side 0mm DUT: WF360; Type: POS PAD; Serial: NA Communication System: 802.11b/g; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.96 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(4.2, 4.2, 4.2); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.279 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.6 V/m; Power Drift = -0.115 dB Peak SAR (extrapolated) = 0.501 W/kg SAR(1 g) = 0.247 mW/g; SAR(10 g) = 0.124 mW/g Maximum value of SAR (measured) = 0.271 mW/g 0 dB = 0.271mW/g Date/Time: 2013-10-28 13:39:57 Test Laboratory: SGS-SAR Lab WF360 WiFi 802.11b 11CH Left Side 0mm DUT: WF360; Type: POS PAD; Serial: NA Communication System: 802.11b/g; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.96 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(4.2, 4.2, 4.2); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.254 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.44 V/m; Power Drift = -0.166 dB Peak SAR (extrapolated) = 0.604 W/kg SAR(1 g) = 0.226 mW/g; SAR(10 g) = 0.090 mW/g Maximum value of SAR (measured) = 0.266 mW/g 0 dB = 0.266mW/g Date/Time: 2013-10-28 14:13:00 Test Laboratory: SGS-SAR Lab WF360 WiFi 802.11b 11CH Right Side 0mm DUT: WF360; Type: POS PAD; Serial: NA Communication System: 802.11b/g; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.96 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(4.2, 4.2, 4.2); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.081 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.46 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 0.176 W/kg SAR(1 g) = 0.081 mW/g; SAR(10 g) = 0.040 mW/g Maximum value of SAR (measured) = 0.091 mW/g 0 dB = 0.091mW/g Date/Time: 2013-10-28 15:21:27 Test Laboratory: SGS-SAR Lab WF360 WiFi 802.11b 11CH Top Side 0mm DUT: WF360; Type: POS PAD; Serial: NA Communication System: 802.11b/g; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 1.96 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3088; ConvF(4.2, 4.2, 4.2); Calibrated: 2012-11-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn569; Calibrated: 2012-11-27 Phantom: SAM 1; Type: SAM V4.0; Serial: TP-1283 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.527 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.92 V/m; Power Drift = -0.170 dB Peak SAR (extrapolated) = 0.982 W/kg SAR(1 g) = 0.477 mW/g; SAR(10 g) = 0.221 mW/g Maximum value of SAR (measured) = 0.549 mW/g 0 dB = 0.549mW/g

SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131000561602 Appendix C Calibration certificate D2450V2-SN 733(2012-11-26) DAE3-SN 569(2012-11-27) ES3-SN 3088(2012-11-26)

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM131000561602 Page : 1 of 35 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 COVER PAGE FCC SAR TEST REPORT Application No.: SZEM1310005616RF Applicant: WideFly Ltd. Manufacturer: WideFly Ltd. Factory: WideFly Ltd. Product Name: POS PDA Model No.(EUT): WF360 FCC ID: ZXWWF360 Standards: IEEE Std C95(1991) IEEE1528(2003) OET Bulletin No. 65, Supplement C (2001) Date of Receipt: 2013-10-26 Date of Test: 2013-10-28 to 2013-10-28 Date of Issue: 2013-11-25 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131000561602 Page: 2 of 35 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Frequency Band Test position Test Ch. /Freq. Max average SAR1- g(W/kg) Conducte d power (dBm) Tune up Limit （dBm） Scaling Factor Scaled SAR (W/kg) SAR limit (W/kg) verdict WIFI (2.4GHz) Body 11/2462 0.477 14.39 15.5 1.291 0.616 1.6 PASS Remark: The maximum Scaled SAR value of Body is 0.616W/kg. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM131000561602 Page: 3 of 35 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE ......................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM131000561601 Page: 1 of 83 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.…
