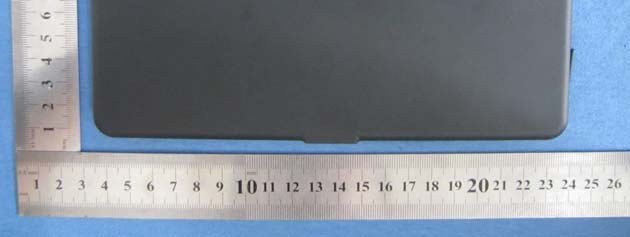

ZXWWF360STPOS TABLET

WF360ST POS TABLET Quick Start Guide Copyright
Copyright 2011-2014 Widefly Limited. All rights reserved.
Product specifications and features are for reference only and are subject to change without prior notice. Declaration
This document is published by Widefly Limited without any warranty.
Improvements and changes to this document necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Widefly Limited any time and without notice. Such changes will, however, be incorporated into new editions of this Guide. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1． This device may not cause harmful interference, and 2． This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for the compliance could void the users’ authority to operate the equipment. WF360ST POS TABLET Quick Start Guide Important safety information Please read this carefully before using WF360ST POS TABLET.
Always treat the product with care and keep it in a clean and dust-free place.
Do not expose the unit to moisture or humidity.
Do not expose the unit to extreme high or low temperatures.
Do not attempt to disassemble the unit
Use only the power adaptors, charging cradle and batteries approved by Widefly Limited. The use of any other type may invalidate any approval and warranty.
The socket outlet for the power adaptor shall be installed near the equipment and shall be easily accessible.
No reverse polarity charging with other power adaptors/chargers, they may have inverse polarity.
Never use the power adaptor/chargers if the plug is damaged.
Never touch the charger/power adaptor if your hands/feet are wet.
Do not expose the charger/power adaptor to water, it may cause electrical fires.
Do not repair the charger/power adaptor by yourself for your safety.
To reduce the risk of fire and burns, do not disassemble, crush or puncture the battery.
Dispose of used batteries according to the instructions.
Do not dispose of the battery in fire or water. WF360ST POS TABLET Quick Start Guide
Do not let the metal contacts on the battery touch other metal object. It could lead to short-circuit and damage the battery.
Only approved batteries, chargers/power adaptors that are designed for the model can be used with the unit.
Risk of explosion if battery is replaced by an incorrect type.
Do not exchange with wrong model battery. It may cause explosion. Please dispose battery following instruction. To prevent possible hearing damage, do not listen at high volume levels for long periods. WF360ST POS TABLET Quick Start Guide Table of Contents 1. Overview................................................... 1 1.1. WF360ST POS TABLET Overview .......... 1 2. Getting Started ......................................... 2 2.1. Turn ON/OFF ....................................... 2 2.2. Charging ............................................. 3 2.3. LED Light Status .................................. 3 2.4. System Info ......................................... 4 2.5. System Sleep Mode & Wakeup ............. 5 2.6. Wi-Fi Basic Settings ............................. 6 2.7. Clean Reset ......................................... 8 3. Power Settings .......................................... 9 3.1. Screen Saving ...................................... 9 3.2. Configure Sleep Mode .........................10 WF360ST POS TABLET Quick Start Guide P.1 1. Overview 1.1. WF360ST POS TABLET Overview Note: the USB host was loaded with 5V (DC), maximum 1A during normal condition. USB port is for charging only. Power Key MicroSD Card USB Socket / Main LED Earphone Jack WF360ST POS TABLET Quick Start Guide P.2 2. Getting Started 2.1. Turn ON/OFF Turn ON
Press and hold the power key for 2 seconds and main LED is green.
The unit displays a blue screen with displays S/N and ROM info.
If low battery notification is seen with red LED, battery level is low and is insufficient to boot up the unit. To restore to the minimum required power, charge the unit for 10 to 15 minutes. Turn OFF
Press and hold the power key for 1 second.
Press “Power off” to turn off the unit. WF360ST POS TABLET Quick Start Guide P.3 2.2. Charging To charge up the unit, plug in the USB power adaptor to the USB socket of the tablet. Note: the USB terminal was loaded with 5V (DC), 1A during normal condition. 2.3. LED Light Status The LEDs has different status: Main LED
Red – battery is being charged or battery low
Green – battery full
Blue solid – Wi-Fi in sleep mode WF360ST POS TABLET Quick Start Guide P.4 2.4. System Info From Settings > About, it displays unit’s S/N and ROM Version/Date. Note: S/N and ROM version info could also be seen when PDA is booting up. WF360ST POS TABLET Quick Start Guide P.5 2.5. System Sleep Mode & Wakeup System Sleep Mode (Power Saving) To enter Sleep Mode when the screen is ON
Press power key or
Put the unit upside down for 5 seconds. (Please refer to 3.1 Screen Saving) Note:
“Sleep Mode” is a unique power saving feature innovated by Widefly. Apart from its exceptionally low power consumption like power off status, Wi-Fi connection could still be kept.
This mode empowers “Always-on Wi-Fi” even the system is in deep sleep status.
Solid blue Wi-Fi LED indicates sleep mode. System Wakeup To wakeup the system from “sleep mode”, simply press power key. WF360ST POS TABLET Quick Start Guide P.6 2.6. Wi-Fi Basic Settings 1. From settings, tap the Wi-Fi ON/OFF switch 2. Wi-Fi is turned ON. Tap Wi-Fi to setup 3. Tap a network name (SSID) 4. Enter password WF360ST POS TABLET Quick Start Guide P.7 5. Network connected and locked 6. Press AP INFO and Roam Settings to display connected AP info. WF360ST POS TABLET Quick Start Guide P.8 2.7. Clean Reset …

Text truncated - open the document above for the full version.

Widefly Ltd. Unit 205, 2/F, Lakeside 2, Hong Kong Science Park, Shatin, N.T., HONG KONG DATE :2014-7-25 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hank.Yan of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Widefly Ltd. and Unit 205, 2/F, Lakeside 2, Hong Kong Science Park, Shatin, N.T., HONG KONG Dated this / Day of 7/25/2014 / Agency agreement expiration date: 7/2 5/2015 By: Alex Chan Signature Printed Title: GM On behalf of : Widefly Ltd. Telephone: +852 3679 3689

Widefly Ltd. Unit 205, 2/F, Lakeside 2, Hong Kong Science Park, Shatin, N.T., HONG KONG DATE 2014-7-25 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ZXWWF360ST Product Name: POS TABLET Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 7/25/2014 / By: Alex Chan Signature Printed Title: GM On behalf of : Widefly Ltd. Telephone: +852 3679 3689

Label Location Label location

FCC ID:ZXWWF360ST The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] ≤ 3.0 The maximum tune-up limit power is 8.58dBm(7.21mW) @ 2.437GHz For the head and body SAR, use 5mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] =2.271≤ 3.0 So standalone SAR measurements are not required for both head and body.

Global United Technology Services Co., Ltd. Report No.: GTSE14060107501 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Widefly Ltd. Address of Applicant: Unit 205, 2/F, Lakeside 2, Hong Kong Science Park, Shatin, N.T., HONG KONG Equipment Under Test (EUT) Product Name: POS TABLET Model No.: WF360ST FCC ID: ZXWWF360ST Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2013 Date of sample receipt: June 25, 2014 Date of Test: July 20-24, 2014 Date of report issued: July 24, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14060107501 Global United Technology Services Co., Ltd. Project No.: GTSE140601075RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 67 2 Version Version No. Date Description 00 July 24, 2014 Original Prepared By: Date: July 24, 2014 Project Engineer Check By: Date: July 24, 2014 Reviewer Report No.: GTSE14060107501 Global United Technology Services Co., Ltd. Project No.: GTSE140601075RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 67 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 6 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 6 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 CONDUCTED EMISSIONS ................................................................................................................... 10 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 13 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 18 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 23 7.6 BAND EDGES .................................................................................................................................... 28 7.6.1 Conducted Emission Method ..................................................................................................... 28 7.6.2 Radiated Emission Method ........................................................................................................ 31 7.7 SPURIOUS EMISSION ......................................................................................................................... 36 7.7.1 Conducted Emission Method ..................................................................................................... 36 7.7.2 Radiated Emission Method .............................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
