Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020 Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020 -1--2--3- -4--5- Ver.04 Rev. 04/06/2020 480x400mm folding to 120x200mm Ver.04 Rev. 04/06/2020 Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020 -7--6- -8--9--10--11- Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020Ver.04 Rev. 04/06/2020 -13--12--14--15- Model:100019624 30” 2.0-Channel Soundbar User Manual Check the package contents Remove all items from the packing. Retain the packaging. If you dispose of it, please do so according to local regulations. The following items are included: 1. Soundbar 2. Remote control 3. Power Cord 5.Batteries 7. 9. User manual Optical cable 4. Line in cable 6. 3.5 mm AUX cable 8. Quick Start Guides 10. Wall Mount Template Power Cord User manual SoundbarRemote control Line in cableBatteries 3.5 mm AUX cable Optical cable Wall Mount Template Quick Start Guides Product description 12 5 34 1. button: Switch between Power or Standby mode. -Press and hold 1 second for Power ON. 2. button: Select the input source. -LINE IN, AUX IN,OPTICAL 3. button, Volume down. 4. button, Volume up. 5. LED indicator 6. AC power jack. 7. LINE IN jack (L/White, R/Red) 8. Optical jack. 9. Aux-in 3.5mm stereo jack. -Use to connect Aux out/Headphone on an external device. 7689 State Indicator Bluetooth Blue Line in Green Optical Red Aux White InstallationInstallation Installation 1. Press the unit between ON and Standby. 2. Bluetooth input button. -Press and hold Bluetooth button until Blue LED flashing at the main unit for Pairing to another Bluetooth device. 3. Press to mute the sound, press again resume. 4. Press to turn Volume up or Down. 5. Play/pause/resume playback in Bluetooth mode. 6. Skip backwards to the beginning of the track or to the previous track in Bluetooth mode. 7. EQ mode : Sound modes button : Music/Movie/Talk. Standard sound button : Standard sound effect mode; -Press the button to select a desired sound effect. 8. Input Button: LINE IN / AUX IN / OPTICAL. Remote control 23 5 4 6 7 8 1.Align the Sound bar in the chosen location. Use the template provided for the drilling position. Product installation Wall Mounting Precautions : Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage. If you are going to install this soundbar yourself, you must have studied installations, such as electrical wiring and plumbing that may be buried inside the wall. It is installer's responsibility to verify that the wall safely support the total load of the Soundbar. Additional tools (excluded) are required for the installation. Do not overtighten screws. Keep this user manual for future reference. Use an electric stud finder to check the wall type before drilling and mounting. 3.Firmly fix dowel (excluded) into each in the wall if necessary. 4. Insert a screw (excluded) into each dowel. Make sure to leave a 5mm gap between the wall and the screw's head. Lift the Bar over the heads of the screws 2.Drill 2 parallel holes ( according to wall type) in the wall. as marked in Step 1. 540mm W ALL 5mm 30-40mm W ALL Dowels Solid wall(i.e., Solid brick, Solid concrete, Solid wood, Solid wooden battens) Drywall, Plaster wall, Lath wall, etc. Dowels Line in cable white red Audio device 3.5 mm AUX cable For those TVs without optical out port, please use the Line-in cable (included) to connect the TV’s stereo RCA jack and the soundbar via Line in jack. Press the LINE IN button on the remote control or press the Input button on the sound bar to choose the Line in function. -Use the 3.5mm audio cable (included) to connect the MP3 player, smartphone or other audio equipment -Then press the Aux button on the remote control or press the Input button on the sound bar to choose the Aux function. -Then press the Aux button on the remote control or press the Input button on the sound bar to choose the Aux function. Using the Optical Connection - You will need: An audio source with an optical audio output and a digital Optical cable (included) - Connect the Digital Optical Audio cable to the optical output on the audio source and to the Optical Input on the speaker bar. - Press the Input/Source button on Sound bar or on the remote control to the OPTICAL button on the remote control to switch to Optical input mode. - Using the native controls on your connected device, make sure the audio settings are set to PCM or Optical Audio and are turned on. - Audio from the connected audio source will now be played through the Soundbar. Using the Bluetooth wireless connection - Enable your Bluetooth device and keep at least 1 meter away from Sound bar. - Press and hold the Bluetooth button on the remote control or press the Input button on the sound bar until the indicator light is flashing blue. - Select the Bluetooth search function on your device. Your device should discover the Sound bar called “onn. 30” Soundbar” - Select “onn. 30” Soundbar”. Your device is paired with the Sound bar when the blue indicator light stops flashing and becomes solid blue. - If the connected device goes out of range, the Sound bar will attempt to connect for 3 minutes. When the device comes into range, the Sound bar will reconnect again automatically. - To remove a paired device using only the Sound bar, Press and hold the Bluetooth button on the remote or Input button at Bluetooth mode. The Bluetooth indicator will begin the indicator ligth is flashing blue. Optical cable Connecting to the Mains Supply Ensure that the power supply voltage is in the voltage of 100V~240V. Attaching the power cable: Slot the end of the power cable into the power socket on the back of the Soundbar. Plugging the Sound Bar in: Slot the plug on the end of the power cable into a wall socket and turn the power on if required. Note: Ensure the power supply voltage corresponds to the voltage…

Text truncated - open the document above for the full version.

Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd [2020-5-15] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement FCC ID: ZY9-100019624 To Whom It May Concern: We, Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number ZY9-100019624 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 2020-5-15. The Limited Agency Agreement expires on 2021-5-15, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Daniel Liu] [Engineering Manager] Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd

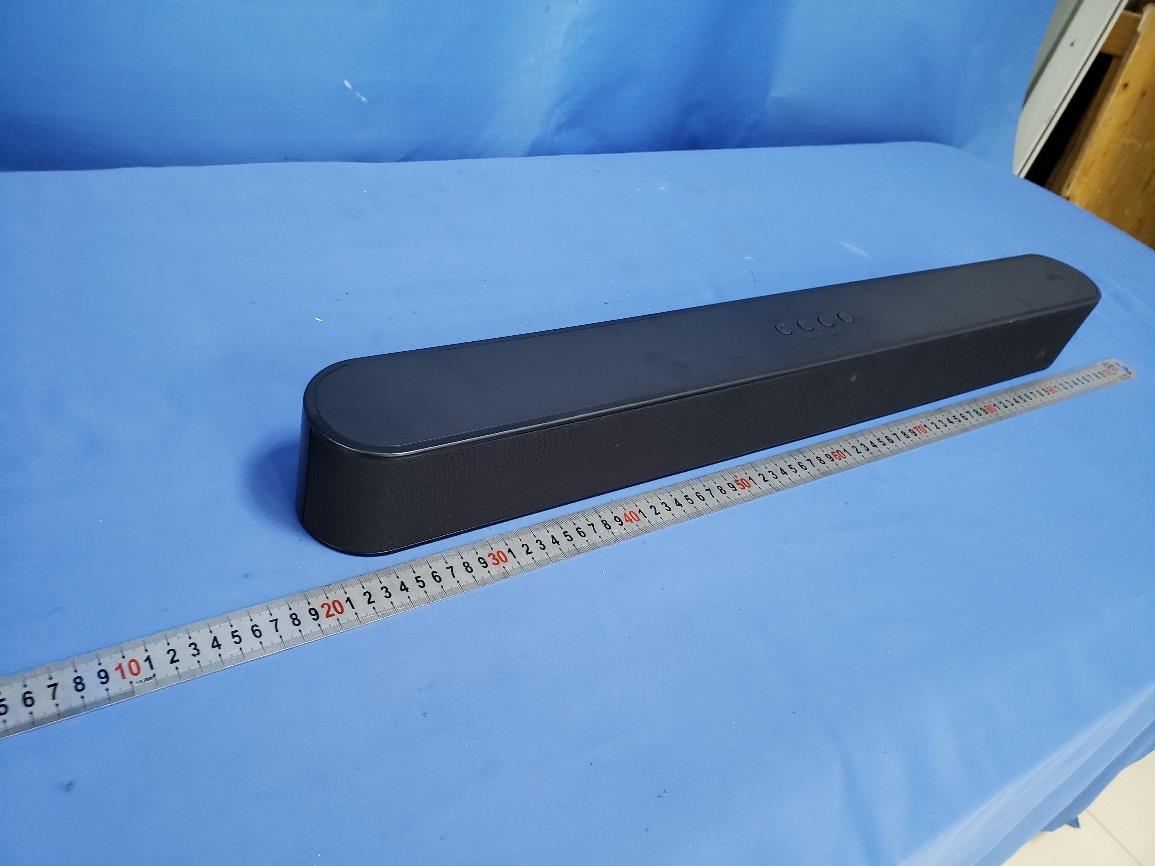

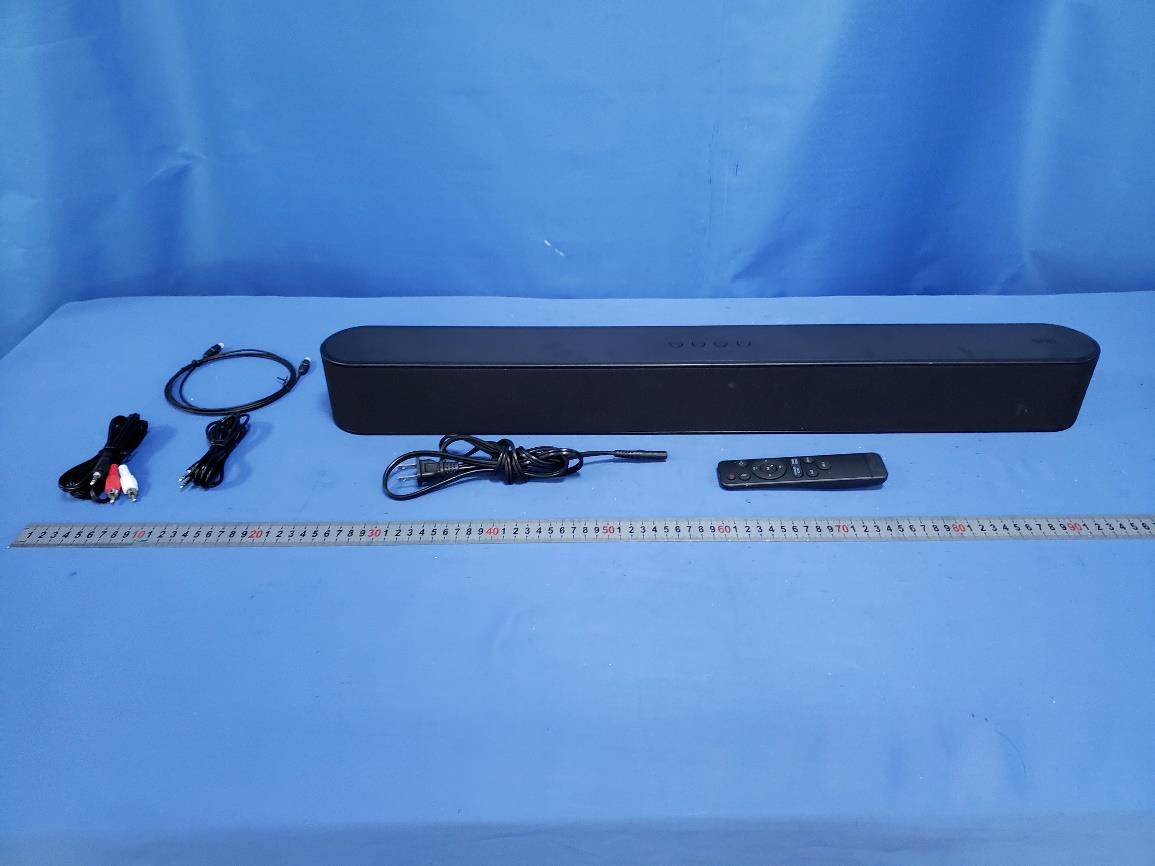

External photos

1 2 3 更改内容 更改人 日期 标示 A B C D E F 12345 6 123456A4 Technology Enterprise Co.,ltd Shenzhen Great power Innovation and 深圳市强大创新科技实业有限公司 GP 客人型号 强大型号 图纸编号 审核 设计 核准 rating(US version) 模号 材质 未注 公差 页/次1/1版本V00 单位mm数量1 1:1 比例 部品名称 部品编号 A B C D E F 长度 :0~6±0.15;6~50±0.20;50~400±0.25 400~1000±0.50 角度 : ±0.5° A19121 Date Code(laser) Embossed(moulding insert) Embossed(moulding insert) laser Made in China Model: 100019624 2022A This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interferenceand (2) this device must accept any interference received, including interference that may cause undesired operation. 30” 2.0-CHANNEL SOUNDBAR Power Supply: AC 100-240V ~ 50/60Hz Power Consumption: 36W FCC ID: ZY9-100019624 Date Code(laser) 生产厂商代码 第几周 年份 laser Made in China Model: 100019624 2022A 2022A This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interferenceand (2) this device must accept any interference received, including interference that may cause undesired operation. 30” 2.0-CHANNEL SOUNDBAR Power Supply: AC 100-240V ~ 50/60Hz Power Consumption: 36W FCC ID: ZY9-100019624 CONFORMS TO UL STD.60065 CERTIFIED TO CSA STD.C22.2 NO.60065 CONFORMS TO UL STD.60065 CERTIFIED TO CSA STD.C22.2 NO.60065 120mm 43mm

Internal Photos Bluetooth ANT

INTERTEK TESTING SERVICES RF Exposure The Equipment Under Test (EUT) is a 30” 2.0-CHANNEL SOUNDBAR with Bluetooth functions. The EUT is powered by 100-240~ 50/60Hz. The Key For more detailed features description, please refer to the user’s manual. Bluetooth Version: 5.0 (Dual mode) Antenna Type: Integral antenna. Antenna Gain: 0dBi. Modulation Type: GFSK, π/4-DQPSK and 8-DPSK The nominal conducted output power specified: -8dBm (+/-4dB) The nominal radiated output power (e.i.r.p) specified: -8dBm (+/- 4dB) According to the KDB 447498: The maximun peak radiated emission for the EUT is 88.8dBμV/m at 3m in the frequency 2480MHz (EDR mode) The EIRP = [(FS*D) ^2 / 30] mW = -6.43dBm which is within the production variation. The minimum peak radiated emission for the EUT is 83.6dBμV/m at 3m in the frequency 2402MHz (BLE mode) The EIRP = [(FS*D) ^2 / 30] mW = -11.63dBm which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting device is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: The maximun radiated output power specified is -4.0dBm = 0.398 mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna for 2.4GHz band can be calculated according to OET 65 as follow: = 0.398mW/ 4 πR^2 = 0.0000792 mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the Bluetooth frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. FCC ID: ZY9-100019624

Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd TEST REPORT SCOPE OF WORK FCC TESTING–100019624 REPORT NUMBER 200515012SZN-001 ISSUE DATE [REVISED DATE] 05 Jun 2020 [---------------------] PAGES 26 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: 200515012SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 26 FCC ID 249_C Test Report Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd Application For Certification FCC ID: ZY9-100019624 30” 2.0-CHANNEL SOUNDBAR Model: 100019624 Brand Name: onn. 2.4GHz Transceiver Report No.: 200515012SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Ryan Chen Engineer Kidd Yang Technical Supervisor Date: 05 Jun 2020 Intertek Report No.: 200515012SZN-001 Version: 01-November-2017 Page: 2 of 26 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Ryan Chen Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, ShenZhen, P.R. China Tel / Fax: 86-755-8614 0682/86-755-8601 6661 Intertek Report No.: 200515012SZN-001 Version: 01-November-2017 Page: 3 of 26 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ................................................................................................. 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description .................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ...................................................................................................... 5 2.4 Test Facility ............................................................................................................... 5 3.0 System Test Configuration ............................................................................................. 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software .............................................................................................. 6 3.3 Special Accessories ..................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty .......................................................................................... 7 3.6 Support Equipment List and Description ........................................................................ 7 4.0 Emission Results ........................................................................................................... 8 4.1 Radiated Test Results .................................................................................................. 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .............................................................. 9 4.1.3 Radiated Emissions .................................................................................................. 9 4.1.4 Transmitter Spurious Emissions ............................................................................... 12 4.2 Conducted Emission Configuration Photograph ............................................................ 16 4.2.1 Conducted Emission ............................................................................................... 16 5.0 Equipment Photographs .............................................................................................. 19 6.0 Product Labelling ........................................................................................................ 19 7.0 Technical Specifications ........................................…
