1201476 User’s Guide AM/FM/Weather • Forecasting Tabletop Radio 234567 Thank you for purchasing your AM/FM/Weather Forecasting Tabletop Radio from RadioShack. Please read this user’s guide before setting up and using your new radio. Package Contents • Tabletop Radio • Remote Sensor • AC Adapter • User’s Guide Features • Predicts and displays the weather forecast • Water-resistant remote sensor transmits wirelessly up to nearly 90 feet away (accuracy based on line of sight) • Receives all NOAA weather channels • Stores 27 preset stations (10 AM, 10 FM, 7 weather) • Auxiliary input for connecting other audio source IMPORTANT SAFETY INFORMATION 1. Read instructions before operating the product. 2. Retain instructions for future reference. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding - type plug. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or Battery Notes: • When and the readings in the radio’s RADIO/TIME display flash, replace the batteries. • Dispose of batteries promptly and properly. Do not burn or bury them. • Use only fresh batteries of the required size and type. • Do not mix old and new batteries, different types of batteries (alkaline or rechargeable), or rechargeable batteries of different capacities. • If you do not plan to use the radio for a long time, remove the batteries. Batteries can leak chemicals that can damage electronic parts. pinched, particularly plugs, convenience receptacles, and the point where they exit from the radio. 11. Only use attachments/accessories specified by the manufacturer. 12. Unplug this radio during lightning storms or when unused for long periods of time. 13. Refer all servicing to qualified service personnel. Servicing is required when the radio has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the radio, the radio has been exposed to rain or moisture, does not operate normally, or has been dropped. 14. The radio shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on radio. 15. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Power Your Radio Connect the supplied AC adapter barrel plug into the AC 9V jack at the back of the unit, and plug the adapter into a standard AC outlet. The LCD backlit display lights blue. Install Backup Batteries Backup batteries are for power outages only. Settings and data memory will be lost if both AC is out and batteries are removed. 1. Open the battery cover. 2. Install three AA batteries (not included) as indicated by the polarity symbols (+ and -) marked inside. 3. Replace the battery cover. Set Up the Remote Sensor Install Batteries 1. Slide open the battery cover. 2. Insert two AA batteries (not included) in the battery compartment matching the polarity symbols (+ and –) marked inside. 3. Replace the battery cover. Place the Remote Sensor Place the sensor on a flat surface within 90 feet (27.4 m) of your radio, in an open area free from trees or other obstructions. To mount the sensor on a wall: 1. Select a position that is not higher than 5 feet (1.5 m) on an outdoor wall. 2. Drill a hole at the position. 3. Thread a screw (not included) into the hole and let it extend slightly from the wall. 4. Fit the head of the screw into the keyhole slot of the sensor. n Note: • When and the readings flash in the radio’s OUTDOOR display, replace the batteries in the sensor. Telescoping Antenna Keyhole Slot AC 9V AUX IN Connect to an external audio source using a 3.5mm plug (not included). DIMMER Switch to LOW or HIGH to dim or brighten the radio backlit display. RESET Resetting your radio clears all your saved settings. LED Flashes once a minute to indicate signal transmission. Vents • Before mounting the remote sensor, verify the radio can receive signals from the chosen location. Move the sensor closer if the radio does not receive any signals. • Do not block vents. Do not submerge the sensor in water. Avoid exposing the sensor to direct rain, snow, or sunlight. Remove the sensor from outdoors in extreme or harsh weather. Do not place the sensor in areas of high winds. Weather Forecast The radio calculates the weather forecast for the next 12 to 24 hours, and it displays the current indoor/outdoor temperature and humidity readings. When you power on the radio, wait for about 3 minutes to receive an outdoor signal from the remote sensor. flashes until the signal is received, then it disappears when ready. n Note: If AC power is interrupted and you have not installed backup batteries, the radio will begin searching for a signal. TIME • Press to display the current time for 5 seconds in AM/FM/WX mode. • Press and hold to enter time setting in standby or AUX modes. UP/HOUR • Press to tune to stations or select a weather channel. Press and hold to scan available stations. • Adjust the hour setting. DOWN/MIN • Press to tune to stations or select a weather channel. Press and hold to scan available stations. • Adjust the minute setting. VOL Turn to switch on/off the radio and adjust volume. AM/FM/WX/ AUX Select band or change to auxiliary mode. PROGRAM Enter programming. PRESET Select a preset station. Alert Indicator ALERT Enter the alert standby mode in weather band. °C/°F Toggle between Celsius and Fahrenheit. Outdoor Humidity Indoor HumidityRadio Frequency or Clock Time Outdoor Temperature Indoor Temperature Weather Forecast 1201476_UG_EN.ind…

Text truncated - open the document above for the full version.

Shenzhen Great Power Enterprise Co. Limited Buliding E, Xin Xulong Industrial Are4 Kukeng Village, Cuanlang'fown, Baoan District, Shenzhen China TEL : +86-755-2983 2500 F AX . +86-755-2983 2502 Letter of Aqencv "1, an officer of Shenzhen Great Power Enterprise Co., Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part '18 of the FCC Rules until further notice." I further certify that no party (as defined in $1 .2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.,862. Dated this 06 day Mav of 2013 n^/ By !/A'n' W " Signature Daniel Liu Printed Name Enqineerinq Manaqer Title

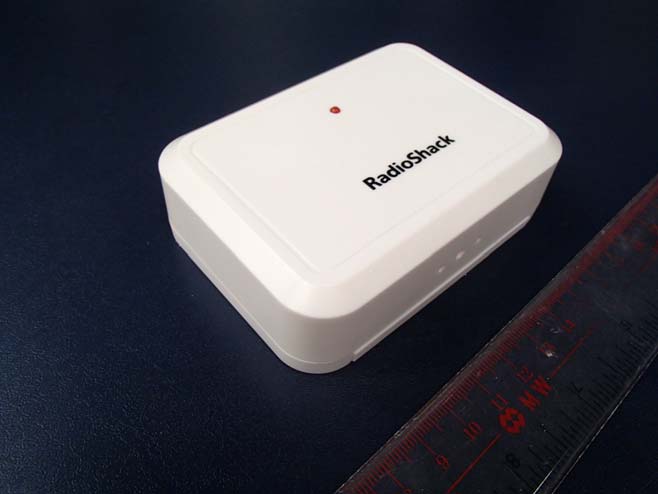

INTERTEK TESTING SERVICE Report No.: 13030709HKG-001 FCC ID: ZY9-1201476 Equipment Photographs Model: 1201476 (External)

INTERTEK TESTING SERVICE Report No.: 13030709HKG-001 FCC ID: ZY9-1201476 Equipment Photographs Model: 1201476 (Internal) INTERTEK TESTING SERVICE Report No.: 13030709HKG-001 FCC ID: ZY9-1201476 Equipment Photographs Model: 1201476 (Internal)

Technical Description The equipment under test (EUT) is a weather sensor operating at 433.95MHz. The EUT is powered by 3.0VDC (2X 1.5V "AA" batteries). The EUT will transmit RF signal to the corresponding receiver and the receiver will display the humidity and temperature on the screen of receiver. Antenna Type: Integral, Internal (PCB Trace) Nominal field strength is 86.3dB μV/m @ 3m Production Tolerance of field strength is +/-3dB Antenna gain is 0dBi The functions of main ICs are mentioned below. 1. GE13-810 (IC2) contains the MCU 32.768kHz crystal (Y4) acts as clock for the MCU core Provide main control function and it is responsible to transmit the data from temperature sensor (RT) and humidity senor (RH) to Tx module. 2. Tx module provide 433.95MHz signal transmitter Filter Network: C5, C15, C7, C13, C14, L7, L6 Amplifier and Modulator: Q1, Q2, X1

Analysis Report Report No.: 13030709HKG-001 FCC ID: ZY9-1201476 The equipment under test (EUT) is a weather sensor operating at 433.95MHz. The EUT is powered by 3.0VDC (2X 1.5V "AA" batteries). The EUT will transmit RF signal to the corresponding receiver and the receiver will display the humidity and temperature on the screen of receiver. Antenna Type: Internal, integral Antenna Gain: 0dBi Nominal rated field strength: 86.3dBμV/m at 3m Allowed field strength of production tolerance: +3dB and -3 dB Maximum allowed field strength of production: 89.3dBuV/m @ 3m According to the KDB 447498: Based on the Maximum allowed field strength of production was 89.3dBμV/m at 3m in frequency 433.950MHz, thus; The EIRP = [(FS*D) ^2*1000 / (30*1.64)] = 0.255mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.255mW. Threshold = 3.0 * (min. test separation distance, mm)/ SQRT(f in GHz) = 3.0 * ( 5 / SQRT(0.43395) ) = 23mW Since the above maximum output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing.

SCH COMPANY: MODEL: DOC VER: 00 PCB VER: TITLE: DRN./DATE:CHK. /DATE:APP. /DATE: TO FILE DWG NO: IC: LCD: SHEET OF: 3/3 3V BAT+ BAT- Y4 32768 C37 20P C40 20P LED R49 100R 1 2 CH2 3 CH1 4 CH3 TEST 2 GND 3 PWR 1 DATA TX_MODULE GE11-655 CLOSE:F RESETC/H C28104p R60 2.2K R45 1M R46 15K %1 C30 152p R47 1M R58 2.2K 48 COM5/PC2 49 COM6/PC1 50 COM7/PC0 51 SUB 1 CUP2 2 CUP1 3 VDD3 4 VDD 5 VDD1 6 GND 7 XOUT/PC3 8 XIN/PC4 9 PA7/RESET 10 PA6/CAP1B 11 PA5/BZM 12 PA4/BZ 13 PA3/RS2/CAP1A 14 PA2/RS1 15 PA1/RR 16 PA0/RC 47 COM4 46 COM3 45 COM2 44 COM1 43 SEG1 42 SEG2 41 SEG3 40 SEG4 39 SEG5 38 SEG6 37 SEG7 36 SEG8 35 SEG9 34 SEG10 33 SEG11 32 SEG12 31 SEG13 30 SEG14 29 SEG15 28 SEG16 27 SEG17 26 SEG18 25 SEG19 24 SEG20/PD0 23 SEG21/PD1 22 SEG22/PD2 21 SEG23/PD3 20 SEG24/PD4 19 SEG25/PD5/INT 18 SEG26/PD6 17 SEG27/PD7 IC2 GE13-810 C34 104 C35104p BOND-TEST RH-A HR305 RT-A AT-503F3950 R59 1k R56 0R C39 104p R48 0R 3.0V 3.0V PA7 PA6 PA4 PA5 3.0V RESET-A C/H RTRH RR CAP 3.0V RTRR CAP RH TX_DATA RESET-AC/H PD3 PA7PA6PA5PA4 PD3 GND1 GND1 3.0V TX_DATA PDF created with pdfFactory Pro trial version www.pdffactory.com

INTERTEK TESTING SERVICES Report No.:13030709HKG-001 Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 231(e) Requirement (Pass/Fail)

INTERTEK TESTING SERVICES Report No.:13030709HKG-001 Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Average factor – Pursuant to FCC Part 15 INTERTEK TESTING SERVICES Report No.:13030709HKG-001 Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Average factor – Pursuant to FCC Part 15

INTERTEK TESTING SERVICES Report No.:13030709HKG-001 Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Timing Plot – Pursuant to FCC Part 15 Section 15. 231(e) Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.:13030709HKG-001 Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Timing Plot – Pursuant to FCC Part 15 Section 15. 231(e) Requirement (Pass/Fail) INTERTEK TESTING SERVICES Report No.:13030709HKG-001 Sample No.: 1/2 Code: LFT-FCC15C_g / Effective Date: 01 Mar 2013 ( of ) Timing Plot – Pursuant to FCC Part 15 Section 15. 231(a) Requirement (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13030709HKG-001 Shenzhen Great Power Enterprise Co., Ltd. Application For Certification (Original Grant) (FCC ID: ZY9-1201476) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: May 20, 2013 INTERTEK TESTING SERVICES Report No.: 13030709HKG-001 FCC ID: ZY9-1201476 i GENERAL INFORMATION Shenzhen Great Power Enterprise Co., Ltd. BRAND NAME: RadioShack, MODEL: 1201476 FCC ID: ZY9-1201476 Grantee: Shenzhen Great Power Enterprise Co., Ltd. Grantee Address: Building E, Xin Xulong Industrial Area, Kukeng Village, Guanlan Town, Baoan District, Shenzhen, China. Contact Person: Danny Ngai Tel: 852-2620 6180 Fax: 852-2620 6808 e-mail: [email protected] Manufacturer: Shenzhen Great Power Enterprise Co., Ltd. Manufacturer Address: Building E, Xin Xulong Industrial Area, Kukeng Village, Guanlan Town, Baoan District, Shenzhen, China. Brand Name: RadioShack Model: 1201476 Type of EUT: Transmitter Description of EUT: AM/FM Weather Radio Serial Number: N/A FCC ID: ZY9-1201476 Date of Sample Submitted: March 15, 2013 Date of Test: April 22, 2013 Report No.: 13030709HKG-001 Report Date: May 20, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13030709HKG-001 FCC ID: ZY9-1201476 ii SUMMARY OF TEST RESULT Shenzhen Great Power Enterprise Co., Ltd. BRAND NAME: RadioShack, MODEL: 1201476 FCC ID: ZY9-1201476 TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) and 15.231(e) Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13030709HKG-001 FCC ID: ZY9-1201476 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 7 5.0 Product Labelling........................................................................................... 7 6.0 Technical Specifications ................................................................................ 7 7.0 Instruction Manual ......................................................................................... 7 8.0 Miscellaneous Information............................................................................ 8 8.1 Measured Bandwidth ............................................................…
