ZY9-1201479AM/FM Bluetooth Radio

1201479 User’s Guide AM/FM Bluetooth ® Radio 23456 Thank you for purchasing your AM/FM Bluetooth Radio from RadioShack. Please read this user’s guide before installing, setting up, and using your new radio. Package Contents • AM/FM Bluetooth Radio • AC Adapter • User’s Guide Features • Stores 20 preset stations (10 AM, 10 FM) • Clock with sleep function • Bluetooth connectivity enables you to wirelessly stream music from your phone, tablet or computer • Auxiliary input for connecting an MP3 player or other audio source • Bass enhancement delivers a hightened listening experience Specifications Power Input ..............................AC 9V, 1A, or 3 × AA batteries Output Power ...............................................................2W RMS Frequency Range .......................................AM: 520 - 1710kHz; ........................................................................FM: 88 -108 MHz; Tuning Step .........................................AM: 10kHz; FM: 200kHz Bluetooth Connection Range ...............................32.8 ft (10m) Bluetooth Protocol ....................................V2.1 + EDR Class 2 Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Power Your Radio • Install three AA batteries (not included), matching the polarity symbols (+ and –) marked inside. Or • Use the AC adapter to connect your radio’s AC 9V jack to a standard wall outlet. BASS Enable bass boost. Tuning +/– Tune to radio stations manually. Volume +/– AM/FM Select a band. uP/PRESET - Scan radio stations upwards. - Set hour digits. - Skip to next track. DOWn - Scan radio stations downwards. - Set minute digits. - Skip to previous track. PROg/SET - Preset radio stations. - Set the clock. - Play/pause in Bluetooth mode. POWER Turn the radio on/off. Basic Operation Listen to Your Radio 1. Flip up the antenna and fully extend it. 2. ress POWER to turn on the radio. 3. Press AM/FM to select a band. 4. Rotate Tuning +/– to tune to a specific station, or press and hold uP/PRESET or DOWn to scan radio stations. 5. Press POWER to turn off the radio. Store Preset Stations You can store 10 FM and 10 AM stations. 1. Press AM/FM to select a band. 2. Tune to your desired station. 3. Press PROg/SET. PRESET flashes on the display. 4. Press uP/PRESET or DOWn to store a preset in locations 0 to 9. Press PROg/SET to confirm. 5. Repeat steps 2-4 to store more stations. To listen to a preset station, turn on the radio, then press uP/PRESET or DOWn to find the preset location. Listen to an External Audio Source Bluetooth 1. Turn on the radio and adjust volume. 2. Press /AuX once to use the Bluetooth function. The icon flashes as the radio searches for a Bluetooth- enabled device. SLEEP Timer function to switch the radio to standby. /AuX Activate Bluetooth or AUX function. OR AA AA AA n note: • Always connect the AC adapter to the radio first, and unplug it from the outlet before unplugging it from the radio. • Replace the batteries when the sound becomes weak or distorted. Finish within 15 seconds to retain the clock and radio preset settings. Battery notes: • Dispose of batteries promptly and properly. Do not burn or bury them. • Use only fresh batteries of the required size and type. • Do not mix old and new batteries, different types of batteries (alkaline, or rechargeable), or rechargeable batteries of different capacities. • If you do not plan to use the radio for a long time, remove the batteries. Batteries can leak chemicals that can damage electronic parts. 3. Activate your device’s Bluetooth function (refer to your device’s user’s guide). 4. When RS 1201479 appears in the Bluetooth devices list, pair it to your device. 5. You can control your radio through your device or with the radio’s buttons: PROg/SET Play/pause uP/PRESET Skip to next track DOWn Skip to previous track n note: • After you turn on the radio, it attempts to resume Bluetooth connection with the formerly connected device. If the connection fails again, the radio will start searching for other Bluetooth devices. • Bluetooth connection breaks when the connected device moves too far away from the radio. You need to reestablish the connection. • If your device uses Android 2.0 and below, enter the password 0000 for Bluetooth connection. AUX 1. Turn on the radio and adjust volume. 2. Press /AuX twice to use the AUX function. AuX appears on the display. 3. Use an audio cable (not supplied) to connect your audio device to AuX in of the radio. 4. Use the controls on your connected device to control playback. 1201479_UG_EN_032913.indd 1-63/29/2013 4:17:49 PM 789101112 Important Safety Information 1. Read instructions before operating the product. 2. Retain instructions for future reference. 3. Heed all warnings. 4. Follow all instructions. 5. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Clean only with a dry cloth. 6. Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement, or near a swimming pool, etc. 7. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect if from overheating. Do not block or cover these openings. Never block by placing the product on a bed, sofa, rug, or other similar surface. Do not place this product in a built-in installation such as a bookcase or rack unless you provide proper ventilation or are adhering to the manufacturer’s instructions. 8. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 9. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fir…

Text truncated - open the document above for the full version.

Shenzhen Great Power Enterprise Co. Limited Buliding E, Xin Xulong Industrial Are4 Kukeng Village, Cuanlang'fown, Baoan District, Shenzhen China TEL : +86-755-2983 2500 F AX . +86-755-2983 2502 Letter of Aqencv "1, an officer of Shenzhen Great Power Enterprise Co., Ltd do hereby authorize Intertek Testing Services (Mr. Terry Chan / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part '18 of the FCC Rules until further notice." I further certify that no party (as defined in $1 .2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.,862. Dated this 06 day Mav of 2013 n^/ By !/A'n' W " Signature Daniel Liu Printed Name Enqineerinq Manaqer Title

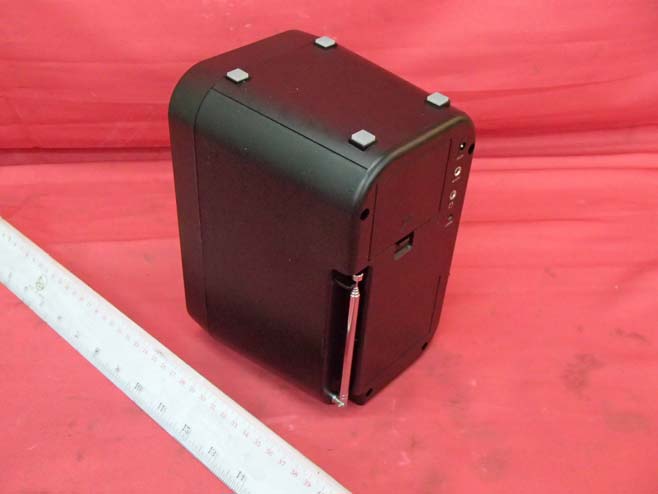

INTERTEK TESTING SERVICE Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 Equipment Photographs Model: 1201479 (External)

INTERTEK TESTING SERVICE Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 Equipment Photographs Model: 1201479 (Internal) INTERTEK TESTING SERVICE Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 Equipment Photographs Model: 1201479 (Internal) INTERTEK TESTING SERVICE Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 Equipment Photographs Model: 1201479 (Internal) INTERTEK TESTING SERVICE Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 Equipment Photographs Model: 1201479 (Internal) INTERTEK TESTING SERVICE Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 Equipment Photographs Model: 1201479 (Internal) INTERTEK TESTING SERVICE Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 Equipment Photographs Model: 1201479 (Internal) INTERTEK TESTING SERVICE Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 Equipment Photographs Model: 1201479 (Internal)

Technical Description The Equipment Under Test (EUT) is an AM/FM Bluetooth Radio. The Bluetooth portion is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 4.5VDC (3X1.5V “AA” batteries or 120VAC. When the EUT is switched ON in Bluetooth mode, the display with show “BT” and flashing. The corresponding device would be searched and connected the EUT before playing audio. After pairing, the “BT” will stay lit. 2.4GHz Bluetooth Module: Antenna Type: Integral, Internal (PCB Trace) Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Nominal field strength is 102.5dB μV/m @ 3m Production Tolerance of field strength is +2 / - 4dB Antenna gain is 0dBi The functions of main ICs are mentioned below. 1. BlueTooth module IN2020 (IC3): 1) CW6633M acts as the 2.4GHz radio core of Bluetooth module 2) The 26MHz crystal provides system clock for CW6633M. 2. AM/FM Radio Portion: 1) IC1 (BK1086/88E) acts as digital AM/FM radio demodulator. 2) Z3 (32.768kHz) provides clock for the IC1. 3. MCU module: 1) IC2 (HIC168) acts as MCU core. 2) Z2 (32.768 kHz) acts as clock for the MCU core (IC2). 4. Power Management portion: 1) IC4 (LY7527) stabilize the MCU voltage is 3.0V 2) IC5(L7805) stabilize the amplifier voltage is 5.0V. Note: The EUT is using non-adaptive frequency hopping as declared by applicant. CW 6633M Doc.NO:DS6633M Ver. 1.0 June/28/2012 Bluetooth 3.0 Single Chip for A2DP/AVRCP Solution CONWISE SBU Tel: 886-3-5719960 8F, No.47, Lane 2, Kwang-Fu Rd. Sec. 2, Hsin-Chu City, Taiwan, 30071 Fax: 886-3-5719969 www.conwise.com.tw Page: 1 / 15 General Description The CONWISE CW6633M is a monolithic, single-chip, stand-alone baseband process with an integrated 2.4GHz transceiver including EDR to 3Mbits/s for Bluetooth v2.1+EDR and v3.0 applications. The CW6633M is also completely backward-compatible with Bluetooth 1.1/1.2/2.0 specification. It eliminates the need for external flash memories and active components into the device. Thus minimizing the footprint and system cost of implementing a Bluetooth system. The CW6633M has been designed in CMOS RF technology, the most cost-performance effective silicon process today. This use of the advanced process enables the CW6633M to achieve the lowest cost total solution and maintain the possible lower current consumption in all modes of operation. The CW6633M is the optimal solution for A2DP/AVRCP applications that requires the audio bitstream payload and remote control commands/ events via UART interface. Features z Bluetooth specification version 3.0 compatible. z Support ACL multi-slot packets for Data/Audio stream application. z Support SCO/eSCO link with external PCM digital audio interface. z Support high-speed UART baud rate of up to 3Mbps and USB2.0 full-speed compliant for HCI transport z Support AFH for WiFi coexistence. z Optimal 2-wire coexistence with WLAN. z On-chip ROM eliminates dedicated flash memory chip, significantly lowering system BOM. z Integrated 8-bit 8051 microprocessor core instead of ARM/MIPS such high cost processors. z External Clock/Crystal 16, 26MHz system clocks are available to apply for system requirements. z Optional external 32.768KHz crystal/clock for deep-low power mode using. z Wide operation voltage: 2.2V~5.5V. z Package types available CW6633M: 48pin QFN package (6mm x 6mm) Applications z Bluetooth speaker utilizing A2DP/AVRCP z Audio system require audio source via Bluetooth from cellphone, PC CW6633A Audio Processor UART CW 6633M Doc.NO:DS6633M Ver. 1.0 June/28/2012 CONWISE SBU Tel: 886-3-5719960 8F, No.47, Lane 2, Kwang-Fu Rd. Sec. 2, Hsin-Chu City, Taiwan, 30071 Fax: 886-3-5719969 www.conwise.com.tw Page: 2 / 15 1. Overview The CW6633M is Bluetooth Core Specification version 3.0 compliant and designed for used for Bluetooth Audio application. The combination of the Radio Transceiver, BBC and the 8051-based microcontroller-BLM, BIM with on-chip ROM provide a complete lower layer Bluetooth protocol stock including the link controller (LC), link manger (LM), A2DP sink and AVRCP . The major features of CW6633M are listed in section 1.1 and the usage models- Bluetooth Audio is described in following section 1.2. 1.1. Features Major features of the CW6633M include: y Fully supports Bluetooth 3.0 features y Adaptive Frequency Hopping (AFH) y Scatter Mode y QoS y eSCO y Fast Connect y LMP improvements y Synchronization y Built-in regulators y Built-in TR switch y Maximum UART baud rates of 3 Mbps y Support maximum Bluetooth data rates over UART interfaces y HCI USB transport support with USB version 2.0 full-speed compliant interface y High speed HCI UART transport support y Channel quality driven data rate and package type selection y Extended radio and production test mode features y Full support for power saving modes y Built-in LPO clock using external 32.768KHz crystal/clock 1.2. Bluetooth Audio Usage Model The CW6633M is designed to provide direct interface to provide audio processor with audio bitstream transported via Bluetooth as show in figure 1. The CW6633M has very flexible PCM and UART interface enabling it to transparently connect with existing circuits. In addition, the low-cost crystal and external LPO (Low Power Oscillator) inputs allows to further minimizing the size, power and cost of the integration. The CW6633M incorporates a number of unique features to accommodate the integration into audio playback platforms. y The PCM interface provides multiple modes of operation to support both master and slave as well as interfacing to single external codec devices. y The UART interface supports hardware flow control with tight integration to power control side band signalling to support the lowest power operation. CW 6633M Doc.NO:DS6633M Ver. 1.0 June/28/2012 CONWISE SBU Tel: 886-3-5719960 8F, No.47, Lane 2, Kwang-Fu Rd. Sec. 2, Hsin-Chu City, Taiwan, 30071 Fax: 886-3-5719969 www.conwise.com.tw Page: 3 / 15 y The XTAL oscillation circuit provides a de…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 13030710HKG-001 The Equipment Under Test (EUT) is a 2.4GHz Bluetooth speaker, which is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 120VAC or 4.5VDC (3 x 1.5V size “AA” Batteries). When the EUT is switched ON, the LED will flash. It is required to press the pairing button to pair with the corresponding device before playing audio. After pairing, the LED will stay lit. The EUT has an AUX IN jack to connect corresponding device to play audio. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 102.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +2 /- 4dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 104.5dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 8.455mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 8.455mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. Note: The EUT is using non-adaptive frequency hopping as declared by applicant.

00 1201479 G & Y COMPANY LIMITED 。 APPROVED: ECO NO: LTR ABCD 6543 21 DATE: DCBA REVISION RECORD SCALE: SHEET: OF DRAWING NO: TITLE:COMPANY: RELEASED: DATED: DATED: QUALITY CONTROL:CHECKED: DATED: DATED: DRAWN: CODE: SIZE: REV: 3 1 A2 2013-03-11 XIN 1 2 3 BMQ1 K1 POWER K2 SLEEP K3 AM/FM K4 UP/PRESET K5 BT/AUX K6 BASS K7 PROG/TIME K8 DOWN G&Y 87.5MHZ AUX FMAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 LCD1 16PLCD(A) 1 COM0 2 COM1 3 COM2 4 COM3 5 IR 6 SEG1 7 SEG2 8 SEG3 9 SEG4 10 SEG5 11 SEG6 12 SEG7 13 SEG8 14 SEG9 15 SEG10 16 SEG11 17 SEG12 18 SEG13 19 SEG14 20 SEG15 21 SEG16 22 SEG17 23 RADIO_SET 24 AUX_DET 25 SKIP_DN 26 SKIP_UP 27 SHDN 28 BT_PWR 29 RX 30 TX 31 BASS 32 AUX_MUTE 33 RADIO_I2C_CLK 34 RADIO_I2C_SDA 35 BUZZER 36 RADIO_PWR 37 BACK_LIGHT 38 RESET 39 NC 40 NC 41 PLL 42 VDD 43 VSS 44 XTOUT 45 XTIN 46 NC 47 KEY1 48 KEY2 IC2 HIC168 C20 10NF C17 22P Z2 32.768KHZ C13 22P C11 0.1UF L2 FB600R R15 270K R144.7K C4 220P C7 22P C2 1UF R1 1K R12 1K R6 47K R3 47K C5 100P C6 100P R53 100K R52 100K C39 1NF C38 1NF R54 100R R51 100R R5 100K R11 100K GND IN OUT IC4 LY7527 CD1 22UF/16V C14 0.1UF CD2 10UF/25V R8 100K R13 10K R2 47K 1 2 3 Q1 L6 +- D1 1N4148 R9 100K R4 1M C1 10UF C3 1UF 1 2 D2 R10 100R 1 2 3 Q2 L6 R7 4.7K R61 1K R60 1K R64 1K R43 1K R46 1K R47 1K R56 1K R58 1K TP1 R28 100K R29 100K R21 NC R27 100K 1 T1 1 T2 1 T3 1 T4 1 T5 C53 1NF C54 1NF C55 1NF C56 1NF C57 1NF C58 1NF C59 1NF C60 1NF BATTERY_DET P3.2 MCU_3V3 RESET BACKLIGHT RADIO_PWR I2C-SDAI2C-SCL MCU_3V3 AUX_MUTE BASS RXD0 TXD0 BT_POWER SHDN TNU TNU1 MCU_3V3 TNU1 TNU MCU_3V3 VCC+5V MCU_3V3 RESET BACKLIGHT P3.2 MCU_3V3 MCU_3V3 COM[1:4] COM[1:4] COM1 COM2 COM3 COM4 COM1 COM2 COM3 COM4 SEG[1:12] SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8SEG9 SEG10SEG11SEG12 MCU_3V3 MCU_3V3 SEG7 SEG7SEG6 RESET MCU_3V3 SEG6 AMP_POWER CLOCK P1.3P1.2P1.1P1.0P4.7P4.6P4.5 P1.3P1.2P1.1P1.0P4.7P4.6P4.5 2013-03-11 XIN G & Y COMPANY LIMITED。 1201479 A2 00 23 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD ABCD DATE: 1 2 3 4 5 6 DCBA LTR ECO NO: APPROVED: 1 NC 2 GND 3 LED 4 LED 5 VBAT 6 GND 7 GND 8 32KIN 9 32KOUT 10 GND 11 LOUT 12 ROUT 13 KEY_ADC 14 NC 34 NC 33 NC 32 NC 31 NC 30 NC 29 NC 28 SD_CS 27 NC 26 NC 25 LINEIN_D 24 NC 23 NC 22 NC 21 NC 20 SD_DOUT 19 SD_CLK 18 SD_DIN 17 VDD_KEYADC 16 PA_EN 15 VDDIO IC3 IN2020 1 GND 2 GNE 3 FMI 4 RFGND 5 AMI 6 GND 7 SCLK 8 SDIO 9 PCLK 10 VDD 11 ROUT 12 LOUT 13 VA 14 GPIO3 15 GPIO2 16 EXTLNA 17 RIN2 18 LIN2 19 RIN1 20 LIN1 IC1 BK1086E R42 0R R55 1K R50 10K C36 0.1UF C40 0.1UF Z3 32.768KHZ C25 15P C24 15P C9 1UF CD3 100UF R36 1K R31 1K C23 1UF C19 1UF C28 1UF C29 IUF C15 0.1UF CD4 100UF/16V C16 0.1UF R3710R CD5 100UF/16V L5 10UH 1 2 3 Q9 S8550 R44 100K R41 100R 1 2 3 Q10 L6 R45 2.2K C37 0.1UF C12 100P L4 33UH L3 33UH FMIN C8 100P C10 20P L1 100NH 1 2 3 Q5 L6 1 2 3 Q3 L6 R18 47K R25 47K R19 1K R16 1K R20 47K R17 47K 1 2 3 Q6 L6 R24 100K R26 1K R30 4.7K 1 3 2 D3 BVA99 AMIN AM.IN 1 AMGND AMGND C34 1UF C35 1UF S G D Q17 AO3407 R85 1K C51 100P C52 100P VDDIO MUTE BT_VCC BT_RXDBT_TXD BLU_R BLU_L BLU_LBLU_R AUX_LAUX_R L_OUT R_OUT MCU_3V3 RADIO_PWR I2C-SDAI2C-SCL TXD0RXD0 VDDIO BT_TXDBT_RXD BT_VCC VCC+5V BT_POWER CLOCK XIN 2013-03-11 G & Y COMPANY LIMITED。 1201479 A2 00 33 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD ABCD DATE: 1 2 3 4 5 6 DCBA LTR ECO NO: APPROVED: 1 GND 2 OUT1 3 IN1 4 OUT2 5 IN2 VOL1 R-09KGH1(A) 1 SHUTDOWN 2 GND 3 OUTA+ 4 VDD 5 OUTA- 6 INA- 7 GND 8 INA+ 9 INB+ 10 BYPASS 11 INB- 12 OUTB- 13 VDD 14 OUTB+ 15 GND 16 HP-IN IC6CS4863 R81 100K R84 2.2K C50 0.1UF R83 100K SP-R CD11 470UF/10V C47 0.1UF R7968K R77 4.7K 1 2 3 Q13 NC R68 NC 1 2 3 Q16 NC R70 NC SP-L CD12 470UF/10V C48 0.1UF R8068K R78 4.7K C46 0.1UF BAT+ DC+ BAT- DC- C26 103 R32 4.7K R33 1K R38 3.3K C32 47NF C21 1NF 1 2 3 Q7 L6 R22 4K7 C27 103 R34 4.7K R35 1K R39 3.3K C33 47NF C22 1NF 1 2 3 Q8 L6 R23 4K7 R62 10K R57 10K C41 1NF C42 1NF R59 47K R65 47K 1 2 3 Q11 L6 1 2 3 Q12 L6 R49 4.7K R48 4.7K CD9 100UF/16V R76 1K CD10 100UF/16V R75 1K R82 100K 1 SP+L 1 SP+R R67 100K R66 33K 1 23456789 P1 9PPZ(A) +- D4 SS14 1 IN 2 GND 3 OUT IC5 L7805 CD6 C43 10NF CD13 1000UF/25V C49 10NF D6 M1 1 + 2 AC~ 3 AC~ 4 - D7 ACZL(A) R73 10R/1W S G D Q15 AO3407 +- D5 SS14 R71 100K R69 1K 1 2 3 Q14 L6 R6310K C44 0.1UF C45 0.1.UF C301UF C311UF AMP_VCC SHDN AMP_VCC R_IN MUTE AMP_VCC AMP_VCC L_IN VCC+5V R_OUT R_IN BASS L_OUT L_IN BASS AUX_MUTE AUX_MUTE AUX_R AUX_L BATTERY_DET HP-IN HP-IN L/AUX-IN R/AUX-IN L/AUX-IN R/AUX-IN RESET ACIN2 ACIN1 ACIN1ACIN2 AMP_VCCAMP_POWER C B A 3 2 1 C B A COMPANY TITLE DESIGNER DATED SIZE SHEET A3 2 OF 2 VER REV 1.0 1 BL_VI 2 VPP 3 VBATU 4 UVDD 5 UVSS 6 DP 7 DM 8 TXD 9 RXD 10 CTS 11 RTS 12 BCLK 36 VCC_VCO 35 GND_ANT1 34 RXTX 33 GND_ANT1 32 VCC_RF 31 VDDQ 30 TEST_EN 29 GPIO10 28 GPIO9 27 GPIO5 26 GPIO4 25 GPIO3 37 VTUNE 38 PLL_OUT 39 VCC_IF_XO 40 XO_P 41 XO_N 42 CNR 43 RVDD 44 REG_IN 45 VDD 46 VSS 47 XTAL0 48 XTAL1 24 GPIO2 23 GPIO1 22 GPIO0 21 VSS 20 VDD 19 IOVSS 18 IOVDD 17 RSTB 16 CDCLK 15 DR 14 DT 13 PSYN 49 GND U1 CW6633M 1 P64_CSI_REST_PWM0 2 RTC_VDD 3 32KI 4 32KO 5 MCLR 6 VSSIO 7 AVSS_HP 8 VCM 9 VOUTR 10 VOUTL 11 AVDD_HP 12 AVDD_VDDIO0 13 P20_KEY_ADCIN 14 DVSS1_TDI_TMS 42 P45_SDRAM_D5 41 P46_SDRAM_D6 40 P53_SDRAM_WE 39 P3F_SDRAM_CAS 38 P3D_SDRAM_BA0 37 P3E_SDRAM_BA1 36 VSSIO2 35 VDDIO2 34 P31_SDRAM_A1_SPI_CLK 33 P32_SDRAM_A2_SPI_CS 32 P33_SDRAM_A3_SPI_DO 31 P34_SDRAM_A4_SPI_DI 30 DVDD0 29 DVSS0 43 P81/LCD_DB1 44 P80/LCD_DB0 45 P94/LCD_RD 46 P90/LCD_WR 47 P92/LCD_RS 48 P91/LCD_CS 49 LCDVDD 50 P25/PWM2 51 P14/SPI2_CS 52 P06/SPI2_DO 53 P05/SPI2_DI 54 P04/SPI2_CLK 55 P11/INT2 56 P10/INT1 28 P24_UTX 27 P23_URX 26 MIC 25 ADCVDD 24 VSSIO1 23 VDDIO1 22 LDOVDD0 21 VD18 20 UVSS33_VS18 19 DM 18 DP 17 UVDD33 16 P16_LED1 15 DVDD1 57 GND U2 APM030 C1 1uF C2 100nF C3 0 C4 NC L1 3pF C5 1nH C6 100nF C7 100nF C8 10p…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: 13030710HKG-001 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 249 Requirement (Pass/Fail)

INTERTEK TESTING SERVICES Report No.: 13030710HKG-001 Sample No.: 1/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 199.5 kHz 42.64 L1 -20.98 1 Quasi Peak 285 kHz 52.25 N -8.41 2 CISPR Average285 kHz 46.29 N -4.37 1 Quasi Peak 402 kHz 35.56 N -22.24 1 Quasi Peak 460.5 kHz 38.03 L1 -18.64 2 CISPR Average564 kHz 32.32 L1 -13.67 1 Quasi Peak 568.5 kHz 39.93 L1 -16.06 2 CISPR Average568.5 kHz 35.10 L1 -10.89 1 Quasi Peak 852 kHz 42.76 L1 -13.23 2 CISPR Average852 kHz 41.84 L1 -4.15 1 Quasi Peak 1.419 MHz 41.59 L1 -14.40 2 CISPR Average1.419 MHz 40.09 L1 -5.90 1 Quasi Peak 1.7025 MHz 40.79 L1 -15.20 2 CISPR Average1.7025 MHz 39.01 L1 -6.98 1 Quasi Peak 2.2695 MHz 40.60 L1 -15.39 2 CISPR Average2.2695 MHz 38.82 L1 -7.17 1 Quasi Peak 3.309 MHz 35.46 L1 -20.54 2 CISPR Average3.309 MHz 33.43 L1 -12.57 2 CISPR Average4.1595 MHz 29.57 L1 -16.42 2 CISPR Average14.028 MHz 28.05 N -21.94 Conducted Emission (Pass/Fail)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13030710HKG-001 Shenzhen Great Power Enterprise Co., Ltd. Application For Certification (Original Grant) (FCC ID: ZY9-1201479) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: May 14, 2013 INTERTEK TESTING SERVICES Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 i GENERAL INFORMATION Shenzhen Great Power Enterprise Co., Ltd. BRAND NAME: RadioShack, MODEL: 1201479 FCC ID: ZY9-1201479 Grantee: Shenzhen Great Power Enterprise Co., Ltd. Grantee Address: Building E, Xin Xulong Industrial Area, Kukeng Village, Guanlan Town, Baoan District, Shenzhen, China. Contact Person: Danny Ngai Tel: 852-2620 6180 Fax: 852-2620 6808 e-mail: [email protected] Manufacturer: Shenzhen Great Power Enterprise Co., Ltd. Manufacturer Address: Building E, Xin Xulong Industrial Area, Kukeng Village, Guanlan Town, Baoan District, Shenzhen, China. Brand Name: RadioShack Model: 1201479 Type of EUT: Transceiver Description of EUT: AM/FM Bluetooth Radio Serial Number: N/A FCC ID: ZY9-1201479 Date of Sample Submitted: March 15, 2013 Date of Test: April 24, 2013 to May 09, 2013 Report No.: 13030710HKG-001 Report Date: May 14, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 ii SUMMARY OF TEST RESULT Shenzhen Great Power Enterprise Co., Ltd. BRAND NAME: RadioShack, MODEL: 1201479 FCC ID: ZY9-1201479 TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 Pass Digital Device Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2011 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13030710HKG-001 FCC ID: ZY9-1201479 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 3.4 Conducted Emission Configuration Photograph ............................................ 4 3.5 Conducted Emission Data............................................................................. 4 4.0 Equipment Photographs ................................................................................ 9 5.0 Product Labelling ........................................................................................... 9 6.0 Technical Specifications ................................................................................ 9 7.0 Instr…
