ZY9-A20030Fairytale summer night firefly light bluetooth speaker

Philyra INSTRUCTION MANUAL Model: A20030 Fairytale summer night firefly light bluetooth speaker Firefly BUTTON OVERVIEW POWER/BT Button Alarm Button Timer Button Time Button Music Button Light Button VOL- Button VOL+ Button Time On/Off Button Display INSTRUCTIONS Power/BT Button 1. Press and hold the POWER / BT button for 2 seconds to turn on the device (with Bluetooth activated by default) . The indicator light will blink when enter pairing mode. 2. To turn the device off hold the POWER / BT button for 5 second. The device, Bluetooth, voice playback and night lights will be turned off at the same time. 3.Double-click the POWER / BT button to Exit connection. Back to pairing mode and the blue indicator light will start to blink quickly. 4.While in voice mode, short press to return to the Bluetooth status 5.To turn off the bluetooth, hold the POWER / BT button for 2 second. NOTE: TIME display time is automatically adjusted to dim level if there is no operation in 5 minutes VOL+ Button 1. Short press to increase volume by 1 level (total 16 levels), long press VOL+ to increase volume quickly, display will show the volume level when adjusting the volume. VOL- Button 1. Short press to decrease volume by 1 level (total 16 levels), long press VOL- to decrease volume quickly, display will show the volume level when adjusting the volume. Music Button 1. When unit is on, short press the SOUND button to switch to next sounds, the music symbol on the screen will lights up accordingly (The volume changes to level 2 in about 3 seconds). Press the music button once to change the sounds in order of : 10. Whitenoise 11. Brahms Lullaby 12. Twinkle Twinkle Little Star 13. Moonlight Sonata 14. Schubert Serenade 15. Edelwiss 16. Red River Valley 17. Meditation from Thais 18. Mozart's Lullaby 1. Summer night 2. Brook 3. Wind 4. Ocean 5. Rain 6. RainForest 7. Campfire 8. Thunderstorm 9. Heartbeat 2. When playing sounds, long press SOUND button for 2 seconds to turn off sound. Light Button 1. When unit is on, short press the Light button to change light modes. Press and hold the Light button for 2 seconds to turn off/on the lights including firefly, moon and stars. 2. When in off mode, Press the light button for 2 second to turn on firefly mode. Timer Button 1. When unit is on, short press the TIMER button to set timer to 15/ 30/ 45/ 60 minutes or off. Alarm Button 1. Short Press Alarm button to turn on/off alarm and display will show the alarm sign. 2. Long press the ALARM button to set alarm time, minutes flash and can be adjusted via pressing VOL +/VOL- button. 3. With minutes set then short press ALARM button to switch hours and hours will flash according- ly, short press VOL +/VOL - button to set hours, then short press the ALARM button to select the alarm sound among beep and 18 built-in sounds via short pressing VOL + / VOL-, the display show -bb, -01 ~ -18 accordingly, do not operate after sound selected for 10 seconds, alarm will set and come back to time display. as shown in figure below 3. When alarm is ringing. Press any button to enter 5-minute snooze time (can snooze Max. 3 times), Press and hold the ALARM button for 2 seconds to turn off alarm. 4. After turn off the alarm button. If need to reset this alarm, press the alarm button and the alarm sign will turn on. then you can enter the last alarm set time. A P 18:00 Long press the ALARM button to set alarm time short press the ALARM button to select the alarm sound among beep and 18 built-in sounds With minutes set then short press ALARM button to switch hours minutes flashadjusted via pressing VOL +/VOL- button A P 18:00 A P 18:0 1 short pressing VOL + / VOL- short press VOL +/VOL - button to set hours A P 19:00 1. Summer night 2. Brook 3. Wind . . . the display show -bb, -01 ~ -18 accordingly -0 1 A P 18:00 The seconds time need to reset to "0" after confirmation Alarm sound setting process (selection display) -03-02 A P 12:00-0 1 - 14- 15- 18- 17- 16 -04-05-08-07-06 - 13- 12 -09 - 10- 1 1 Time Button 1. Press and hold TIME button for 2 seconds to start setting time, the minutes flash indicating it adjustable, short press VOL +/VOL- button to increase/decrease minutes. 2. With minutes set, press TIME button to set hours, the hours flash and can be adjusted via VOL +/VOL- button. 3. After hours set press TIME button again to finish time setting. 4. When the LCD display Time mode, short press the TIME button to change your screen brightness (high/low). Time On/Off Button 1. The time display can be activated or deactivated by pressing the TIME ON/OFF button. VOL+/VOL- Button 1. Press and hold the VOL + button / VOL- button simultaneously for 5 seconds will reset unit to factory mode, the TIMER indicators 15, 30, 45, 60 will light up and flash for 5 seconds indicate reset successfully. Note: The product will shut down when battery voltage is lower than 3.3V. Type-C (BACK) 1. Plug the Type-C cable with the Power adapter on your device, and then connect to your power source. BLUETOOTH 1. Enable Bluetooth on youir smartphone or other device (if it isn’t already enabled). Choose “Philyra Firefly” from the list of pairing options on your smartphone. (If it’s not in the list, choose “SCAN” from your phone’s Bluetooth menu.) The device gives an audio signal when it’s finished pairing and connecting to your smartphone. The indicator turns solid blue. Bluetooth Wireless Connection Tips ● Make sure the Bluetooth capability of your device is turned on. ● The Bluetooth wireless connection works up to a range of roughly 33 feet (10meters). This range may vary, however, based on other factors, such as rom layout, wall material, obstacles, your device’s Bluetooth performance, etc. If you’re having problems connect- ing to this speaker, move closed to it. ● If your device asks you for a password to connect, use “0000”. ● Ensure that the volume of the Bluetooth device is turned to the maximum (or at least 75%). ● 5.0蓝牙播放音乐 ● 电子LED时钟 ● 15/30/45/60分钟睡眠定时 FEATURES ● b…

Text truncated - open the document above for the full version.

Rating A20030 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3 (B) 输入/Input: 5V 1A FCC ID: ZY9-A20030 IC: 21665-A20030 中国制造/Made in China 机型/Model: A20030 15 2020 date codelaser xxx-xxxxxx CMIIT ID:xxxxxxxx 童话夏夜萤火虫蓝牙音箱/ Fairytale summer night firefly light bluetooth speaker Energy Verified laser ShenZhen Great power Innovation and Technology Enterprise Co., Ltd. 5.40 laser laser

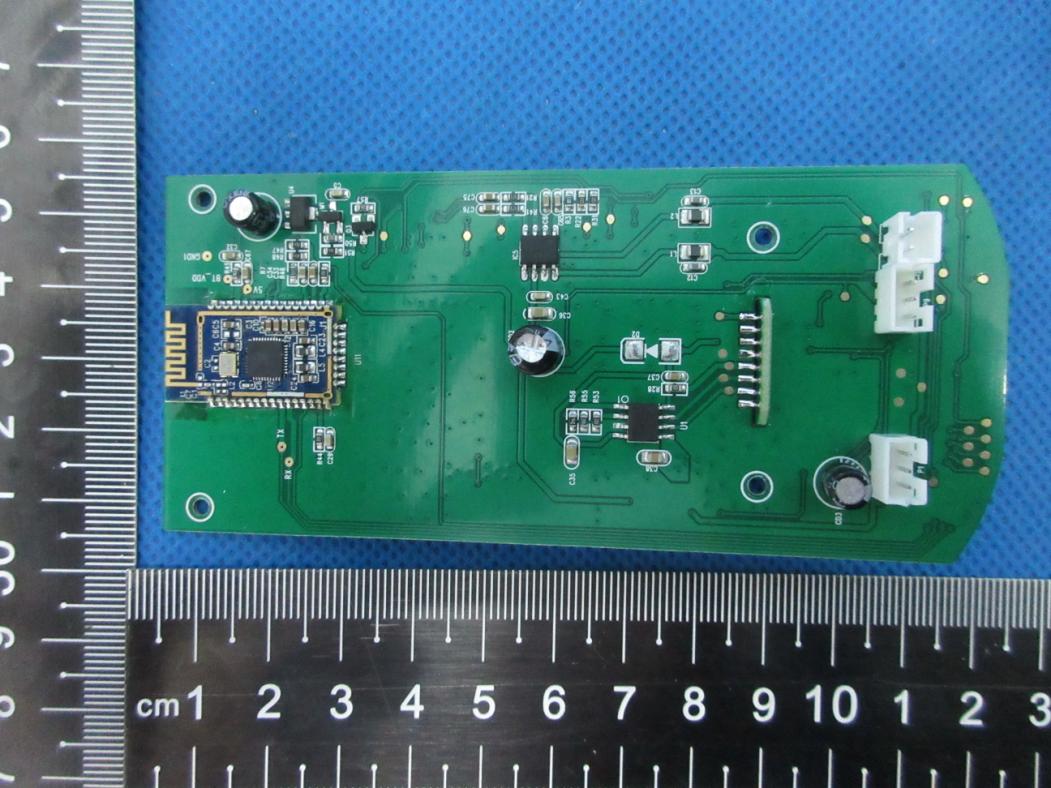

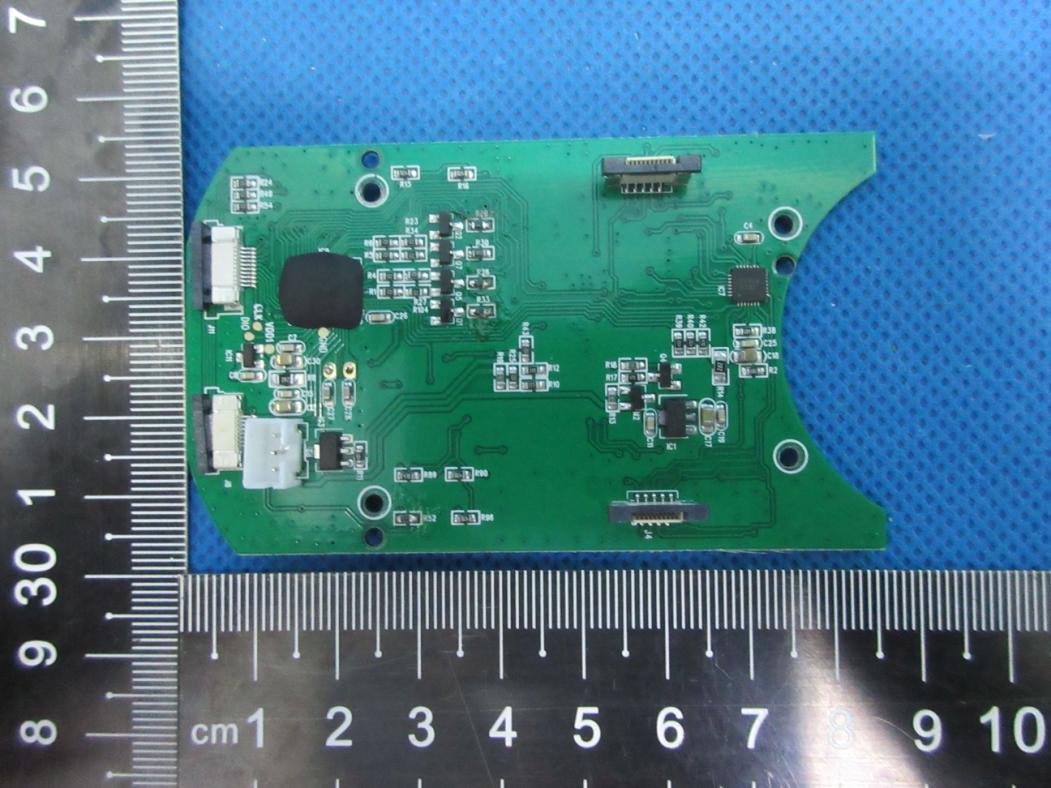

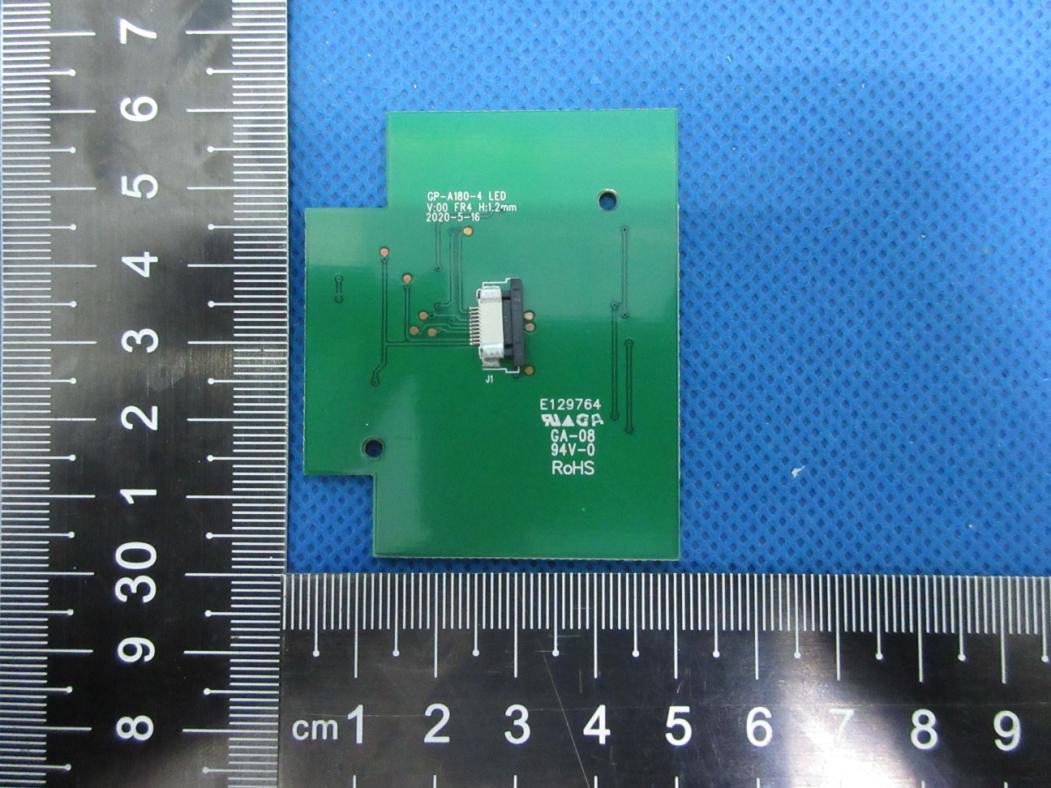

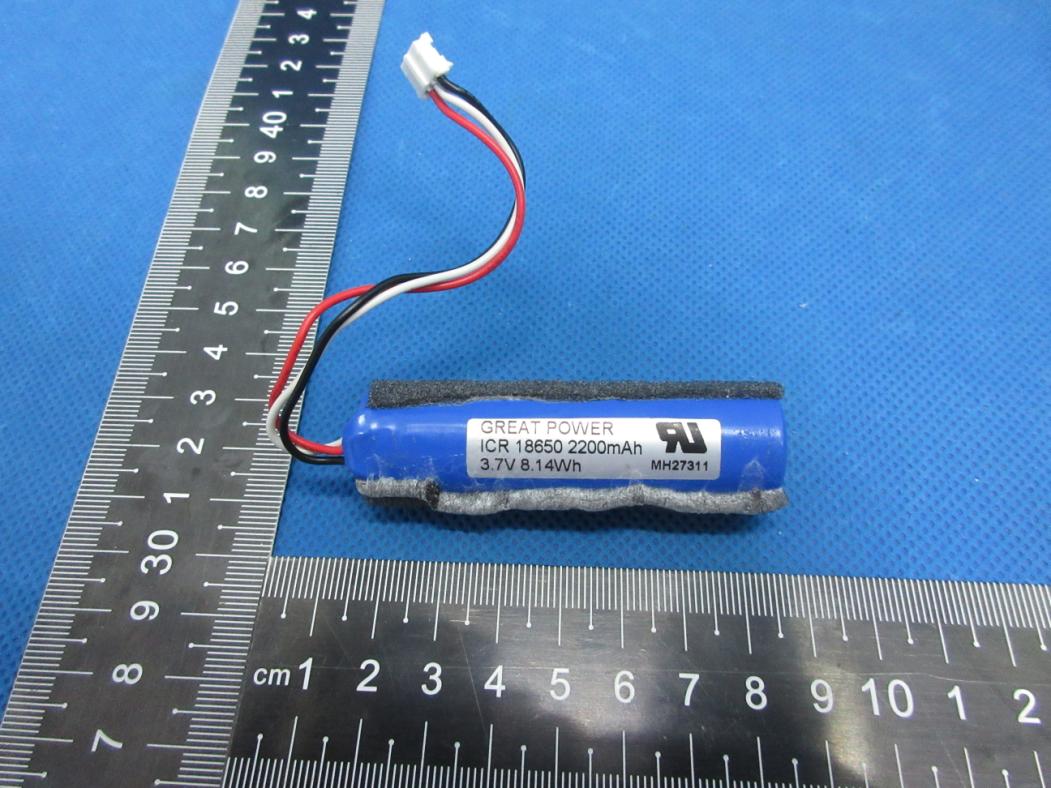

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 BT ANT Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15

FCC ID: ZY9-A20030 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 -6.421 0.23-5.5±1-4.50.35<50.109983.00YES 2.44 -6.018 0.25-5.5±1-4.50.35<50.110853.00YES 2.480 -4.575 0.35-5.5±1-4.50.35<50.111753.00YES 2.402 -4.339 0.37-3.5±1-2.50.56<50.174313.00YES 2.44 -4.141 0.39-3.5±1-2.50.56<50.175683.00YES 2.480 -2.601 0.55-3.5±1-2.50.56<50.177123.00YES 2.402 -4.051 0.39-4±1-30.50<50.155353.00YES 2.44 -3.707 0.43-4±1-30.50<50.156583.00YES 2.480 -2.171 0.61-2±1-10.79<50.250183.00YES 8-DPSK GFSK π/4- DQPSK Conclusion: For the max result : 0.25018W/Kg ≤ 3.0 for 1g SAR, No SAR is required. Signature: Date: 2020-07-28 NAME AND TITLE (Please print or type): Alex Li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S20062205009001 Version.1.3 Page 1 of 83 RADIO TEST REPORT FCC ID: ZY9-A20030 Product: Fairytale summer night firefly light bluetooth speaker Trade Mark: N/A Model No.: A20030 Family Model: N/A Report No.: S20062205009001 Issue Date: 10 Jul. 2020 Prepared for Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd No. 331, No. 335, Guiyue Road, Dafu Community, Guanlan Street, Longhua District, Shenzhen,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District Shenzhen, Guangdong, China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: S20062205009001 Version.1.3 Page 2 of 83 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 SUMMARY OF TEST RESULTS .............................................................................................................. 4 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ................................................................. 4 3 FACILITIES AND ACCREDITATIONS ..................................................................................................... 5 3.1 FACILITIES ....................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................ 5 3.3 MEASUREMENT UNCERTAINTY .................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT ........................................................................................................ 6 5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ................................................................................................. 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM .............................................................. 9 6.2 SUPPORT EQUIPMENT ................................................................................................................. 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................... 11 7 TEST REQUIREMENTS ......................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST .................................................................................................. 13 7.2 RADIATED SPURIOUS EMISSION ................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ............................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ................................................................. 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ....................................................................... 27 7.6 20DB BANDWIDTH TEST ............................................................................................................... 29 7.7 PEAK OUTPUT POWER ................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT .............................................................................. 31 7.9 SPURIOUS RF CONDUCTED EMISSION ..................................................................................... 32 7.10 ANTENNA APPLICATION ............................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ................................... 34 8 TEST RESULTS ..................................................................................................................................... 35 8.1 DWELL TIME ...................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ............................................................................................ 40 8.3 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 45 8.4 CARRIER FREQUENCIES SEPARATION ................................................................................................. 55 8.5 NUMBER OF HOPPING CHANNEL ......................................................................................................... 60 8.6 BAND EDGE ...................................................................................................................................... 61 8.7 CONDUCTED RF SPURIOUS EMISSION ................................................................................................ 74 Report No.: S20062205009001 Version.1.3 Page 3 of 83 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd Address ....................................... : No. 331, No. 335, Guiyue Road, Dafu Community, Guanlan Street, Longhua District, Shenzhen,China Manufacturer's Name .................. : Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd Address ....................................... : No. 331, No. 335, Guiyue Road, Dafu Community, Guanlan Street, Longhua District, Shenzhen,China Product description Product name .............................. : Fairytale summer night firefly light bluetooth speaker Model and/or type reference ..... : A20030 Family Model ............................... : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD/ TEST PROCEDUR…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
