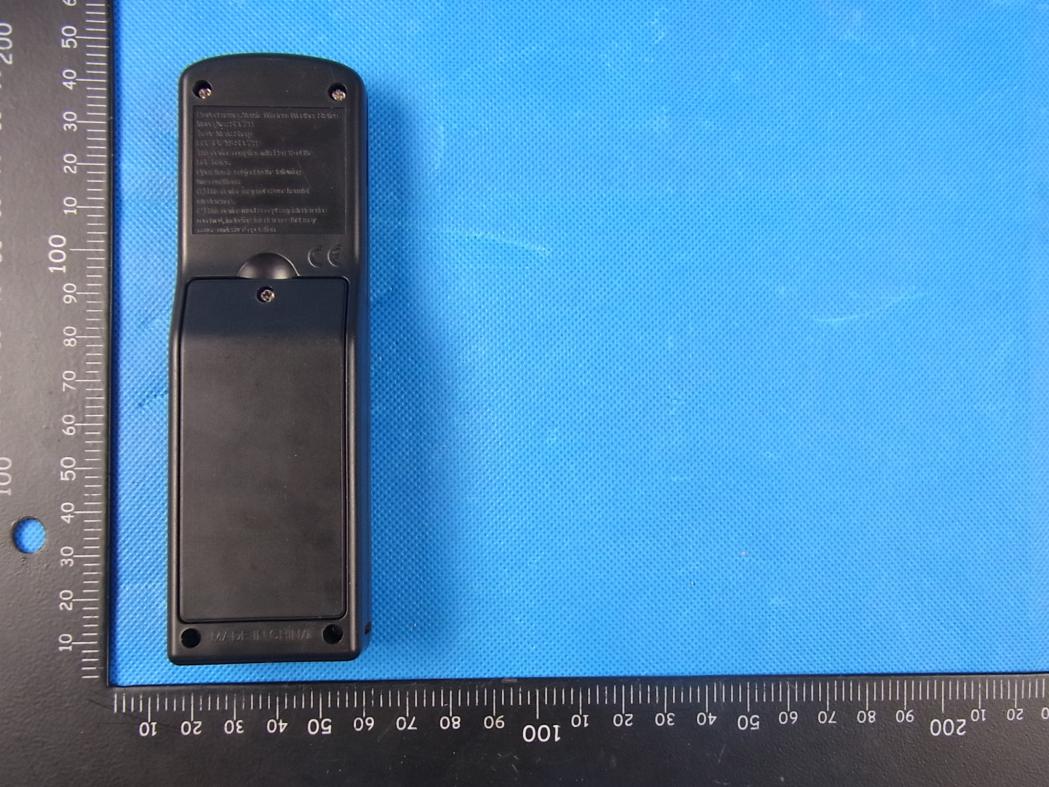

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Photo 7 Photo 8 Photo 9 Photo 10

Page 26 of 26 Report No.: NTEK-2012NT0911830F ` 6. EUT TEST PHOTO Radiated Measurement Photos

FCC RADIO TEST REPORT FCC ID: ZY9-SPC906 Product： RF LCD Waves Clock Trade Name： SHARP Model Name： SPC906 Serial Model： SPC906, A02105 Report No.： NTEK-2012NT0911830F Prepared for Shenzhen Great Power Enterprise Co., Ltd. Building E, Xin Xulong Industrial Area, KuKeng Village, Guanlan Town, Bao’an District, Shenzhen, China Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 26 Report No.: NTEK-2012NT0911830F ` TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Great Power Enterprise Co., Ltd. Address ................................. : Building E, Xin Xulong Industrial Area, KuKeng Village, Guanlan Town, Bao’an District, Shenzhen, China Manufacture's Name ............ : Shenzhen Great Power Enterprise Co., Ltd. Address ................................. : Building E, Xin Xulong Industrial Area, KuKeng Village, Guanlan Town, Bao’an District, Shenzhen, China Product description Product name............................ : RF LCD Waves Clock Model and/or type reference : SPC906 Serial Model： SPC906, A02105 Rating(s) ................................ : DC 3V Standards ............................. : FCC Part15.231 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 11 Sep 2012 ~21 Sep 2012 Date of Issue .......................................... : 22 Sep 2012 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 26 Report No.: NTEK-2012NT0911830F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . ANTENNA REQUIREMENT 12 3.1 STANDARD REQUIREMENT 12 3.2 EUT ANTENNA 12 3.3 CONDUCTED EMISSION MEASUREMENT 13 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.3.2 TEST PROCEDURE 14 3.3.3 DEVIATION FROM TEST STANDARD 14 3.3.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.4 RADIATED EMISSION MEASUREMENT 16 3.4.1 RADIATED EMISSION LIMITS 16 3.4.2 TEST PROCEDURE 17 3.4.3 DEVIATION FROM TEST STANDARD 17 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BLOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 22 4.1 TEST PROCEDURE 22 4.2 DEVIATION FROM STANDARD 22 4.3 TEST SETUP 22 4.4 TEST RESULTS 23 5 . PERIODIC RATE EXCEEDING 24 5.1 REQUIREMENTS 24 5.2 TEST PROCEDURE 24 5.3 TEST SETUP 24 5.4 TEST RESULTS 24 6 . EUT TEST PHOTO 26 Page 4 of 26 Report No.: NTEK-2012NT0911830F ` Table of Contents Page APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 26 Report No.: NTEK-2012NT0911830F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Deactivation Time Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 6 of 26 Report No.: NTEK-2012NT0911830F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 26 Report No.: NTEK-2012NT0911830F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment RF LCD Waves Clock Trade Name SHARP Model Name SPC906 Serial Model SPC906, A02105 Model Difference Only model name is different. Product Description The EUT is a RF LCD Waves Clock Product Type Remote Control Operation Frequency: 433.9MHz Modulation Type: FSK Number Of Channel 1CH. Antenna Designation: External wire antenna Antenna Gain(Peak) 0.8dBi Output Power: 68.94 dBuV/m @3m(AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 3.0V(2*AAA battery) Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A External wire antenna NA 0.8 Antenna Page 8 of 26 Report No.: NTEK-2012NT0911830F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have eff…
