2A22Z-C211Botslab Indoor Cam 2

Declaration on model difference We, _ Botslab,Inc. _ the undersigned hereby declare that the device's schematics ，PCB layout and all other electrical aspects of the device are identical. The only differences are model no. for trading purpose. Product Name: Botslab Indoor Cam 2 Models: C211, P6C, C211 Lite, C211 Pro, C211 S Name / Title: John Derr Company: Botslab, Inc.

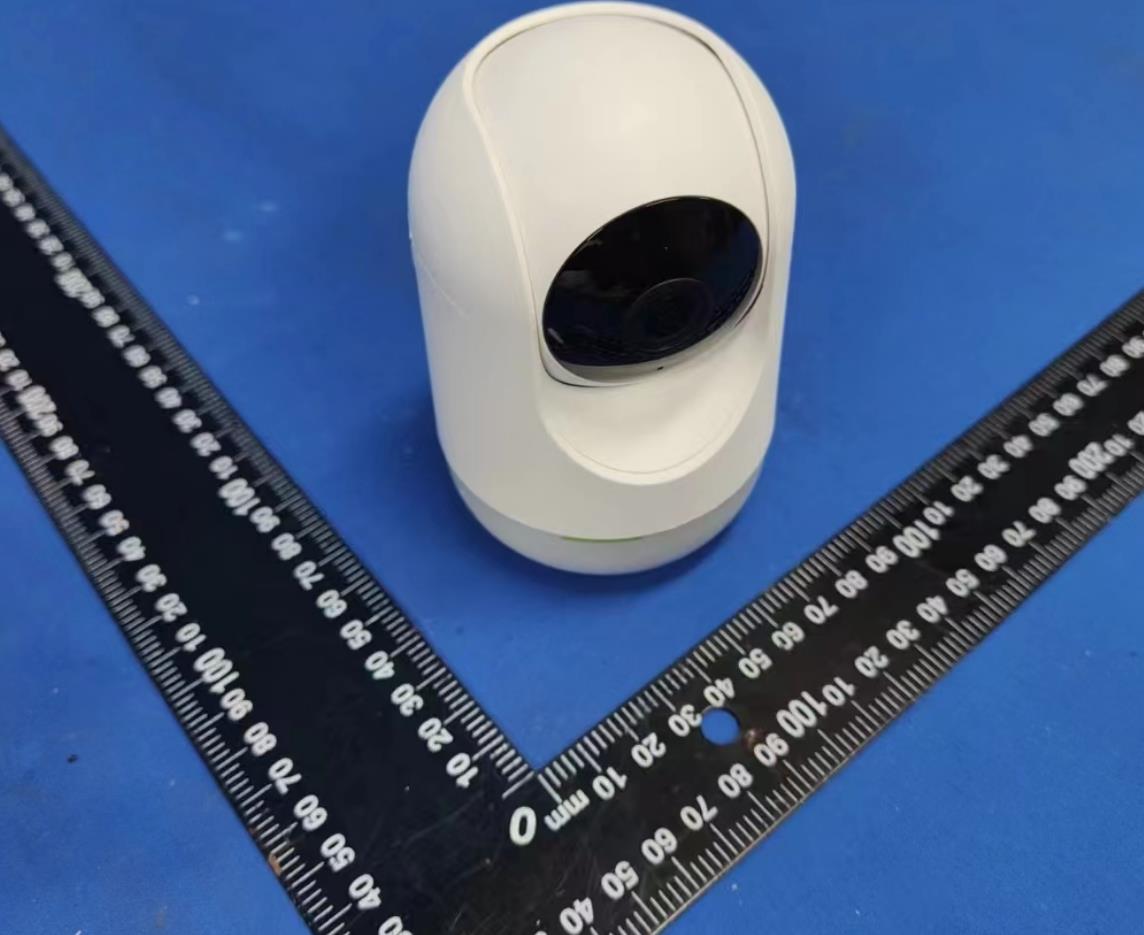

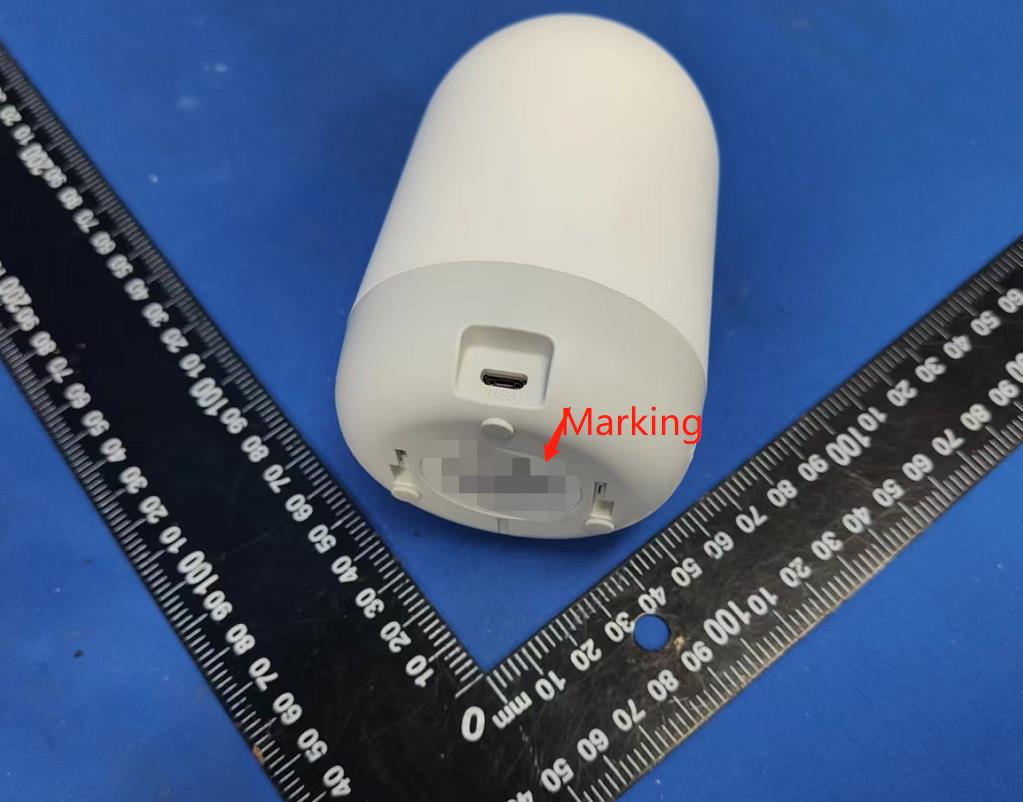

Photo 1. Description: Overall view Photo 2. Description: Overall view of camera Photo 3. Description: Overall view of camera Photo 4. Description: bottom view of camera Photo 5. Description: input port view

Photo 1. Description: internal view Photo 2. Description: Internal view of camera Photo 3. Description: Internal view of camera Photo 4. Description: Internal view of camera Photo 5. Description: Internal view of camera Photo 6. Description: Internal PCB view of camera Photo 7. Description: Internal PCB view of camera Photo 8. Description: Internal PCB view of camera Photo 9. Description: Internal PCB view of camera Photo 10. Description: Internal view Antenna Photo 11. Description: Internal motor view of camera Photo 12. Description: Internal motor view of camera

1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06, section 7 FCC ID: 2A22Z-C211 IC: 27673-C211 RSS-102 Issue 5 March 2015, section 2.5.2  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to KDB 447498 v06 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) From the maximum conducted output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain, the RF power density can be calculated as below: S(mW/cm2)= PG/4πR2 a) EUT RF Exposure Evaluation operations, Worst Case mode Test Mode Measured Power (dBm) Antenna Gain (dBi) Measured e.i.r.p (dBm) S(mW/cm 2 )= PG/4πR 2 Limit (mW/cm 2 ) 2.4GHz band Wi-Fi 23.46 1.5 24.96 0.0623 1.0  IC requirements: The EUT shall comply with the requirement of RSS-102 section 4 Exposure Limits. a) EUT RF Exposure Evaluation standalone operations, Worst Case mode Test Mode Maximum e.i.r.p (dBm) Maximum e.i.r.p (W) Limit (W) 2.4GHz band Wi-Fi 24.96 0.31333 2.68 “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

P6C antenna specifications Antenna parameter Antenna matching circuit

Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.600 2406.960 2416.560 0.5 PASS 2437 9.560 2432.480 2442.040 0.5 PASS 2462 10.040 2457.000 2467.040 0.5 PASS 11G Ant1 2412 16.360 2403.840 2420.200 0.5 PASS 2437 16.320 2428.840 2445.160 0.5 PASS 2462 16.320 2453.840 2470.160 0.5 PASS 11N20SISO Ant1 2412 16.920 2403.600 2420.520 0.5 PASS 2437 16.840 2428.560 2445.400 0.5 PASS 2462 16.880 2453.640 2470.520 0.5 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.008 2405.5100 2418.5180 --- --- 2437 12.989 2430.5404 2443.5294 --- --- 2462 12.998 2455.5402 2468.5382 --- --- 11G Ant1 2412 16.805 2403.6101 2420.4151 --- --- 2437 16.833 2428.6317 2445.4647 --- --- 2462 16.962 2453.5717 2470.5337 --- --- 11N20SISO Ant1 2412 17.686 2403.1463 2420.8323 --- --- 2437 17.662 2428.2047 2445.8667 --- --- 2462 17.718 2453.1583 2470.8763 --- --- Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix C: Maximum conducted output power Test Result TestMode Antenna Frequen cy[MHz] Conducted Powert[dBm] Conducted Limit[dBm] EIRP [dBm] EIRP Limit[dBm] Verdict 11B Ant1 2412 18.23 ≤30.00 19.73 ≤36.00 PASS 2437 18.88 ≤30.00 20.38 ≤36.00 PASS 2462 19.53 ≤30.00 21.03 ≤36.00 PASS 11G Ant1 2412 21.87 ≤30.00 23.37 ≤36.00 PASS 2437 23.19 ≤30.00 24.69 ≤36.00 PASS 2462 23.83 ≤30.00 25.33 ≤36.00 PASS 11N20SIS O Ant1 2412 22.58 ≤30.00 24.08 ≤36.00 PASS 2437 23.03 ≤30.00 24.53 ≤36.00 PASS 2462 23.46 ≤30.00 24.96 ≤36.00 PASS Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -3.38 ≤8.00 PASS 2437 -4.41 ≤8.00 PASS 2462 -3.46 ≤8.00 PASS 11G Ant1 2412 -7.27 ≤8.00 PASS 2437 -6.12 ≤8.00 PASS 2462 -6.31 ≤8.00 PASS 11N20SISO Ant1 2412 -7.33 ≤8.00 PASS 2437 -6.77 ≤8.00 PASS 2462 -5.89 ≤8.00 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 6.82 -41.93 ≤-13.18 PASS High 2462 8.02 -44.73 ≤-11.98 PASS 11G Ant1 Low 2412 5.24 -29.82 ≤-14.76 PASS High 2462 6.57 -33.39 ≤-13.43 PASS 11N20SIS O Ant1 Low 2412 5.40 -27.89 ≤-14.6 PASS High 2462 6.72 -30.79 ≤-13.28 PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 6.81 6.81 --- PASS 30~1000 6.81 -56.98 ≤-13.19 PASS 1000~26500 6.81 -48.78 ≤-13.19 PASS 2437 Reference 7.49 7.49 --- PASS 30~1000 7.49 -54.44 ≤-12.51 PASS 1000~26500 7.49 -49.29 ≤-12.51 PASS 2462 Reference 7.99 7.99 --- PASS 30~1000 7.99 -57.87 ≤-12.01 PASS 1000~26500 7.99 -47.79 ≤-12.01 PASS 11G Ant1 2412 Reference 5.51 5.51 --- PASS 30~1000 5.51 -57.95 ≤-14.49 PASS 1000~26500 5.51 -49.63 ≤-14.49 PASS 2437 Reference 6.20 6.20 --- PASS 30~1000 6.20 -57.84 ≤-13.8 PASS 1000~26500 6.20 -50.05 ≤-13.8 PASS 2462 Reference 6.79 6.79 --- PASS 30~1000 6.79 -57.56 ≤-13.21 PASS 1000~26500 6.79 -47.21 ≤-13.21 PASS 11N20SISO Ant1 2412 Reference 5.54 5.54 --- PASS 30~1000 5.54 -57.41 ≤-14.46 PASS 1000~26500 5.54 -49.35 ≤-14.46 PASS 2437 Reference 6.23 6.23 --- PASS 30~1000 6.23 -57.48 ≤-13.77 PASS 1000~26500 6.23 -49.82 ≤-13.77 PASS 2462 Reference 6.67 6.67 --- PASS 30~1000 6.67 -57.67 ≤-13.33 PASS 1000~26500 6.67 -48.54 ≤-13.33 PASS Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference

11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 8.33 8.49 98.12 2437 8.34 8.49 98.23 2462 8.33 8.48 98.23 11G Ant1 2412 1.37 1.42 96.48 2437 1.37 1.42 96.48 2462 1.37 1.41 97.16 11N20SISO Ant1 2412 1.29 1.33 96.99 2437 1.29 1.33 96.99 2462 1.29 1.33 96.99 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Appendix H: Emissions in Restricted Bands Test Result Mode: 11B-2412 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 47.23 7.10 74.00 26.77 150 230 Horizontal 2 2330.24 48.33 7.32 74.00 25.67 150 83 Horizontal 3 2343.52 48.26 7.32 74.00 25.74 150 30 Horizontal 4 2366.96 48.29 7.53 74.00 25.71 150 183 Horizontal 5 2380 49.02 8.02 74.00 24.98 150 342 Horizontal 6 2390 48.34 8.38 74.00 25.66 150 216 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 47.10 7.10 74.00 26.90 150 144 Vertical 2 2326.48 49.12 7.38 74.00 24.88 150 182 Vertical 3 2333.36 48.85 7.16 74.00 25.15 150 179 Vertical 4 2350.08 48.23 7.26 74.00 25.77 150 18 Vertical 5 2373.04 49.91 7.60 74.00 24.09 150 191 Vertical 6 2390 48.15 8.38 74.00 25.85 150 170 Vertical Mode: 11B-2462 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 44.83 6.79 74.00 29.17 150 337 Horizontal 2 2488.2646.14 6.81 74.00 27.86 150 153 Horizontal 3 2491.3045.51 6.81 74.00 28.49 150 156 Horizontal 4 2494.4545.39 6.82 74.00 28.61 150 281 Horizontal 5 2496.1745.73 6.83 74.00 28.27 150 179 Horizontal 6 2500 44.11 6.84 74.00 29.89 150 341 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 46.54 6.79 74.00 27.46 150 166 Vertical 2 2484.1448.00 6.79 74.00 26.00 150 192 Vertical 3 2487.9246.35 6.81 74.00 27.65 150 192 Vertical 4 2492.1146.02 6.82 74.00 27.98 150 180 Vertical 5 2496.6046.75 6.83 74.00 27.25 150 49 Vertical 6 2500 44.58 6.84 74.00 29.42 150 13 Vertical Mode: 11G-2412 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.98 7.10 74.00 27.02 150 134 Horizontal 2 2328.16 49.13 7.09 74.00 24.87 150 185 Horizontal 3 2346.8 48.01 7.27 74.00 25.99 150 115 Horizontal 4 2361.28 48.59 7.32 74.00 25.41 150 199 Horizontal 5 2365.92 48.28 7.62 74.00 25.72 150 132 Horizontal 6 2390 48.98 8.38 74.00 25.02 150 283 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.91 7.10 74.00 27.09 150 341 Vertical 2 2345.28 48.95 7.37 74.00 25.05 150 228 Vertical 3 2352.64 48.70 7.30 74.00 25.30 150 110 Vertical 4 2373.44 49.06 7.63 74.00 24.94 150 173 Vertical 5 2381.52 51.15 8.09 74.00 22.85 150 173 Vertical 6 2390 48.38 8.38 74.00 25.62 150 11 Vertical Mode: 11G-2462 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 47.54 6.79 74.00 26.46 150 52 Horizontal 2 2488.9145.59 6.81 74.00 28.41 150 131 Horizontal 3 2489.7347.28 6.81 74.00 26.72 150 156 Horizontal 4 2492.7046.77 6.82 74.00 27.23 150 52 Horizontal 5 2495.4745.53 6.83 74.00 28.47 150 76 Horizontal 6 2500 44.19 6.84 74.00 29.81 150 271 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 48.18 6.79 74.00 25.82 150 170 Vertical 2 2483.9451.34 6.79 74.00 22.66 150 158 Vertical 3 2486.1047.96 6.80 74.00 26.04 150 187 Vertical 4 2487.8046.28 6.81 74.00 27.72 150 170 Vertical 5 2488.9147.57 6.81 74.00 26.43 150 191 Vertical 6 2500 44.68 6.84 74.00 29.32 150 14 Vertical Mode: N20-2412 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.00 6.32 74.00 28.00 150 280 Horizontal 2 2326.56 47.53 6.36 74.00 26.47 150 9 Horizontal 3 2351.76 47.90 6.42 74.00 26.10 150 359 Horizontal 4 2367.76 47.58 6.47 74.00 26.42 150 326 Horizontal 5 2375.04 47.61 6.49 74.00 26.39 150 41 Horizontal 6 2390 47.50 6.52 74.00 26.50 150 352 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2310 46.22 6.32 74.00 27.78 150 351 Vertical 2 2339.92 48.56 6.39 74.00 25.44 150 182 Vertical 3 2356.16 50.12 6.44 74.00 23.88 150 187 Vertical 4 2368.64 49.79 6.47 74.00 24.21 150 177 Vertical 5 2373.84 48.51 6.48 74.00 25.49 150 170 Vertical 6 2390 48.25 6.52 74.00 25.75 150 175 Vertical Mode: N20-2462 NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 48.93 6.79 74.00 25.07 150 332 Horizontal 2 2485.9048.12 6.80 74.00 25.88 150 180 Horizontal 3 2489.1246.24 6.81 74.00 27.76 150 343 Horizontal 4 2490.4446.12 6.81 74.00 27.88 150 308 Horizontal 5 2494.5845.80 6.82 74.00 28.20 150 58 Horizontal 6 2500 45.08 6.84 74.00 28.92 150 53 Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB/m] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 2483.5 48.53 6.79 74.00 25.47 150 177 Vertical 2 2483.9452.50 6.79 74.00 21.50 150 166 Vertical 3 2486.4548.96 6.80 74.00 25.04 150 166 Vertical 4 2487.8347.98 6.81 74.00 26.02 150 158 Vertical 5 2491.3347.33 6.81 74.00 26.67 150 156 Vertical 6 2500 44.31 6.84 74.00 29.69 150 218 Vertical Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dB…

Text truncated - open the document above for the full version.

Page 1 of 28 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC&ISED Compliance Test Report for Product name: Botslab Indoor Cam 2 Model name: C211, P6C, C211 Lite, C211 Pro, C211 S FCC ID: 2A22Z-C211 IC: 27673-C211 Test Report Number: EFGX23020020-IE-04-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, Fax: +86-0755-82910749 No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China Page 2 of 28 Content 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 6 2 Technical test 7 2.1 Summary of test results 7 2.2 Test environment 7 2.3 Measurement uncertainty 7 2.4 Test mode 8 2.5 Test equipment utilized 9 2.6 Auxiliary equipment used during test 10 2.7 Test software information 10 2.8 Test setup 11 2.9 Test results 13 3 Technical Requirement 14 3.1 Conducted emission AC power port 14 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 DTS fundamental emission output power 18 3.6 Power spectral density 21 3.7 Conducted Band Edge & Conducted Spurious Emissions 24 3.8 Spurious emissions & Restricted Band 25 4 Test Setup Photos 28 5 External Photos 28 6 Internal Photos 28 7 Appendix 28 Test Report No.: EFGX23020020-IE-04-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 3 of 28 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. perator 2023-03-02 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2023-03-02 Albert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX23020020-IE-04-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 4 of 28 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : Botslab,Inc. Address : 919 North Market Street, Suite 950, Wilmington, New Cas- tle, Delaware, USA Telephone : ./. Fax : ./. 1.4 Details of manufacturer Name : Botslab,Inc. Address : 919 North Market Street, Suite 950, Wilmington, New Cas- tle, Delaware, USA Telephone : ./. Fax : ./. Test Report No.: EFGX23020020-IE-04-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 5 of 28 1.5 Application details Date of receipt of application : 2023-01-20 Date of receipt of test item : 2023-01-20 Date of test : 2023-01-20 to 2023-02-16 Date of issue : 2023-03-02 1.6 Test item Product type : Botslab Indoor Cam 2 Test Model : C211 Sample ID : 230119-01-007 Model name : C211, P6C, C211 Lite, C211 Pro, C211 S Serial number : N/A Hardware Version : P6C_PWR_V3.0 Software / Firmware Version : P6C_v1.0.30.528_20220924 Ratings : 5V1A Test voltage : 5V1A FCC ID : 2A22Z-C211 IC : 27673-C211 PMN : Botslab Indoor Cam 2 HVIN : C211, P6C, C211 Lite, C211 Pro, C211 S Additional information : ./. RadioTechnical data Radio Tech. : WLAN 2.4G Modulation : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Antenna type : PCB antenna Maximum antenna gain : 1.50 dBi The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial infor- mation and technical documents. Test Report No.: EFGX23020020-IE-04-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. 1st Floor, Building 2, Chungu, Meisheng Huigu Science and Technology Park, No. 83 Dabao Road, Bao'an District, Shenzhen. P.R.China. Telephone: +86-755-82911867, Fax : +86-755-82910749 Page 6 of 28 1.7 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators RSS-247 RSS-247 — Digital Transmission Systems (DTSs), Frequency Hop- ping Systems (FHSs) and Licence-Exempt Local Area Network (LE- LAN) Devices RSS-GEN RSS-Gen — General Requirements for Compliance of Radio Appa- ratus …
