2A22Z-G580HDash Cam

ShenzhenYushengCommunicationEquipmentCo.,LTD 110 G580HPRO Projectantennaspecification Customername:360 Customerproductname:G580HPRO Productname:Shrapnel Productspecification:seeBOMfordetails materialcode: ChangeContentCV: order number editionstateStartand enddate personliablepage number remarks 1 editioprincepseditioprinceps 2024-1-24LiJieyi10 TheSupplieracknowledgesthesignaturethat: Responsibleperson/dateIQC/dateReview/DateApproval/Date MD FengJiwuSuGuanfengZengxianghao RF ChenKehong TheDemanderacknowledgesthesignature(pleasesenditbackafterconfirmation): Thedemander'sjudgmentresult:□qualified□unqualified Development&Design Engineer/Date SQEEngineer/DatePurchasingLeader/ Date DevelopmentManager approval/date 4F 4A, Building 2, South Taiyun Chuanggu Park, Guangming Avenue, Guangming New District, Shenzhen4F 4A, Building 2, South Taiyun Chuanggu Park, Guangming Avenue, Guangming New District, Shenzhen ShenzhenYushengCommunicationEquipmentCo.,LTD 210 catalogue 1.OVERVIEW......................................................................................................................................................3 1.1S COPEOFAPPLICATION......................................................................................................................................3 1.2PROJECTBASICINFORMATION...........................................................................................................................3 2.TECHNICALINDEXREQUIREMENTS.....................................................................................................3 2.1I NTRODUCTIONOFTESTITEMSANDEQUIPMENT.............................................................................................3 2.2ACTIVEREPORTING.............................................................................................................................................3 2.2.1T ESTINSTRUCTIONS........................................................................................................................................3 2.2.2ANTENNAACTIVEPARAMETERS......................................................................................................................4 2.2.3PASSIVEANTENNAPARAMETERS.....................................................................................................................4 2.2.4A NTENNAENVIRONMENTTREATMENT...........................................................................................................5 2.2.5ANTENNAPASSIVEPARAMETERS.....................................................................................................................6 2.2.6D IRECTION -2.4G--WIFI ...............................................................................................................................7 3.STRUCTURALDRAWINGS.........................................................................................................................8 SHRAPNEL...................................................................................................................................................................8 4.LISTOFMATERIALS.....................................................................................................................................9 5.PACKAGINGDIAGRAM............................................................................................................................10 (THISFIGUREISONLYAPACKAGINGDIAGRAM,SUBJECTTOTHEACTUALMASSPRODUCTION)...............................10 4F 4A, Building 2, South Taiyun Chuanggu Park, Guangming Avenue, Guangming New District, Shenzhen ShenzhenYushengCommunicationEquipmentCo.,LTD 310 1.Overview 1.1Scopeofapplication ThisrequirementspecifiestheantennatechnicalrequirementsandmaterialrequirementsspecificationsforG580HPROproducts. Thisrequirementappliestotheselection,testingandacceptanceofG580HPRO antennas. 1.2Projectbasicinformation Antennaname: G580HPRO Antennafrequency: 2402-2484Mhz Antennamaterial:Srapnel/ceramic(commonD058) 2.Technicalindexrequirements 2.1Introductionoftestitemsandequipment inventorytestitem equipment ActivetestTRP,TISIntegratedtester,microwavedarkroom 2.2ActiveReporting 2.2.1Testinstructions Testtools:Agilent8960instrument,R&SCMW500,fullwavefarfieldETSdarkroom,highp recisionpositioningsystemanditscontrollerandcomputerwithautomatictestprogram Testenvironment:temperature22°C±3°C,humidity50%±15% Testmethod:DUTisfixedinthecenteroftheturntablewithHplane,onthesamehorizo ntallineasthecenterofthehornantenna. ThepositioningsystemenablestheDUTtorotateinthewholespheretosatisfythehigh-precision3D positioning.EachRFinstrumentandturntablecontrollercommunicatewiththePCwithautomatictestsoftware throughtheGPIBinterface. 4F 4A, Building 2, South Taiyun Chuanggu Park, Guangming Avenue, Guangming New District, Shenzhen ShenzhenYushengCommunicationEquipmentCo.,LTD 410 2.2.2Antennaactiveparameters frequencyrangeCHTRP(db)TIS(dbm) WIFI-11B 113.32-82.15 612.95-81.65 1313.46-82.41 Matchnotmodified 2.2.3passiveantennaparameters 4F 4A, Building 2, South Taiyun Chuanggu Park, Guangming Avenue, Guangming New District, Shenzhen ShenzhenYushengCommunicationEquipmentCo.,LTD 510 2.2.4Antennaenvironmenttreatment Asshowninthefigure,themetalframeradiumcarving,andadd conductivespongeandmainboardgrounding Asshowninthefigure,theradiumcarvinginthemetalframeisadded,andthe conductivespongeandthedisplayscreenaregrounded.Thethicknessofthe conductivespongeissubjecttofullcontact 4F 4A, Building 2, South Taiyun Chuanggu Park, Guangming Avenue, Guangming New District, Shenzhen ShenzhenYushengCommunicationEquipmentCo.,LTD 610 2.2.5Antennapassiveparameters Freq(mainantenna efficiency) Effi(%)Gain（dbi） 2400MHZ261.2 2420MHZ301.4 2440MHZ361.5 2460MHZ341.4 2480MHZ321.2 2500MHZ281.0 4F 4A, Building 2, South Taiyun Chuanggu Park, Guangming Avenue, Guangming New District, Shenzhen ShenzhenYushengCommunicationEquipmentCo.,LTD 710 2.2.6Direction-2.4G--WIFI 4F 4A, Building 2, South Taiyun Chuanggu Park, Guangming Avenue, Guangming New District, …

Text truncated - open the document above for the full version.

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Botslab, Inc. Date：3/13/2024 Product Model Number: G580H-N560-1, G500H-N560-1, G500H Pro, G580H FCC ID：2A22Z-G580H To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. Signature: By: John Derr Contact Listed on FCC Wesbite Title: Certification Administrator Email: [email protected] On behalf of: Botslab, Inc.

Botslab, Inc. Declaration Letter of Model Difference Date: 2024-03-13 Tested Model Number: G580H-N560-1 Adding Model Number(s): G500H-N560-1, G500H Pro, G580H All Adding Model Number(s) is/are same electrically identical as Tested Model Number. Only model name are different for market purpose. Yours Sincerely, Applicant: Botslab, Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Contact Person: John Derr Tel.: 8663600505 Email: [email protected] Sincerely, Signature:

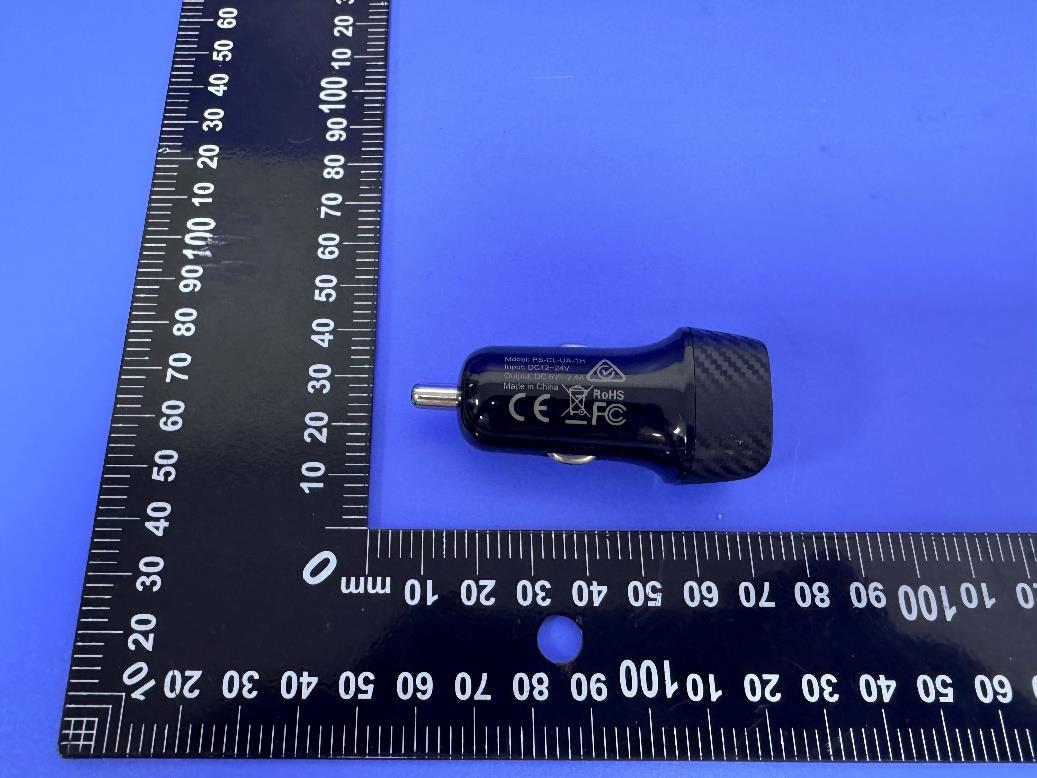

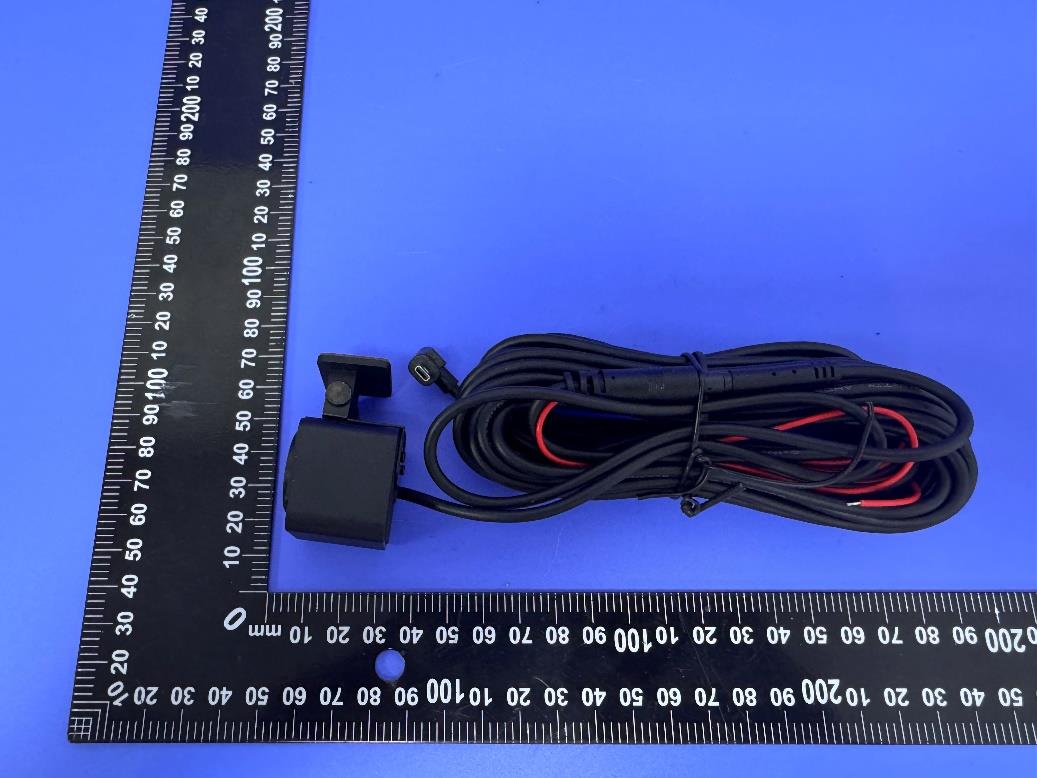

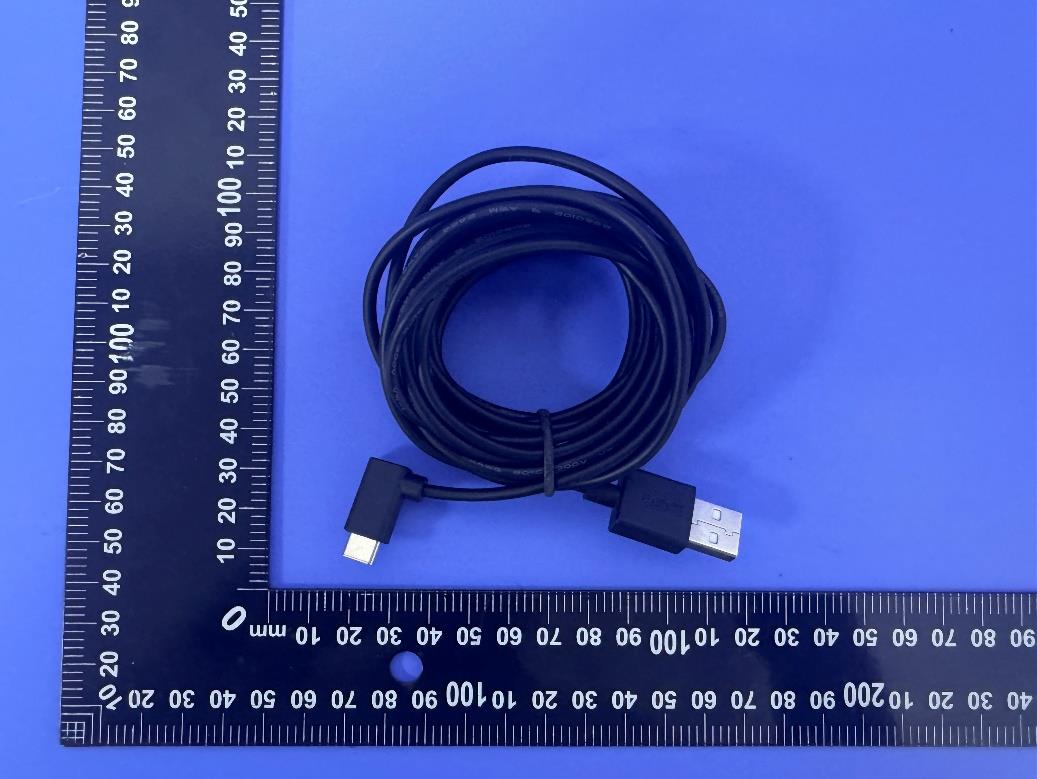

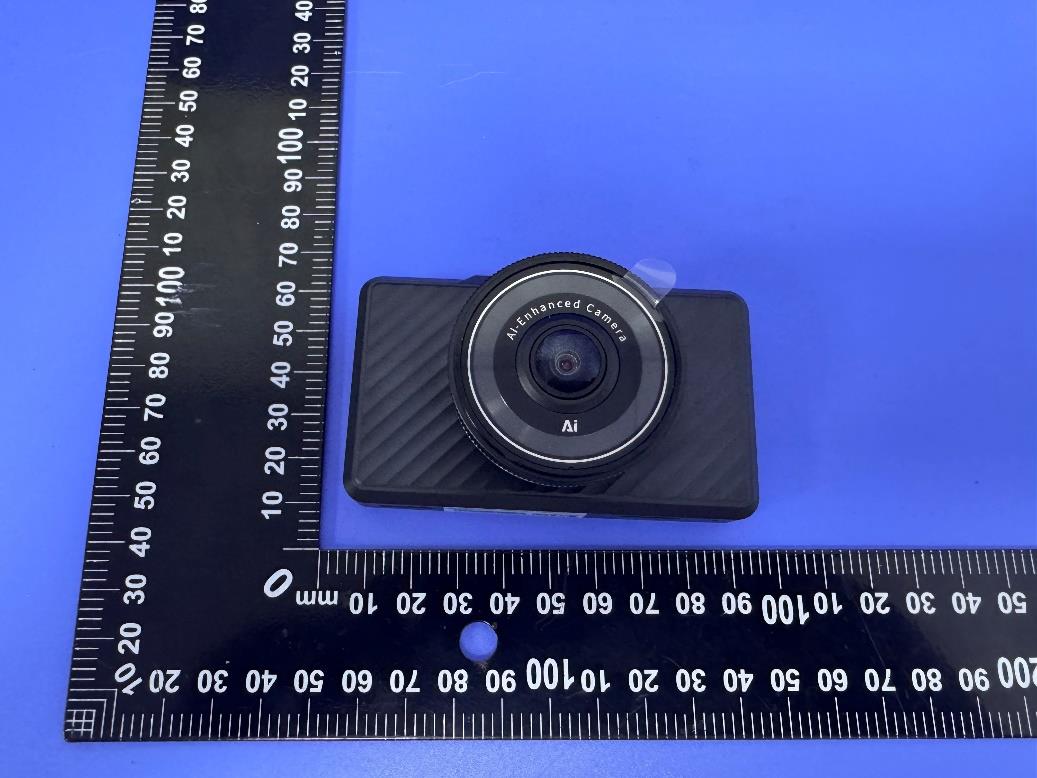

Page 1 of 6 Report No.: LGT24A158 Appendix - External Photographs of EUT Constructional Details Model: G580H-N560-1 Photo 1 Photo 2 Page 2 of 6 Report No.: LGT24A158 Photo 3 Photo 4 Page 3 of 6 Report No.: LGT24A158 Photo 5 Photo 6 Page 4 of 6 Report No.: LGT24A158 Photo 7 Photo 8 Page 5 of 6 Report No.: LGT24A158 Photo 9 Photo 10 Page 6 of 6 Report No.: LGT24A158 Photo 11 Photo 12

Page 1 of 16 Report No.: LGT24A158 Appendix - Internal Photographs of EUT Constructional Details Model: G580H-N560-1 Photo 1 Photo 2 Page 2 of 16 Report No.: LGT24A158 Photo 3 Photo 4 Page 3 of 16 Report No.: LGT24A158 Photo 5 Photo 6 Antenna Page 4 of 16 Report No.: LGT24A158 Photo 7 Photo 8 Page 5 of 16 Report No.: LGT24A158 Photo 9 Photo 10 Page 6 of 16 Report No.: LGT24A158 Photo 11 Photo 12 Page 7 of 16 Report No.: LGT24A158 Photo 13 Photo 14 Page 8 of 16 Report No.: LGT24A158 Photo 15 Photo 16 Page 9 of 16 Report No.: LGT24A158 Photo 17 Photo 18 Page 10 of 16 Report No.: LGT24A158 Photo 19 Photo 20 Page 11 of 16 Report No.: LGT24A158 Photo 21 Photo 22 Page 12 of 16 Report No.: LGT24A158 Photo 23 Photo 24 Page 13 of 16 Report No.: LGT24A158 Photo 25 Photo 26 Page 14 of 16 Report No.: LGT24A158 Photo 27 Photo 28 Page 15 of 16 Report No.: LGT24A158 Photo 29 Photo 30 Page 16 of 16 Report No.: LGT24A158 Photo 31

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: Dash Cam Model Name: G580H-N560-1, G500H-N560-1, G500H Pro, G580H FCC ID: 2A22Z-G580H Issued For : Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT24A158HA01 Sample Received Date: Jan. 26, 2024 Date of Test: Jan. 26, 2024 – Mar. 11, 2024 Date of Issue: Mar. 11, 2024 Report No.: LGT24A158HA01 Page 2 of 7 TEST REPORT CERTIFICATION Applicant: Botslab, Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Manufacture: Botslab, Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Product Name: Dash Cam Trademark: Botslab Model Name: G580H-N560-1, G500H-N560-1, G500H Pro, G580H Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1091 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT24A158HA01 Page 3 of 7 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 EUT OPERATION CONDITION 6 2.4 CLASSIFICATION 6 2.5 TEST RESULT 7 Report No.: LGT24A158HA01 Page 4 of 7 Revision History Rev. Issue Date Revisions 00 Mar. 11, 2024 Initial Issue Report No.: LGT24A158HA01 Page 5 of 7 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Dash Cam Trademark: Botslab Model Name: G580H-N560-1 Series Model: G500H-N560-1, G500H Pro, G580H Model Difference: Only the model name are different Frequency Bands: Bluetooth 2402-2480MHz 2.4G WLAN 802.11b/g/n(20MHz): 2412~2462MHz Rating: Input: DC 12-24V Output: DC 5V, 2.4A Battery: Capacity: 5.5mAh Rated Voltage: 3V Hardware Version: G580H-N560-1 MAIN_V1.1 Software Version: N/A 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT24A158HA01 Page 6 of 7 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. 2.3 EUT OPERATION CONDITION EUT was enabled to transmit and receive at lowest, middle and highest channels. 2.4 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Report No.: LGT24A158HA01 Page 7 of 7 2.5 TEST RESULT Turn up Result Mode Turn up Power BLE 1M-GFSK 7±1dBm BLE 2M-GFSK 7±1dBm 2.4G WIFI-802.11b 14.5±1dBm 2.4G WIFI-802.11g 14±1dBm 2.4G WIFI-802.11n(HT20) 14±1dBm The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) ANT Gain (dBi) ANT Gain (gain of antenna in linear scale) Power Density (mW/cm²) Limit (mW/cm²) Ratio Result BLE 2402 8 6.31 1.5 1.41 0.002 1 0.002 Pass 2.4G WIFI 2412 15.5 35.48 1.5 1.41 0.010 1 0.010 Pass The max MPE of simultaneous transmission: BLE(0.002)+WIFI(0.010)=0.012＜1 Note: 1. The Maximum Power Density is less than the limit, complies with the exemption requirements. ※※※※※END OF THE REPORT※※※※※

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: Dash Cam Model Name: G580H-N560-1, G500H-N560-1, G500H Pro, G580H FCC ID: 2A22Z-G580H Issued For : Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT24A158RF01 Sample Received Date: Jan. 26, 2024 Date of Test: Jan. 26, 2024 – Mar. 11, 2023 Date of Issue: Mar. 11, 2023 Report No.: LGT24A158RF01 Page 2 of 51 TEST REPORT CERTIFICATION Applicant: Botslab, Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Manufacturer: Botslab, Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Product Name: Dash Cam Trademark: Botslab Model Name: G580H-N560-1, G500H-N560-1, G500H Pro, G580H Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT24A158RF01 Page 3 of 51 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 9 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 10 2.5 EQUIPMENTS LIST 11 3. EMC EMISSION TEST 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 EUT OPERATING CONDITIONS 13 3.5 TEST RESULTS 13 4. RADIATED EMISSION MEASUREMENT 14 4.2 TEST PROCEDURE 16 4.3 TEST SETUP 16 4.4 EUT OPERATING CONDITIONS 17 4.5 FIELD STRENGTH CALCULATION 17 4.7 TEST RESULTS (BAND EDGE REQUIREMENTS) 23 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 25 5.1 LIMIT 25 5.2 TEST PROCEDURE 25 5.3 TEST SETUP 25 5.4 EUT OPERATION CONDITIONS 25 5.5 TEST RESULTS 25 6. POWER SPECTRAL DENSITY TEST 26 6.1 LIMIT 26 6.2 TEST PROCEDURE 26 6.3 TEST SETUP 26 6.4 EUT OPERATION CONDITIONS 26 6.5 TEST RESULTS 26 7. BANDWIDTH TEST 27 Report No.: LGT24A158RF01 Page 4 of 51 Table of Contents Page 7.1 LIMIT 27 7.2 TEST PROCEDURE 27 7.3 TEST SETUP 27 7.4 EUT OPERATION CONDITIONS 27 7.5 TEST RESULTS 27 8. PEAK OUTPUT POWER TEST 28 8.1 LIMIT 28 8.2 TEST PROCEDURE 28 8.3 TEST SETUP 28 8.4 EUT OPERATION CONDITIONS 28 8.5 TEST RESULTS 28 9. ANTENNA REQUIREMENT 29 9.1 STANDARD REQUIREMENT 29 9.2 EUT ANTENNA 29 APPENDIX I - TEST RESULTS 30 DUTY CYCLE 30 MAXIMUM PEAK CONDUCTED OUTPUT POWER 33 -6DB BANDWIDTH 34 OCCUPIED CHANNEL BANDWIDTH 37 MAXIMUM POWER SPECTRAL DENSITY LEVEL 40 BAND EDGE 43 CONDUCTED RF SPURIOUS EMISSION 47 Report No.: LGT24A158RF01 Page 5 of 51 Revision History Rev. Issue Date Contents 00 Mar. 11, 2024 Initial Issue Report No.: LGT24A158RF01 Page 6 of 51 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT24A158RF01 Page 7 of 51 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB 9 Occupied Channel Bandwidth ±3.2 % Note: The measurement uncertainty is not included in the test result. Report No.: LGT24A158RF01 Page 8 of 51 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Dash Cam Trademark: Botslab Model Name: G580H-N560-1 Series Model: G500H-N560-1, G500H Pro, G580H Model Difference: Only the model name are different Product Description: Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology: BLE Bluetooth Configuration: BLE (1M PHY, 2M PHY) Number Of Channel: 40 Antenna Designation: Shrapnel Antenna Gain (dBi) 1.5 Channel List: Please refer to the Note 3. Adapter: Input: DC 12-24V Output: DC 5V, 2.4A Battery: Capacity: 5.5mAh Rated Voltage: 3V Hardware Version: G580H-N560-1 MAIN_V1.1 Software Version: N/A Connecting I/O Port(s): Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. The antenna information refers to the manufacturer provide rep…

Text truncated - open the document above for the full version.

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: Dash Cam Model Name: G580H-N560-1, G500H-N560-1, G500H Pro, G580H FCC ID: 2A22Z-G580H Issued For : Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT24A158RF02 Sample Received Date: Jan. 26, 2024 Date of Test: Jan. 26, 2024 – Mar. 11, 2024 Date of Issue: Mar. 11, 2024 Report No.: LGT24A158RF02 Page 2 of 59 TEST REPORT CERTIFICATION Applicant: Botslab, Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Manufacturer: Botslab, Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Product Name: Dash Cam Trademark: Botslab Model Name: G580H-N560-1, G500H-N560-1, G500H Pro, G580H Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT24A158RF02 Page 3 of 59 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 RADIATED EMISSION MEASUREMENT 15 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 26 4.1 LIMIT 26 4.2 TEST PROCEDURE 26 4.3 DEVIATION FROM STANDARD 26 4.4 TEST SETUP 26 4.5 EUT OPERATION CONDITIONS 26 4.6 TEST RESULTS 26 5. POWER SPECTRAL DENSITY TEST 27 5.1 LIMIT 27 5.2 TEST PROCEDURE 27 5.3 DEVIATION FROM STANDARD 27 5.4 TEST SETUP 27 5.5 EUT OPERATION CONDITIONS 27 5.6 TEST RESULTS 27 6. BANDWIDTH TEST 28 6.1 LIMIT 28 6.2 TEST PROCEDURE 28 6.3 DEVIATION FROM STANDARD 28 6.4 TEST SETUP 28 6.5 EUT OPERATION CONDITIONS 28 6.6 TEST RESULTS 28 Report No.: LGT24A158RF02 Page 4 of 59 Table of Contents Page 7. PEAK OUTPUT POWER TEST 29 7.1 LIMIT 29 7.2 TEST PROCEDURE 29 7.3 DEVIATION FROM STANDARD 29 7.4 TEST SETUP 29 7.5 EUT OPERATION CONDITIONS 29 7.6 TEST RESULTS 29 8. ANTENNA REQUIREMENT 30 8.1 STANDARD REQUIREMENT 30 8.2 EUT ANTENNA 30 APPENDIX I - TEST RESULTS 31 DUTY CYCLE 31 MAXIMUM PEAK CONDUCTED OUTPUT POWER 35 -6DB BANDWIDTH 36 OCCUPIED CHANNEL BANDWIDTH 40 MAXIMUM POWER SPECTRAL DENSITY LEVEL 44 BAND EDGE 48 CONDUCTED RF SPURIOUS EMISSION 53 Report No.: LGT24A158RF02 Page 5 of 59 Revision History Rev. Issue Date Contents 00 Mar. 11, 2024 Initial Issue Report No.: LGT24A158RF02 Page 6 of 59 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT24A158RF02 Page 7 of 59 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB 9 Occupied Channel Bandwidth ±3.2 % Note: The measurement uncertainty is not included in the test result. Report No.: LGT24A158RF02 Page 8 of 59 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Dash Cam Trademark: Botslab Model Name: G580H-N560-1 Series Model: G500H-N560-1, G500H Pro, G580H Model Difference: Only the model name are different Product Description: Operation Frequency: 802.11b/g/n: 2412~2462 MHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Number of Channel: 802.11b/g/n: 11CH Antenna Designation: Shrapnel Antenna Gain(dBi): 1.5 Channel List: Please refer to the Note 3. Adapter: Input: DC 12-24V Output: DC 5V, 2.4A Battery: Capacity: 5.5mAh Rated Voltage: 3V Hardware Version: G580H-N560-1 MAIN_V1.1 Software Version: N/A Connecting I/O Port(s): Please refer to the Note 1. Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User Manual. 2. The antenna information refers to the manufacturer provide re…

Text truncated - open the document above for the full version.

Page 1 of 1 Report No.: LGT24A158 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz
