2A22Z-R811HBotslab Video Doorbell 2 Pro(Wi-Fi HomeBase)

Botslab, Inc. 2023-12-28 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A22Z-R811H ) [Botslab, Inc. ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, John Derr Certification Administrator Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Botslab, Inc. 2023-12-28 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2A22Z-R811H) [Botslab, Inc. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, John Derr Certification Administrator Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA

Botslab, Inc. Declaration on model difference We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, PCB layout, schematics and component. Only the models name are different. Production name Trademark FCC ID Model no. Botslab Video Doorbell 2 Pro(Wi-Fi HomeBase) Botslab 2A22Z-R811H R811-H, R812-H, R813-H, R811 Sincerely, John Derr Certification Administrator Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA

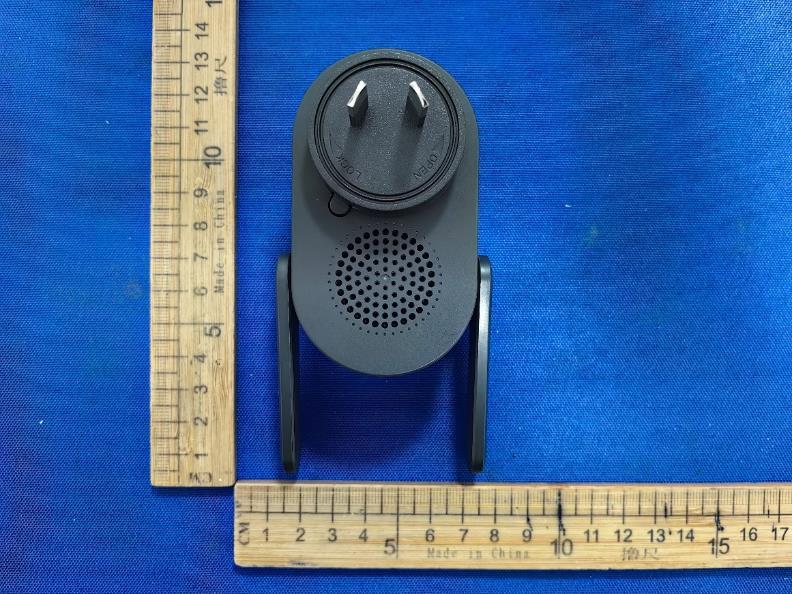

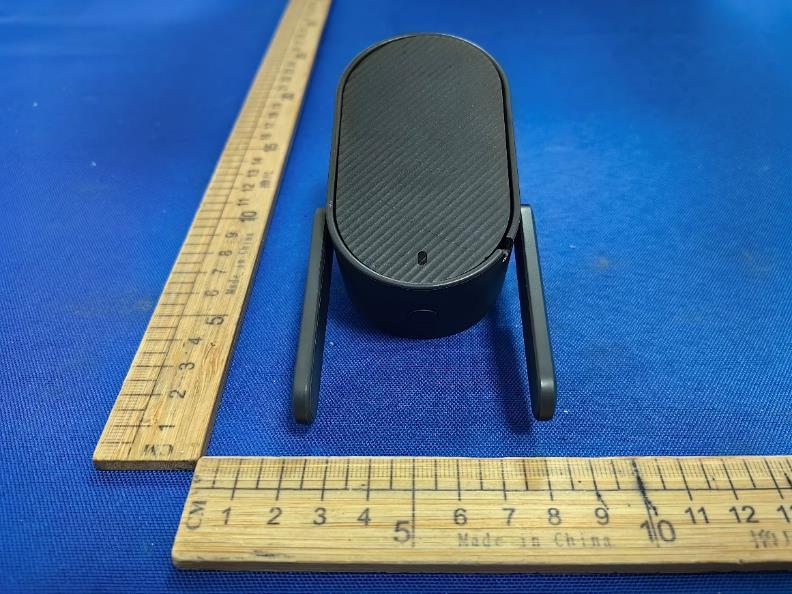

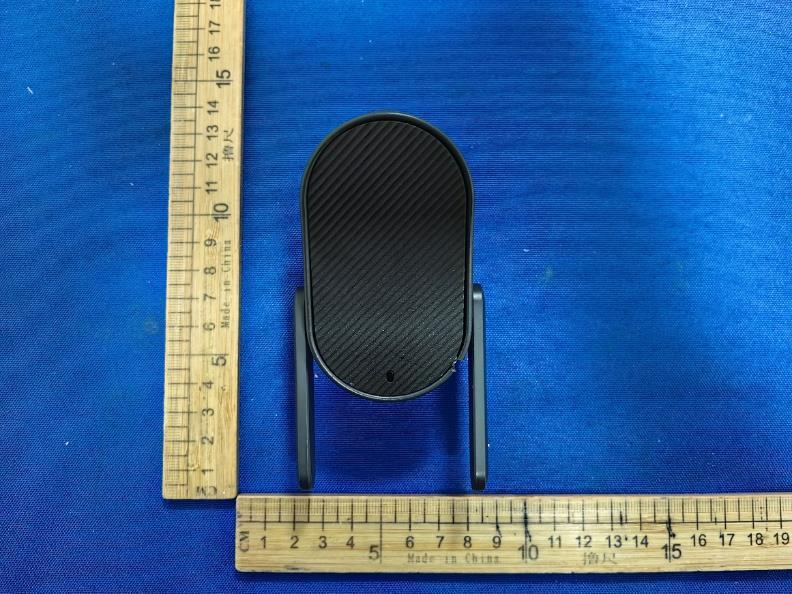

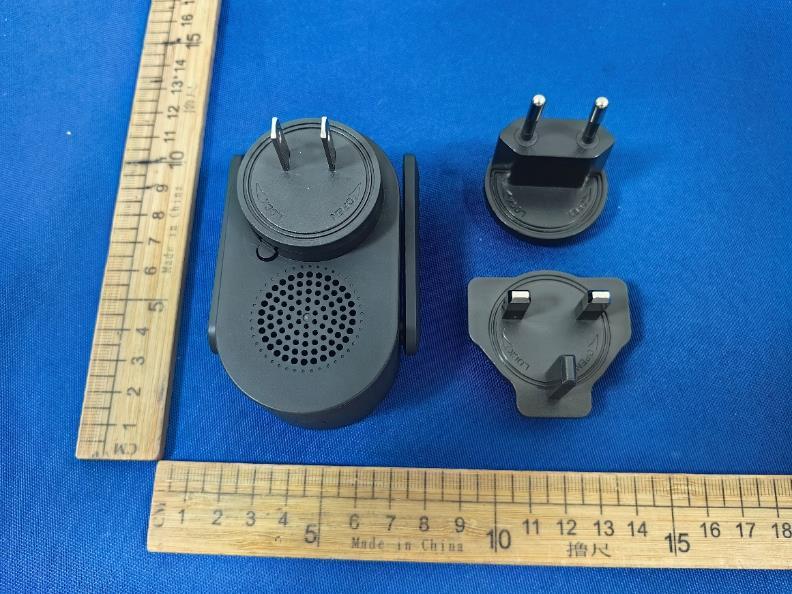

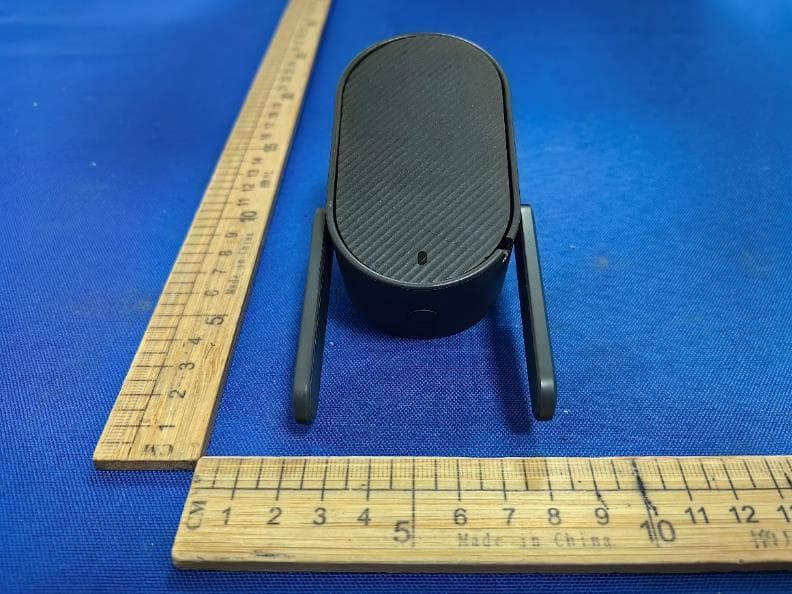

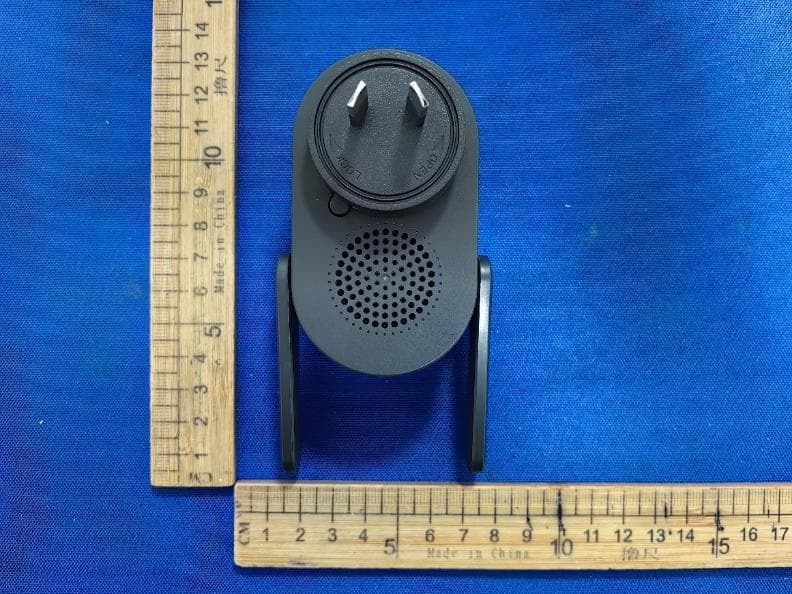

External

Internal 5GHz WIFI Antenna BT Antenna 2.4GHz WIFI Antenna1 2.4GHz WIFI Antenna2

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in ß1.1307(b) FCC ID: 2A22Z-R811H EUT Specification EUT Botslab Video Doorbell 2 Pro(Wi-Fi HomeBase) Model Number R811-H Series Model R812-H, R813-H, R811 Input Rating AC100V~240V 0.3A MAX 50/60Hz Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power（peak power） BLE: 5.58 dBm IEEE 802.11b: 17.14 dBm IEEE 802.11g: 17.25 dBm IEEE 802.11n-HT20: 19.56 dBm IEEE 802.11n-HT40: 18.29 dBm 5180 MHz to 5240 MHz: 12.82 dBm 5260 MHz to 5320 MHz: 12.82 dBm 5500 MHz to 5700 MHz: 13.32 dBm 5745 MHz to 5825 MHz: 13.05 dBm Antenna gain (Max) BLE: -6.43 dBi 2.4GHz WIFI: ANT1: 2.29 dBi, ANT2: 2.17dBi 5.8G WIFI: 1.87 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 , Pout=output power to antenna in Mw G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operation Mode Chann el Freque ncy (MHz) Max Measu red Power (dBm) Tune up tolera nce (dBm) Max tune up condu cted power (dBm) Outp ut Peak powe r (mW) An t. Gai n (d Bi) Ant. Gain (nume ric) Power densit y at 20cm (mW/ cm2) Pow er dens ity Limit s (mW / cm2) BLE (2Mbps) 2402 5.58 6±1 7 5.012 -6. 43 0.228 0.000 227 1 2.4GHz WIFI (802.11n-H T20) 2462 19.56 20±1 21 125.8 93 2.2 9 1.694 0.042 435 1 5.8GHz WIFI (802.11ac- HT20) 5700 13.32 13±1 14 25.11 9 1.8 7 1.538 0.007 686 1 The Product unsupported at the same time to Transmitting. According to KDB 447498, and no simultaneous SAR measurement is required. Signature: Shawn Wen Date: 2023-11-17

Shenzhen Yusheng Communication Equipment Co., Ltd 1 / 17 R811 Project Antenna Specification Customer Name： 360 Customer product name： R811 base station Product name： External Antenna; Shrapnel antenna Product specifications： See BOM for details material code： 231100291；231100278（Cameraking） History of Change Content： Serial Number version status start and end dates responsible person page number remarks 1 first edition first edition 2023-11-13 Zhong Qiuhong 16 Supplier acknowledges signature： Responsible person/date IQC/date Check/date Approval/date MD Feng Jiwu Su Guanfa Chen Kehong RF He Lei The purchaser acknowledges the signature (please send it back after signing)： The judgment result： □ Qualified □ Unqualified Development and Design Engineer/Date SQE Engineer/Date Procurement Manager/Date Development Manager Approval/Date Shenzhen Yusheng Communication Equipment Co., Ltd 2 / 17 Directory 1. Overview .................................................................................................................................................... 3 1.1 Scope of application ..................................................................................................................................... 3 1.2 Basic project information ........................................................................................................................... 3 2. Technical indicators requirements .......................................................................................................... 3 2.1 Introduction to testing projects and instrument ......................................................................................... 3 2.2.1 Test instructions ..................................................................................................................................... 3 2.2.2 WIFI Antenna active parameters - base station project .......................................................................... 4 2.2.3 Steel sheet antenna ............................................................................................................................... 4 2.2.4 Steel sheet 5GWIFI- antenna efficiency and gain .............................................................................. 5 2.2.5 Passive antenna parameters -Steel sheet 5G WIFI apple diagram .................................................. 6 2.2.6 Passive antenna parameters -5.8G Directional pattern ......................................................................... 6 2.2.7 External PCB 1# 2.4GWIFI ..................................................................................................................... 7 2.2.8 External PCB 1# 2.4GWIFI antenna efficiency and gain ........................................................................ 7 2.2.9 External PCB 1# 2.4GWIFI - apple diagram .......................................................................................... 8 2.3.0 External PCB 1# 2.4GWIFI- Directional pattern ..................................................................................... 8 2.3.1 External PCB 2# 2.4GWIFI ..................................................................................................................... 8 2.3.2 External PCB 2# 2.4GWIFI- antenna efficiency and gain ...................................................................... 9 2.3.3 External PCB 2# 2.4GWIFI- apple diagram ......................................................................................... 10 2.3.4 External PCB 2# 2.4GWIFI- Directional pattern ................................................................................... 10 2.3.5 BT On board ........................................................................................................................................ 10 2.3.6 BT On board -antenna efficiency and gain ........................................................................................... 11 2.3.7 BT On board - apple diagram ............................................................................................................... 11 2.3.8 BT On board - Directional pattern ........................................................................................................ 11 2.3.9 BT environmental treatment ............................................................................................................... 12 2.4.0 Overall antenna layout ........................................................................................................................ 12 2.4.1 Test images ......................................................................................................................................... 13 3. Structural drawings ................................................................................................................................ 14 External antenna ............................................................................................................................................ 14 Steel sheet antenna ....................................................................................................................................... 15 4. BOM .......................................................................................................................................................... 16 5. Package Drawing ..................................................................................................................................... 17 Shenzhen Yusheng Communication Equipment Co., Ltd 1. Overview 1.1 Scope of application This requirement specifies the antenna technical requirements and material requirement specifications for R811 products. This requirement applies to the selection, testing, and acceptance of R811 antennas. 1.2 Basic project information Antenna name： R811 base station Antenna frequency： BT:2.4G-2.5G WIFI:2.4G-2.5G WIFI:5.1G-5.85G Antenna material： Shell+PCB+ Coaxial welding/Steel sheet 2. Technical indicators …

Text truncated - open the document above for the full version.

1 / 142 Appendix A Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT a 5180 Ant1 97.71 0.1 0.73 NVNT a 5200 Ant1 97.71 0.1 0.73 NVNT a 5240 Ant1 97.78 0.1 0.73 NVNT a 5260 Ant1 96.54 0.15 0.73 NVNT a 5280 Ant1 96.54 0.15 0.73 NVNT a 5320 Ant1 96.54 0.15 0.73 NVNT a 5500 Ant1 96.54 0.15 0.73 NVNT a 5600 Ant1 96.54 0.15 0.73 NVNT a 5700 Ant1 96.54 0.15 0.73 NVNT a 5745 Ant1 96.47 0.16 0.73 NVNT a 5785 Ant1 96.47 0.16 0.73 NVNT a 5825 Ant1 96.47 0.16 0.73 NVNT n20 5180 Ant1 96.31 0.16 0.78 NVNT n20 5200 Ant1 96.54 0.15 0.73 NVNT n20 5240 Ant1 96.54 0.15 0.73 NVNT n20 5260 Ant1 96.47 0.16 0.73 NVNT n20 5280 Ant1 96.54 0.15 0.73 NVNT n20 5320 Ant1 96.47 0.16 0.73 NVNT n20 5500 Ant1 96.47 0.16 0.73 NVNT n20 5600 Ant1 96.54 0.15 0.73 NVNT n20 5700 Ant1 96.54 0.15 0.73 NVNT n20 5745 Ant1 96.47 0.16 0.73 NVNT n20 5785 Ant1 96.47 0.16 0.73 NVNT n20 5825 Ant1 96.46 0.16 0.73 NVNT ac20 5180 Ant1 96.33 0.16 0.78 NVNT ac20 5200 Ant1 96.33 0.16 0.78 NVNT ac20 5240 Ant1 96.33 0.16 0.78 NVNT ac20 5260 Ant1 96.33 0.16 0.78 NVNT ac20 5280 Ant1 96.33 0.16 0.78 NVNT ac20 5320 Ant1 96.33 0.16 0.78 2 / 142 NVNT ac20 5500 Ant1 96.33 0.16 0.78 NVNT ac20 5600 Ant1 96.33 0.16 0.78 NVNT ac20 5700 Ant1 96.33 0.16 0.78 NVNT ac20 5745 Ant1 96.25 0.17 0.78 NVNT ac20 5785 Ant1 96.25 0.17 0.78 NVNT ac20 5825 Ant1 96.25 0.17 0.78 NVNT ax20 5180 Ant1 95.3 0.21 1.01 NVNT ax20 5200 Ant1 95.3 0.21 1.01 NVNT ax20 5240 Ant1 95.3 0.21 1.01 NVNT ax20 5260 Ant1 95.3 0.21 1.01 NVNT ax20 5280 Ant1 95.3 0.21 1.01 NVNT ax20 5320 Ant1 95.3 0.21 1.01 NVNT ax20 5500 Ant1 91.03 0.41 1.01 NVNT ax20 5600 Ant1 95.3 0.21 1.01 NVNT ax20 5700 Ant1 95.3 0.21 1.01 NVNT ax20 5745 Ant1 95.21 0.21 1.01 NVNT ax20 5785 Ant1 95.21 0.21 1.01 NVNT ax20 5825 Ant1 95.21 0.21 1.01 3 / 142 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 12.65 0.1 12.75 24 Pass NVNT a 5200 Ant1 12.52 0.1 12.62 24 Pass NVNT a 5240 Ant1 12.72 0.1 12.82 24 Pass NVNT a 5260 Ant1 12.32 0.15 12.47 24 Pass NVNT a 5280 Ant1 12.67 0.15 12.82 24 Pass NVNT a 5320 Ant1 12.63 0.15 12.78 24 Pass NVNT a 5500 Ant1 12.02 0.15 12.17 24 Pass NVNT a 5600 Ant1 12.53 0.15 12.68 24 Pass NVNT a 5700 Ant1 11.91 0.15 12.06 24 Pass NVNT a 5745 Ant1 11.52 0.16 11.68 30 Pass NVNT a 5785 Ant1 11.6 0.16 11.76 30 Pass NVNT a 5825 Ant1 10.54 0.16 10.7 30 Pass NVNT n20 5180 Ant1 12.25 0.16 12.41 24 Pass NVNT n20 5200 Ant1 11.83 0.15 11.98 24 Pass NVNT n20 5240 Ant1 11.83 0.15 11.98 24 Pass NVNT n20 5260 Ant1 11.92 0.16 12.08 24 Pass NVNT n20 5280 Ant1 11.61 0.15 11.76 24 Pass NVNT n20 5320 Ant1 11.51 0.16 11.67 24 Pass NVNT n20 5500 Ant1 11.24 0.16 11.4 24 Pass NVNT n20 5600 Ant1 11.62 0.15 11.77 24 Pass NVNT n20 5700 Ant1 11.23 0.15 11.38 24 Pass NVNT n20 5745 Ant1 10.81 0.16 10.97 30 Pass NVNT n20 5785 Ant1 10.87 0.16 11.03 30 Pass NVNT n20 5825 Ant1 9.96 0.16 10.12 30 Pass NVNT ac20 5180 Ant1 11.88 0.16 12.04 24 Pass NVNT ac20 5200 Ant1 11.37 0.16 11.53 24 Pass NVNT ac20 5240 Ant1 11.43 0.16 11.59 24 Pass NVNT ac20 5260 Ant1 11.42 0.16 11.58 24 Pass NVNT ac20 5280 Ant1 11.24 0.16 11.4 24 Pass NVNT ac20 5320 Ant1 11.42 0.16 11.58 24 Pass NVNT ac20 5500 Ant1 12.49 0.16 12.65 24 Pass NVNT ac20 5600 Ant1 13.16 0.16 13.32 24 Pass NVNT ac20 5700 Ant1 12.77 0.16 12.93 24 Pass NVNT ac20 5745 Ant1 12.83 0.17 13 30 Pass NVNT ac20 5785 Ant1 12.88 0.17 13.05 30 Pass NVNT ac20 5825 Ant1 11.97 0.17 12.14 30 Pass NVNT ax20 5180 Ant1 10.56 0.21 10.77 24 Pass NVNT ax20 5200 Ant1 10.56 0.21 10.77 24 Pass NVNT ax20 5240 Ant1 10.5 0.21 10.71 24 Pass 4 / 142 NVNT ax20 5260 Ant1 10.44 0.21 10.65 24 Pass NVNT ax20 5280 Ant1 10.22 0.21 10.43 24 Pass NVNT ax20 5320 Ant1 10.04 0.21 10.25 24 Pass NVNT ax20 5500 Ant1 10.6 0.41 11.01 24 Pass NVNT ax20 5600 Ant1 10.93 0.21 11.14 24 Pass NVNT ax20 5700 Ant1 10.62 0.21 10.83 24 Pass NVNT ax20 5745 Ant1 10.54 0.21 10.75 30 Pass NVNT ax20 5785 Ant1 10.62 0.21 10.83 30 Pass NVNT ax20 5825 Ant1 9.63 0.21 9.84 30 Pass 5 / 142 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 26.601 0.5 Pass NVNT a 5200 Ant1 26.874 0.5 Pass NVNT a 5240 Ant1 26.619 0.5 Pass NVNT a 5260 Ant1 26.136 0.5 Pass NVNT a 5280 Ant1 26.271 0.5 Pass NVNT a 5320 Ant1 27.042 0.5 Pass NVNT a 5500 Ant1 26.595 0.5 Pass NVNT a 5600 Ant1 26.454 0.5 Pass NVNT a 5700 Ant1 26.457 0.5 Pass NVNT n20 5180 Ant1 28.314 0.5 Pass NVNT n20 5200 Ant1 26.94 0.5 Pass NVNT n20 5240 Ant1 26.334 0.5 Pass NVNT n20 5260 Ant1 26.499 0.5 Pass NVNT n20 5280 Ant1 25.941 0.5 Pass NVNT n20 5320 Ant1 27.261 0.5 Pass NVNT n20 5500 Ant1 26.574 0.5 Pass NVNT n20 5600 Ant1 26.727 0.5 Pass NVNT n20 5700 Ant1 25.455 0.5 Pass NVNT ac20 5180 Ant1 29.889 0.5 Pass NVNT ac20 5200 Ant1 29.433 0.5 Pass NVNT ac20 5240 Ant1 27.765 0.5 Pass NVNT ac20 5260 Ant1 27 0.5 Pass NVNT ac20 5280 Ant1 26.928 0.5 Pass NVNT ac20 5320 Ant1 26.7 0.5 Pass NVNT ac20 5500 Ant1 27.708 0.5 Pass NVNT ac20 5600 Ant1 28.212 0.5 Pass NVNT ac20 5700 Ant1 28.425 0.5 Pass NVNT ax20 5180 Ant1 26.103 0.5 Pass NVNT ax20 5200 Ant1 25.926 0.5 Pass NVNT ax20 5240 Ant1 25.83 0.5 Pass NVNT ax20 5260 Ant1 25.683 0.5 Pass NVNT ax20 5280 Ant1 25.695 0.5 Pass NVNT ax20 5320 Ant1 25.815 0.5 Pass NVNT ax20 5500 Ant1 26.055 0.5 Pass NVNT ax20 5600 Ant1 26.271 0.5 Pass NVNT ax20 5700 Ant1 26.229 0.5 Pass 6 / 142 Test Graphs -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 7 / 142 -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT a 5260MHz Ant1 8 / 142 -26dB Bandwidth NVNT a 5280MHz Ant1 -26dB Bandwidth NVNT a 5320MHz Ant1 9 / 142 -26dB Bandwidth NVNT a 5500MHz Ant1 -26dB Bandwidth NVNT a 5600MHz Ant1 10 / 142 -26dB Bandwidth NVNT a 5700MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 11 / 142 -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 12 / 142 -26dB Bandwidth NVNT n20 5260MHz Ant1 -26dB Bandwidth NVNT n20…

Text truncated - open the document above for the full version.

73 / 142 PSD NVNT ax20 5180MHz Ant1 PSD NVNT ax20 5200MHz Ant1 74 / 142 PSD NVNT ax20 5240MHz Ant1 PSD NVNT ax20 5260MHz Ant1 75 / 142 PSD NVNT ax20 5280MHz Ant1 PSD NVNT ax20 5320MHz Ant1 76 / 142 PSD NVNT ax20 5500MHz Ant1 PSD NVNT ax20 5600MHz Ant1 77 / 142 PSD NVNT ax20 5700MHz Ant1 PSD NVNT ax20 5745MHz Ant1 78 / 142 PSD NVNT ax20 5785MHz Ant1 PSD NVNT ax20 5825MHz Ant1 79 / 142 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5180 Ant1 -30.58 -27 Pass NVNT a 5240 Ant1 -40.02 -27 Pass NVNT a 5260 Ant1 -39.8 -27 Pass NVNT a 5320 Ant1 -34.68 -27 Pass NVNT a 5500 Ant1 -37.77 -27 Pass NVNT a 5700 Ant1 -32.56 -27 Pass NVNT a 5745 Ant1 -25.89 Pass NVNT a 5825 Ant1 -35.09 Pass NVNT n20 5180 Ant1 -31.65 -27 Pass NVNT n20 5240 Ant1 -40.22 -27 Pass NVNT n20 5260 Ant1 -40.22 -27 Pass NVNT n20 5320 Ant1 -36.9 -27 Pass NVNT n20 5500 Ant1 -39.46 -27 Pass NVNT n20 5700 Ant1 -30.45 -27 Pass NVNT n20 5745 Ant1 -29.23 Pass NVNT n20 5825 Ant1 -35.56 Pass NVNT ac20 5180 Ant1 -27.86 -27 Pass NVNT ac20 5240 Ant1 -39.96 -27 Pass NVNT ac20 5260 Ant1 -39.39 -27 Pass NVNT ac20 5320 Ant1 -34 -27 Pass NVNT ac20 5500 Ant1 -32.34 -27 Pass NVNT ac20 5700 Ant1 -32.3 -27 Pass NVNT ac20 5745 Ant1 -22.42 Pass NVNT ac20 5825 Ant1 -33.01 Pass NVNT ax20 5180 Ant1 -30.6 -27 Pass NVNT ax20 5240 Ant1 -39.95 -27 Pass NVNT ax20 5260 Ant1 -39.19 -27 Pass NVNT ax20 5320 Ant1 -34.36 -27 Pass NVNT ax20 5500 Ant1 -38.68 -27 Pass NVNT ax20 5700 Ant1 -30.85 -27 Pass NVNT ax20 5745 Ant1 -28.09 Pass NVNT ax20 5825 Ant1 -32.03 Pass 80 / 142 Test Graphs Band Edge NVNT a 5180MHz Low Ant1 Band Edge NVNT a 5240MHz High Ant1 81 / 142 Band Edge NVNT a 5260MHz Low Ant1 Band Edge NVNT a 5320MHz High Ant1 82 / 142 Band Edge NVNT a 5500MHz Low Ant1 Band Edge NVNT a 5700MHz High Ant1 83 / 142 Band Edge NVNT a 5745MHz Low Ant1 Band Edge NVNT a 5825MHz High Ant1 84 / 142 Band Edge NVNT n20 5180MHz Low Ant1 Band Edge NVNT n20 5240MHz High Ant1 85 / 142 Band Edge NVNT n20 5260MHz Low Ant1 Band Edge NVNT n20 5320MHz High Ant1 86 / 142 Band Edge NVNT n20 5500MHz Low Ant1 Band Edge NVNT n20 5700MHz High Ant1 87 / 142 Band Edge NVNT n20 5745MHz Low Ant1 Band Edge NVNT n20 5825MHz High Ant1 88 / 142 Band Edge NVNT ac20 5180MHz Low Ant1 89 / 142 Band Edge NVNT ac20 5240MHz High Ant1 Band Edge NVNT ac20 5260MHz Low Ant1 90 / 142 Band Edge NVNT ac20 5320MHz High Ant1 Band Edge NVNT ac20 5500MHz Low Ant1 91 / 142 Band Edge NVNT ac20 5700MHz High Ant1 Band Edge NVNT ac20 5745MHz Low Ant1 92 / 142 Band Edge NVNT ac20 5825MHz High Ant1 93 / 142 Band Edge NVNT ax20 5180MHz Low Ant1 Band Edge NVNT ax20 5240MHz High Ant1 94 / 142 Band Edge NVNT ax20 5260MHz Low Ant1 Band Edge NVNT ax20 5320MHz High Ant1 95 / 142 Band Edge NVNT ax20 5500MHz Low Ant1 Band Edge NVNT ax20 5700MHz High Ant1 96 / 142 Band Edge NVNT ax20 5745MHz Low Ant1 Band Edge NVNT ax20 5825MHz High Ant1 97 / 142 Frequency Stability Condition Mode Time (mins) Frequency (MHz) Antenna Measured Frequency (MHz) Frequency Error (Hz) Deviation (ppm) Limit (ppm) Verdict 20C 102V a 0 5180 Ant1 5180 0 0 25 Pass 20C 120V a 0 5180 Ant1 5180.04 40000 7.72 25 Pass 20C 138V a 0 5180 Ant1 5180.02 20000 3.86 25 Pass -20C 120V a 0 5180 Ant1 5180.04 40000 7.72 25 Pass -10C 120V a 0 5180 Ant1 5180.02 20000 3.86 25 Pass 0C 120V a 0 5180 Ant1 5180.02 20000 3.86 25 Pass 10C 120V a 0 5180 Ant1 5180.02 20000 3.86 25 Pass 30C 120V a 0 5180 Ant1 5180.02 20000 3.86 25 Pass 40C 120V a 0 5180 Ant1 5180.02 20000 3.86 25 Pass 50C 120V a 0 5180 Ant1 5180.02 20000 3.86 25 Pass 20C 102V a 0 5200 Ant1 5200.02 20000 3.85 25 Pass 20C 120V a 0 5200 Ant1 5200.04 40000 7.69 25 Pass 20C 138V a 0 5200 Ant1 5200 0 0 25 Pass -20C 120V a 0 5200 Ant1 5200.04 40000 7.69 25 Pass -10C 120V a 0 5200 Ant1 5200.02 20000 3.85 25 Pass 0C 120V a 0 5200 Ant1 5200 0 0 25 Pass 10C 120V a 0 5200 Ant1 5200.02 20000 3.85 25 Pass 30C 120V a 0 5200 Ant1 5200.02 20000 3.85 25 Pass 40C 120V a 0 5200 Ant1 5200.02 20000 3.85 25 Pass 50C 120V a 0 5200 Ant1 5200.02 20000 3.85 25 Pass 20C 102V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass 20C 120V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass 20C 138V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass -20C 120V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass -10C 120V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass 0C 120V a 0 5240 Ant1 5240.04 40000 7.63 25 Pass 10C 120V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass 30C 120V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass 40C 120V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass 50C 120V a 0 5240 Ant1 5240.02 20000 3.82 25 Pass 20C 102V a 0 5260 Ant1 5260.04 40000 7.6 25 Pass 20C 120V a 0 5260 Ant1 5260.02 20000 3.8 25 Pass 20C 138V a 0 5260 Ant1 5260.02 20000 3.8 25 Pass -20C 120V a 0 5260 Ant1 5260.02 20000 3.8 25 Pass -10C 120V a 0 5260 Ant1 5260.04 40000 7.6 25 Pass 0C 120V a 0 5260 Ant1 5260.04 40000 7.6 25 Pass 10C 120V a 0 5260 Ant1 5260.02 20000 3.8 25 Pass 30C 120V a 0 5260 Ant1 5260.04 40000 7.6 25 Pass 98 / 142 40C 120V a 0 5260 Ant1 5260.04 40000 7.6 25 Pass 50C 120V a 0 5260 Ant1 5260.02 20000 3.8 25 Pass 20C 102V a 0 5280 Ant1 5280.02 20000 3.79 25 Pass 20C 120V a 0 5280 Ant1 5280.02 20000 3.79 25 Pass 20C 138V a 0 5280 Ant1 5280.04 40000 7.58 25 Pass -20C 120V a 0 5280 Ant1 5280.04 40000 7.58 25 Pass -10C 120V a 0 5280 Ant1 5280.02 20000 3.79 25 Pass 0C 120V a 0 5280 Ant1 5280.02 20000 3.79 25 Pass 10C 120V a 0 5280 Ant1 5280.04 40000 7.58 25 Pass 30C 120V a 0 5280 Ant1 5280.02 20000 3.79 25 Pass 40C 120V a 0 5280 Ant1 5280.04 40000 7.58 25 Pass 50C 120V a 0 5280 Ant1 5280.04 40000 7.58 25 Pass 20C 102V a 0 5320 Ant1 5320.04 40000 7.52 25 Pass 20C 120V a 0 5320 Ant1 5320.04 40000 7.52 25 Pass 20C 138V a 0 5320 Ant1 5320.04 40000 7.52 25 Pass -20C 120V a 0 5320 Ant1 5320.02 20000 3.76 25 Pass -10C 120V a 0 5320 Ant1 5320.02 20000 3.76 25 Pass 0C 120V a 0 5320 Ant1 5320.04 40000 7.52 25 Pass 10C 120V a 0 5320 Ant1 5320.02 20000 3.76 25 Pass 30C 120V a 0 5320 Ant1 5320.02 20000 3.76 25 Pass 40C 120V a 0 5320 Ant1 5320.02 20000 3.76 25 Pass 50C 120V a 0 5320 Ant1 5320…

Text truncated - open the document above for the full version.

Radiated Emissions and Band Edge Measurement AC Power Line Conducted Emission
