2A22Z-W331Outdoor Battery Cameras

Botslab,Inc. 2023-08-02 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID: 2A22Z-W331 ) [Botslab,Inc.](“theapplicant”)certifiesthattheequipmentforwhichauthorizationis soughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Sincerely, JohnDerr CertificationAdministrator Botslab,Inc. 919NorthMarketStreet,Suite950,Wilmington,NewCastle,Delaware,USA Botslab,Inc. 2023-08-02 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID: 2A22Z-W331 ) [ Botslab,Inc. ](“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Sincerely, JohnDerr CertificationAdministrator Botslab,Inc. 919NorthMarketStreet,Suite950,Wilmington,NewCastle,Delaware,USA

AttestationStatements (2023-08-02) TO:Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for(FCC ID: 2A22Z-W331) (Botslab, Inc.), the undersigned, hereby authorize(Botslab, Inc.)to act as our designated U.S. agent for service of process, (Botslab, Inc.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Botslab, Inc.)accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Botslab, Inc. Contact Name: John Derr Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Telephone No: 8663600505 Email: [email protected] Signature [ JohnDerr ] U.S.AgentInformation: Companyname:Botslab,Inc. Address:919NorthMarketStreet,Suite950,Wilmington,NewCastle,Delaware,USA FRN:0031326077 ContactName:JohnDerr TelephoneNo:8663600505 Email:[email protected] Signature [JohnDerr]

Botslab,Inc. 2023-08-02 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeDongGuanAnciElectronicTechnologyCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, JohnDerr CertificationAdministrator Botslab,Inc. 919NorthMarketStreet,Suite950,Wilmington,NewCastle,Delaware,USA

Botslab,Inc. 2023-08-02 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(EUTName:OutdoorBatteryCameras /Model:W331,W332,W333,W334,W335/FCCID:2A22Z-W331) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe(BlockDiagram,OperationalDescription,Schematics)required tobesubmittedwiththisapplicationbepermanentlywithheldfrompublicreview. Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsmaybeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, JohnDerr CertificationAdministrator Botslab,Inc. 919NorthMarketStreet,Suite950,Wilmington,NewCastle,Delaware,USA

Botslab,Inc. Declarationonmodeldifference Wetheundersignedherebyconfirmthatthesemodelsareidentical,andallmodelshavethe sameRFmoduleandantenna,PCBlayout,schematicsandcomponent.Onlythemodelsnameare different. ProductionnameTrademarkFCCIDModelno. OutdoorBattery Cameras /2A22Z-W331W331,W332,W333,W334,W335 Sincerely, JohnDerr CertificationAdministrator Botslab,Inc. 919NorthMarketStreet,Suite950,Wilmington,NewCastle,Delaware,USA

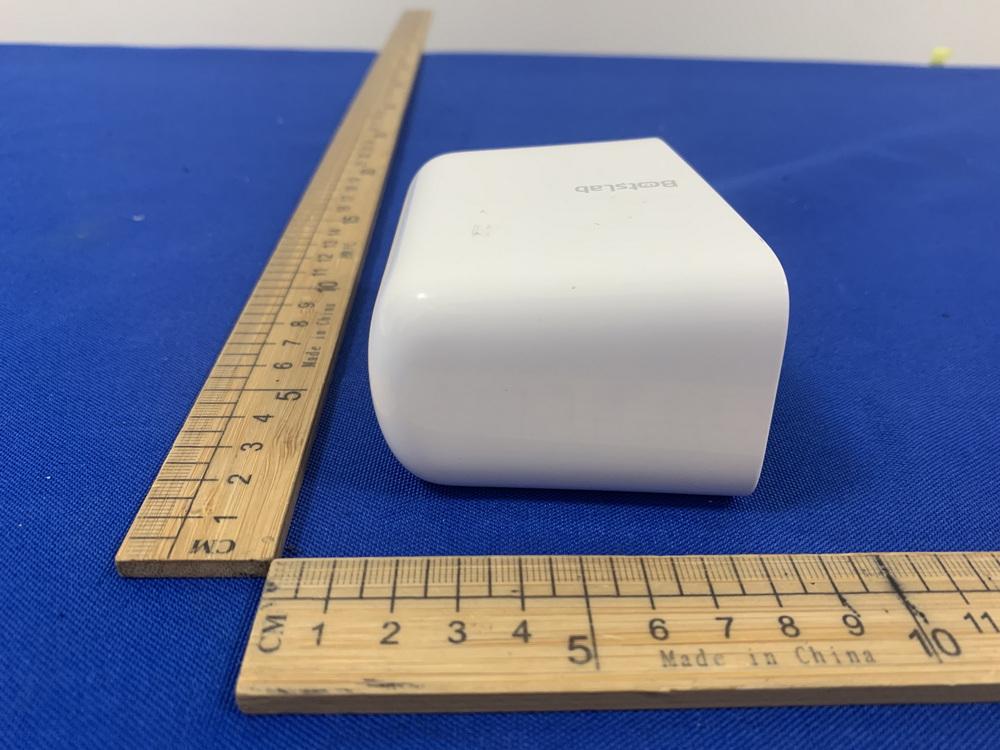

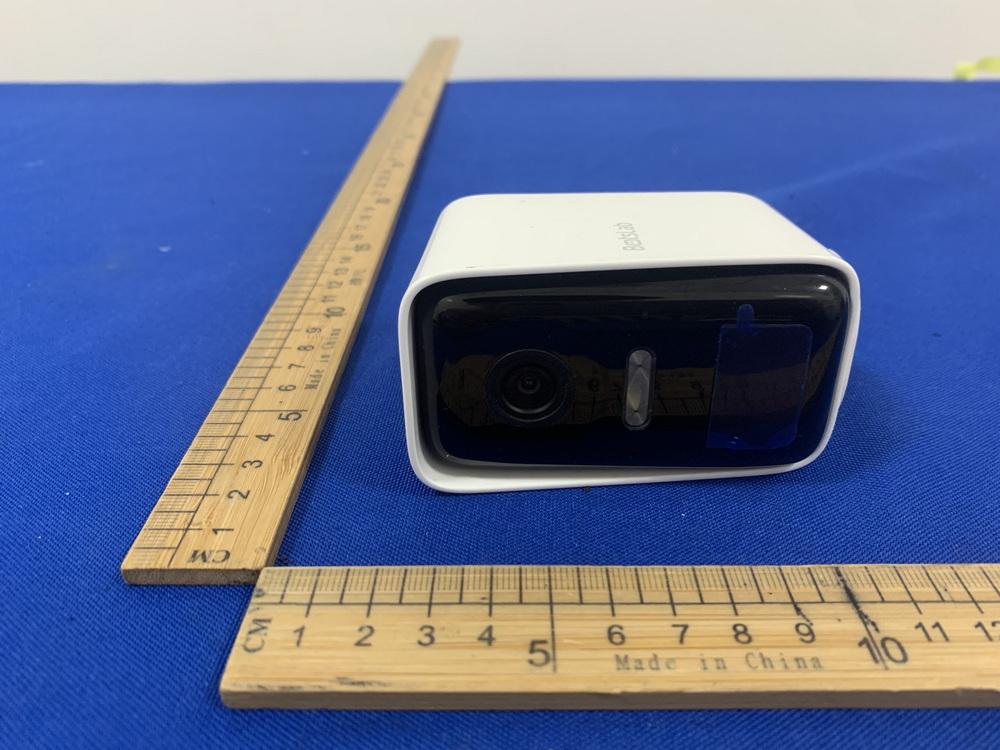

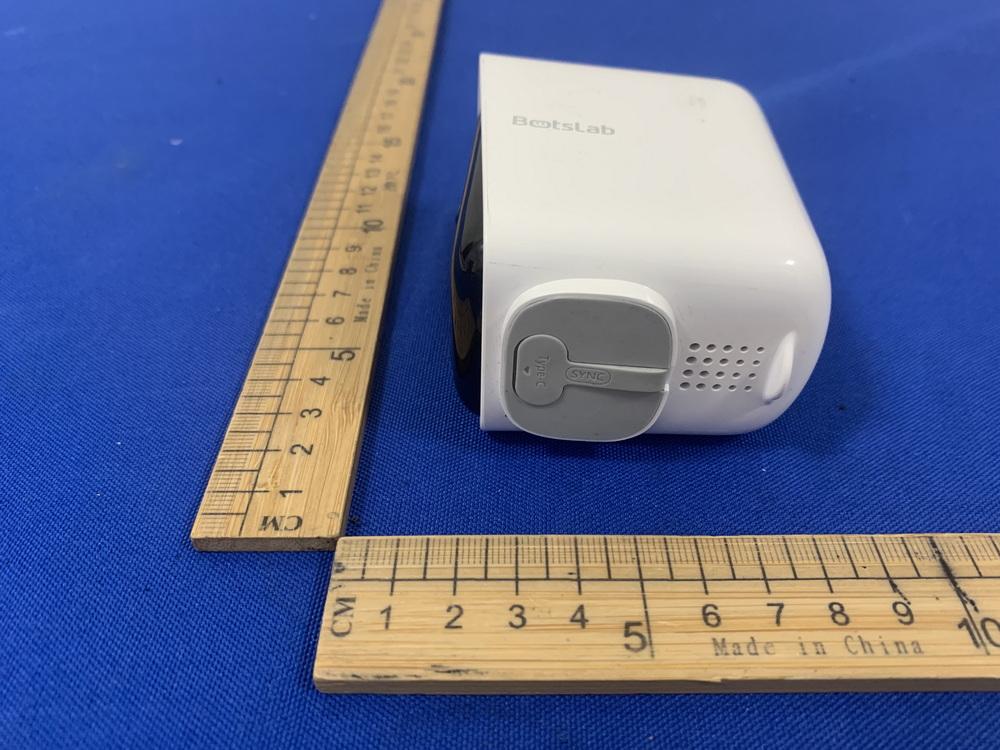

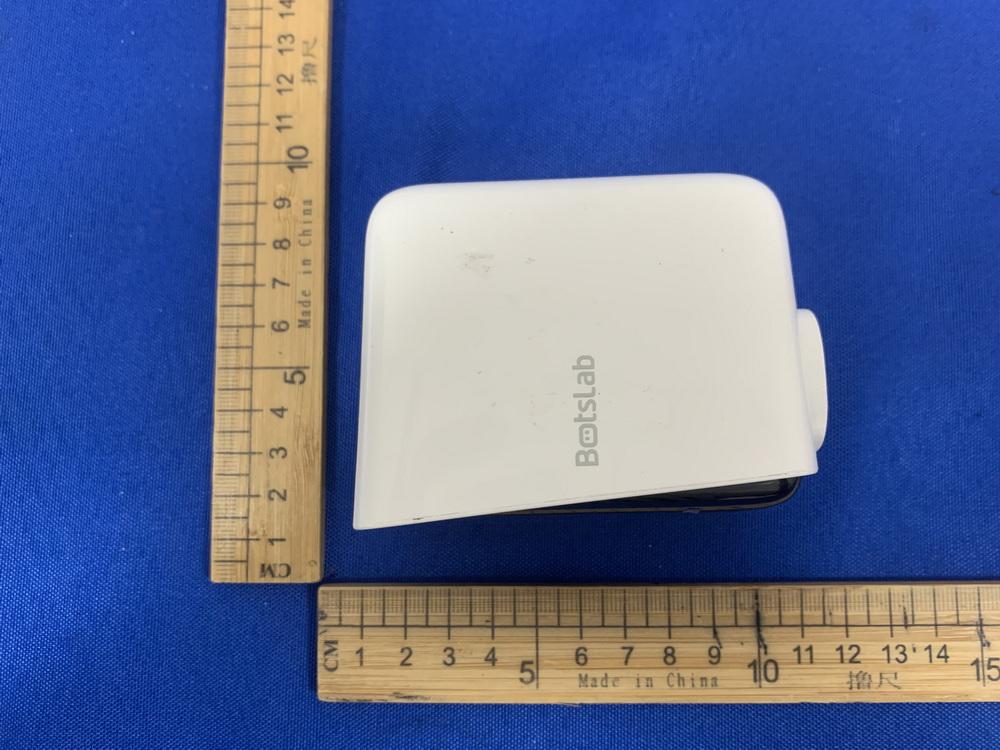

External

Internal ANT

RF EXPOSURE EVALUATION EUT Specification EUT Outdoor Battery Cameras Model Number W331 FCC ID 2A22Z-W331 Antenna gain (Max) 3.54dBi Operation Frequency BLE :2.402-2.480GHz WLAN: 2.412GHz ~ 2.462GHz Input Rating DC 5V Max. output power BT: 4.49 dBm WLAN: IEEE 802.11b: 14.08 dBm IEEE 802.11g: 20.39 dBm IEEE 802.11n-HT20: 16.78 dBm Test Requirement: According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: 3.54dBi BLE: Mode Channe l Freq. (MHz) Max. Measu red power (dBm) Tune- up power (dBm) Max tune-up power (dBm) Antenn a Gain （Nume ric） Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) GFSK 2480 4.49 4±1 5 2.259 0.001421 1 WIFI: Mode Channe l Freq. (MHz) Max. Measu red power (dBm) Tune- up power (dBm) Max tune-up power (dBm) Antenn a Gain （Nume ric） Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) IEEE 802.11g 2462 20.39 20±1 21 2.259 0.049164 1 The Product unsupported at the same time to Transmitting. ignature: Tiger Xu Date: 2023-08-01

地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn SPECIFICATION FOR APPROVAL CUSTOMER NAME:360 PRODUCT NAME: 2.4G 3.54dBiInternalantenna CUSTOMER P/N: Internal structure Ren FengP/N:U00T02S000N02806REV: A ： MANUFACTURER FPC SIGNATURE CUSTOMER SIGNATURE CHECKED BY: AUDITOR BY Zhou Rongchuang :Xiao-Lin Liu APPROVED BY: Yao Dingjun DATE:2023-02-21 Acknowledgement File and data changes 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn Resume Edition No. Modify Modify chapterPage Effective date Change recorder A2023.02.21 Liu Xiaolin 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn Contents Description Page 1、Cover ----------------------------------------------- 1 2、Resume --------------------------------------------- 2 3、Contents--------------------------------------------- 3 4、Specifications sheets ---------------------------- 4 5、End product chart -------------------------------5 6、Testing report -------------------------------- 6 -8 7Material description -------------------------9 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 2400-2500MH Frequency Range （MHZ Main technical specifications Main technical specificationsMain technical specifications ） z Frequency Range (MHZ) 2400-2500 Impedance(Ω) 50 Impedance(Ω) 50 Gain(dBi) Gain(dBi 3.54 ) 3.54 Return Loss(dB) ≤-9.5Return Loss(dB)≤-9.5 VSWR ≤2.0VSWR≤2.0 Polarization Linear,Vertical PolarizationLinear,Vertical Radiation Omni-directional RadiationOmni-directional Connector Type terminal Connector Type terminal Physical Properties Physical Properties AntennaBas e Antenna Bas FPC e -20°C~+70 FPC Operating Temp °C -20°C~+70 Operating Temp °C -20°C~+70 Storage Temp °C-20°C~+70 Storage Temp °C 4 Antenna assembly diagram External WIFI antenna 4 Antenna assembly diagram Horizontal plane: XY plane 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 6.1Network anal yzer test rep 6. Testing report ort WIFI3-2.4G 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 6.2:Antenna gain,efficiency meter 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199 8 / 8 网址：www.rflink.net.com 、 ROHS/ Raw Material List: Componen t numb Meet RoHS requirements er Componen t name material quan tity unitmanufacturer number remarks 1 FPCPI 1 PCS junyi / 2 Double-sided adhesiv Back glue e 1 PCS junyi /

TRF No.: 01-R005-3A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 (DTS) TEST REPORT For Outdoor Battery Cameras MODEL NUMBER: W331 FCC ID: 2A22Z-W331 IC: 27673-W331 REPORT NUMBER: E01A23030560F01201 ISSUE DATE: July 10, 2023 Prepared for Botslab,Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Prepared by Dong Guan Anci Electronic Technology Co., Ltd. 1-2 Floor, Building A, No.11, Headquarters 2 Road, Songshan, Lake Hi-tech Industrial Development Zone, Dongguan City, Guangdong Pr., China. This report shall not be reproduced, except in full, without the written approval of Dong Guan Anci Electronic Technology Co., Ltd. REPORT NO.: E01A23040583F00102 Page 1 of 52 TRF No.: 01-R005-3A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 July 10, 2023 Initial Issue Duke REPORT NO.: E01A23040583F00102 Page 2 of 52 TRF No.: 01-R005-3A Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) RSS-247 Clause 5.4 (d) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 5.5 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.11 & Clause 11.12 FCC Part 15.247 (d) FCC Part 15.205/15.209 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 (DTS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E01A23040583F00102 Page 3 of 52 TRF No.: 01-R005-3A Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..........................................................................5 2. TEST METHODOLOGY ..............................................................................................6 3. FACILITIES AND ACCREDITATION ..........................................................................6 4. CALIBRATION AND UNCERTAINTY .........................................................................7 4.1. MEASURING INSTRUMENT CALIBRATION .................................................7 4.2. MEASUREMENT UNCERTAINTY .................................................................7 5. EQUIPMENT UNDER TEST ........................................................................................8 5.1. DESCRIPTION OF EUT .................................................................................8 5.2. CHANNEL LIST ..............................................................................................8 5.3. MAXIMUM AVERAGE EIRP ...........................................................................9 5.4. TEST CHANNEL CONFIGURATION .............................................................9 5.5. THE WORSE CASE POWER SETTING PARAMETER .................................9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .................................................9 5.7. SUPPORT UNITS FOR SYSTEM TEST ........................................................9 5.8. SETUP DIAGRAM ........................................................................................ 10 6. MEASURING EQUIPMENT AND SOFTWARE USED .............................................. 10 7. ANTENNA PORT TEST RESULTS ........................................................................... 11 7.1. Conducted Output Power ............................................................................. 11 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ............................................. 13 7.3. Power Spectral Density ................................................................................ 15 7.4. Conducted Band edge and spurious emission .............................................. 16 7.5. Duty Cycle .................................................................................................... 18 8. RADIATED TEST RESULTS .................................................................................... 19 9. ANTENNA REQUIREMENT ...................................................................................... 38 10. AC POWER LINE CONDUCTED EMISSION ............................................... 39 11. TEST DATA ................................................................................................. 42 APPENDIX: PHOTOGRAPHS OF TEST CONFIGURATION ........................................... 43 REPORT NO.: E01A23040583F00102 Page 4 of 52 TRF No.: 01-R005-3A Global Testing , Great Quality. APPENDIX: PHOTOGRAPHS OF THE EUT ................................................................... 45 REPORT NO.: E01A23040583F00102 Page 5 of 52 TRF No.: 01-R005-3A Global Testing , Great Quality. 1. ATESTATION OF TEST RESULTS Applicant Information Company Name: Botslab,Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Manufacturer Information Company Name: Botslab,Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA EUT Information EUT Name: Outdoor Battery Cameras Model: W331 Series model: W332, W333, W334, W335 Difference Description: There is no difference except for the model name. Brand: Botslab Sample Received Date: April 15, 2023 Sample Status: Normal Sample ID: A23030560 013 Date of Tested: April 16, 2023 to July 3, 2023…

Text truncated - open the document above for the full version.

TRF No.: 01-R005-3A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 (DTS) TEST REPORT For Outdoor Battery Cameras MODEL NUMBER: W331 FCC ID: 2A22Z-W331 IC: 27673-W331 REPORT NUMBER: E01A23030560F01202 ISSUE DATE: July 10, 2023 Prepared for Botslab,Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Prepared by Dong Guan Anci Electronic Technology Co., Ltd. 1-2 Floor, Building A, No.11, Headquarters 2 Road, Songshan, Lake Hi-tech Industrial Development Zone, Dongguan City, Guangdong Pr., China. This report shall not be reproduced, except in full, without the written approval of Dong Guan Anci Electronic Technology Co., Ltd. REPORT NO.: E01A23030560F01202 Page 1 of 45 TRF No.: 01-R005-3A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 July 10, 2023 Initial Issue Duke REPORT NO.: E01A23030560F01202 Page 2 of 45 TRF No.: 01-R005-3A Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 Pass Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) RSS-247 Clause 5.4 (d) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 5.5 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.11 & Clause 11.12 FCC Part 15.247 (d) FCC Part 15.205/15.209 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 (DTS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E01A23030560F01202 Page 3 of 45 TRF No.: 01-R005-3A Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ..........................................................................5 2. TEST METHODOLOGY ..............................................................................................6 3. FACILITIES AND ACCREDITATION ..........................................................................6 4. CALIBRATION AND UNCERTAINTY .........................................................................7 4.1. MEASURING INSTRUMENT CALIBRATION .................................................7 4.2. MEASUREMENT UNCERTAINTY .................................................................7 5. EQUIPMENT UNDER TEST ........................................................................................8 5.1. DESCRIPTION OF EUT .................................................................................8 5.2. CHANNEL LIST ..............................................................................................8 5.3. MAXIMUM AVERAGE EIRP ...........................................................................8 5.4. TEST CHANNEL CONFIGURATION .............................................................9 5.5. THE WORSE CASE POWER SETTING PARAMETER .................................9 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ............................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST ...................................................... 10 5.8. SETUP DIAGRAM ........................................................................................ 10 6. MEASURING EQUIPMENT AND SOFTWARE USED .............................................. 11 7. ANTENNA PORT TEST RESULTS ........................................................................... 12 7.1. Conducted Output Power ............................................................................. 12 7.2. 6dB Bandwidth and 99% Occupied Bandwidth ............................................. 13 7.3. Power Spectral Density ................................................................................ 15 7.4. Conducted Band edge and spurious emission .............................................. 16 7.5. Duty Cycle .................................................................................................... 18 8. RADIATED TEST RESULTS .................................................................................... 19 9. ANTENNA REQUIREMENT ...................................................................................... 42 10. AC POWER LINE CONDUCTED EMISSION ............................................... 43 11. TEST DATA ................................................................................................. 46 APPENDIX: PHOTOGRAPHS OF TEST CONFIGURATION ........................................... 47 REPORT NO.: E01A23030560F01202 Page 4 of 45 TRF No.: 01-R005-3A Global Testing , Great Quality. APPENDIX: PHOTOGRAPHS OF THE EUT ................................................................... 49 REPORT NO.: E01A23030560F01202 Page 5 of 45 TRF No.: 01-R005-3A Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Botslab,Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Manufacturer Information Company Name: Botslab,Inc. Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA EUT Information EUT Name: Outdoor Battery Cameras Model: W331 Series model: W332, W333, W334, W335 Difference Description: There is no difference except for the model name. Brand: Botslab Sample Received Date: April 15, 2023 Sample Status: Normal Sample ID: A23030560 013 Date of Tested: April 16, 2023 to July 3, 202…

Text truncated - open the document above for the full version.

REPORT NO.: E01A23030560F01201 Page 1 of 21 Appendix A: Maximum Conducted Output Power Mode Frequency (MHz) Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) EIRP(dBm) EIRP Limit (dBm) Verdict BLE 1M 2402 2.36 0 2.36 5.9 36 Pass BLE 1M 2440 3.4 0 3.4 6.94 36 Pass BLE 1M 2480 4.49 0 4.49 8.03 36 Pass REPORT NO.: E01A23030560F01201 Page 2 of 21 Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 REPORT NO.: E01A23030560F01201 Page 3 of 21 Power NVNT BLE 1M 2480MHz Ant1 REPORT NO.: E01A23030560F01201 Page 4 of 21 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.697 0.5 Pass NVNT BLE 1M 2440 Ant1 0.69 0.5 Pass NVNT BLE 1M 2480 Ant1 0.695 0.5 Pass REPORT NO.: E01A23030560F01201 Page 5 of 21 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 REPORT NO.: E01A23030560F01201 Page 6 of 21 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 REPORT NO.: E01A23030560F01201 Page 7 of 21 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.03 NVNT BLE 1M 2440 Ant1 1.029 NVNT BLE 1M 2480 Ant1 1.031 REPORT NO.: E01A23030560F01201 Page 8 of 21 Test Graphs OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 REPORT NO.: E01A23030560F01201 Page 9 of 21 OBW NVNT BLE 1M 2480MHz Ant1 REPORT NO.: E01A23030560F01201 Page 10 of 21 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -13.02 0 -13.02 8 Pass NVNT BLE 1M 2440 Ant1 -11.9 0 -11.9 8 Pass NVNT BLE 1M 2480 Ant1 -10.96 0 -10.96 8 Pass REPORT NO.: E01A23030560F01201 Page 11 of 21 Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 REPORT NO.: E01A23030560F01201 Page 12 of 21 PSD NVNT BLE 1M 2480MHz Ant1 REPORT NO.: E01A23030560F01201 Page 13 of 21 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -51.4 -20 Pass NVNT BLE 1M 2480 Ant1 -55.5 -20 Pass REPORT NO.: E01A23030560F01201 Page 14 of 21 Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission REPORT NO.: E01A23030560F01201 Page 15 of 21 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission REPORT NO.: E01A23030560F01201 Page 16 of 21 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -53.42 -20 Pass NVNT BLE 1M 2440 Ant1 -55.21 -20 Pass NVNT BLE 1M 2480 Ant1 -55.86 -20 Pass REPORT NO.: E01A23030560F01201 Page 17 of 21 Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission REPORT NO.: E01A23030560F01201 Page 18 of 21 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission REPORT NO.: E01A23030560F01201 Page 19 of 21 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission REPORT NO.: E01A23030560F01201 Page 20 of 21 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 59.69 2.24 2.61 NVNT BLE 1M 2440 Ant1 59.69 2.24 2.61 NVNT BLE 1M 2480 Ant1 59.74 2.24 2.61 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 REPORT NO.: E01A23030560F01201 Page 21 of 21 Duty Cycle NVNT BLE 1M 2480MHz Ant1

REPORT NO.: E01A23030560F01202 Page 1 of 47 Appendix B: Maximum Conducted Output Power Mode Frequency (MHz) Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) EIRP (dBm) EIRP Limit (dBm) Verdict b 2412 12.55 0 12.55 16.09 36 Pass b 2437 14.01 0 14.01 17.55 36 Pass b 2462 14.08 0 14.08 17.62 36 Pass g 2412 16.07 0 16.07 19.61 36 Pass g 2437 16.44 0 16.44 19.98 36 Pass g 2462 20.39 0 20.39 23.93 36 Pass n20 2412 16.18 0 16.18 19.72 36 Pass n20 2437 16.38 0 16.38 19.92 36 Pass n20 2462 16.78 0 16.78 20.32 36 Pass REPORT NO.: E01A23030560F01202 Page 2 of 47 Test Graphs Power NVNT b 2412MHz Ant1 Power NVNT b 2437MHz Ant1 REPORT NO.: E01A23030560F01202 Page 3 of 47 Power NVNT b 2462MHz Ant1 Power NVNT g 2412MHz Ant1 REPORT NO.: E01A23030560F01202 Page 4 of 47 Power NVNT g 2437MHz Ant1 Power NVNT g 2462MHz Ant1 REPORT NO.: E01A23030560F01202 Page 5 of 47 Power NVNT n20 2412MHz Ant1 Power NVNT n20 2437MHz Ant1 REPORT NO.: E01A23030560F01202 Page 6 of 47 Power NVNT n20 2462MHz Ant1 REPORT NO.: E01A23030560F01202 Page 7 of 47 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 9.044 0.5 Pass NVNT b 2437 Ant1 8.001 0.5 Pass NVNT b 2462 Ant1 8.037 0.5 Pass NVNT g 2412 Ant1 16.468 0.5 Pass NVNT g 2437 Ant1 16.344 0.5 Pass NVNT g 2462 Ant1 16.332 0.5 Pass NVNT n20 2412 Ant1 17.522 0.5 Pass NVNT n20 2437 Ant1 17.545 0.5 Pass NVNT n20 2462 Ant1 17.565 0.5 Pass REPORT NO.: E01A23030560F01202 Page 8 of 47 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 REPORT NO.: E01A23030560F01202 Page 9 of 47 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 REPORT NO.: E01A23030560F01202 Page 10 of 47 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 REPORT NO.: E01A23030560F01202 Page 11 of 47 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 REPORT NO.: E01A23030560F01202 Page 12 of 47 -6dB Bandwidth NVNT n20 2462MHz Ant1 REPORT NO.: E01A23030560F01202 Page 13 of 47 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 12.903 NVNT b 2437 Ant1 12.942 NVNT b 2462 Ant1 13.007 NVNT g 2412 Ant1 17.158 NVNT g 2437 Ant1 17.159 NVNT g 2462 Ant1 17.139 NVNT n20 2412 Ant1 18.074 NVNT n20 2437 Ant1 18.084 NVNT n20 2462 Ant1 18.156 REPORT NO.: E01A23030560F01202 Page 14 of 47 Test Graphs OBW NVNT b 2412MHz Ant1 OBW NVNT b 2437MHz Ant1 REPORT NO.: E01A23030560F01202 Page 15 of 47 OBW NVNT b 2462MHz Ant1 OBW NVNT g 2412MHz Ant1 REPORT NO.: E01A23030560F01202 Page 16 of 47 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2462MHz Ant1 REPORT NO.: E01A23030560F01202 Page 17 of 47 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2437MHz Ant1 REPORT NO.: E01A23030560F01202 Page 18 of 47 OBW NVNT n20 2462MHz Ant1 REPORT NO.: E01A23030560F01202 Page 19 of 47 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 -11.76 0 -11.76 8 Pass NVNT b 2437 Ant1 -10.47 0 -10.47 8 Pass NVNT b 2462 Ant1 -11.84 0 -11.84 8 Pass NVNT g 2412 Ant1 -16.05 0 -16.05 8 Pass NVNT g 2437 Ant1 -16.07 0 -16.07 8 Pass NVNT g 2462 Ant1 -11.76 0 -11.76 8 Pass NVNT n20 2412 Ant1 -16.18 0 -16.18 8 Pass NVNT n20 2437 Ant1 -15.17 0 -15.17 8 Pass NVNT n20 2462 Ant1 -16.08 0 -16.08 8 Pass REPORT NO.: E01A23030560F01202 Page 20 of 47 Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 REPORT NO.: E01A23030560F01202 Page 21 of 47 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 REPORT NO.: E01A23030560F01202 Page 22 of 47 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 REPORT NO.: E01A23030560F01202 Page 23 of 47 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 REPORT NO.: E01A23030560F01202 Page 24 of 47 PSD NVNT n20 2462MHz Ant1 REPORT NO.: E01A23030560F01202 Page 25 of 47 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -49.24 -20 Pass NVNT b 2462 Ant1 -58.19 -20 Pass NVNT g 2412 Ant1 -36.98 -20 Pass NVNT g 2462 Ant1 -48.07 -20 Pass NVNT n20 2412 Ant1 -34.81 -20 Pass NVNT n20 2462 Ant1 -48.27 -20 Pass REPORT NO.: E01A23030560F01202 Page 26 of 47 Test Graphs Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 27 of 47 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 28 of 47 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 29 of 47 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 30 of 47 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 31 of 47 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 32 of 47 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -42.91 -20 Pass NVNT b 2437 Ant1 -45.43 -20 Pass NVNT b 2462 Ant1 -44.32 -20 Pass NVNT g 2412 Ant1 -40.75 -20 Pass NVNT g 2437 Ant1 -40.84 -20 Pass NVNT g 2462 Ant1 -45.52 -20 Pass NVNT n20 2412 Ant1 -39.64 -20 Pass NVNT n20 2437 Ant1 -40.7 -20 Pass NVNT n20 2462 Ant1 -40.54 -20 Pass REPORT NO.: E01A23030560F01202 Page 33 of 47 Test Graphs Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 34 of 47 Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 35 of 47 Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 36 of 47 Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission REPORT NO.: E01A23030560F01202 Page 37 of 47 Tx. Spurious NVNT g 2437MHz Ant1 Ref Tx. Spurious NVNT g 2437MHz Ant1 Emission REPORT NO…

Text truncated - open the document above for the full version.

AC Power Line Conducted Emi…
