2A22Z-W331HOutdoor Battery Cameras (Wi-Fi HomeBase)

Outdoor Battery Cameras (Wi-Fi HomeBase) W331-H Deutsch ChargingCharge Complete Operations in the 5.15-5.25GHz band are restricted to indoors usage only. Operations in the 5.15-5.25GHz band are restricted to indoors usage only. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps Le fonctionnement dans la bande 5,15 - 5,25 GHz est limité à un usage intérieur. Model W331: RF frequency: WIFI 2412-2462MHz, BT 2402-2480MHz RF power:2.4G WIFI: 13.12 dBm BT: 0.17 dBm

Botslab, Inc. 2023-08-03 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2A22Z-W331H) [Botslab, Inc. ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, John Derr Certification Administrator Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Botslab, Inc. 2023-08-03 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID:2A22Z-W331H ) [Botslab, Inc. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, John Derr Certification Administrator Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA

AttestationStatements (2023-08-03) TO:Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for(FCCID:2A22Z-W331H) (Botslab, Inc.), the undersigned, hereby authorize(Botslab, Inc.)to act as our designated U.S. agent for service of process, (Botslab, Inc.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Botslab, Inc.)accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Botslab, Inc. Contact Name: John Derr Address: 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA Telephone No: 8663600505 Email: [email protected] Signature [ JohnDerr ] U.S.AgentInformation: Companyname:Botslab,Inc. Address:919NorthMarketStreet,Suite950,Wilmington,NewCastle,Delaware,USA FRN:0031326077 ContactName:JohnDerr TelephoneNo:8663600505 Email:[email protected] Signature [JohnDerr]

Botslab, Inc. 2023-08-03 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize DongGuan Anci Electronic Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, John Derr Certification Administrator Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA

Botslab, Inc. 2023-08-03 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (EUT Name: Outdoor Battery Cameras (Wi- Fi HomeBase)/Model:W331-H /FCC ID:2A22Z-W331H ) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagram ,Operational Description,Schematics，FCC SW SECURITY DESCRIPTION ) required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, John Derr Certification Administrator Botslab, Inc. 919 North Market Street, Suite 950, Wilmington, New Castle, Delaware, USA

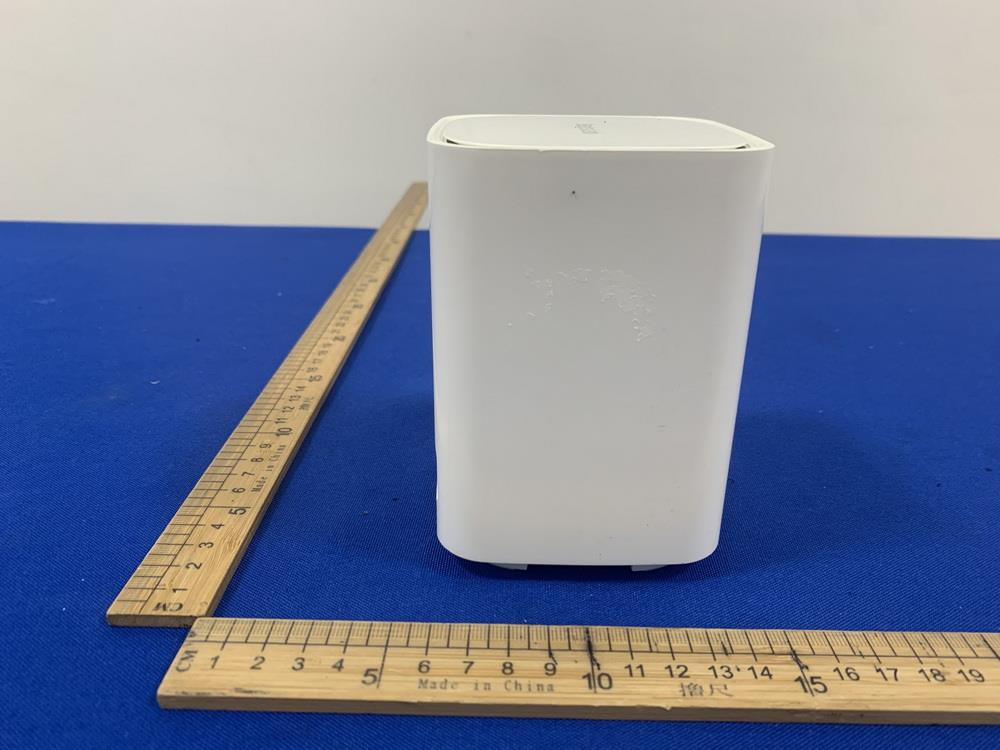

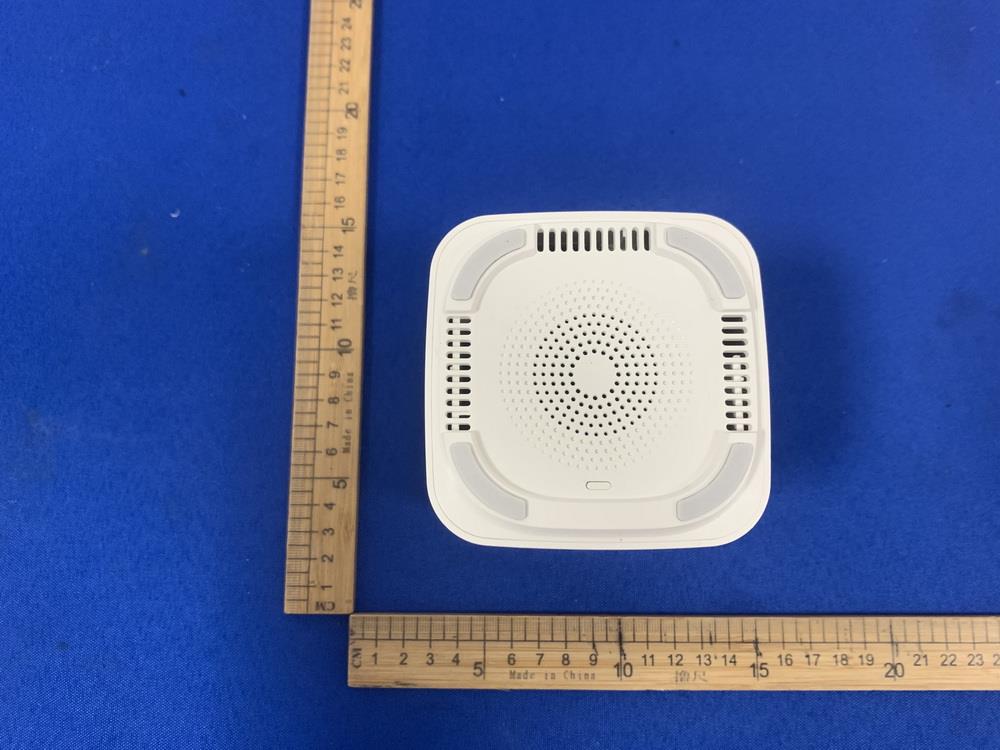

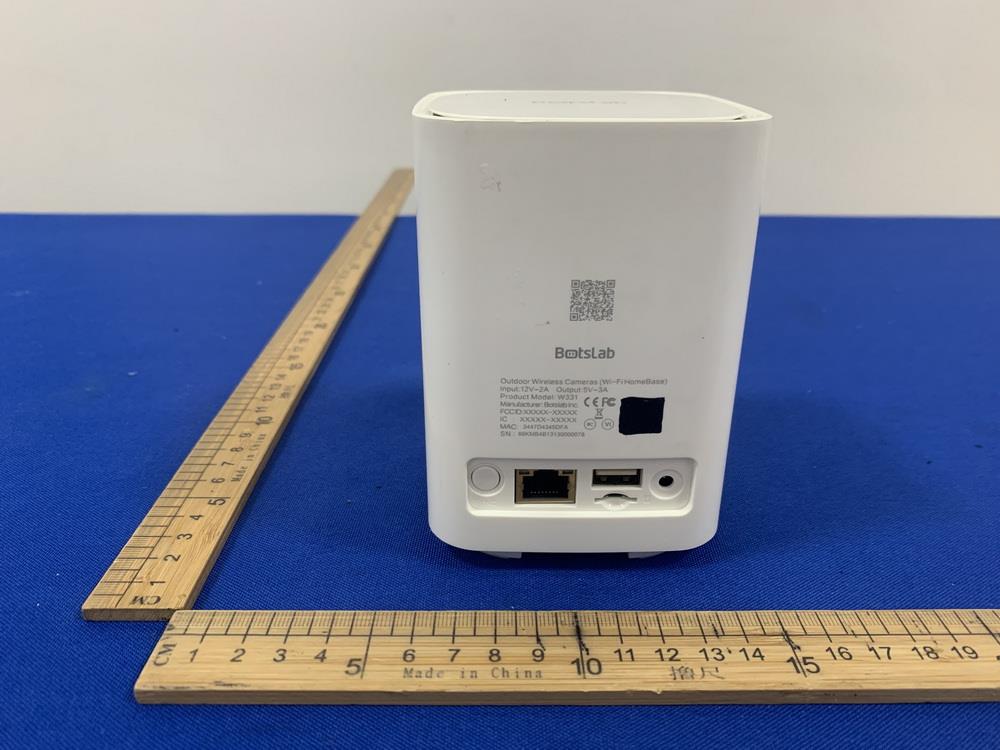

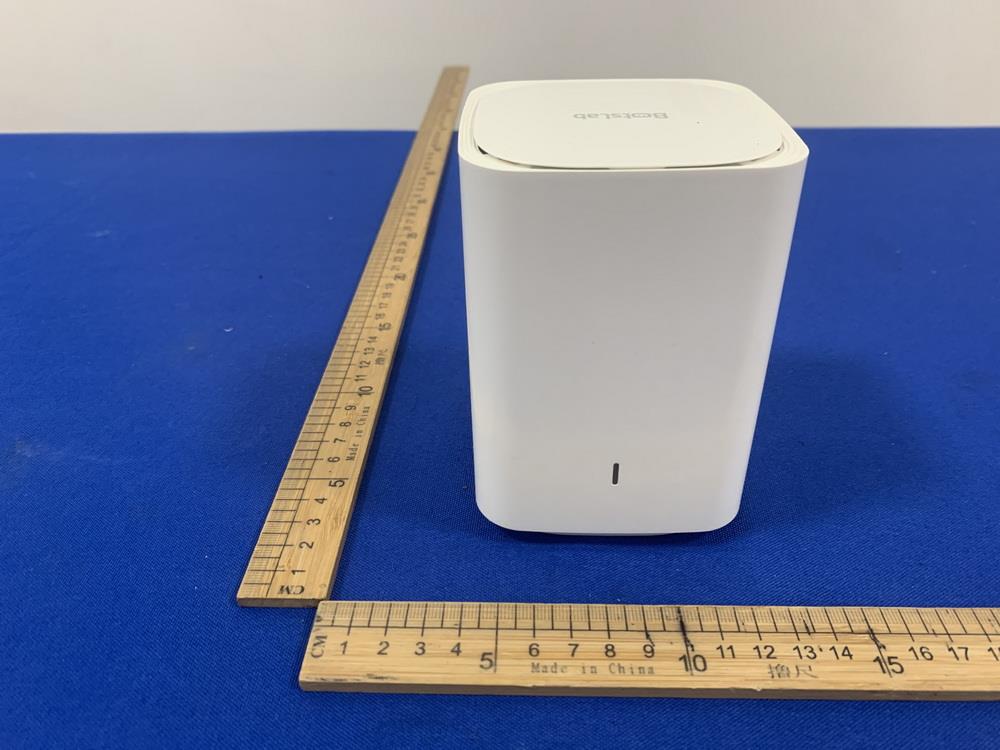

External

注意： 1.文档里的“X”字母为设计排版需要，实际应是产品独有的字码，届时产线根据实际情况进行替代镭雕； 2.基站的MAC地址为有线MAC地址。 43.1121.45 5.76 24.96 2A22Z-W331H 27673-W331H

Internal 2.4G WIFI ANT 1 5G WIFI ANT BT ANT 2.4G WIFI ANT 2

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2A22Z-W331H EUT Specification EUT Outdoor Battery Cameras (Wi-Fi HomeBase) Model Number W331-H Rating DC 12V, 2A Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power（peak power） BLE: 1.74 dBm 802.11b: 14.58 dBm 802.11g: 14.07 dBm 802.11n-HT20: 15.65 dBm 802.11n-HT40: 15.06 dBm 5180 MHz to 5240 MHz: 15.93 dBm 5260 MHz to 5320 MHz: 15.48 dBm 5500 MHz to 5700 MHz: 16.50 dBm 5745 MHz to 5825 MHz: 12.11 dBm Antenna gain (Max) BT: 3.54 dBi 2.4GHz WIFI: Antenna 1: 3.4 dBi, Antenna 2: 3.92 dBi 5G WIFI:5.82 dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 , Pout=output power to antenna in Mw G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Mode Max Measure d Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Power Density(m W/cm2) Limit (mW/cm2) BLE 1.74 2±1 3 0.000897 1 2.4GHz WIFI: Operation Mode Channel Number Channel Frequency (MHz) Measurement Level (dBm) Limit (dBm) Verdict Ant1 Ant2 Sum 802.11b 1 2412 14.45 14.39 -- 30 PASS 6 2437 14.34 14.42 -- 30 PASS 11 2462 14.46 14.56 -- 30 PASS 802.11g 1 2412 13.32 13.19 -- 30 PASS 6 2437 13.58 13.19 -- 30 PASS 11 2462 13.01 13.34 -- 30 PASS 802.11n (HT20) 1 2412 12.41 12.07 15.25 30 PASS 6 2437 12.48 12.22 15.36 30 PASS 11 2462 11.83 11.91 14.88 30 PASS 802.11n (HT40) 3 2422 10.93 10.82 13.89 30 PASS 6 2437 10.8 10.48 13.65 30 PASS 9 2452 10.91 10.32 13.64 30 PASS Antenna 1: Operating Mode Test Channel Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm2) Power density Limits (mW/ cm2) 802.11b 1 14±1 15 31.623 3.4 2.188 0.013763 1 6 14±1 15 31.623 3.4 2.188 0.013763 1 11 14±1 15 31.623 3.4 2.188 0.013763 1 802.11g 1 13±1 14 25.119 3.4 2.188 0.010933 1 6 14±1 15 31.623 3.4 2.188 0.013763 1 11 13±1 14 25.119 3.4 2.188 0.010933 1 802.11n (HT20) 1 12±1 13 19.953 3.4 2.188 0.008684 1 6 12±1 13 19.953 3.4 2.188 0.008684 1 11 12±1 13 19.953 3.4 2.188 0.008684 1 802.11n (HT40) 3 11±1 12 15.849 3.4 2.188 0.006898 1 6 11±1 12 15.849 3.4 2.188 0.006898 1 9 11±1 12 15.849 3.4 2.188 0.006898 1 Antenna 2: Operating Mode Test Channel Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm2) Power density Limits (mW/ cm2) 802.11b 1 14±1 15 31.623 3.92 2.466 0.015514 1 6 14±1 15 31.623 3.92 2.466 0.015514 1 11 15±1 16 39.811 3.92 2.466 0.019531 1 802.11g 1 13±1 14 25.119 3.92 2.466 0.012323 1 6 13±1 14 25.119 3.92 2.466 0.012323 1 11 13±1 14 25.119 3.92 2.466 0.012323 1 802.11n (HT20) 1 12±1 13 19.953 3.92 2.466 0.009789 1 6 12±1 13 19.953 3.92 2.466 0.009789 1 11 12±1 13 19.953 3.92 2.466 0.009789 1 802.11n (HT40) 3 11±1 12 15.849 3.92 2.466 0.007775 1 6 10±1 11 12.589 3.92 2.466 0.006176 1 9 10±1 11 12.589 3.92 2.466 0.006176 1 Antenna 1 + Antenna 2: Operation Mode Channel Number Channel Frequency (MHz) Power density at 20cm (mW/ cm2) Power density Limits (mW/cm2) Verdict Ant1 Ant2 Sum 802.11b 1 2412 0.01376 0.01551 -- 1 PASS 6 2437 0.01376 0.01551 -- 1 PASS 11 2462 0.01376 0.01953 -- 1 PASS 802.11g 1 2412 0.01093 0.01232 -- 1 PASS 6 2437 0.01376 0.01232 -- 1 PASS 11 2462 0.01093 0.01232 -- 1 PASS 802.11n (HT20) 1 2412 0.00868 0.00979 0.018473 1 PASS 6 2437 0.00868 0.00979 0.018473 1 PASS 11 2462 0.00868 0.00979 0.018473 1 PASS 802.11n (HT40) 3 2422 0.0069 0.00778 0.014673 1 PASS 6 2437 0.0069 0.00618 0.013074 1 PASS 9 2452 0.0069 0.00618 0.013074 1 PASS 5.8GHz WIFI: Operation Mode Channel Number Channel Frequency (MHz) Measurement Level (dBm) Limit (dBm) Verdict Ant1 802.11a CH36 5180 15.93 24 PASS CH40 5200 15.48 24 PASS CH48 5240 15.55 24 PASS CH52 5260 15.48 24 PASS CH60 5300 14.98 24 PASS CH64 5320 14.18 24 PASS CH100 5500 15.09 24 PASS CH120 5600 16.5 24 PASS CH140 5700 14.1 24 PASS CH149 5745 12.11 30 PASS CH157 5785 11.33 30 PASS CH165 5825 10.89 30 PASS 802.11n (HT20) CH36 5180 15.25 24 PASS CH40 5200 15.35 24 PASS CH48 5240 15.44 24 PASS CH52 5260 15.16 24 PASS CH60 5300 14.77 24 PASS CH64 5320 14.17 24 PASS CH100 5500 14.43 24 PASS CH120 5600 14.32 24 PASS CH140 5700 13.14 24 PASS CH149 5745 11.84 30 PASS CH157 5785 11.24 30 PASS CH165 5825 10.82 30 PASS 802.11ac (VHT20) CH36 5180 15.27 24 PASS CH40 5200 15.36 24 PASS CH48 5240 15.5 24 PASS CH52 5260 15.25 24 PASS CH60 5300 14.89 24 PASS CH64 5320 14.1 24 PASS CH100 5500 10.95 24 PASS CH120 5600 13.44 24 PASS CH140 5700 10.98 24 PASS CH149 5745 10.91 30 PASS CH157 5785 11.2 30 PASS CH165 5825 10.75 30 PASS 802.11ax (HE20) CH36 5180 15.22 24 PASS CH40 5200 15.38 24 PASS CH48 5240 15.5 24 PASS CH52 5260 15.24 24 PASS CH60 5300 14.9 24 PASS CH64 5320 14.53 24 PASS CH100 5500 11.34 24 PASS CH120 5…

Text truncated - open the document above for the full version.

地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn SPECIFICATION FOR APPROVAL CUSTOMER NAME:360 PRODUCT NAME: 2 . 4 G 3dBi Internal antenna L=100mm CUSTOMER P/N: Internal structure Ren FengP/N:U00T02S000N02804REV: A ：PCB MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKED BY: AUDITOR BY Zhou Rongchuang :Xiao-Lin Liu APPROVED BY: Yao Dingjun DATE:2023-02-21 Acknowledgement File and data changes 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn Resume Edition No. Modify Modify chapterPage Effective date Change recorder A2023.02.21 Liu Xiaolin 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn Contents Page Description 1、Cover ----------------------------------------------- 1 2、Resume --------------------------------------------- 2 3、Contents--------------------------------------------- 3 4、Specifications sheets ---------------------------- 4 5、End product chart -------------------------------5 6、Testing report -------------------------------- 6 -10 7Material description -------------------------11 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 2400-2500MH Frequency Range （MHZ Main technical specifications Main technical specificationsMain technical specifications ） z Frequency Range (MHZ) 2400-2500 Impedance(Ω) 50 Impedance(Ω) 50 Gain(dBi) 3 Gain(dBi ) 3 Return Loss(dB) ≤-9.5Return Loss(dB)≤-9.5 VSWR ≤2.0VSWR≤2.0 Polarization Linear,Vertical PolarizationLinear,Vertical Radiation Omni-directional RadiationOmni-directional Connector Type terminal Connector Type terminal Physical Properties Physical Properties P AntennaBas e CBAntenna Base FR-4 -20°C~+70 Operating Temp °C -20°C~+70 Operating Temp °C -20°C~+70 Storage Temp °C-20°C~+70 Storage Temp °C 4 Antenna assembly diagram Machine equipment WIFI antenna 2.4G grey line 2.4G yellow cabl Line 5G black line e 4 Antenna assembly diagram Horizontal plane: XY plane 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 6 . Testing report 6.1Network anal yzer test report BasestationWIFI1-2D 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 6.2:Antenna gain,efficiency meter 9 / 9 Meet RoHS requirements 7、ROHS/ Raw material list: 。 Serial number NameMaterial QTY UnitSupplier UL certification number 1PCBFR-41pc Junyi / 2 Tinning 1.13 Coaxial line /FEP 1pc China Ocean Unicom / 3 TerminalPhosphor bronze 1pc Kexincheng / 4 Linear spongeSponge T10 1pc Pengsheng /

地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn SPECIFICATION FOR APPROVAL CUSTOMER NAME:360 PRODUCT NAME: 2 . 4 G 3dBi Internal antenna L=110mm CUSTOMER P/N: Ren FengP/N:U00T02S000N02803REV: A Internal structure：PCB MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKED BY: AUDITOR BY Zhou Rongchuang :Xiao-Lin Liu APPROVED BY: Yao Dingjun DATE:2023-02-21 Acknowledgement File and data changes 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn Resume Edition No. Modify Modify chapterPage Effective date Change recorder A2023.02.21 Liu Xiaolin 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn Contents Page Description 1、Cover ----------------------------------------------- 1 2、Resume --------------------------------------------- 2 3、Contents--------------------------------------------- 3 4、Specifications sheets ---------------------------- 4 5、End product chart -------------------------------5 6、Testing report -------------------------------- 6 -10 7Material description -------------------------11 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 2400-2500MH Frequency Range （MHZ Main technical specifications Main technical specificationsMain technical specifications ） z Frequency Range (MHZ) 2400-2500 Impedance(Ω) 50 Impedance(Ω) 50 Gain(dBi) 3 Gain(dBi ) 3 Return Loss(dB) ≤-9.5Return Loss(dB)≤-9.5 VSWR ≤2.0VSWR≤2.0 Polarization Linear,Vertical PolarizationLinear,Vertical Radiation Omni-directional RadiationOmni-directional Connector Type terminal Connector Type terminal Physical Properties Physical Properties P AntennaBas e CBAntenna Base FR-4 -20°C~+70 Operating Temp °C -20°C~+70 Operating Temp °C -20°C~+70 Storage Temp °C-20°C~+70 Storage Temp °C 4 Antenna assembly diagram Machine equipment WIFI antenna 2.4G grey line 2.4G yellow cabl Line 5G black line e 4 Antenna assembly diagram Horizontal plane: XY plane 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 6 . Testing report 6.1 Network analyzer test report 2.4G 地址：东莞市塘厦镇清湖头三坑路一号电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 6.2:Antenna gain, efficiency meter 9 / 9 Meet RoHS requirements 7、ROHS/ Raw material list: 。 Serial number NameMaterial QTY UnitSupplier UL certification number 1PCBFR-41pc Junyi / 2 Tinning 1.13 Coaxial line /FEP 1pc China Ocean Unicom / 3 TerminalPhosphor bronze 1pc Kexincheng / 4 Linear spongeSponge T10 1pc Pengsheng /

SingleantennawirelessLANdevicemodel approvalapplicationinformationstatement Radiotransmittingequipmenttypeapprovalapplicationinformation CompanyName ChengduQuanJingintelligentTechnologyCo.,LTD EquipmentTypeB4SPRO devicetype2.4GHzBluetoothdevice SupportstandardBLE Maintechnicalspecifications FrequencyRange(MHZ)2400-2500 Impedance(Ω)50 Gain(dBi)-5.2 ReturnLoss(dB)≤-7.1 VSWR≤2.5 PolarizationLinear RadiationOmni-directional PhysicalProperties AntennaBasePCB OperatingTemp-20°C~+70°C StorageTemp-20°C~+70°C antennaradiation pattern 2.4GHz 2.45GHz 2.5GHz BTantenna Maximum beamforminggain Notsupport Note1:Pleaselistthespecifictechnicalstandardssupportedbythedevice Note2:Multi-antennaequipmentshouldlistthepeakgainofallantennas Note3:Theantennaradiationpatternprovidedshallreflecttheclaimedpeakantenna gain

REPORT NUMBER: E01A23030560F00101 1 / 22 Appendix A: Maximum Conducted Output Power Mode Frequency (MHz) Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) EIRP (dBm) EIRP Limit (dBm) Verdict BLE 1M 2402 1.68 0 1.68 30 Pass BLE 1M 2440 1.67 0 1.67 30 Pass BLE 1M 2480 1.74 0 1.74 30 Pass REPORT NUMBER: E01A23030560F00101 2 / 22 Test Graphs Power NVNT BLE 1M 2402MHz Ant1 Power NVNT BLE 1M 2440MHz Ant1 REPORT NUMBER: E01A23030560F00101 3 / 22 Power NVNT BLE 1M 2480MHz Ant1 REPORT NUMBER: E01A23030560F00101 4 / 22 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1M 2402 Ant1 0.658 0.5 Pass NVNT BLE 1M 2440 Ant1 0.665 0.5 Pass NVNT BLE 1M 2480 Ant1 0.659 0.5 Pass REPORT NUMBER: E01A23030560F00101 5 / 22 Test Graphs -6dB Bandwidth NVNT BLE 1M 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1M 2440MHz Ant1 REPORT NUMBER: E01A23030560F00101 6 / 22 -6dB Bandwidth NVNT BLE 1M 2480MHz Ant1 REPORT NUMBER: E01A23030560F00101 7 / 22 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1M 2402 Ant1 1.03 NVNT BLE 1M 2440 Ant1 1.026 NVNT BLE 1M 2480 Ant1 1.016 REPORT NUMBER: E01A23030560F00101 8 / 22 Test Graphs OBW NVNT BLE 1M 2402MHz Ant1 OBW NVNT BLE 1M 2440MHz Ant1 REPORT NUMBER: E01A23030560F00101 9 / 22 OBW NVNT BLE 1M 2480MHz Ant1 REPORT NUMBER: E01A23030560F00101 10 / 22 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402 Ant1 -4.73 0 -4.73 8 Pass NVNT BLE 1M 2440 Ant1 -4.85 0 -4.85 8 Pass NVNT BLE 1M 2480 Ant1 -5.83 0 -5.83 8 Pass REPORT NUMBER: E01A23030560F00101 11 / 22 Test Graphs PSD NVNT BLE 1M 2402MHz Ant1 PSD NVNT BLE 1M 2440MHz Ant1 REPORT NUMBER: E01A23030560F00101 12 / 22 PSD NVNT BLE 1M 2480MHz Ant1 REPORT NUMBER: E01A23030560F00101 13 / 22 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -51.08 -20 Pass NVNT BLE 1M 2480 Ant1 -52.89 -20 Pass REPORT NUMBER: E01A23030560F00101 14 / 22 Test Graphs Band Edge NVNT BLE 1M 2402MHz Ant1 Ref Band Edge NVNT BLE 1M 2402MHz Ant1 Emission REPORT NUMBER: E01A23030560F00101 15 / 22 Band Edge NVNT BLE 1M 2480MHz Ant1 Ref Band Edge NVNT BLE 1M 2480MHz Ant1 Emission REPORT NUMBER: E01A23030560F00101 16 / 22 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 1M 2402 Ant1 -37.55 -20 Pass NVNT BLE 1M 2440 Ant1 -38.05 -20 Pass NVNT BLE 1M 2480 Ant1 -40.64 -20 Pass REPORT NUMBER: E01A23030560F00101 17 / 22 Test Graphs Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2402MHz Ant1 Emission REPORT NUMBER: E01A23030560F00101 18 / 22 Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2440MHz Ant1 Emission REPORT NUMBER: E01A23030560F00101 19 / 22 Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Ref Tx. Spurious NVNT BLE 1M 2480MHz Ant1 Emission REPORT NUMBER: E01A23030560F00101 20 / 22 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1M 2402 Ant1 71.74 1.44 0.56 NVNT BLE 1M 2440 Ant1 71.74 1.44 0.56 NVNT BLE 1M 2480 Ant1 71.76 1.44 0.56 REPORT NUMBER: E01A23030560F00101 21 / 22 Test Graphs Duty Cycle NVNT BLE 1M 2402MHz Ant1 Duty Cycle NVNT BLE 1M 2440MHz Ant1 REPORT NUMBER: E01A23030560F00101 22 / 22 Duty Cycle NVNT BLE 1M 2480MHz Ant1

REPORT NUMBER: E01A23030560F00102 Appendix B: Maximum Conducted Output Power Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) EIRP (dBm) EIRP Limit (dBm) Verdict b 2412 Ant1 14.45 0 14.45 30 17.85 36 Pass b 2412 Ant2 14.39 0.12 14.51 30 18.43 36 Pass b 2437 Ant1 14.34 0.11 14.45 30 17.85 36 Pass b 2437 Ant2 14.42 0.12 14.54 30 18.46 36 Pass b 2462 Ant1 14.46 0.12 14.58 30 17.98 36 Pass b 2462 Ant2 14.56 0 14.56 30 18.48 36 Pass g 2412 Ant1 13.32 0.61 13.93 30 17.33 36 Pass g 2412 Ant2 13.19 0.71 13.9 30 17.82 36 Pass g 2437 Ant1 13.58 0.49 14.07 30 17.47 36 Pass g 2437 Ant2 13.19 0.52 13.71 30 17.63 36 Pass g 2462 Ant1 13.01 0.65 13.66 30 17.06 36 Pass g 2462 Ant2 13.34 0.52 13.86 30 17.78 36 Pass n20 2412 Ant1 12.41 0.58 12.99 30 16.39 36 Pass n20 2412 Ant2 12.07 0.76 12.83 30 16.75 36 Pass n20 2412 Sum 15.25 - 15.92 29.33 19.58 36 Pass n20 2437 Ant1 12.48 0.48 12.96 30 16.36 36 Pass n20 2437 Ant2 12.22 0 12.22 30 16.14 36 Pass n20 2437 Sum 15.36 - 15.62 29.33 19.26 36 Pass n20 2462 Ant1 11.83 0.78 12.61 30 16.01 36 Pass n20 2462 Ant2 11.91 0.76 12.67 30 16.59 36 Pass n20 2462 Sum 14.88 - 15.65 29.33 19.32 36 Pass n40 2422 Ant1 10.93 0 10.93 30 14.33 36 Pass n40 2422 Ant2 10.82 1.09 11.91 30 15.83 36 Pass n40 2422 Sum 13.89 - 14.46 29.33 18.15 36 Pass n40 2437 Ant1 10.8 1.4 12.2 30 15.6 36 Pass n40 2437 Ant2 10.48 0.9 11.38 30 15.3 36 Pass n40 2437 Sum 13.65 - 14.82 29.33 18.46 36 Pass n40 2452 Ant1 10.91 1.4 12.31 30 15.71 36 Pass n40 2452 Ant2 10.32 1.45 11.77 30 15.69 36 Pass n40 2452 Sum 13.64 - 15.06 29.33 18.71 36 Pass REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 9.552 0.5 Pass NVNT b 2412 Ant2 9.561 0.5 Pass NVNT b 2437 Ant1 10.014 0.5 Pass NVNT b 2437 Ant2 9.564 0.5 Pass NVNT b 2462 Ant1 10.005 0.5 Pass NVNT b 2462 Ant2 10.011 0.5 Pass NVNT g 2412 Ant1 14.961 0.5 Pass NVNT g 2412 Ant2 15 0.5 Pass NVNT g 2437 Ant1 15.084 0.5 Pass NVNT g 2437 Ant2 15.081 0.5 Pass NVNT g 2462 Ant1 14.949 0.5 Pass NVNT g 2462 Ant2 15.069 0.5 Pass NVNT n20 2412 Ant1 15.078 0.5 Pass NVNT n20 2412 Ant2 15.015 0.5 Pass NVNT n20 2437 Ant1 15.063 0.5 Pass NVNT n20 2437 Ant2 15.051 0.5 Pass NVNT n20 2462 Ant1 15.099 0.5 Pass NVNT n20 2462 Ant2 15.021 0.5 Pass NVNT n40 2422 Ant1 33.804 0.5 Pass NVNT n40 2422 Ant2 33.804 0.5 Pass NVNT n40 2437 Ant1 33.768 0.5 Pass NVNT n40 2437 Ant2 33.84 0.5 Pass NVNT n40 2452 Ant1 34.986 0.5 Pass NVNT n40 2452 Ant2 33.774 0.5 Pass REPORT NUMBER: E01A23030560F00102 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2412MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT b 2437MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT b 2462MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT g 2412MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2437MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT g 2462MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2412MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT n20 2437MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n20 2462MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT n40 2422MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2437MHz Ant2 REPORT NUMBER: E01A23030560F00102 -6dB Bandwidth NVNT n40 2452MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant2 REPORT NUMBER: E01A23030560F00102 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 14.141 NVNT b 2412 Ant2 14.165 NVNT b 2437 Ant1 14.417 NVNT b 2437 Ant2 14.177 NVNT b 2462 Ant1 14.291 NVNT b 2462 Ant2 14.195 NVNT g 2412 Ant1 16.552 NVNT g 2412 Ant2 16.528 NVNT g 2437 Ant1 16.6 NVNT g 2437 Ant2 16.582 NVNT g 2462 Ant1 16.648 NVNT g 2462 Ant2 16.582 NVNT n20 2412 Ant1 17.608 NVNT n20 2412 Ant2 17.578 NVNT n20 2437 Ant1 17.668 NVNT n20 2437 Ant2 17.599 NVNT n20 2462 Ant1 17.608 NVNT n20 2462 Ant2 17.515 NVNT n40 2422 Ant1 35.876 NVNT n40 2422 Ant2 35.876 NVNT n40 2437 Ant1 35.926 NVNT n40 2437 Ant2 35.936 NVNT n40 2452 Ant1 35.916 NVNT n40 2452 Ant2 35.906 REPORT NUMBER: E01A23030560F00102 Test Graphs OBW NVNT b 2412MHz Ant1 OBW NVNT b 2412MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT b 2437MHz Ant1 OBW NVNT b 2437MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT b 2462MHz Ant1 OBW NVNT b 2462MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT g 2412MHz Ant1 OBW NVNT g 2412MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT g 2437MHz Ant1 OBW NVNT g 2437MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT g 2462MHz Ant1 OBW NVNT g 2462MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT n20 2412MHz Ant1 OBW NVNT n20 2412MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT n20 2437MHz Ant1 OBW NVNT n20 2437MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT n20 2462MHz Ant1 OBW NVNT n20 2462MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT n40 2422MHz Ant1 OBW NVNT n40 2422MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT n40 2437MHz Ant1 OBW NVNT n40 2437MHz Ant2 REPORT NUMBER: E01A23030560F00102 OBW NVNT n40 2452MHz Ant1 OBW NVNT n40 2452MHz Ant2 REPORT NUMBER: E01A23030560F00102 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 Ant1 0.12 0 0.12 8 Pass NVNT b 2412 Ant2 0.47 0 0.47 8 Pass NVNT b 2437 Ant1 2.96 0 2.96 8 Pass NVNT b 2437 Ant2 -8.85 0 -8.85 8 Pass NVNT b 2462 Ant1 -1.14 0 -1.14 8 Pass NVNT b 2462 Ant2 -1.84 0 -1.84 8 Pass NVNT g 24…

Text truncated - open the document above for the full version.

REPORT NUMBER: E01A23030560F00102 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT b 2412 Ant1 -39.99 -20 Pass NVNT b 2412 Ant2 -45.21 -20 Pass NVNT b 2437 Ant1 -41.1 -20 Pass NVNT b 2437 Ant2 -46.57 -20 Pass NVNT b 2462 Ant1 -40.76 -20 Pass NVNT b 2462 Ant2 -49.13 -20 Pass NVNT g 2412 Ant1 -49.63 -20 Pass NVNT g 2412 Ant2 -49.84 -20 Pass NVNT g 2437 Ant1 -49.81 -20 Pass NVNT g 2437 Ant2 -50.81 -20 Pass NVNT g 2462 Ant1 -50.15 -20 Pass NVNT g 2462 Ant2 -53.23 -20 Pass NVNT n20 2412 Ant1 -45.37 -20 Pass NVNT n20 2412 Ant2 -49.53 -20 Pass NVNT n20 2437 Ant1 -49.45 -20 Pass NVNT n20 2437 Ant2 -50.35 -20 Pass NVNT n20 2462 Ant1 -50.94 -20 Pass NVNT n20 2462 Ant2 -52.03 -20 Pass NVNT n40 2422 Ant1 -47.42 -20 Pass NVNT n40 2422 Ant2 -49.86 -20 Pass NVNT n40 2437 Ant1 -49.74 -20 Pass NVNT n40 2437 Ant2 -48.24 -20 Pass NVNT n40 2452 Ant1 -48.55 -20 Pass NVNT n40 2452 Ant2 -48.89 -20 Pass REPORT NUMBER: E01A23030560F00102 Test Graphs Tx. Spurious NVNT b 2412MHz Ant1 Ref Tx. Spurious NVNT b 2412MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT b 2412MHz Ant2 Ref Tx. Spurious NVNT b 2412MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT b 2437MHz Ant1 Ref Tx. Spurious NVNT b 2437MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT b 2437MHz Ant2 Ref Tx. Spurious NVNT b 2437MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT b 2462MHz Ant1 Ref Tx. Spurious NVNT b 2462MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT b 2462MHz Ant2 Ref Tx. Spurious NVNT b 2462MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT g 2412MHz Ant1 Ref Tx. Spurious NVNT g 2412MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT g 2412MHz Ant2 Ref Tx. Spurious NVNT g 2412MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT g 2437MHz Ant1 Ref Tx. Spurious NVNT g 2437MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT g 2437MHz Ant2 Ref Tx. Spurious NVNT g 2437MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT g 2462MHz Ant1 Ref Tx. Spurious NVNT g 2462MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT g 2462MHz Ant2 Ref Tx. Spurious NVNT g 2462MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n20 2412MHz Ant1 Ref Tx. Spurious NVNT n20 2412MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n20 2412MHz Ant2 Ref Tx. Spurious NVNT n20 2412MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n20 2437MHz Ant1 Ref Tx. Spurious NVNT n20 2437MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n20 2437MHz Ant2 Ref Tx. Spurious NVNT n20 2437MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n20 2462MHz Ant1 Ref Tx. Spurious NVNT n20 2462MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n20 2462MHz Ant2 Ref Tx. Spurious NVNT n20 2462MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n40 2422MHz Ant1 Ref Tx. Spurious NVNT n40 2422MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n40 2422MHz Ant2 Ref Tx. Spurious NVNT n40 2422MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n40 2437MHz Ant1 Ref Tx. Spurious NVNT n40 2437MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n40 2437MHz Ant2 Ref Tx. Spurious NVNT n40 2437MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n40 2452MHz Ant1 Ref Tx. Spurious NVNT n40 2452MHz Ant1 Emission REPORT NUMBER: E01A23030560F00102 Tx. Spurious NVNT n40 2452MHz Ant2 Ref Tx. Spurious NVNT n40 2452MHz Ant2 Emission REPORT NUMBER: E01A23030560F00102 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT b 2412 Ant1 98 0 0.12 NVNT b 2412 Ant2 97.3 0.12 0.12 NVNT b 2437 Ant1 97.39 0.11 0.12 NVNT b 2437 Ant2 97.18 0.12 0.12 NVNT b 2462 Ant1 97.18 0.12 0.12 NVNT b 2462 Ant2 98.32 0 0.12 …

Text truncated - open the document above for the full version.
