S10睡眠耳机 ShenzhenXingmanSmartTechnologyCo.,Ltd. 一、产品简介/ProductIntro 二、核心参数/CoreSpecs 项目(Item)参数(Specification) 型号(Model) S10 重量 (Weight) 3g 蓝牙版本 (Bluetooth) 6.0 单次续航 (SingleUse) 10hrs 总续航(TotalBattery) 50hrs 充电时间(ChargingTime) ≈1.5hrs 有效距离(EffectiveRange) ≈10m 三、基本操作 /BasicOperations 中文 English 开机：打开充电仓（自动开机） PowerOn:Openchargingcase(autopoweron) 关机：入仓关盖/10分钟无连接自动 关机 PowerOff:Closecaselid/Autooffafter10minsno connection 配对：开机后手机搜“S10”连接 Pairing:Search“S10”onphoneafterpoweron 重置：双耳入仓，长按仓键10秒（白 灯闪3次） Reset:Putearbudsincase,longpresscasebutton10s (whitelightflashes3x) 触控操作 /TouchControl 操作 (Action) 功能 (Function) 左耳双击 (LeftDoubleTap) 切换模式 (SwitchMode) 右耳双击(RightDoubleTap)播放/暂停(Play/Pause) 右耳三击(RightTripleTap)音量+(Volume+) 左耳三击(LeftTripleTap)音量-(Volume-) 充电提示 /ChargingIndicators 中文 English 白灯常亮：充电中 Whitelighton:Charging 灯光熄灭：充电完成 Lightoff:Fullycharged 红灯闪烁：充电仓低电 Redlightflash:Caselowbattery 中文 English 3g超轻睡眠耳机，侧睡无压，物理隔 音，40+白噪音，基础睡眠监测 3gultra-lightsleepearbud:noside-sleeppressure, physicalnoiseisolation,40+whitenoises,basicsleep monitoring 四、核心功能/KeyFunctions 中文 English 超轻舒适，侧睡无压迫感 Ultra-light&comfortable,noside-sleeppressure 物理隔音，阻隔环境噪音 Physicalnoiseisolation,blockambientnoise 40+ 白噪音，支持 APP 控制 40+whitenoises,APPcontrollable 基础睡眠监测，APP查看数据 Basicsleepmonitoring,viewdatainAPP 五、注意事项/Notices 中文 English 1. 避免浸水、高温（＞ 45 °C）、剧烈摔 跌 1.Avoidwater,hightemperature(>45 °C )andheavy drops 2. 仅使用 5V 安全电源充电，禁用快充 头 2.Use5Vsafechargeronly,nofastchargingadapters 3. 长期不用时，每月充电 1 次保护电 池 3.Chargeonceamonthifunusedforlongtoprotect battery 4.勿用尖锐物品触碰耳机喇叭 4.Donottouchearbuddriverwithsharpobjects 六、售后服务/After-SalesService 中文 English 公司名称：深圳市星曼智能科技有限公 司 CompanyName:ShenzhenXingmanSmartTechnology Co.,Ltd. 服务电话： 0755-26509942 ServiceHotline:0755-26509942 质保期限： 1 年（非人为主损） WarrantyPeriod:1year(excludinghuman-induced damage) FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Xingman Smart Technology Co., Ltd 402, Building F, Tianyou Maker Industrial Park, No. 2 Lixin Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/05/08 U.S. Agent Designation Shenzhen Xingman Smart Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A2F7-S10): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen Xingman Smart Technology Co., Ltd with the FRN [0031080856] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Shengchun Zhao Manager Shenzhen Xingman Smart Technology Co., Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

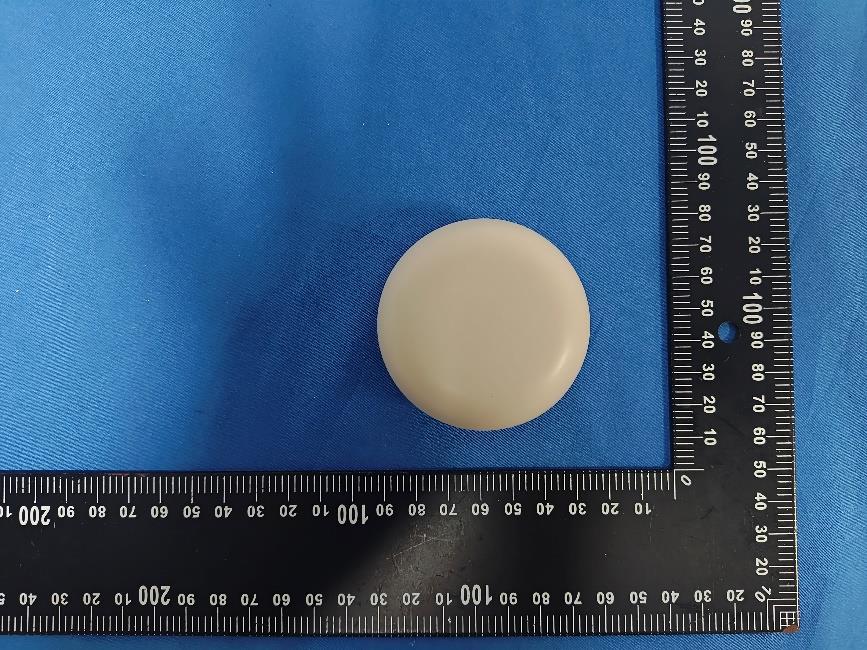

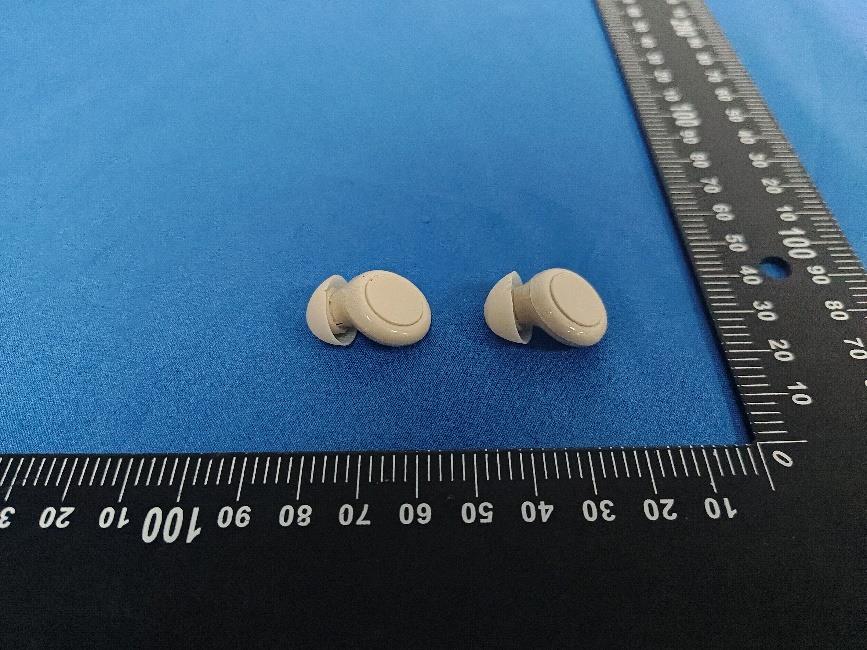

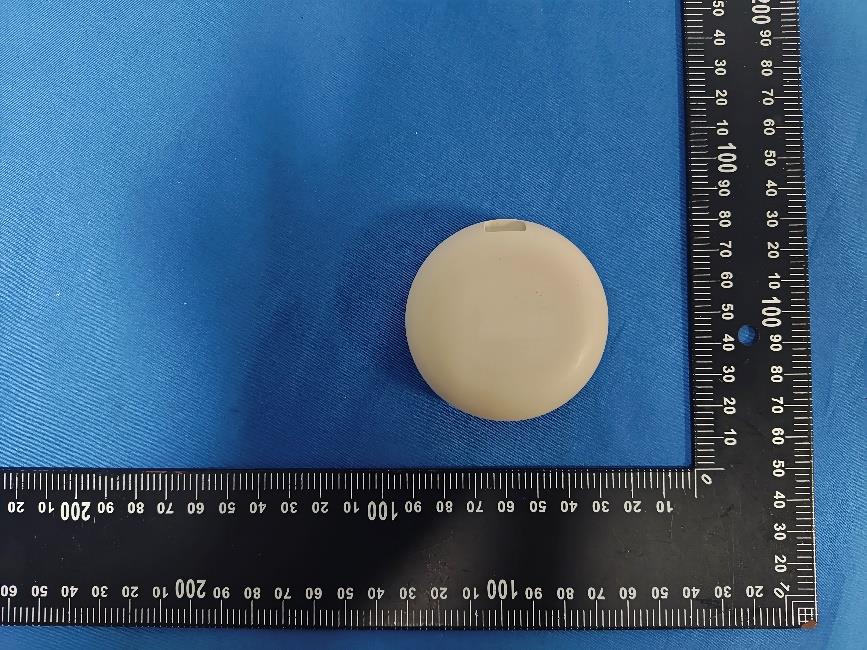

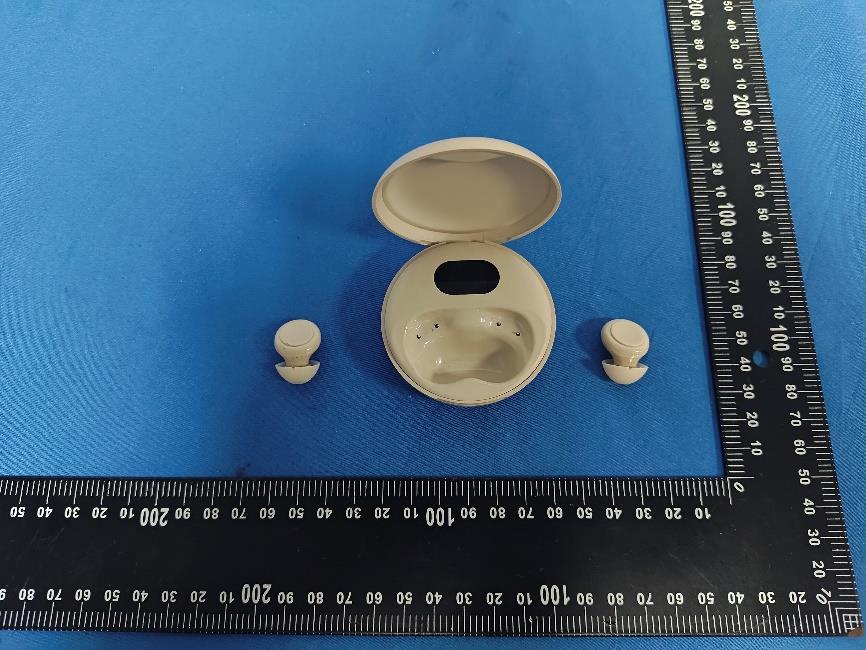

FCC ID:2A2F7-S10 External Photos of the EUT FCC ID:2A2F7-S10 FCC ID:2A2F7-S10 FCC ID:2A2F7-S10 FCC ID:2A2F7-S10

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2A2F7-S10

FCC ID:2A2F7-S10 Internal Photos of the EUT Left FCC ID:2A2F7-S10 Antenna FCC ID:2A2F7-S10 Right FCC ID:2A2F7-S10 FCC ID:2A2F7-S10 Antenna FCC ID:2A2F7-S10

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26041000303 2A2F7-S10 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 16, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Xingman Smart Technology Co., Ltd Address............................................ : 402, Building F, Tianyou Maker Industrial Park, No. 2 Lixin Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : S10 sleep earbuds Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Xingman Smart Technology Co., Ltd Model/Type reference ...................... : S10 Listed Models ................................... : N/A Rating ............................................... : Earphone: DC 3.85V, 39mAh From battery and DC 5V From charging box Charging box: DC 3.7V, 500mAh From battery and 5V 0.5A Result ............................................... : PASS Report No.: CTA26041000303 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : S10 sleep earbuds Model /Type : S10 Listed Models : N/A Applicant : Shenzhen Xingman Smart Technology Co., Ltd Address : 402, Building F, Tianyou Maker Industrial Park, No. 2 Lixin Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Xingman Smart Technology Co., Ltd Address : 402, Building F, Tianyou Maker Industrial Park, No. 2 Lixin Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26041000303 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26041000303 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Indus…

Text truncated - open the document above for the full version.

2.4GHz1608ChipAntenna:RANT1608F245C04 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT1608F245C04 (A)(B)(C)(D)(E)(F) ElectricalSpecification DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=04 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280 °C ) TerminationNi/Au(Leadless) Dimension(mm) L 1.60±0.10 W 0.80 ± 0.10 T 0.80 ± 0.10 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz1608ChipAntenna:RANT1608F245C04 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ELECTRICALCHARACTERISTICSS11 Radiation ElectricalCharacteristics Freque ncy EfficPercenGain 2400-1.6472.27%2.38 2450-1.3375.34%2.7 2500-1.5972.98%2.59 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz1608ChipAntenna:RANT1608F245C04 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz1608ChipAntenna:RANT1608F245C04 _ ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1 6 0 8 Chip Antenna: RANT1608F245C04 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26041000301 2A2F7-S10 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Apr. 16, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen Xingman Smart Technology Co., Ltd Address ............................................ : 402, Building F, Tianyou Maker Industrial Park, No. 2 Lixin Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : S10 sleep earbuds Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Xingman Smart Technology Co., Ltd Model/Type reference ...................... : S10 Listed Models ................................... : N/A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Earphone: DC 3.85V, 39mAh From battery and DC 5V From charging box Charging box: DC 3.7V, 500mAh From battery and 5V 0.5A Result ............................................... : PASS Report No.: CTA26041000301 Page 2 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : S10 sleep earbuds Model /Type : S10 Listed Models : N/A Applicant : Shenzhen Xingman Smart Technology Co., Ltd Address : 402, Building F, Tianyou Maker Industrial Park, No. 2 Lixin Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Xingman Smart Technology Co., Ltd Address : 402, Building F, Tianyou Maker Industrial Park, No. 2 Lixin Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26041000301 Page 3 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility................................................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2A2F7-S10 Company : Shenzhen Xingman Smart Technology Co., Ltd EUT : S10 sleep earbuds Model Number : S10 Report No. : CTA26041000301 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.948 2401.544 2402.492 --- --- 2441 0.870 2440.550 2441.420 --- --- 2480 0.960 2479.535 2480.495 --- --- 2DH5 Ant1 2402 1.176 2401.409 2402.585 --- --- 2441 1.188 2440.403 2441.591 --- --- 2480 1.185 2479.403 2480.588 --- --- 3DH5 Ant1 2402 1.194 2401.415 2402.609 --- --- 2441 1.170 2440.430 2441.600 --- --- 2480 1.239 2479.379 2480.618 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.84832 2401.5794 2402.4278 --- --- 2441 0.86397 2440.5708 2441.4348 --- --- 2480 0.87092 2479.5678 2480.4387 --- --- 2DH5 Ant1 2402 1.1393 2401.4315 2402.5708 --- --- 2441 1.1373 2440.4326 2441.5699 --- --- 2480 1.1422 2479.4295 2480.5717 --- --- 3DH5 Ant1 2402 1.1377 2401.4356 2402.5733 --- --- 2441 1.1741 2440.4164 2441.5905 --- --- 2480 1.1428 2479.4372 2480.5800 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -10.59 ≤30 PASS 2441 -11.71 ≤30 PASS 2480 -13.01 ≤30 PASS 2DH5 Ant1 2402 -10.83 ≤20.97 PASS 2441 -11.92 ≤20.97 PASS 2480 -13.10 ≤20.97 PASS 3DH5 Ant1 2402 -10.63 ≤20.97 PASS 2441 -11.88 ≤20.97 PASS 2480 -13.08 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 0.974 ≥0.960 PASS 2DH5 Ant1 Hop 0.972 ≥0.792 PASS 3DH5 Ant1 Hop 0.984 ≥0.826 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.409 315 0.129 ≤0.4 PASS DH3 Ant1 Hop 1.666 154 0.257 ≤0.4 PASS DH5 Ant1 Hop 2.913 102 0.297 ≤0.4 PASS 2DH1 Ant1 Hop 0.419 317 0.133 ≤0.4 PASS 2DH3 Ant1 Hop 1.672 160 0.268 ≤0.4 PASS 2DH5 Ant1 Hop 2.920 114 0.333 ≤0.4 PASS 3DH1 Ant1 Hop 0.419 316 0.132 ≤0.4 PASS 3DH3 Ant1 Hop 1.669 156 0.26 ≤0.4 PASS 3DH5 Ant1 Hop 2.920 104 0.304 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -11.23 -56.29 ≤-31.23 PASS High 2480 -13.87 -57.66 ≤-33.87 PASS Low Hop_2402 -12.11 -57.47 ≤-32.11 PASS High Hop_2480 -13.22 -57.08 ≤-33.22 PASS 2DH5 Ant1 Low 2402 -14.54 -56.77 ≤-34.54 PASS High 2480 -14.47 -58.22 ≤-34.47 PASS Low Hop_2402 -11.82 -57.5 ≤-31.82 PASS High Hop_2480 -15.30 -57.6 ≤-35.3 PASS 3DH5 Ant1 Low 2402 -16.35 -57.74 ≤-36.35 PASS High 2480 -14.92 -57.58 ≤-34.92 PASS Low Hop_2402 -12.64 -57.63 ≤-32.64 PASS High Hop_2480 -15.39 -57.43 ≤-35.39 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -11.77 -11.77 --- PASS 30~1000 -11.77 -68.63 ≤-31.77 PASS 1000~26500 -11.77 -38.52 ≤-31.77 PASS 2441 Reference -13.06 -13.06 --- PASS 30~1000 -13.06 -67.8 ≤-33.06 PASS 1000~26500 -13.06 -38.41 ≤-33.06 PASS 2480 Reference -14.15 -14.15 --- PASS 30~1000 -14.15 -67.83 ≤-34.15 PASS 1000~26500 -14.15 -40.56 ≤-34.15 PASS 2DH5 Ant1 2402 Reference -12.39 -12.39 --- PASS 30~1000 -12.39 -67.1 ≤-32.39 PASS 1000~26500 -12.39 -40.75 ≤-32.39 PASS 2441 Reference -14.29 -14.29 --- PASS 30~1000 -14.29 -68.06 ≤-34.29 PASS 1000~26500 -14.29 -40.51 ≤-34.29 PASS 2480 Reference -14.42 -14.42 --- PASS 30~1000 -14.42 -67.77 ≤-34.42 PASS 1000~26500 -14.42 -41.36 ≤-34.42 PASS 3DH5 Ant1 2402 Reference -11.92 -11.92 --- PASS 30~1000 -11.92 -67.5 ≤-31.92 PASS 1000~26500 -11.92 -40.87 ≤-31.92 PASS 2441 Reference -14.52 -14.52 --- PASS 30~1000 -14.52 -68.36 ≤-34.52 PASS 1000~26500 -14.52 -40.59 ≤-34.52 PASS 2480 Reference -14.56 -14.56 --- PASS 30~1000 -14.56 -67.36 ≤-34.56 PASS 1000~26500 -14.56 -41.78 ≤-34.56 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference

39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.74 77.81 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.74 77.81 1.09 --- --- 2DH5 Ant1 2402 2.92 3.74 78.07 1.08 --- --- 2441 2.93 3.76 77.93 1.08 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 3DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.91 3.74 77.81 1.09 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480 50 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -59.99 2.7 1.09 39 ≤54 PASS AV 2317.220 -58.91 2.7 1.09 40.08 ≤54 PASS AV 2390.000 -60.03 2.7 1.09 38.96 ≤54 PASS Peak 2310.000 -51.52 2.7 0.00 46.38 ≤74 PASS Peak 2320.475 -48.24 2.7 0.00 49.66 ≤74 PASS Peak 2390.000 -50.54 2.7 0.00 47.36 ≤74 PASS High 2480 AV 2483.500 -59.63 2.7 1.09 39.36 ≤54 PASS AV 2489.520 -58.67 2.7 1.09 40.32 ≤54 PASS AV 2500.000 -60.07 2.7 1.09 38.92 ≤54 PASS Peak 2483.500 -50.27 2.7 0.00 47.63 ≤74 PASS Peak 2492.640 -49.05 2.7 0.00 48.85 ≤74 PASS Peak 2500.000 -52.23 2.7 0.00 45.67 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -59.64 2.7 1.08 39.34 ≤54 PASS AV 2388.725 -58.88 2.7 1.08 40.1 ≤54 PASS AV 2390.000 -59.41 2.7 1.08 39.57 ≤54 P…
