2A3W8BDB60SX-3Floodlight Camera

Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 9/25/2024 U.S. Agent Designation Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A3W8BDB60SX-3): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si. Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si with the FRN 0031725823 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature karlie hu manager Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si Qian Wan yi lu 1 hao A dong 201 shi,qian hai shen gang he zuo qu shen zhen, guang dong 518000 China Date: 2024-9-25 FCC ID: 2A3W8BDB60SX-3 Model Number: BDB60SX-3 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si, declare that this EUT (FCC ID: 2A3W8BDB60SX-3) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： karlie hu/manager Company: Shen Zhen Shi Meng Zhi Tuo Ke Ji You Xian Gong Si Address: Qian Wan yi lu 1 hao A dong 201 shi,qian hai shen gang he zuo qu shen zhen, guang dong 518000 China Phone: 13719247689 Fax: E-Mail: [email protected]

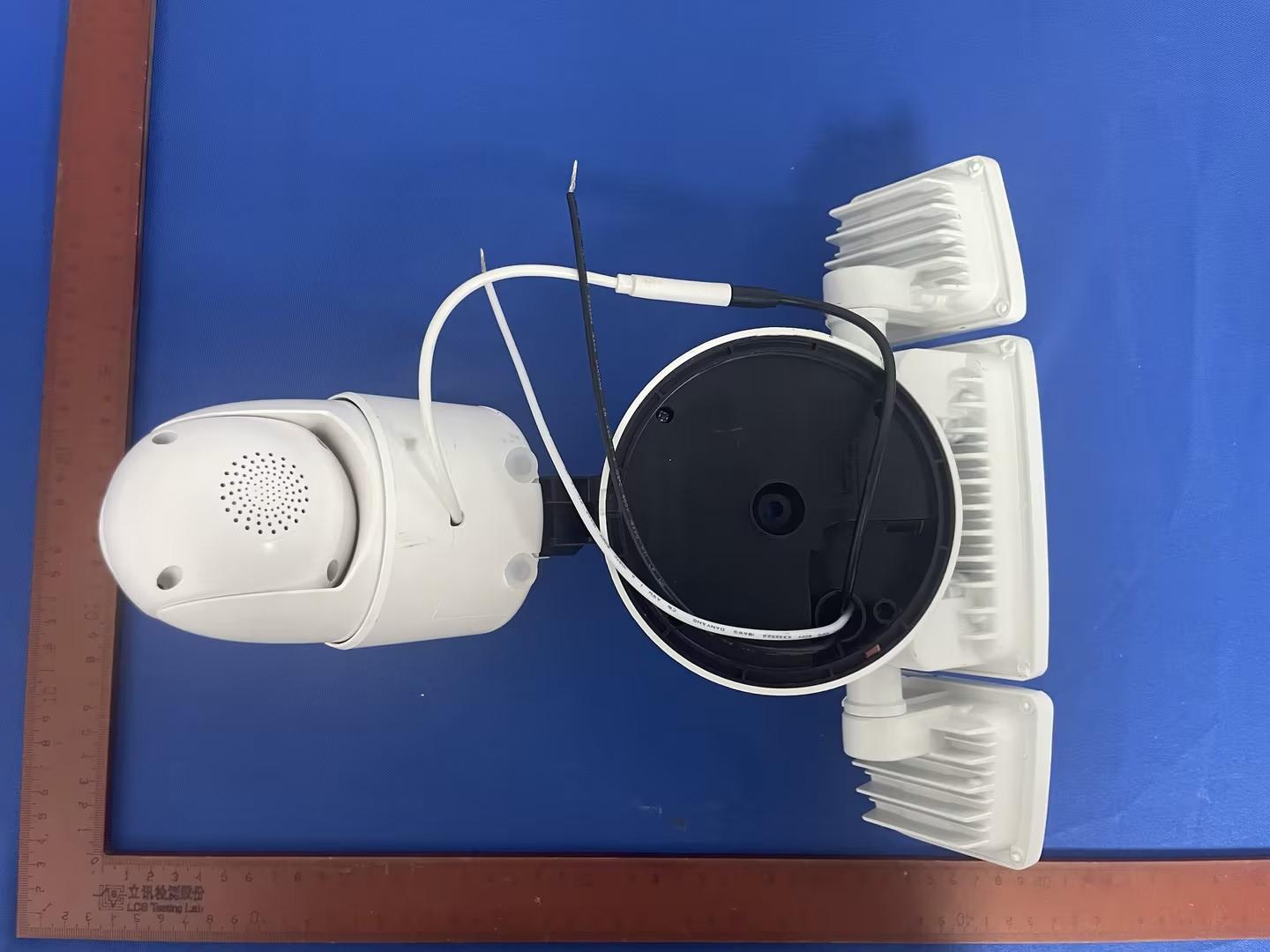

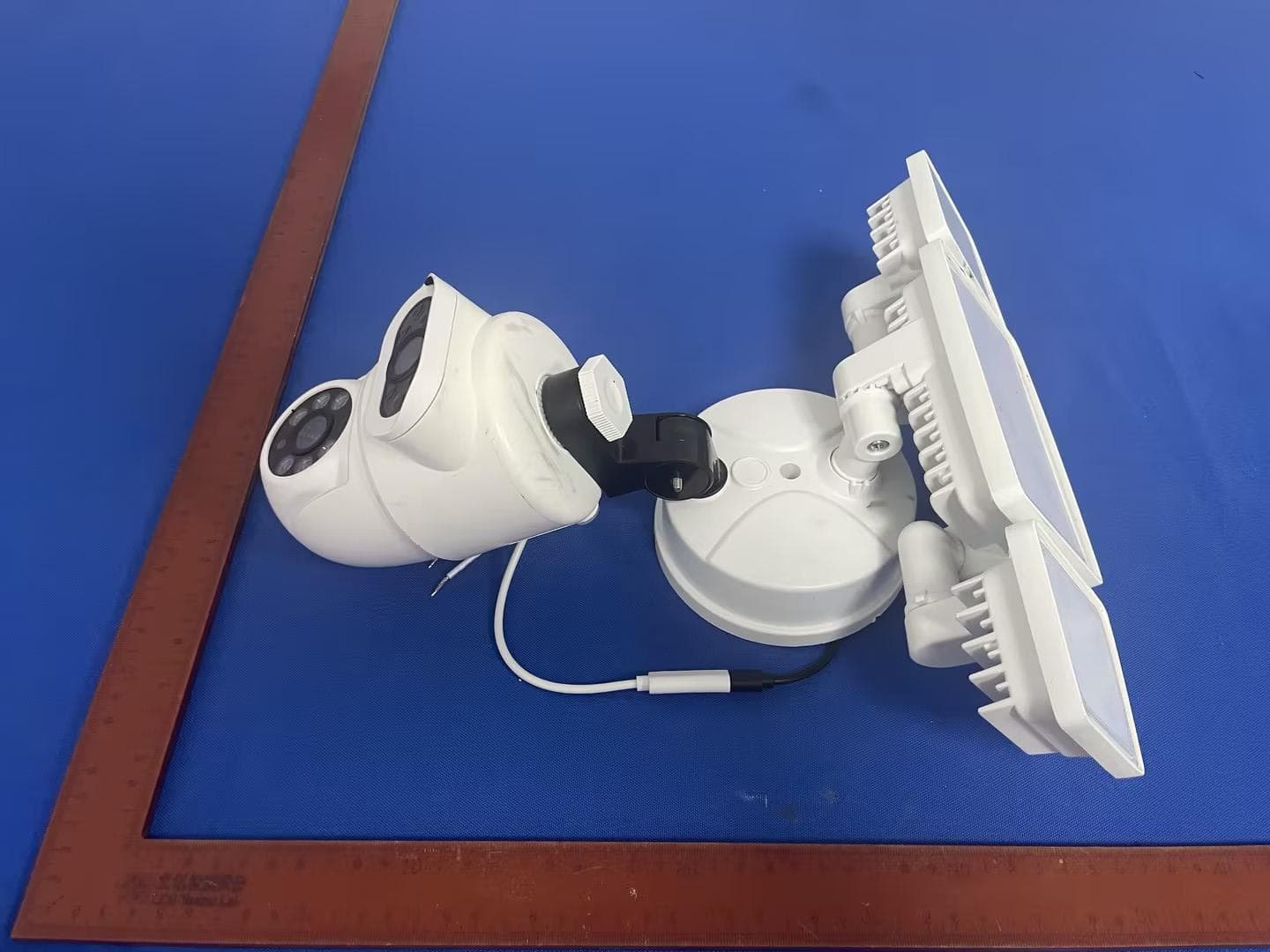

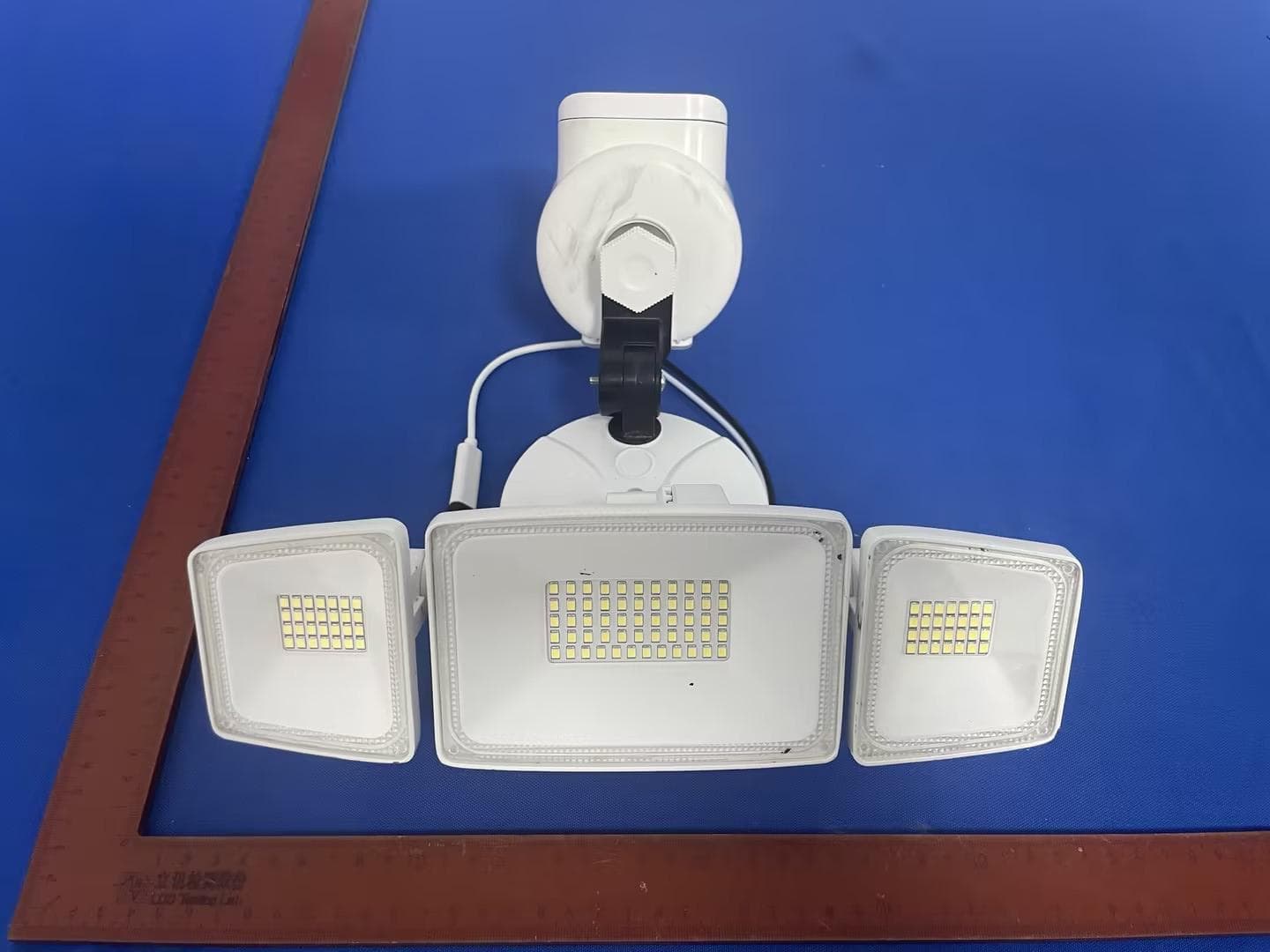

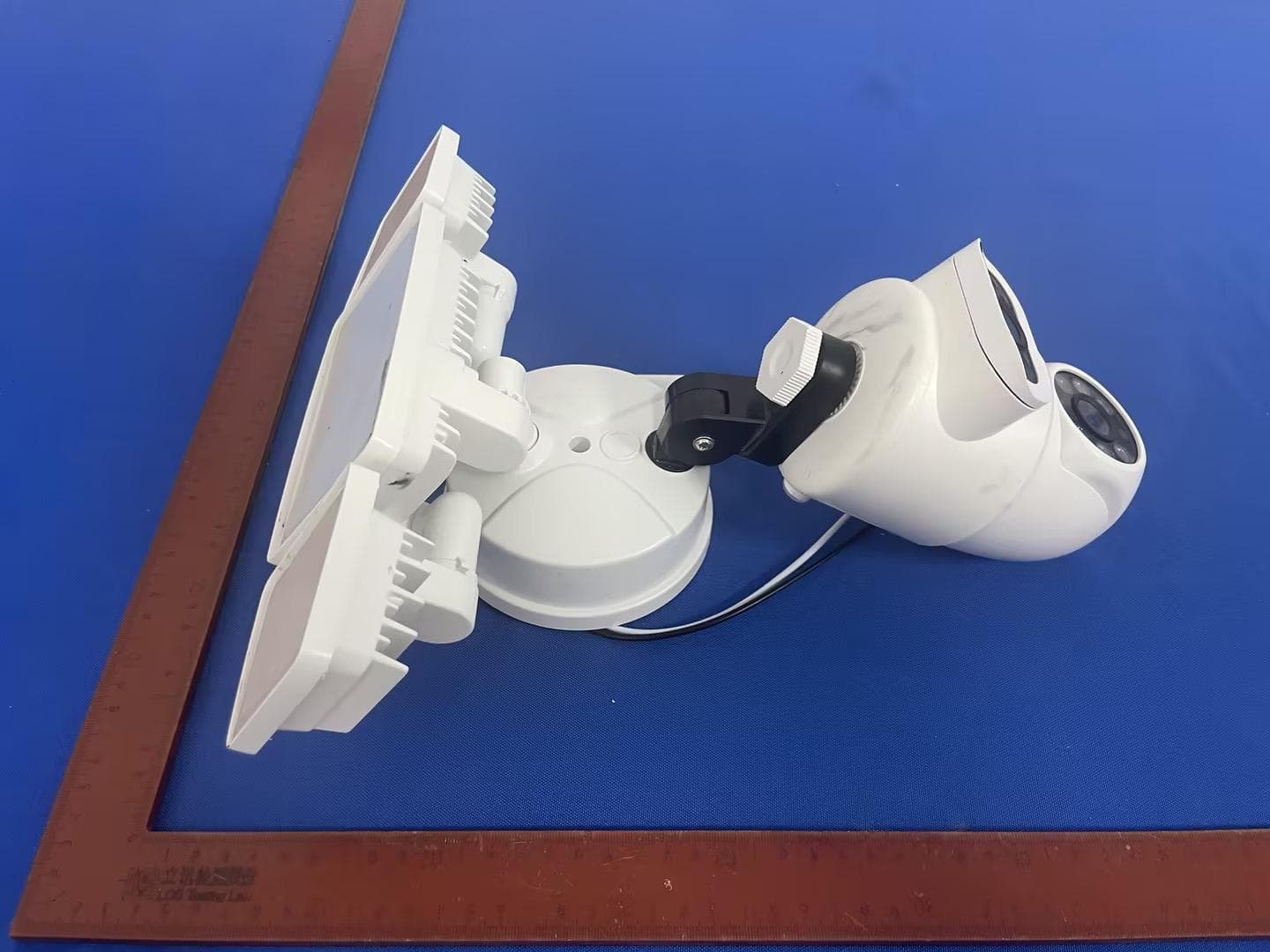

Page1of3FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of3FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6

Page1of1FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L4.0cmx2.0cm) LabelLocation FloodlightCamera Model:BDB60SX-3 FCCID:2A3W8BDB60SX-3

Page1of5FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of5FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 WiFiAntenna Page4of5FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of5FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9

Page1of4FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation ProductnameFloodlightCamera TestModelBDB60SX-3 PowerSupply Input:100-240V~,50/60Hz,0.6A,55W HardwareVersion/ SoftwareVersion/ FrequencyRange2412MHz~2462MHz ChannelSpacing5MHz ChannelNumber11Channelsfor20MHzbandwidth(2412~2462MHz) ModulationTypeIEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaDescriptionFPCAntenna,1.65dBi(max.) ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensures thatthepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobile devicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelow RFPermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesum oftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoesnot applywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalentconditions. Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimumtest separationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmissionoperations, tosatisfycompliance. Page2of4FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Note AntennaFPCAntenna2412MHz-2462MHz1.65dBi(Max.)WIFIAntenna Page3of4FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6.ConductedPower <2.4GWIFI> ModeChannelFrequency(MHz) MaxConductedPower (dBm) IEEE802.11b 12412 15.15 62437 15.31 112462 15.80 IEEE802.11g 1241214.70 62437 14.73 112462 14.29 IEEE802.11n HT20 12412 13.10 6243714.09 112462 13.85 7.ManufacturingTolerance <2.4GWIFI> 11B(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 15.0 15.015.0 Tolerance±(dB) 1.01.01.0 11G(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 14.0 14.014.0 Tolerance±(dB)1.01.01.0 11N20SISO(Peak) ChannelChannel1Channel6Channel11 Target(dBm) 13.0 14.013.0 Tolerance±(dB)1.01.01.0 Page4of4FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 8.MeasurementResults 8.1StandaloneMPE AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20cmfromany bodypartoftheuserornearbypersons;fromthemaximumEUTRFoutputpower,theminimumseparation distance,r=20cm,aswellasthegainoftheusedantennarefertoantennainformation,theRFpowerdensity canbeobtained. [2.4GWLAN] ModulationType Outputpower AntennaGain (dBi) Antenna Gain (linear) MPE (mW/cm2) MPE Limits (mW/cm2) dBmmW IEEE802.11b16.039.81071.651.46220.01161.0000 IEEE802.11g15.031.62281.651.46220.00921.0000 IEEE802.11nHT2015.031.62281.651.46220.00921.0000 Remark: 1.Outputpowerincludingtune-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer; 8.2SimultaneousTrans…

Text truncated - open the document above for the full version.

R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ShenzhenSKYLinkTechnologyCo.,Ltd AntennaSpecificationforApproval CustomerName： ProductName：2.4GWIFIAntenna PartNO.:G01.SM.WIFI.C113.75B.1 WriteBy：YANPEIHAI IssuedDate:2024-08-29 Customer R&DDeptBusinessDeptApprovedBy SKYLink R&DDeptEngineerDeptApproval R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] SpecificationSummary A.ElectricalCharacteristics Frequency2400MHz~2500MHz VSWR<2.0 Efficiency>45% PeakGain1.6dbi Impedance50Ohm PolarizationLine B.Material&MechanicalCharacteristics MaterialofRadiatorCu CableType1.13mm ConnectorTypeI DimensionAtAttachment Heat-durability 280±5 ̊C ， 10sec. C.EnvironmentalCharacteristics OperationTemperature-20 ̊C~+80 ̊C StorageTemperature-30 ̊C~+85 ̊C R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected]  TestEquipment&Conditions 1．NetworkAnalyzers: Agilent8753D5071B CommunicationsTestSet: AgilentE5515CCMW500 2 ． 3DChamberTestSystem A 0 . 0 3 0 . 0 2 0 . 0 4 0 ～ 1 0 ± 0 . 0 5 1 0 ～ 1 8 ± 0 . 1 0 1 8 ～ 3 0 ± 0 . 1 2 ∅ 0 . 0 2 3 0 ～ 4 0 ± 0 . 1 5 R e m a r k R e v D a t e T h i r d A n g l e N e w d r a w i n g D e s c r i p t i o n 4 0 ～ ± 0 . 2 0 1 2 3 4 A p p r o v e d b y DCB 5 6 7 8 A 1 2 3 4 5 6 7 8 P a r t N o . D a t e D e s i g n e d b y C h e c k e d b y S c a l e R e v m m L o c a t i o n P r o j e c t M a t e r i a l P a r t N a m e U n i t R F M D A A n g l e ± 0 . 5 ° 1 : 1 DCBA S H E N Z H E N S K Y L i n k C O . , L T D R o H S P G C o m p l i a n t D W G N o . 2 0 2 4 . 0 5 . 2 9 G 0 1 . S M . W I F I . C 1 1 3 . 7 5 B . 1 G 0 1 . S M . W I F I 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected]  Gain&Efficiency Fre（MHz）Ef（%）(dB)Gain(dB) 2400 45.621.51 2410 45.681.35 2420 46.321.54 2430 46.551.5 2440 47.821.32 2450 46.380.98 2460 48.551.08 2470 48.311.3 2480 49.221.37 2490 48.711.63 2500 48.191.65 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] Directionalpattern R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] AntennaPicture R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected]  ReliabilityTest TestItemTestconditionEquipmentSpecificationResult 1 LowTemp.Storage Test Temperature:-30°C，Time:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-down thetemp.to-30°Cinonehour,storeantennafor 44hours;step-uptempto25°C,testantennaafter 2hours. Temp.&Humi. Tester Nomaterialdeformation isallowed. ElectronicPerformance isok. PASS 2 HighTemp./High Humid StorageTest Temperature:85°CHumidity:85%RHTime:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-upthe temp.to80°Candthehumidityupto85%inone hour,storeantennafor44hours;step-downtemp to25°C,testantennaafter2hours. Temp.&Humi. Tester Nomaterialdeformation isallowed. ElectronicPerformance isok. PASS 3Salt-Spray6prayTest PlacingantennaintheSalt-SprayTester,setthe testcondition，Temp:35±2°CHumidity:85% NaClsaltspray:5±1%.PHvalue:6.5~7.2Test time:24hours Salt-SprayTester Nocolorchange Noappearrusting PASS

Page1 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity AppendixA RF Test Data for 2.4GWIFI(ConductedMeasurement) ProductName:FloodlightCamera Test Model:BDB60SX-3 EnvironmentalConditions Temperature: 23.1C RelativeHumidity:52.3% ATM Pressure:100.0kPa Test Engineer:PaddiChen Supervisedby:Nick Peng Page2 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity A.1 -6dB Bandwidth ConditionModeFrequency(MHz)Antenna-6 dB Bandwidth(MHz)Limit -6 dB Bandwidth(MHz)Verdict NVNTb2412Ant17.751>=0.5Pass NVNTb2437Ant18.566>=0.5Pass NVNTb2462Ant18.044>=0.5Pass NVNTg2412Ant116.093>=0.5Pass NVNTg2437Ant116.341>=0.5Pass NVNTg2462Ant116.332>=0.5Pass NVNTn202412Ant116.91>=0.5Pass NVNTn202437Ant117.342>=0.5Pass NVNTn202462Ant116.818>=0.5Pass Page3 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Test Graphs -6dBBandwidthNVNTb 2412MHzAnt1 -6dBBandwidthNVNTb 2437MHzAnt1 Page4 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTb 2462MHzAnt1 -6dBBandwidthNVNTg 2412MHzAnt1 Page5 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTg 2437MHzAnt1 -6dBBandwidthNVNTg 2462MHzAnt1 Page6 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTn20 2412MHzAnt1 -6dBBandwidthNVNTn20 2437MHzAnt1 Page7 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity -6dBBandwidthNVNTn20 2462MHzAnt1 Page8 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity A.2 MaximumConductedOutputPower ConditionModeFrequency (MHz) AntennaTotal Power (dBm) Limit (dBm)Verdict NVNTb2412Ant115.1530Pass NVNTb2437Ant115.3130Pass NVNTb2462Ant115.8030Pass NVNTg2412Ant114.7030Pass NVNTg2437Ant114.7330Pass NVNTg2462Ant114.2930Pass NVNTn202412Ant113.1030Pass NVNTn202437Ant114.0930Pass NVNTn202462Ant113.8530Pass Page9 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity A.3 MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaTotal PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTb2412Ant1-10.178Pass NVNTb2437Ant1-9.418Pass NVNTb2462Ant1-8.28Pass NVNTg2412Ant1-15.328Pass NVNTg2437Ant1-16.678Pass NVNTg2462Ant1-15.648Pass NVNTn202412Ant1-17.188Pass NVNTn202437Ant1-16.438Pass NVNTn202462Ant1-17.378Pass Page10 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity Test Graphs PSD NVNTb 2412MHzAnt1 PSD NVNTb 2437MHzAnt1 Page11 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity PSD NVNTb 2462MHzAnt1 PSD NVNTg 2412MHzAnt1 Page12 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity PSD NVNTg 2437MHzAnt1 PSD NVNTg 2462MHzAnt1 Page13 of 44FCCID: 2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add:101, 201 Bldg A & 301 BldgC, Juji IndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86)0755-82591330| E-mail:[email protected]| Web:www.lcs-cert.com Scancodeto checkauthenticity PSD NVNTn20 2412MHzAnt1 PSD NVNTn…

Text truncated - open the document above for the full version.

Page1of36FCCID:2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For ShenZhenShiMengZhiTuoKeJiYouXianGongSi FloodlightCamera TestModel:BDB60SX-3 Preparedfor:ShenZhenShiMengZhiTuoKeJiYouXianGongSi Address:QianWanyilu1haoAdong201shi,qianhaishenganghezuoqu shenzhen,guangdong,518000China Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:September05,2024 Numberoftestedsamples:2 Samplenumber:B240830010-1,B240830010-2 Serialnumber:Prototype DateofTest:September05,2024~September19,2024 DateofReport:September20,2024 Page2of36FCCID:2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA08124234EA DateofIssue.......................................:September20,2024 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ShenZhenShiMengZhiTuoKeJiYouXianGongSi Address................................................:QianWanyilu1haoAdong201shi,qianhaishenganghezuoqu shenzhen,guangdong,518000China TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo......................:TRF-4-E-147A/0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:FloodlightCamera TradeMark..........................................:Onforu TestModel...........................................:BDB60SX-3 Ratings.................................................:Input:100-240V~,50/60Hz,0.6A,55W Result..................................................:Positive Compiledby:Supervisedby:Approvedby: DiamondLu/AdministratorCaryLuo/TechniqueprincipalGavinLiang/Manager Page3of36FCCID:2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA08124234EA September20,2024 Dateofissue TestModel.............................. : BDB60SX-3 EUT......................................... : FloodlightCamera Applicant...............................:ShenZhenShiMengZhiTuoKeJiYouXianGongSi Address...................................:QianWanyilu1haoAdong201shi,qianhaishengang hezuoqushenzhen,guangdong,518000China Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:ShenZhenShiMengZhiTuoKeJiYouXianGongSi Address...................................:QianWanyilu1haoAdong201shi,qianhaishengang hezuoqushenzhen,guangdong,518000China Telephone...............................:/ Fax..........................................:/ Factory...................................:ShenZhenShiMengZhiTuoKeJiYouXianGongSi Address...................................:QianWanyilu1haoAdong201shi,qianhaishengang hezuoqushenzhen,guangdong,518000China Telephone...............................:/ Fax..........................................:/ Page4of36FCCID:2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000September20,2024InitialIssue-- Page5of36FCCID:2A3W8BDB60SX-3ReportNo.:LCSA08124234EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)........................................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS..........................................................................................7 1.3.EXTERNALI/OCA…

Text truncated - open the document above for the full version.

Page1of2FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 Page2of2FCCID:2A3W8BDB60SX-3 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3
