2A3WK-AP6RAWireless Access Point

Nomadix AP 6RA Wireless Access Point Hardware Installation and Reference Guide V1.00 Copyright statement Nomadix©2021 Nomadix reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Nomadix is prohibited. Exemption statement This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Nomadix website. Nomadix endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors. Preface Thank you for using our products. This manual will guide you through the installation of the access point. Scope It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance  Nomadix Website: https://nomadix.com  Service Hotline: +1 818-575-2500 Related Documents Documents Description Configuration Guide Describes network protocols and related mechanisms that supported by the product, with configuration examples. Command Reference Describes the related configuration commands, including command modes, parameter descriptions, usage guides, and related examples. Documentation Conventions The symbols used in this document are described as below: This symbol brings your attention to some helpful suggestions and references. This symbol means that you must be extremely careful not to do some things that may damage the device or cause data loss. AP 6RA Hardware Installation and Reference Guide Product Overview 1 Product Overview The AP 6RA, adhering to the latest 802.11ax standard, is a wireless access point (AP) designed by Nomadix for campus scenarios. Featuring two spatial streams each radio, this dual-radio and dual- band AP provides an access rate up to 575 Mbps at 2.4G and 1,200 Mbps at 5G, totaling 1.775 Gbps. And the 10/100/1000Base-T Ethernet port and SFP port can be used in the meantime. 1.1 Technical Specifications Table 1-1 AP 6RA Technical Specifications Model AP 6RA RF Dual radio, dual band Transmission Protocol Support concurrent 802.11ax and 802.11a/b/g/n/ac Support BLE 5.0 (Support Bluetooth serial port) BLE Support Support Bluetooth Console Operating Frequency 802.11b/g/n/ac/ax: 2.4 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.725 GHz to 5.850 GHz (Country-Specific) Antenna Type Built-in directional antenna Antenna Gain 2.4 GHz: 9 dBi 5 GHz: 9 dBi Coverage Angle 2.4G: vertical beam angle: 30°/horizontal beam angle: 60° 5G: vertical beam angle: 30°/horizontal beam angle: 60° Spatial Stream 4 Support 2.4G 2×2 MU-MIMO Support 5G 2×2 MU-MIMO Access Rate 2.4G: Up to 575 Mbps 5G: Up to 1200 Mbps Total: Up to 1.775 Gbps Modulation OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM and 256QAM OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and [email protected]/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM Receive Sensitivity 11b: -91dBm(1Mbps), -88dBm(5Mbps), -85dBm(11Mbps) 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps) 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 11ac HT20: -83dBm (MCS0), -57dBm (MCS9) 11ac HT40: -79dBm (MCS0), -57dBm (MCS9) 11ac HT80: -76dBm (MCS0), -51dBm (MCS9) AP 6RA Hardware Installation and Reference Guide Product Overview 11ax HE80: -76 dBm (MCS0), -49 dBm (MCS11) Maximum Transmit Power 28 dBm (Country-specific) Dimensions 251 mm × 168 mm × 64 mm (Excluding the bracket) Weight < 1.5kg Ports One 10/100/1000 Base-T uplink Ethernet port One SFP port One port for 48 V DC power supply Console Port Support Reset Button Support Power Supply Adapter: 44 V to 57 V DC PoE: IEEE 802.3af/at Power Consumption < 12.95W Temperature Operating: -40°C to 65°C (-40°F to 149°F) Storage: -40°C to 85°C (-40°F to 185°F) Humidity Operating: 0% to 100% (non-condensing) Storage: 0% to 100% (non-condensing) IP Rating IP68 Safety Standards GB4943, IEC 60950-1 EMC Standards GB9254, EN301 489, EN55022 Mechanical Vibration IEC61373 Radio Standards EN300 328, EN301 893 Table 1-2 LEDs of AP 6RA LED State Meaning System status Blinking green The system is booting. Solid green Initialization in progress or proper operation. Blinking orange Initialization is complete, but no CAPWAP connection. Blinking red The uplink port is disconnected. WDS RSSI (3 LEDs in total; available when bridging is enabled) 1 solid on < -70dBm 2 solid on -70 to -50dBm 3 solid on > -50dBm Table 1-3 Reset Button of AP 6RA Button State Meaning Reset button When powered on, pressed for less than 2s Resets the AP. When powered on, pressed for more than 3s Restores the factory default settings. 1.2 Product Appearance Figure 1-1 Product Appearance of the AP 6RA AP 6RA Hardware Installation and Reference Guide Product Overview Note: 1. Condole port and reset button 2. Port for 48 V DC power supply 3. 10/100/1000 Base-T auto-sensing Ethernet/PoE port 4. SFP port 1.3 Power Supply The AP supports 802.3af PoE or 44 - 57 V DC power supply. When PoE power supply is adopted, please make sure the peer end support 802.3af/802.3at, too. The lowest current output requirement for a DC power supply is 0.35 A. AP 6RA Hardware Installation and Reference Guide Preparing for Installation 2 Preparing for Installation To prevent device damage and physical injury, please read carefully the safety recommendations described in this chapter. Recommendations do not cover all possible hazardous situations. 2.1 Grounding and Lightning Protection  Ensure that both the power-receiving end and the power-supplyi…

Text truncated - open the document above for the full version.

Nomadixn lnc. Declaratio n of Auth orazation We Name: Address: City: State: Country: Nomadix, lnc. 21600 Oxnard Street - 1gth Floor Woodland Hills, California United States Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL lnc. Address: No.3 Jinshagang 1$ Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s) and signing allthe related documents including 731 forms: Product description: \Mreless Access Point Type designation: AP 6RA ttoltt Trademark: FCC ID: on our behalf. 2A3WK-AP6RA Date: 2022-01-13 City: Woodland Hills, Name: Richard E. Wagner Function: Director of Certification and Compliance s Drx H:. $$i=":' Signature:

Nomadix, lnc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC lD: 2A3WK-APORA Date: 2022.01.13 To Whom lt May Concern, Pursuant to the provisions of the Commission's rules Title 47 Sections 50.457 and $0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. I Schematic Diagram X Block Diagram E Parts List [l Operational Description I Tune-up Procedure X Software security description ln additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR 52.803 and the importation rules in Title 47 CFR 52.1204, while ensuring that business sensitive information remains confidential untilthe actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ! External Photos flTest Setup Photos n lnternal Photos n User Manual n for 45 days, pursuant to Public Notice DA 04-1705. OR fl for 180 days pursuant to KDB 726920 DO1. It is our understanding that all measurement test reports, FCC lD label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature. Name: Richard E. Wagner Title. Director of Certification and Compliance

Nomadix, lnc. Agent Authorization Gompany: Nomadix, Inc. Address: 21600 Oxnard Street - 1gth FloorWoodland Hills, California United States Product Name: Wireless Access Point Model Number(s): AP 6RA Product Description: Wireless Access Point We authorize M|COM Labs lnc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that M|COM Labs Inc. is allowed to fonrvard all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by M|COM Labs on our behalf shall have the same effect as acts of our own. Date:2022-01-13 Richard E. Wagner Signature: Name: Title: Gompany: Director of Certification and Gompliance Nomadix, lnc.

Nomadix, lnc. Ad Hoc Mode Declaration Date'. 2022-01-13 We, the undersigned company Company Name: Nomadix, lnc. Address: 21600 Oxnard Street - 1gth Floor Woodland Hills, California United States Declare that: Product description: Wireless Access Point Type designation: AP 6RA b t{or{Aotx Brand: FGC lD: 2A3WK-AP6RA 1. The EUT doesn't have Ad Hoc Mode function on "non-US frequencies". 802.11aln Ad Hoc mode should not be supported even on US DFS frequencies (5.25 -5.35GH215.47 -5.725GH2). 2. ln addition, the frequency selection feature is disabled by firmware for devices marketed to the US. The product meets all other requirements specified in Part 15E Section 15.407 and no configuration controls are provided to change the frequency of operations outside the grant of certification for US operation. 3. Only channels 1-11 will be used in USA. Country code selection is disabled. lf you have any questions regarding the authorization, please do not hesitate to contact us, thank you- Sincerely, Signature: Name: Richard E. Wagner Tel: 818-575-2500 Email: richard.wag ne r@nomad ix. com

Nomadix, lnc. Date'. 2022.01.13 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21 046 USA Attn: OET Dept. Subject: FCC lD: 2A3WK-APORA To Whom lt May Concern: We hereby attest to the fact that we have applied the Declaration of Conformity procedure for a Class B Computer Peripheral to the digital portion of this composite filing. The requirements identified in KDB 896810 and 47CFR 2.948(b) have been followed. A test report has been issued by IBTL lnc./ No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China.l and can be identified by report number IBTL-FCCP-1-2111C067 / BTL-FCCP-2- 21 1 1 C067 / BTL-FCCP -3-21 1 1 C067 / BTL-FCCP -4-21 1 1 C0671. Sincerely, Signature Richard E. Wagner Director of Certification and Compliance Nomadix, lnc. 21600 Oxnard Street - 1gth Floor Woodland Hills, California United States M|COM Labs FCC sample DofC2.O

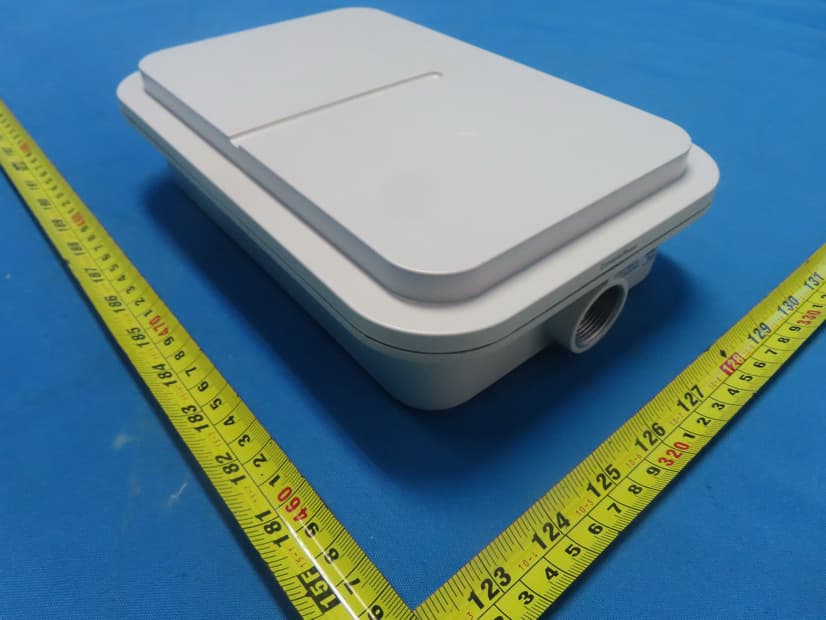

Project No.: 2111C067 Page 2 of 10 Project No.: 2111C067 Page 3 of 10

label location

Project No.: 2111C067 Page 4 of 10 WLAN 5G Ant.1 W LAN 5G Ant.2 WLAN 2.4G Ant.2 WLAN 2.4G Ant.1 BT LE Antenna Project No.: 2111C067 Page 5 of 10 Project No.: 2111C067 Page 6 of 10 Project No.: 2111C067 Page 7 of 10 Project No.: 2111C067 Page 8 of 10 Project No.: 2111C067 Page 9 of 10 Project No.: 2111C067 Page 10 of 10

Report No.: BTL-FCCP-2-2111C067 Page 1 of 151 FCC Radio Test Report FCC ID: 2A3WK-AP6RA This report concerns: Original Grant Project No. : 2111C067 Equipment : Wireless Access Point Brand Name : Test Model : AP 6RA Series Model : N/A Applicant : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Manufacturer : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Date of Receipt : Nov. 09, 2021 Date of Test : Nov. 10, 2021 ~ Dec. 28, 2021 Issued Date : Feb. 25, 2022 Report Version : R01 Test Sample : Engineering Sample No.: DG2021110941 for conducted, DG2021110942 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Chay Cai Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2111C067 Page 2 of 151 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2111C067 Page 3 of 151 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 13 2.4 DUTY CYCLE 14 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 16 2.6 SUPPORT UNITS 16 3 . AC POWER LINE CONDUCTED EMISSIONS 17 3.1 LIMIT 17 3.2 TEST PROCEDURE 17 3.3 DEVIATION FROM TEST STANDARD 17 3.4 TEST SETUP 18 3.5 EUT OPERATION CONDITIONS 18 3.6 TEST RESULTS 18 4 . RADIATED EMISSIONS 19 4.1 LIMIT 19 4.2 TEST PROCEDURE 19 4.3 DEVIATION FROM TEST STANDARD 20 4.4 TEST SETUP 21 4.5 EUT OPERATION CONDITIONS 22 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 22 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 22 4.8 TEST RESULTS - ABOVE 1000 MHZ 22 5 . BANDWIDTH 23 5.1 LIMIT 23 5.2 TEST PROCEDURE 23 5.3 DEVIATION FROM STANDARD 23 5.4 TEST SETUP 23 Report No.: BTL-FCCP-2-2111C067 Page 4 of 151 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 23 5.6 TEST RESULTS 23 6 . MAXIMUM OUTPUT POWER 24 6.1 LIMIT 24 6.2 TEST PROCEDURE 24 6.3 DEVIATION FROM STANDARD 24 6.4 TEST SETUP 24 6.5 EUT OPERATION CONDITIONS 24 6.6 TEST RESULTS 24 7 . CONDUCTED SPURIOUS EMISSIONS 25 7.1 LIMIT 25 7.2 TEST PROCEDURE 25 7.3 DEVIATION FROM STANDARD 25 7.4 TEST SETUP 25 7.5 EUT OPERATION CONDITIONS 25 7.6 TEST RESULTS 25 8 . POWER SPECTRAL DENSITY 26 8.1 LIMIT 26 8.2 TEST PROCEDURE 26 8.3 DEVIATION FROM STANDARD 26 8.4 TEST SETUP 26 8.5 EUT OPERATION CONDITIONS 26 8.6 TEST RESULTS 26 9 . MEASUREMENT INSTRUMENTS LIST 27 10 . EUT TEST PHOTO 29 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 34 APPENDIX B - R ADI ATED EMISSION - 9 KHZ TO 30 MHZ 37 APPENDIX C - R ADI ATED EMISSION - 30 MHZ TO 1000 MHZ 42 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 45 APPENDIX E - BANDWIDTH 118 APPENDIX F - MAXIMUM OUTPUT POWER 125 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 132 Report No.: BTL-FCCP-2-2111C067 Page 5 of 151 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 145 Report No.: BTL-FCCP-2-2111C067 Page 6 of 151 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 27, 2022 R01 Updated the applicant and manufacturer information. Feb. 24, 2022 Report No.: BTL-FCCP-2-2111C067 Page 7 of 151 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PA SS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.247(a)(2) Bandwidth APPENDIX E PA SS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PA SS ------ 15.247(d) Conducted Spurious Emissions APPENDIX …

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2111C067 Page 124 of 151 Test Mode TX AX(HE40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 03 2422 37.279 37.760 0.5 Complies 06 2437 37.670 37.760 0.5 Complies 09 2452 37.830 37.920 0.5 Complies CH03 CH06 CH09 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2111C067 Page 125 of 151 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2111C067 Page 126 of 151 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 10.27 0.47 10.74 27.00 0.5012 Complies 06 2437 10.33 0.47 10.80 27.00 0.5012 Complies 11 2462 11.36 0.47 11.83 27.00 0.5012 Complies Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 10.65 0.47 11.12 27.00 0.5012 Complies 06 2437 11.86 0.47 12.33 27.00 0.5012 Complies 11 2462 11.63 0.47 12.10 27.00 0.5012 Complies Test Mode TX B Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 13.94 27.00 0.5012 Complies 06 2437 14.64 27.00 0.5012 Complies 11 2462 14.97 27.00 0.5012 Complies Report No.: BTL-FCCP-2-2111C067 Page 127 of 151 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 11.62 0.23 11.85 27.00 0.5012 Complies 06 2437 11.88 0.23 12.11 27.00 0.5012 Complies 11 2462 11.73 0.23 11.96 27.00 0.5012 Complies Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 12.68 0.23 12.91 27.00 0.5012 Complies 06 2437 12.93 0.23 13.16 27.00 0.5012 Complies 11 2462 12.73 0.23 12.96 27.00 0.5012 Complies Test Mode TX G Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 15.42 27.00 0.5012 Complies 06 2437 15.67 27.00 0.5012 Complies 11 2462 15.49 27.00 0.5012 Complies Report No.: BTL-FCCP-2-2111C067 Page 128 of 151 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 7.94 0.23 8.17 27.00 0.5012 Complies 06 2437 8.14 0.23 8.37 27.00 0.5012 Complies 11 2462 8.21 0.23 8.44 27.00 0.5012 Complies Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 8.38 0.23 8.61 27.00 0.5012 Complies 06 2437 9.27 0.23 9.50 27.00 0.5012 Complies 11 2462 8.33 0.23 8.56 27.00 0.5012 Complies Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 11.40 27.00 0.5012 Complies 06 2437 11.98 27.00 0.5012 Complies 11 2462 11.51 27.00 0.5012 Complies Report No.: BTL-FCCP-2-2111C067 Page 129 of 151 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 7.75 0.43 8.18 27.00 0.5012 Complies 06 2437 8.12 0.43 8.55 27.00 0.5012 Complies 09 2452 7.76 0.43 8.19 27.00 0.5012 Complies Test Mode TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 9.28 0.43 9.71 27.00 0.5012 Complies 06 2437 9.38 0.43 9.81 27.00 0.5012 Complies 09 2452 9.66 0.43 10.09 27.00 0.5012 Complies Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 12.02 27.00 0.5012 Complies 06 2437 12.24 27.00 0.5012 Complies 09 2452 12.26 27.00 0.5012 Complies Report No.: BTL-FCCP-2-2111C067 Page 130 of 151 Te s t Mode TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 8.04 0.09 8.13 27.00 0.5012 Complies 06 2437 8.11 0.09 8.20 27.00 0.5012 Complies 11 2462 8.09 0.09 8.18 27.00 0.5012 Complies Test Mode TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 8.97 0.09 9.06 27.00 0.5012 Complies 06 2437 9.63 0.09 9.72 27.00 0.5012 Complies 11 2462 8.78 0.09 8.87 27.00 0.5012 Complies Test Mode TX AX(HE20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 01 2412 11.63 27.00 0.5012 Complies 06 2437 12.04 27.00 0.5012 Complies 11 2462 11.55 27.00 0.5012 Complies Report No.: BTL-FCCP-2-2111C067 Page 131 of 151 Test Mode TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 7.95 0.16 8.11 27.00 0.5012 Complies 06 2437 8.31 0.16 8.47 27.00 0.5012 Complies 09 2452 7.85 0.16 8.01 27.00 0.5012 Complies Test Mode TX AX(HE40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 9.66 0.16 9.82 27.00 0.5012 Complies 06 2437 9.87 0.16 10.03 27.00 0.5012 Complies 09 2452 9.55 0.16 9.71 27.00 0.5012 Complies Test Mode TX AX(HE40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 03 2422 12.06 27.00 0.5012 Complies 06 2437 12.33 27.00 0.5012 Complies 09 2452 11.96 27.00 0.5012 Complies Report No.: BTL-FCCP-2-2111C067 Page 132 of 151 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS Report No.: BTL-FCCP-2-2111C067 Page 133 of 151 Test Mode TX B Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-2-2111C067 Page 134 of 151 Test Mode TX B Mode_A…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2111C067 Page 143 of 151 Test Mode TX AX(HE40) Mode_Ant. 1 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-2-2111C067 Page 144 of 151 Test Mode TX AX(HE40) Mode_Ant. 2 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: BTL-FCCP-2-2111C067 Page 145 of 151 APPENDIX H - POWER SPECTRAL DENSITY Report No.: BTL-FCCP-2-2111C067 Page 146 of 151 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -11.13 1.99 Complies 06 2437 -11.22 1.99 Complies 11 2462 -11.75 1.99 Complies CH01 CH06 CH11 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -12.09 1.99 Complies 06 2437 -11.22 1.99 Complies 11 2462 -12.47 1.99 Complies CH01 CH06 CH11 Test Mode TX B Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -8.57 1.99 Complies 06 2437 -8.21 1.99 Complies 11 2462 -9.08 1.99 Complies Report No.: BTL-FCCP-2-2111C067 Page 147 of 151 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -12.27 1.99 Complies 06 2437 -12.89 1.99 Complies 11 2462 -11.87 1.99 Complies CH01 CH06 CH11 Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -14.78 1.99 Complies 06 2437 -13.92 1.99 Complies 11 2462 -14.31 1.99 Complies CH01 CH06 CH11 Test Mode TX G Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -10.34 1.99 Complies 06 2437 -10.36 1.99 Complies 11 2462 -9.91 1.99 Complies Report No.: BTL-FCCP-2-2111C067 Page 148 of 151 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -16.87 1.99 Complies 06 2437 -18.04 1.99 Complies 11 2462 -17.85 1.99 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -15.02 1.99 Complies 06 2437 -16.32 1.99 Complies 11 2462 -16.57 1.99 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -12.84 1.99 Complies 06 2437 -14.09 1.99 Complies 11 2462 -14.15 1.99 Complies Report No.: BTL-FCCP-2-2111C067 Page 149 of 151 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -19.23 1.99 Complies 06 2437 -19.61 1.99 Complies 09 2452 -19.54 1.99 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -19.11 1.99 Complies 06 2437 -18.21 1.99 Complies 09 2452 -17.02 1.99 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -16.16 1.99 Complies 06 2437 -15.84 1.99 Complies 09 2452 -15.09 1.99 Complies Report No.: BTL-FCCP-2-2111C067 Page 150 of 151 Test Mode TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -17.71 1.99 Complies 06 2437 -18.61 1.99 Complies 11 2462 -17.82 1.99 Complies CH01 CH06 CH11 Test Mode TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -15.39 1.99 Complies 06 2437 -17.08 1.99 Complies 11 2462 -15.13 1.99 Complies CH01 CH06 CH11 Test Mode TX AX(HE20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -13.39 1.99 Complies 06 2437 -14.77 1.99 Complies 11 2462 -13.26 1.99 Complies Report No.: BTL-FCCP-2-2111C067 Page 151 of 151 Test Mode TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -20.90 1.99 Complies 06 2437 -21.88 1.99 Complies 09 2452 -20.43 1.99 Complies CH03 CH06 CH09 Test Mode TX AX(HE40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -18.21 1.99 Complies 06 2437 -18.84 1.99 Complies 09 2452 -19.04 1.99 Complies CH03 CH06 CH09 Test Mode TX AX(HE40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -16.34 1.99 Complies 06 2437 -17.09 1.99 Complies 09 2452 -16.67 1.99 Complies End of Test Report

Report No.: BTL-FCCP-1-2 111C0 67 Page 1 of 77 FCC Radio Test Report FCC ID: 2A3WK-AP6RA This report concerns: Original Grant Project No. : 2111C067 Equipment : Wireless Access Point Brand Name : Test Model : AP 6RA Series Model : N/A Applicant : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Manufacturer : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Date of Receipt : Nov. 09, 2021 Date of Test : Nov. 10, 2021 ~ Jan. 21, 2022 Issued Date : Feb. 25, 2022 Report Version : R01 Test Sample : Engineering Sample No.: DG2021110941 for conducted, DG2021110942 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Chay Cai Add: No. 3 Jinshagang 1st Rd. Shixia, Dalang Town Dongguan City, Guangdong 523792 People’s Republic of China Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2 111C0 67 Page 2 of 77 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's repo…

Text truncated - open the document above for the full version.
