2A3WK-AP6WBWireless Access Point

Nomadix AP 6WB Access Point Hardware Installation and Reference Guide Document Version: V1.0 Date: October 28, 2022 Preface Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Conventions 1. Signs The signs used in this document are described as follows: Warning An alert that calls attention to important rules and information that if not understood or followed can result in data loss or equipment damage. Caution An alert that calls attention to essential information that if not understood or followed can result in function failure or performance degradation. Note An alert that contains additional or supplementary information that if not understood or followed will not lead to serious consequences. Specification An alert that contains a description of product or version support. 2. Note The manual offers configuration information (including model, port type and command line interface) for indicative purpose on l y. In case of any discrepancy or inconsistency between the manual and the actual version, the actual version prevails. I Contents Preface ................................................................................................................................................... I 1 Product Introduction ........................................................................................................................... 4 1.1 Overview .................................................................................................................................... 4 1.2 Product Pictures ......................................................................................................................... 5 1.3 Package Contents...................................................................................................................... 8 1.4 Technical Specifications ............................................................................................................ 8 1.4.1 Dimensions and Weight ................................................................................................. 8 1.4.2 RF Specifications ........................................................................................................... 8 1.4.3 Port Specifications ....................................................................................................... 10 1.4.4 Power Supply and Consumption ................................................................................. 10 1.4.5 Environment and Reliability ......................................................................................... 11 1.5 LED and Button ........................................................................................................................ 11 2 Preparing for Installation .................................................................................................................. 12 2.1 Safety Precautions ................................................................................................................... 12 2.1.1 General Safety Precautions ......................................................................................... 13 2.1.2 Handling Safety ............................................................................................................ 13 2.1.3 Electric Safety .............................................................................................................. 13 2.1.4 Storage Security .......................................................................................................... 13 2.2 Installation Environment Requirements ................................................................................... 14 2.2.1 Bearing Requirements ................................................................................................. 14 2.2.2 Ventilation Requirements ............................................................................................. 14 2.2.3 Space Requirements ................................................................................................... 14 2.2.4 Temperature/Humidity Requirements .......................................................................... 14 2.2.5 Cleanliness Requirements ........................................................................................... 14 2.2.6 Anti-Interference Requirements ................................................................................... 15 2.2.7 Lightning Protection Requirements ............................................................................. 16 2.2.8 Other Requirements ..................................................................................................... 16 2.3 Tools ........................................................................................................................................ 16 i 3 Installation ........................................................................................................................................ 16 3.1 Installation Procedure .............................................................................................................. 16 3.2 Checking Before Installation .................................................................................................... 17 3.3 Precautions .............................................................................................................................. 18 3.4 Installing the Device ................................................................................................................. 19 3.4.1 Embedding in an 86-type Panel................................................................................... 19 3.4.2 Removing the AP ......................................................................................................... 23 3.5 Connecting Cables...............................................................................................…

Text truncated - open the document above for the full version.

Nomadix, Inc. Supplier’s Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Nomadix, Inc. , 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States U.S. Responsible Party: Nomadix, Inc. , 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Contact Person: Tel.: 818-575-2500 Email: [email protected] Model: AP 6WB Classification: FCC Part 15B We hereby declare that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC rule part(s) e.g. 15B and the most accurate measurement standards. We confirm that the necessary steps have been taken and are in force to assure that production units of the same equipment will continue to comply with the Commission’s requirements. 2023-03-21 Richard E. Wagner ------------- -------------------- Date: Signature:

Rev 1/26/2023 (Nomadix, Inc.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-21-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: 2A3WK Nomadix, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0031721350 Name: Nomadix, Inc. Address: 21600 Oxford Street - 19th Floor Woodland Hills, CA 91367 United Statesr Contact Person: Richard E. Wagner Tel.: 818-575-2500 Email: [email protected] Sincerely, [Nomadix, Inc.] [Richard E. Wagner] [Applicant signature]

Rev 1/26/2023 (Nomadix, Inc.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-21-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2A3WK-AP6WB Nomadix, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Richard E. Wagner) Rev 1/26/2023 (Nomadix, Inc.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-21-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2A3WK-AP6WB Nomadix, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Richard E. Wagner)

Nomadix, Inc. Date: 2023.03.21 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2A3WK-AP6WB Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature Richard E. Wagner

Nomadix, Inc. Declaration of Authorization We Name: Nomadix, Inc. Address: 21600 Oxnard Street - 19th Floor City: Woodland Hills, California Country: United States Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3,Jinshagang 1st Road, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Wireless Access Point Type designation: AP 6WB Trademark: FCC ID : 2A3WK-AP6WB on our behalf. Date: 2023-03-21 City: Woodland Hills, California Name: Richard E. Wagner Function: Director of Certification and Compliance Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

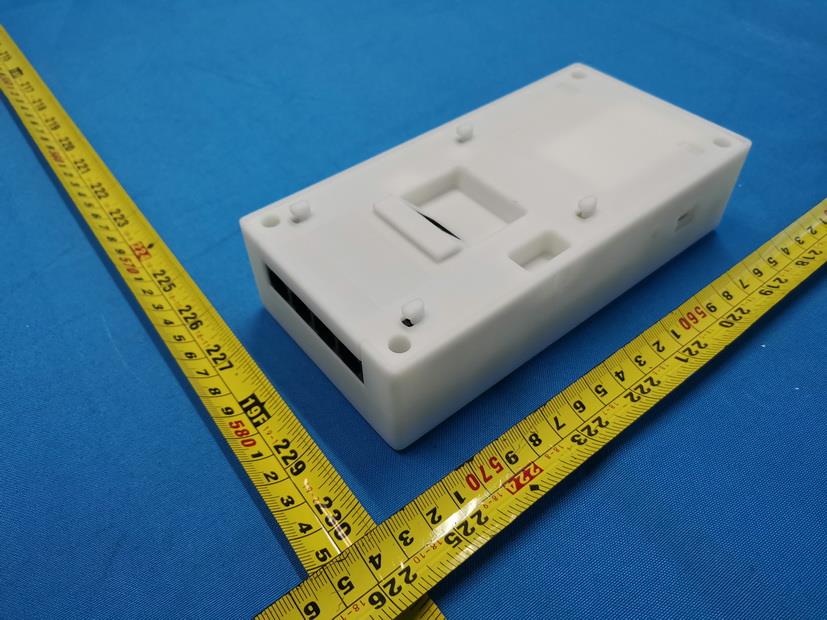

Page 1 of 4 Appendix for External Photographs Project No: 022022-5921 Equipment: Wireless Access Point Model: AP 6WB FCC ID: 2A3WK-AP6WB Page 2 of 4 Page 3 of 4 Page 4 of 4

Do Not Scale Drawing DIM IN MM Q'TY 1/1 PC VERSION CHANGE Refer to Table Level if Tolerance is not marked DIM. GRADE RevExplainNameDate 1Release Top Secret Tooling Name MODEL RG-AP180-INAMEAppearance dimension drawingSCALE 1 / 1 DSNHale lu PART.NOSHEET 1 OF 1 CHK MATERIALREV. 1.0 APV DATE FILE Sep-22-22 Label Location

Page 1 of 9 Appendix for Internal Photographs Project No: 022022-5921 Equipment: Wireless Access Point Model: AP 6WB FCC ID: 2A3WK-AP6WB Page 2 of 9 Page 3 of 9 Ant.1 Ant.2 Page 4 of 9 Ant. BLE Ant.1 Ant.2 Page 5 of 9 Page 6 of 9 Page 7 of 9 Page 8 of 9 Page 9 of 9

Report No.: FCC022022-5921RF14 Page 1 of 7 Product Name: Wireless Access Point Report No: FCC022022-5921RF14 Product Model: AP 6WB Security Classification: Open Version: V1.0 Total Page: 7 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-5921RF14 Page 2 of 7 FCC RF EXPOSURE REPORT FCC ID: 2A3WK-AP6WB Project No. Equipment Brand Name Test Model Series Model Applicant Address : 22022-05921 : Wireless Access Point : Nomadix : AP 6WB : NA : Nomadix, Inc. : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Manufacturer : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Factory : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Date of Receipt : Dec. 12, 2022 Date of Test : Dec. 12, 2022~Dec. 13, 2022 Issued Date : Dec. 21, 2022 Report Version : V1.0 Test Sample : 20221103020001 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10-2013 •The test result referred exclusively to the presented test model /sample. •Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China TEL: +86-0755-27087573 Report No.: FCC022022-5921RF14 Page 3 of 7 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-5921RF14 V1.0 Original Report Dec. 21, 2022 Valid Report No.: FCC022022-5921RF14 Page 4 of 7 1. TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 FCC Accredited Lab. Designation Number: CN1309 FCC Test Firm Registration Number: 825524 Telephone: +86-0755-27087573 Report No.: FCC022022-5921RF14 Page 5 of 7 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna For BLE: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 Wanshih TW2WFI0035A PIFA N/A 2.5 Note: The antenna gain is provided by the manufacturer. For WIFI 2.4GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 Wanshih TW2WFI0036A PIFA MHF 3.7 2 Wanshih TW2WFI0037A PIFA MHF 5.6 Note: 1)This EUT supports MIMO 2X2, any transmit signals are correlated with each other, so Directional gain=10log[(10 G1/20 +10 G2/20 ) 2 /N]dBi, that is Directional gain=10log[(10 3.7/20 +10 5.6/20 ) 2 /2]dBi =7.71. 2)The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: Operating Mode TX Mode 2TX IEEE 802.11b V(Ant. 1 + Ant. 2) IEEE 802.11g V(Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V(Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V(Ant. 1 + Ant. 2) IEEE 802.11ax(HE40) V(Ant. 1 + Ant. 2) Report No.: FCC022022-5921RF14 Page 6 of 7 For WIFI 5GHz: Antenna Specification: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 Wanshih TW2WFI0036A PIFA MHF 4.6 2 Wanshih TW2WFI0037A PIFA MHF 5.5 Note: 1） This EUT supports MIMO 2X2, any transmit signals are correlated with each other, so Directional gain=10log[(10 G1/20 +10 G2/20 ) 2 /N]dBi, that is Directional gain=10log[(10 4.6/20 +10 5.5/20 ) 2 /2]dBi =8.07. 2） The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: Operating Mode TX Mode 2TX IEEE 802.11a V (Ant. 1 + Ant. 2) IEEE 802.11n(HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n(HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac(VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac(VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac(VHT80) V (Ant. 1 + Ant. 2) IEEE 802.11ac(VHT160) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE20) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE40) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE80) V (Ant. 1 + Ant. 2) IEEE 802.11ax(HE160) V (Ant. 1 + Ant. 2) Report No.: FCC022022-5921RF14 Page 7 of 7 3. TEST RESULTS For BT (BLE): Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Tune up Power (dBm) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 2.50 1.7783 5.20 6.00 0.0014 1 Complies For 2.4GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Tune up Power (dBm) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 7.71 5.9020 25.73 26.00 0.4675 1 Complies For 5GHz: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Tune up Power (dBm) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.07 6.4121 21.18 22.00 0.2022 1 Complies For the max simultaneous transmission MPE: Ratio Total Limit of Ratio Test Result BLE 2.4GHz 5GHz 0.0014 0.4675 0.2022 0.6711 1 Complies Note: 1. The calculated distance is 20 cm. 2. Max. Tune up Power is declared by the manufacturer. 3. WIFI 2.4GHz and 5GHz can be simultaneously transmitted. End of Test Report

Ant 2 Ant 1 Z X Y Antenna No. Operating Frequency TypeMaterialFeedingSize Ant 1BTPIFAMetalTrace22.8(L) x 5.1(W) x 4.8(H) mm 3 Ant 2WiFi 2G/5GPIFAPCBCable35(L) x 10(W) x 0.8(T) mm 3 Ant 3WiFi 2G/5GPIFAPCBCable35(L) x 10(W) x 0.8(T) mm 3 Manufacturer: Wanshih Electronic Co,. Ltd. Address: 4F 72 Wu Kong 6th Rd., Wugu Dist., New Taipei Industrial Park, New Taipei City 24891, Taiwan(R.O.C.) Return Loss – Ant 1 Return Loss – Ant 2 Return Loss – Ant 3 Isolation – Ant 1 & Ant 2 Isolation – Ant 1 & Ant 3 Isolation – Ant 2 & Ant 3 3D Pattern – Ant 1 @ 2.45GHz Z Y Z X Y -Y X Z Z Y X X 3D Pattern – Ant 2 @ 2.45GHz X Z Z Y Z Y X -Y X Z X Y 3D Pattern – Ant 2 @ 5.5GHz Z Y -Y Z X Y X Z Z Y X X 3D Pattern – Ant 3 @ 2.45GHz Z Y -Y Z X Y X Z Z Y X X 3D Pattern – Ant 3 @ 5.5GHz Z Y -Y Z X Y X Z Z Y X X 2D Pattern – Ant 1 @ 2.45GHz XY plane XZ planeYZ plane Z X Y 2D Pattern – Ant 2 @ 2.45GHz XY plane XZ planeYZ plane Z X Y 2D Pattern – Ant 2 @ 5.5GHz XY plane XZ planeYZ plane Z X Y XY plane XZ planeYZ plane Z X Y 2D Pattern – Ant 3 @ 5.5GHz XY plane XZ planeYZ plane Z X Y Peak Gain & Efficiency Ant 1 Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 MHz2.553.2 2450 MHz2.252.8 2500 MHz2.151.9 Ant 2 Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 MHz3.453.4 2450 MHz3.755.3 2500 MHz3.653.6 5150 MHz4.165.5 5550 MHz4.672.9 5850 MHz4.373.3 Ant 3 Frequency (MHz) Peak Gain (dBi) Efficiency (%) 2400 MHz5.554.3 2450 MHz5.557.9 2500 MHz5.658.1 5150 MHz4.663.2 5550 MHz5.567.5 5850 MHz4.863.3

Report No.: FCC022022-5921RF5 Page 1 of 56 Product Name: Wireless Access Point Report No: FCC022022-5921RF5 Product Model: AP 6WB Security Classification: Open Version: V1.0 Total Page: 56 TIRT Testing Report Prepared By: Checked By: Approved By: Stone Tang Randy Lv Daniel Chen Report No.: FCC022022-5921RF5 Page 2 of 56 FCC Radio Test Report FCC ID: 2A3WK-AP6WB This report concerns: Original Grant Project No. : 022022-5921 Equipment : Wireless Access Point Brand Name : Nomadix Test Model : AP 6WB Series Model : NA Applicant : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Manufacturer : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Factory : Nomadix, Inc. Address : 21600 Oxnard Street - 19th floor, Woodland Hills, California, United States Date of Receipt : Nov. 03, 2022 Date of Test : Nov. 04, 2022~Dec. 08, 2022 Issued Date : Dec. 21, 2022 Report Version : V1.0 Test Sample : 20221103020001 Standard(s) : FCC CFR Title 47, Part 15, Subpart C FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10-2013 •The test result referred exclusively to the presented test model /sample. •Without written approval of TIRT Inc. the test report shall not reproduced except in full. Lab: Beijing TIRT Technology Service Co.,Ltd Shenzhen Add: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China TEL: +86-0755-27087573 Report No.: FCC022022-5921RF5 Page 3 of 56 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.5 SUPPORT UNITS 13 3 . AC POWER LINE CONDUCTED EMISSIONS 14 3.1 LIMIT 14 3.2 TEST PROCEDURE 14 3.3 DEVIATION FROM TEST STANDARD 14 3.4 TEST SETUP 15 3.5 EUT OPERATING CONDITIONS 15 3.6 TEST RESULTS 15 4 . RADIATED EMISSIONS 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 17 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 18 4.5 EUT OPERATING CONDITIONS 19 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 19 4.7 TEST RESULT - 30 MHZ TO 1000 MHZ 19 4.8 TEST RESULT - ABOVE 1000 MHZ 19 5 . BANDWIDTH 20 5.1 LIMIT 20 5.2 TEST PROCEDURE 20 5.3 DEVIATION FROM STANDARD 20 5.4 TEST SETUP 20 Report No.: FCC022022-5921RF5 Page 4 of 56 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 20 5.6 TEST RESULTS 20 6 . MAXIMUM OUTPUT POWER 21 6.1 LIMIT 21 6.2 TEST PROCEDURE 21 6.3 DEVIATION FROM STANDARD 21 6.4 TEST SETUP 21 6.5 EUT OPERATION CONDITIONS 21 6.6 TEST RESULTS 21 7 . CONDUCTED SPURIOUS EMISSION 22 7.1 LIMIT 22 7.2 TEST PROCEDURE 22 7.3 DEVIATION FROM STANDARD 22 7.4 TEST SETUP 22 7.5 EUT OPERATION CONDITIONS 22 7.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY 23 8.1 LIMIT 23 8.2 TEST PROCEDURE 23 8.3 DEVIATION FROM STANDARD 23 8.4 TEST SETUP 23 8.5 EUT OPERATION CONDITIONS 23 8.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 25 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 27 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 30 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 32 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 35 APPENDIX E - BANDWIDTH 46 APPENDIX F - MAXIMUM OUTPUT POWER 49 Report No.: FCC022022-5921RF5 Page 5 of 56 Table of Contents Page APPENDIX G - CONDUCTED SPURIOUS EMISSION 51 APPENDIX H - POWER SPECTRAL DENSITY 55 Report No.: FCC022022-5921RF5 Page 6 of 56 REPORT ISSUED HISTORY Report No. Version Description Issued Date Note FCC022022-5921RF5 V1.0 Original Report. Dec. 21, 2022 Valid Report No.: FCC022022-5921RF5 Page 7 of 56 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart C Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emission APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable to this device. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: FCC022022-5921RF5 Page 8 of 56 1.1 TEST FACILITY Company: Beijing TIRT Technology Service Co.,Ltd Shenzhen Address: 101, 3 # Factory Building, Gongjin Electronics Shatin Community, Kengzi Street, Pingshan District, Shenzhen, China CNAS Registration Number: CNAS L14158 A2LA Registration Number: 6049.01 FCC Accredited Lab. Designation Number: CN1309 FCC Test Firm Registration Number: 825524 Telephone: +86-0755-27087573 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The TIRT measurement uncertainty as below table: Uncertainty Parameter Uncertainty Occupied Channel Bandwidth ±142.12kHz RF power conducted ±0.74dB RF power radiated ±3.25dB Spurious emissions, conducted (9kHz～40GHz) ±1.78dB Spurious emissions, radiated (9kHz～30MHz) ±2.8dB Spurious emissions, radiated (30MHz～1GHz) ±4.6dB Spurious emissions, radiated (1GHz ~ 18GHz) ±4.9dB Spurious emissions, radiated (18GHz ~ 40GHz) ±5.54dB Conduction Emissions(150kHz~30MHz) ±3.1dB Humidity ±4.6% Temperature ±0.7°C Time ±1.25% Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. Report No.: FCC022022-5921RF5 Page 9 of 56 1.3 T…

Text truncated - open the document above for the full version.

Report No.: FCC022022-5921RF1 Page 81 of 99 Test Mode TX N(HT40) Mode_Ant. 1 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-5921RF1 Page 82 of 99 Test Mode TX N(HT40) Mode_Ant. 2 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-5921RF1 Page 83 of 99 Test Mode TX AX(HE20) Mode_Ant. 1 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-5921RF1 Page 84 of 99 Test Mode TX AX(HE20) Mode_Ant. 2 Bandedge-CH01 Bandedge-CH11 CH01 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH11 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-5921RF1 Page 85 of 99 Test Mode TX AX(HE40) Mode_Ant. 1 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-5921RF1 Page 86 of 99 Test Mode TX AX(HE40) Mode_Ant. 2 Bandedge-CH03 Bandedge-CH09 CH03 – 10th Harmonic of the fundamental frequency CH06 – 10th Harmonic of the fundamental frequency CH09 – 10th Harmonic of the fundamental frequency Report No.: FCC022022-5921RF1 Page 87 of 99 APPENDIX H - POWER SPECTRAL DENSITY Report No.: FCC022022-5921RF1 Page 88 of 99 Test Mode TX B Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -1.55 6.29 Complies 06 2437 -1.47 6.29 Complies 11 2462 -1.96 6.29 Complies CH01 CH06 CH11 Test Mode TX B Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -0.88 6.29 Complies 06 2437 -1.30 6.29 Complies 11 2462 -0.94 6.29 Complies CH01 CH06 CH11 Report No.: FCC022022-5921RF1 Page 89 of 99 Test Mode TX B Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 1.81 6.29 Complies 06 2437 1.63 6.29 Complies 11 2462 1.59 6.29 Complies Report No.: FCC022022-5921RF1 Page 90 of 99 Test Mode TX G Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -8.16 6.29 Complies 06 2437 -8.76 6.29 Complies 11 2462 -8.58 6.29 Complies CH01 CH06 CH11 Test Mode TX G Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.82 6.29 Complies 06 2437 -8.97 6.29 Complies 11 2462 -8.20 6.29 Complies CH01 CH06 CH11 Report No.: FCC022022-5921RF1 Page 91 of 99 Test Mode TX G Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -4.98 6.29 Complies 06 2437 -5.85 6.29 Complies 11 2462 -5.38 6.29 Complies Report No.: FCC022022-5921RF1 Page 92 of 99 Test Mode TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -6.42 6.29 Complies 06 2437 -6.06 6.29 Complies 11 2462 -6.25 6.29 Complies CH01 CH06 CH11 Test Mode TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -7.14 6.29 Complies 06 2437 -6.37 6.29 Complies 11 2462 -7.37 6.29 Complies CH01 CH06 CH11 Report No.: FCC022022-5921RF1 Page 93 of 99 Test Mode TX N(HT20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -3.75 6.29 Complies 06 2437 -3.20 6.29 Complies 11 2462 -3.76 6.29 Complies Report No.: FCC022022-5921RF1 Page 94 of 99 Test Mode TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -9.17 6.29 Complies 06 2437 -10.76 6.29 Complies 09 2452 -11.11 6.29 Complies CH03 CH06 CH09 Test Mode TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -9.54 6.29 Complies 06 2437 -10.36 6.29 Complies 09 2452 -10.37 6.29 Complies CH03 CH06 CH09 Report No.: FCC022022-5921RF1 Page 95 of 99 Test Mode TX N(HT40) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -6.34 6.29 Complies 06 2437 -7.55 6.29 Complies 09 2452 -7.71 6.29 Complies Report No.: FCC022022-5921RF1 Page 96 of 99 Test Mode TX AX(HE20) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.89 6.29 Complies 06 2437 -6.05 6.29 Complies 11 2462 -6.22 6.29 Complies CH01 CH06 CH11 Test Mode TX AX(HE20) Mode_Ant. 2 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -5.59 6.29 Complies 06 2437 -5.59 6.29 Complies 11 2462 -6.30 6.29 Complies CH01 CH06 CH11 Report No.: FCC022022-5921RF1 Page 97 of 99 Test Mode TX AX(HE20) Mode_Total Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 01 2412 -2.73 6.29 Complies 06 2437 -2.80 6.29 Complies 11 2462 -3.25 6.29 Complies Report No.: FCC022022-5921RF1 Page 98 of 99 Test Mode TX AX(HE40) Mode_Ant. 1 Channel Frequency (MHz) Power Spectral Density (dBm/3kHz) Max. Limit (dBm/3kHz) Result 03 2422 -8.91 6.29 Complies 06 2437 -11.81 6.29 Complies 09 2452 -10.87 6.29 Complies CH03 CH06 CH09 Test Mode TX AX(HE40) Mode_Ant. 2 Channel Freq…
