2A482-65SS3ACSBaseus PowerCombo Power Strip(Smart Plug)

ShenzhenhlktechElectronicsCo.,LTD HLK-B36Onboardantennaspecification 1 Shenzhen hlktechElectronicsCo.,LTD HLK-B36Onboardantennaspecification ShenzhenhlktechElectronicsCo.,LTD HLK-B36Onboardantennaspecification 2 一、Overview ThePCBantennaisanonboardantennadesignedaccordingtothedimensionsof HLK-B36。 Figure1：PositionandeffectofHLK-B36onboardantenna 二、Basicparameter： parameterindexremarks FrequencyRange(MHz)2400-2500 Gain(dBi)2.5 StandingwaveratioV.S.W.R.＜1.5 PolarizationVertical Non-Circularity(dB)±0.5 Impedance(Ω)50 LightningProtectionDirectGround MaximumInputPower(W)50 OperatingTemperature(°C)-40~+70 RepositionTemperature(°C)-55~+80 Table1:Basicparameters ShenzhenhlktechElectronicsCo.,LTD HLK-B36Onboardantennaspecification 3 三、Returnloss（S11/VSWR） 2.4GHz2.45GHz2.5GHz S11（dB）-10.1-28-10.7 VSWR1.91.11.9 ShenzhenhlktechElectronicsCo.,LTD HLK-B36Onboardantennaspecification 4 四、Radiationmode（2.45GHz） X-YplaneX-YplaneX-Yplane Avggain(dBi)-3.5-0.36-1.76 Peakgain(dBi)2.082.51.46 ShenzhenhlktechElectronicsCo.,LTD HLK-B36Onboardantennaspecification 5 五、Sizeinformation

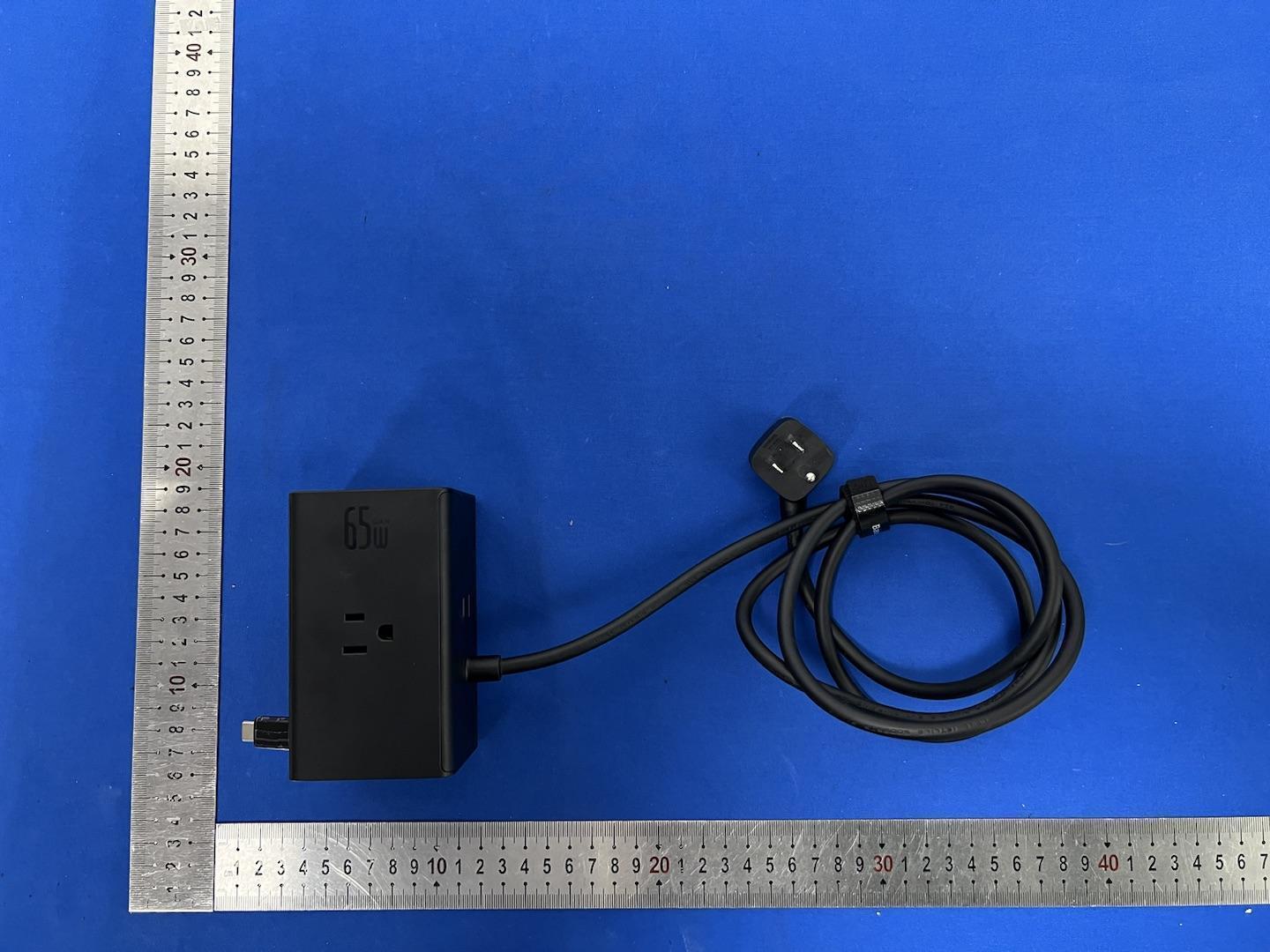

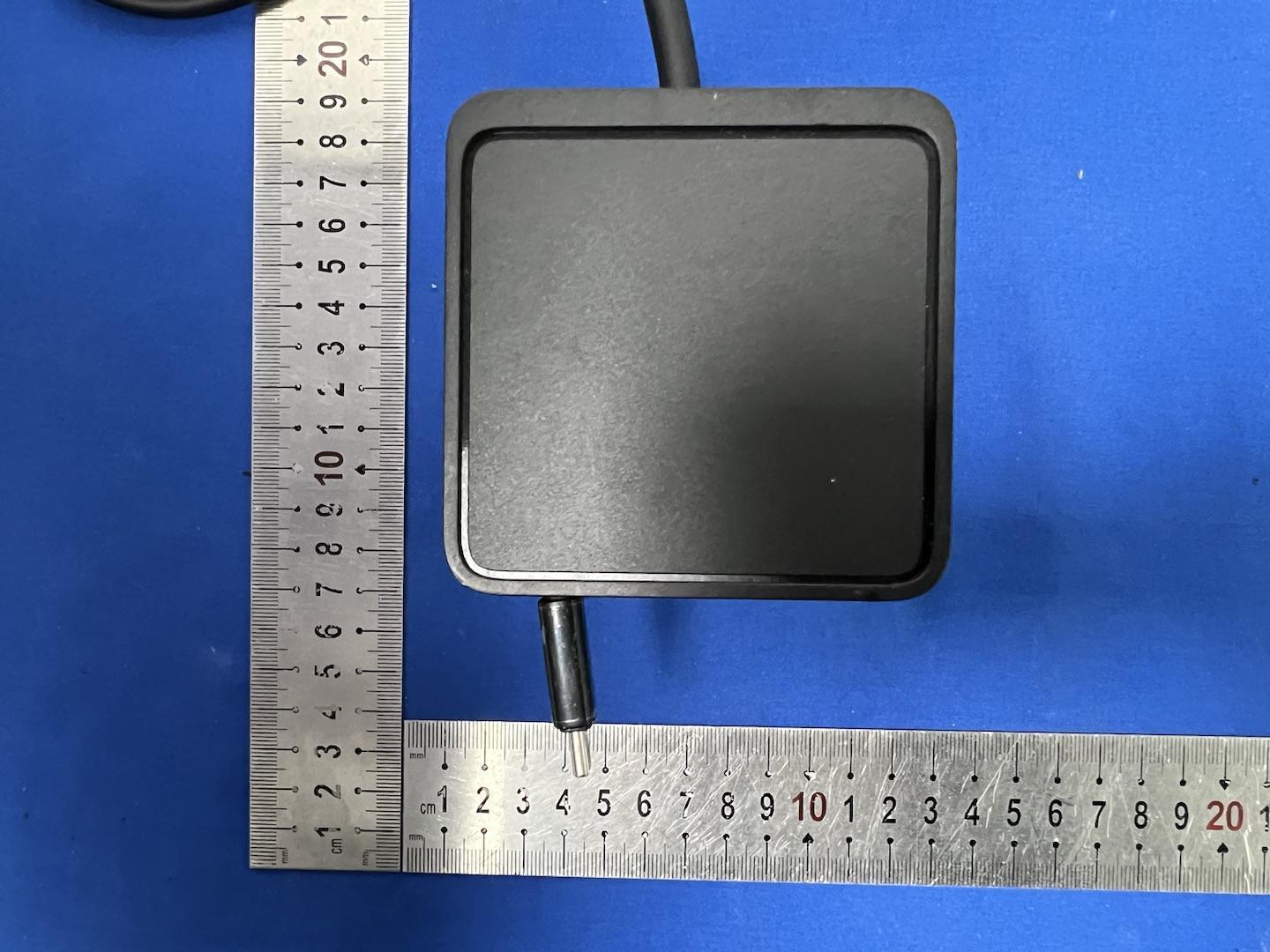

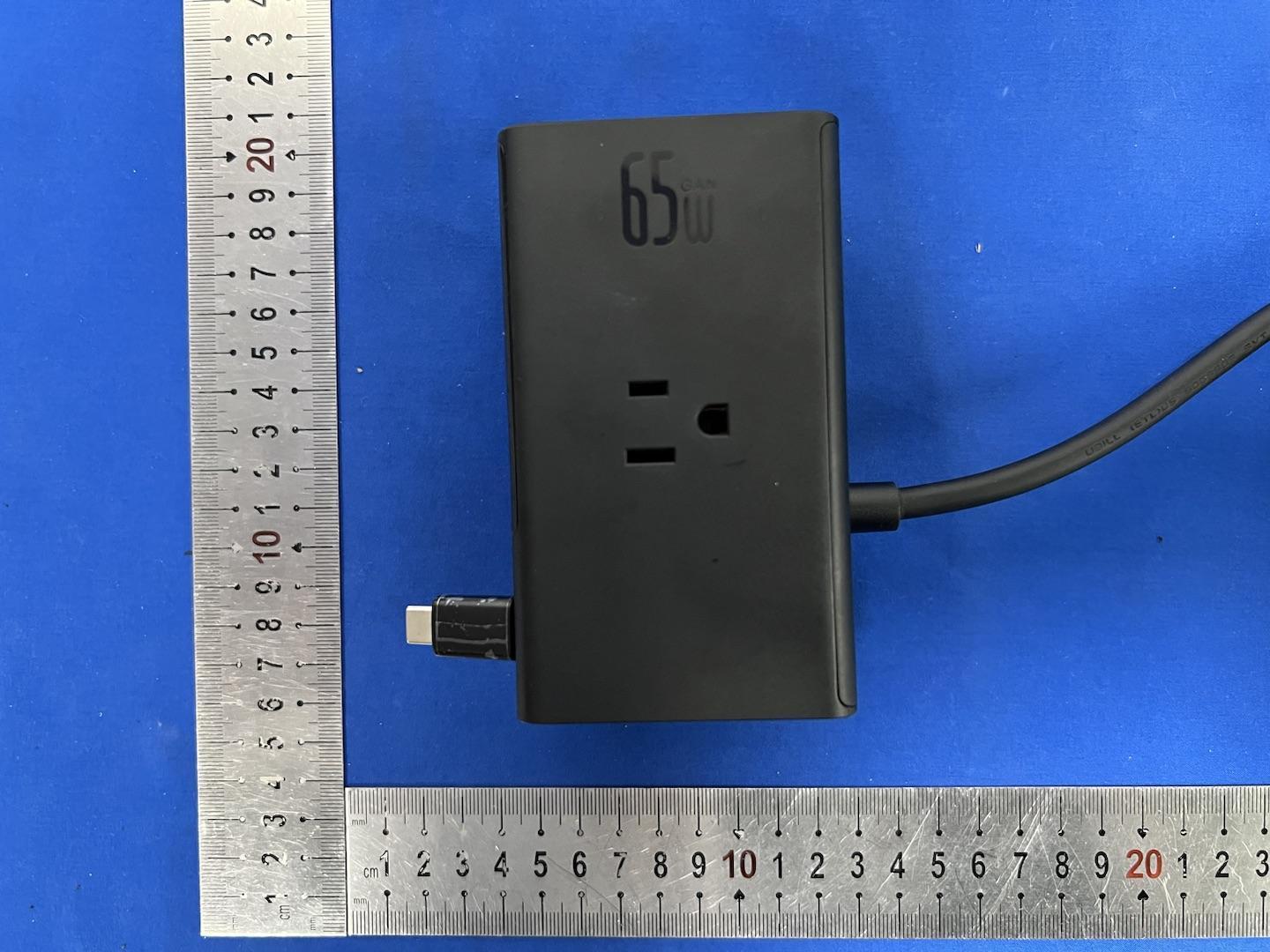

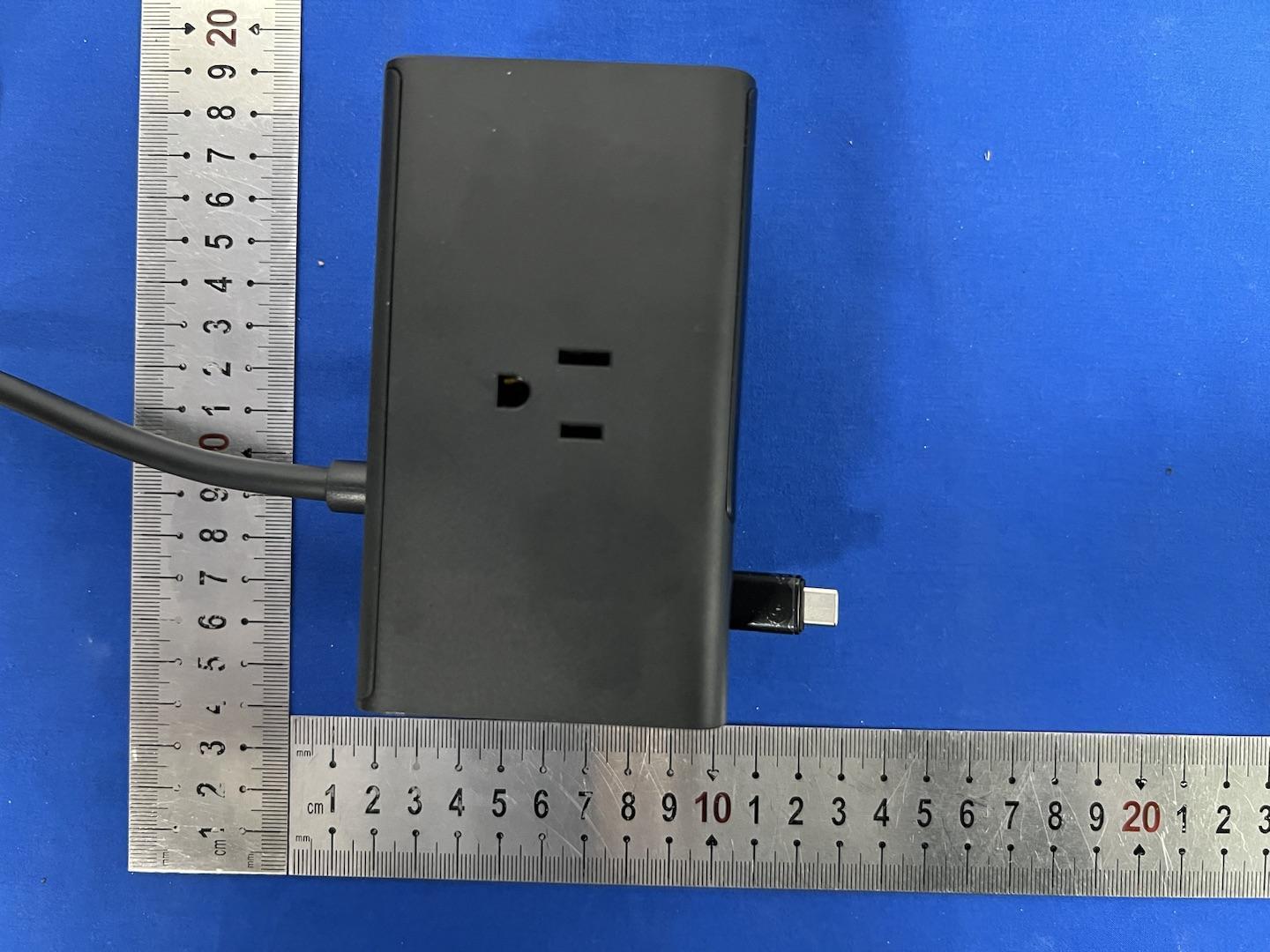

Externalphotos

制图： 修改点： 设计审核： 内容审核：石存 黄宜成 黄硕 1、接口字符： 工艺：背面丝印 颜色：锖色 金属镜面效果 （参考灵傲30w前PC面板背面丝印效果） 2、参数字符： 工艺：紫光镭雕 颜色：和GaN120W一致 （量产前需签样确认） PG3 倍思灵睿系列数字式插线板-美规V3.02023.02.01 SN码编写规则： 由供应商代码（2~4位字母）+年月 （4位数字 ，如21年8月为2108） +版本号2位数字（版本号默认01,如有多个版本则用02,03...顺延） 9.2mm 5.8mm 10.0mm CCGAN65-S3ACC Baseus PowerCombo Power Strip （Smart Plug ） Model: CCGAN65-SS3ACS Rated Volt ag e: 125V~ Rated Power : 1625W Max. Rated Curr ent : 13A Max. Input : A C100-125V~,50/60Hz, 1.5A Max. Retr ac table Type -C/T ype -C Output: 5V3A; 9V3A; 12V3A; 15V3A; 20V3.25A USB Output: 5V3A; 9V3A; 12V3A; 20V3A Retr ac table Type -C+T ype -C Output: 45W+20W Retr ac table Type -C+U SB Output: 45W+18W Type -C+U SB Output: 5V3A 15W Ret ractable Type -C+(T ype -C+U SB) Output: 45W+15W Shenzhen Baseus Technology Co ., L td. Manufactur er:PYS High-Tech Co., L td Made in China SN：PYS230201 FCC ID:2A482-65SS3ACS 5008028 CER TIFIED T O C SA STD. NO. E60730-1 CONF ORMS T O UL STD. 60730-1

Internalphotos

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20230200157E-03 Applicant:ShenzhenBaseusTechnologyCo.,Ltd. AddressofApplicant:2ndFloor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd, GangtouCommunity,BantianStreet,LonggangDistrict,Shenzhen. EquipmentUnderTest(EUT): EUTName:BaseusPowerComboPowerStrip(SmartPlug) ModelNo.:CCGAN65-SS3ACS TestModelNo.:CCGAN65-SS3ACS BrandName:Baseus FCCID:2A482-65SS3ACS Standards: 47CFRPart1.1307 47CFRPart1.1310 447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2023-02-13 DateofTest: 2023-02-13to2023-02-22 DateofIssue:2023-03-13 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-03 Page:2of8 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20230200157E-03Rev.01 Initialreport 2023-03-13 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-03 Page:3of8 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOFBLE...................................................................................................................................4 3.4GENERALDESCRIPTIONOF2.4GWIFICLASSIC...........................................................................................................5 4MPEEVALUATION...........................................................................................................................................................6 4.1RFEXPOSURECOMPLIANCEREQUIREMENT.................................................................................................................6 4.1.1Limits....................................................................................................................................................................6 4.1.2TestProcedure...................................................................................................................................................6 4.1.3EUTRFExposure..............................................................................................................................................7 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-03 Page:4of8 3GeneralInformation 3.1ClientInformation Applicant:ShenzhenBaseusTechnologyCo.,Ltd. AddressofApplicant: 2ndFloor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd, GangtouCommunity,BantianStreet,LonggangDistrict,Shenzhen. Manufacturer: ShenzhenBaseusTechnologyCo.,Ltd. AddressofManufacturer: 2ndFloor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd, GangtouCommunity,BantianStreet,LonggangDistrict,Shenzhen. Factory:PYSHigh-TechCo.,Ltd AddressofFactory:1F~12F,Block9,LianhuaIndustrialZone,Longhua,Shenzhen, Guangdong518109CHINA 3.2GeneralDescriptionofEUT ProductName: BaseusPowerComboPowerStrip(SmartPlug) ModelNo.: CCGAN65-SS3ACS TestModelNo.: CCGAN65-SS3ACS TradeMark: Baseus SoftwareVersion: V1.0 HardwareVersion: V1.0 EUTPowerSupply: PowerfromAC120V60Hz 3.3GeneralDescriptionofBLE OperationFrequency: 2402MHz~2480MHz BluetoothVersion: BluetoothSpec5.0 ModulationTechnique: Non-FrequencyHoppingSpreadSpectrum(NFHSS) ModulationType: GFSK NumberofChannel: 40 TransferRate:1Mbps SampleType: MobilePortable AntennaType:PCBantenna AntennaGain:2.5dBi ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-03 Page:5of8 3.4GeneralDescriptionof2.4GWIFIClassic OperationFrequency: 2412MHz~2462MHz TypeofModulation: IEEEfor802.11b:DSSS(CCK,DQPSK,DBPSK) IEEEfor802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEEfor802.11n(HT20andHT40):OFDM(64QAM,16QAM,QPSK,BPSK) NumberofChannel: IEEE802.11b/g,IEEE802.11nHT20:11Channels IEEE802.11nHT40:7Channels ChannelSeparation: 5MHz TransferRate: IEEEfor802.11b: 1Mbps/2Mbps/5.5Mbps/11Mbps IEEEfor802.11g: 6Mbps/9Mbps/12Mbps/18Mbps/24Mbps/36Mbps/48Mbps/54Mbps IEEEfor802.11n(HT20): 6.5Mbps/13Mbps/19.5Mbps/26Mbps/39Mbps/52Mbps/58.5Mbps/65Mbps IEEEfor802.11n(HT40): 13.5Mbps/27Mbps/40.5Mbps/54Mbps/81Mbps/108Mbps/121.5Mbps/135Mbps SampleType: MobilePortable AntennaType:PCBantenna AntennaGain:2.5dBi Note： Theaboveparameterswilldirectlyaffectthetestresults.Theinformationisprovidedbytheapplicant. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-03 Page:6of8 4MPEEvaluation 4.1RFExposureComplianceRequirement 4.1.1Limits ThetableappliestoanyRFsource(i.e.,singlefixed,mobile,andportabletransmitters)andspecifiespower anddistancecriteriaforeachofthefivefrequencyrangesusedfortheMPElimits.Thesec…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TESTREPORT Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20230200157E-01 Applicant:ShenzhenBaseusTechnologyCo.,Ltd. AddressofApplicant:2ndFloor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd,Gangtou Community,BantianStreet,LonggangDistrict,Shenzhen. EquipmentUnderTest(EUT): Product:BaseusPowerComboPowerStrip(SmartPlug) ModelNo.:CCGAN65-SS3ACS TestModelNo.:CCGAN65-SS3ACS BrandName:Baseus FCCID:2A482-65SS3ACS Standards:47CFRPart15,SubpartC DateofReceipt:2023-02-13 DateofTest: 2023-02-13to2023-02-22 DateofIssue:2023-03-13 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove . TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:2of94 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20230200157E-01Rev.01 Initialreport 2023-03-13 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:3of94 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.102013PASS ACPowerLine Conducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.102013PASS ConductedPeak& AverageOutputPower 47CFRPart15,SubpartCSection 15.247(b)(3) ANSIC63.102013PASS 6dBOccupied Bandwidth 47CFRPart15,SubpartCSection 15.247(a)(2) ANSIC63.102013PASS PowerSpectralDensity 47CFRPart15,SubpartCSection 15.247(e) ANSIC63.102013PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102013PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102013PASS RadiatedSpurious Emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102013PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102013PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:4of94 3Contents Page 1VERSION......................................................................................................................................................................2 2TESTSUMMARY........................................................................................................................................................3 3CONTENTS..................................................................................................................................................................4 4GENERALINFORMATION.......................................................................................................................................5 4.1CLIENTINFORMATION.............................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT..........................................................................................................................5 4.3PRODUCTSPECIFICATIONSUBJECTIVETOTHISSTANDARD................................................................................5 4.4TESTENVIRONMENTANDMODE...........................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS........................................................................................................................9 4.6TESTLOCATION......................................................................................................................................................9 4.7TESTFACILITY........................................................................................................................................................9 4.8STATEMENTOFTHEMEASUREMENTUNCERTAINTY...........................................................................................10 4.9DEVIATIONFROMSTANDARDS............................................................................................................................10 4.10ABNORMALITIESFROMSTANDARDCONDITIONS..............................................................................................10 4.11OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..................................................................................10 4.12EQUIPMENTLIST................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA..................................................................................................12 5.1ANTENNAREQUIREMENT.....................................................................................................................................12 5.2CONDUCTEDEMISSIONS......................................................................................................................................13 5.3CONDUCTEDPEAK&AVERAGEOUTPUTPOWER.............................................................................................17 TestResult............................................................................................................................................................18 TestGraphs..........................................................................................................................................................19 5.46DBOCCUPYBANDWIDTH...................................................................................................................................25 TestResult............................................................................................…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:61of94 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:62of94 11N20SISO_Ant1_2462_0~Reference 11N20SISO_Ant1_2462_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:63of94 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:64of94 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:65of94 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:66of94 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:67of94 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Remark: Pretest9kHzto25GHz,findthehighestpointwhentesting,soonlytheworstdatawereshowninthetest report.PerFCCPart15.33(a)and15.31(o),Theamplitudeofspuriousemissionsfromintentional radiatorswhichareattenuatedmorethan20dBbelowthepermissiblevalueneednotbereportedunless specificallyrequiredelsewhereinthispart. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:68of94 5.8RadiatedSpuriousEmissions TestRequirement:47CFRPart15CSection15.209and15.205 TestMethod:ANSIC63.102013 TestSite:MeasurementDistance:3m(Semi-AnechoicChamber) ReceiverSetup: FrequencyDetectorRBWVBWRemark 0.009MHz-0.090MHzPeak10kHz30kHzPeak 0.009MHz-0.090MHzAverage10kHz30kHzAverage 0.090MHz-0.110MHzQuasi-peak10kHz30kHzQuasi-peak 0.110MHz-0.490MHzPeak10kHz30kHzPeak 0.110MHz-0.490MHzAverage10kHz30kHzAverage 0.490MHz-30MHzQuasi-peak10kHz30kHzQuasi-peak 30MHz-1GHzQuasi-peak100kHz300kHzQuasi-peak Above1GHz Peak1MHz3MHzPeak Peak1MHz10HzAverage Limit: Frequency Fieldstrength (microvolt/meter) Limit (dBuV/m) Remark Measurement distance(m) 0.009MHz-0.490MHz2400/F(kHz)--300 0.490MHz-1.705MHz24000/F(kHz)--30 1.705MHz-30MHz30--30 30MHz-88MHz10040.0Quasi-peak3 88MHz-216MHz15043.5Quasi-peak3 216MHz-960MHz20046.0Quasi-peak3 960MHz-1GHz50054.0Quasi-peak3 Above1GHz50054.0Average3 Note:15.35(b),Unlessotherwisespecified,thelimitonpeakradiofrequency emissionsis20dBabovethemaximumpermittedaverageemissionlimit applicabletotheequipmentundertest.Thispeaklimitappliestothetotalpeak emissionlevelradiatedbythedevice. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:69of94 TestSetup: Figure1.Below30MHz Figure2.30MHzto1GHzFigure3.Above1GHz TestProcedure: a.1)Below1G:TheEUTwasplacedonthetopofarotatingtable0.8 metersabovethegroundata3metersemi-anechoiccamber.Thetable wasrotated360degreestodeterminethepositionofthehighest radiation. 2)Above1G:TheEUTwasplacedonthetopofarotatingtable1.5 metersabovethegroundata3metersemi-anechoiccamber.Thetable wasrotated360degreestodeterminethepositionofthehighest radiation. Note:Fortheradiatedemissiontestabove1GHz: PlacethemeasurementantennaawayfromeachareaoftheEUT determinedtobeasourceofemissionsatthespecifiedmeasurement distance,whilekeepingthemeasurementantennaaimedatthesourceof emissionsateachfrequencyofsignificantemissions,withpolarization orientedformaximumresponse.Themeasurementantennamayhaveto behigherorlowerthantheEUT,dependingontheradiationpatternofthe emissionandstayingaimedattheemissionsourceforreceivingthe maximumsignal.Thefinalmeasurementantennaelevationshallbethat whichmaximizestheemissions.Themeasurementantennaelevationfor maximumemissionsshallberestrictedtoarangeofheightsoffrom1m to4mabovethegroundorreferencegroundplane. b.TheEUTwasset3metersawayfromtheinterference-receivingantenna, whichwasmountedonthetopofavariable-heightantennatower. c.Theantennaheightisvariedfromonemetertofourmetersabovethe groundtodeterminethemaximumvalueofthefieldstrength.Both horizontalandverticalpolarizationsoftheantennaaresettomakethe measurement. 1 5 0 c m ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:70of94 d.Foreachsuspectedemission,theEUTwasarrangedtoitsworstcase andthentheantennawastunedtoheightsfrom1meterto4meters(for thetestfrequencyofbelow30MHz,theantennawastunedtoheights1 meter)andtherotatabletablewasturnedfrom0degreesto360degrees tofindthemaximumreading. e.Thetest-receiversystemwassettoPeakDetectFunctionandSpecified BandwidthwithMaximumHoldMode. f.IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthe limitspecified,thentestingcouldbestoppedandthepeakvaluesofthe EUTwouldbereported.Otherwisetheemissionsthatdidnothave10dB marginwouldbere-testedonebyoneusingpeak,quasi-peakoraverage methodasspecifiedandthenreportedinadatasheet. g.TesttheEUTinthelowestchannel,themiddlechannel,theHighest channel. h.TheradiationmeasurementsareperformedinX,Y,Zaxispositioningfor Transmittingmode,AndfoundtheXaxispositioningwhichitisworse case. i.Repeataboveproceduresuntilallfrequenciesmeasuredwascomplete. ExploratoryTestMode:Transmittingwithallkindofmodulations,dataratesatlowest,middleand highestchannel. FinalTestMode:PretesttheEUTatTransmittingmodeandCharge+Transmittingmode,found theCharge+Transmittingmodewhichitisworsecase. ThroughPre-scan,findthe1Mbpsofrateistheworstcaseof802.11b;6Mbps ofrateistheworstcaseof802.11g;6.5Mbpsofrateistheworstcaseof 802.11n(HT20);13.5Mbpsofrateistheworstcaseof802.11n(HT40). Forbelow1GHz,throughPre-scan,findthe1Mbpsofrateof802.11bat middlechannelistheworstcase. Onlytheworstcaseisrecordedinthereport. TestResults:Pass ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Page:71of94 5.8.1Radiatedemissionbelow1GHz 30MHz~1GHz Vertical Remark: ThefieldstrengthiscalculatedbyaddingtheAntennaFactor,CableFactor&Preamplifier.Thebasic equationwithasamplecalculationisasfollows: Factor=AntennaFactor+CableFactor–PreamplifierFactor, Level=ReadLevel+Factor, OverLimit=Level-LimitLine. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200157E-01 Pag…

Text truncated - open the document above for the full version.

1Photographs-EUTTestSetup 1.1RadiatedSpuriousEmission 9kHz~30MHz: 30MHz~1GHz: Above1GHz: 1.2ConductedEmissionsTestSetup
