inverted L antenna Inverted L Antenna Specification Summary ITEM ANT SPEC Working Frequency Range 2400~2484 MHz Peak Gain -0.5 dBi (Typ.) Polarization Linear Azimuth Beamwidth Omni-directional Operation Temperature(°C) -40 ~85°C Impedance 50 Ohm Antenna Length 23 mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo&Length(mm) inverted L antenna

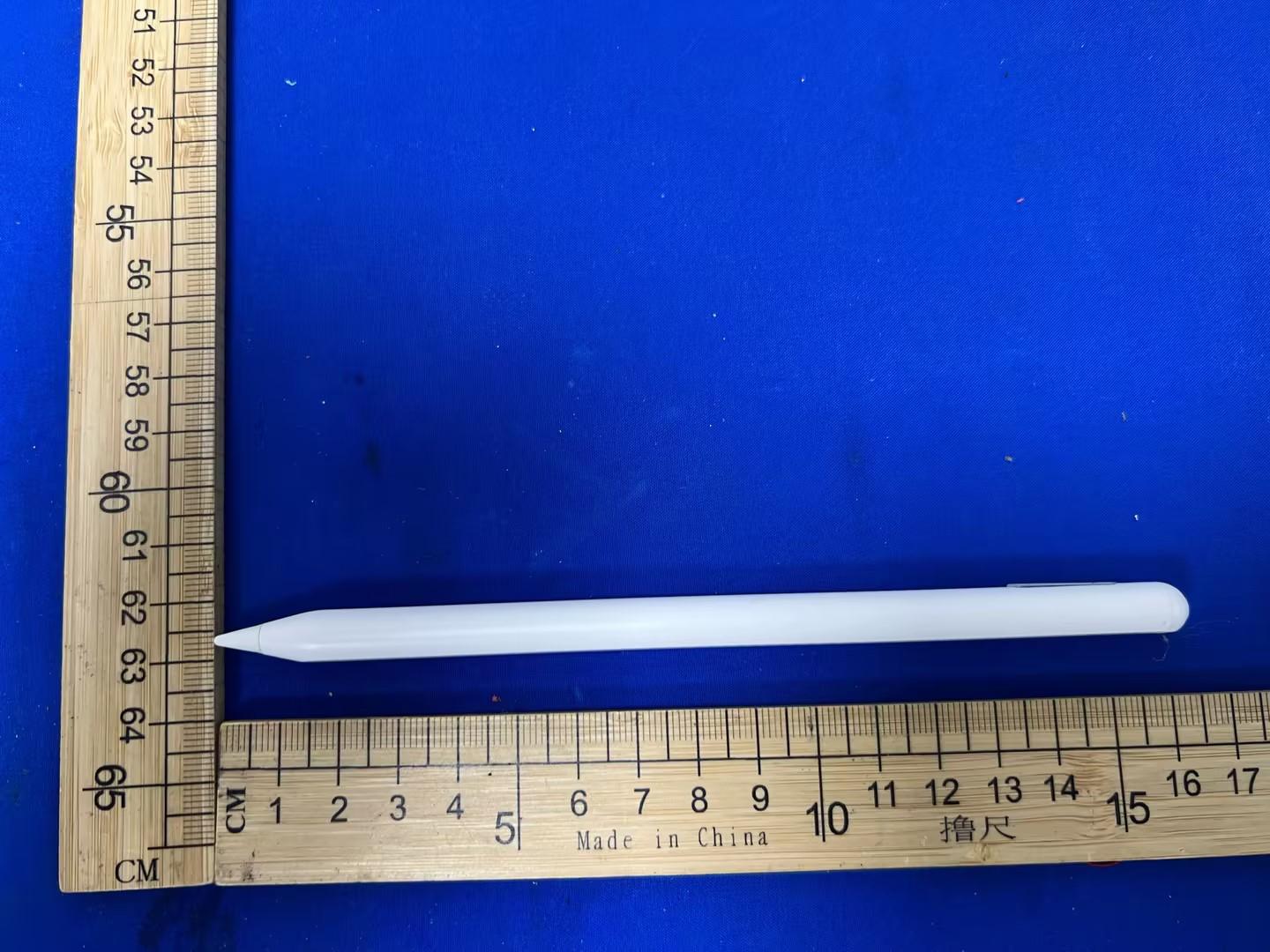

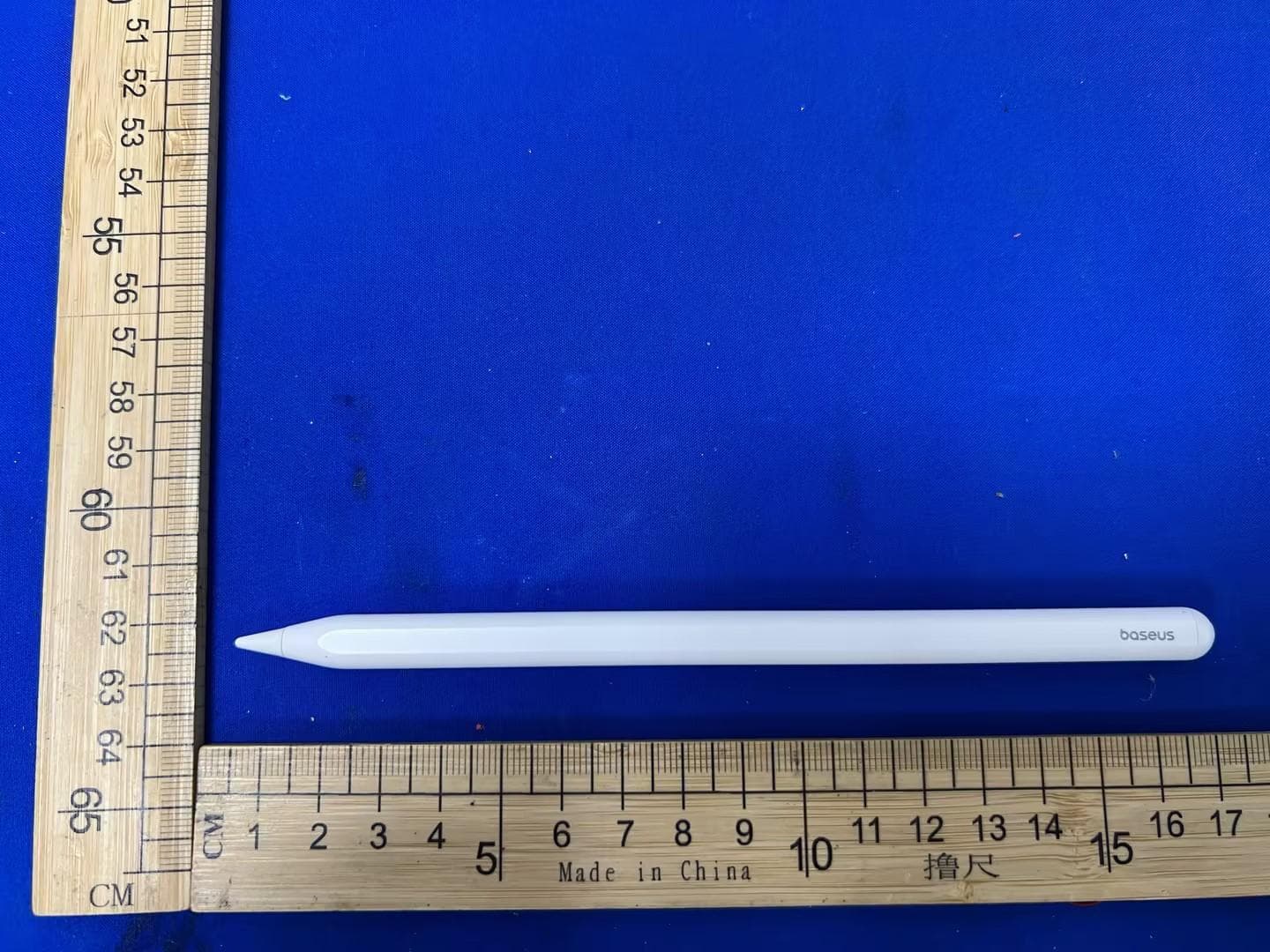

ExternalPhotos

52mm 11mm Label

InternalPhotos ANT

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20230701218E-02 Applicant: ShenzhenBaseusTechnologyCo.,Ltd. AddressofApplicant: 2 nd Floor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd,Gangtou Community,BantianStreet,LonggangDistrict,Shenzhen. EquipmentUnderTest(EUT): EUTName: BaseusSmoothWriting2SeriesWirelessChargingMultifunctionalStylus (ActiveWirelessVersion） TestModelNo.: BS-PS026 ModelNo.: BS-PS026 BrandName: FCCID:2A482-BS-PS026 Standards: 47CFRPart1.1307 47CFRPart2.1093 447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2023-07-06 DateofTest: 2023-07-06to2023-07-13 DateofIssue:2023-07-18 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-02 Page:2of7 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20230701218E-02Rev.01 Initialreport 2023-07-18 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-02 Page:3of7 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOFBLE...................................................................................................................................4 4SAREVALUATION...........................................................................................................................................................5 4.1RFEXPOSURECOMPLIANCEREQUIREMENT.................................................................................................................5 4.1.1StandardRequirement......................................................................................................................................5 4.1.2Limits....................................................................................................................................................................5 4.1.3EUTRFExposure..............................................................................................................................................7 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-02 Page:4of7 3GeneralInformation 3.1ClientInformation Applicant:ShenzhenBaseusTechnologyCo.,Ltd. AddressofApplicant: 2 nd Floor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd, GangtouCommunity,BantianStreet,LonggangDistrict,Shenzhen. Manufacturer:ShenzhenBaseusTechnologyCo.,Ltd. AddressofManufacturer: 2 nd Floor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd, GangtouCommunity,BantianStreet,LonggangDistrict,Shenzhen. Factory:YKsongPenlndustryTechR&DCenterShenzhenCo.,Ltd AddressofFactory: 5/F,buildinga1,dongzhijiaIndustrialPark,Huangmacommunity,Hangcheng street,Bao'anDistrict,ShenzhenCity,GuangdongProvince 3.2GeneralDescriptionofEUT ProductName: BaseusSmoothWriting2SeriesWirelessChargingMultifunctionalStylus (ActiveWirelessVersion） ModelNo.:BS-PS026 TestModelNoBS-PS026 TradeMark: EUTSupportsRadiosapplication: Bluetoothmode 2402-2480MHz SoftwareVersion: V1.0 HardwareVersion: V1.0 SampleType: MobilePortable EUTPowerSupply: Li-ionbattery:DC3.7V125mAh,ChargebyDC5Vforadapter 3.3GeneralDescriptionofBLE OperationFrequency: 2402MHz~2480MHz BluetoothVersion: V5.3 ModulationTechnique: NonFrequencyHoppingSpreadSpectrum(NFHSS) ModulationType: GFSK NumberofChannel: BLE:40 TransferRate:BLE:1Mbps TestSoftwareofEUT: FCC_assist_1.0.2.2 AntennaType:PCBantenna AntennaGain:-0.5dBi ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-02 Page:5of7 4SAREvaluation 4.1RFExposureComplianceRequirement 4.1.1StandardRequirement 447498D04InterimGeneralRFExposureGuidancev01 3.2.SARTestReductionGuidance SARtestreductionprocedures[Glossary]allowusingaparticularsetoftestdataas representativeofother,similar,testconditions.Thismaybeappliedfordatawithindifferenttest positions(e.g.body,head,extremity),wirelessmodes(e.g.Wi-Fi,cellular),andfrequencybands.This testreductionprocessprovidesfortheuseoftestdataforonespecificchannel,whilereferencingto thosedatafordemonstratingcomplianceinotherrequiredchannelsforeachtestpositionofan exposurecondition,withintheoperatingmodeofafrequencyband.Thisislimitedspecificallytowhen thereported1-gor10-gSARforthemid-bandorhighestoutputpowerchannelmeetsanyofthe followingconditions. 4.1.2Limits SAR-basedthresholdsarederivedbasedonfrequency,power,andseparationdistanceoftheRF source.Theformuladefinesthethresholdsingeneralforeitheravailablemaximumtime averaged powerormaximumtime-averagedERP,whicheverisgreater. IftheERPofadevice…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonly tothesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20230701218E-01 Applicant: ShenzhenBaseusTechnologyCo.,Ltd. AddressofApplicant: 2 nd Floor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd,Gangtou Community,BantianStreet,LonggangDistrict,Shenzhen. EquipmentUnderTest(EUT): Product: BaseusSmoothWriting2SeriesWirelessChargingMultifunctionalStylus (ActiveWirelessVersion） ModelNo.: BS-PS026 TestModelNo.: BS-PS026 BrandName: FCCID:2A482-BS-PS026 Standards:47CFRPart15,SubpartC DateofReceipt:2023-07-06 DateofTest: 2023-07-06to2023-07-13 DateofIssue:2023-07-18 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 2 of 55 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20230701218E-01Rev.01Initialreport2023-07-18 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 3 of 55 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.102013PASS ACPowerLine Conducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.102013PASS ConductedPeakOutput Power 47CFRPart15,SubpartCSection 15.247(b)(1) ANSIC63.102013PASS 6dBOccupied Bandwidth 47CFRPart15,SubpartCSection 15.247(a)(2) ANSIC63.102013PASS PowerSpectralDensity 47CFRPart15,SubpartCSection 15.247(e) ANSIC63.102013PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102013PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102013PASS RadiatedSpurious Emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102013PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102013PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 4 of 55 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.7TESTLOCATION........................................................................................................................................................10 4.8TESTFACILITY..........................................................................................................................................................10 4.9DEVIATIONFROMSTANDARDS..................................................................................................................................10 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.11EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER..........................................................................................................................17 5.46DBOCCUPYBANDWIDTH........................................................................................................................................21 5.5POWERSPECTRALDENSITY......................................................................................................................................25 5.6BAND-EDGEFORRFCONDUCTEDEMISSIONS..........................................................................................................29 5.7SPURIOUSRFCONDUCTEDEMISSIONS............................................…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 31 of 55 BLE_2M_Ant1_Low_2402 BLE_2M_Ant1_High_2480 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 32 of 55 5.7SpuriousRFConductedEmissions TestRequirement:47CFRPart15CSection15.247(d) TestMethod:ANSIC63.102013 TestSetup: Remark:Offset=Cableloss+attenuationfactor. Limit:Inany100kHzbandwidthoutsidethefrequencybandinwhichthespread spectrumintentionalradiatorisoperating,theradiofrequencypowerthatis producedbytheintentionalradiatorshallbeatleast20dBbelowthatinthe 100kHzbandwidthwithinthebandthatcontainsthehighestlevelofthe desiredpower,basedoneitheranRFconductedoraradiated measurement. TestMode:TransmittingwithGFSKmodulation. TestResults:Pass ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 33 of 55 Testplotasfollows: BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 34 of 55 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 35 of 55 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 36 of 55 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 37 of 55 BLE_1M_Ant1_2480_1000~26500 BLE_2M_Ant1_2402_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 38 of 55 BLE_2M_Ant1_2402_30~1000 BLE_2M_Ant1_2402_1000~26500 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 39 of 55 BLE_2M_Ant1_2440_0~Reference BLE_2M_Ant1_2440_30~1000 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 40 of 55 BLE_2M_Ant1_2440_1000~26500 BLE_2M_Ant1_2480_0~Reference ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 41 of 55 BLE_2M_Ant1_2480_30~1000 BLE_2M_Ant1_2480_1000~26500 Remark: Pretest9kHzto25GHz,findthehighestpointwhentesting,soonlytheworstdatawereshowninthetest report.PerFCCPart15.33(a)and15.31(o),Theamplitudeofspuriousemissionsfromintentionalradiators whichareattenuatedmorethan20dBbelowthepermissiblevalueneednotbereportedunlessspecifically requiredelsewhereinthispart. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 42 of 55 5.8RadiatedSpuriousEmission&Restrictedbands 5.8.1SpuriousEmissions TestRequirement:47CFRPart15CSection15.209and15.205 TestMethod:ANSIC63.102013 TestSite:MeasurementDistance:3m(Semi-AnechoicChamber) ReceiverSetup: FrequencyDetectorRBWVBWRemark 0.009MHz-0.090MHzPeak10kHz30kHzPeak 0.009MHz-0.090MHzAverage10kHz30kHzAverage 0.090MHz-0.110MHzQuasi-peak10kHz30kHzQuasi-peak 0.110MHz-0.490MHzPeak10kHz30kHzPeak 0.110MHz-0.490MHzAverage10kHz30kHzAverage 0.490MHz-30MHzQuasi-peak10kHz30kHzQuasi-peak 30MHz-1GHzQuasi-peak100kHz300kHzQuasi-peak Above1GHz Peak1MHz3MHzPeak Peak1MHz10HzAverage Limit: Frequency Fieldstrength (microvolt/meter) Limit (dBuV/m) Remark Measurement distance(m) 0.009MHz-0.490MHz2400/F(kHz)--300 0.490MHz-1.705MHz24000/F(kHz)--30 1.705MHz-30MHz30--30 30MHz-88MHz10040.0Quasi-peak3 88MHz-216MHz15043.5Quasi-peak3 216MHz-960MHz20046.0Quasi-peak3 960MHz-1GHz50054.0Quasi-peak3 Above1GHz50054.0Average3 Note:15.35(b),Unlessotherwisespecified,thelimitonpeakradio frequencyemissionsis20dBabovethemaximumpermittedaverageemission limitapplicabletotheequipmentundertest.Thispeaklimitappliestothetotal peakemissionlevelradiatedbythedevice. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 43 of 55 TestSetup: Figure1.Below30MHz Figure2.30MHzto1GHzFigure3.Above1GHz TestProcedure:a.1)Below1G:TheEUTwasplacedonthetopofarotatingtable0.8 metersabovethegroundata3metersemi-anechoiccamber.Thetable wasrotated360degreestodeterminethepositionofthehighest radiation. 2)Above1G:TheEUTwasplacedonthetopofarotatingtable1.5 metersabovethegroundata3metersemi-anechoiccamber.Thetable wasrotated360degreestodeterminethepositionofthehighest radiation. Note:Fortheradiatedemissiontestabove1GHz: PlacethemeasurementantennaawayfromeachareaoftheEUT determinedtobeasourceofemissionsatthespecifiedmeasurement distance,whilekeepingthemeasurementantennaaimedatthesource ofemissionsateachfrequencyofsignificantemissions,withpolarization orientedformaximumresponse.Themeasurementantennamayhave tobehigherorlowerthantheEUT,dependingontheradiationpatternof theemissionandstayingaimedattheemissionsourceforreceivingthe maximumsignal.Thefinalmeasurementantennaelevationshallbethat whichmaximizestheemissions.Themeasurementantennaelevation formaximumemissionsshallberestrictedtoarangeofheightsoffrom 1mto4mabovethegroundorreferencegroundplane. b.TheEUTwasset3metersawayfromtheinterference-receiving antenna,whichwasmountedonthetopofavariable-heightantenna tower. c.Theantennaheightisvariedfromonemetertofourmetersabovethe groundtodeterminethemaximumvalueofthefieldstrength.Both 1 5 0 c m ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 44 of 55 horizontalandverticalpolarizationsoftheantennaaresettomakethe measurement. d.Foreachsuspectedemission,theEUTwasarrangedtoitsworstcase andthentheantennawastunedtoheightsfrom1meterto4meters(for thetestfrequencyofbelow30MHz,theantennawastunedtoheights1 meter)andtherotatabletablewasturnedfrom0degreesto360 degreestofindthemaximumreading. e.Thetest-receiversystemwassettoPeakDetectFunctionandSpecified BandwidthwithMaximumHoldMode. f.IftheemissionleveloftheEUTinpeakmodewas10dBlowerthanthe limitspecified,thentestingcouldbestoppedandthepeakvaluesofthe EUTwouldbereported.Otherwisetheemissionsthatdidnothave10dB marginwouldbere-testedonebyoneusingpeak,quasi-peakor averagemethodasspecifiedandthenreportedinadatasheet. g.TesttheEUTinthelowestchannel(2402MHz),themiddlechannel (2440MHz),theHighestchannel(2480MHz) h.TheradiationmeasurementsareperformedinX,Y,Zaxispositioning forTransmittingmode,andfo…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 46 of 55 30MHz~1GHz,theworstcase Testmode:TransmittingmodeVertical ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 47 of 55 TransmitterEmissionabove1GHz Worsecasemode:GFSK(1Mbps)Testchannel:Lowest Frequency Meter ReadingFactor Emission LevelLimitsOver Detector TypeAnt.Pol. (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) H/V 239053.38-9.244.1874-29.82PeakH 240056.76-9.3947.3774-26.63PeakH 480452.83-4.3348.5074-25.50PeakH 720650.741.0151.7574-22.25PeakH 239052.46-9.243.2674-30.74PeakV 240051.34-9.3941.9574-32.05PeakV 480454.83-4.3350.5074-23.50PeakV 720649.051.0150.0674-23.94PeakV Worsecasemode:GFSK(1Mbps)Testchannel:Middle Frequency Meter Reading Factor Emission Level LimitsOver Detector Type Ant.Pol. (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) H/V 488051.39-4.1147.2874-26.72peakH 732048.991.5150.5074-23.50peakH 488054.20-4.1150.0974-23.91peakV 732049.301.5150.8174-23.19peakV Worsecasemode:GFSK(1Mbps)Testchannel:Highest Frequency Meter ReadingFactor Emission LevelLimitsOver Detector TypeAnt.Pol. (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) H/V 2483.554.84-9.2945.5574-28.45PeakH 496051.26-4.0447.2274-26.78PeakH 744048.291.5749.8674-24.14PeakH 2483.557.25-9.2947.9674-26.04PeakV 496050.44-4.0446.4074-27.60PeakV 744048.511.5750.0874-23.92PeakV ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 48 of 55 Worsecasemode:GFSK(2Mbps)Testchannel:Lowest Frequency Meter ReadingFactor Emission LevelLimitsOver Detector TypeAnt.Pol. (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) H/V 239054.93-9.245.7374-28.27PeakH 240055.17-9.3945.7874-28.22PeakH 480452.57-4.3348.2474-25.76PeakH 720650.631.0151.6474-22.36PeakH 239054.60-9.245.4074-28.60PeakV 240052.22-9.3942.8374-31.17PeakV 480454.07-4.3349.7474-24.26PeakV 720651.021.0152.0374-21.97PeakV Worsecasemode:GFSK(2Mbps)Testchannel:Middle Frequency Meter Reading Factor Emission Level LimitsOver Detector Type Ant.Pol. (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) H/V 488050.37-4.1146.2674-27.74peakH 732049.831.5151.3474-22.66peakH 488051.42-4.1147.3174-26.69peakV 732049.401.5150.9174-23.09peakV Worsecasemode:GFSK(2Mbps)Testchannel:Highest Frequency Meter ReadingFactor Emission LevelLimitsOver Detector TypeAnt.Pol. (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) H/V 2483.555.05-9.2945.7674-28.24PeakH 496050.91-4.0446.8774-27.13PeakH 744050.511.5752.0874-21.92PeakH 2483.556.59-9.2947.3074-26.70PeakV 496051.79-4.0447.7574-26.25PeakV 744048.751.5750.3274-23.68PeakV Remark: 1)ThefieldstrengthiscalculatedbyaddingtheAntennaFactor,CableFactor&Preamplifier.Thebasic equationwithasamplecalculationisasfollows: FinalTestLevel=ReceiverReading+AntennaFactor+CableFactor–PreamplifierFactor 2)Scanfrom9kHzto25GHz,thedisturbanceabove10GHzandbelow30MHzwasverylow.Asshownin thissection,forfrequenciesabove1GHz,thefieldstrengthlimitsarebasedonaveragelimits.However, thepeakfieldstrengthofanyemissionshallnotexceedthemaximumpermittedaveragelimitsspecified abovebymorethan20dBunderanyconditionofmodulation.So,onlythepeakmeasurementswere showninthereport. ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 49 of 55 6Photographs-EUTTestSetup 6.1RadiatedSpuriousEmission 9kHz~30MHz: 30MHz~1GHz: ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 50 of 55 Above1GHz: 6.2ConductedEmissionsTestSetup ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 51 of 55 7Photographs-EUTConstructionalDetails ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 52 of 55 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 53 of 55 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 54 of 55 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230701218E-01 Page: 55 of 55 ***ENDOFREPORT***
