2A482-F01ABaseus F01A wireless mouse

倍思创作者无线鼠标 BaseusCreatorWirelessMouse （国外版） 使用说明书 UserManual 使用产品前请仔细阅读本使用说明书，并请妥善保管。 Beforeusingtheproduct,thoroughlyreadthismanual.Keepthemanualforfuturereference. 一、产品外观说明 Overview 二、产品连接步骤 左键 Leftbutton 右键Rightbutton 滚轮Scrollwheel DPI 切换键 DPIbutton 短按一下切换DPI灵敏度 注：出厂设置默认1600DPI档位 Presstochangethemousesensitivity(DPI) Note:1600DPImousesensitivitybydefault. 电源开关键ON/OFFbutton 指示灯 Indicator USB接收器 USBreceiver ConnectionSteps 安装电池 BatteryInstallation 打开电池盖，装入电池（注意正负极），盖上电池盖。 Openthecapandinstallthebatteriesinside(makesurethepolaritiesareconnectedproperly),and closethecap. 2.4G 模式连接 2.4GModeConnection 1. 打开鼠标电源开关，取出背部 USB 接收器。 2. 将接收器插入设备，点击、移动鼠标，直至屏幕出现鼠标。 1.Turnonthemouse,andtakeouttheUSBreceiverontheback. 2.Connectthereceivertothedevice.Switchtotheconnectionmodeto2.4G.Clickandmovethemouse untilthecursorshowsuponthescreen. 三、产品参数 Specifications 名称：倍思创作者无线鼠标 型号： F01A 材质： ABS 传输距离： 20m 连接方式： 2.4G 模式 灵敏度： 800/1000/1600DPI 回报率： 250Hz 兼容系统： Windows ， HarmonyOS ， AppleOS ， Linux ， Vista 等系统 Name:BaseusCreatorWirelessMouse ModelNo.:F01A TransferDistance:20m ConnectionType:2.4Gmode Sensitivity:800/1000/1600DPI ResponseFrequency:250Hz CompatibleSystems:Windows,HarmonyOS,AppleOS,Linux,Vista,etc. * 以上数据来源 Baseus （倍思）实验室测定值，但因客观环境改变数据会有所不同或误差。 *TheabovedataaremeasuredbytheBaseuslaboratory,theactualusecanbeslightlydifferent dependingonthespecificcircumstances. 四、产品安全信息Warnings 在使用本产品前请阅读所有的指示和警告，不规范使用将会给产品或人身安全带来损害。 Beforeusingthisproduct,pleasereadallInstructionsandWarnings.  远离火源，产品内含电池，请勿将本产品储存在高温，强光及强磁场环境下。  产品使用环境温度： 0~40 °C。  非专业人员严禁分解本产品，否则可能会导致起火，甚至彻底损坏本产品。  请勿将本产品置于水中，若产品出现进水情况导致无法使用，需自行承担后果。  请勿违反产品说明书不恰当使用，造成产品损坏或危及人身财产安全，后果自行承担。 Theproductcontainsbatteryinside,DONOTexposetheproducttofiresources,hightemperature, strongsunlightorstrongmagneticfield. Therecommendedusetemperatureis32to140 ° F. DONOTattempttopersonallydisassembleormodifytheproductunderanycircumstance,forit maycausefireordamagetheproduct. DONOTimmersetheproductinwater,consumersshouldbeheldliableforanymalfunctionor damagecausedbywateringress. Consumersareliableforanyphysicalandpropertydamageduetoanyimproperuseofthe productnotmentionedherein. 五、包装清单Content  无线鼠标× 1Wirelessmouse × 1 USB 接收器× 1USBreceiver × 1  说明书× 1Usermanual × 1  保修卡× 1Warrantycard × 1 六、相关图标、产品执行标准、产品安全警示和需要增加的供应商 信息RelatedICONS,productenforcementstandards,product safetywarnings,andadditionalvendorinformation 制造商:深圳市倍思科技有限公司 manufacturer：ShenzhenBaseusTechnologyCo.,Ltd. 地址:深圳市龙岗区坂田街道岗头社区雪岗路2008号倍思智能园B栋二层 Address：2ndFloor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd,Gangtou Community,BantianStreet,LonggangDistrict,Shenzhen. 执行标准/executivestandard:GB4943.1-2011 热线/Tel:4000-712-711 网址/Http:www.baseus.com CMIITID:XXXXXXXXX FCCRequirement Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser’sauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethat maycauseundesiredoperation. Note:Thisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceina residentialinstallation.Thisequipmentgenerates,uses,andcanradiateradio frequencyenergy,andifnotinstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto trytocorrecttheinterferencebyoneormoreofthefollowingmeasures: –Reorientorrelocatethereceivingantenna. –Increasetheseparationbetweentheequipmentandreceiver. –Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. –Consultthedealeroranexperiencedradio/TVtechnicianforhelp

F01A

Antenna Specification Specifications Summary ITEMSPEC. Antenna TypePCB Antenna Center Frequency 2402 MHz 2441 MHz 2480 MHz 2.34 dBi 2.07dBi 1.45 dBi MAX. GAIN2.34 dBi PolarizationHorizontal Azimuth Beam Pattern Omni-directional Impedance50Ω Antenna Length3.1cm Antenna Photo & Length (mm) Test Address 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan Test Date2009-04-14 Test Instrument vector network analyzer - R&S ZVB20 Do ngguan Huaxing Fast Electronic Co., LTD 1. Main antenna : 2402 MHz 1.1 Horizontal Frequency(MHZ):2402Antenna Polarity:Horizontal Maximum Value(dBi):2. 34 Average Gain(dBi) :-2.48 Minimum Gain(dBi):-55.18 1.2 Vertical Frequency(MHZ):2402Antenna Polarity:Vertical Maximum Value(dBi):-4.51 Average Gain(dBi) :-8.98 Minimum Gain(dBi):-62.3 2. Main antenna : 2441 MHz 2.1 Horizontal Frequency(MHZ):2441Antenna Polarity:Horizontal Maximum Value(dBi): 2.07 Average Gain(dBi) :-2.54 Minimum Gain(dBi):-66.98 2.2 Vertical Frequency(MHZ):2441Antenna Polarity:Vertical Maximum Value(dBi):-4.29 Average Gain(dBi) :-8.81 Minimum Gain(dBi):-51.4 2. Main antenna : 2480 MHz 2.1 Horizontal Frequency(MHZ):2480Antenna Polarity:Horizontal Maximum Value(dBi):1.45 Average Gain(dBi) :-3.34 Minimum Gain(dBi):-53.4 2.2 Vertical Frequency(MHZ):2480Antenna Polarity:Vertical Maximum Value(dBi):-4.95 Average Gain(dBi) :-9.06 Minimum Gain(dBi):-60.00

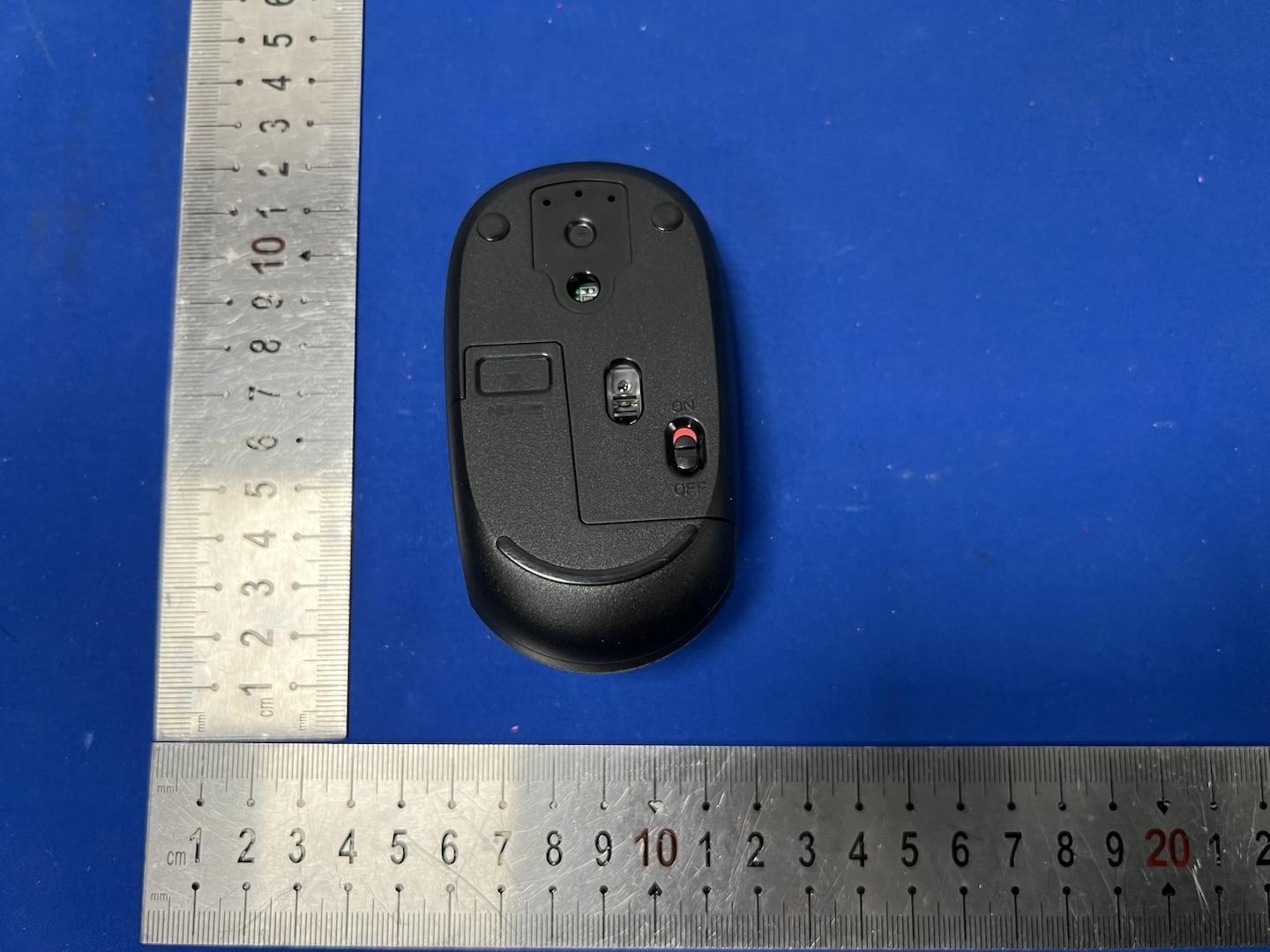

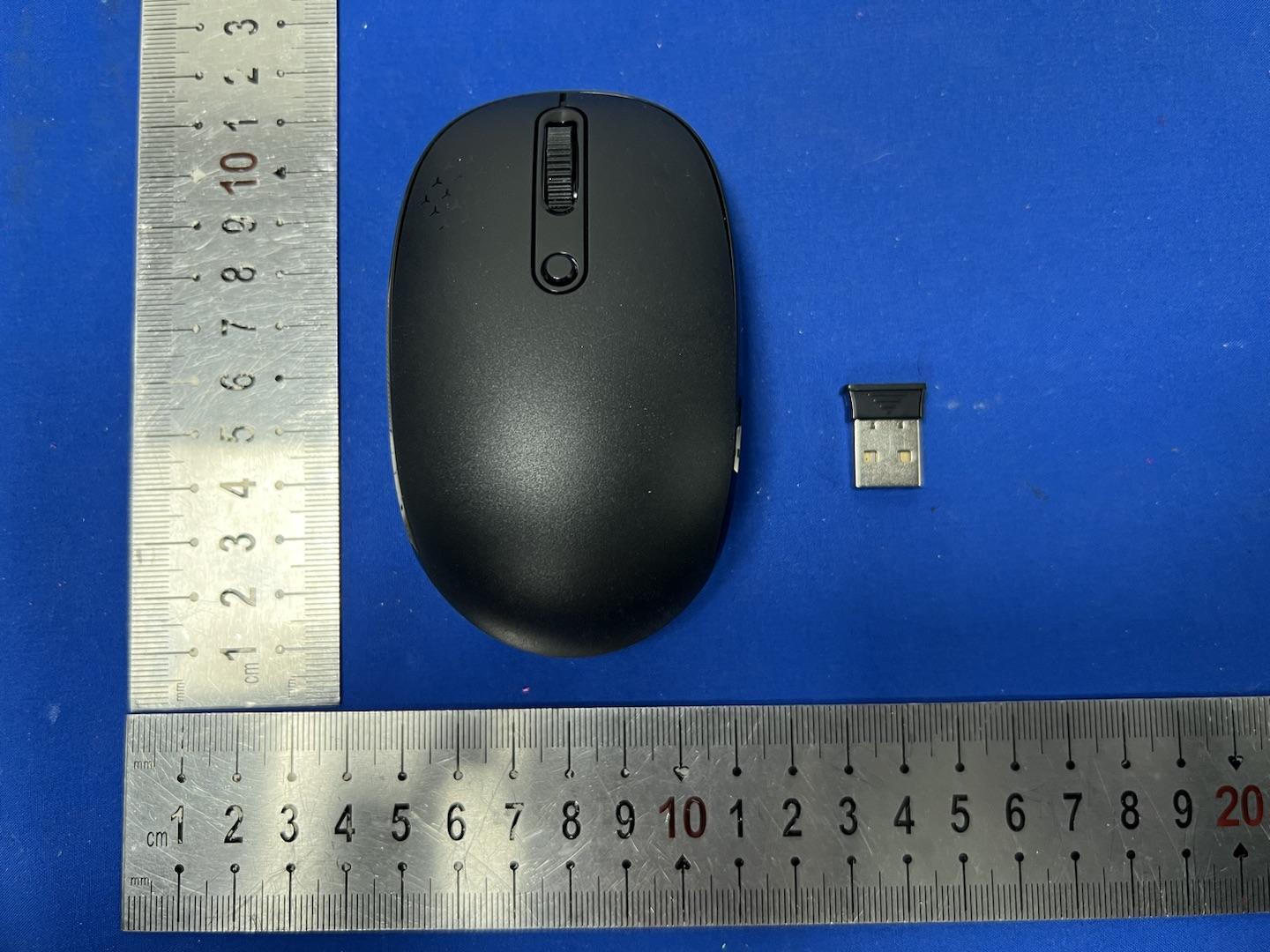

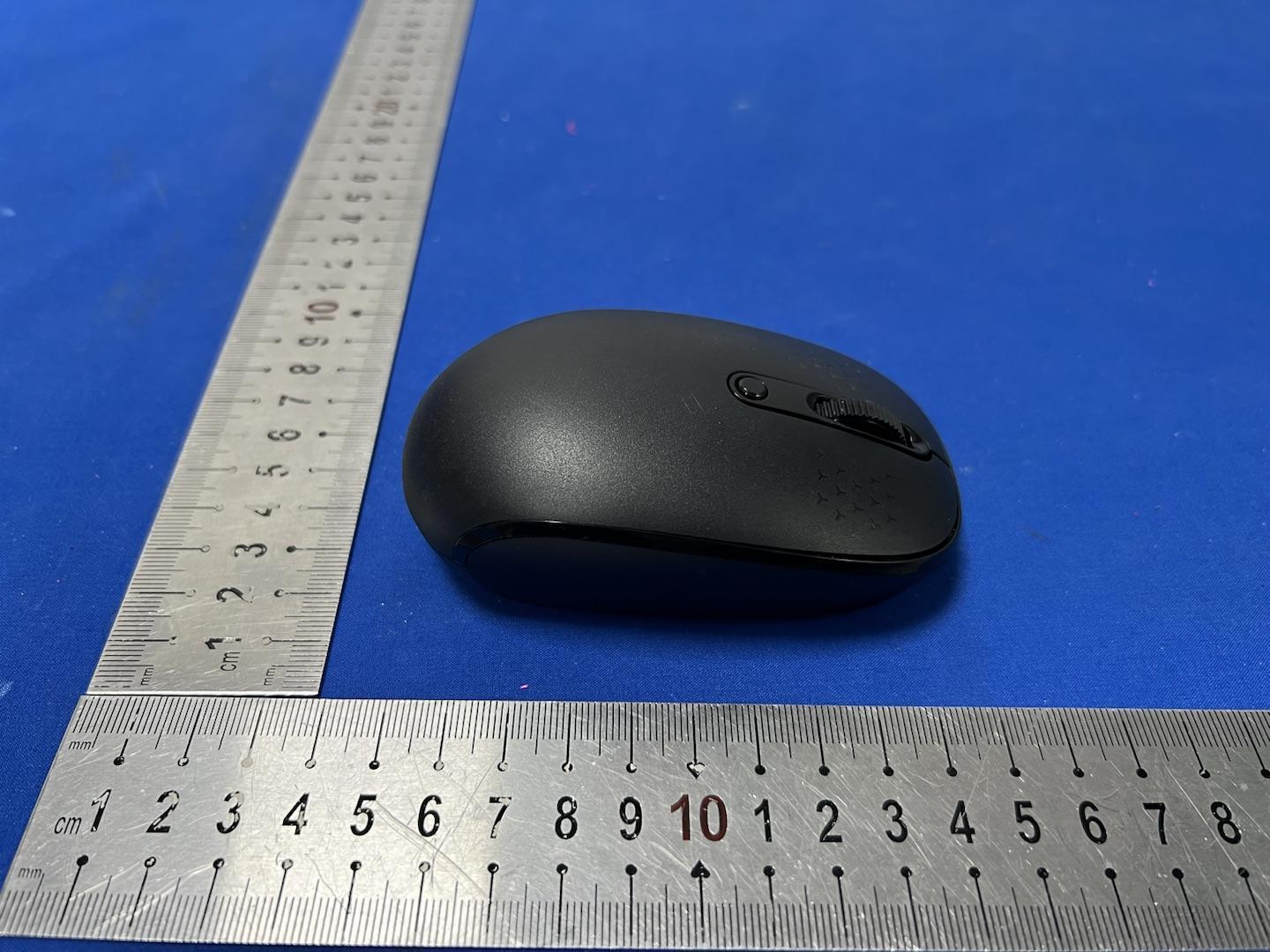

Externalphotos

1+C2.02023-3-3 张佳奇 创作家键鼠贴纸 2.4G单连鼠标 Size:27mm*18mm

Internalphotos

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonly tothesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.: CQASZ20230200200E Applicant: ShenzhenBaseusTechnologyCo.,Ltd. AddressofApplicant: 2 nd Floor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd,Gangtou Community,BantianStreet,LonggangDistrict,Shenzhen. EquipmentUnderTest(EUT): EUTName: BaseusF01Awirelessmouse ModelNo.: F01A TestModelNo.: F01A BrandName: Baseus FCCID: 2A482-F01A Standards: 47CFRPart15,SubpartC DateofReceipt:2023-02-22 DateofTest:2023-02-22to2023-03-02 DateofIssue: 2023-03-14 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200200E Page:2of29 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20230200200ERev.01 Initialreport 2023-03-14 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200200E Page:3of29 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203 ANSIC63.10(2013)PASS ACPowerLine ConductedEmission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10(2013)N/A FieldStrengthofthe FundamentalSignal 47CFRPart15,SubpartCSection 15.249(a) ANSIC63.10(2013)PASS SpuriousEmissions 47CFRPart15,SubpartCSection 15.249(a)/15.209 ANSIC63.10(2013)PASS Restrictedbands aroundfundamental frequency(Radiated Emission) 47CFRPart15,SubpartCSection 15.249(a)/15.205 ANSIC63.10(2013)PASS 20dBOccupied Bandwidth 47CFRPart15,SubpartCSection 15.215(c) ANSIC63.10(2013)PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200200E Page:4of29 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT................................................................................................................................5 4.3TESTENVIRONMENTANDMODE................................................................................................................................7 4.4DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................7 4.5STATEMENTOFTHEMEASUREMENTUNCERTAINTY...................................................................................................8 4.6TESTLOCATION..........................................................................................................................................................9 4.7TESTFACILITY............................................................................................................................................................9 4.8DEVIATIONFROMSTANDARDS...................................................................................................................................9 4.9ABNORMALITIESFROMSTANDARDCONDITIONS.......................................................................................................9 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER...........................................................................................9 4.11EQUIPMENTLIST....................................................................................................................................................10 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................11 5.1ANTENNAREQUIREMENT.........................................................................................................................................11 5.2RADIATEDEMISSION................................................................................................................................................12 5.320DBBANDWIDTH....................................................................................................................................................20 6PHOTOGRAPHS...........................................................................................................................................................23 6.1RADIATEDEMISSIONTESTSETUP............................................................................................................................23 6.2EUTCONSTRUCTIONALDETAILS.............................................................................................................................25 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230200200E Page:5of29 4GeneralInformation 4.1ClientInformation Applicant: ShenzhenBaseusTechnologyCo.,Ltd. AddressofApplicant: 2 nd Floor,BuildingB,BaseusIntelligencePark,No.2008,XuegangRd, GangtouCommunity,BantianStreet,LonggangDistrict,Shenzhen. Manufacturer: ShenzhenBaseusTechnologyCo.,Ltd. Addressof Manufacturer: 2 nd Floor,BuildingB,BaseusIntelligencePar…

Text truncated - open the document above for the full version.

1Photographs 1.1RadiatedEmissionTestSetup 9kHz~30MHz 30MHz~1GHz: Above1GHz:
